Multimodal Reasoning with Multimodal Knowledge Graph

Junlin LeeYequan WangJing LiMin Zhang

article2024ACL73 citations

Presents a parameter-efficient framework that integrates multimodal knowledge graphs into large language models via relation graph attention networks and cross-modal alignment to curb hallucinations and improve multimodal reasoning.

Listen

Large language models often struggle with multimodal tasks that require joint reasoning over images and text, frequently generating inaccurate information due to outdated or deficient internal knowledge. While external text-only knowledge graphs have been used to supplement language models, their lack of visual context restricts cross-modal understanding and leaves systems vulnerable to hallucinations.

The article aims to demonstrate that integrating structured multimodal knowledge graphs into language models significantly improves multimodal reasoning while maintaining high computational efficiency.

To evaluate this framework, the authors developed a method called MR-MKG and tested it across two distinct benchmarks: multimodal question answering on the ScienceQA dataset (comprising over 21,000 instances across diverse academic subjects) and multimodal analogical reasoning on the MARS dataset. The architecture encodes retrieved multimodal graph subgraphs using a relation graph attention network, projects both knowledge and visual tokens into the language model's representation space via lightweight adapters, and refines image-text alignment using a contrastive matching task. Credibility is further established by pretraining on an 18,448-instance multimodal knowledge dataset derived from Visual Genome scene graphs, all while keeping the core language model and visual encoder completely frozen.

The evaluation yielded several key findings. First, the method achieved state-of-the-art average accuracy of 93.63% on ScienceQA, surpassing the previous leading benchmark by 1.95% and exceeding estimated human performance of 88.40%. Second, on the MARS analogical reasoning benchmark, the approach delivered a 10.4% absolute gain in top-one accuracy (Hits@1) over baseline visual language models, reaching 40.5%. Third, the framework demonstrated remarkable parameter efficiency by updating only approximately 2.25% of the total parameter count (77M to 248M parameters), outperforming fully fine-tuned models and 13-billion-parameter systems like LLaVA across nearly all evaluation categories. Fourth, ablation experiments confirmed that structured multimodal graph knowledge contributed the single largest performance increase, adding over 5.6 to 6.7 percentage points compared to models lacking graph grounding.

These findings indicate that multimodal knowledge graphs offer a cost-effective alternative to full-parameter retraining. By updating only a tiny fraction of adapter weights, organizations can deploy high-performing multimodal AI systems with lower compute budgets, reduced latency, and shorter training schedules. Furthermore, providing explicit graph-based factual grounding directly addresses the enterprise risk of model hallucinations in complex visual-textual tasks.

Organizations developing multimodal decision systems should prioritize adapter-based integration with domain-specific multimodal knowledge graphs rather than costly end-to-end model retraining. Before broad operational deployment, technical teams should optimize knowledge retrieval pipelines, as the system's accuracy remains bounded by the quality and relevance of retrieved graph data. Future work should validate the framework on larger foundational backbones and across higher-risk operational environments where entity ambiguity or incomplete knowledge graphs could lead to retrieval errors.

Beijing Academy of Artificial Intelligence Harbin Institute of Technology reasoning knowledge graphs multimodal knowledge graph multimodal reasoning relation graph attention

arXiv: 2406.02030

Paper: Unifying Large Language Models and Knowledge Graphs: A Roadmap, Shirui Pan et al. (2023). This survey outlines fundamental strategies and paradigms for unifying large language models with knowledge graphs to combat hallucinations, establishing the conceptual foundation for multimodal graph extensions.
Paper: KAT: A Knowledge Augmented Transformer for Vision-and-Language, Liangke Gui et al. (2022). This paper presents the integration of explicit external structured knowledge into transformer architectures for visual question answering, providing key architectural groundwork for knowledge-augmented vision-language models.
Paper: JointLK: Joint Reasoning with Language Models and Knowledge Graphs for Commonsense Question Answering, Yueqing Sun et al. (2022). This work develops joint reasoning mechanisms between language models and graph neural networks over structured knowledge, which directly precedes graph-based knowledge reasoning in multimodal settings.
Paper: A survey on multimodal large language models, Shukang Yin et al. (2023). This survey provides essential background on modern multimodal large language model architectures, alignment interfaces, and training pipelines.
Paper: Align before Fuse: Vision and Language Representation Learning with Momentum Distillation, Junnan Li et al. (2021). This work introduces contrastive cross-modal alignment prior to multimodal fusion, providing fundamental principles for the alignment modules utilized in multimodal reasoning.
Paper: MMCoQA: Conversational Question Answering over Text, Tables, and Images, Yongqi Li et al. (2022). This paper establishes the task and formulation of conversational question answering over diverse multimodal knowledge sources including text, tables, and images.
Paper: MMMU: A Massive Multi-Discipline Multimodal Understanding and Reasoning Benchmark for Expert AGI, Xiang Yue et al. (2023). This benchmark defines standards and challenges in expert-level multi-discipline multimodal reasoning that require external factual knowledge.

Paper: InternVL3: Exploring Advanced Training and Test-Time Recipes for Open-Source Multimodal Models, Jinguo Zhu et al. (2025). This work advances native pretraining recipes and scaling for open-source multimodal models, extending parameter-efficient alignment and reasoning techniques.
Paper: Qwen3-VL Technical Report, Shuai Bai et al. (2025). This report explores scaled multi-stage pretraining and cross-layer visual token injection to enhance complex multimodal reasoning without degrading pure-text capabilities.
Paper: Expanding Performance Boundaries of Open-Source Multimodal Models with Model, Data, and Test-Time Scaling, Zhe Chen et al. (2024). This paper investigates progressive model and test-time reasoning scaling to expand the multimodal reasoning frontiers of vision-language models.
Paper: PreFLMR: Scaling Up Fine-Grained Late-Interaction Multi-modal Retrievers, Weizhe Lin et al. (2024). This research scales fine-grained cross-modal retrieval over external knowledge bases, providing a complementary retrieval-augmented generation framework for knowledge-intensive multimodal QA.
Paper: Multi-Modal Hallucination Control by Visual Information Grounding, Alessandro Favero et al. (2024). This work proposes decoding and preference optimization methods to control multimodal hallucinations, tackling the visual grounding and hallucination issues addressed by MR-MKG.
Paper: Hallucination Augmented Contrastive Learning for Multimodal Large Language Model, Chaoya Jiang et al. (2024). This study develops counterfactual cross-modal contrastive learning to suppress multimodal hallucinations and refine feature alignment.
Paper: T-SciQ: Teaching Multimodal Chain-of-Thought Reasoning via Large Language Model Signals for Science Question Answering, Lei Wang et al. (2024). This paper advances chain-of-thought multimodal reasoning by integrating external signals and rationales for complex scientific question answering.
Paper: M³CoT: A Novel Benchmark for Multi-Domain Multi-step Multi-modal Chain-of-Thought, Qiguang Chen et al. (2024). This benchmark evaluates multi-domain, multi-step visual reasoning and chain-of-thought capabilities, providing a rigorous testbed for multimodal reasoning models.

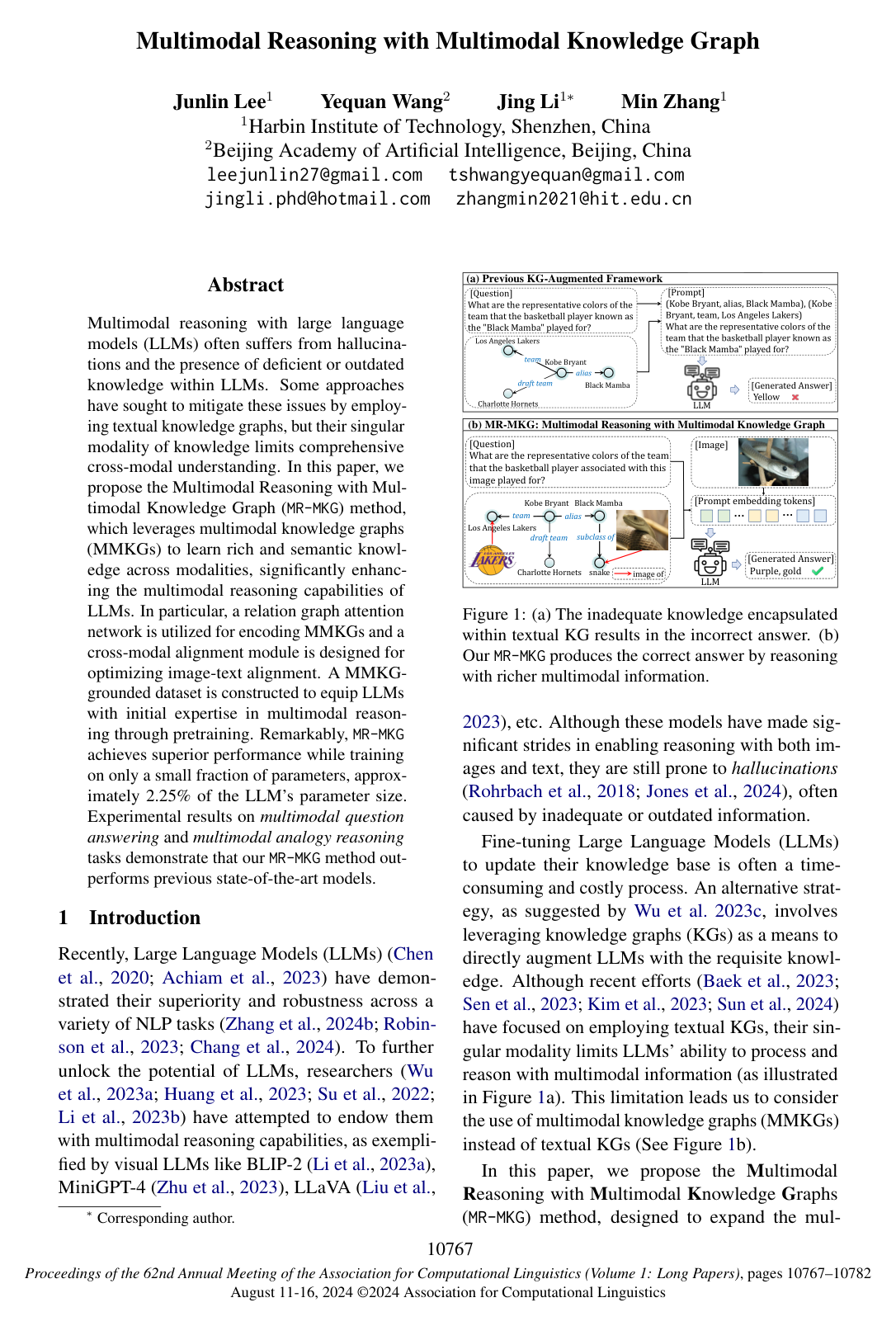

Cover for Multimodal Reasoning with Multimodal Knowledge Graph

Abstract

Multimodal reasoning with large language models (LLMs) often suffers from hallucinations and the presence of deficient or outdated knowledge within LLMs. Some approaches have sought to mitigate these issues by employing textual knowledge graphs, but their singular modality of knowledge limits comprehensive cross-modal understanding. In this paper, we propose the Multimodal Reasoning with Multimodal Knowledge Graph (MR-MKG) method, which leverages multimodal knowledge graphs (MMKGs) to learn rich and semantic knowledge across modalities, significantly enhancing the multimodal reasoning capabilities of LLMs. In particular, a relation graph attention network is utilized for encoding MMKGs and a cross-modal alignment module is designed for optimizing image-text alignment. A MMKG-grounded dataset is constructed to equip LLMs with initial expertise in multimodal reasoning through pretraining. Remarkably, MR-MKG achieves superior performance while training on only a small fraction of parameters, approximately 2.25% of the LLM's parameter size. Experimental results on multimodal question answering and multimodal analogy reasoning tasks demonstrate that our MR-MKG method outperforms previous state-of-the-art models.

Topics

reasoning knowledge graphs

Keywords

multimodal knowledge graph multimodal reasoning relation graph attention cross-modal alignment multimodal pre-trained Transformer knowledge adapter knowledge node embeddings knowledge retrieval knowledge triplets analogy reasoning

1 Introduction
2 Related Work
2.1 Multimodal Knowledge Graph
2.2 Knowledge-Augmented LLMs
2.3 Multimodal Large Language Models
3 Method
3.1 MR-MKG Overview
3.2 The MR-MKG Architecture
3.3 Training Objectives
4 Experiments
4.1 Setups
4.2 Main Results
4.3 Ablation Study
4.4 Further Analysis
4.5 Qualitative Analysis
5 Conclusion
Acknowledgements
Limitations
Ethical Considerations
References
A Additional Experimental Setups
A.1 Datasets
A.2 Multimodal Knowledge Graphs
A.3 MMKG-Grounded Dataset Construction
A.4 Large Language Models
A.5 Detailed Evaluation Metrics
A.6 Knowledge Retrieve Schemes
A.7 Implementation Details
B Additional Examples of Case Studies

Knowls

Knowl 1 — MR-MKG integrates retrieved multimodal graph knowledge into frozen LLMs
model/method
MR-MKG is a parameter-efficient method for multimodal reasoning that supplies a large language model with three synchronized inputs: the task text, an input image, and a retrieved subgraph from a multimodal knowledge graph (MMKG). A language encoder embeds the text, a pretrained visual encoder embeds the image, and a relation graph attention network (RGAT) encodes the retrieved graph while preserving its entities and relations. Trainable visual and knowledge adapters map the visual and graph representations into the LLM’s word-embedding space. The resulting visual embeddings, knowledge-node embeddings, and text embeddings are concatenated as prompt embedding tokens and passed to the frozen LLM. A cross-modal alignment module additionally trains image-linked and text-linked graph entities to match. The page-3 architecture diagram depicts these three embedding streams, their adapter layers, prompt concatenation, and the auxiliary alignment objective. The LLM and visual encoder remain frozen; only the adapters, RGAT-based knowledge encoder, and alignment-related parameters are updated, amounting to approximately 2.25% of the LLM parameter count.
Knowl 2 — Visual and graph embeddings are projected and attention-aligned with language embeddings
model/method
For an input text embedding $H_T$ , image feature $X_I$ , and retrieved MMKG subgraph $G$ , MR-MKG uses a linear visual adapter and a relation-aware graph encoder. The visual-language representation is $H_I = W_I X_I + b_I$ , where $W_I$ and $b_I$ are trainable parameters and $H_I$ has the same embedding dimension as the LLM word vectors. Text-conditioned visual features are computed as $H'_I = \operatorname{Softmax}(H_T H_I^{\top}/\sqrt{d_k})H_I$ , where $d_k$ is the embedding dimension. The RGAT produces graph-node features $X_K=f_{\mathrm{RGAT}}(G)$ after node and relation initialization with CLIP representations. A knowledge adapter maps them to $H_K=W_KX_K+b_K$ , where $W_K$ and $b_K$ are trainable. Knowledge features are then conditioned on either the text or visual representation, $Q\in\{H_T,H_I\}$ , using $H'_K=\operatorname{Softmax}(QH_K^{\top}/\sqrt{d_k})H_K$ . The final prompt is the concatenation $H'_K\oplus H'_I\oplus H_T$ , which is consumed by the LLM.
Knowl 3 — Sub-MMKG retrieval expands relevant triples with one-hop graph context
algorithm
MR-MKG retrieves a task-specific sub-MMKG rather than passing the entire knowledge graph to the LLM.
Input: Query text or image, MMKG triples, initial retrieval size n, final triple count N
Output: Retrieved sub-MMKG G
Embed the query and every MMKG triple in a shared representation space.
Compute cosine similarity between the query representation and each triple representation.
Select the entities E' occurring in the top-n most similar triples.
Construct a candidate graph from E', their one-hop neighboring entities, and the relations connecting them.
Rank candidate triples by cosine similarity to the query.
Return the top-N ranked triples as G.
For ScienceQA, retrieval uses text formed from the question, context, and answer options; for MARS, it is based on the question entity. The experiments use one-hop expansion and retrieve either 10 or 20 triples. This procedure is intended to reduce irrelevant graph noise while retaining structural relations that would be lost by simply verbalizing triples as a sequence.
Knowl 4 — Cross-modal triplet alignment is combined with autoregressive answer generation
equation
The cross-modal alignment module randomly selects image entities from a retrieved MMKG and uses their corresponding text entities as positive matches. For image anchor $x_a$ , matching text entity $x_p$ , nonmatching text entity $x_n$ , Euclidean distance $d$ , number of selected image entities $M$ , and margin $\alpha$ , the alignment loss is $L_a=\sum_{i=1}^{M}\max\big(d(x_a,x_p)-d(x_a,x_n)+\alpha,0\big)$ . The generative objective predicts the target answer tokens autoregressively: $L_g=\sum_{i=1}^{L}\log p(A_i\mid\mathrm{prompt},A_{0:i-1};\theta_a)$ , where $A$ is the target answer of length $L$ , $A_i$ is its $i$ th token, $A_{0:i-1}$ is the preceding token sequence, and $\theta_a$ denotes trainable adaptation parameters. MR-MKG combines the two objectives as $L=L_g+\lambda L_a$ , with trade-off weight $\lambda$ . Training has two stages: pretraining on an MMKG-grounded visual question-answering dataset, followed by task-specific multimodal reasoning training. The LLM and visual encoder remain unchanged in both stages.
Knowl 5 — The MMKG-grounded pretraining dataset is built from region-level Visual Genome graphs
data/table
The authors construct 18,448 MMKG-grounded pretraining instances from Visual Genome. Each instance contains an image, a region-based visual question-answer pair, and a modified scene graph representing knowledge needed to answer the question. Object entities from the original scene graph are linked to cropped images of their bounding-box regions through an image-of relation. Object attributes are linked to their entities through an attribute-of relation. Only region-based questions are retained because their associated scene graphs contain localized visual knowledge relevant to the answer; freeform whole-image questions are excluded. The resulting graph combines textual entities, object attributes, relations, and object images, allowing MR-MKG to pretrain both multimodal graph understanding and visual question answering.
Knowl 6 — Evaluation uses domain-matched MMKGs for ScienceQA and MARS
experimental setup
MR-MKG is evaluated on ScienceQA multimodal multiple-choice question answering and MARS multimodal analogical reasoning. ScienceQA contains 12,726 training, 4,241 validation, and 4,241 test instances across 26 topics, 127 categories, and 379 skills; only 48.7% of its instances contain images. MARS contains 10,685 training, 1,228 validation, and 1,415 test instances and evaluates entity prediction with Hits@1, Hits@3, Hits@5, Hits@10, and mean reciprocal rank (MRR). ScienceQA uses the MMKG constructed from FreeBase, DBpedia, and YAGO, containing 812,899 triples, 14,951 entities, and 1,345 relations, with most entities associated with images. MARS uses MarKG, which contains 11,292 entities, 192 relations, and 76,424 images and shares entities and relations with MARS. The implementation uses ViT-L/32 for visual encoding and RGAT for graph encoding; FLAN-T5-3B, FLAN-T5-11B, FLAN-UL2-19B, and LLaMA-2 7B serve as language backbones across the experiments. ScienceQA uses Multimodal-CoT prompting, text-based retrieval, up to three task-training epochs, learning rate $4\times10^{-5}$ , batch size 1, and maximum input/output length 512. MMKG-grounded pretraining uses two epochs, learning rate $5\times10^{-5}$ , batch size 2, maximum input length 512, maximum output length 128, and AdamW with weight decay 0.01.
Knowl 7 — MR-MKG substantially improves ScienceQA accuracy with few trainable parameters
data/table
On the ScienceQA test set, the metric is average multiple-choice accuracy in percent; the number in parentheses is the number of trainable parameters. The comparison demonstrates that MR-MKG reaches or exceeds stronger fully trained and larger multimodal baselines while updating only a small parameter subset. Reported average accuracies are: Human 88.40; GPT-3.5 with chain-of-thought 75.17; GPT-4 82.69; UnifiedQABase 74.11 with 223M trainable parameters; UnifiedQABase with MM-CoT 84.91 with 223M; UnifiedQALarge with MM-CoT 91.68 with 738M; LLaVA 90.92 with 13B; LLaMA-Adapter 85.19 with 1.8M; LaVIN-7B 89.41 with 3.8M; LaVIN-13B 90.83 with 5.4M; MR-MKG with FLAN-T5-3B 88.47 with 77M; MR-MKG with FLAN-T5-11B 92.78 with 248M; and MR-MKG with FLAN-UL2-19B 93.63 with 248M. MR-MKG with FLAN-T5-11B exceeds the previous UnifiedQABase MM-CoT result by 7.87 percentage points and LLaVA by 1.86 points while training 248M rather than 13B parameters. Increasing the FLAN-T5 backbone from 3B to 11B improves MR-MKG’s average accuracy by 4.31 points, while the FLAN-UL2-19B configuration gives the highest reported accuracy.
Knowl 8 — MR-MKG achieves the strongest MARS analogical-reasoning results
data/table
On the MARS test set, MR-MKG with a visual LLaMA-2 7B backbone obtains Hits@1 $0.405$ , Hits@3 $0.465$ , Hits@5 $0.497$ , Hits@10 $0.531$ , and MRR $0.449$ . The strongest non-MR-MKG baseline, Visual_LLaMA-2 7B, obtains $0.286$ , $0.373$ , $0.409$ , $0.457$ , and $0.347$ on these metrics, respectively. The strongest earlier multimodal knowledge-graph model, MarT_MKGformer, obtains $0.301$ , $0.367$ , $0.380$ , $0.408$ , and $0.341$ . Other reported baselines include IKRL ( $0.266/0.294/0.301/0.310/0.283$ ), TransAE ( $0.261/0.285/0.289/0.293/0.276$ ), RSME ( $0.266/0.298/0.307/0.311/0.285$ ), MarT_VisualBERT ( $0.261/0.292/0.308/0.321/0.284$ ), MarT_ViLT ( $0.245/0.275/0.287/0.303/0.266$ ), MarT_ViLBERT ( $0.256/0.312/0.327/0.347/0.292$ ), and MarT_FLAVA ( $0.264/0.303/0.309/0.319/0.288$ ), where each sequence is ordered as Hits@1, Hits@3, Hits@5, Hits@10, and MRR. MR-MKG improves Hits@1 by 0.119 over Visual_LLaMA-2 7B and by 0.104 over MarT_MKGformer. Replacing the task-matched MarKG with the generic MMKG reduces Hits@1 from $0.405$ to $0.384$ , while removing graph knowledge entirely gives $0.286$ , showing that both the presence and task compatibility of multimodal graph knowledge matter.
Knowl 9 — Ablations validate graph knowledge, multimodal content, alignment, and pretraining
empirical result
The ScienceQA ablation starts from Visual_FLAN-T5-11B and adds MR-MKG components cumulatively. Average accuracy rises from 86.08% without graph knowledge, to 91.74% with a textual KG, 92.21% when the KG is replaced by an MMKG, 92.36% after adding cross-modal alignment, and 92.78% after MMKG-grounded pretraining. On 1,973 manually selected ScienceQA examples containing images and belonging to natural or social science, the corresponding accuracies are 86.59%, 90.37%, 91.78%, and 92.32% for the visual baseline, KG, MMKG, and alignment configurations. On MARS, Hits@1 increases from 0.286 for Visual_LLaMA-2 7B to 0.352 with KG, 0.381 with MMKG, and 0.394 with cross-modal alignment. The larger gains on image-containing ScienceQA examples and on MARS support the claim that MMKG content and image-text alignment are most useful when visual knowledge is central to the task. Additional architectural comparisons show that RGAT is strongest: GNN, GAT, and RGAT obtain ScienceQA accuracies of 92.23%, 91.94%, and 92.78%, and MARS Hits@1 values of 0.391, 0.396, and 0.405, respectively. For ScienceQA retrieval, text-only, text-plus-image, and image-only retrieval obtain 92.78%, 92.03%, and 91.58%, respectively.
Knowl 10 — MR-MKG depends on retrieval quality and has limited demonstrated scope
limitation
MR-MKG’s effectiveness depends directly on whether retrieval supplies relevant and unambiguous multimodal graph knowledge. If the retrieved sub-MMKG lacks information needed for the question, or retrieves semantically ambiguous entities, the LLM can receive misleading evidence; the paper’s error analysis includes a fish question for which a movie titled Big Fish is retrieved instead of useful fish knowledge. Adding too many triples can also introduce irrelevant information: performance improves as retrieval grows from zero toward roughly 10 triples but declines when the graph is expanded toward 30 triples. The evaluation covers only four LLM configurations and two tasks, ScienceQA and MARS, because of computational constraints, so performance on larger models, other datasets, and other domains remains uncertain. The authors therefore caution that the method should be verified before use on privacy-sensitive or high-risk applications.

Coverage note — Detailed qualitative case studies from the MARS and ScienceQA examples, the full category-wise ScienceQA breakdown, and plotted sensitivity curves were omitted because they illustrate or refine the quantified method and ablation findings rather than add independent load-bearing contributions.
