T-SciQ: Teaching Multimodal Chain-of-Thought Reasoning via Large Language Model Signals for Science Question Answering

Lei WangYi HuJiabang HeXing XuNing LiuHui LiuHeng Tao Shen

article2024AAAI107 citations

Proposes a data-generation and mixing framework that uses large language model reasoning signals to teach smaller multimodal models how to solve complex scientific questions, achieving a new state of the art on ScienceQA.

Listen

Complex scientific question answering requires artificial intelligence systems to interpret multimodal information—such as text, diagrams, and maps—while performing multi-step reasoning. Traditional approaches rely on training smaller models using human-annotated step-by-step explanations (known as chain-of-thought rationales). However, manual annotation is labor-intensive, expensive, and frequently lacks the broader external knowledge required to solve complex problems accurately.

The article demonstrates a new training approach called T-SciQ, which uses large language models to generate high-quality reasoning explanations and systematically teach compact student models to solve multimodal science questions.

The researchers developed a three-stage framework using an advanced teacher model to generate two distinct types of explanations: standard step-by-step reasoning for straightforward questions and plan-based reasoning that breaks complex problems into simpler subtasks. The framework applies a data-mixing strategy that uses a validation set to select the optimal explanation type for each skill category. These combined signals are then used to train smaller student models (under 1 billion parameters, over 200 times smaller than the teacher model) across a standard multimodal benchmark consisting of 21,208 science questions, as well as six additional language reasoning benchmarks.

The analysis produced several key findings. First, the primary student model achieved a new state-of-the-art accuracy of 96.18% on the multimodal benchmark, outperforming human performance (88.40%), the leading multimodal baseline (91.68%), and large few-shot models like GPT-4 (82.69%). Second, student models consistently outperformed baselines trained on human-annotated explanations across different model sizes and architectures, yielding absolute gains of 4.5% to 6.84%. Third, combining standard and plan-based explanations delivered superior accuracy compared to using either explanation style in isolation. Finally, the framework generalized effectively across six diverse text reasoning benchmarks, substantially improving performance in arithmetic, commonsense, and logic tasks.

These results demonstrate that compact, cost-efficient artificial intelligence models can surpass human benchmarks and massive commercial systems when trained on structured, model-generated explanations. Organizations can drastically lower operational deployment costs and latency by replacing human annotation pipelines with synthetic teaching data while achieving superior multi-step reasoning and open-world knowledge integration.

Decision-makers should consider adopting synthetic reasoning generation and dynamic data-mixing strategies when deploying smaller, task-specific models. For immediate next steps, technical teams should explore parameter-efficient fine-tuning techniques and evaluate different foundation models as teachers to optimize training costs.

The primary limitation noted in the article is the current reliance on full fine-tuning across specific model architectures and proprietary teacher model interfaces. However, given the consistent outperformance across diverse question categories, model architectures, and task benchmarks, there is high confidence in the robustness and practical effectiveness of the proposed approach.

Beijing Forestry University Beijing Rongda Technology Co., Ltd.Singapore Management University University of Electronic Science and Technology of China large language models question answering reasoning multimodal chain-of-thought reasoning science question answering ScienceQA benchmark

arXiv: 2305.03453 T-SciQ/T-SciQ

Paper: Learn to Explain: Multimodal Reasoning via Thought Chains for Science Question Answering, Pan Lu et al. (2022). Introduces the ScienceQA benchmark and establishes the foundational multimodal chain-of-thought paradigm for science question answering that T-SciQ directly aims to teach and outperform.
Paper: Distilling Step-by-Step! Outperforming Larger Language Models with Less Training Data and Smaller Model Sizes, Cheng-Yu Hsieh et al. (2023). Develops the core methodology of distilling LLM-generated rationales into compact student models to achieve high reasoning performance with reduced model capacity.
Paper: Teaching Small Language Models to Reason, Lucie Charlotte Magister et al. (2023). Establishes a knowledge distillation pipeline transferring multi-step chain-of-thought reasoning from massive teacher models to sub-billion parameter student models.
Paper: Is a Question Decomposition Unit All We Need?, Pruthvi Patel et al. (2022). Pioneers the question decomposition approach that informs the plan-based subtask reasoning strategy utilized within T-SciQ's three-stage framework.
Paper: Chain-of-Thought Prompting Elicits Reasoning in Large Language Models, Jason Wei et al. (2022). Provides the foundational demonstration that chain-of-thought prompting elicits multi-step reasoning capabilities in large language models.
Paper: STaR: Bootstrapping Reasoning With Reasoning, Eric Zelikman et al. (2022). Presents the STaR framework for bootstrapping reasoning from model-generated rationales, laying critical groundwork for using synthetic explanations as training signals.
Paper: Synthetic Prompting: Generating Chain-of-Thought Demonstrations for Large Language Models, Zhihong Shao et al. (2023). Demonstrates how large models can self-synthesize high-quality reasoning demonstrations, prefiguring T-SciQ's replacement of human annotations with LLM signals.
Paper: Knowledge-Augmented Reasoning Distillation for Small Language Models in Knowledge-Intensive Tasks, Minki Kang et al. (2023). Explores distilling knowledge-augmented reasoning paths to compact models, directly addressing the knowledge-retrieval challenges inherent in science QA.

Paper: M³CoT: A Novel Benchmark for Multi-Domain Multi-step Multi-modal Chain-of-Thought, Qiguang Chen et al. (2024). Presents M³CoT, a multi-domain benchmark that pushes multimodal chain-of-thought evaluation beyond standard datasets by requiring genuine multi-step visual reasoning.
Paper: Innovator-VL: A Multimodal Large Language Model for Scientific Discovery, Zichen Wen et al. (2026). Extends multimodal scientific reasoning to broader discovery domains like chemistry and biology using structured reasoning recipes in compact models.
Paper: A Comprehensive Survey of Scientific Large Language Models and Their Applications in Scientific Discovery, Yu Zhang et al. (2024). Provides a comprehensive survey synthesizing how scientific language and multimodal models are trained and applied across scientific discovery workflows.
Paper: CoT-Valve: Length-Compressible Chain-of-Thought Tuning, Xinyin Ma et al. (2025). Addresses the efficiency and verbosity challenges of learned chain-of-thought traces by introducing elastic length compression for reasoning paths.
Paper: Do NOT Think That Much for 2+3=? On the Overthinking of Long Reasoning Models, Xingyu Chen et al. (2025). Critically analyzes and mitigates the overthinking behavior that occurs when models generate extended reasoning traces for simpler questions.
Paper: Towards Large Reasoning Models: A Survey of Reinforced Reasoning with Large Language Models, Fengli Xu et al. (2025). Synthesizes the broader landscape of advancing reasoning models through synthetic data generation, distillation, and reinforcement learning.

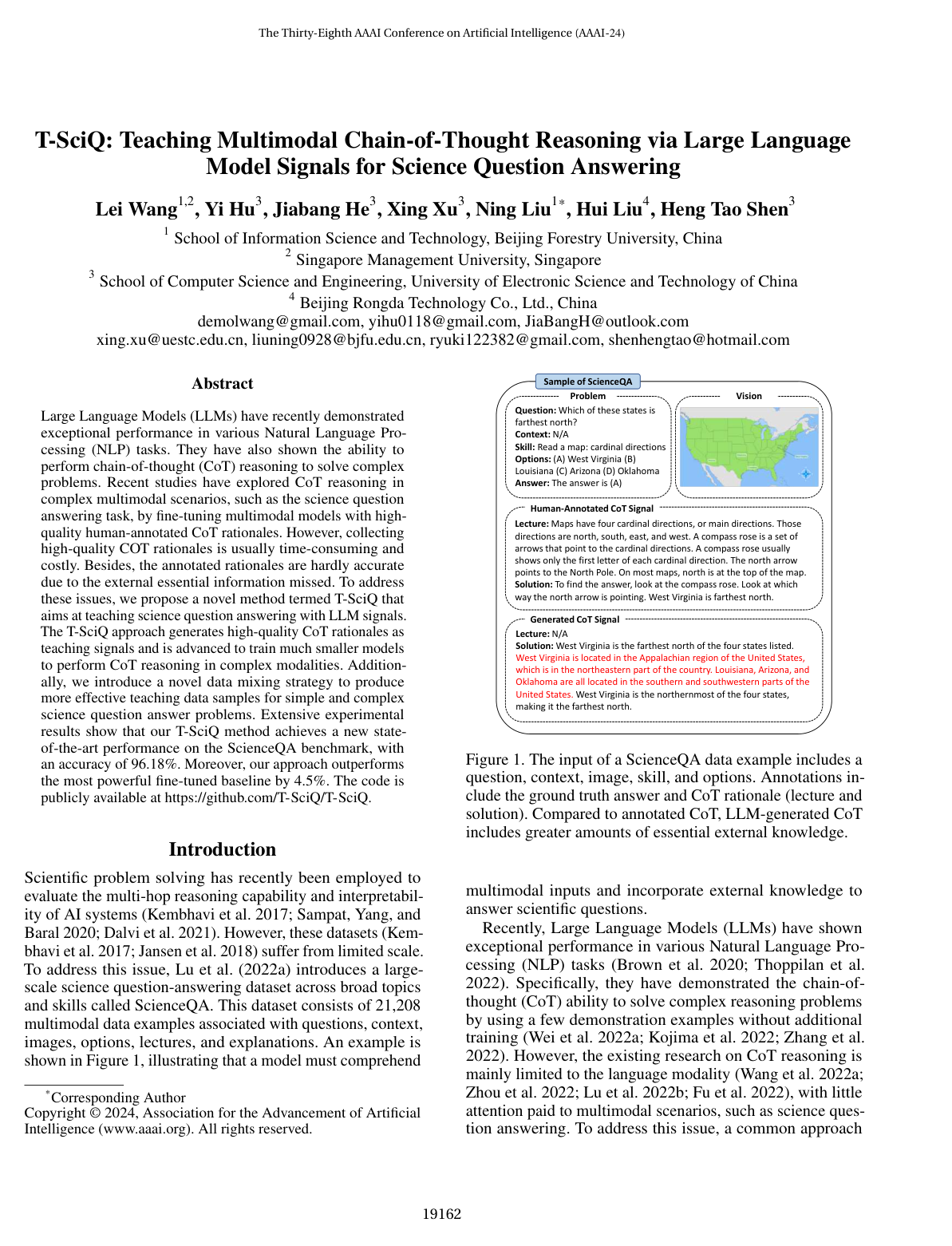

Cover for T-SciQ: Teaching Multimodal Chain-of-Thought Reasoning via Large Language Model Signals for Science Question Answering

Abstract

Large Language Models (LLMs) have recently demonstrated exceptional performance in various Natural Language Processing (NLP) tasks. They have also shown the ability to perform chain-of-thought (CoT) reasoning to solve complex problems. Recent studies have explored CoT reasoning in complex multimodal scenarios, such as the science question answering task, by fine-tuning multimodal models with high-quality human-annotated CoT rationales. However, collecting high-quality CoT rationales is usually time-consuming and costly. Besides, the annotated rationales are hardly accurate due to the external essential information missed. To address these issues, we propose a novel method termed T-SciQ that aims at teaching science question answering with LLM signals. The T-SciQ approach generates high-quality CoT rationales as teaching signals and is advanced to train much smaller models to perform CoT reasoning in complex modalities. Additionally, we introduce a novel data mixing strategy to produce more effective teaching data samples for simple and complex science question answer problems. Extensive experimental results show that our T-SciQ method achieves a new state-of-the-art performance on the ScienceQA benchmark, with an accuracy of 96.18%. Moreover, our approach outperforms the most powerful fine-tuned baseline by 4.5%. The code is publicly available at https://github.com/T-SciQ/T-SciQ.

Topics

large language models question answering reasoning social sciences n-gram language models statistical language models

Keywords

multimodal chain-of-thought reasoning science question answering ScienceQA benchmark large language models rationale generation teaching multi-step reasoning compositional reasoning commonsense knowledge

Introduction
Related Work
Our T-SciQ Approach
Overview
Generating Teaching Data
Mixing Teaching Data
Fine-Tuning
Experiment
Experimental Setup
Main Results
Further Analysis
Conclusion
Acknowledgments
References

Knowls

Knowl 1 — T-SciQ Framework Overview
model/method
T-SciQ (Teaching Science Question answering with LLM signals) is a framework designed to impart chain-of-thought (CoT) reasoning capabilities to compact multimodal student models (with parameter counts below $1\text{B}$ , such as UnifiedQA and Multimodal-CoT) using synthetic rationales generated by large language models (LLMs). The framework addresses two fundamental limitations of human-annotated CoT rationales: the labor-intensive annotation bottleneck and the frequent absence of essential open-world factual knowledge in human annotations.

T-SciQ operates in three main stages:
1. Teaching Data Generation: An LLM teacher (e.g., GPT-3.5 text-davinci-003) synthesizes two distinct forms of reasoning signals: standard chain-of-thought (QA-CoT) for direct problem solving, and hierarchical plan-based chain-of-thought (QA-PCoT) for multi-step problem decomposition.
2. Data Mixing: A skill-level validation selection procedure evaluates whether QA-CoT or QA-PCoT yields higher answer accuracy for each specific question skill, constructing an optimal mixed training set.
3. Two-Stage Student Fine-Tuning: The multimodal student model is trained in two sequential stages: rationale generation teaching (learning to generate the reasoning chain from multimodal inputs) followed by answer inference teaching (learning to predict the final answer given multimodal inputs augmented with the generated rationale).
Knowl 2 — QA-CoT and Plan-Based QA-PCoT Prompting Mechanisms
model/method
T-SciQ generates two distinct styles of synthetic reasoning rationales using large language models:
1. Standard CoT Generation (QA-CoT): For a question instance with question text $X_q$ , context $X_c$ (or N/A if absent), options $X_o$ , and ground-truth answer label $A$ used as a guidance hint, the prompt is structured as: Question: [Xq]. Context: [Xc]. Options: [Xo]. Correct Answer: [A]. Please give me a detailed explanation. The LLM outputs an explanation incorporating open-world knowledge to produce teaching signal $T_{i,\text{cot}}$ .
2. Plan-Based CoT Generation (QA-PCoT): To handle complex multi-step reasoning, a 3-step zero-shot prompting pipeline decomposes problems across each question skill $S$ :
- Step 1 (Lecture Generation): Given QA pairs belonging to skill $S$ , the LLM is prompted: Skill: [S]. QA pairs: [Xq, A] ... based on the problems above, please give a general lecture on the [S] type of question in one sentence. This produces domain lecture $L$ .
- Step 2 (Plan Generation): The LLM receives the skill, lecture, and QA pairs: Skill: [S]. Lecture: [L]. QA pairs: [Xq, A] ... Based on the lecture above and these problems, let's understand these problems and devise a general and brief plan step by step to solve these problems (begin with 1, 2, 3...). This yields problem-solving plan $P$ .
- Step 3 (Rationale Generation): For each instance, the LLM carries out the plan: Skill: [S]. Lecture: [L]. Plan: [P]. QA pair: [Xq, A]. Based on the lecture, the plan and the problem, please carry out the plan and solve the problem step by step (begin with 1, 2, 3...). This produces plan-based teaching signal $T_{i,\text{pcot}}$ .
Knowl 3 — Skill-Level Validation Data Mixing Algorithm
algorithm
To combine the advantages of QA-CoT on direct problems and QA-PCoT on complex multi-step problems, T-SciQ evaluates rationale efficacy per skill on the validation dataset before selecting the training signal for that skill.
Input: Validation set $D_{val}$ partitioned into skills $S$ , candidate rationales $T_{\text{cot}}$ and $T_{\text{pcot}}$ , answer generation model $F_a^s$ trained on human-annotated seed data, training set $D_{train}$ .
Output: Mixed training dataset $D_{T\text{-}SciQ}$ .
Initialize $D_{T\text{-}SciQ} \leftarrow \emptyset$
for each skill $s \in S$ do
     $E_{\text{cot}}(s) \leftarrow 0$
     $E_{\text{pcot}}(s) \leftarrow 0$
    for each validation instance $(X_{i,la}, X_{i,v}, A_i) \in D_{val}$ belonging to skill $s$ do
         $\hat{A}_{i,\text{cot}} \leftarrow F_a^s(X_{i,la}, X_{i,v}, T_{i,\text{cot}})$
        if $\hat{A}_{i,\text{cot}} \neq A_i$ then
             $E_{\text{cot}}(s) \leftarrow E_{\text{cot}}(s) + 1$
        end if
         $\hat{A}_{i,\text{pcot}} \leftarrow F_a^s(X_{i,la}, X_{i,v}, T_{i,\text{pcot}})$
        if $\hat{A}_{i,\text{pcot}} \neq A_i$ then
             $E_{\text{pcot}}(s) \leftarrow E_{\text{pcot}}(s) + 1$
        end if
    end for
    if $E_{\text{pcot}}(s) < E_{\text{cot}}(s)$ then
         $T^*(s) \leftarrow \text{PCoT}$
    else
         $T^*(s) \leftarrow \text{CoT}$
    end if
    for each training instance $i \in D_{train}$ belonging to skill $s$ do
        if $T^*(s) == \text{PCoT}$ then
             $D_{T\text{-}SciQ} \leftarrow D_{T\text{-}SciQ} \cup \{(X_{i,la}, X_{i,v}, T_{i,\text{pcot}}, A_i)\}$
        else
             $D_{T\text{-}SciQ} \leftarrow D_{T\text{-}SciQ} \cup \{(X_{i,la}, X_{i,v}, T_{i,\text{cot}}, A_i)\}$
        end if
    end for
end for
return $D_{T\text{-}SciQ}$
Knowl 4 — Two-Stage Multimodal Student Training Objectives and Architecture
model/method
T-SciQ fine-tunes a multimodal student model via two decoupled training stages using the mixed dataset $D_{T\text{-}SciQ}$ :
1. Rationale Generation Teaching: Given initial text input $X_{i,la}^1$ (containing question text, context, and options) and visual feature representation $X_{i,v}$ , the rationale generation model $F_r$ parameterized by $\theta_r$ autoregressively generates the assigned teaching rationale sequence $T_i = (T_{i,1}, \dots, T_{i,N_{T_i}})$ of length $N_{T_i}$ : $p(T_i \mid X_{i,la}^1, X_{i,v}) = \prod_{j=1}^{N_{T_i}} p_{\theta_r}(T_{i,j} \mid X_{i,la}^1, X_{i,v}, T_{i,<j})$
2. Answer Inference Teaching: An augmented language input $X_{i,la}^2 = [X_{i,la}^1; T_i]$ is constructed by concatenating the teaching rationale to the initial text input. The answer inference model $F_a$ parameterized by $\theta_a$ autoregressively generates the target answer label sequence $A_i = (A_{i,1}, \dots, A_{i,N_{A_i}})$ of length $N_{A_i}$ : $p(A_i \mid X_{i,la}^2, X_{i,v}) = \prod_{j=1}^{N_{A_i}} p_{\theta_a}(A_{i,j} \mid X_{i,la}^2, X_{i,v}, A_{i,<j})$
Model Architecture: The backbone employs a language Transformer encoder and a visual Transformer (e.g., DETR or CLIP) to extract multimodal representations, which are merged via a gated fusion mechanism before decoding with a Transformer decoder. The rationale generation module $F_r$ and answer inference module $F_a$ share identical underlying model architecture parameters but are trained on distinct input-output sequences. At inference time, rationales predicted by $F_r$ are concatenated with test inputs and fed into $F_a$ to predict final answers.
Knowl 5 — Main ScienceQA Benchmark Results
empirical result
The T-SciQ method was evaluated on the multimodal multiple-choice ScienceQA benchmark (21,208 questions partitioned into 12,726 training, 4,241 validation, and 4,241 test instances across natural science NAT, social science SOC, language science LAN, text context TXT, image context IMG, no context NO, grades 1–6 G1-6, and grades 7–12 G7-12).
Could not parse LaTeX table
Multimodal-T-SciQ $_{\text{Large}}$ (738M parameters) achieves a new state-of-the-art accuracy of 96.18%, outperforming the human benchmark (88.40%), the strongest fine-tuned baseline Multimodal-CoT $_{\text{Large}}$ (91.68% by +4.50%), the instruction-tuned LLaVA (90.92% by +5.26%), and the few-shot LLM framework Chameleon (86.54% by +9.64%).
Knowl 6 — Ablation Study on LLM Teaching Signals and Data Mixing
empirical result
An ablation study on ScienceQA compares the contribution of individual LLM reasoning signals (QA-CoT and QA-PCoT) against the mixed T-SciQ dataset across both Base (223M) and Large (738M) student model scales.
Could not parse LaTeX table
Both individual LLM-generated signals outperform training exclusively on human annotations (85.99% and 88.56% vs 84.91% for Base; 93.44% and 94.11% vs 91.68% for Large). Furthermore, combining QA-CoT and QA-PCoT via skill-level data mixing achieves the highest overall accuracy (91.75% Base, 96.18% Large), demonstrating the complementary nature of direct reasoning chains and structured problem decomposition.
Knowl 7 — Ablation on Visual Feature Extractors
empirical result
The performance of Multimodal-T-SciQ $_{\text{Base}}$ on the ScienceQA test set was evaluated across different visual feature backbones and teaching signals.
Could not parse LaTeX table
Incorporating visual features produces substantial improvements over language-only modeling (e.g., from 87.24% to 91.75% for mixed T-SciQ). DETR achieves the strongest performance among visual extractors (91.75% for mixed T-SciQ vs 90.90% with CLIP and 91.44% with ResNet-50), and is therefore adopted as the default visual feature extractor.
Knowl 8 — Evaluation on General NLP Reasoning Benchmarks
empirical result
To assess generalizability beyond multimodal science questions, the T-SciQ teaching signal pipeline was evaluated on six diverse text reasoning datasets covering arithmetic (AQuA), symbolic reasoning (Coin Flip), commonsense reasoning (CommonSenseQA, StrategyQA), and logical reasoning (Date Understanding, Tracking Shuffled Objects), and compared against Reason-Teacher (Ho et al., 2022).
Could not parse LaTeX table
T-SciQ outperforms Reason-Teacher across 5 of the 6 datasets by large margins (+50.78% on AQuA, +28.93% on Date Understanding, +5.84% on Shuffled Objects, +14.00% on CommonSenseQA, and +21.72% on StrategyQA) while matching performance on Coin Flip (98.67%).
Knowl 9 — Impact of Base LLM Teachers and Data Proportion on Student Performance
empirical result
Ablations examining teacher model choice, training data composition, and learning dynamics on Multimodal-T-SciQ $_{\text{Base}}$ show:
1. Teacher LLM Combinations: Testing all 9 pairwise combinations of teacher models (text-davinci-002, text-davinci-003, and ChatGPT) for generating QA-CoT and QA-PCoT signals revealed that all 9 configurations outperformed the human-annotated baseline (84.91%), with accuracies ranging from 87.83% to 91.75%. The combination of text-davinci-003 for QA-CoT and text-davinci-003 for QA-PCoT yielded the peak accuracy of 91.75%, while ChatGPT for QA-CoT paired with text-davinci-003 for QA-PCoT achieved 91.25%.
2. Proportion of Synthetic Teaching Data: Systematically varying the proportion of LLM-generated T-SciQ training data from 0% to 100% (replacing human-annotated signals) demonstrated a strictly monotonic increase in student model accuracy as the fraction of synthetic data grew.
3. Training Dynamics: Comparing accuracy across training epochs between Multimodal-CoT $_{\text{Base}}$ and Multimodal-T-SciQ $_{\text{Base}}$ demonstrated that T-SciQ achieved higher accuracy starting from the very first epoch and maintained this margin throughout training.

Coverage note — None was omitted; all primary methods, algorithms, experimental formulations, benchmark comparisons, ablations, and analytical findings from the paper have been extracted as self-contained knowls.
