Open3DIS: Open-Vocabulary 3D Instance Segmentation with 2D Mask Guidance

Phuc D. A. NguyenTuan Duc NgoEvangelos KalogerakisChuang GanAnh Tuan TranCuong PhamKhoi Nguyen

article2024CVPR124 citations

Introduces Open3DIS, an open-vocabulary 3D instance segmentation framework that pairs class-agnostic 3D network proposals with aggregated multi-view 2D masks and pointwise CLIP feature extraction to accurately segment small, rare, and geometrically ambiguous objects.

Listen

Autonomous robotics, augmented reality, and virtual reality systems require the ability to perceive, locate, and segment physical objects in 3D spaces using natural language. Conventional 3D scene perception models rely on closed-set training, which severely limits their recognition to a small, predefined list of categories. While open-vocabulary methods have emerged to identify novel objects, current techniques struggle significantly when detecting small, rare, or geometrically ambiguous items in complex 3D environments.

The article demonstrates a new framework, named Open3DIS, designed to solve open-vocabulary 3D instance segmentation by generating precise 3D object masks for arbitrary object classes. It evaluates how effectively 2D image-based foundation models can be combined with 3D spatial representations to identify both standard and previously unseen objects from natural language descriptions.

The approach combines two complementary proposal mechanisms applied to multi-view color-depth video sequences and reconstructed 3D point clouds. First, a dedicated module aggregates 2D instance segmentations across camera frames and maps them onto cohesive 3D point clusters, known as superpoints, using hierarchical agglomerative clustering. Second, these proposals are merged with initial shape candidates produced by a 3D instance segmentation network. Finally, a pointwise feature extraction module pools multi-view vision-language features across the point cloud, weighting points by how frequently they appear across top camera views, to match 3D masks directly against open-ended text queries. The framework was evaluated across standard benchmarks including ScanNet200, Replica, and S3DIS.

The experimental findings show substantial improvements in 3D scene understanding. On the challenging 200-class ScanNet200 benchmark, Open3DIS achieved an average precision of 23.7, outperforming prior state-of-the-art open-vocabulary methods by approximately 1.5 times. It demonstrated particular strength on rare, tail-end object categories, where it scored 21.8 average precision—surpassing even fully supervised baselines on these uncommon classes. On the S3DIS dataset, the system achieved a novel-class detection precision of 26.3 to 29.0, more than doubling the scores of existing alternatives. Ablation tests confirmed that hierarchical agglomerative clustering and multi-view pointwise feature extraction were crucial to maximizing accuracy.

These results demonstrate that marrying the broad semantic recognition of 2D foundation models with 3D geometric clustering solves critical blind spots for small and rare objects without requiring costly, fully supervised 3D annotations. For technical leaders and product teams developing intelligent agents or spatial computing applications, this approach offers a path toward highly capable zero-shot 3D interaction. The findings indicate that systems can reliably understand diverse natural language instructions—such as locating items by their brand or intended function—while matching the performance of specialized supervised models.

Organizations developing spatial perception systems should consider adopting hybrid 2D-guided 3D proposal pipelines to improve recognition accuracy for tail categories. The main current limitation noted in the article is that the 2D-guided module and the 3D segmentation network operate independently before their candidate masks are merged. Future work should focus on end-to-end integration where 2D and 3D modules interactively reinforce each other, as well as optimizing computational efficiency across high-density video sequences.

MIT-IBM Watson AI Lab Posts and Telecommunications Institute of Technology University of Massachusetts Amherst VinAI Research two dimensional vocabulary Open3DIS open-vocabulary 3D instance segmentation 2D mask guidance

arXiv: 2312.10671

Paper: Superpoint Transformer for 3D Scene Instance Segmentation, Jiahao Sun et al. (2023). Learn how superpoints and query decoders are used to aggregate point clouds into 3D instance masks, providing the structural foundation that Open3DIS builds upon for proposal generation.
Paper: SoftGroup for 3D Instance Segmentation on Point Clouds, Thang Vu et al. (2022). Understand the soft grouping and proposal refinement mechanisms in point cloud instance segmentation that motivate Open3DIS's hybrid 2D-guided and 3D network candidate proposals.
Paper: CLIP2: Contrastive Language-Image-Point Pretraining from Real-World Point Cloud Data, Yihan Zeng et al. (2023). Explore how 2D vision-language representations are directly aligned with 3D point cloud clusters, establishing foundational multimodal cross-attention techniques essential for open-vocabulary 3D scene perception.
Paper: ULIP: Learning a Unified Representation of Language, Images, and Point Clouds for 3D Understanding, Le Xue et al. (2023). Examine the principles of aligning 3D point representations with pre-trained 2D vision-language embeddings like CLIP to enable zero-shot 3D object identification.
Paper: Panoptic Lifting for 3D Scene Understanding with Neural Fields, Yawar Siddiqui et al. (2023). Review how 2D instance segmentations across multiple viewpoints can be lifted into consistent 3D volumetric representations without manual 3D annotations.
Paper: CoDA: Collaborative Novel Box Discovery and Cross-modal Alignment for Open-vocabulary 3D Object Detection, Yang Cao et al. (2023). Discover how 2D vision-language priors and 3D geometric clustering are unified to detect unseen, novel 3D object categories in an open-vocabulary setting.
Paper: Large-Scale Point Cloud Semantic Segmentation with Superpoint Graphs, Loic Landrieu et al. (2017). Familiarize yourself with the original superpoint graph formulation that partitions unstructured point clouds into geometrically homogeneous primitives for hierarchical 3D segmentation.

Paper: GARField: Group Anything with Radiance Fields, Chung Min Kim et al. (2024). See how multi-view 2D segmentation masks are lifted into continuous neural fields by conditioning affinity on physical 3D scale for hierarchical 3D decomposition.
Paper: OpenNeRF: Open Set 3D Neural Scene Segmentation with Pixel-Wise Features and Rendered Novel Views, Francis Engelmann et al. (2024). Extend open-set 3D understanding from explicit point clouds to neural radiance fields by distilling 2D pixel-aligned features and rendering active novel views.
Paper: RoboSpatial: Teaching Spatial Understanding to 2D and 3D Vision-Language Models for Robotics, Chan Hee Song et al. (2025). Apply open-vocabulary 3D scene representations to downstream embodied robotic reasoning tasks such as spatial placement, compatibility, and relative configuration.

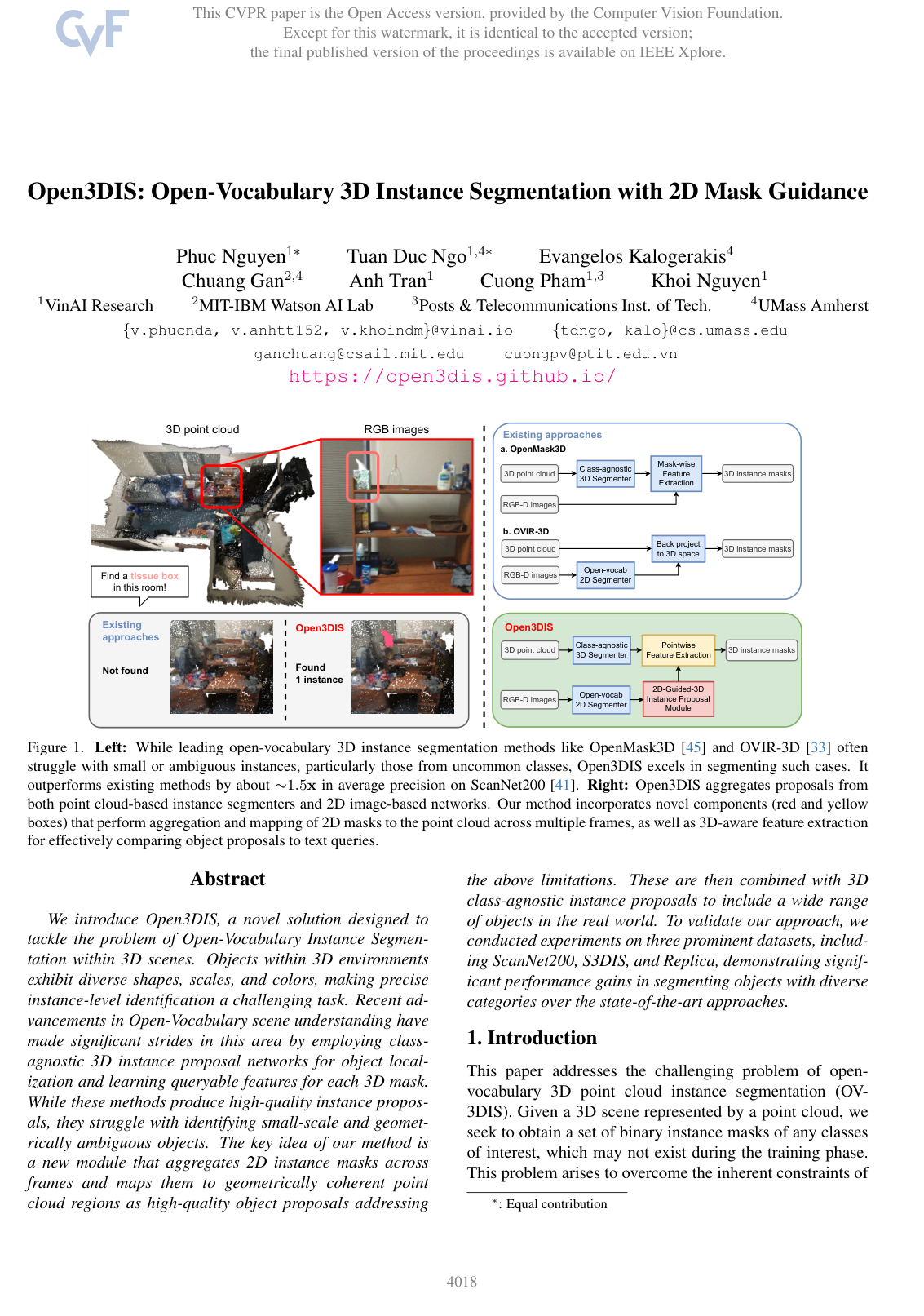

Cover for Open3DIS: Open-Vocabulary 3D Instance Segmentation with 2D Mask Guidance

Abstract

We introduce Open3DIS, a novel solution designed to tackle the problem of Open-Vocabulary Instance Segmentation within 3D scenes. Objects within 3D environments exhibit diverse shapes, scales, and colors, making precise instance-level identification a challenging task. Recent advancements in Open-Vocabulary scene understanding have made significant strides in this area by employing class-agnostic 3D instance proposal networks for object localization and learning queryable features for each 3D mask. While these methods produce high-quality instance proposals, they struggle with identifying small-scale and geometrically ambiguous objects. The key idea of our method is a new module that aggregates 2D instance masks across frames and maps them to geometrically coherent point cloud regions as high-quality object proposals addressing the above limitations. These are then combined with 3D class-agnostic instance proposals to include a wide range of objects in the real world. To validate our approach, we conducted experiments on three prominent datasets, including ScanNet200, S3DIS, and Replica, demonstrating significant performance gains in segmenting objects with diverse categories over the state-of-the-art approaches.

Topics

two dimensional vocabulary

Keywords

Open3DIS open-vocabulary 3D instance segmentation 2D mask guidance point cloud instance segmentation guided 3D instance proposals ScanNet200 dataset agglomerative clustering

1. Introduction
2. Related Work
3. Method
3.1. 2D-Guided-3D Instance Proposal Module
3.2. 3D Instance Segmentation Network
4. Experiments
4.1. Experimental Setup
4.2. Comparison to prior work
4.3. Ablation study
5. Discussion
References

Knowls

Knowl 1 — Open3DIS Framework for Open-Vocabulary 3D Instance Segmentation
model/method
Open3DIS is a method for open-vocabulary 3D point cloud instance segmentation (OV-3DIS). Given an input 3D point cloud $P = \{p_n\}_{n=1}^N$ (with $p_n \in \mathbb{R}^6$ encoding 3D coordinates and RGB colors) and an RGB-D video sequence $V = \{(I_t, D_t, \Pi_t)\}_{t=1}^T$ (where $I_t$ is an RGB image, $D_t$ is a depth map, and $\Pi_t$ is the known projection camera matrix), the goal is to predict a set of binary instance masks representing object instances of arbitrary classes described by open-vocabulary text queries.

The framework consists of four primary components:
1. 2D-Guided 3D Instance Proposal Module: Generates $K_1$ 3D binary instance masks $M_1 \in \{0, 1\}^{K_1 \times N}$ by identifying geometrically coherent 3D superpoint clusters corresponding to 2D instance segmentations across frames and merging them hierarchically over multi-view images.
2. Class-Agnostic 3D Instance Segmentation Network: Employs a pre-trained 3D instance segmenter (such as ISBNet or Mask3D) with its semantic classification heads stripped away, extracting $K_2$ geometric 3D object proposals $M_2 \in \{0, 1\}^{K_2 \times N}$ directly from point cloud geometry and pointwise feature maps.
3. Proposal Combination: Merges proposal sets $M_1$ and $M_2$ into an aggregate set of $K$ candidate masks $M \in \{0, 1\}^{K \times N}$ , followed by 3D Non-Maximum Suppression (NMS) using an intersection-over-union (IoU) threshold $\tau_{\text{dup}} = 0.5$ to eliminate near-duplicate proposals.
4. Pointwise 3D-Aware Feature Extraction: Computes a dense CLIP feature representation across the 3D points by projecting 3D proposals onto their top- $\lambda$ visible 2D views, accumulating multi-scale 2D CLIP features weighted by point visibility, and assigning text-query alignment scores via average point-feature cosine similarity.
Knowl 2 — Per-Frame Superpoint Merging for 2D-Guided 3D Proposals
algorithm
To build initial 3D object proposals from single-view 2D predictions, 3D points are first grouped via an unsupervised graph-based oversegmentation into $U$ geometrically homogeneous regions termed superpoints, represented as binary masks $\{q_u\}_{u=1}^U \in \{0, 1\}^{U \times N}$ . A 2D open-vocabulary segmenter (such as Grounded-SAM) extracts 2D masks $\{m^{2D}_i\}$ for each RGB-D frame. For every 2D mask, superpoints are merged according to spatial 2D-3D projection overlap and 3D deep feature similarity.
Input: 3D point cloud $P \in \mathbb{R}^{N \times 6}$ , superpoint masks $\{q_u\}_{u=1}^U$ , per-frame 2D mask $m_i^{2D}$ , camera matrix $\Pi$ , 3D backbone pointwise features $F^{3D} \in \mathbb{R}^{N \times D_{3D}}$ , thresholds $\tau_{iou}$ and $\tau_{sim}$
Output: Single-frame 3D proposal region $r_i \subseteq \{1, \dots, U\}$
Compute average 3D feature for each superpoint: $f_u^{3D} = \frac{1}{|q_u|} \sum_{n \in q_u} F_n^{3D}$
For each superpoint $q_u$ , project its points onto the image plane via $\Pi$ and compute IoU $o_{u, i}$ with $m_i^{2D}$
Identify candidate superpoints $Q_{\text{cand}} = \{u \mid o_{u, i} > \tau_{iou}\}$
Initialize region $r_i \leftarrow \{\arg\max_{u} o_{u, i}\}$
repeat
    found_addition $\leftarrow$ False
    For each neighboring superpoint $q_u \in Q_{\text{cand}} \setminus r_i$ adjacent to the current region $r_i$ :
        Compute maximum feature cosine similarity: $s_i^{\max} = \max_{u' \in r_i} \cos(f_{u'}^{3D}, f_u^{3D})$
        if $s_i^{\max} > \tau_{sim}$ and $s_i^{\max}$ is maximal among neighbors then
             $r_i \leftarrow r_i \cup \{u\}$
            found_addition $\leftarrow$ True
until not found_addition
return $r_i$
Knowl 3 — Hierarchical Multi-Frame Agglomerative Region Merging
model/method
Because single-frame back-projected 3D regions capture only partial surfaces and suffer from occlusion, Open3DIS merges region sets across video frames in a bottom-up hierarchical binary tree structure using Agglomerative Clustering.

Given two point cloud region sets $\{r_i\}_{i=1}^I$ and $\{r_j\}_{j=1}^J$ from different frames or merged hierarchical levels, an active set of size $I + J$ is constructed. The pairwise merging compatibility is evaluated using both 3D bounding geometry overlap and deep feature consistency. Specifically, for region pair $(r_i, r_j)$ , the 3D intersection-over-union is $o'_{i,j} = \text{IoU}(r_i, r_j)$ and the feature similarity is $s'_{i,j} = \cos(f_i^{3D}, f_j^{3D})$ , where $f_i^{3D}$ is the mean 3D backbone feature across all points in $r_i$ .

The binary cost matrix $C \in \{0, 1\}^{(I+J) \times (I+J)}$ is computed as: $c_{i,j} = \mathbb{I}(o'_{i,j} > \tau_{\text{iou}}) \odot \mathbb{I}(s'_{i,j} > \tau_{\text{sim}})$ where $\mathbb{I}(\cdot)$ is the indicator function and $\odot$ is the logical AND operator. Regions with $c_{i,j} = 1$ are iteratively merged and the cost matrix is dynamically updated until no positive entries remain ( $C = 0$ ).

Merging is scheduled hierarchically rather than sequentially: pairs of neighboring video frames are merged at level 0, their resulting region sets form pairs at level 1, and the process proceeds up the binary tree until all frames in the RGB-D sequence are aggregated into complete 3D object proposals.
Knowl 4 — Pointwise 3D-Aware Visual Feature Extraction and Text Query Alignment
equation
For each candidate 3D proposal binary mask $m_k^{3D} \in \{0, 1\}^N$ , the 3D points are projected into all sequence viewpoints to select the top- $\lambda$ views (where $\lambda = 5$ ) with the highest counts of visible projected points. For each view $\lambda$ , a 2D crop around the projected mask is encoded into a normalized CLIP image embedding $f_{\lambda,k}^{\text{CLIP}} \in \mathbb{R}^{D_{\text{CLIP}}}$ , and $\nu_\lambda \in \{0, 1\}^N$ denotes the binary per-point visibility mask for view $\lambda$ .

The dense, instance-aware pointwise CLIP feature map $F^{\text{CLIP}} \in \mathbb{R}^{N \times D_{\text{CLIP}}}$ across all points in the point cloud is accumulated as: $F^{\text{CLIP}} = \text{NV}\left( \sum_k \left( \sum_\lambda (\nu_\lambda * f_{\lambda,k}^{\text{CLIP}}) * m_k^{3D} \right) \right)$ where $*$ denotes element-wise multiplication with broadcasting, and $\text{NV}(x) = \frac{x}{\|x\|_2}$ is the $L_2$ normalization operator.

Given a text prompt query $\rho$ with normalized CLIP text embedding $e_\rho \in \mathbb{R}^{D_{\text{CLIP}}}$ , the matching score $s_{k, \rho}^{\text{CLIP}}$ for the $k$ -th 3D proposal mask $m_k^{3D}$ is calculated as the average cosine similarity over all points belonging to the mask: $s_{k, \rho}^{\text{CLIP}} = \frac{1}{|m_k^{3D}|} \sum_{n=1}^N \cos(F^{\text{CLIP}}_n * m_{k,n}^{3D}, e_\rho)$ where $|m_k^{3D}|$ is the number of points in the $k$ -th mask.

Knowl 5 — ScanNet200 Open-Vocabulary 3D Instance Segmentation Benchmark

data/table

Quantitative evaluation of Open3DIS against prior open-vocabulary and fully-supervised 3D instance segmentation methods on the ScanNet200 validation set (198 classes categorized into head, common, and tail splits). Evaluated metrics include average precision (AP) across IoU thresholds from 50% to 95% in 5% increments, $\text{AP}_{50}$ , $\text{AP}_{25}$ , and split-specific APs ( $\text{AP}_{\text{head}}$ , $\text{AP}_{\text{com}}$ , $\text{AP}_{\text{tail}}$ ).

Method	Setting	3D Proposal	AP	$\text{AP}_{50}$	$\text{AP}_{25}$	$\text{AP}_{\text{head}}$	$\text{AP}_{\text{com}}$	$\text{AP}_{\text{tail}}$
ISBNet	Fully-sup	–	24.5	32.7	37.6	38.6	20.5	12.5
Mask3D	Fully-sup	–	26.9	36.2	41.4	39.8	21.7	17.9
OpenScene + DBScan	Open-vocab	None	2.8	7.8	18.6	2.7	3.1	2.6
OpenScene + Mask3D	Open-vocab	Mask3D	11.7	15.2	17.8	13.4	11.6	9.9
SAM3D	Open-vocab	None	6.1	14.2	21.3	7.0	6.2	4.6
OVIR-3D	Open-vocab	None	13.0	24.9	32.3	14.4	12.7	11.7
OpenIns3D	Open-vocab	Mask3D	8.8	10.3	14.4	16.0	6.5	4.2
OpenMask3D	Open-vocab	Mask3D	15.4	19.9	23.1	17.1	14.1	14.9
Open3DIS (only 2D)	Open-vocab	None	18.2	26.1	31.4	18.9	16.5	19.2
Open3DIS (only 3D)	Open-vocab	ISBNet	18.6	23.1	27.3	24.7	16.9	13.3
Open3DIS (2D and 3D)	Open-vocab	ISBNet	23.7	29.4	32.8	27.8	21.2	21.8

Open3DIS using both 2D and 3D proposals outperforms prior open-vocabulary methods by approximately $1.5\times$ in overall AP (23.7 vs 15.4 for OpenMask3D). Furthermore, in rare tail categories ( $\text{AP}_{\text{tail}}$ ), Open3DIS achieves 21.8 AP, outperforming both open-vocabulary baselines and fully-supervised models (ISBNet at 12.5 and Mask3D at 17.9).

Knowl 6 — Cross-Dataset and Novel-Class Generalization on S3DIS, Replica, and ScanNet20-Pretrained ScanNet200

data/table

Generalization performance of Open3DIS evaluated across three settings: (1) ScanNet200 evaluated with 3D proposals pre-trained only on ScanNet20 (51 base classes, remaining novel classes); (2) Zero-shot evaluation on Replica (48 classes) using only 2D proposals without 3D training; (3) S3DIS evaluated on base and novel category splits (B8/N4 and B6/N6).

ScanNet20-Pretrained on ScanNet200
Method	Pretrain	$\text{AP}_{\text{novel}}$	$\text{AP}_{\text{base}}$	AP
PLA (Base 20)	ScanNet20	0.3	15.8	4.5
OpenScene + Mask3D	ScanNet20	7.6	11.1	8.5
OpenMask3D	ScanNet20	11.9	14.3	12.6
Open3DIS (Ours)	ScanNet20	16.5	25.8	19.0
Replica (Zero-Shot)
Method	3D Proposal	AP	$\text{AP}_{50}$	$\text{AP}_{25}$
OpenMask3D	Mask3D	13.1	18.4	24.2
OVIR-3D	None	11.1	20.5	27.5
Open3DIS (only 2D)	None	18.1	26.7	30.5
Open3DIS (2D and 3D)	ISBNet	18.5	24.5	28.2
S3DIS Base/Novel Splits
Method	$\text{AP}_{50}^B$ (B8/N4)	$\text{AP}_{50}^N$ (B8/N4)	$\text{AP}_{50}^B$ (B6/N6)	$\text{AP}_{50}^N$ (B6/N6)
PLA	59.0	8.6	46.9	9.8
Lowis3D	58.7	13.8	51.8	15.8
Open3DIS (Ours)	60.8	26.3	50.0	29.0

When pre-trained solely on ScanNet20, Open3DIS obtains 16.5 $\text{AP}_{\text{novel}}$ on ScanNet200, outperforming OpenMask3D (11.9) and contrastive 3D methods like PLA (0.3). On Replica, Open3DIS achieves 18.1 AP with 2D-only proposals (outperforming OVIR-3D by +7.0 AP). On S3DIS, Open3DIS achieves 26.3 and 29.0 $\text{AP}_{50}^N$ on novel categories, nearly doubling prior state-of-the-art results.

Knowl 7 — Ablation on Feature Representation and Pointwise 3D-Aware Pooling

data/table

Comparison of different open-vocabulary feature extraction strategies applied to Open3DIS's candidate 3D proposals on the ScanNet200 validation set.

Setting	AP	$\text{AP}_{\text{head}}$	$\text{AP}_{\text{com}}$	$\text{AP}_{\text{tail}}$
A1: OpenScene (distill)	3.3	5.5	2.4	1.7
A2: OpenScene (fusion)	17.5	21.5	17.1	13.3
A3: OpenScene (ensemble)	5.6	6.4	4.8	5.7
B: Mask-wise Feature Pooling	22.2	25.9	19.3	21.4
C: Point-wise Feature Accumulation (Open3DIS)	23.7	27.8	21.2	21.8

Setting B projects 3D proposals onto top- $\lambda$ views and pools features directly at the mask level (as in OpenMask3D), achieving 22.2 AP. Setting C (Open3DIS pointwise accumulation weighted by per-point visibility across top views) reaches 23.7 AP (+1.5 AP improvement), confirming that frequency-of-visibility weighting on individual 3D points yields more descriptive multi-view embeddings.

Knowl 8 — Ablation on Superpoint Filtering, Merging Strategy, and Merging Order

data/table

Ablation results on ScanNet200 evaluating the internal design choices of the 2D-Guided 3D Instance Proposal Module (2D-G-3DIP) in isolation (without 3D network proposals).

Superpoint	Filtering Condition	AP	$\text{AP}_{\text{head}}$	$\text{AP}_{\text{com}}$	$\text{AP}_{\text{tail}}$
✓	Deep Feature Cosine Similarity	18.2	18.9	16.5	19.2
✓	None	15.9	16.5	14.3	17.0
✓	Euclidean Distance	16.0	16.4	14.1	17.6
None	None (raw point grouping)	12.0	12.6	11.2	12.2

Merging Strategy	Merging Order	AP	$\text{AP}_{\text{head}}$	$\text{AP}_{\text{com}}$	$\text{AP}_{\text{tail}}$
Hungarian	Sequential	13.2	13.9	11.3	14.7
Hungarian	Hierarchical	16.1	16.1	13.3	19.4
Agglomerative	Sequential	16.9	17.8	16.1	18.0
Agglomerative	Hierarchical	18.2	18.9	16.5	19.2

Using superpoints combined with deep feature cosine filtering outperforms Euclidean distance filtering (18.2 AP vs 16.0 AP) and raw point grouping (12.0 AP). For multi-frame merging, Agglomerative Clustering paired with hierarchical tree ordering achieves the highest performance (18.2 AP), surpassing Hungarian bipartite matching (16.1 AP) and sequential frame merging (16.9 AP).

Knowl 9 — Sensitivity to Thresholds, View Selection, and Segmenter Backbones

data/table

Hyperparameter sensitivity and modular compatibility of Open3DIS on the ScanNet200 validation set across varying IoU thresholds $\tau_{\text{iou}}$ , feature similarity thresholds $\tau_{\text{sim}}$ , view selection counts $\lambda$ , and upstream 2D/3D segmenter choices.

2D Segmenter	AP	$\text{AP}_{\text{head}}$	$\text{AP}_{\text{com}}$	$\text{AP}_{\text{tail}}$	3D Segmenter	AP	$\text{AP}_{\text{head}}$	$\text{AP}_{\text{com}}$	$\text{AP}_{\text{tail}}$
SEEM	21.5	26.5	19.6	18.0	Mask3D	23.7	26.4	22.5	21.9
ODISE	21.6	26.0	19.5	19.1	ISBNet	23.7	27.8	21.2	21.8
Detic	22.2	26.8	20.0	19.2	–	–	–	–	–
Grounded-SAM	23.7	27.8	21.2	21.8	–	–	–	–	–

Optimal proposal generation occurs at $\tau_{\text{iou}} = 0.9$ and $\tau_{\text{sim}} = 0.9$ . For viewpoint pooling, $\lambda = 5$ achieves peak performance (23.7 AP); increasing beyond 5 introduces noise from occluded views. Both ISBNet and Mask3D serve as effective 3D backbones (23.7 AP each), while Grounded-SAM provides the strongest 2D segmentation guidance.

Knowl 10 — Decoupled 2D-Guided and 3D Proposal Pipelines
limitation
In Open3DIS, the class-agnostic 3D proposal network and the 2D-Guided-3D Instance Proposal Module operate independently as separate pipelines. Their resulting candidate 3D masks are combined via simple concatenation followed by Non-Maximum Suppression (NMS), rather than interacting synergistically during the proposal generation process. A tighter, unified integration where 2D and 3D modalities iteratively guide and refine each other remains an open direction for future work.

Coverage note — None was omitted; all contributed algorithms, equations, empirical benchmarks (ScanNet200, S3DIS, Replica), ablation studies, and limitations are fully covered.
