SoftGroup for 3D Instance Segmentation on Point Clouds

Thang VuKookhoi KimTung Minh LuuThanh Xuan NguyenChang D. Yoo

article2022CVPR324 citations

Proposes SoftGroup, a 3D instance segmentation method that associates points with multiple semantic classes during bottom-up grouping to prevent error propagation, achieving substantial accuracy gains and fast inference on ScanNet v2 and S3DIS.

Listen

Three-dimensional instance segmentation—identifying individual objects and their exact boundaries within 3D point cloud data—is a critical computer vision capability for autonomous driving, robotics, and augmented reality. Prevailing approaches rely on a bottom-up process that assigns each point strictly to a single object class before grouping nearby points into instances. However, because local parts of objects can be ambiguous, early classification mistakes propagate directly into the grouping phase. This creates incomplete object boundaries and generates false-positive detections, undermining perception accuracy.

The article demonstrates and evaluates SoftGroup, a two-stage method designed to resolve this error propagation. The primary objective is to improve 3D instance segmentation accuracy by enabling flexible, multi-class point associations followed by targeted object refinement.

The approach integrates a bottom-up grouping stage with a top-down refinement stage. Rather than committing each point to a single label, the bottom-up stage uses a soft probability threshold to allow ambiguous points to associate with multiple candidate classes, creating preliminary point-level proposals. The top-down stage then extracts features from each proposal and processes them through classification, segmentation, and mask-scoring branches to refine valid objects and classify erroneous predictions as background. The authors validated SoftGroup on two standard benchmarks, the ScanNet v2 dataset of indoor scans and the Stanford Large-Scale 3D Indoor Spaces (S3DIS) dataset, measuring precision across varying overlap thresholds.

The evaluation yielded several key findings. First, SoftGroup established a new state of the art, outperforming previous leading methods on the ScanNet v2 hidden test set by 6.2 percentage points in 50% overlap average precision (AP50), reaching 76.1%, and leading in 12 of 18 object categories. Second, on S3DIS Area 5, it outperformed the second-best method by 6.8 percentage points in AP50 (reaching 66.1%) and 8.9 percentage points in overall average precision. Third, ablation experiments demonstrated that the score threshold for soft grouping (optimized at 0.2) and the multi-branch top-down refinement work synergistically, boosting baseline performance by 6.5 percentage points. Finally, the system achieved this performance while maintaining high computational efficiency, processing a full scan in 345 milliseconds on standard hardware.

These findings demonstrate that deferring definitive classification until after proposal generation effectively resolves long-standing error propagation issues without sacrificing execution speed. For real-world systems in robotics and automated navigation, this translates to improved operational safety and reliability through reduced false alarms and better object boundary definition, with negligible latency trade-offs.

Organizations developing 3D perception pipelines should consider adopting two-stage soft-grouping frameworks over strict single-label grouping. As next steps, technical teams can utilize the authors' open-source codebase and pre-trained models to reproduce the results and evaluate performance on domain-specific 3D data. Further testing in outdoor environments and under dynamic conditions is recommended, as the study focuses strictly on benchmark indoor datasets.

Korea Advanced Institute of Science and Technology point cloud segmentation methods semantics 3D instance segmentation point clouds SoftGroup

arXiv: 2203.01509 thangvubk/SoftGroup.git

Paper: 3D Semantic Segmentation with Submanifold Sparse Convolutional Networks, Benjamin Graham et al. (2017). Submanifold Sparse Convolutional Networks provide the sparse 3D convolutional backbone and coordinate-based processing fundamental to voxel-based point cloud segmentation pipelines like SoftGroup.
Paper: PointNet++: Deep Hierarchical Feature Learning on Point Sets in a Metric Space, Charles R. Qi et al. (2017). PointNet++ introduces hierarchical spatial aggregation and grouping principles on raw point sets that underpin modern bottom-up point cloud segmentation architectures.
Paper: PointNet: Deep Learning on Point Sets for 3D Classification and Segmentation, Charles R. Qi et al. (2017). PointNet establishes the foundational deep learning architecture for directly processing unordered 3D point sets with permutation invariance.
Paper: Mask R-CNN, Kaiming He et al. (2017). Mask R-CNN establishes the paradigm of instance segmentation and proposal-based refinement that SoftGroup adapts into a top-down refinement stage for 3D point clouds.
Paper: Deep Hough Voting for 3D Object Detection in Point Clouds, Charles R. Qi et al. (2019). VoteNet demonstrates deep geometric clustering and voting mechanisms in 3D point clouds, which directly inform instance-level grouping and centroid estimation.
Paper: Hybrid Task Cascade for Instance Segmentation, Kai Chen et al. (2019). Hybrid Task Cascade introduces multi-stage progressive refinement linking bounding proposals and masks, motivating the top-down refinement design in SoftGroup.
Paper: Large-Scale Point Cloud Semantic Segmentation with Superpoint Graphs, Loic Landrieu et al. (2017). This paper establishes superpoint graphs and geometric partitioning for point clouds, providing the conceptual foundation for grouping-based 3D scene segmentation.
Paper: PointCNN: Convolution On X-Transformed Points, Yangyan Li et al. (2018). PointCNN presents an effective framework for applying convolutional operations directly on irregular 3D point clouds via X-transformations.

Paper: Symphonize 3D Semantic Scene Completion with Contextual Instance Queries, Haoyi Jiang et al. (2024). Symphonies extends 3D instance-centric reasoning by incorporating contextual instance queries into 3D semantic scene completion.

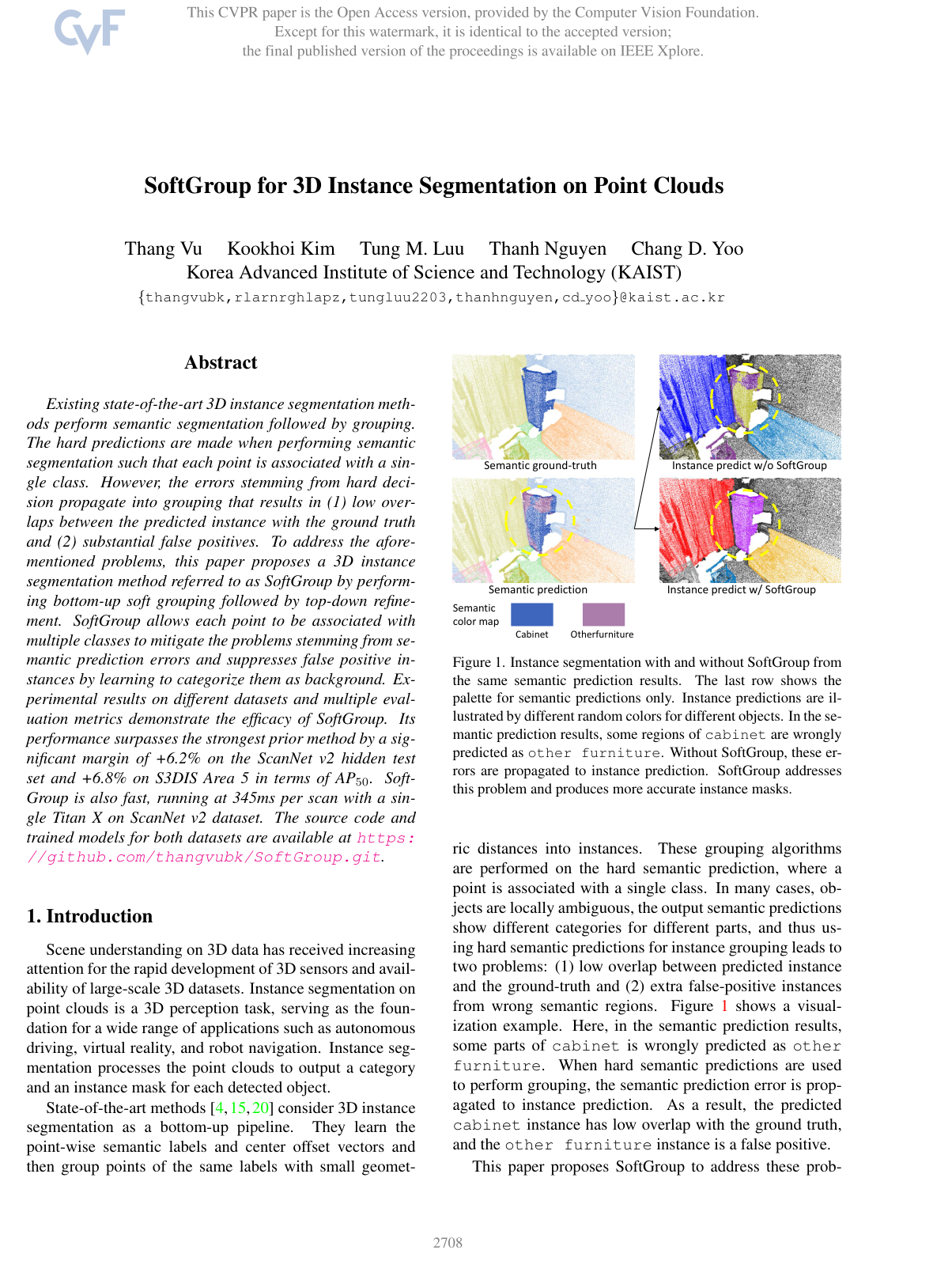

Cover for SoftGroup for 3D Instance Segmentation on Point Clouds

Abstract

Existing state-of-the-art 3D instance segmentation methods perform semantic segmentation followed by grouping. The hard predictions are made when performing semantic segmentation such that each point is associated with a single class. However, the errors stemming from hard decision propagate into grouping that results in (1) low overlaps between the predicted instance with the ground truth and (2) substantial false positives. To address the aforementioned problems, this paper proposes a 3D instance segmentation method referred to as SoftGroup by performing bottom-up soft grouping followed by top-down refinement. SoftGroup allows each point to be associated with multiple classes to mitigate the problems stemming from semantic prediction errors and suppresses false positive instances by learning to categorize them as background. Experimental results on different datasets and multiple evaluation metrics demonstrate the efficacy of SoftGroup. Its performance surpasses the strongest prior method by a significant margin of +6.2% on the ScanNet v2 hidden test set and +6.8% on S3DIS Area 5 in terms of AP_50. SoftGroup is also fast, running at 345ms per scan with a single Titan X on ScanNet v2 dataset. The source code and trained models for both datasets are available at \url{this https URL}.

Topics

point cloud segmentation methods semantics source codes test samples hard decisions object detection automatic segmentations object segmentation

Keywords

3D instance segmentation point clouds SoftGroup soft grouping point-wise prediction network S3DIS dataset ScanNet dataset semantic segmentation hard grouping

1 Introduction
2 Related work
3 Method
3.1 Point-wise Prediction Network
3.2 Soft Grouping
3.3 Top-Down Refinement
3.4 Multi-task Learning
4 Experiments
4.1 Experimental Settings
4.2 Benchmarking Results
4.3 Qualitative Analysis
4.4 Ablation Study
5 Conclusion
References

Knowls

Knowl 1 — SoftGroup Architecture and Two-Stage Pipeline
model/method
SoftGroup is a 3D point cloud instance segmentation framework that addresses the error propagation problem inherent in bottom-up grouping methods that rely on hard one-hot semantic labels. The framework operates in two distinct stages:
1. Bottom-Up Soft Grouping Stage:
  - A point-wise prediction network takes a point cloud $P = \{p_i\}_{i=1}^N$ (with 3D coordinates and color features) as input, voxelizes it into volumetric grids, and feeds it into a 3D U-Net backbone built with Submanifold Sparse Convolutions.
  - Two parallel two-layer MLP branches predict point-wise continuous semantic scores $S = \{s_1, \dots, s_N\} \in \mathbb{R}^{N \times N_{\text{class}}}$ across $N_{\text{class}}$ classes and offset vectors $O = \{o_1, \dots, o_N\} \in \mathbb{R}^{N \times 3}$ pointing toward instance centroids.
  - A soft grouping module clusters points into preliminary instance proposals using class-specific score thresholding on $S$ rather than argmax hard selection, allowing ambiguous points to participate in proposals for multiple candidate semantic classes.
2. Top-Down Refinement Stage:
  - For each proposal, backbone features belonging to the proposal's points are extracted and processed by a shared lightweight tiny U-Net.
  - Three specialized branches process the refined proposal features: a classification branch predicts proposal object categories and filters false positives into a dedicated background class; a segmentation branch refines binary point masks inside each proposal; and a mask scoring branch predicts the Intersection-over-Union (IoU) of the predicted mask with the ground truth to produce a calibrated confidence score.
Knowl 2 — Soft Grouping Algorithm on Point Clouds
algorithm
The soft grouping algorithm generates instance proposals from point-wise continuous semantic probability scores and center offset vectors, preventing hard semantic classification errors from truncating valid object instances or forming erroneous partitions.
Input: Point set $P = \{p_1, \dots, p_N\} \subset \mathbb{R}^3$ , semantic scores $S = \{s_1, \dots, s_N\} \in \mathbb{R}^{N \times N_{\text{class}}}$ , offset vectors $O = \{o_1, \dots, o_N\} \in \mathbb{R}^{N \times 3}$ , score threshold $\tau$ , grouping bandwidth $b$
Output: Set of candidate instance proposals $\mathcal{P}$
Initialize proposal set $\mathcal{P} \leftarrow \emptyset$
for each point $i \in \{1, \dots, N\}$ do
     $\tilde{p}_i \leftarrow p_i + o_i$ // Shift point toward estimated instance center
end for
for each semantic class index $c \in \{1, \dots, N_{\text{class}}\}$ do
     $V_c \leftarrow \{i \in \{1, \dots, N\} \mid S_{i, c} > \tau\}$ // Slice point subset exceeding threshold
    if $V_c$ is not empty then
        // Construct connected components based on spatial proximity
        Partition $V_c$ into disjoint clusters $\{C_1, \dots, C_m\}$ such that two shifted points $\tilde{p}_u, \tilde{p}_v$ belong to the same cluster if there exists a path between them with pairwise distance $< b$
        for each cluster $C_k$ in $\{C_1, \dots, C_m\}$ do
             $\mathcal{P} \leftarrow \mathcal{P} \cup \{C_k\}$
        end for
    end if
end for
return $\mathcal{P}$
Because points can satisfy $S_{i, c} > \tau$ for multiple classes simultaneously, points in locally ambiguous regions are evaluated across multiple candidate classes. The top-down refinement stage subsequently evaluates and prunes false-positive proposals.
Knowl 3 — Top-Down Refinement Network for Instance Proposal Classification and Scoring
model/method
The top-down refinement stage processes each candidate instance proposal generated by the soft grouping stage to refine the instance geometry, predict its class, and estimate mask quality:
- Feature Extraction: A per-instance feature extractor extracts the point-level features directly from the 3D U-Net backbone for the point subset comprising proposal $k$ . These features are processed by a tiny U-Net.
- Classification Branch: A global average pooling layer aggregates all point features within proposal $k$ , followed by an MLP that outputs logits $c_k \in \mathbb{R}^{N_{\text{class}} + 1}$ over $N_{\text{class}}$ foreground semantic classes and one background class. Classifying the entire proposal suppresses false positives generated by noisy semantic regions by assigning them to the background category.
- Segmentation Branch: A point-wise two-layer MLP predicts a binary mask $m_k$ over the proposal's points, segmenting foreground object points from extraneous background points included during soft grouping.
- Mask Scoring Branch: Uses the globally pooled proposal features to predict an IoU score vector $e_k \in \mathbb{R}^{N_{\text{class}}}$ , estimating the mask overlap with the ground truth.
- Final Confidence Score: The final confidence score for proposal $k$ is calculated as the product of the classification confidence score and the mask IoU score: $s_{\text{final}} = c_k(\hat{c}) \cdot e_k(\hat{c})$ where $\hat{c}$ is the predicted foreground class.
Knowl 4 — Multi-Task Learning Objective and Target Assignment Formulation
equation
SoftGroup is trained end-to-end using a joint multi-task loss function:

$L = L_{\text{semantic}} + L_{\text{offset}} + L_{\text{class}} + L_{\text{mask}} + L_{\text{mask\_score}}$

The individual component losses are defined as follows:
1. Semantic Loss: $L_{\text{semantic}} = \frac{1}{N} \sum_{i=1}^N \text{CE}(s_i, s_i^*)$ where $s_i \in \mathbb{R}^{N_{\text{class}}}$ is the predicted semantic probability vector for point $p_i$ , $s_i^*$ is the ground-truth semantic class label, and $\text{CE}$ denotes multi-class cross-entropy.
2. Offset Loss: $L_{\text{offset}} = \frac{1}{\sum_{i=1}^N \mathbb{I}_{\{p_i\}}} \sum_{i=1}^N \mathbb{I}_{\{p_i\}} \|o_i - o_i^*\|_1$ where $o_i \in \mathbb{R}^3$ is the predicted center offset vector, $o_i^* \in \mathbb{R}^3$ is the displacement from point $p_i$ to the centroid of its ground-truth instance, and $\mathbb{I}_{\{p_i\}}$ is an indicator function equal to 1 if point $p_i$ belongs to an instance and 0 otherwise.
3. Classification Loss: $L_{\text{class}} = \frac{1}{K} \sum_{k=1}^K \text{CE}(c_k, c_k^*)$ where $c_k \in \mathbb{R}^{N_{\text{class}}+1}$ is the predicted category logit for proposal $k$ , $K$ is the total number of proposals, and $c_k^*$ is the assigned target label.
4. Mask Segmentation Loss: $L_{\text{mask}} = \frac{1}{\sum_{k=1}^K \mathbb{I}_{\{m_k\}}} \sum_{k=1}^K \mathbb{I}_{\{m_k\}} \text{BCE}(m_k, m_k^*)$ where $m_k$ is the predicted point mask for proposal $k$ , $m_k^*$ is the binary ground-truth instance mask, $\text{BCE}$ is binary cross-entropy, and $\mathbb{I}_{\{m_k\}}$ equals 1 if proposal $k$ is a positive sample.
5. Mask Scoring Loss: $L_{\text{mask\_score}} = \frac{1}{\sum_{k=1}^K \mathbb{I}_{\{e_k\}}} \sum_{k=1}^K \mathbb{I}_{\{e_k\}} \|e_k - e_k^*\|_2^2$ where $e_k$ is the predicted IoU score, $e_k^*$ is the actual IoU between predicted mask $m_k$ and the matched ground-truth mask, and $\mathbb{I}_{\{e_k\}}$ equals 1 for positive proposals.
Sample Assignment Target: An instance proposal is designated as a positive sample ( $\mathbb{I} = 1$ ) if its IoU with any ground-truth instance exceeds 0.5, assigned to the ground-truth instance with the highest IoU. Proposals with maximum $\text{IoU} \le 0.5$ are treated as negative samples and assigned to the background category ( $c_k^* = \text{background}$ ) for $L_{\text{class}}$ , while being omitted from $L_{\text{mask}}$ and $L_{\text{mask\_score}}$ .

Knowl 5 — ScanNet v2 Hidden Test Set Instance Segmentation Benchmark

data/table

SoftGroup was evaluated on the 3D instance segmentation hidden test split of ScanNet v2 across 18 object classes. The evaluation metric is Average Precision at 50% IoU ( $\text{AP}_{50}$ ):

Method	AP $_{50}$	bath	bed	bksh	cab	chair	cntr	curt	desk	door	oth	pic	frid	scur	sink	sofa	tabl	toil	wind
SGPN	14.3	20.8	39.0	16.9	6.5	27.5	2.9	6.9	0.0	8.7	4.3	1.4	2.7	0.0	11.2	35.1	16.8	43.8	13.8
GSPN	30.6	50.0	40.5	31.1	34.8	58.9	5.4	6.8	12.6	28.3	29.0	2.8	21.9	21.4	33.1	39.6	27.5	82.1	24.5
3D-SIS	38.2	100.0	43.2	24.5	19.0	57.7	1.3	26.3	3.3	32.0	24.0	7.5	42.2	85.7	11.7	69.9	27.1	88.3	23.5
MASC	44.7	52.8	55.5	38.1	38.2	63.3	0.2	50.9	26.0	36.1	43.2	32.7	45.1	57.1	36.7	63.9	38.6	98.0	27.6
PanopticFusion	47.8	66.7	71.2	59.5	25.9	55.0	0.0	61.3	17.5	25.0	43.4	43.7	41.1	85.7	48.5	59.1	26.7	94.4	35.9
3D-BoNet	48.8	100.0	67.2	59.0	30.1	48.4	9.8	62.0	30.6	34.1	25.9	12.5	43.4	79.6	40.2	49.9	51.3	90.9	43.9
MTML	54.9	100.0	80.7	58.8	32.7	64.7	0.4	81.5	18.0	41.8	36.4	18.2	44.5	100.0	44.2	68.8	57.1	100.0	39.6
3D-MPA	61.1	100.0	83.3	76.5	52.6	75.6	13.6	58.8	47.0	43.8	43.2	35.8	65.0	85.7	42.9	76.5	55.7	100.0	43.0
Dyco3D	64.1	100.0	84.1	89.3	53.1	80.2	11.5	58.8	44.8	43.8	53.7	43.0	55.0	85.7	53.4	76.4	65.7	98.7	56.8
PE	64.5	100.0	77.3	79.8	53.8	78.6	8.8	79.9	35.0	43.5	54.7	54.5	64.6	93.3	56.2	76.1	55.6	99.7	50.1
PointGroup	63.6	100.0	76.5	62.4	50.5	79.7	11.6	69.6	38.4	44.1	55.9	47.6	59.6	100.0	66.6	75.6	55.6	99.7	51.3
GICN	63.8	100.0	89.5	80.0	48.0	67.6	14.4	73.7	35.4	44.7	40.0	36.5	70.0	100.0	56.9	83.6	59.9	100.0	47.3
OccuSeg	67.2	100.0	75.8	68.2	57.6	84.2	47.7	50.4	52.4	56.7	58.5	45.1	55.7	100.0	75.1	79.7	56.3	100.0	46.7
SSTNet	69.8	100.0	69.7	88.8	55.6	80.3	38.7	62.6	41.7	55.6	58.5	70.2	60.0	100.0	82.4	72.0	69.2	100.0	50.9
HAIS	69.9	100.0	84.9	82.0	67.5	80.8	27.9	75.7	46.5	51.7	59.6	55.9	60.0	100.0	65.4	76.7	67.6	99.4	56.0
SoftGroup	76.1	100.0	80.8	84.5	71.6	86.2	24.3	82.4	65.5	62.0	73.4	69.9	79.1	98.1	71.6	84.4	76.9	100.0	59.4

SoftGroup achieved an average $\text{AP}_{50}$ of 76.1%, outperforming the prior leading method (HAIS at 69.9%) by +6.2% and achieving the best individual score in 12 of the 18 evaluated classes.

Knowl 6 — S3DIS 3D Instance Segmentation Benchmark Results

data/table

SoftGroup performance was benchmarked on the Stanford Large-Scale 3D Indoor Spaces (S3DIS) dataset across 13 classes under two evaluation setups: testing on Area 5 and 6-fold cross-validation. Metrics reported are mean Average Precision (AP), Average Precision at 50% IoU ( $\text{AP}_{50}$ ), mean coverage (mCov), mean weighted coverage (mWCov), mean precision at 50% IoU ( $\text{mPrec}_{50}$ ), and mean recall at 50% IoU ( $\text{mRec}_{50}$ ):

Method	AP	AP $_{50}$	mCov	mWCov	mPrec $_{50}$	mRec $_{50}$
Evaluated on Area 5
SGPN	-	-	32.7	35.5	36.0	28.7
ASIS	-	-	44.6	47.8	55.3	42.4
PointGroup	-	57.8	-	-	61.9	62.1
SSTNet	42.7	59.3	-	-	65.5	64.2
HAIS	-	-	64.3	66.0	71.1	65.0
SoftGroup	51.6	66.1	66.1	68.0	73.6	66.6
Evaluated on 6-fold cross validation
SGPN	-	-	37.9	40.8	38.2	31.2
PartNet	-	-	-	-	56.4	43.4
ASIS	-	-	51.2	55.1	63.6	47.5
3D-BoNet	-	-	-	-	65.6	47.7
OccuSeg	-	-	-	-	72.8	60.3
GICN	-	-	-	-	68.5	50.8
PointGroup	-	64.0	-	-	69.6	69.2
SSTNet	54.1	67.8	-	-	73.5	73.4
HAIS	-	-	67.0	70.4	73.2	69.4
SoftGroup	54.4	68.9	69.3	71.7	75.3	69.8

On Area 5, SoftGroup improves AP and $\text{AP}_{50}$ by +8.9% and +6.8% over the second-best methods, respectively.

Knowl 7 — ScanNet v2 Validation Mask and 3D Bounding Box Object Detection Performance

data/table

Performance of 3D instance mask prediction and 3D axis-aligned bounding box prediction extracted from the predicted instance masks on the ScanNet v2 validation set:

Method	AP $_{50}$	AP $_{25}$	Box AP $_{50}$	Box AP $_{25}$
F-PointNet	-	-	10.8	19.8
GSPN	37.8	53.4	17.7	30.6
3D-SIS	18.7	35.7	22.5	40.2
VoteNet	-	-	33.5	58.6
3D-MPA	51.9	72.4	49.2	64.2
PointGroup	51.7	71.3	48.9	61.5
SSTNet	64.3	74.0	52.7	62.5
HAIS	64.4	75.6	53.1	64.3
SoftGroup	67.6	78.9	59.4	71.6

Extracting tight axis-aligned bounding boxes from the point masks generated by SoftGroup yields gains over prior state-of-the-art of +3.2% in $\text{AP}_{50}$ , +3.3% in $\text{AP}_{25}$ , +6.3% in $\text{Box AP}_{50}$ , and +7.3% in $\text{Box AP}_{25}$ .

Knowl 8 — Inference Latency and Component-Wise Execution Time

data/table

Inference latency per 3D scene scan on the ScanNet v2 validation set measured on a single NVIDIA Titan X GPU:

Method	Component Breakdown	Total Runtime (ms)
SGPN	Backbone (GPU): 2080 ms, Group merging (CPU): 149000 ms, Block merging (CPU): 7119 ms	158439
ASIS	Backbone (GPU): 2083 ms, Mean shift (CPU): 172711 ms, Block merging (CPU): 7119 ms	181913
GSPN	Backbone (GPU): 1612 ms, Point sampling (GPU): 9559 ms, Neighbour search (CPU): 1500 ms	12702
3D-BoNet	Backbone (GPU): 2083 ms, SCN (GPU): 667 ms, Block merging (CPU): 7119 ms	9202
GICN	Backbone (GPU): 1497 ms, SCN (GPU): 667 ms, Block merging (CPU): 7119 ms	8615
OccuSeg	Backbone (GPU): 189 ms, Supervoxel (CPU): 1202 ms, Clustering (GPU+CPU): 513 ms	1904
PointGroup	Backbone (GPU): 128 ms, Clustering (GPU+CPU): 221 ms, ScoreNet (GPU): 103 ms	452
SSTNet	Backbone (GPU): 125 ms, Tree network (GPU+CPU): 229 ms, ScoreNet (GPU): 74 ms	428
HAIS	Pointwise prediction (GPU): 154 ms, Hier. aggr. (GPU+CPU): 118 ms, Intra-inst. (GPU): 67 ms	339
SoftGroup	Pointwise prediction (GPU): 152 ms, Soft grouping (GPU+CPU): 123 ms, Top-down refinement (GPU): 70 ms	345

SoftGroup achieves 345 ms total inference latency per scene scan, running within 6 ms of the fastest prior model (HAIS at 339 ms) while providing higher segmentation accuracy.

Knowl 9 — Component-Wise Ablation and Threshold Sensitivity in SoftGroup
empirical result
Ablation experiments conducted on the ScanNet v2 validation set demonstrate the individual and combined impact of SoftGroup's design choices:
1. Component-Wise Ablation:
  - Hard grouping baseline with ScoreNet ranking: $\text{AP} = 39.5\%$ , $\text{AP}_{50} = 61.1\%$ , $\text{AP}_{25} = 75.5\%$ .
  - Adding Soft Grouping only: $\text{AP} = 41.6\%$ , $\text{AP}_{50} = 63.8\%$ , $\text{AP}_{25} = 79.2\%$ (+2.1% AP, +2.7% $\text{AP}_{50}$ ).
  - Adding Top-Down Refinement only: $\text{AP} = 44.3\%$ , $\text{AP}_{50} = 65.4\%$ , $\text{AP}_{25} = 78.1\%$ (+4.8% AP, +4.3% $\text{AP}_{50}$ ).
  - Full SoftGroup (Soft Grouping + Top-Down Refinement): $\text{AP} = 46.0\%$ , $\text{AP}_{50} = 67.6\%$ , $\text{AP}_{25} = 78.9\%$ (+6.5% AP, +6.5% $\text{AP}_{50}$ , +3.4% $\text{AP}_{25}$ over baseline).
2. Soft Grouping Score Threshold ( $\tau$ ):
  - Without threshold (hard grouping baseline): $\text{AP} = 44.3\%$ , $\text{AP}_{50} = 65.4\%$ .
  - $\tau = 0.01$ : $\text{AP} = 40.1\%$ , $\text{AP}_{50} = 58.5\%$
  - $\tau = 0.1$ : $\text{AP} = 45.3\%$ , $\text{AP}_{50} = 66.5\%$
  - $\tau = 0.2$ : $\text{AP} = 46.0\%$ , $\text{AP}_{50} = 67.6\%$ , $\text{AP}_{25} = 78.9\%$ (optimal balance between foreground recall and precision around 50% precision).
  - $\tau = 0.3$ : $\text{AP} = 45.2\%$ , $\text{AP}_{50} = 66.8\%$
  - $\tau = 0.4$ : $\text{AP} = 44.7\%$ , $\text{AP}_{50} = 46.1\%$
  - $\tau = 0.5$ : $\text{AP} = 43.9\%$ , $\text{AP}_{50} = 64.8\%$
3. Instance Category Assignment Source:
  - Majority voting of point-wise semantic predictions: $\text{AP} = 45.0\%$ , $\text{AP}_{50} = 65.6\%$ , $\text{AP}_{25} = 76.2\%$ .
  - Classification branch logits on pooled proposal features: $\text{AP} = 46.0\%$ , $\text{AP}_{50} = 67.6\%$ , $\text{AP}_{25} = 78.9\%$ (+1.0% AP, +2.0% $\text{AP}_{50}$ ).
Knowl 10 — SoftGroup Implementation Details and Training Setup
experimental setup
The training and inference hyperparameters for SoftGroup are configured as follows:
- Voxelization and Bandwidth: Point cloud scenes are voxelized with a grid size of $0.02\,\text{m}$ . The grouping bandwidth $b$ for spatial clustering is set to $0.04\,\text{m}$ .
- Soft Grouping Score Threshold: Score threshold $\tau$ is set to $0.2$ .
- Optimization and Schedule: The network is trained for 120k iterations using the Adam optimizer with a batch size of 4. The initial learning rate is $0.001$ , decayed using a cosine annealing schedule.
- Data Handling: During training on ScanNet v2, scenes are randomly cropped to a maximum limit of $250\text{k}$ points. At inference, full uncropped scenes are processed.
- S3DIS High-Density Adaptation: Due to higher point density on S3DIS, scenes are randomly downsampled at a ratio of $1/4$ prior to cropping. At inference, each scene is split into 4 spatial partitions, fed through the backbone, and the extracted point feature maps are merged before proposal generation and top-down refinement.

Coverage note — No substantial contributed material was omitted.

References

1.Iro Armeni, Ozan Sener, Amir R Zamir, Helen Jiang, Ioannis Brilakis, Martin Fischer, and Silvio Savarese. 3d semantic parsing of large-scale indoor spaces. In CVPR, 2016.
2.Mathieu Aubry, Ulrich Schlickewei, and Daniel Cremers. The wave kernel signature: A quantum mechanical approach to shape analysis. In ICCV workshops, 2011.
3.Michael M Bronstein and Iasonas Kokkinos. Scale-invariant heat kernel signatures for non-rigid shape recognition. In CVPR, 2010.
4.Shaoyu Chen, Jiemin Fang, Qian Zhang, Wenyu Liu, and Xinggang Wang. Hierarchical aggregation for 3d instance segmentation. In ICCV, 2021.
5.Christopher Choy, JunYoung Gwak, and Silvio Savarese. 4d spatio-temporal convnets: Minkowski convolutional neural networks. In CVPR, 2019.
6.Angela Dai, Angel X Chang, Manolis Savva, Maciej Halber, Thomas Funkhouser, and Matthias Nießner. Scannet: Richly-annotated 3d reconstructions of indoor scenes. In CVPR, 2017.
7.Francis Engelmann, Martin Bokeloh, Alireza Fathi, Bastian Leibe, and Matthias Nießner. 3d-mpa: Multi-proposal aggregation for 3d semantic instance segmentation. In CVPR, 2020.
8.Benjamin Graham, Martin Engelcke, and Laurens Van Der Maaten. 3d semantic segmentation with submanifold sparse convolutional networks. In CVPR, 2018.
9.Lei Han, Tian Zheng, Lan Xu, and Lu Fang. Occuseg: Occupancy-aware 3d instance segmentation. In CVPR, 2020.
10.Kaiming He, Georgia Gkioxari, Piotr Dollár, and Ross Girshick. Mask r-cnn. In ICCV, 2017.
11.Tong He, Chunhua Shen, and Anton van den Hengel. Dyco3d: Robust instance segmentation of 3d point clouds through dynamic convolution. In CVPR, 2021.
12.Ji Hou, Angela Dai, and Matthias Nießner. 3d-sis: 3d semantic instance segmentation of rgb-d scans. In CVPR, 2019.
13.Binh-Son Hua, Minh-Khoi Tran, and Sai-Kit Yeung. Pointwise convolutional neural networks. In CVPR, 2018.
14.Zhaojin Huang, Lichao Huang, Yongchao Gong, Chang Huang, and Xinggang Wang. Mask scoring r-cnn. In CVPR, 2019.
15.Li Jiang, Hengshuang Zhao, Shaoshuai Shi, Shu Liu, Chi-Wing Fu, and Jiaya Jia. Pointgroup: Dual-set point grouping for 3d instance segmentation. In CVPR, 2020.
16.Diederik P Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In ICVLR, 2015.
17.Jean Lahoud, Bernard Ghanem, Marc Pollefeys, and Martin R Oswald. 3d instance segmentation via multi-task metric learning. In ICCV, 2019.
18.Juho Lee, Yoonho Lee, Jungtaek Kim, Adam Kosiorek, Seungjin Choi, and Yee Whye Teh. Set transformer: A framework for attention-based permutation-invariant neural networks. In ICML, 2019.
19.Yangyan Li, Rui Bu, Mingchao Sun, Wei Wu, Xinhan Di, and Baoquan Chen. Pointcnn: Convolution on x-transformed points. In NIPS, 2018.
20.Zhihao Liang, Zhihao Li, Songcen Xu, Mingkui Tan, and Kui Jia. Instance segmentation in 3d scenes using semantic superpoint tree networks. In ICCV, 2021.
21.Chen Liu and Yasutaka Furukawa. Masc: Multi-scale affinity with sparse convolution for 3d instance segmentation. arXiv:1902.04478, 2019.
22.Shih-Hung Liu, Shang-Yi Yu, Shao-Chi Wu, Hwann-Tzong Chen, and Tyng-Luh Liu. Learning gaussian instance segmentation in point clouds. arXiv:2007.09860, 2020.
23.Yongcheng Liu, Bin Fan, Shiming Xiang, and Chunhong Pan. Relation-shape convolutional neural network for point cloud analysis. In CVPR, 2019.
24.Ilya Loshchilov and Frank Hutter. Sgdr: Stochastic gradient descent with warm restarts. In ICVLR, 2017.
25.Daniel Maturana and Sebastian Scherer. Voxnet: A 3d convolutional neural network for real-time object recognition. In IROS, 2015.
26.Kaichun Mo, Shilin Zhu, Angel X Chang, Li Yi, Subarna Tripathi, Leonidas J Guibas, and Hao Su. Partnet: A large-scale benchmark for fine-grained and hierarchical part-level 3d object understanding. In CVPR, 2019.
27.Gaku Narita, Takashi Seno, Tomoya Ishikawa, and Yohsuke Kaji. Panopticfusion: Online volumetric semantic mapping at the level of stuff and things. arXiv:1903.01177, 2019.
28.Adam Paszke, Sam Gross, Soumith Chintala, Gregory Chanan, Edward Yang, Zachary DeVito, Zeming Lin, Alban Desmaison, Luca Antiga, and Adam Lerer. Automatic differentiation in pytorch. In NIPS-W, 2017.
29.Quang-Hieu Pham, Thanh Nguyen, Binh-Son Hua, Gemma Roig, and Sai-Kit Yeung. Jsis3d: joint semantic-instance segmentation of 3d point clouds with multi-task pointwise networks and multi-value conditional random fields. In CVPR, 2019.
30.Charles R Qi, Or Litany, Kaiming He, and Leonidas J Guibas. Deep hough voting for 3d object detection in point clouds. In CVPR, 2019.
31.Charles R Qi, Wei Liu, Chenxia Wu, Hao Su, and Leonidas J Guibas. Frustum pointnets for 3d object detection from rgb-d data. In CVPR, 2018.
32.Charles R Qi, Hao Su, Kaichun Mo, and Leonidas J Guibas. Pointnet: Deep learning on point sets for 3d classification and segmentation. In CVPR, 2017.
33.Charles R Qi, Li Yi, Hao Su, and Leonidas J Guibas. Pointnet++: Deep hierarchical feature learning on point sets in a metric space. arXiv:1706.02413, 2017.
34.Gernot Riegler, Ali Osman Ulusoy, and Andreas Geiger. Octnet: Learning deep 3d representations at high resolutions. In CVPR, 2017.
35.Olaf Ronneberger, Philipp Fischer, and Thomas Brox. U-net: Convolutional networks for biomedical image segmentation. In MICCAI, 2015.
36.Radu Bogdan Rusu, Nico Blodow, and Michael Beetz. Fast point feature histograms (fpfh) for 3d registration. In ICVRA, 2009.
37.Radu Bogdan Rusu, Nico Blodow, Zoltan Csaba Marton, and Michael Beetz. Aligning point cloud views using persistent feature histograms. In IROS, 2008.
38.Yiru Shen, Chen Feng, Yaoqing Yang, and Dong Tian. Mining point cloud local structures by kernel correlation and graph pooling. In CVPR, 2018.
39.Martin Simonovsky and Nikos Komodakis. Dynamic edge-conditioned filters in convolutional neural networks on graphs. In CVPR, 2017.
40.Hugues Thomas, Charles R Qi, Jean-Emmanuel Deschaud, Beatriz Marcotegui, François Goulette, and Leonidas J Guibas. Kpconv: Flexible and deformable convolution for point clouds. In ICCV, 2019.
41.Weiyue Wang, Ronald Yu, Qiangui Huang, and Ulrich Neumann. Sgpn: Similarity group proposal network for 3d point cloud instance segmentation. In CVPR, 2018.
42.Xinlong Wang, Shu Liu, Xiaoyong Shen, Chunhua Shen, and Jiaya Jia. Associatively segmenting instances and semantics in point clouds. In CVPR, 2019.
43.Yue Wang, Yongbin Sun, Ziwei Liu, Sanjay E Sarma, Michael M Bronstein, and Justin M Solomon. Dynamic graph cnn for learning on point clouds. ACM TOG, 2019.
44.Wenxuan Wu, Zhongang Qi, and Li Fuxin. Pointconv: Deep convolutional networks on 3d point clouds. In CVPR, 2019.
45.Yifan Xu, Tianqi Fan, Mingye Xu, Long Zeng, and Yu Qiao. Spidercnn: Deep learning on point sets with parameterized convolutional filters. In ECCV, 2018.
46.Bo Yang, Jianan Wang, Ronald Clark, Qingyong Hu, Sen Wang, Andrew Markham, and Niki Trigoni. Learning object bounding boxes for 3d instance segmentation on point clouds. In NeurIPS, 2019.
47.Li Yi, Wang Zhao, He Wang, Minhyuk Sung, and Leonidas J Guibas. Gspn: Generative shape proposal network for 3d instance segmentation in point cloud. In CVPR, 2019.
48.Biao Zhang and Peter Wonka. Point cloud instance segmentation using probabilistic embeddings. In CVPR, 2021.
49.Biao Zhang and Peter Wonka. Point cloud instance segmentation using probabilistic embeddings. In CVPR, 2021.
50.Hengshuang Zhao, Li Jiang, Jiaya Jia, Philip HS Torr, and Vladlen Koltun. Point transformer. In ICCV, 2021.

Citation

MLA

Vu, T., et al. “SoftGroup for 3D Instance Segmentation on Point Clouds”. arXiv, 2022, http://arxiv.org/abs/2203.01509v1.

APA

Vu, T., Kim, K., Luu, T. M., Nguyen, X. T., & Yoo, C. D. (2022). SoftGroup for 3D Instance Segmentation on Point Clouds. arXiv. http://arxiv.org/abs/2203.01509v1

Chicago

Vu, T., K. Kim, T. M. Luu, X. T. Nguyen, and C. D. Yoo. 2022. “SoftGroup for 3D Instance Segmentation on Point Clouds”. arXiv. http://arxiv.org/abs/2203.01509v1.

Harvard

Vu, T. et al. (2022) “SoftGroup for 3D Instance Segmentation on Point Clouds”, arXiv [Preprint]. Available at: http://arxiv.org/abs/2203.01509v1.

Vancouver

1. Vu T, Kim K, Luu TM, Nguyen XT, Yoo CD (2022) SoftGroup for 3D Instance Segmentation on Point Clouds. arXiv

BibTeX

@article{vu2022softgroup,
  title = {SoftGroup for 3D Instance Segmentation on Point Clouds},
  author = {Vu, Thang and Kim, Kookhoi and Luu, Tung M. and Nguyen, Xuan Thanh and Yoo, Chang D.},
  year = {2022},
  journal = {arXiv},
  url = {http://arxiv.org/abs/2203.01509v1},
  eprint = {2203.01509}
}

Metadata:arXiv

Source Code

This paper has an official code repository available. Click below to access the source code.

View Repository

Access the Paper

This paper is available from its original source. Click below to access the PDF.

Open PDF

License: IEEE

SoftGroup for 3D Instance Segmentation on Point Clouds

Abstract

Topics

Keywords

Table of Contents

Knowls

Knowl 1 — SoftGroup Architecture and Two-Stage Pipeline

Knowl 2 — Soft Grouping Algorithm on Point Clouds

Knowl 3 — Top-Down Refinement Network for Instance Proposal Classification and Scoring

Knowl 4 — Multi-Task Learning Objective and Target Assignment Formulation

Knowl 5 — ScanNet v2 Hidden Test Set Instance Segmentation Benchmark

Knowl 6 — S3DIS 3D Instance Segmentation Benchmark Results

Knowl 7 — ScanNet v2 Validation Mask and 3D Bounding Box Object Detection Performance

Knowl 8 — Inference Latency and Component-Wise Execution Time

Knowl 9 — Component-Wise Ablation and Threshold Sensitivity in SoftGroup

Knowl 10 — SoftGroup Implementation Details and Training Setup

References

Citation

BibTeX

Source Code

Access the Paper
