ViLa-MIL: Dual-scale Vision-Language Multiple Instance Learning for Whole Slide Image Classification

Jiangbo ShiChen LiTieliang GongYefeng ZhengHuazhu Fu

article2024CVPR52 citations

Proposes a dual-scale vision-language multiple instance learning framework that uses frozen LLM prompts and lightweight decoders to transfer vision-language models to gigapixel whole slide image classification with minimal labeled data.

Listen

Pathological review of whole slide images serves as the clinical standard for cancer diagnosis and subtyping. However, digitizing these giga-pixel images creates immense data volumes that make pixel-level annotation practically unattainable. Traditional automated methods rely strictly on weakly supervised multiple instance learning, which requires substantial quantities of labeled training slides that are often unavailable for rare diseases. While adapting pre-trained vision-language models can incorporate useful diagnostic language priors, existing approaches depend heavily on generic class labels or expensive, resource-intensive collection of millions of domain-specific image-text pairs.

The article introduces and evaluates ViLa-MIL, a dual-scale vision-language multiple instance learning framework designed to efficiently classify whole slide images with limited labeled data. The system aims to bridge diagnostic pathology knowledge and computational vision by generating descriptive text prompts across image scales and efficiently aligning them with visual features.

To achieve this, the authors developed a multi-scale prompting pipeline leveraging a frozen large language model to describe diagnostic criteria at low resolution, representing global tissue architecture, and high resolution, representing cellular details. The approach incorporates two lightweight neural decoders: a prototype-guided patch decoder that groups similar image patches to summarize slide-level visual context, and a context-guided text decoder that refines text features using local and global visual cues. The framework was evaluated under a strict few-shot regime using 16 training slides per category across three multi-center cancer datasets covering renal cell carcinoma and lung cancer.

The experimental findings show that ViLa-MIL consistently outperforms leading multiple instance learning baselines under few-shot conditions. Specifically, the framework improved the area under the receiver operating characteristic curve by 1.7% to 7.2%, the F1 score by 2.1% to 7.3%, and overall classification accuracy across all benchmark datasets. In domain-shift tests between different hospital centers, ViLa-MIL maintained superior robustness, exceeding baseline cross-center diagnostic accuracy by 5.5% in area under the curve. Visual analyses confirmed that the method generates well-separated class clusters and accurately localizes tumor regions within slides.

These findings demonstrate that integrating structured, scale-appropriate text descriptions eliminates the need for massive pre-training on paired medical datasets, significantly reducing computational overhead and annotation costs. The framework enables high diagnostic accuracy even when data is scarce, providing a scalable pathway for developing automated diagnostic tools for rare cancers and heterogeneous clinical settings.

Healthcare technology leaders and research teams should consider adopting multi-scale vision-language prompting to build cost-effective diagnostic support pipelines. Future efforts should focus on deploying the framework across broader tumor types and exploring more capable language models to further enhance diagnostic descriptions. While current tests were restricted to renal and lung cancer datasets under controlled 16-shot conditions, the consistent gains across independent evaluation runs provide high confidence in the method's effectiveness for low-resource computational pathology.

Agency for Science, Technology and Research Tencent Xi'an Jiaotong University classification language model large language models ViLa-MIL dual-scale vision-language multiple instance learning whole slide image classification

arXiv: 2502.08391

Paper: Data-efficient and weakly supervised computational pathology on whole-slide images, Ming Y. Lu et al. (2020). Introduces the clustering-constrained attention multiple instance learning framework for whole slide images that serves as a core methodological foundation and baseline for ViLa-MIL.
Paper: Attention-based Deep Multiple Instance Learning, Maximilian Ilse et al. (2018). Establishes the foundational attention-based deep multiple instance learning paradigm used for aggregating patch embeddings into slide-level representations.
Paper: LLaVA-Med: Training a Large Language-and-Vision Assistant for Biomedicine in One Day, Chunyuan Li et al. (2023). Pioneers the adaptation of vision-language foundation models to biomedical domains using curriculum instruction tuning.
Paper: Vision-Language Models for Vision Tasks: A Survey, Jingyi Zhang et al. (2023). Provides a comprehensive taxonomy of vision-language architectures and prompt-tuning strategies leveraged for downstream visual tasks.
Paper: DualCoOp: Fast Adaptation to Multi-Label Recognition with Limited Annotations, Ximeng Sun et al. (2022). Develops dual context optimization for adapting frozen vision-language models with limited annotations, informing prompt-based classification in few-shot regimes.
Paper: Open Vocabulary Semantic Segmentation with Patch Aligned Contrastive Learning, Jishnu Mukhoti et al. (2023). Addresses aligning local visual image patches with text representations in contrastive vision-language learning.
Paper: Benchmarking Self-Supervised Learning on Diverse Pathology Datasets, Mingu Kang et al. (2023). Systematically benchmarks self-supervised feature extraction backbones on diverse histopathology datasets for multiple instance learning pipelines.

Paper: VILA-M3: Enhancing Vision-Language Models with Medical Expert Knowledge, Vishwesh Nath et al. (2025). Extends the integration of medical domain knowledge into vision-language architectures by incorporating specialized expert clinical guidance across broader multimodal diagnostic tasks.
Paper: Visual CoT: Advancing Multi-Modal Language Models with a Comprehensive Dataset and Benchmark for Chain-of-Thought Reasoning, Hao Shao et al. (2024). Advances multi-scale visual reasoning by formulating a chain-of-thought framework that iteratively focuses on localized high-resolution regions for complex image interpretation.
Paper: Few-Shot Object Detection with Foundation Models, Guangxing Han et al. (2024). Generalizes the few-shot foundation model adaptation strategy using frozen visual backbones and in-context language prompts to object detection.

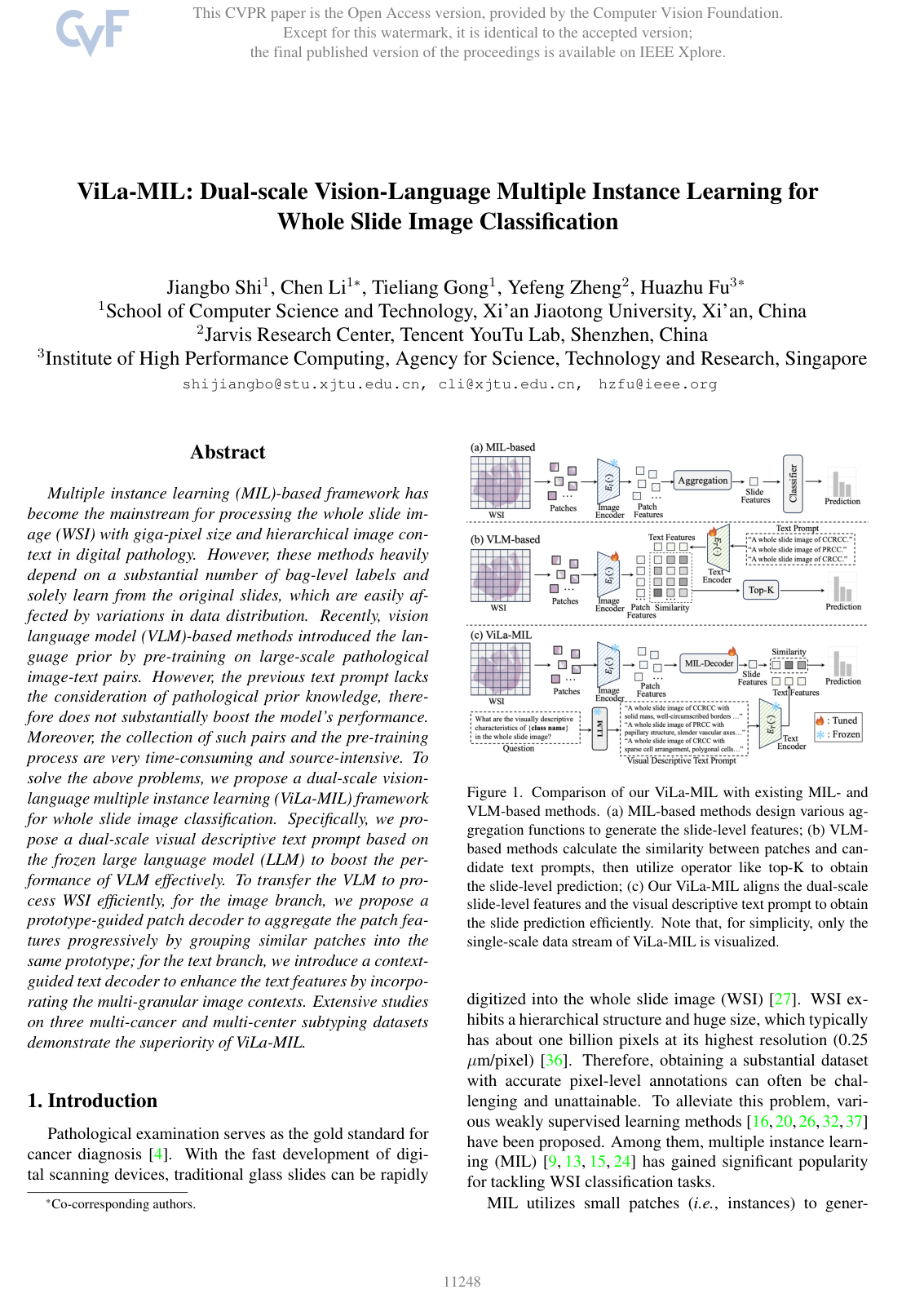

Cover for ViLa-MIL: Dual-scale Vision-Language Multiple Instance Learning for Whole Slide Image Classification

Abstract

Multiple instance learning (MIL)-based framework has become the mainstream for processing the whole slide image (WSI) with giga-pixel size and hierarchical image context in digital pathology. However, these methods heavily depend on a substantial number of bag-level labels and solely learn from the original slides, which are easily affected by variations in data distribution. Recently, vision language model (VLM)-based methods introduced the language prior by pre-training on large-scale pathological image-text pairs. However, the previous text prompt lacks the consideration of pathological prior knowledge, therefore does not substantially boost the model’s performance. Moreover, the collection of such pairs and the pre-training process are very time-consuming and source-intensive. To solve the above problems, we propose a dual-scale vision-language multiple instance learning (ViLa-MIL) framework for whole slide image classification. Specifically, we propose a dual-scale visual descriptive text prompt based on the frozen large language model (LLM) to boost the performance of VLM effectively. To transfer the VLM to process WSI efficiently, for the image branch, we propose a prototype-guided patch decoder to aggregate the patch features progressively by grouping similar patches into the same prototype; for the text branch, we introduce a context-guided text decoder to enhance the text features by incorporating the multi-granular image contexts. Extensive studies on three multi-cancer and multi-center subtyping datasets demonstrate the superiority of ViLa-MIL.

Topics

classification language model large language models subtyping supervised classification text feature

Keywords

ViLa-MIL dual-scale vision-language multiple instance learning whole slide image classification multiple instance learning weakly supervised learning context-guided attention cross-attention layer attention-based pooling feature fusion

1. Introduction
2. Related Works
3. Methodology
3.1. Revisiting CLIP
3.2. Dual-scale Visual Descriptive Text Prompt
3.3. Prototype-guided Patch Decoder
3.4. Context-guided Text Decoder
3.5. Training Strategy
4. Experiments
4.1. Settings
4.2. Comparisons with State-of-the-Art
4.3. Generalization on Domain Shift
4.4. Ablation Studies
5. Conclusion
Acknowledgements
References

Knowls

Knowl 1 — Dual-Scale Vision-Language Multiple Instance Learning (ViLa-MIL) Framework
model/method
ViLa-MIL is a weakly supervised vision-language framework designed for whole slide image (WSI) classification under few-shot conditions. It operates across two magnification scales: low resolution (e.g., $5\times$ ) capturing macroscopic architectural context (such as papillary or solid growth patterns) and high resolution (e.g., $10\times$ ) capturing fine cytological details (such as nuclear pleomorphism and cytoplasm clarity).

Given a WSI bag $W = \{W_l, W_h\}$ at low ( $l$ ) and high ( $h$ ) magnifications, non-overlapping patches $I = \{I_l \in \mathbb{R}^{N_l \times N_0 \times N_0 \times 3}, I_h \in \mathbb{R}^{N_h \times N_0 \times N_0 \times 3}\}$ (with patch size $N_0 \times N_0$ , e.g., $256 \times 256$ ) are extracted and mapped into visual feature embeddings $H_l \in \mathbb{R}^{N_l \times d}$ and $H_h \in \mathbb{R}^{N_h \times d}$ using a frozen vision-language image encoder $E_I(\cdot)$ (e.g., ResNet-50 CLIP, $d=1024$ ).

For the language branch, a frozen Large Language Model (LLM, e.g., GPT-3.5) generates scale-specific visual descriptive text prompts for all $C$ candidate categories, concatenated with $M$ learnable prefix context vectors. Initial scale-specific text representations $D_l, D_h \in \mathbb{R}^{C \times d}$ are extracted using the frozen CLIP text encoder $E_T(\cdot)$ .

To adapt the vision-language model efficiently without fine-tuning the heavy backbones, ViLa-MIL introduces two trainable modules:
1. A Prototype-Guided Patch Decoder that compresses the $N_k$ patch features into slide-level feature embeddings $S_k \in \mathbb{R}^d$ for scale $k \in \{l, h\}$ via cross-attention with learnable prototype vectors followed by attention-weighted pooling.
2. A Context-Guided Text Decoder that refines category text embeddings $D_k$ into $D'_k \in \mathbb{R}^{C \times d}$ by cross-attending to multi-granular visual context (the union of prototype and patch features).
Final classification probabilities are computed by combining cosine similarities across both scales, optimized end-to-end using standard cross-entropy loss.
Knowl 2 — Dual-Scale Visual Descriptive Text Prompt Generation
model/method
To inject domain-specific pathological prior knowledge into vision-language whole slide image (WSI) classification, ViLa-MIL constructs scale-differentiated visual descriptive prompts using a frozen Large Language Model (LLM). Pathologists evaluate tissue hierarchically by first identifying macroscopic structures at low magnification and then zooming into high magnification for cytological and nuclear details.

An LLM is queried using the structured prompt template: $\text{"What are the visually descriptive characteristics of } \{\text{class name}\} \text{ at low and high resolution in the whole slide image?"}$

For a target class (e.g., renal cell carcinoma subtypes such as clear cell CCRCC, papillary PRCC, and chromophobe CRCC), this query yields two complementary visual descriptions:
- Low-scale descriptive text: focuses on macro tissue architecture (e.g., "papillary growth pattern", "well-circumscribed borders", "solid mass").
- High-scale descriptive text: focuses on cellular micro-features (e.g., "nuclei arranged in layers", "heterogeneous cytoplasm", "clear cytoplasm and round nuclei").
To bridge the domain gap between pre-trained natural language representations and pathology, $M$ learnable continuous prefix vectors $[V_k]_1, [V_k]_2, \dots, [V_k]_M$ (where each vector has dimension matching word token embeddings) are prepended to the generated descriptions, forming the full dual-scale text prompts $T_l$ and $T_h$ : $T_l = [V_l]_1 [V_l]_2 \dots [V_l]_M [\text{Low-scale Text Prompt}]$ $T_h = [V_h]_1 [V_h]_2 \dots [V_h]_M [\text{High-scale Text Prompt}]$
Knowl 3 — Prototype-Guided Patch Decoder
model/method
The prototype-guided patch decoder aggregates an arbitrary number $N_k$ of patch embeddings $H_k \in \mathbb{R}^{N_k \times d}$ (where $k \in \{l, h\}$ indexes low and high magnifications) into a fixed slide-level visual embedding $S_k \in \mathbb{R}^d$ .

A set of $N_p$ learnable prototype vectors $Pr \in \mathbb{R}^{N_p \times d}$ is randomly initialized to guide the aggregation by grouping semantically similar patches into shared prototype clusters. A cross-attention layer treats the prototypes as queries $Q_k = Pr$ and all patch features as keys $K_k = H_k$ and values $V_k = H_k$ : $Pr_k = \mathrm{LayerNorm}\left(\mathrm{Softmax}\left(\frac{Q_k K_k^\top}{\sqrt{d}}\right) V_k\right) + Pr$ where $\mathrm{LayerNorm}(\cdot)$ denotes layer normalization, $\mathrm{Softmax}(\cdot)$ operates along the key dimension, and $Pr_k \in \mathbb{R}^{N_p \times d}$ contains the context-enriched prototype features.

To obtain the final slide-level representation $S_k$ , the updated prototypes are aggregated via parameterized gated attention pooling: $Pr'_{k,i} = W_a Pr_{k,i}$ $A_{k,i} = \frac{\exp\left(W_b^\top \tanh(W_v {Pr'}_{k,i}^\top)\right)}{\sum_{j=1}^{N_p} \exp\left(W_b^\top \tanh(W_v {Pr'}_{k,j}^\top)\right)}$ $S_k = W_c \sum_{i=1}^{N_p} A_{k,i} Pr'_{k,i}$ where $Pr_{k,i} \in \mathbb{R}^d$ is the $i$ -th prototype vector in $Pr_k$ ; $W_a, W_c, W_v \in \mathbb{R}^{d \times d}$ are trainable weight matrices; $W_b \in \mathbb{R}^{d \times 1}$ is a trainable projection vector; $\tanh(\cdot)$ is the hyperbolic tangent activation; and $A_{k,i} \in [0, 1]$ is the normalized attention weight for prototype $i$ with $\sum_{i=1}^{N_p} A_{k,i} = 1$ .
Knowl 4 — Context-Guided Text Decoder
model/method
The context-guided text decoder refines the text prompt features by conditioning them on multi-granular visual context extracted from the whole slide image, closing the cross-modal representation gap.

For scale $k \in \{l, h\}$ , the initial text features $D_k \in \mathbb{R}^{C \times d}$ are obtained by passing the prompt sequences $T_k$ of all $C$ candidate categories through the frozen CLIP text encoder $E_T(\cdot)$ . Multi-granular visual contextual information is formed by concatenating the global prototype features $Pr_k \in \mathbb{R}^{N_p \times d}$ from the prototype-guided patch decoder and the local patch features $H_k \in \mathbb{R}^{N_k \times d}$ to build the key and value matrices: $K_{t,k} = [Pr_k; H_k] \in \mathbb{R}^{(N_p + N_k) \times d}$ $V_{t,k} = [Pr_k; H_k] \in \mathbb{R}^{(N_p + N_k) \times d}$

Using the text features as queries $Q_{t,k} = D_k \in \mathbb{R}^{C \times d}$ , the refined text representations $D'_k \in \mathbb{R}^{C \times d}$ are computed via cross-attention with a residual connection: $D'_k = \mathrm{Softmax}\left(\frac{Q_{t,k} K_{t,k}^\top}{\sqrt{d}}\right) V_{t,k} + D_k$ where $D'_k$ aligns category textual semantics with the slide-specific morphological characteristics observed at scale $k$ .
Knowl 5 — Dual-Scale Vision-Language Classification Objective
equation
For a whole slide image evaluated at low ( $l$ ) and high ( $h$ ) magnifications, let $S_k \in \mathbb{R}^d$ denote the slide-level image embedding and $D'_{k,i} \in \mathbb{R}^d$ denote the refined text feature embedding for class $i \in \{1, \dots, C\}$ at scale $k \in \{l, h\}$ .

The predicted class probability $P_i$ for class $i$ is calculated by weighting the scale-specific softmax cosine similarity distributions: $P_i = \sum_{k \in \{l, h\}} \alpha_k \frac{\exp\left(\cos(S_k, D'_{k,i})\right)}{\sum_{j=1}^C \exp\left(\cos(S_k, D'_{k,j})\right)}$ where $\cos(u, v) = \frac{u^\top v}{\|u\|_2 \|v\|_2}$ denotes the cosine similarity, and $\alpha_l, \alpha_h \ge 0$ are non-negative hyperparameters controlling the relative importance of each magnification scale (set to $\alpha_l = \alpha_h = 1$ ).

The entire model is trained end-to-end using the slide-level multi-class cross-entropy loss: $\mathcal{L} = \mathrm{CE}(P, GT) = -\sum_{i=1}^C GT_i \log P_i$ where $GT \in \{0, 1\}^C$ is the one-hot encoded ground-truth slide-level diagnostic label.

Knowl 6 — Few-Shot Classification Performance on Multi-Cancer WSI Datasets

data/table

The performance of ViLa-MIL and baseline multiple instance learning (MIL) methods was evaluated under a 16-shot setting across three WSI subtyping benchmarks: TIHD-RCC (in-house renal cell carcinoma subtyping), TCGA-RCC (TCGA renal cell carcinoma subtyping: CCRCC vs PRCC vs CRCC), and TCGA-Lung (TCGA lung cancer subtyping: LUAD vs LUSC). All models used a 4:3:3 train/validation/test split, with 16 randomly selected training samples per class, averaged over 5 runs using frozen CLIP ResNet-50 patch embeddings ( $d=1024$ ).

Method	TIHD-RCC			TCGA-RCC			TCGA-Lung
Method	AUC	F1	ACC	AUC	F1	ACC	AUC	F1	ACC
Max-pooling	$52.5 \pm 4.9$	$32.2 \pm 3.5$	$37.5 \pm 2.3$	$67.4 \pm 4.9$	$46.7 \pm 11.6$	$54.1 \pm 4.8$	$53.0 \pm 6.0$	$45.8 \pm 8.9$	$53.3 \pm 3.4$
Mean-pooling	$67.2 \pm 4.6$	$42.4 \pm 10.1$	$47.9 \pm 3.9$	$83.3 \pm 6.0$	$60.9 \pm 8.5$	$62.3 \pm 7.4$	$67.4 \pm 7.2$	$61.1 \pm 5.5$	$61.9 \pm 5.5$
ABMIL	$65.6 \pm 9.6$	$46.9 \pm 7.1$	$47.9 \pm 6.7$	$83.6 \pm 3.1$	$64.4 \pm 4.2$	$65.7 \pm 4.7$	$60.5 \pm 15.9$	$56.8 \pm 11.8$	$61.2 \pm 6.1$
CLAM-SB	$68.9 \pm 14.4$	$50.5 \pm 16.3$	$53.1 \pm 13.8$	$90.1 \pm 2.2$	$75.3 \pm 7.4$	$77.6 \pm 7.0$	$66.7 \pm 13.6$	$59.9 \pm 13.8$	$64.0 \pm 7.7$
CLAM-MB	$71.8 \pm 9.8$	$54.8 \pm 9.5$	$55.4 \pm 10.2$	$90.9 \pm 4.1$	$76.2 \pm 4.4$	$78.6 \pm 4.9$	$68.8 \pm 12.5$	$60.3 \pm 11.1$	$63.0 \pm 9.3$
TransMIL	$71.2 \pm 4.2$	$53.9 \pm 3.9$	$54.9 \pm 4.1$	$89.4 \pm 5.6$	$73.0 \pm 7.8$	$75.3 \pm 7.2$	$64.2 \pm 8.5$	$57.5 \pm 6.4$	$59.7 \pm 5.4$
DSMIL	$69.9 \pm 9.4$	$49.9 \pm 6.9$	$50.0 \pm 7.4$	$87.6 \pm 4.5$	$71.5 \pm 6.6$	$72.8 \pm 6.4$	$67.9 \pm 8.0$	$61.0 \pm 7.0$	$61.3 \pm 7.0$
GTMIL	$77.1 \pm 3.5$	$61.4 \pm 4.3$	$62.2 \pm 4.3$	$88.1 \pm 13.3$	$71.1 \pm 15.7$	$76.1 \pm 12.9$	$66.0 \pm 15.3$	$61.1 \pm 12.3$	$63.8 \pm 9.9$
DTMIL	$70.3 \pm 10.3$	$55.6 \pm 9.6$	$55.8 \pm 9.9$	$90.0 \pm 4.6$	$74.4 \pm 5.3$	$76.8 \pm 5.2$	$67.5 \pm 10.3$	$57.3 \pm 11.3$	$66.6 \pm 7.5$
IBMIL	$71.5 \pm 6.3$	$57.2 \pm 7.6$	$56.4 \pm 4.8$	$90.5 \pm 4.1$	$75.1 \pm 5.2$	$77.2 \pm 4.2$	$69.2 \pm 7.4$	$57.4 \pm 8.3$	$66.9 \pm 6.5$
ViLa-MIL Low	$79.5 \pm 3.6$	$61.2 \pm 7.1$	$63.1 \pm 3.0$	$90.9 \pm 2.9$	$77.3 \pm 4.0$	$79.5 \pm 3.7$	$71.9 \pm 6.2$	$64.1 \pm 7.8$	$65.8 \pm 5.8$
ViLa-MIL High	$83.0 \pm 5.6$	$65.3 \pm 6.4$	$66.2 \pm 6.8$	$92.0 \pm 1.3$	$77.8 \pm 3.7$	$80.0 \pm 3.0$	$72.3 \pm 7.6$	$66.6 \pm 6.5$	$66.9 \pm 6.3$
ViLa-MIL	$\mathbf{84.3 \pm 4.6}$	$\mathbf{68.7 \pm 7.3}$	$\mathbf{68.8 \pm 7.3}$	$\mathbf{92.6 \pm 3.0}$	$\mathbf{78.3 \pm 6.9}$	$\mathbf{80.3 \pm 6.2}$	$\mathbf{74.7 \pm 3.5}$	$\mathbf{67.0 \pm 4.9}$	$\mathbf{67.7 \pm 4.4}$

ViLa-MIL achieves the highest performance across all datasets and metrics, outperforming the best existing MIL baseline by 1.7–7.2% in AUC, 2.1–7.3% in F1 score, and 0.8–6.6% in accuracy. Even the single-scale variants (ViLa-MIL Low and High) outperform purely visual MIL methods.

Knowl 7 — Cross-Center Domain Generalization Between TIHD-RCC and TCGA-RCC

data/table

Cross-center evaluation was performed between TIHD-RCC and TCGA-RCC under the 16-shot setting to assess model generalization across different institutions and staining protocols. Models were trained on one dataset and evaluated on the test split of the other.

Method	TIHD $\to$ TCGA			TCGA $\to$ TIHD
Method	AUC	F1	ACC	AUC	F1	ACC
Mean	$61.9 \pm 9.2$	$31.9 \pm 7.7$	$24.6 \pm 3.6$	$69.1 \pm 5.9$	$43.9 \pm 7.1$	$34.0 \pm 6.5$
ABMIL	$61.6 \pm 7.0$	$26.9 \pm 2.7$	$24.7 \pm 3.3$	$66.8 \pm 6.1$	$43.1 \pm 6.9$	$34.1 \pm 8.6$
CLAM-MB	$77.1 \pm 6.9$	$36.1 \pm 2.0$	$35.3 \pm 2.6$	$68.2 \pm 8.7$	$46.9 \pm 8.2$	$35.0 \pm 6.6$
TransMIL	$71.1 \pm 5.9$	$50.3 \pm 6.3$	$47.3 \pm 4.8$	$63.2 \pm 7.9$	$44.6 \pm 7.5$	$30.9 \pm 8.4$
DSMIL	$74.3 \pm 7.3$	$24.6 \pm 4.6$	$21.9 \pm 6.7$	$68.1 \pm 6.0$	$42.1 \pm 6.0$	$32.3 \pm 6.3$
GTMIL	$76.7 \pm 9.2$	$46.7 \pm 4.8$	$43.1 \pm 8.6$	$72.7 \pm 9.7$	$51.0 \pm 7.4$	$37.4 \pm 5.7$
DTMIL	$77.9 \pm 5.6$	$30.0 \pm 6.8$	$30.9 \pm 5.7$	$69.8 \pm 8.3$	$38.0 \pm 6.6$	$35.4 \pm 7.0$
IBMIL	$78.2 \pm 4.7$	$37.0 \pm 6.5$	$36.9 \pm 4.6$	$70.1 \pm 7.4$	$47.0 \pm 6.4$	$35.5 \pm 7.2$
ViLa-MIL	$\mathbf{83.4 \pm 3.3}$	$\mathbf{51.7 \pm 5.6}$	$\mathbf{50.3 \pm 5.8}$	$\mathbf{75.4 \pm 4.9}$	$\mathbf{51.4 \pm 4.7}$	$\mathbf{38.3 \pm 5.4}$

Performance across all models drops when evaluated on out-of-domain data. However, ViLa-MIL improves AUC by 5.5% on $\text{TIHD} \to \text{TCGA}$ (83.4% vs. 78.2% for IBMIL) and by 2.7% on $\text{TCGA} \to \text{TIHD}$ (75.4% vs. 72.7% for GTMIL). The descriptive text prompt encodes invariant diagnostic criteria that provide robustness against scanner and staining distribution shifts.

Knowl 8 — Ablation Study of ViLa-MIL Architectural Components

data/table

An ablation study on the TIHD-RCC dataset under the 16-shot setting assesses the incremental impact of each component in ViLa-MIL: the prototype-guided patch decoder, the dual-scale visual descriptive prompt, and the context-guided text decoder.

Method	AUC (%)	F1 (%)	ACC (%)
ABMIL + Low-scale	$76.8 \pm 3.1$	$57.2 \pm 3.9$	$61.4 \pm 2.8$
ABMIL + High-scale	$79.3 \pm 3.2$	$62.7 \pm 3.6$	$63.3 \pm 3.1$
Patch Decoder + Low-scale	$79.4 \pm 2.1$	$60.8 \pm 5.1$	$62.8 \pm 3.9$
Patch Decoder + High-scale	$82.9 \pm 2.6$	$64.8 \pm 5.1$	$65.6 \pm 4.7$
Patch Decoder + Dual-scale	$83.6 \pm 2.7$	$67.8 \pm 4.5$	$68.3 \pm 4.1$
ViLa-MIL (Full Framework)	$\mathbf{84.3 \pm 4.6}$	$\mathbf{68.7 \pm 7.3}$	$\mathbf{68.8 \pm 7.3}$

Key takeaways:

Replacing ABMIL attention pooling with the prototype-guided patch decoder improves low-scale AUC from 76.8% to 79.4% (+2.6%) and high-scale AUC from 79.3% to 82.9% (+3.6%).
Integrating dual-scale features and prompts lifts AUC from 82.9% to 83.6% and F1 from 64.8% to 67.8% (+3.0%).
Introducing the context-guided text decoder further improves performance to 84.3% AUC and 68.7% F1.

Knowl 9 — Comparison of Prompting Strategies and Large Language Model Backbones

data/table

The effectiveness of prompt construction strategies and choice of frozen Large Language Model (LLM) was evaluated on the TIHD-RCC dataset under the 16-shot setting.

Prompting Strategy	AUC (%)	F1 (%)	ACC (%)
Class-name-replacement (Ä WSI of {class name}")	$66.4 \pm 2.5$	$40.0 \pm 4.4$	$44.3 \pm 3.0$
Diagnostic Guideline (WHO tumor classification text)	$78.0 \pm 2.8$	$59.5 \pm 2.2$	$61.1 \pm 1.2$
Large Language Model (single-scale GPT-3.5)	$80.5 \pm 1.5$	$63.3 \pm 4.5$	$64.6 \pm 4.8$
ViLa-MIL (dual-scale descriptive prompt)	$\mathbf{84.3 \pm 4.6}$	$\mathbf{68.7 \pm 7.3}$	$\mathbf{68.8 \pm 7.3}$
LLM Backbone	AUC (%)	F1 (%)	ACC (%)
PaLM-2	$83.5 \pm 3.6$	$65.8 \pm 3.6$	$66.3 \pm 3.9$
LLaMA-2	$81.5 \pm 3.3$	$66.2 \pm 7.3$	$66.8 \pm 3.5$
GPT-3.5	$84.3 \pm 4.6$	$\mathbf{68.7 \pm 7.3}$	$68.8 \pm 7.3$
GPT-4	$\mathbf{85.6 \pm 2.5}$	$68.0 \pm 4.5$	$\mathbf{69.2 \pm 4.8}$

Descriptive visual texts substantially outperform simple class-name substitution (+17.9% AUC). Dual-scale descriptive prompting improves upon single-scale LLM prompting by +3.8% AUC and +5.4% F1. ViLa-MIL is robust across open and closed LLM backbones (PaLM-2, LLaMA-2, GPT-3.5, GPT-4), with GPT-4 yielding the highest AUC (85.6%).

Knowl 10 — Comparison of Slide Feature Aggregation Mechanisms

data/table

The prototype-guided patch decoder was compared against common patch feature aggregation mechanisms on the TIHD-RCC dataset under the 16-shot setting, holding the rest of the ViLa-MIL pipeline constant.

Patch Feature Aggregator	AUC (%)	F1 (%)	ACC (%)
Mean Pooling	$80.8 \pm 4.5$	$66.6 \pm 5.2$	$67.6 \pm 4.9$
Attention-based Pooling	$81.1 \pm 2.9$	$62.9 \pm 7.5$	$64.9 \pm 4.4$
Self-attention-based Pooling	$80.1 \pm 3.2$	$62.3 \pm 4.2$	$62.8 \pm 3.9$
ViLa-MIL (Prototype-Guided Patch Decoder)	$\mathbf{84.3 \pm 4.6}$	$\mathbf{68.7 \pm 7.3}$	$\mathbf{68.8 \pm 7.3}$

The prototype-guided patch decoder outperforms mean pooling, attention pooling, and self-attention pooling by 3.2–4.2% in AUC, 2.1–6.4% in F1 score, and 1.2–6.0% in accuracy. Grouping patch features into $N_p$ learnable prototypes before final slide aggregation provides a more effective representation for alignment with textual features.

Coverage note — No substantial contributed material was omitted. Qualitative visual analysis (t-SNE embedding plots and spatial cancer localization heatmaps) is addressed as contextual evidence in the empirical knowls rather than as standalone knowls.
