PointConv: Deep Convolutional Networks on 3D Point Clouds

Wenxuan WuZhongang QiFuxin Li

article2018CVPR1,912 citations

Proposes PointConv, an efficient convolution operator that combines continuous weight functions with local density estimation to build scalable, deep neural networks directly on irregular 3D point clouds.

Listen

Three-dimensional point clouds generated by sensors like LIDAR are central to autonomous navigation, robotics, and augmented reality. Unlike standard two-dimensional images arranged on uniform grids, point clouds are irregular, unordered, and unevenly sampled. Traditional convolutional neural networks cannot process these sets directly without either discarding fine structural details or converting them into computationally prohibitive 3D volumetric grids.

The article aims to introduce and validate PointConv, a novel continuous convolution operation that runs directly on unordered 3D point sets while accounting for non-uniform sampling density. The researchers also set out to provide an efficient mathematical formulation capable of scaling these operations to deep neural network architectures.

The authors constructed PointConv by treating convolution filters as continuous functions of local relative coordinates, using multi-layer perceptrons to learn spatial weights alongside an inverse density estimation step to compensate for non-uniform sampling. To address the massive memory overhead of generating individual filter weights, the authors changed the summation order, reducing the operation to standard matrix multiplication and simple two-dimensional convolutions. The method was evaluated on synthetic benchmarks for 3D object classification and part segmentation, a real-world dataset of complex indoor scene scans, and a 2D image classification benchmark treated as a point cloud.

The evaluation produced several key findings. First, on real-world indoor scene segmentation, the approach achieved a mean intersection-over-union score of 55.6%, outperforming earlier methods that scored between 30.6% and 43.8%. Second, the efficient reformulation cut memory usage down to roughly 1/64th of the original version, making modern deep architectures feasible. Third, on 3D synthetic benchmarks, the model reached state-of-the-art results, scoring 92.5% accuracy on 40-class object recognition and an 85.7% instance average intersection-over-union on part segmentation. Finally, when tested on 2D image data treated as irregular points, the method matched the 93% accuracy of standard convolutional networks, showing it functions as a true general convolution.

These findings demonstrate that deep neural networks can process raw point cloud data directly with high accuracy and low memory usage, eliminating the need to project data into cumbersome voxel grids. By achieving both translation invariance and point order invariance, this architecture provides a reliable foundation for high-performance 3D spatial perception in autonomous vehicles, mobile robotics, and computer vision systems.

Organizations developing 3D perception pipelines should consider adopting PointConv-based architectures to improve accuracy and efficiency in high-resolution spatial tasks. Future development efforts should focus on integrating this convolution operation into deeper modern frameworks, such as residual and densely connected network backbones, to evaluate potential gains across larger operational pipelines.

While the method shows strong performance across synthetic and indoor datasets, its effectiveness relies on accurate local neighborhood estimation and offline kernel density calculations. Practitioners should test the approach in varying outdoor lighting, heavy sensor noise, and adverse weather conditions before deploying it in safety-critical autonomous platforms.

Oregon State Universityconvolutional neural networksmultilayer perceptronsnonlinear functionsPointConv layer3D point cloudspermutation-invariant convolution
arXiv: 1811.07246DylanWusee/pointconv

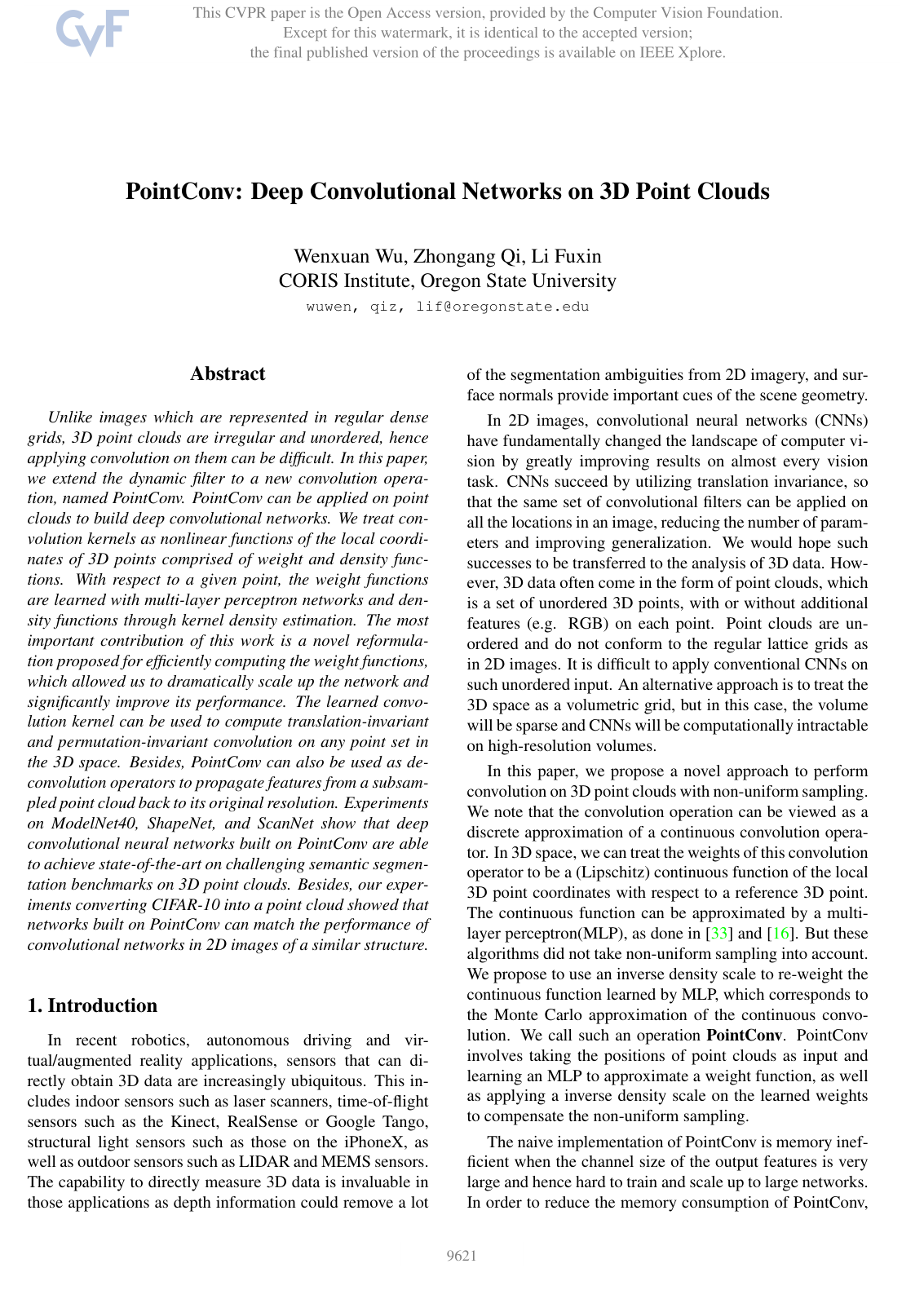

Cover for PointConv: Deep Convolutional Networks on 3D Point Clouds

Abstract

Unlike images which are represented in regular dense grids, 3D point clouds are irregular and unordered, hence applying convolution on them can be difficult. In this paper, we extend the dynamic filter to a new convolution operation, named PointConv. PointConv can be applied on point clouds to build deep convolutional networks. We treat convolution kernels as nonlinear functions of the local coordinates of 3D points comprised of weight and density functions. With respect to a given point, the weight functions are learned with multi-layer perceptron networks and density functions through kernel density estimation. The most important contribution of this work is a novel reformulation proposed for efficiently computing the weight functions, which allowed us to dramatically scale up the network and significantly improve its performance. The learned convolution kernel can be used to compute translation-invariant and permutation-invariant convolution on any point set in the 3D space. Besides, PointConv can also be used as deconvolution operators to propagate features from a subsampled point cloud back to its original resolution. Experiments on ModelNet40, ShapeNet, and ScanNet show that deep convolutional neural networks built on PointConv are able to achieve state-of-the-art on challenging semantic segmentation benchmarks on 3D point clouds. Besides, our experiments converting CIFAR-10 into a point cloud showed that networks built on PointConv can match the performance of convolutional networks in 2D images of a similar structure.

Topics

convolutional neural networksmultilayer perceptronsnonlinear functionspoint cloudsemanticsnetwork architecture

Keywords

PointConv layer3D point cloudspermutation-invariant convolutionsemantic scene segmentationScanNet datasetshape recognition

Table of Contents

  • 1 Introduction
  • 2 Related Work
  • 3 PointConv
  • 3.1 Convolution on 3D Point Clouds
  • 3.2 Feature Propagation Using Deconvolution
  • 4 Efficient PointConv
  • 5 Experiments
  • 5.1 Classification on ModelNet40
  • 5.2 ShapeNet Part Segmentation
  • 5.3 Semantic Scene Labeling
  • 5.4 Classification on CIFAR-10
  • 6 Ablation Experiments and Visualizations
  • 6.1 The Structure of MLP
  • 6.2 Inverse Density Scale
  • 6.3 Ablation Studies on ScanNet
  • 6.4 Visualization
  • 7 Conclusion
  • References

Knowls

  1. Knowl 1 — PointConv Operator for 3D Point Clouds

    model/method

    PointConv is a permutation-invariant and translation-invariant continuous convolution operation adapted for 3D point clouds with non-uniform point distributions. Given a reference point (x,y,z)∈R3(x, y, z) \in \mathbb{R}^3 and its local neighborhood GG containing points at relative coordinates (δx,δy,δz)(\delta_x, \delta_y, \delta_z), continuous 3D convolution is formulated via Monte Carlo approximation as:

    PointConv(S,W,F)xyz=∑(δx,δy,δz)∈GS(δx,δy,δz)W(δx,δy,δz)F(x+δx,y+δy,z+δz)PointConv(S, W, F)_{xyz} = \sum_{(\delta_x, \delta_y, \delta_z) \in G} S(\delta_x, \delta_y, \delta_z) W(\delta_x, \delta_y, \delta_z) F(x + \delta_x, y + \delta_y, z + \delta_z)

    where F(x+δx,y+δy,z+δz)∈RCinF(x + \delta_x, y + \delta_y, z + \delta_z) \in \mathbb{R}^{C_{in}} is the input feature vector at the neighbor point, W(δx,δy,δz)∈RCin×CoutW(\delta_x, \delta_y, \delta_z) \in \mathbb{R}^{C_{in} \times C_{out}} is a continuous weight function approximated by a multi-layer perceptron (MLP) shared across points taking 3D relative coordinates as input, and S(δx,δy,δz)∈RS(\delta_x, \delta_y, \delta_z) \in \mathbb{R} is an inverse density scale factor that compensates for non-uniform spatial sampling.

    For a local region around a centroid with KK neighboring points, input features Fin∈RK×CinF_{in} \in \mathbb{R}^{K \times C_{in}}, relative 3D coordinates Plocal∈RK×3P_{local} \in \mathbb{R}^{K \times 3}, and density scales S∈RKS \in \mathbb{R}^K, the output feature vector Fout∈RCoutF_{out} \in \mathbb{R}^{C_{out}} is computed discretely as:

    Fout=∑k=1K∑cin=1CinS(k)W(k,cin)Fin(k,cin)F_{out} = \sum_{k=1}^{K} \sum_{c_{in}=1}^{C_{in}} S(k) W(k, c_{in}) F_{in}(k, c_{in})

    where k∈{1,…,K}k \in \{1, \dots, K\} indexes neighbor points, cin∈{1,…,Cin}c_{in} \in \{1, \dots, C_{in}\} indexes input feature channels, and W(k,cin)∈RCoutW(k, c_{in}) \in \mathbb{R}^{C_{out}} is the weight vector predicted for the kk-th neighbor and cinc_{in}-th input channel.

  2. Knowl 2 — Memory-Efficient PointConv Reformulation

    theoretical result

    A naive implementation of PointConv computes and stores explicit filter weight tensors of size B×N×K×(Cin×Cout)B \times N \times K \times (C_{in} \times C_{out}) (where BB is batch size, NN is point count, KK is neighbors per local region, CinC_{in} is input channel count, and CoutC_{out} is output channel count), resulting in prohibitive memory overhead. PointConv can be equivalently reformulated by decomposing the last linear layer of the weight MLP and changing the summation order.

    Let the weight function MLP's last linear layer have weight parameters H∈RCmid×(Cin×Cout)H \in \mathbb{R}^{C_{mid} \times (C_{in} \times C_{out})}, and let M∈RK×CmidM \in \mathbb{R}^{K \times C_{mid}} be the intermediate activations input to this last layer for the KK neighbor points. Defining density-scaled input features F~in=S⋅Fin∈RK×Cin\tilde{F}_{in} = S \cdot F_{in} \in \mathbb{R}^{K \times C_{in}}, the PointConv output feature Fout∈RCoutF_{out} \in \mathbb{R}^{C_{out}} is equivalent to:

    Fout=Conv1×1(H,F~inTM)F_{out} = \text{Conv}_{1 \times 1}\left(H, \tilde{F}_{in}^T M\right)

    where F~inTM∈RCin×Cmid\tilde{F}_{in}^T M \in \mathbb{R}^{C_{in} \times C_{mid}} is computed via standard matrix multiplication, followed by a 1×11 \times 1 convolution with weight kernel HH.

    This factorization reduces the memory required for intermediate convolution filters from O(K⋅Cin⋅Cout)O(K \cdot C_{in} \cdot C_{out}) to O(K⋅Cmid)O(K \cdot C_{mid}), which is a reduction factor of:

    CmidK⋅Cout\frac{C_{mid}}{K \cdot C_{out}}

    For a representative setting with B=32,N=512,K=32,Cin=64,Cout=64B = 32, N = 512, K = 32, C_{in} = 64, C_{out} = 64, and Cmid=32C_{mid} = 32, the memory footprint for one layer drops from 8.0 GB to 0.1255 GB (a ∼64×\sim 64\times reduction).

  3. Knowl 3 — Inverse Density Scaling via Non-linear Transformed Kernel Density Estimation

    model/method

    Point clouds collected by physical sensors are frequently sampled non-uniformly, which biases discrete Monte Carlo approximations of continuous convolutions. PointConv corrects this sampling bias by incorporating an inverse density scale factor S(δx,δy,δz)S(\delta_x, \delta_y, \delta_z) computed via a two-stage process:

    1. Offline Kernel Density Estimation (KDE): For each point in the point cloud, spatial point density is calculated offline using kernelized density estimation.
    2. 1D Non-linear Transformation: The estimated density scalar for each point is fed into a 1D multi-layer perceptron (MLP) to produce the inverse density weight SS.

    Passing the KDE output through a learned non-linear MLP allows the network to adaptively modulate whether and how strongly to apply inverse density re-weighting across different feature layers and spatial scales.

  4. Knowl 4 — PointDeconv Operator for Hierarchical Feature Propagation

    model/method

    PointDeconv is a deconvolution operator designed to propagate coarse, subsampled point features back to higher-resolution point sets for dense point-wise prediction tasks like semantic scene segmentation.

    PointDeconv consists of two sequential operations:

    1. Distance-Weighted 3-Nearest-Neighbor Interpolation: Coarser point features from the preceding layer are mapped to higher-resolution point positions by linear interpolation using the 3 nearest neighbor points in 3D Euclidean space.
    2. Skip-Link Concatenation and PointConv Convolution: The interpolated features are concatenated along the channel dimension with encoding features of matching resolution via skip links. A PointConv operation is then applied to the concatenated feature representations to capture local geometric dependencies.

    This process is repeated across the decoder hierarchy until point features are fully restored to the original input resolution.

  5. Knowl 5 — Semantic Scene Segmentation on ScanNet Benchmark

    empirical result

    PointConv was evaluated on the ScanNet indoor 3D semantic segmentation benchmark (1513 training scans, 100 hidden test scans) using mean Intersection-over-Union (mIoU) across 20 object categories with 3D coordinates and RGB inputs.

    Method mIoU (%)
    ScanNet baseline 30.6
    PointNet++ 33.9
    SPLATNet 39.3
    Tangent Convolutions 43.8
    PointConv 55.6

    PointConv achieved an official test mIoU of 55.6%55.6\%, outperforming prior point-based and volumetric/tangent convolution baselines by a significant margin. On an NVIDIA GTX 1080Ti GPU, PointConv requires approximately 170 seconds per training epoch on ScanNet, with an evaluation time of roughly 0.5 seconds for 8×81928 \times 8192 points.

  6. Knowl 6 — 3D Object Classification Performance on ModelNet40

    empirical result

    PointConv was evaluated on the ModelNet40 shape classification benchmark (12,311 CAD models across 40 classes: 9,843 training and 2,468 testing models) using 1,024 points per object along with computed surface normal vectors.

    Method Input Representation Accuracy (%)
    Subvolume Voxels 89.2
    ECC Graphs 87.4
    Kd-Network 1024 points 91.8
    PointNet 1024 points 89.2
    PointNet++ 1024 points 90.2
    PointNet++ 5000 points + normal 91.9
    SpiderCNN 1024 points + normal 92.4
    PointConv 1024 points + normal 92.5

    PointConv achieves 92.5%92.5\% classification accuracy, achieving state-of-the-art performance among 3D point and graph input representations while utilizing only 1,024 points.

  7. Knowl 7 — 3D Part Segmentation Performance on ShapeNet

    empirical result

    PointConv was evaluated on the ShapeNet Part Segmentation dataset (16,881 shapes across 16 categories and 50 part annotations) with 3D point coordinates and surface normal features. Evaluation was conducted using class-average mean Intersection-over-Union (class mIoU) and instance-average mean Intersection-over-Union (instance mIoU).

    Method Class Avg. mIoU (%) Instance Avg. mIoU (%)
    Kd-net 77.4 82.3
    PointNet 80.4 83.7
    PointNet++ 81.9 85.1
    SSCNN 82.0 84.7
    SPLATNet3D_{3D} 82.0 84.6
    SpiderCNN 82.4 85.3
    SSCN – 86.0
    PointConv 82.8 85.7

    PointConv achieves 82.8%82.8\% class average mIoU and 85.7%85.7\% instance average mIoU, demonstrating competitive performance against specialized point-cloud and sparse-voxel segmentation networks.

  8. Knowl 8 — 2D Image Convolution Equivalence on CIFAR-10

    empirical result

    To test the property that PointConv acts as a continuous generalization of conventional 2D grid convolutions, CIFAR-10 images (32×3232 \times 32 pixels) were converted into 2D point clouds where each pixel is represented as a point with 2D coordinates (x,y)(x, y) scaled to the unit ball and RGB color channels as features.

    Network / Method Accuracy (%)
    Image Convolution (5-layer) 88.52
    AlexNet 89.00
    VGG19 93.60
    SpiderCNN 77.97
    PointCNN 80.22
    PointConv (5-layer) 89.13
    PointConv (VGG19) 93.19

    A 5-layer PointConv network achieves 89.13%89.13\% accuracy, matching a standard 5-layer 2D image convolution (88.52%88.52\%) and AlexNet (89.00%89.00\%), while outperforming alternative point architectures PointCNN (80.22%80.22\%) and SpiderCNN (77.97%77.97\%). When configured with the VGG19 topology, PointConv achieves 93.19%93.19\%, on par with the standard 2D image VGG19 (93.60%93.60\%).

  9. Knowl 9 — Ablation Analysis of Density Scaling and Sliding Window on ScanNet

    empirical result

    Ablation experiments on the ScanNet validation set evaluate the contributions of the inverse density scale SS, the non-linear 1D MLP density transformation, input modalities (xyzxyz vs. xyz+RGBxyz+\text{RGB}), and sliding window evaluation stride size (0.5 m,1.0 m,1.5 m0.5\,\text{m}, 1.0\,\text{m}, 1.5\,\text{m}).

    Input Stride Size (m) PointConv mIoU (%) No Density mIoU (%) Density (no MLP) mIoU (%)
    xyz 0.5 61.0 60.3 60.1
    xyz 1.0 59.0 58.2 57.7
    xyz 1.5 58.2 56.9 57.3
    xyz+RGB 0.5 60.8 58.9 –
    xyz+RGB 1.0 58.6 56.7 –
    xyz+RGB 1.5 57.5 56.1 –

    Incorporating learned inverse density scaling consistently improves segmentation mIoU across all sliding window stride sizes. Applying density directly without the 1D MLP non-linear transformation results in lower performance than omitting density scaling altogether, confirming that the learnable transformation is necessary to adaptively scale point weights.

Coverage note — Ablation sweeps on the number of MLP layers and intermediate channel size C_mid on a ScanNet classification subset (Section 6.1) and qualitative 2D/3D continuous filter visualizations (Section 6.4) were omitted as standalone knowls, as their essential takeaways are incorporated into the efficient PointConv reformulation and ablation knowls.
