End-to-End Representation Learning for Correlation Filter Based Tracking

Jack ValmadreLuca BertinettoJoão F. HenriquesAndrea VedaldiPhilip H. S. Torr

article2017CVPR1,467 citations

Develops a differentiable correlation filter layer for deep networks, enabling end-to-end representation learning that allows lightweight models to achieve high-speed visual tracking with state-of-the-art accuracy.

Listen

Visual object tracking in video requires identifying an unknown object across successive frames after seeing it only once in an initial bounding box. Deep neural networks provide powerful representations for visual similarity, but adapting large networks during runtime is computationally expensive. Conversely, traditional Correlation Filters offer high-speed, per-frame online learning through fast mathematical solutions, yet they historically relied on separate, hand-crafted features or pre-trained neural representations not optimized for the tracking algorithm itself.

The article evaluates whether incorporating a Correlation Filter directly into a deep convolutional architecture and training it end-to-end improves tracking performance and efficiency. It demonstrates how to mathematically propagate errors through the closed-form Correlation Filter optimization during model training, tightly coupling the learned feature representation to the tracking algorithm.

To test this approach, the researchers built an asymmetric architecture termed CFNet, which integrates the filter into a fully-convolutional Siamese network framework. The model was trained offline across more than 3,800 videos containing over 1 million frames from the ImageNet Video dataset. Performance was systematically benchmarked across standard evaluation datasets—including OTB-2013, OTB-50, and OTB-100—measuring tracking accuracy, overlap success rates, and operating speeds against competitive real-time trackers.

The analysis revealed three critical findings. First, end-to-end integration delivers dramatic gains for shallow networks, providing a relative accuracy improvement of 31% for one-layer networks and 13% for two-layer networks over baseline Siamese architectures. Second, for deep networks with three to five layers, adding the filter provides diminishing returns, as deep embeddings alone are sufficiently expressive to match the performance. Third, a lightweight two-layer CFNet matches the accuracy of a five-layer baseline network while using less than 4% of the parameters, requiring only 600 kilobytes of storage, and running at 75 frames per second.

These results establish that end-to-end learning allows ultra-lightweight neural networks to achieve top-tier visual tracking performance. This presents a major operational advantage for low-power and embedded devices where memory capacity and computational budgets are constrained. The findings challenge the conventional practice of combining out-of-the-box classification features with filters, showing that features trained specifically for the tracking formulation perform significantly better.

Organizations developing real-time computer vision systems should consider adopting shallow, end-to-end integrated architectures for deployment on edge hardware to reduce hardware costs and memory footprints without sacrificing accuracy. Future development work should explore incorporating temporal adaptation mechanisms across successive frames and applying this differentiation technique to related domains like few-shot learning and domain adaptation.

The reported benchmarks are validated across established datasets with rigorous hyperparameter tuning on separate validation sets, providing high confidence in the comparative findings. However, the evaluation focused on core architecture efficiency rather than auxiliary enhancements like optical flow or bounding box regression, meaning absolute precision could be further influenced by standard pipeline post-processing.

University of Oxford closed-form solution correlation coefficient fourier domains correlation filter based tracking end-to-end representation learning visual object tracking

arXiv: 1704.06036 bertinetto/cfnet

Paper: High-Speed Tracking with Kernelized Correlation Filters, João F. Henriques et al. (2014). It introduces the foundational kernelized and dual correlation filter formulations in the Fourier domain that the source directly casts as a differentiable deep network layer.
Paper: Exploiting the Circulant Structure of Tracking-by-Detection with Kernels, João F. Henriques et al. (2012). It derives the core circulant matrix framework and closed-form ridge regression solutions in the frequency domain upon which correlation filter trackers rely.
Paper: Fully-Convolutional Siamese Networks for Object Tracking, Luca Bertinetto et al. (2016). It establishes the fully-convolutional Siamese tracking paradigm that pairs offline deep feature learning with correlation-based cross-matching.
Paper: Hierarchical Convolutional Features for Visual Tracking, Chao Ma et al. (2015). It demonstrates tracking using correlation filters on top of pre-trained deep convolutional representations, exposing the limitation of uncoupled feature representations that the source aims to solve.
Paper: Beyond Correlation Filters: Learning Continuous Convolution Operators for Visual Tracking, Martin Danelljan et al. (2016). It generalizes correlation filters to continuous convolution operators for multi-resolution deep features, motivating the need for more efficient end-to-end differentiable alternatives.
Paper: Learning Spatially Regularized Correlation Filters for Visual Tracking, Martin Danelljan et al. (2015). It develops spatially regularized correlation filters to resolve circular boundary effects in Fourier domain tracking.
Paper: Staple: Complementary Learners for Real-Time Tracking, Luca Bertinetto et al. (2015). It provides foundational insights into combining real-time correlation filter templates with complementary representations for robust tracking.
Paper: Object Tracking Benchmark, Yi Wu et al. (2015). It supplies the standard benchmark dataset and evaluation protocol utilized to measure tracking accuracy and robustness in the source.

Paper: ECO: Efficient Convolution Operators for Tracking, Martin Danelljan et al. (2017). It builds upon modern correlation filter architectures to achieve high efficiency and reduced overfitting through factorized convolution operators and compact sample representations.
Paper: SiamRPN++: Evolution of Siamese Visual Tracking With Very Deep Networks, Bo Li et al. (2018). It advances deep Siamese tracking by incorporating very deep backbones and depth-wise correlation layers to effectively track arbitrary targets.

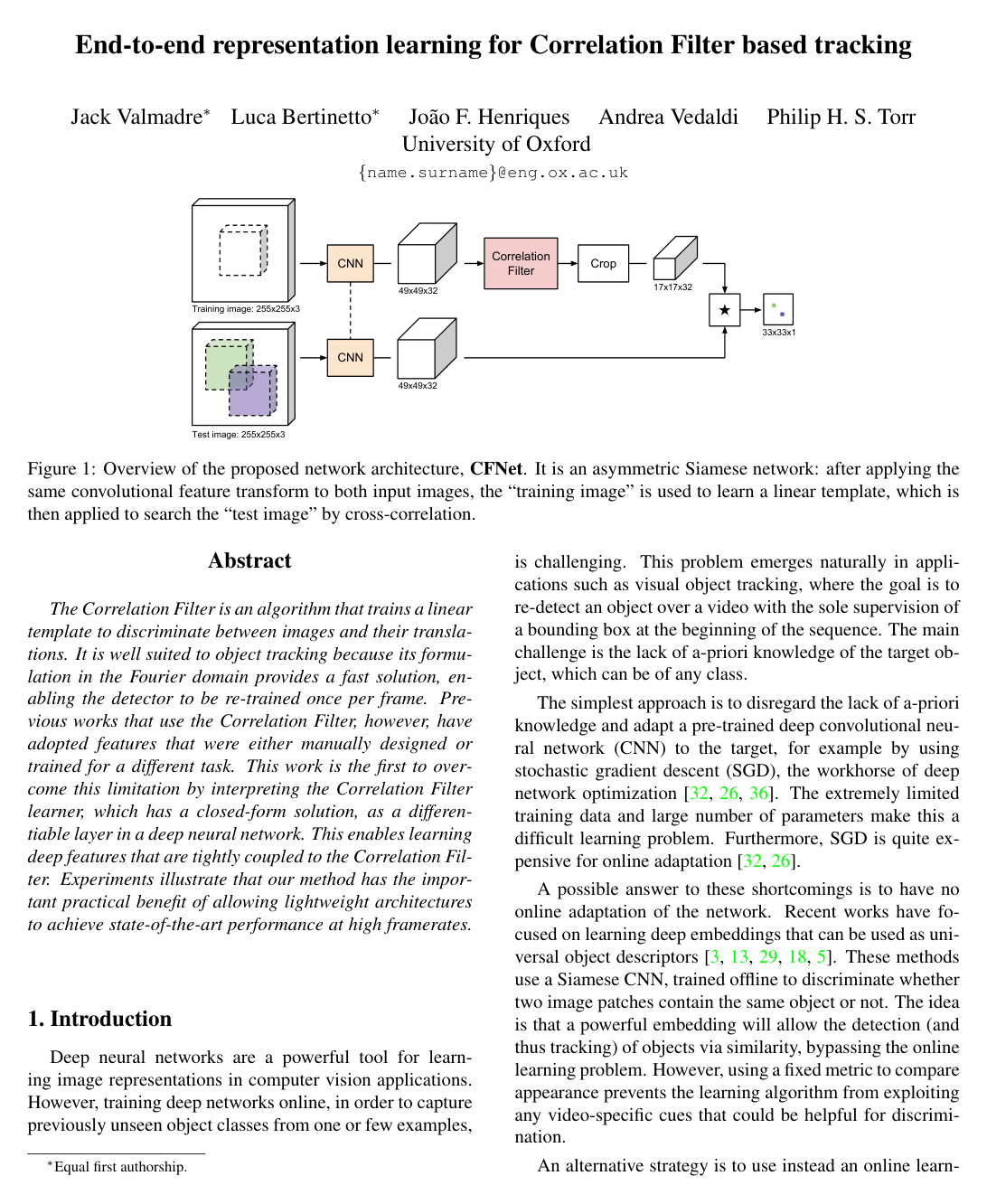

Cover for End-to-End Representation Learning for Correlation Filter Based Tracking

Abstract

The Correlation Filter is an algorithm that trains a linear template to discriminate between images and their translations. It is well suited to object tracking because its formulation in the Fourier domain provides a fast solution, enabling the detector to be re-trained once per frame. Previous works that use the Correlation Filter, however, have adopted features that were either manually designed or trained for a different task. This work is the first to overcome this limitation by interpreting the Correlation Filter learner, which has a closed-form solution, as a differentiable layer in a deep neural network. This enables learning deep features that are tightly coupled to the Correlation Filter. Experiments illustrate that our method has the important practical benefit of allowing lightweight architectures to achieve state-of-the-art performance at high framerates.

Topics

closed-form solution correlation coefficient fourier domains neural networks object tracking representation learning tightly-coupled

Keywords

correlation filter based tracking end-to-end representation learning visual object tracking single-channel correlation filter Siamese network baseline CFNet online adaptation convolutional neural network

1 Introduction
2 Related work
3 Method
3.1 Fully-convolutional Siamese networks
3.2 Tracking algorithm
3.3 Correlation Filter networks
3.4 Correlation Filter
4 Experiments
4.1 Evaluation criteria
4.2 Comparison to Siamese baseline
4.3 Feature transfer experiment
4.4 Importance of adaptation
4.5 Comparison with the state-of-the-art
4.6 Speed and practical benefits
5 Conclusion
A Implementation details
B Back-propagation for the Correlation Filter
C Correlation Filter formulation
C.1 Kernel linear regression
C.2 Single-channel Correlation Filter
C.3 Multi-channel Correlation Filter
D Adjoint of the differential
E Back-propagation for multi-channel case
F Hyperparameter optimization
G Detailed results on the OTB benchmarks
References

Knowls

Knowl 1 — CFNet Asymmetric Siamese Architecture
model/method
CFNet is an asymmetric Siamese convolutional neural network for visual object tracking that integrates a differentiable Correlation Filter (CF) layer into deep representation learning. The network takes two image patches as input: a training exemplar $x' \in \mathbb{R}^{H_x \times W_x \times 3}$ centered on the target object, and a larger search area image $z' \in \mathbb{R}^{H_z \times W_z \times 3}$ .

Both input images are mapped through a shared fully convolutional feature extractor $f_\rho$ parameterized by learnable weights $\rho$ , yielding feature representations $x = f_\rho(x') \in \mathbb{R}^{m \times m \times C}$ and $z = f_\rho(z') \in \mathbb{R}^{m' \times m' \times C}$ .

To mitigate circular boundary artifacts, the exemplar feature map $x$ is pre-multiplied element-wise by a 2D cosine window. The Correlation Filter block $\omega(x)$ then computes a multi-channel discriminative linear template $w = \omega(x) \in \mathbb{R}^{k \times k \times C}$ by solving a regularized ridge regression problem in closed form in the Fourier domain. The resulting template $w$ is cropped to a smaller spatial extent.

The response map is produced by cross-correlating the learned template $w$ across the search features $f_\rho(z')$ , adjusted with learnable scalar scale $s$ and bias $b$ parameters: $h_{\rho, s, b}(x', z') = s \, (\omega(f_\rho(x')) \star f_\rho(z')) + b$ where $\star$ denotes multi-channel spatial cross-correlation. The spatial maximum of $h_{\rho, s, b}(x', z')$ corresponds to the predicted target location.
Knowl 2 — Closed-Form Multi-Channel Correlation Filter Layer in the Fourier Domain
theoretical result
Given a multi-channel input feature map $x = (x_1, \dots, x_C)$ where each channel $x_p \in \mathbb{R}^{m \times m}$ , and a desired scalar response map $y \in \mathbb{R}^{m \times m}$ (a 2D Gaussian peaked at the target center), the optimal multi-channel Correlation Filter template $w = (w_1, \dots, w_C)$ minimizes the regularized least-squares objective over all circular shifts: $\arg \min_{w} \frac{1}{2n} \left\| \sum_{p=1}^C w_p \star x_p - y \right\|_2^2 + \frac{\lambda}{2} \sum_{p=1}^C \|w_p\|_2^2$ where $n = m^2$ denotes the number of spatial pixels/circular shifts, $\star$ denotes circular cross-correlation, and $\lambda > 0$ is a quadratic regularization parameter.

Due to the circulant structure of circular shifts, the dual solution can be solved analytically and computed in the Fourier domain with computational complexity that scales linearly in the number of channels $C$ : $\hat{k} = \frac{1}{n} \sum_{p=1}^C (\hat{x}_p^* \circ \hat{x}_p) + \lambda \mathbf{1}$ $\hat{\alpha} = \frac{1}{n} \hat{k}^{-1} \circ \hat{y}$ $\hat{w}_p = \hat{\alpha}^* \circ \hat{x}_p \quad \forall p \in \{1, \dots, C\}$ where $\hat{\cdot}$ denotes the 2D Discrete Fourier Transform (DFT), $\hat{x}_p^*$ is the complex conjugate of $\hat{x}_p$ , $\circ$ denotes element-wise Hadamard product, $\hat{k}^{-1}$ denotes element-wise scalar inversion, and $\mathbf{1} \in \mathbb{R}^{m \times m}$ is a tensor of ones. The spatial template channels are recovered via inverse DFT: $w_p = \mathcal{F}^{-1}(\hat{w}_p)$ .
Knowl 3 — Closed-Form Back-Propagation for the Multi-Channel Correlation Filter Layer
theoretical result
To train deep feature extractors end-to-end through the Correlation Filter layer, gradients must be back-propagated through the closed-form ridge regression solver. By applying Parseval's theorem, which ensures unitary inner product preservation under the Fourier transform, the adjoint of the differential linear maps yields closed-form expressions in the Fourier domain.

Given the gradient of a scalar loss $\ell$ with respect to the template Fourier channels, $\nabla_{\hat{w}_p} \ell$ , and optionally with respect to the desired response, $\nabla_{\hat{y}} \ell$ , the gradients with respect to the dual multipliers $\hat{\alpha}$ , the kernel signal $\hat{k}$ , and the input feature channels $\hat{x}_p$ are given by: $\nabla_{\hat{\alpha}} \ell = \sum_{p=1}^C \hat{x}_p \circ (\nabla_{\hat{w}_p} \ell)^*$ $\nabla_{\hat{y}} \ell = \frac{1}{n} \hat{k}^{-*} \circ \nabla_{\hat{\alpha}} \ell$ $\nabla_{\hat{k}} \ell = -\hat{k}^{-*} \circ \hat{\alpha}^* \circ \nabla_{\hat{\alpha}} \ell$ $\nabla_{\hat{x}_p} \ell = \hat{\alpha} \circ \nabla_{\hat{w}_p} \ell + \frac{2}{n} \hat{x}_p \circ \text{Re}\{\nabla_{\hat{k}} \ell\} \quad \forall p \in \{1, \dots, C\}$ where $\hat{k}^{-*} = (\hat{k}^{-1})^*$ , $\text{Re}\{\cdot\}$ extracts the real component, $n = m^2$ is the number of spatial pixels, and $\circ$ is element-wise multiplication. Spatial gradients are recovered by inverse DFT: $\nabla_{x_p} \ell = \mathcal{F}^{-1}(\nabla_{\hat{x}_p} \ell)$ . The computational complexity of the backward pass scales as $\mathcal{O}(C \cdot m^2 \log m)$ .
Knowl 4 — CFNet Online Visual Tracking Algorithm
algorithm
Online visual tracking with CFNet operates by extracting candidate search windows at multiple scales, evaluating the forward score maps, updating object position and scale, and maintaining an adaptive template running average.
Input: Video frames $I_1, \dots, I_T$ , initial bounding box $B_1$ , CNN $f_\rho$ , CF solver $\omega$ , search window scale factor $4$ , scale step factor $1.04$ , scale penalty $0.97$ , scale update rate $\gamma_s = 0.6$ , template update rate $\eta$ , cosine window $W_{cos}$ , score penalty window $W_{score}$
Output: Bounding boxes $B_2, \dots, B_T$
Extract target patch $x'_1$ from $I_1$ at $B_1$
Compute initial template: $w_{cum} = \omega(f_\rho(x'_1) \circ W_{cos})$
Initialize target scale $S_1 = (\text{width}_1, \text{height}_1)$ from $B_1$
for $t = 2$ to $T$ do
    for each scale scale multiplier $\sigma \in \{1/1.04, 1.0, 1.04\}$ do
        Extract search patch $z'_{t, \sigma}$ around center $P_{t-1}$ of size $4 \times (S_{t-1} \cdot \sigma)$
        Compute score map $R_\sigma = s \cdot (w_{cum} \star f_\rho(z'_{t, \sigma})) + b$
        Apply spatial translation penalty: $R_\sigma = R_\sigma \circ W_{score}$
        if $\sigma \neq 1.0$ then
            Apply scale change penalty: $R_\sigma = R_\sigma \times 0.97$
        end if
    end for
    Select optimal scale $\sigma^* = \arg\max_\sigma (\max R_\sigma)$
    Find displacement $\Delta p = \arg\max R_{\sigma^*}$
    Update center position: $P_t = P_{t-1} + \Delta p$
    Update scale: $S_t = (1 - \gamma_s) S_{t-1} + \gamma_s (S_{t-1} \cdot \sigma^*)$
    Set bounding box $B_t = (P_t, S_t)$
    Extract new exemplar patch $x'_t$ from $I_t$ at $B_t$
    Compute current template: $w_t = \omega(f_\rho(x'_t) \circ W_{cos})$
    Update moving average template: $w_{cum} = (1 - \eta) w_{cum} + \eta w_t$
end for
Knowl 5 — End-to-End Offline Training Setup for CFNet
experimental setup
CFNet is trained offline end-to-end using pairs of images $(x'_i, z'_i)$ sampled from the 3,862 training videos of the ImageNet Video (VID) dataset containing over one million annotated frames.

Pairs $(x'_i, z'_i)$ are randomly selected from the same video sequence such that their temporal distance does not exceed 100 frames. The exemplar patch $x'_i$ ( $255 \times 255 \times 3$ ) is centered on the target object, and the search image $z'_i$ ( $255 \times 255 \times 3$ ) contains the search region. Each pair is associated with an element-wise label grid $c_i \in \{-1, +1\}^{m \times m}$ , where $+1$ represents the true object position and $-1$ represents background positions.

The feature parameters $\rho$ , scale $s$ , and bias $b$ are optimized by minimizing an element-wise logistic loss over the training dataset: $\arg \min_{\rho, s, b} \sum_i \sum_u \log \left( 1 + \exp\left( -c_i[u] \, h_{\rho, s, b}(x'_i, z'_i)[u] \right) \right)$

Training is performed using stochastic gradient descent (SGD) for 100 epochs, sampling approximately 12 pairs per video per epoch with mini-batches of size 8. Parameters are initialized using Xavier initialization. The network feature extractor uses a reduced total stride of 4 (stride 2 at conv1, stride 2 at pool1) and restricts the final feature map to 32 output channels.
Knowl 6 — Accuracy-Depth Saturation and Ultra-Lightweight Efficiency of CFNet
empirical result
Evaluation of CFNet against a fully-convolutional Siamese baseline (SiamFC) across network depths from 1 to 5 convolutional layers demonstrates two primary phenomena:
1. Substantial accuracy gains at shallow depths: Incorporating the Correlation Filter layer during offline training provides a relative improvement in average IoU overlap of 31% for depth 1 (conv1) and 13% for depth 2 (conv2) over the baseline Siamese architecture.
2. Depth saturation: At depths 3, 4, and 5, CFNet accuracy plateaus around 48% average overlap, and the performance difference between CFNet and the baseline becomes negligible. The inductive bias of the Correlation Filter becomes redundant when the deep embedding function itself possesses sufficient expressive capacity and representational depth.
3. Ultra-lightweight efficiency: CFNet with a 2-layer backbone (CFNet-conv2) achieves tracking accuracy comparable to a 5-layer baseline (Baseline-conv5), while containing approximately $30\times$ fewer parameters, requiring only 600 kB of storage (<4% of Baseline-conv5), and operating at 75 frames per second (fps) on a Titan X GPU (compared to 52 fps for Baseline-conv5). The single-layer CFNet-conv1 runs at 83 fps with under 100 kB of parameter storage (<1% of Baseline-conv5).
Knowl 7 — Feature Transfer vs. End-to-End Correlation Filter Training
empirical result
Comparing end-to-end trained CFNet against transfer learning configurations illustrates the necessity of training deep representations jointly with the Correlation Filter layer:
1. CFNet (End-to-End): Features trained directly with the closed-form CF solver in the computational graph.
2. Baseline+CF (Transfer from Siamese): Features trained using a standard Siamese embedding objective, with a Correlation Filter applied post-hoc during tracking.
3. ImageNet+CF (Transfer from Classification): Features taken from a network pre-trained on ImageNet object classification and combined with a CF during tracking.
On a 129-video validation benchmark:
- At depths 1 and 2, CFNet substantially outperforms Baseline+CF, proving that back-propagating gradients through the inverse convolution problem forces early convolutional layers to learn filters optimized for translation discrimination.
- At depths 3 through 5, Baseline+CF achieves performance on par with CFNet.
- ImageNet+CF yields significantly inferior tracking performance across all depths compared to both CFNet and Baseline. This gap worsens at deeper layers (conv4 and conv5) because classification networks learn translation-invariant representations that discard precise spatial localization cues required for correlation tracking.
Knowl 8 — Necessity of Dynamic Online Adaptation vs Static Filter Weights
empirical result
To determine whether the performance advantages of CFNet stem from dynamic online adaptation (solving the ridge regression system per exemplar) or merely from the mathematical form of the layer, CFNet was evaluated against a constant variant (CFNet-const). In CFNet-const, the Lagrange multiplier vector $\alpha$ is treated as a static parameter learned offline and held fixed during test-time tracking, disabling dynamic exemplar-conditioned inverse convolution.

Across all network depths (1 through 5) on a 129-video validation set, CFNet consistently outperforms CFNet-const. For example, at depth 1, CFNet achieves ~44.8% average IoU overlap compared to ~35.5% for CFNet-const. This establishes that back-propagating through the analytical solution of the inverse convolution problem—enabling the template to dynamically adapt to the exemplar appearance online—is indispensable for the accuracy gains.

Knowl 9 — Tracking Performance on OTB-2013, OTB-50, and OTB-100 Benchmarks

data/table

Performance of CFNet variants evaluated on OTB-2013, OTB-50, and OTB-100 benchmarks under One-Pass Evaluation (OPE) and Temporal Robustness Evaluation (TRE), measured by Area Under Curve IoU overlap and precision (at 20 pixels location error threshold):

		OTB-2013				OTB-50				OTB-100
		OPE		TRE		OPE		TRE		OPE		TRE
Method	speed (fps)	IoU	prec.	IoU	prec.	IoU	prec.	IoU	prec.	IoU	prec.	IoU	prec.
CFNet-conv1	83	57.8	77.6	58.6	77.6	48.8	65.3	51.0	67.9	53.6	71.3	55.9	72.6
CFNet-conv2	75	61.1	80.7	64.0	84.8	53.0	70.2	56.5	75.3	56.8	74.8	60.6	79.1
Baseline+CF-conv3	67	61.0	82.2	63.1	83.9	53.8	72.3	57.4	76.7	58.9	77.7	61.1	79.8
CFNet-conv5	43	61.1	80.3	62.6	82.5	53.9	73.2	56.6	75.9	58.6	77.7	60.8	78.8
Baseline-conv5	52	61.8	80.6	64.0	83.7	51.7	68.3	56.1	74.2	58.8	76.9	61.6	79.7
SiamFC-3s	-	60.7	81.0	61.8	82.2	51.6	69.2	55.5	75.2	58.2	77.0	60.5	79.5
Staple	-	60.0	79.3	61.7	80.3	50.9	68.1	54.1	72.6	58.1	78.4	60.4	78.9
LCT	-	61.2	86.2	59.4	81.3	49.2	69.1	49.5	67.4	56.2	76.2	56.9	74.5
SAMF	-	-	-	-	-	46.2	63.9	51.4	70.9	53.9	74.6	57.7	77.6
DSST	-	55.4	74.0	56.6	73.8	45.2	60.4	48.4	64.1	51.3	68.0	-	-

The results indicate that CFNet-conv2 matches the performance of the deeper 5-layer Baseline-conv5 and surpasses real-time baselines (SiamFC-3s, Staple, LCT, SAMF, DSST) across benchmarks while operating at high frame rates (75 fps).

Knowl 10 — Tracking Hyperparameter Sensitivity and Optimization via Random Search

data/table

Online tracking accuracy depends strongly on non-differentiable tracking hyperparameters: scale step multiplier, multiplicative scale penalty, scale update learning rate, spatial cosine window penalty weight, and template update learning rate. Optimal configurations selected from 300 uniform random search iterations on a 129-video validation set:

Architecture	Avg Overlap	Best Overlap	Scale Step	Scale Penalty	Scale L.R.	Win. Weight	Template L.R.
CFNet-conv1	44.8%	46.5%	1.0355	0.9825	0.700	0.2375	0.0058
CFNet-conv2	47.8%	49.5%	1.0575	0.9780	0.520	0.2625	0.0050
Baseline+CF-conv3	47.7%	49.9%	1.0340	0.9820	0.660	0.2700	0.0080
CFNet-conv5	46.9%	48.5%	1.0310	0.9815	0.525	0.2000	0.0110
Baseline-conv5	47.8%	49.2%	1.0470	0.9825	0.680	0.1750	0.0102

The distributions demonstrate that all tracking architectures benefit from conservative template update rates ( $\eta \approx 0.005 - 0.011$ ) and scale search steps around $1.03 - 1.06$ , with CFNet-conv2 achieving a peak validation overlap of 49.5%, outperforming 5-layer variants.

Coverage note — None was omitted; all primary architectural components, mathematical derivations (forward and backward passes), tracking logic, and empirical analyses from the paper are represented.
