DenseFuse: A Fusion Approach to Infrared and Visible Images

Hui LiXiaojun Wu

article2018IEEE Transactions on Image Processing1,935 citationsHighly Cited Paper (IEEE TIP)

Proposes an autoencoder framework incorporating dense blocks and custom fusion strategies to effectively capture and merge complementary features from infrared and visible images for superior visual reconstruction.

Listen

Combining visible and infrared imaging is essential for operational environments such as nighttime video surveillance and defense applications. Visible imagery captures rich environmental textures and fine background details, whereas infrared imagery detects thermal signatures in low-visibility conditions. Conventional fusion techniques frequently blur fine details, introduce artificial visual noise, or discard valuable intermediate features discovered by deep learning models. The article sets out to design, implement, and validate DenseFuse, a deep learning architecture that preserves multi-layer visual features to generate clearer, higher-fidelity fused images.

The researchers developed a modular framework consisting of an encoding network with densely connected convolutional layers, a fusion layer, and a four-layer decoding network. To train the encoder and decoder to extract and reconstruct salient features effectively, the system utilized roughly 80,000 visible images from the MS-COCO dataset with a loss function balancing structural similarity and raw pixel accuracy. The researchers evaluated the trained model across 20 registered image pairs, testing both a simple addition strategy and a sophisticated l1-norm saliency-based fusion strategy against six established traditional and deep learning algorithms across seven objective image-quality metrics.

The evaluation produced several significant findings. First, the DenseFuse architecture achieved top-tier performance across all tested objective metrics, achieving the highest average scores in entropy, structural similarity preservation, and feature mutual information. Second, visual inspections demonstrated that the proposed method retained clear foreground targets and sharp background textures while minimizing the artificial noise and excessive darkening seen in existing approaches. Third, incorporating dense blocks successfully allowed intermediate layer features to flow through the network, preventing the degradation and feature loss common in conventional neural networks. Finally, adjusting structural similarity loss weights accelerated network convergence without sacrificing final image reconstruction quality.

These results demonstrate that dense feature-reuse networks can substantially improve the visual and quantitative fidelity of multi-modal imagery. For mission-critical operations such as automated target tracking and perimeter defense, cleaner image fusion reduces human operator fatigue and lowers false-alarm risks. The decoupled training design also provides high operational flexibility: the base network requires training only once, allowing different fusion strategies to be deployed for grayscale or color imaging tasks without retraining the core model.

Organizations developing computer vision systems should consider adopting dense feature-reuse architectures for multi-source image processing. System engineers can choose the straightforward addition strategy for low-complexity deployments or the l1-norm strategy when edge preservation and structural detail are paramount. Further research and piloting should explore adapting this architecture to specialized operational domains, including medical diagnostics, multi-exposure photography, and multi-focus imaging.

Decision-makers should note that the evaluation was conducted on a relatively small benchmark of 20 image pairs and assumes that all incoming image pairs are accurately pre-aligned and calibrated. The primary training was also performed using visible natural scenes due to limited public infrared data. Nonetheless, the high consistency across subjective reviews and multiple quantitative benchmarks provides strong confidence in the architecture's core capabilities.

Jiangnan University deep learning fusion strategies high resolution image image fusion infrared and visible image fusion CNN-based fusion

arXiv: 1804.08361 hli1221/imagefusion_densefuse

Paper: Densely Connected Convolutional Networks, Gao Huang et al. (2017). Introduces DenseNet and the dense connectivity mechanism, which DenseFuse directly adapts in its encoder to preserve multi-layer feature representations.
Paper: Convolutional Two-Stream Network Fusion for Video Action Recognition, Christoph Feichtenhofer et al. (2016). Explores layer-wise convolutional feature fusion strategies across distinct input streams, providing foundational design principles for multi-source image fusion networks.
Paper: Autoencoding beyond pixels using a learned similarity metric, Anders Boesen Lindbo Larsen et al. (2015). Establishes autoencoder architectures tailored for dense feature extraction and image reconstruction that form the core encoder-fusion-decoder paradigm in DenseFuse.

Paper: Residual Dense Network for Image Super-Resolution, Yulun Zhang et al. (2018). Extends dense connection and feature fusion methodologies by combining residual dense blocks for high-fidelity image restoration and super-resolution.
Paper: FFA-Net: Feature Fusion Attention Network for Single Image Dehazing, Xu Qin et al. (2019). Advances deep feature fusion by integrating channel and pixel attention mechanisms to adaptively combine multi-scale representations for image restoration.
Paper: UNet++: Redesigning Skip Connections to Exploit Multiscale Features in Image Segmentation, Zongwei Zhou et al. (2019). Expands on dense multi-scale feature pathways and skip connections within an encoder-decoder topology to optimize intermediate representation fusion.
Paper: ImageBind One Embedding Space to Bind Them All, Rohit Girdhar et al. (2023). Generalizes cross-modal representation alignment and fusion beyond paired infrared and visible images to a unified space spanning six distinct sensory modalities.

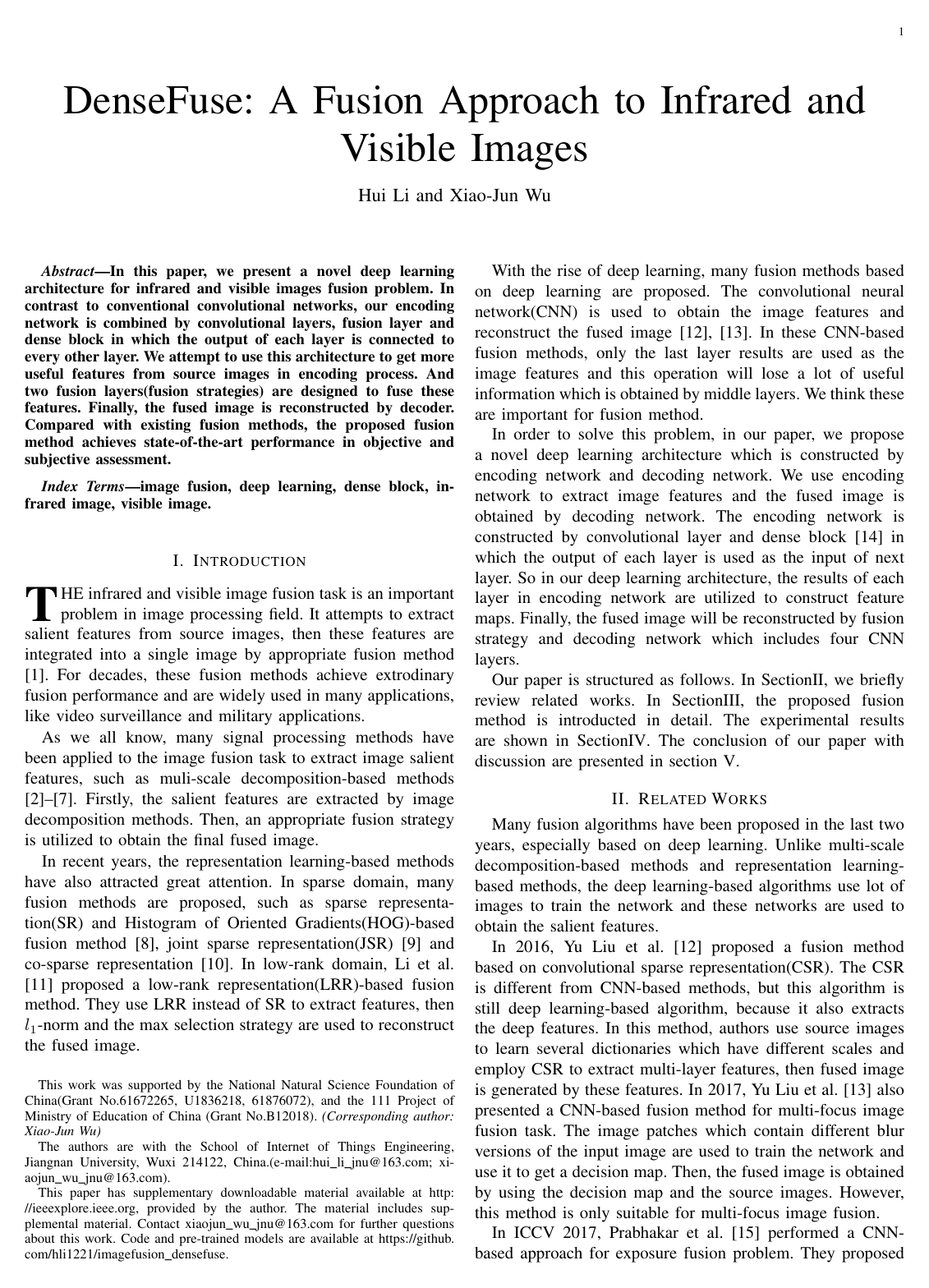

Cover for DenseFuse: A Fusion Approach to Infrared and Visible Images

Abstract

In this paper, we present a novel deep learning architecture for infrared and visible images fusion problem. In contrast to conventional convolutional networks, our encoding network is combined by convolutional layers, fusion layer and dense block in which the output of each layer is connected to every other layer. We attempt to use this architecture to get more useful features from source images in encoding process. And two fusion layers(fusion strategies) are designed to fuse these features. Finally, the fused image is reconstructed by decoder. Compared with existing fusion methods, the proposed fusion method achieves state-of-the-art performance in objective and subjective assessment. Code and pre-trained models are available at this https URL

Topics

deep learning fusion strategies high resolution image multifocus image fusion source images visible image fusion algorithms fusion techniques

Keywords

image fusion infrared and visible image fusion CNN-based fusion fusion layer fusion strategies exposure fusion deep features

I Introduction
II Related Works
III Proposed Fusion Method
III-A Training
III-B Fusion Layer(strategy)
III-B1 Addition Strategy
III-B2 l1l_{1}-norm Strategy
IV Experimental results and analysis
IV-A Training phase analysis
IV-B Experimental Settings
IV-C Fusion methods Evaluation
IV-D Additional results for RGB images and infrared images
V Conclusion
References

Knowls

Knowl 1 — DenseFuse Autoencoder Architecture for Image Fusion
model/method
DenseFuse is a deep learning framework designed for infrared and visible image fusion comprising three main functional blocks: an encoder, a fusion layer, and a decoder.

The encoder extracts deep multi-layer salient features and consists of an initial convolutional layer (C1) and a Dense Block with three subsequent convolutional layers (DC1, DC2, DC3):
- Layer C1 contains sixteen $3 \times 3$ filters with stride 1, ReLU activation, and reflection padding, transforming a 1-channel grayscale input into a 16-channel feature map.
- The Dense Block connects the output of each convolutional layer to all subsequent layers via channel concatenation. Layer DC1 takes the 16-channel output of C1 and produces 16 channels with $3 \times 3$ filters (stride 1, ReLU). Layer DC2 takes the concatenated 32-channel output of C1 and DC1 and produces 16 channels ( $3 \times 3$ , stride 1, ReLU). Layer DC3 takes the concatenated 48-channel output of C1, DC1, and DC2 and produces 16 channels ( $3 \times 3$ , stride 1, ReLU).
- The total output of the encoder concatenates the outputs of C1, DC1, DC2, and DC3, yielding a 64-channel feature map ( $M = 64$ ).
The fusion layer merges the 64-channel feature maps from multiple input images into a single 64-channel feature map.

The decoder reconstructs the fused image from the 64-channel merged representation using four successive convolutional layers with $3 \times 3$ filters, stride 1, and reflection padding:
- Layer C2: 64 input channels to 64 output channels with ReLU.
- Layer C3: 64 input channels to 32 output channels with ReLU.
- Layer C4: 32 input channels to 16 output channels with ReLU.
- Layer C5: 16 input channels to 1 output channel without activation.
Because all convolutional layers have a stride of 1 and use padding without pooling or downsampling, DenseFuse accepts input source images of arbitrary spatial dimensions.
Knowl 2 — DenseFuse Training Objective and Composite Loss Function
equation
In the training phase of DenseFuse, the encoder and decoder are trained end-to-end as an unsupervised autoencoder to reconstruct input visible images, setting aside the fusion layer. The network weights are optimized by minimizing a composite loss function $L$ :

$L = \lambda L_{ssim} + L_p$

where $L_p$ is the pixel-level Euclidean reconstruction loss:

$L_p = \|O - I\|_2$

and $L_{ssim}$ is the structural dissimilarity loss:

$L_{ssim} = 1 - SSIM(O, I)$

Here, $I$ denotes the input grayscale image, $O$ denotes the reconstructed output image produced by passing $I$ through the encoder and decoder, $SSIM(O, I)$ is the structural similarity index measure evaluating luminance, contrast, and structural preservation, and $\lambda > 0$ is a scalar hyperparameter weighting the SSIM loss against the Euclidean pixel loss to compensate for the numerical difference of several orders of magnitude between the two terms.
Knowl 3 — Activity-Level Fusion Strategy via L1-Norm and Softmax Normalization
algorithm
The $\ell_1$ -norm and softmax fusion strategy computes adaptive spatial weight maps based on local deep feature activity levels to fuse feature tensors extracted by the DenseFuse encoder.
Input: Registered source images $I_1, I_2, \dots, I_k$ , trained DenseFuse encoder $\mathcal{E}$ , trained DenseFuse decoder $\mathcal{D}$ , spatial neighborhood radius $r = 1$ .
Output: Fused image $I_f$ .
for each source image index $i \in \{1, \dots, k\}$ do
     $\phi_i \leftarrow \mathcal{E}(I_i)$ where $\phi_i \in \mathbb{R}^{H \times W \times M}$ with $M = 64$
    for each spatial coordinate $(x, y)$ do
         $C_i(x, y) \leftarrow \sum_{m=1}^M |\phi_i^m(x, y)|$
    end for
end for
for each source image index $i \in \{1, \dots, k\}$ do
    for each spatial coordinate $(x, y)$ do
         $\hat{C}_i(x, y) \leftarrow \frac{1}{(2r + 1)^2} \sum_{a=-r}^r \sum_{b=-r}^r C_i(x + a, y + b)$
    end for
end for
for each spatial coordinate $(x, y)$ do
     $S(x, y) \leftarrow \sum_{n=1}^k \hat{C}_n(x, y)$
    for each source image index $i \in \{1, \dots, k\}$ do
         $w_i(x, y) \leftarrow \frac{\hat{C}_i(x, y)}{S(x, y)}$
    end for
    for each channel $m \in \{1, \dots, M\}$ do
         $f^m(x, y) \leftarrow \sum_{i=1}^k w_i(x, y) \cdot \phi_i^m(x, y)$
    end for
end for
$I_f \leftarrow \mathcal{D}(f)$
return $I_f$
In this algorithm, $C_i(x, y) = \|\phi_i^{1:M}(x, y)\|_1$ serves as an initial spatial activity indicator across all $M=64$ feature channels at coordinate $(x, y)$ . The local average pooling with radius $r=1$ over a $(2r+1) \times (2r+1) = 3 \times 3$ window smooths the activity map into $\hat{C}_i(x, y)$ . Spatial weights $w_i(x,y)$ are obtained via softmax-like normalization across the $k$ input sources, and the fused feature map $f$ is reconstructed into image $I_f$ by the decoder $\mathcal{D}$ .
Knowl 4 — Addition-Based Feature Fusion Strategy
model/method
In the addition fusion strategy for DenseFuse, once the encoder and decoder network weights are fixed from autoencoder pre-training, deep feature representations are extracted for each of $k \ge 2$ registered source images $I_i$ ( $i \in \{1, \dots, k\}$ ) using the encoder:

$\phi_i = \text{Encoder}(I_i) \in \mathbb{R}^{H \times W \times M}$

where $M = 64$ represents the total number of encoder feature channels. The fused feature map tensor $f \in \mathbb{R}^{H \times W \times M}$ is formed by computing the element-wise sum across all source representations:

$f^m(x, y) = \sum_{i=1}^k \phi_i^m(x, y)$

where $m \in \{1, \dots, M\}$ indexes the feature channel, and $(x, y)$ denotes spatial pixel coordinates. The fused feature map tensor $f$ is then passed as the direct input to the decoder network to reconstruct the final fused grayscale image.
Knowl 5 — Multichannel Extension for Color Visible and Infrared Image Fusion
model/method
DenseFuse handles color (RGB) visible images and grayscale infrared images without modifying or retraining the underlying network architecture. The RGB visible image is separated into three individual grayscale color channels: Red ( $I_{vis}^R$ ), Green ( $I_{vis}^G$ ), and Blue ( $I_{vis}^B$ ).

Each color channel is paired separately with the single-channel infrared image $I_{ir}$ , forming three distinct 2-image input pairs: $(I_{vis}^R, I_{ir})$ , $(I_{vis}^G, I_{ir})$ , and $(I_{vis}^B, I_{ir})$ . Each channel pair is independently processed through the pre-trained DenseFuse encoder, fusion layer (utilizing either the addition strategy or the $\ell_1$ -norm strategy), and decoder, generating three fused grayscale output channels ( $I_f^R, I_f^G, I_f^B$ ).

Finally, the three fused channel maps are concatenated along the color dimension to form the reconstructed color fused RGB image.
Knowl 6 — Modified Average Structural Similarity Index for Image Fusion (SSIMa)
definition
The modified average structural similarity index ( $SSIM_a$ ) is an objective no-reference metric for evaluating how effectively a fused image preserves the structural information of two registered input source images. For a fused image $F$ and source images $I_1$ and $I_2$ , $SSIM_a$ is defined as:

$SSIM_a(F) = 0.5 \times \left( SSIM(F, I_1) + SSIM(F, I_2) \right)$

where $SSIM(\cdot, \cdot)$ denotes the standard structural similarity operation. Higher values of $SSIM_a$ correspond to superior structural retention and contrast fidelity from both source images.
Knowl 7 — DenseFuse Autoencoder Training Setup
experimental setup
The DenseFuse encoder and decoder are trained in an unsupervised autoencoder configuration using visible images from the MS-COCO dataset. 80,000 images are resized to $256 \times 256$ pixels and converted to grayscale, with approximately 79,000 images assigned to the training set and 1,000 images reserved for validation.

The network is optimized using a learning rate of $1 \times 10^{-4}$ , a batch size of 2, and 4 training epochs on an NVIDIA GTX 1080Ti GPU with a TensorFlow backend. The SSIM loss weight $\lambda$ in the composite objective function $L = \lambda L_{ssim} + L_p$ is tested across four scale values: $\lambda \in \{1, 10, 100, 1000\}$ .

Knowl 8 — Quantitative Evaluation on 20 Infrared and Visible Image Pairs

data/table

The performance of DenseFuse with addition and $\ell_1$ -norm strategies across four SSIM weights ( $\lambda \in \{10^0, 10^1, 10^2, 10^3\}$ ) was evaluated against six existing fusion methods: Cross Bilateral Filter (CBF), Joint-Sparse Representation (JSR), Gradient Transfer and Total Variation Minimization (GTF), JSR with Saliency Detection (JSRSD), a CNN-based multi-focus method adapted to infrared/visible images (CNN), and DeepFuse. The evaluation was conducted across 20 infrared and visible image pairs using seven quality metrics: Entropy ( $En$ ), $Q^{AB/F}$ ( $Qabf$ ), Sum of Correlations of Differences ( $SCD$ ), Wavelet Feature Mutual Information ( $FMI_w$ ), Discrete Cosine Feature Mutual Information ( $FMI_{dct}$ ), Modified Structural Similarity ( $SSIM_a$ ), and Multi-Scale SSIM ( $MS\_SSIM$ ).

Methods	En	Qabf	SCD	FMI_w	FMI_dct	SSIM_a	MS_SSIM
CBF	6.81494	0.44119	1.38963	0.32012	0.26619	0.60304	0.70879
JSR	6.78576	0.32572	1.59136	0.18506	0.14184	0.53906	0.75523
GTF	6.63597	0.40992	1.00488	0.41004	0.39384	0.70369	0.80844
JSRSD	6.78441	0.32553	1.59124	0.18502	0.14201	0.53963	0.75517
CNN	6.80593	0.29451	1.48060	0.53954	0.35746	0.71109	0.80772
DeepFuse	6.68170	0.43989	1.84525	0.42438	0.41357	0.72949	0.93353
DenseFuse (Addition, $\lambda = 10^0$ )	6.66280	0.44114	1.84929	0.42713	0.41557	0.73159	0.93039
DenseFuse (Addition, $\lambda = 10^1$ )	6.65139	0.44039	1.84549	0.42707	0.41552	0.73246	0.92896
DenseFuse (Addition, $\lambda = 10^2$ )	6.65426	0.44190	1.84854	0.42731	0.41587	0.73186	0.92995
DenseFuse (Addition, $\lambda = 10^3$ )	6.64377	0.43831	1.84172	0.42699	0.41558	0.73259	0.92794
DenseFuse ( $\ell_1$ -norm, $\lambda = 10^0$ )	6.83278	0.47560	1.71182	0.43191	0.38062	0.71880	0.85707
DenseFuse ( $\ell_1$ -norm, $\lambda = 10^1$ )	6.81348	0.47680	1.71264	0.43224	0.38048	0.72052	0.85803
DenseFuse ( $\ell_1$ -norm, $\lambda = 10^2$ )	6.83091	0.47684	1.71705	0.43129	0.38109	0.71901	0.85975
DenseFuse ( $\ell_1$ -norm, $\lambda = 10^3$ )	6.84189	0.47595	1.72000	0.43147	0.38404	0.72106	0.86340

The quantitative results indicate that DenseFuse with $\ell_1$ -norm fusion achieves the highest average Entropy ( $En = 6.84189$ at $\lambda = 10^3$ ) and highest edge information retention ( $Qabf = 0.47684$ at $\lambda = 10^2$ ), while DenseFuse with the addition strategy achieves the highest correlation difference sum ( $SCD = 1.84929$ at $\lambda = 10^0$ ), highest discrete cosine mutual information ( $FMI_{dct} = 0.41587$ at $\lambda = 10^2$ ), and highest structural similarity ( $SSIM_a = 0.73259$ at $\lambda = 10^3$ ).

Knowl 9 — Impact of SSIM Loss Weight on Training Convergence and Validation Accuracy
empirical result
Empirical analysis of the loss weighting factor $\lambda$ in $L = \lambda L_{ssim} + L_p$ during autoencoder training demonstrates that larger values of $\lambda$ (e.g., $\lambda = 1000$ ) result in significantly faster convergence during the initial 2,000 training iterations compared to lower values ( $\lambda = 1$ ). On the 1,000-image validation set, higher $\lambda$ values achieve superior SSIM scores and lower pixel reconstruction errors within the first 500 iterations.

However, after extensive training exceeding 40,000 iterations, the autoencoder converges to comparable optimal weights and reconstruction performance across all tested values $\lambda \in \{1, 10, 100, 1000\}$ . Thus, selecting a larger $\lambda$ primarily accelerates early convergence and reduces overall training time.

Coverage note — No substantial contributed material was omitted.
