Conditional Random Fields as Recurrent Neural Networks

Shuai ZhengSadeep JayasumanaBernardino Romera-ParedesVibhav VineetZhizhong SuDalong DuChang HuangPhilip H. S. Torr

article2015ICCV2,609 citationsBest Demo Award

Integrates Conditional Random Fields into convolutional neural networks by formulating mean-field inference as recurrent layers, enabling end-to-end training for accurate semantic segmentation without disconnected post-processing.

Listen

Pixel-level image labelling tasks such as semantic segmentation require both accurate per-pixel predictions and consistent object boundaries. Traditional convolutional neural networks excel at feature learning for recognition but often produce coarse outputs with blurry edges and inconsistent labels because they lack explicit mechanisms for spatial smoothness and label agreement.

The article set out to create a unified deep network that integrates the feature-extraction power of CNNs with the boundary-refining capability of conditional random fields, allowing the entire system to be trained end-to-end rather than applying CRF inference only after CNN training.

The authors reformulated the iterative mean-field inference algorithm for dense CRFs with Gaussian pairwise potentials as a recurrent neural network layer. This CRF-RNN layer was inserted after a fully convolutional network (based on FCN-8s) so that unary potentials from the CNN are refined by the CRF component; gradients flow back through the RNN during training, jointly optimising both parts. Experiments used the Pascal VOC 2012 training set (augmented with extra annotations) and, in one variant, additional Microsoft COCO images, with evaluation on the VOC test set and the Pascal Context dataset.

The integrated model reached 74.7 percent mean intersection-over-union on the VOC 2012 test set, a new state-of-the-art at the time and roughly 2 percentage points above the best prior disconnected CRF approach. End-to-end training improved accuracy by 3.4 points over an otherwise identical network whose CRF parameters were fixed after initialisation. Using class-specific filter weights and a learned asymmetric label-compatibility function each contributed measurable gains. On the Pascal Context dataset the method also outperformed previous CNN-only and two-stage baselines.

These results show that allowing the CNN and CRF components to adapt to each other during training produces sharper boundaries and fewer spurious regions without sacrificing recognition accuracy. The improvement matters for applications such as autonomous driving or medical imaging where precise object delineation directly affects downstream decisions.

The authors recommend exploring whether more flexible recurrent architectures such as LSTMs could replace the mean-field iterations while preserving end-to-end trainability. They note that increasing the number of mean-field iterations beyond five during training can weaken gradients reaching the CNN, and that performance gains depend on careful initialisation of CRF parameters. The reported gains are consistent across two datasets, yet further validation on larger and more diverse imagery would strengthen confidence before deployment.

Baidu Stanford University University of Oxford approximate inference backpropagation algorithm conditional random field Conditional Random Field Recurrent Neural Network Convolutional Neural Network

arXiv: 1502.03240 torrvision/crfasrnn

Paper: Efficient Inference in Fully Connected CRFs with Gaussian Edge Potentials, Philipp Krähenbühl et al. (2011). This paper establishes the efficient mean-field inference algorithm with Gaussian edge potentials for fully connected CRFs, which the source directly reformulates into a recurrent neural network layer.
Paper: Fully convolutional networks for semantic segmentation, Jonathan Long et al. (2015). This work introduces the Fully Convolutional Network (FCN-8s) architecture for end-to-end semantic segmentation upon which the source directly builds its unary potential pipeline.
Paper: Semantic Image Segmentation with Deep Convolutional Nets and Fully Connected CRFs, Liang-Chieh Chen et al. (2014). This work introduces the multi-stage pipeline combining CNN unary predictions with dense CRF post-processing, providing the exact disjoint baseline that the source unifies into an end-to-end trainable model.
Paper: Conditional Random Fields: Probabilistic Models for Segmenting and Labeling Sequence Data, J. Lafferty et al. (2001). This foundational paper introduces conditional random fields as discriminative graphical models for structured labeling.

Paper: DeepLab: Semantic Image Segmentation with Deep Convolutional Nets, Atrous Convolution, and Fully Connected CRFs, Liang-Chieh Chen et al. (2016). This paper extends dense prediction architectures with atrous spatial pyramid pooling while integrating fully connected CRFs for boundary refinement.
Paper: Efficient multi‐scale 3D CNN with fully connected CRF for accurate brain lesion segmentation, Konstantinos Kamnitsas et al. (2016). This work applies and extends fully connected CRF refinement paired with multi-scale deep CNNs to volumetric 3D medical image segmentation.
Paper: Multi-Scale Context Aggregation by Dilated Convolutions, Fisher Yu et al. (2016). This work develops dilated convolution modules designed to aggregate multi-scale context natively within the network as an alternative to explicit CRF inference steps.
Paper: RefineNet: Multi-path Refinement Networks for High-Resolution Semantic Segmentation, Guosheng Lin et al. (2016). This paper introduces multi-path refinement architectures that replace iterative CRF post-processing with end-to-end residual fusion across feature stages.
Paper: SegNet: A Deep Convolutional Encoder-Decoder Architecture for Image Segmentation, Vijay Badrinarayanan et al. (2015). This study examines memory-efficient encoder-decoder architectures for dense segmentation, providing a structural alternative to recurrent CRF inference.
Paper: Image Segmentation Using Deep Learning: A Survey, Shervin Minaee et al. (2020). This comprehensive survey contextualizes structured graphical modeling methods like CRF-RNN within the broader evolution of deep learning semantic segmentation paradigms.

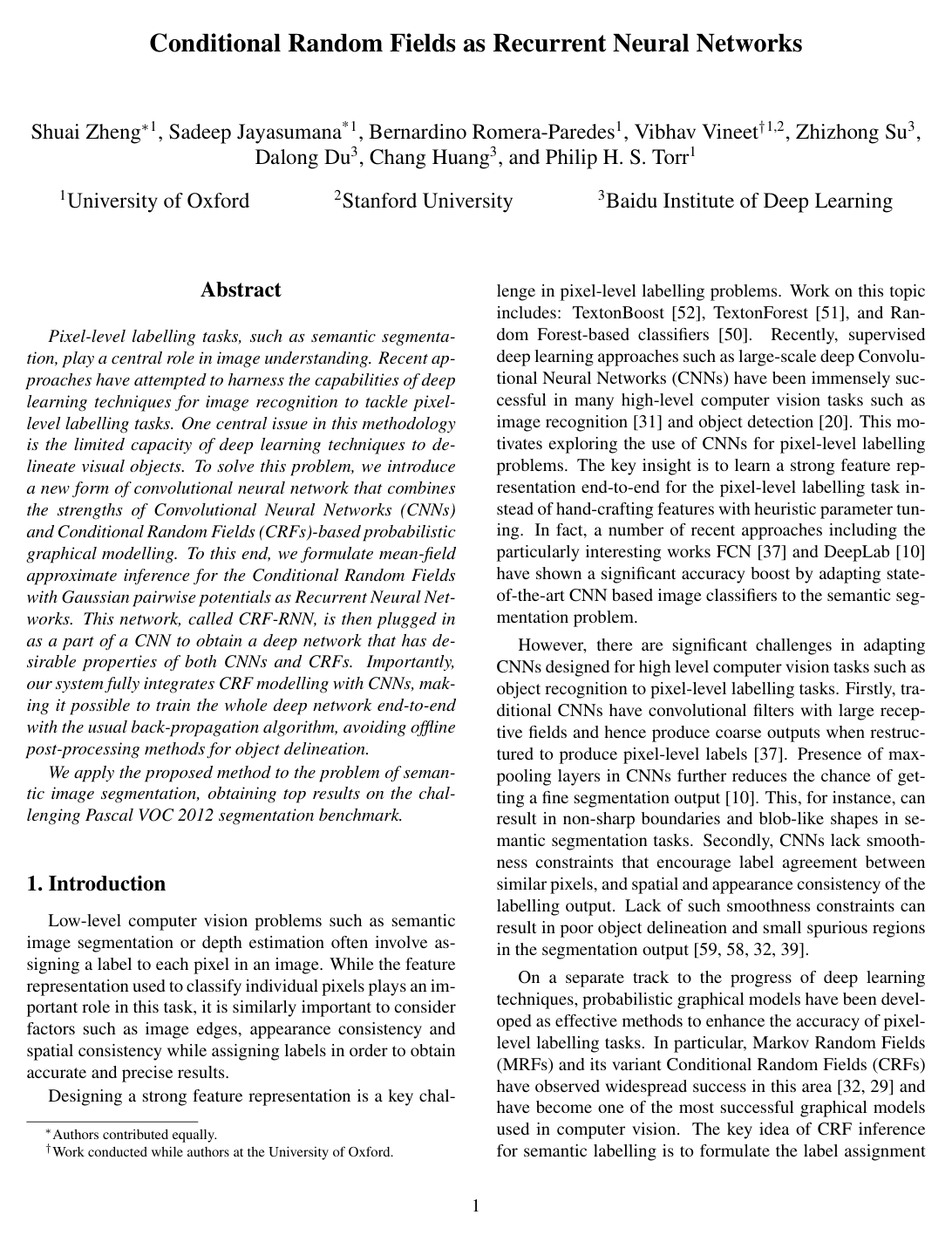

Cover for Conditional Random Fields as Recurrent Neural Networks

Abstract

Pixel-level labelling tasks, such as semantic segmentation, play a central role in image understanding. Recent approaches have attempted to harness the capabilities of deep learning techniques for image recognition to tackle pixel-level labelling tasks. One central issue in this methodology is the limited capacity of deep learning techniques to delineate visual objects. To solve this problem, we introduce a new form of convolutional neural network that combines the strengths of Convolutional Neural Networks (CNNs) and Conditional Random Fields (CRFs)-based probabilistic graphical modelling. To this end, we formulate mean-field approximate inference for the Conditional Random Fields with Gaussian pairwise potentials as Recurrent Neural Networks. This network, called CRF-RNN, is then plugged in as a part of a CNN to obtain a deep network that has desirable properties of both CNNs and CRFs. Importantly, our system fully integrates CRF modelling with CNNs, making it possible to train the whole deep network end-to-end with the usual back-propagation algorithm, avoiding offline post-processing methods for object delineation. We apply the proposed method to the problem of semantic image segmentation, obtaining top results on the challenging Pascal VOC 2012 segmentation benchmark.

1. Introduction
2. Related Work
3. Conditional Random Fields
4. A Mean-field Iteration as a Stack of CNN Layers
4.1. Initialization
4.2. Message Passing
4.3. Weighting Filter Outputs
4.4. Compatibility Transform
4.5. Adding Unary Potentials
4.6. Normalization
5. The End-to-end Trainable Network
5.1. CRF as RNN
5.2. Completing the Picture
6. Implementation Details
7. Experiments
Pascal VOC Datasets
Pascal Context Dataset
7.1. Effect of Design Choices
8. Conclusion
References

Knowls

Knowl 1 — CRF-RNN Framework for Structured Semantic Segmentation
model/method
The CRF-RNN framework reformulates mean-field approximate inference in a fully connected (dense) Conditional Random Field (CRF) with Gaussian pairwise potentials as a Recurrent Neural Network (RNN). By expressing the iterative inference algorithm as a differentiable computation graph with recurrence, the CRF graphical model is integrated directly on top of a Convolutional Neural Network (CNN) producing unary potentials (such as an FCN-8s architecture).

This unified model allows the parameters of both the CNN feature extractor and the CRF (filter kernel weights and label compatibility matrices) to be trained jointly end-to-end via standard backpropagation through time (BPTT) and stochastic gradient descent (SGD). This avoids the sub-optimality of treating dense CRF inference as an offline, disconnected post-processing step.
Knowl 2 — Mean-Field CRF Inference as a Stack of Differentiable CNN Layers
model/method
A single iteration of mean-field approximate inference for dense CRFs with Gaussian edge potentials is decomposed into five consecutive, fully differentiable neural network operations:
1. Message Passing: High-dimensional Gaussian filtering is applied to the estimated marginal probability distributions $Q$ . For an image with $N$ pixels, $M$ Gaussian kernels (specifically, a spatial kernel and a bilateral appearance kernel) compute filtered responses $\tilde{Q}^{(m)}_i(l) = \sum_{j \neq i} k^{(m)}(f_i, f_j) Q_j(l)$ across all pixels $i, j$ and labels $l$ . To make this operation tractable across the entire image in $O(N)$ time, a permutohedral lattice is employed for both the forward pass and the backward pass (by reversing the order of separable filters during lattice blurring).
2. Weighting Filter Outputs: A weighted linear combination of the $M$ filter outputs is computed for each label $l$ : $\check{Q}_i(l) = \sum_{m=1}^M w^{(m)}_l \tilde{Q}^{(m)}_i(l)$ . This operation is implemented as a $1 \times 1$ convolution with $M$ input channels and $1$ output channel per class label, enabling class-specific weights $w^{(m)}_l$ to be learned.
3. Compatibility Transform: Label interactions are modeled by $\hat{Q}_i(l) = \sum_{l' \in \mathcal{L}} \mu(l, l') \check{Q}_i(l')$ , where $\mu(l, l')$ is a learnable label compatibility function. This is implemented as a $1 \times 1$ convolution layer with $L$ input and $L$ output channels, generalized to permit asymmetric label penalties $\mu(l, l') \neq \mu(l', l)$ .
4. Adding Unary Potentials: The compatibility-transformed outputs are subtracted element-wise from the negative unary potentials $U_i(l) = -\psi_u(X_i = l)$ provided by the preceding CNN: $\breve{Q}_i(l) = U_i(l) - \hat{Q}_i(l)$ . Error differentials are propagated directly with inverted signs during backpropagation.
5. Normalization: The updated marginal distribution is obtained by computing a pixel-wise softmax across all label channels: $Q_i(l) = \frac{1}{Z_i} \exp(\breve{Q}_i(l))$ , where $Z_i = \sum_{l' \in \mathcal{L}} \exp(\breve{Q}_i(l'))$ .
Knowl 3 — Dense CRF Mean-Field Inference as CNN Operations
algorithm
The algorithm executes iterative mean-field inference on dense CRFs using operations structured as differentiable CNN layers:
Algorithm: Dense CRF Mean-Field Inference via CNN Operations
Input: Unary potential map $U \in \mathbb{R}^{N \times L}$ where $U_i(l) = -\psi_u(X_i = l)$ for pixel $i$ and label $l \in \mathcal{L} = \{l_1, \dots, l_L\}$ ; image feature vectors $\{f_i\}_{i=1}^N$ ; number of iterations $T$ ; Gaussian kernels $\{k^{(m)}\}_{m=1}^M$ ; learnable weights $w^{(m)}_l$ ; learnable compatibility matrix $\mu \in \mathbb{R}^{L \times L}$ .
Output: Marginal probability distributions $Q \in \mathbb{R}^{N \times L}$ .
for each pixel $i \in \{1, \dots, N\}$ and label $l \in \mathcal{L}$ do
     $Q_i(l) \leftarrow \frac{\exp(U_i(l))}{\sum_{l' \in \mathcal{L}} \exp(U_i(l'))}$
end for
for $t = 1$ to $T$ do
    for each kernel $m \in \{1, \dots, M\}$ and label $l \in \mathcal{L}$ do
         $\tilde{Q}_i^{(m)}(l) \leftarrow \sum_{j \neq i} k^{(m)}(f_i, f_j) Q_j(l)$ via permutohedral lattice
    end for
    for each label $l \in \mathcal{L}$ do
         $\check{Q}_i(l) \leftarrow \sum_{m=1}^M w^{(m)}_l \tilde{Q}_i^{(m)}(l)$
    end for
    for each label $l \in \mathcal{L}$ do
         $\hat{Q}_i(l) \leftarrow \sum_{l' \in \mathcal{L}} \mu(l, l') \check{Q}_i(l')$
    end for
    for each label $l \in \mathcal{L}$ do
         $\breve{Q}_i(l) \leftarrow U_i(l) - \hat{Q}_i(l)$
    end for
    for each label $l \in \mathcal{L}$ do
         $Q_i(l) \leftarrow \frac{\exp(\breve{Q}_i(l))}{\sum_{l' \in \mathcal{L}} \exp(\breve{Q}_i(l'))}$
    end for
end for
return $Q$
Knowl 4 — Recurrent State Equations of CRF-RNN
equation
Let $I$ be the input image, $U$ be the unary potential tensor generated by the front-end CNN, and $f_\theta(U, Q_{\text{in}}, I)$ denote the transformation performed by one mean-field iteration parameterized by $\theta = \{w^{(m)}_l, \mu(l, l')\}$ . For a total number of mean-field iterations $T$ , the recurrent dynamics of the CRF-RNN are governed by:
$H_1(t) = \begin{cases} \operatorname{softmax}(U), & t = 0 \\ H_2(t - 1), & 0 < t \le T \end{cases}$ $H_2(t) = f_\theta(U, H_1(t), I), \quad 0 \le t \le T$ $Y(t) = \begin{cases} 0, & 0 \le t < T \\ H_2(t), & t = T \end{cases}$
Here $H_1(t)$ represents the input distribution estimate fed into iteration $t$ , $H_2(t)$ is the output distribution estimate after iteration $t$ , and $Y(t)$ is the final output gated to emit results only at time step $t = T$ .
Knowl 5 — End-to-End CNN and CRF-RNN Integration and Training Setup
experimental setup
The complete network consists of an FCN-8s network (derived from VGG-16) providing unary potentials, directly followed by the CRF-RNN block and terminated with a softmax loss layer on pixel ground truth.

Key implementation and optimization parameters include:
- Initialization: CNN layers are initialized with pre-trained FCN-8s weights. CRF compatibility transform weights are initialized using the Potts model ( $-1$ on diagonals, $0$ off-diagonals). Kernel weights and filter bandwidths are initialized via cross-validation.
- Optimization: Trained via Stochastic Gradient Descent (SGD) using whole-image mini-batches (batch size 1) with momentum fixed at $0.99$ and a learning rate of $10^{-13}$ .
- Iterations: Mean-field iterations are set to $T = 5$ during training to prevent vanishing/exploding gradients and reduce compute time, and increased to $T = 10$ during inference.
- Loss Function: Standard pixel-wise log-likelihood / softmax loss.

Knowl 6 — Comparative Performance of End-to-End CRF-RNN vs. Disconnected CRF Inference

data/table

Evaluating different training strategies on the reduced Pascal VOC 2012 validation set (346 images without training overlap) demonstrates the quantitative advantage of end-to-end joint training of CNN and CRF-RNN compared to using CRF as a standalone, disconnected post-processing step on top of FCN-8s outputs:

All numbers report mean Intersection over Union (IU, %). End-to-end training improves over disconnected CRF post-processing by +5.9% IU without COCO pretraining and by +3.4% IU with COCO pretraining.

Knowl 7 — Semantic Segmentation Benchmark Results on Pascal VOC 2010-2012

data/table

Performance of CRF-RNN compared to competing state-of-the-art segmentation methods on the Pascal VOC 2010, 2011, and 2012 test benchmarks:

Method	VOC 2010 test	VOC 2011 test	VOC 2012 test
Without COCO training data:
BerkeleyRC	n/a	39.1	n/a
O2PCPMC	49.6	48.8	47.8
Divmbest	n/a	n/a	48.1
NUS-UDS	n/a	n/a	50.0
SDS	n/a	n/a	51.6
MSRA-CFM	n/a	n/a	61.8
FCN-8s	n/a	62.7	62.2
Hypercolumn	n/a	n/a	62.6
Zoomout	64.4	64.1	64.4
Context-Deep-CNN-CRF	n/a	n/a	70.7
DeepLab-MSc	n/a	n/a	71.6
CRF-RNN (w/o COCO)	73.6	72.4	72.0
With COCO pre-training:
BoxSup	n/a	n/a	71.0
DeepLab	n/a	n/a	72.7
CRF-RNN (with COCO)	75.7	75.0	74.7

Metric reported is mean Intersection over Union (IU, %). CRF-RNN achieves state-of-the-art accuracy across all three VOC test sets (72.0% without COCO, 74.7% with COCO on VOC 2012).

Knowl 8 — Semantic Segmentation Evaluation on the Pascal Context Dataset

data/table

Performance comparison on the 59-class Pascal Context dataset validation partition:

CRF-RNN improves upon FCN-8s by 1.50% mean IU on this 59-class scene parsing benchmark.

Knowl 9 — Ablation Analysis of CRF-RNN Architectural Components and Parameters
empirical result
Empirical ablation on the Pascal VOC 2012 validation set reveals the impact of individual design choices:
- Class-Dependent Kernel Weights: Learning independent Gaussian filter weights $w^{(m)}_l$ for each class $l$ yields a +1.8 percentage point improvement over class-agnostic weights.
- Asymmetric Label Compatibility: Allowing an asymmetric compatibility matrix $\mu(l, l') \neq \mu(l', l)$ provides an additional +0.9 percentage point boost.
- End-to-End Joint Training vs. Partial Tuning: End-to-end training of the combined network after initialization gains +3.4 percentage points, whereas freezing the CNN and fine-tuning only the CRF parameters improves accuracy by only +1.0 percentage point.
- Recurrent Weight Sharing vs. Independent Layers: Unrolling 5 iterations with independent parameters per iteration produces an IU of 70.9%, underperforming the recurrent weight-sharing formulation and indicating the importance of strict recurrence.
- Iteration Count $T$ : Increasing test iterations from $T = 5$ to $T = 10$ improves accuracy by +0.2 percentage points. Increasing training iterations to $T = 10$ reduces accuracy by 0.7 percentage points due to vanishing gradients propagating through the RNN loop to the unary CNN.
- Softmax vs. ReLU Normalization: Replacing exponential/softmax normalization with a ReLU followed by normalization degraded performance by 1.0% IU.
Knowl 10 — Asymmetric Label Compatibility Formulation in Dense CRFs
model/method
In standard dense CRF formulations using the Potts model, label compatibility is binary and symmetric: $\mu(l, l') = [l \neq l']$ , applying an identical penalty to all distinct label co-occurrences.

CRF-RNN replaces this with a fully learnable, unconstrained $L \times L$ weight matrix implemented as a $1 \times 1$ convolution across class channels, where $\mu(l, l') \neq \mu(l', l)$ is permitted. This enables the network to learn asymmetric co-occurrence priors from training data (e.g., assigning lower penalties to mutually consistent pairs such as [Motorbike, Person] or [Dining table, Chair] compared to unrelated pairs like [Sky, Bicycle]).

Coverage note — None was omitted; all primary architectural components, algorithmic steps, equations, training setups, ablation studies, and experimental results on Pascal VOC and Pascal Context are covered.
