One Pixel Attack for Fooling Deep Neural Networks

Jiawei SuDanilo Vasconcellos VargasSakurai Kouichi

article2017IEEE TEVC2,611 citations

Demonstrates that modifying just a single pixel through differential evolution can reliably fool deep neural networks in black-box settings, exposing extreme blind spots in standard image classifiers.

Listen

The article examines the vulnerability of deep neural networks to adversarial attacks in an extremely constrained setting where only a single pixel in an input image can be altered. This matters because prior work on such attacks typically modified many pixels, potentially making changes visible to humans, while the security of image recognition systems used in applications like autonomous vehicles or security cameras depends on understanding even minimal perturbations.

The article set out to determine whether one-pixel modifications could reliably fool common deep neural networks on standard image classification benchmarks and to demonstrate a practical method for generating such attacks.

Researchers applied differential evolution, a population-based optimization technique that requires only the model's output probability labels and no internal details such as gradients, to search for effective single-pixel changes. Experiments used three widely studied network architectures on the Kaggle CIFAR-10 test set of 500 images, the original CIFAR-10 test set, and the BVLC AlexNet on 105 randomly selected ImageNet images.

The analysis shows that one-pixel changes succeeded in 68.71 percent, 71.66 percent, and 63.53 percent of non-targeted attacks on the three CIFAR-10 networks, with average confidence around 74 percent; each image could be shifted to roughly two other classes on average. On ImageNet the success rate reached 16.04 percent with 22.91 percent average confidence. Increasing the limit to three or five pixels raised both success rates and the number of reachable classes, while random single-pixel changes performed substantially worse than the evolutionary search.

These results indicate that current networks remain sensitive to very low-dimensional perturbations, implying that defenses based solely on detecting larger distortions may miss simple attacks and that robustness testing should include such minimal-change scenarios. The approach also illustrates how evolutionary algorithms can efficiently probe model weaknesses without requiring white-box access.

The article recommends using the generated adversarial examples to augment training data for more robust models and extending the method to other domains such as speech or text. Further work is needed to test larger image resolutions, evaluate detection methods against this attack, and explore more advanced evolutionary variants for higher efficiency.

The findings rest on specific datasets and a fixed number of optimization evaluations; success rates could vary with different preprocessing, network training, or larger search budgets, so caution is warranted when generalizing beyond the tested conditions.

Advanced Telecommunications Research Institute International Kyushu University adversarial machine learning differential evolution evolutionary computation One-Pixel Attack Differential Evolution Deep Neural Network

arXiv: 1710.08864

Paper: Intriguing properties of neural networks, Christian Szegedy et al. (2014). This foundational paper first identified the surprising vulnerability of deep neural networks to tiny, imperceptible adversarial input perturbations.
Paper: Explaining and Harnessing Adversarial Examples, Ian J. Goodfellow et al. (2015). It provides crucial theoretical intuition regarding the linear behavior of neural networks in high dimensions and introduces the Fast Gradient Sign Method for creating adversarial perturbations.
Paper: The Limitations of Deep Learning in Adversarial Settings, Nicolas Papernot et al. (2015). It establishes the Jacobian-based Saliency Map Attack (JSMA) targeting sparse, feature-constrained perturbations that directly motivated extreme single-pixel attacks.
Paper: Towards Evaluating the Robustness of Neural Networks, Nicholas Carlini et al. (2016). It defines standard optimization-based attack formulations across L0, L2, and L-infinity norms against which subsequent sparse and black-box attacks are benchmarked.
Paper: DeepFool: A Simple and Accurate Method to Fool Deep Neural Networks, Seyed-Mohsen Moosavi-Dezfooli et al. (2015). It presents DeepFool, an efficient iterative method to find minimal adversarial perturbations by estimating distances to decision boundaries.
Paper: Universal Adversarial Perturbations, Seyed-Mohsen Moosavi-Dezfooli et al. (2016). It reveals the existence of image-agnostic universal perturbations, illustrating global geometric properties of network decision boundaries.
Paper: Deep neural networks are easily fooled: High confidence predictions for unrecognizable images, Anh Nguyen et al. (2014). It demonstrates how evolutionary algorithms can effectively probe neural network weaknesses and find high-confidence fooling patterns.

Paper: ZOO: Zeroth Order Optimization Based Black-box Attacks to Deep Neural Networks without Training Substitute Models, Pin-Yu Chen et al. (2017). It advances black-box adversarial generation via zeroth-order optimization, providing a gradient-free attack framework without requiring substitute models.
Paper: Towards Deep Learning Models Resistant to Adversarial Attacks, A. Ma̧dry et al. (2017). It formalizes adversarial robustness through minimax robust optimization and establishes Projected Gradient Descent as a universal first-order defense and benchmark.
Paper: Obfuscated Gradients Give a False Sense of Security: Circumventing Defenses to Adversarial Examples, Anish Athalye et al. (2018). It uncovers the phenomenon of obfuscated gradients, explaining why black-box and optimization-based attacks often succeed when gradient-based attacks fail.
Paper: Adversarial Examples Are Not Bugs, They Are Features, Andrew Ilyas et al. (2019). It provides a conceptual explanation for adversarial vulnerability by demonstrating that neural networks naturally learn non-robust, human-imperceptible features from data.
Paper: Reliable evaluation of adversarial robustness with an ensemble of diverse parameter-free attacks, Francesco Croce et al. (2020). It develops AutoAttack, an ensemble of parameter-free attacks designed to provide reliable, standardized robustness evaluations across models.
Paper: Threat of Adversarial Attacks on Deep Learning in Computer Vision: A Survey, Naveed Akhtar et al. (2018). It provides a comprehensive survey systematizing adversarial attack paradigms, threat models, and defenses in computer vision.
Paper: Theoretically Principled Trade-off between Robustness and Accuracy, Hongyang Zhang et al. (2019). It analyzes the fundamental trade-off between standard classification accuracy and robustness against adversarial perturbations.
Paper: Certified Adversarial Robustness via Randomized Smoothing, Jeremy M Cohen et al. (2019). It introduces randomized smoothing to deliver provable, certified robustness guarantees against adversarial perturbations in large networks.

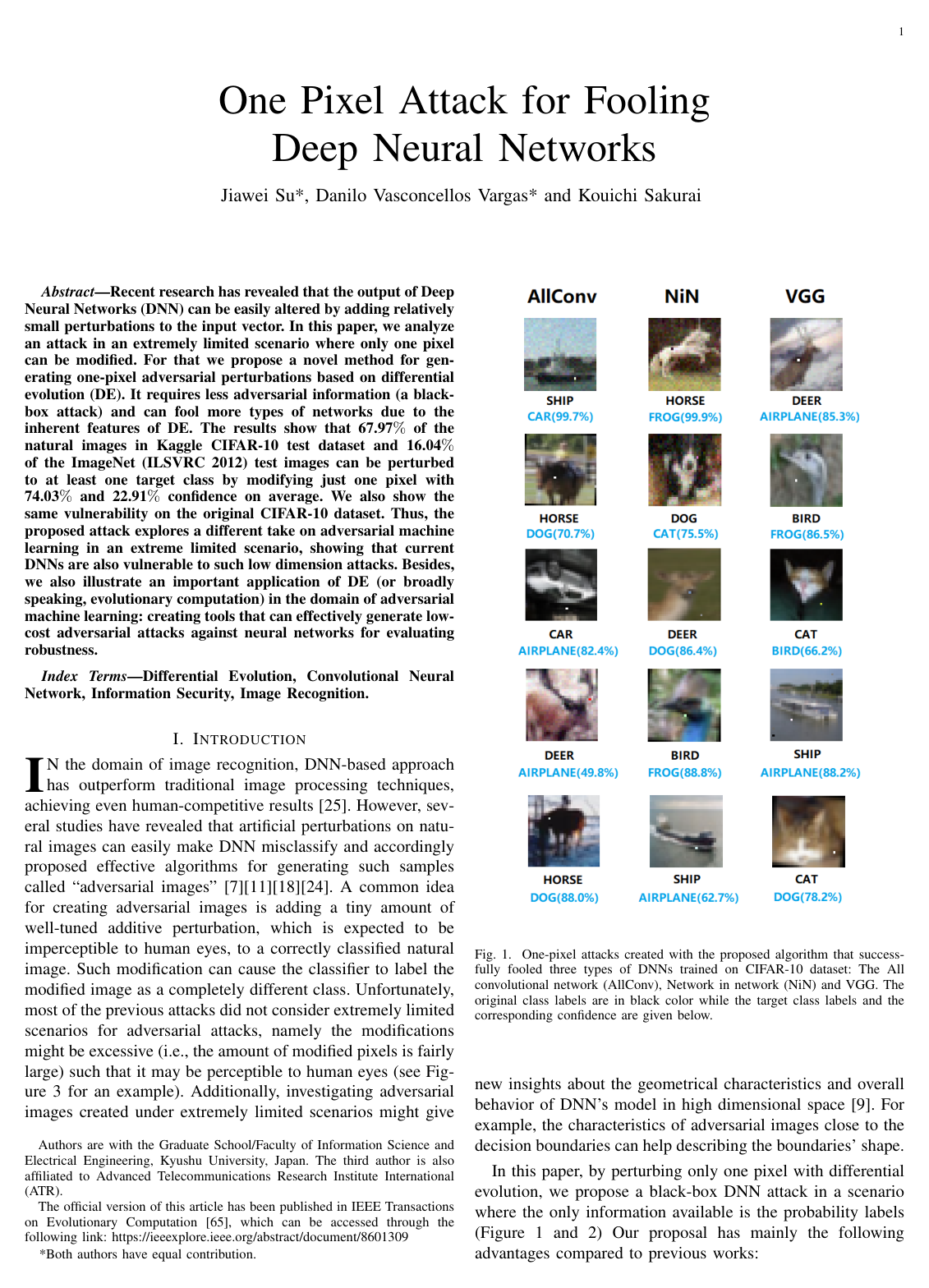

Cover for One Pixel Attack for Fooling Deep Neural Networks

Abstract

Recent research has revealed that the output of Deep Neural Networks (DNN) can be easily altered by adding relatively small perturbations to the input vector. In this paper, we analyze an attack in an extremely limited scenario where only one pixel can be modified. For that we propose a novel method for generating one-pixel adversarial perturbations based on differential evolution (DE). It requires less adversarial information (a black-box attack) and can fool more types of networks due to the inherent features of DE. The results show that 67.97% of the natural images in Kaggle CIFAR-10 test dataset and 16.04% of the ImageNet (ILSVRC 2012) test images can be perturbed to at least one target class by modifying just one pixel with 74.03% and 22.91% confidence on average. We also show the same vulnerability on the original CIFAR-10 dataset. Thus, the proposed attack explores a different take on adversarial machine learning in an extreme limited scenario, showing that current DNNs are also vulnerable to such low dimension attacks. Besides, we also illustrate an important application of DE (or broadly speaking, evolutionary computation) in the domain of adversarial machine learning: creating tools that can effectively generate low-cost adversarial attacks against neural networks for evaluating robustness.

Topics

adversarial machine learning differential evolution evolutionary computation neural networks denial of service attacks

Keywords

One-Pixel Attack Differential Evolution Deep Neural Network Adversarial Perturbation Black-Box Attack CIFAR-10 ImageNet Success Rate Confidence Vulnerable Class Pair

I Introduction
II Related works
III Methodology
III-A Problem Description
III-B Differential Evolution
III-C Method and Settings
IV Evaluation and Results
IV-A Kaggle CIFAR-10
IV-B ImageNet
IV-C Results
IV-C1 Success Rate and Adversarial Probability Labels (Targeted Attack Results)
IV-C2 Number of Target Classes (Non-targeted Attack Results)
IV-C3 Original-Target Class Pairs
IV-C4 Time complexity and average distortion
IV-C5 Comparing with Random One-Pixel Attack
IV-C6 Change in fitness values
V Results on Original CIFAR-10 Test Data
VI Discussion
VI-A Adversarial Perturbation
VI-B Robustness of One-pixel Attack
VII Future Work
VIII Acknowledgment
References

Knowls

Knowl 1 — Problem Formulation of Few-Pixel and One-Pixel Adversarial Attacks
equation
In an image classification setting, let $f$ denote the target classifier that maps an $n$ -dimensional input image vector $x = (x_1, au, x_n)$ to class prediction probabilities, where $f_t(x)$ is the predicted probability that $x$ belongs to the ground-truth class $t$ . An additive adversarial perturbation vector $e(x) = (e_1, au, e_n)$ modifies the input to $x + e(x)$ .

For a targeted attack aiming to force the classifier to predict an arbitrary target adversarial class $\text{adv} \neq t$ , the few-pixel perturbation is formulated as an optimization problem under an $L_0$ constraint:

$\max_{e(x)} f_{\text{adv}}(x + e(x)) \quad \text{subject to} \quad \|e(x)\|_0 \le d$

where $\|e(x)\|_0$ is the $L_0$ pseudo-norm counting the number of non-zero elements (modified dimensions/pixels) in $e(x)$ , and $d$ is a small integer representing the perturbation budget. For a one-pixel attack, $d = 1$ , restricting the search to 1-dimensional orthogonal slices parallel to coordinate axes in the input space without placing a bound on the modification magnitude along the perturbed dimension. For non-targeted attacks, the objective is to minimize the probability of the true class $f_t(x + e(x))$ or maximize the probability of the highest non-true class.
Knowl 2 — Differential Evolution Algorithm for One-Pixel Adversarial Attack
algorithm
The one-pixel attack utilizes Differential Evolution (DE), a population-based black-box meta-heuristic optimization algorithm that optimizes the perturbation using only feedback from the output probabilities of the target deep neural network without requiring gradient or architectural knowledge.
Input: Target classifier $f$ , natural image $x$ , target class $\text{adv}$ (for targeted) or true class $t$ (for non-targeted), population size $N = 400$ , maximum generations $G_{\max} = 100$ , scale parameter $F = 0.5$ , coordinate bounds $[1, W]$ and $[1, H]$
Output: Best adversarial perturbation $e^*(x)$
Initialize population $P = \{p_1, \dots, p_N\}$ , where each candidate solution $p_i = (x_i, y_i, r_i, g_i, b_i)$ has coordinates $x_i \sim U(1, W)$ , $y_i \sim U(1, H)$ , and RGB values $r_i, g_i, b_i \sim \mathcal{N}(\mu = 128, \sigma = 127)$
for generation $g = 1$ to $G_{\max}$ do
    for $i = 1$ to $N$ do
        Sample mutually distinct random indices $r_1, r_2, r_3 \in \{1, \dots, N\} \setminus \{i\}$
        Generate mutant candidate (child) $c_i = p_{r_1} + F \cdot (p_{r_2} - p_{r_3})$
        Clamp coordinates of $c_i$ to valid image boundaries and RGB values to $[0, 255]$
        Evaluate fitness: $\text{fitness}(p) = f_{\text{adv}}(x + e_p)$ for targeted attack, or $\text{fitness}(p) = -f_t(x + e_p)$ for non-targeted attack
        if $\text{fitness}(c_i) > \text{fitness}(p_i)$ then
             $p_i \leftarrow c_i$
        end if
    end for
    Let $p^* = \arg\max_{p \in P} \text{fitness}(p)$
    if targeted attack and $f_{\text{adv}}(x + e_{p^*}) \ge 0.90$ then
        return $e_{p^*}$
    end if
    if non-targeted attack and $f_t(x + e_{p^*}) \le 0.05$ then
        return $e_{p^*}$
    end if
end for
return $e_{p^*}$
No crossover operation is used in the candidate generation step. Crossover is omitted to preserve the 5-element coordinate-color tuple structure.

Knowl 3 — One-Pixel, Three-Pixel, and Five-Pixel Attack Results on Kaggle CIFAR-10

data/table

The effectiveness of one-pixel, three-pixel, and five-pixel attacks was evaluated across 500 randomly sampled test images from the Kaggle CIFAR-10 dataset against three network architectures: All Convolutional Network (AllConv), Network in Network (NiN), and VGG16. For targeted attacks, 9 distinct targets were tested per image (resulting in 36,000 total targeted evaluations). Non-targeted attack success corresponds to finding at least one target class that flips the original classification.

Metric	AllConv	NiN	VGG16	BVLC AlexNet
Original Accuracy	85.6%	87.2%	83.3%	57.3%
Targeted Success Rate (1 pixel)	19.82%	23.15%	16.48%	–
Non-targeted Success Rate (1 pixel)	68.71%	71.66%	63.53%	16.04%
Target Class Confidence (1 pixel)	79.40%	75.02%	67.67%	22.91%

Increasing the perturbation budget from one pixel to three and five pixels increases the non-targeted success rate from roughly $68\%\text{--}71\%$ to over $86\%$ , and roughly doubles the targeted success rate while retaining average adversarial confidence above $77\%$ .

Knowl 4 — One-Pixel Non-Targeted Attack Effectiveness on ImageNet
empirical result
The one-pixel non-targeted attack generalizes to high-resolution datasets. Testing against the BVLC AlexNet model on 105 randomly sampled ILSVRC 2012 test images (converted losslessly to PNG and resized to $227 \times 227$ ) yielded a non-targeted attack success rate of $16.04\%$ .

Although the search space on ImageNet ( $227 \times 227$ ) is approximately 50 times larger than CIFAR-10 ( $32 \times 32$ ), the attack succeeded with the same number of DE evaluations. For successful attacks on AlexNet, the winning adversarial class achieved an average confidence of $22.91\%$ . Because the remaining 999 ImageNet classes divide the remaining probability mass, a confidence of $22.91\%$ represents the dominant predicted class and reduces the network's soft label distribution to a nearly uniform state.

Knowl 5 — Comparison of Differential Evolution Versus Random Search for One-Pixel Attacks

data/table

To assess whether Differential Evolution is superior to naive exploration, DE was compared against a random search baseline on the Kaggle CIFAR-10 dataset under an equal computational budget of 80,000 evaluations per image (DE: population size 400 with 200 generations; Random Search: 100 random trials with 800 random pixel evaluations per trial).

Method / Metric	AllConv	NiN	VGG16
DE Success Rate	68.71%	71.66%	63.53%
DE Target Confidence	79.40%	75.02%	67.67%
Random Search Success Rate	49.70%	41.72%	15.57%
Random Search Target Confidence	87.73%	75.83%	59.90%

DE outperforms random search by absolute margins of $19.01\%$ , $29.94\%$ , and $47.96\%$ on AllConv, NiN, and VGG16, respectively. While random search finds vulnerable pixels on AllConv and NiN around $42\%\text{--}50\%$ of the time, it performs poorly on VGG16 ( $15.57\%$ ), where DE maintains robust search efficiency ( $63.53\%$ ).

Knowl 6 — One-Pixel Attack Evaluation on the Original Clean CIFAR-10 Test Dataset

data/table

Evaluating the one-pixel attack on 500 clean, correctly classified test images from the original CIFAR-10 test set provides a baseline without Kaggle noise. Early stopping was triggered when the target class probability exceeded the true class probability.

Attack Type	AllConv	NiN	VGG16
Targeted Success Rate	3.41%	4.78%	5.63%
Calculated Non-targeted Success Rate	22.67%	32.00%	30.33%
Targeted Confidence	54.58%	55.18%	51.19%
Direct Non-targeted Success Rate	22.60%	35.20%	31.40%
Direct Non-targeted Confidence	56.57%	60.08%	53.58%

On clean CIFAR-10 images, networks exhibit higher robustness (success rates of $22.60\%\text{--}35.20\%$ ) compared to noisy Kaggle images ( $63.53\%\text{--}71.66\%$ ), due to higher baseline classification certainty on clean inputs.

Knowl 7 — Comparison of One-Pixel Attack with LSA and FGSM

data/table

The table below compares the non-targeted attack performance of the one-pixel DE attack against the Local Search Attack (LSA) and the Fast Gradient Sign Method (FGSM) on clean CIFAR-10 images.

Method	Success Rate	Confidence	Modified Pixels	Network
One-Pixel Attack (DE)	35.20%	60.08%	1 (0.098%)	NiN
One-Pixel Attack (DE)	31.40%	53.58%	1 (0.098%)	VGG16
LSA	97.89%	72%	33 (3.24%)	NiN
LSA	97.98%	77%	30 (2.99%)	VGG16
FGSM	93.67%	93%	1024 (100%)	NiN
FGSM	90.93%	90%	1024 (100%)	VGG16

While LSA and FGSM achieve $>90\%$ success rates by modifying approximately $3\%$ and $100\%$ of all image pixels respectively, the one-pixel attack modifies only a single pixel ( $0.098\%$ of a $32 \times 32$ image) while still achieving over $31\%\text{--}35\%$ non-targeted success.

Knowl 8 — Computational Cost and Distortion Metrics of the One-Pixel Attack

data/table

The computational complexity and the magnitude of perturbation required to produce adversarial images were quantified using the average number of model evaluations (population size $\times$ generation number) and average single-channel color distortion across RGB channels for successful one-pixel attacks.

Across all four architectures, an adversarial sample is produced in 12,400 to 25,600 evaluations on average. The average distortion per RGB channel (scaled in $[0, 255]$ ) ranges between 123 and 158.

Knowl 9 — Transferability Asymmetries and Geometrical Characteristics of Class Decision Boundaries
empirical result
Analyzing original-target class confusion matrices from one-pixel attacks reveals geometric properties of deep neural network decision boundaries:
1. Directional Vulnerability and Class Symmetry: Many class pairs exhibit symmetric transferability (e.g., Cat $\leftrightarrow$ Dog transitions are mutually frequent, whereas Cat $\to$ Automobile transitions rarely succeed).
2. Class-Pair Asymmetries: Specific pairs show pronounced directional asymmetry; for instance, attacks from Ship to Airplane succeed frequently on NiN, but Airplane to Ship transitions fail.
3. Multi-Class Reachability: Individual natural images are frequently located near boundaries of multiple decision regions; on Kaggle CIFAR-10, an average natural image can be perturbed to approximately 1.5 to 2.1 distinct target classes with a single pixel modification, and rare natural images can be perturbed into all 9 other classes with single-pixel changes.
4. Linearity Hypothesis Contradiction: The success of 1-pixel perturbations demonstrates that the hypothesis that adversarial vulnerability arises solely from the accumulation of tiny modifications across thousands of dimensions is not necessary to explain DNN fragility.
Knowl 10 — Vulnerability to Input Pre-Processing Defenses in $L_0$ Attacks
limitation
Because the one-pixel attack places all of its perturbation magnitude into a single isolated coordinate without restricting per-channel color changes, it acts as an extreme $L_0$ attack. Consequently, it is susceptible to image pre-processing defenses designed to identify high-frequency noise and spatial outliers, such as bit-depth feature squeezing, local spatial smoothing filters, and median filtering. Defending systems can detect or remove isolated pixel anomalies prior to classification, though such pre-processing pipelines introduce computational overhead that can impede real-time or high-frame-rate computer vision tasks.

Coverage note — Omitted speculative future work discussions regarding neuroevolutionary architectures (e.g., SUNA) and learning classifier systems as general-purpose defenses, as they represent contextual commentary rather than direct contributions of the paper.
