The CMA Evolution Strategy: A Tutorial

Nikolaus Hansen

article2016arXiv1,785 citations

Derives the Covariance Matrix Adaptation Evolution Strategy from intuitive geometric principles, providing a clear foundation for mastering one of the most effective algorithms for non-linear, non-convex continuous optimization.

Listen

Organizations often face complex, continuous optimization challenges in engineering, logistics, and machine learning where classical gradient-based algorithms fail due to rugged search landscapes, noise, and non-convexity. While conventional evolutionary algorithms offer robustness against these conditions, they frequently suffer from slow convergence on ill-conditioned or non-separable problems and are vulnerable to premature collapse into unpromising subspaces.

The article provides a foundational formulation and operational framework for the Covariance Matrix Adaptation Evolution Strategy (CMA-ES). It demonstrates how combining distribution adaptation with explicit step-size control delivers an efficient, randomized search mechanism for difficult continuous domain black-box optimization.

CMA-ES operates as an iterative stochastic method that samples candidate solutions from a multivariate normal distribution. In each iteration, it evaluates solutions based on their fitness rank, shifts the distribution mean toward the most promising candidates, and updates its geometric search shape. To adapt this covariance structure, the algorithm combines short-term information from the current population with a multi-generational memory path. In parallel, it manages overall step length using cumulative path length control, adjusting step sizes by comparing accumulated trajectory lengths against expected random walk behavior.

The findings establish that dynamically adapting the search distribution covariance is functionally equivalent to learning the inverse Hessian matrix in quasi-Newton optimization methods, effectively transforming distorted, ill-conditioned problem landscapes into easily searchable spherical spaces. By combining historical path tracking with population-level rank updates, the algorithm reduces the evaluation effort required to adapt the search space on challenging elongated landscapes to a linear scaling with dimension. Furthermore, controlling step size and covariance learning rates independently decouples algorithm stability from population size, allowing reliable execution with very small sample populations without premature convergence or subspace collapse. The method also exhibits full affine and monotonic transformation invariance, ensuring consistent search performance across broad classes of mathematically equivalent problems.

These capabilities mean that organizations can tackle high-dimensional, complex numerical optimization problems with significantly fewer costly objective evaluations, lower operational failure rates, and zero reliance on analytical gradient information. Unlike traditional evolutionary heuristics that demand extensive hyperparameter tuning, CMA-ES provides standardized default parameters that perform robustly across diverse application domains.

For practical implementation, teams should adopt CMA-ES as a primary solver for difficult non-linear continuous optimization tasks, retaining the default parameter formulations for update rates and weights. When addressing multimodal landscapes with many local minima, practitioners should implement an automated restart strategy with geometrically increasing population sizes to balance local search speed against global exploration. Boundary and constraint constraints should be handled using distance-based penalization or repair mechanisms rather than hard feasibility sampling.

Decision-makers should note that while the algorithm is highly effective for moderate-to-high dimensions, its internal matrix operations scale quadratically per evaluation, though periodic matrix updates mitigate computational overhead. Additionally, cumulative step-size control can struggle to maintain optimal step lengths under extremely severe noise, requiring appropriate damping adjustments when evaluating highly uncertain systems.

cma covariance matrix adaptation differential evolution CMA Evolution Strategy covariance matrix adaptation evolutionary algorithms

arXiv: 1604.00772 CMA-ES/pycma

Book: An elementary introduction to information geometry, Frank Nielsen (2020). Provides the foundational differential and information-geometric perspective on probability distributions and natural gradients that underlies modern derivations of evolution strategies.
Paper: Stochastic First- and Zeroth-Order Methods for Nonconvex Stochastic Programming, Saeed Ghadimi et al. (2013). Establishes theoretical foundations and complexity bounds for zeroth-order, derivative-free optimization on non-convex stochastic objectives.
Paper: A Stochastic Approximation Method, Herbert Robbins et al. (1951). Introduces the classical stochastic approximation principles for parameter updating under noise that underpin iterative stochastic search algorithms.

Paper: Evolution Strategies as a Scalable Alternative to Reinforcement Learning, Tim Salimans et al. (2017). Scales the evolution strategies paradigm introduced in the tutorial to high-dimensional reinforcement learning and deep neural network policy optimization.
Paper: Evolution Strategies at Scale: LLM Fine-Tuning Beyond Reinforcement Learning, Xin Qiu et al. (2025). Applies evolution strategy principles at extreme scale to fine-tune billion-parameter large language models without backpropagation.
Paper: Learn from Global Correlations: Enhancing Evolutionary Algorithm via Spectral GNN, Kaichen Ouyang et al. (2026). Enhances population-based evolutionary algorithms, evaluating directly against CMA-ES benchmarks using spectral graph neural networks.
Paper: Pymoo: Multi-Objective Optimization in Python, Julian Blank et al. (2020). Provides a comprehensive Python-based framework implementing modern multi-objective evolutionary optimization algorithms.
Paper: PlatEMO: A MATLAB Platform for Evolutionary Multi-Objective Optimization [Educational Forum], Ye Tian et al. (2017). Offers a standardized benchmarking and execution platform for comparing state-of-the-art evolutionary computation algorithms.

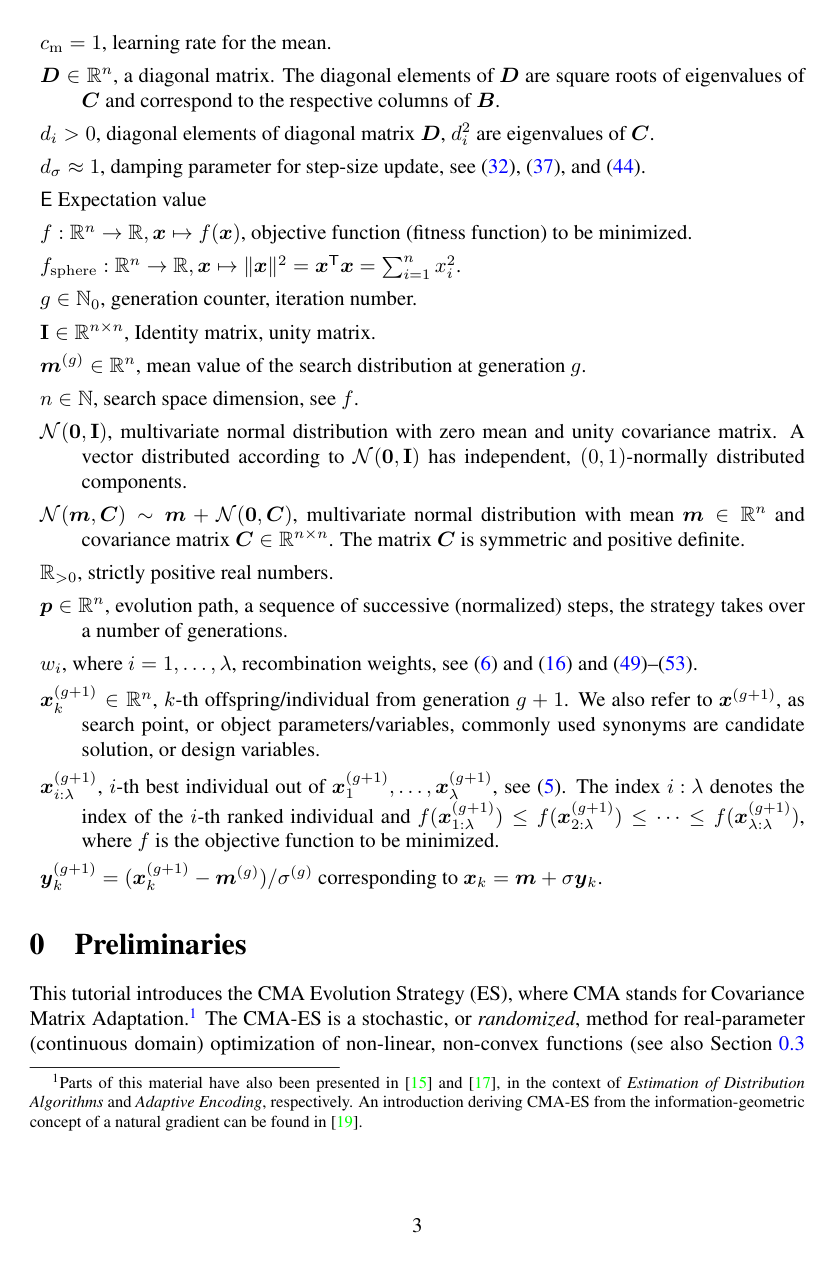

Cover for The CMA Evolution Strategy: A Tutorial

Abstract

This tutorial introduces the CMA Evolution Strategy (ES), where CMA stands for Covariance Matrix Adaptation. The CMA-ES is a stochastic, or randomized, method for real-parameter (continuous domain) optimization of non-linear, non-convex functions. We try to motivate and derive the algorithm from intuitive concepts and from requirements of non-linear, non-convex search in continuous domain.

Topics

cma covariance matrix adaptation differential evolution optimization stochastic optimization problems sample covariance matrix

Keywords

CMA Evolution Strategy covariance matrix adaptation evolutionary algorithms black box optimization search distribution truncation selection rank-one update recombination weights strategy parameters

Nomenclature
0 Preliminaries
0.1 Eigendecomposition of a Positive Definite Matrix
0.2 The Multivariate Normal Distribution
0.3 Randomized Black Box Optimization
0.4 Hessian and Covariance Matrices
1 Basic Equation: Sampling
2 Selection and Recombination: Moving the Mean
3 Adapting the Covariance Matrix
3.1 Estimating the Covariance Matrix From Scratch
3.2 Rank-μ\mu-Update
3.3 Rank-One-Update
3.3.1 A Different Viewpoint
3.3.2 Cumulation: Utilizing the Evolution Path
3.4 Combining Rank-μ\mu-Update and Cumulation
4 Step-Size Control
5 Discussion
References
A Algorithm Summary: The CMA-ES
B Implementational Concerns
B.1 Multivariate normal distribution
B.2 Strategy internal numerical effort
B.3 Termination criteria
B.4 Flat fitness
B.5 Boundaries and Constraints
C MATLAB Source Code
D Reformulation of Learning Parameter ccovc_{\mathrm{cov}}

Knowls

Knowl 1 — The $(\mu/\mu_W, \lambda)$-CMA-ES Algorithm
algorithm
The Covariance Matrix Adaptation Evolution Strategy ( $(\mu/\mu_W, \lambda)$ -CMA-ES) is an iterative stochastic optimization algorithm designed for continuous non-linear, non-convex black-box optimization. At each generation $g$ , the method samples $\lambda$ candidate solutions from a multivariate normal distribution $\mathcal{N}(m^{(g)}, (\sigma^{(g)})^2 C^{(g)})$ , updates the distribution mean $m^{(g+1)}$ by weighted intermediate recombination of the $\mu$ best individuals, updates the step-size $\sigma^{(g+1)}$ using cumulative step-size adaptation (CSA) on a conjugate evolution path $p_\sigma$ , and adapts the covariance matrix $C^{(g+1)}$ by combining a rank-one update (using an evolution path $p_c$ ) and an active rank- $\mu$ update (using both positive and negative recombination weights).
Input: Objective function $f: \mathbb{R}^n \to \mathbb{R}$ , initial mean $m \in \mathbb{R}^n$ , initial step-size $\sigma \in \mathbb{R}_{>0}$
Initialize parameters: $\lambda, \mu, w_{1\dots\lambda}, c_m, c_\sigma, d_\sigma, c_c, c_1, c_\mu$
Initialize state: $p_\sigma \leftarrow 0 \in \mathbb{R}^n$ , $p_c \leftarrow 0 \in \mathbb{R}^n$ , $C \leftarrow I \in \mathbb{R}^{n \times n}$ , $g \leftarrow 0$
while termination criterion is not met do
     $g \leftarrow g + 1$
    Compute eigendecomposition $C = B D^2 B^T$ where $B$ is orthogonal and $D$ is diagonal with positive elements
    for $k \leftarrow 1$ to $\lambda$ do
         $z_k \sim \mathcal{N}(0, I)$
         $y_k \leftarrow B D z_k$
         $x_k \leftarrow m + \sigma y_k$
         $f_k \leftarrow f(x_k)$
    Sort offspring indices such that $f(x_{1:\lambda}) \le f(x_{2:\lambda}) \le \dots \le f(x_{\lambda:\lambda})$
     $\langle y \rangle_w \leftarrow \sum_{i=1}^\mu w_i y_{i:\lambda}$
     $m \leftarrow m + c_m \sigma \langle y \rangle_w$
     $p_\sigma \leftarrow (1 - c_\sigma) p_\sigma + \sqrt{c_\sigma(2 - c_\sigma)\mu_{\text{eff}}} \, C^{-1/2} \langle y \rangle_w$
     $\sigma \leftarrow \sigma \exp\left( \frac{c_\sigma}{d_\sigma} \left( \frac{\|p_\sigma\|}{\mathbb{E}\|\mathcal{N}(0, I)\|} - 1 \right) \right)$
     $h_\sigma \leftarrow 1$ if $\frac{\|p_\sigma\|}{\sqrt{1 - (1 - c_\sigma)^{2g}}} < \left(1.4 + \frac{2}{n+1}\right) \mathbb{E}\|\mathcal{N}(0, I)\|$ else $0$
     $\delta(h_\sigma) \leftarrow (1 - h_\sigma) c_c (2 - c_c)$
     $p_c \leftarrow (1 - c_c) p_c + h_\sigma \sqrt{c_c(2 - c_c)\mu_{\text{eff}}} \, \langle y \rangle_w$
    for $i \leftarrow 1$ to $\lambda$ do
         $w^\circ_i \leftarrow w_i \times \left(1 \text{ if } w_i \ge 0 \text{ else } \frac{n}{\|C^{-1/2} y_{i:\lambda}\|^2}\right)$
     $C \leftarrow (1 + c_1\delta(h_\sigma) - c_1 - c_\mu \sum_{j=1}^\lambda w_j) C + c_1 p_c p_c^T + c_\mu \sum_{i=1}^\lambda w^\circ_i y_{i:\lambda} y_{i:\lambda}^T$
Output: Best evaluated point $x_{1:\lambda}$ or mean $m$
Here, $C^{-1/2} = B D^{-1} B^T$ , and the expected norm $\mathbb{E}\|\mathcal{N}(0, I)\| = \sqrt{2}\,\Gamma\left(\frac{n+1}{2}\right) / \Gamma\left(\frac{n}{2}\right) \approx \sqrt{n}\left(1 - \frac{1}{4n} + \frac{1}{21n^2}\right)$ . The algorithm requires $\mathcal{O}(n^2)$ internal operations per sample point when eigendecompositions of $C$ are cached and recomputed once every $\mathcal{O}(n)$ function evaluations.

Knowl 2 — Default Strategy Parameter Settings for CMA-ES

data/table

The default parameters of CMA-ES are designed as a robust configuration that scales systematically with search space dimension $n$ , eliminating the need for problem-specific parameter tuning across unimodal, ill-conditioned, non-separable, and multimodal landscapes.

Parameter	Formula	Description
Population size $\lambda$	$4 + \lfloor 3 \ln n \rfloor$	Total offspring count per generation
Parent number $\mu$	$\lfloor \lambda / 2 \rfloor$	Number of positive recombination weights
Raw weights $w'_i$	$\ln\left(\frac{\lambda+1}{2}\right) - \ln i, \quad i=1,\dots,\lambda$	Monotonically decreasing weights
Selection mass $\mu_{\text{eff}}$	$\left(\sum_{i=1}^\mu w'_i\right)^2 / \sum_{i=1}^\mu {w'_i}^2$	Variance effective parent mass
Neg. mass $\mu_{\text{eff}}^-$	$\left(\sum_{i=\mu+1}^\lambda w'_i\right)^2 / \sum_{i=\mu+1}^\lambda {w'_i}^2$	Variance effective negative mass
Negative weight multipliers	$\alpha_\mu^- = 1 + \frac{c_1}{c_\mu}$ , $\alpha_{\mu\text{eff}}^- = 1 + \frac{2\mu_{\text{eff}}^-}{\mu_{\text{eff}}+2}$	Weight scaling controls
Pos. def. bound	$\alpha_{\text{pos def}}^- = \frac{1 - c_1 - c_\mu}{n c_\mu}$	Bounding active weight variance
Normalized weights $w_i$	$\begin{cases} w'_i / \sum_{j=1}^\mu \|w'_j\| & \text{if } w'_i \ge 0 \\ \min(\alpha_\mu^-, \alpha_{\mu\text{eff}}^-, \alpha_{\text{pos def}}^-) \frac{w'_i}{\sum_{j=\mu+1}^\lambda \|w'_j\|} & \text{if } w'_i < 0 \end{cases}$	Sum of positive weights is $1$
Mean learning rate $c_m$	$1$	Step scale for moving the mean
Step path decay $c_\sigma$	$\frac{\mu_{\text{eff}} + 2}{n + \mu_{\text{eff}} + 5}$	Time constant for step-size cumulation
Step damping $d_\sigma$	$1 + 2\max\left(0, \sqrt{\frac{\mu_{\text{eff}}-1}{n+1}} - 1\right) + c_\sigma$	Step-size change dampening
Cov. path decay $c_c$	$\frac{4 + \mu_{\text{eff}}/n}{n + 4 + 2\mu_{\text{eff}}/n}$	Time constant for rank-one cumulation
Rank-one rate $c_1$	$\frac{2}{(n + 1.3)^2 + \mu_{\text{eff}}}$	Learning rate for rank-one update
Rank- $\mu$ rate $c_\mu$	$\min\left(1 - c_1, 2\frac{1/4 + \mu_{\text{eff}} + 1/\mu_{\text{eff}} - 2}{(n + 2)^2 + \mu_{\text{eff}}}\right)$	Learning rate for rank- $\mu$ update

These defaults ensure that $\sum_{i=1}^\mu w_i = 1$ , and that the active negative weights cancel the decay on $C$ such that $c_1 + c_\mu \sum_{j=1}^\lambda w_j \approx 0$ under standard population sizes, while strictly ensuring the positive definiteness of the updated covariance matrix $C$ .

Knowl 3 — Combined Rank-One and Active Rank-$\mu$ Covariance Matrix Adaptation
model/method
Covariance Matrix Adaptation (CMA) updates the full covariance matrix $C \in \mathbb{R}^{n \times n}$ of the search distribution by combining information across successive iterations (rank-one update via cumulation) and information within the current population (rank- $\mu$ update with active negative weights):

$C^{(g+1)} = \left(1 + c_1 \delta(h_\sigma) - c_1 - c_\mu \sum_{j=1}^\lambda w_j\right) C^{(g)} + c_1 p_c^{(g+1)} {p_c^{(g+1)}}^T + c_\mu \sum_{i=1}^\lambda w_i^\circ y_{i:\lambda}^{(g+1)} {y_{i:\lambda}^{(g+1)}}^T$

where:
- $y_{i:\lambda}^{(g+1)} = (x_{i:\lambda}^{(g+1)} - m^{(g)}) / \sigma^{(g)}$ is the normalized step taken by the $i$ -th ranked candidate solution;
- $p_c^{(g+1)} \in \mathbb{R}^n$ is the rank-one evolution path that accumulates directionally correlated steps across generations;
- $c_1, c_\mu \in [0, 1]$ are learning rates with $c_1 + c_\mu \le 1$ ;
- $h_\sigma \in \{0, 1\}$ is a Heaviside threshold stalling indicator, and $\delta(h_\sigma) = (1 - h_\sigma) c_c (2 - c_c)$ compensates for the variance omitted when $h_\sigma = 0$ ;
- $w_i^\circ$ rescales vectors associated with negative recombination weights ( $w_i < 0$ for $i > \mu$ ) according to their Mahalanobis norm:
$w_i^\circ = w_i \times \begin{cases} 1 & \text{if } w_i \ge 0 \\ \frac{n}{\left\|C^{(g)-1/2} y_{i:\lambda}^{(g+1)}\right\|^2} & \text{if } w_i < 0 \end{cases}$

The rank-one update exploits inter-generation step correlations to elongate the distribution in the direction of continuous progress, reducing the sample complexity on linear ridge or cigar functions to $\mathcal{O}(n)$ . The rank- $\mu$ update reliably estimates the local landscape variance from large populations. The active negative weights actively reduce variance in unpromising directions, while the Mahalanobis normalization and upper bound on $\sum |w_i|^-$ mathematically guarantee that $C^{(g+1)}$ remains positive definite.
Knowl 4 — Cumulative Step-Size Adaptation via Conjugate Evolution Path
model/method
Cumulative Step-Size Adaptation (CSA), also known as cumulative path length control, governs the global step-size $\sigma^{(g)} \in \mathbb{R}_{>0}$ independently of the covariance matrix update by comparing the length of a conjugate evolution path $p_\sigma \in \mathbb{R}^n$ against its expected value under random selection.

The conjugate evolution path is updated through exponential smoothing:

$p_\sigma^{(g+1)} = (1 - c_\sigma) p_\sigma^{(g)} + \sqrt{c_\sigma(2 - c_\sigma)\mu_{\text{eff}}} \, C^{(g)-1/2} \left(\frac{m^{(g+1)} - m^{(g)}}{c_m \sigma^{(g)}}\right)$

where $c_\sigma < 1$ is the backward decay rate, $\mu_{\text{eff}} = 1 / \sum_{i=1}^\mu w_i^2$ is the variance effective selection mass, and $C^{(g)-1/2} = B^{(g)} (D^{(g)})^{-1} (B^{(g)})^T$ is the inverse square root of the covariance matrix computed via its eigendecomposition $C^{(g)} = B^{(g)} (D^{(g)})^2 (B^{(g)})^T$ . The transformation $C^{(g)-1/2}$ normalizes the expected length of the step to be isotropic and equal in all directions, ensuring $p_\sigma^{(g+1)} \sim \mathcal{N}(0, I)$ under random selection.

The step-size is updated multiplicatively:

$\sigma^{(g+1)} = \sigma^{(g)} \exp\left( \frac{c_\sigma}{d_\sigma} \left( \frac{\|p_\sigma^{(g+1)}\|}{\mathbb{E}\|\mathcal{N}(0, I)\|} - 1 \right) \right)$

where $d_\sigma \approx 1$ is a damping parameter and $\mathbb{E}\|\mathcal{N}(0, I)\| = \sqrt{2} \,\Gamma\left(\frac{n+1}{2}\right)/\Gamma\left(\frac{n}{2}\right) \approx \sqrt{n}\left(1 - \frac{1}{4n} + \frac{1}{21n^2}\right)$ .

When selected steps are correlated (pointing consistently in the same direction), $\|p_\sigma^{(g+1)}\| > \mathbb{E}\|\mathcal{N}(0, I)\|$ and $\sigma$ increases. When steps cancel each other out (anti-correlated), $\|p_\sigma^{(g+1)}\| < \mathbb{E}\|\mathcal{N}(0, I)\|$ and $\sigma$ decreases. In steady state, consecutive steps are approximately $C^{-1}$ -conjugate, and the update is unbiased on the log scale: $\mathbb{E}[\ln \sigma^{(g+1)} \mid \sigma^{(g)}] = \ln \sigma^{(g)}$ under random selection.
Knowl 5 — Evolution Path Cumulation and Heaviside Stalling for Rank-One Updates
model/method
The rank-one covariance matrix update uses an evolution path $p_c \in \mathbb{R}^n$ to accumulate consecutive successful steps of the distribution mean. Because outer products satisfy $y y^T = (-y)(-y)^T$ , updating $C$ directly with single-step vectors discards the sign information of steps. Cumulation tracks the sign history over a backward time horizon $1/c_c$ .

The evolution path $p_c$ is initialized at $p_c^{(0)} = 0$ and updated as:

$p_c^{(g+1)} = (1 - c_c) p_c^{(g)} + h_\sigma \sqrt{c_c(2 - c_c)\mu_{\text{eff}}} \left( \frac{m^{(g+1)} - m^{(g)}}{c_m \sigma^{(g)}} \right)$

where $c_c \le 1$ is the decay rate and $\sqrt{c_c(2 - c_c)\mu_{\text{eff}}}$ normalizes the path such that $p_c^{(g+1)} \sim \mathcal{N}(0, C)$ if individual steps follow $\mathcal{N}(0, C)$ . Consecutive steps pointing in the same direction modulate the path length by a factor of up to $\sqrt{(2 - c_c)/c_c} \approx 1/\sqrt{c_c}$ , effectively increasing the rank-one learning rate by $c_c^{-1/2}$ and accelerating metric alignment on valley-like landscapes.

The update incorporates a Heaviside indicator $h_\sigma \in \{0, 1\}$ :

$h_\sigma = \begin{cases} 1 & \text{if } \frac{\|p_\sigma^{(g+1)}\|}{\sqrt{1 - (1 - c_\sigma)^{2(g+1)}}} < \left(1.4 + \frac{2}{n+1}\right) \mathbb{E}\|\mathcal{N}(0, I)\| \\ 0 & \text{otherwise} \end{cases}$

When the overall step-size $\sigma$ is far too small, $\|p_\sigma\|$ grows abnormally large because steps remain positively correlated across many generations. In this regime, $h_\sigma = 0$ stalls the accumulation in $p_c$ , preventing the covariance matrix axes from exploding outward before $\sigma$ has scaled up.
Knowl 6 — Variance Effective Selection Mass $\mu_{\text{eff}}$
definition
The variance effective selection mass $\mu_{\text{eff}}$ (effective sample size of the selected parents) quantifies the amount of independent information extracted from weighted recombination. For normalized positive recombination weights $w_1 \ge w_2 \ge \dots \ge w_\mu > 0$ satisfying $\sum_{i=1}^\mu w_i = 1$ , it is defined as:

$\mu_{\text{eff}} = \left( \frac{\|w\|_1}{\|w\|_2} \right)^2 = \frac{\left( \sum_{i=1}^\mu |w_i| \right)^2}{\sum_{i=1}^\mu w_i^2} = \frac{1}{\sum_{i=1}^\mu w_i^2}$

It satisfies $1 \le \mu_{\text{eff}} \le \mu$ , with $\mu_{\text{eff}} = \mu$ for equal weights $w_i = 1/\mu$ , and $\mu_{\text{eff}} = 1$ when a single individual receives full weight. Averaging $\mu$ independent identically distributed normal samples with weights $w$ reduces variance by a factor of $1/\mu_{\text{eff}}$ .

The corresponding variance effective selection mass for negative recombination weights ( $w_{i} < 0$ for $i > \mu$ ) is defined as:

$\mu_{\text{eff}}^- = \frac{\left( \sum_{i=\mu+1}^\lambda |w_i| \right)^2}{\sum_{i=\mu+1}^\lambda w_i^2}$

In standard parameter configurations where $\mu \approx \lambda/2$ and weights decrease logarithmically, $\mu_{\text{eff}} \approx \lambda/4$ , and the optimal progress rate on isotropic sphere functions scales proportionally to $\mu_{\text{eff}}$ .
Knowl 7 — Invariance Properties of the CMA-ES
theoretical result
The CMA-ES exhibits fundamental geometric and algebraic invariance properties that guarantee invariant search behavior across broad equivalence classes of objective functions:
1. Invariance to Order-Preserving Transformations: Because candidate selection and recombination weight assignment depend strictly on the rank ordering $f(x_{1:\lambda}) \le f(x_{2:\lambda}) \le \dots \le f(x_{\lambda:\lambda})$ rather than absolute fitness values, replacing $f(x)$ with $g(f(x))$ for any strictly monotonically increasing function $g: \mathbb{R} \to \mathbb{R}$ leaves the sequence of search distributions identical.
2. Translation Invariance: The search trajectory on $x \mapsto f(x + a)$ with initial mean $m^{(0)} = b - a$ is identical to that on $f(x)$ with initial mean $m^{(0)} = b$ for any translation vector $a \in \mathbb{R}^n$ .
3. Rotational and Rigid Invariance: The algorithm is invariant to orthogonal transformations (rotations and reflections) of the search space, provided the initial distribution parameters are rotated accordingly.
4. Scale and Diagonal Invariance: Invariance to individual coordinate scaling is achieved when the initial diagonal elements of $C^{(0)}$ are matched to variable scales.
5. General Affine / Invertible Linear Invariance: For any invertible matrix $A \in \mathbb{R}^{n \times n}$ , optimizing $f(A x)$ with $m^{(0)} = A^{-1} m_0$ and $C^{(0)} = A^{-1}(A^{-1})^T$ produces an exact linear transformation of the trajectory obtained when optimizing $f(x)$ with $m_0$ and $C^{(0)} = I$ .
On convex-quadratic functions $f_H(x) = \frac{1}{2} x^T H x$ with positive definite Hessian $H$ , adapting $C \to H^{-1}$ dynamically transforms the elliptical contours into spherical ones, reducing the required function evaluations to the level of an isotropic sphere model.
Knowl 8 — Numerical Stability and Termination Criteria for CMA-ES
model/method
The CMA-ES employs a set of well-defined termination criteria to prevent wasted CPU time caused by numerical degeneracy, parameter divergence, or flat fitness landscapes:
- NoEffectAxis: Terminate if adding a $0.1$ -standard-deviation vector along any principal axis of $C$ produces no floating-point change in the mean: $m = m + 0.1 \sigma d_{ii} b_i$ , where $b_i$ is the $i$ -th column of eigenvector matrix $B$ , $d_{ii}^2$ is the $i$ -th eigenvalue, and $i = (g \bmod n) + 1$ .
- NoEffectCoord: Terminate if adding $0.2$ -standard-deviations in any single coordinate produces no change in $m$ : $m_i = m_i + 0.2 \sigma \sqrt{C_{ii}}$ for any $i \in \{1, \dots, n\}$ .
- ConditionCov: Terminate if the condition number $\text{cond}(C) = \lambda_{\max}(C)/\lambda_{\min}(C) > 10^{14}$ , preventing numerical breakdown in matrix inversions and square roots.
- EqualFunValues: Terminate if the range of the best objective function values over the last $10 + \lceil 30n/\lambda \rceil$ generations is zero.
- Stagnation: Track the history of best and median fitness values over the last $20\%$ of iterations (bounded between $120 + \lceil 30n/\lambda \rceil$ and $20\,000$ iterations); terminate if the median of the most recent $30\%$ of recorded values shows no improvement over the median of the earliest $30\%$ .
- TolXUp: Terminate if $\sigma \times \max(\text{diag}(D))$ increases by a factor greater than $10^4$ relative to its initial value, indicating divergence or an excessively small initial step-size.
- TolFun / TolX: Problem-dependent stopping criteria triggered when function value ranges drop below $\text{TolFun}$ (default $10^{-12}$ ) or when coordinate standard deviations $\sigma \sqrt{C_{ii}}$ and components of $\sigma p_c$ drop below $\text{TolX}$ (default $10^{-12} \sigma^{(0)}$ ).
Knowl 9 — Boundary and Constraint Handling Strategies in CMA-ES
model/method
Handling boundaries and infeasible constraints in CMA-ES requires preserving the integrity of the underlying normal distribution assumptions, as unprincipled modification of candidate points can induce premature step-size collapse or divergence.

Recommended approaches include:
1. Re-sampling: For unconstrained optima lying strictly inside the feasible region, infeasible points are resampled until valid.
2. Penalization of Repaired Box Constraints: For domain bounds, infeasible points $x$ are projected to the nearest feasible boundary point $x_{\text{repaired}}$ , and evaluated using a penalized objective function:
$f_{\text{fitness}}(x) = f(x_{\text{repaired}}) + \alpha \|x - x_{\text{repaired}}\|^2$

where $\alpha$ is scaled to balance objective differences with penalty magnitude. The repaired point $x_{\text{repaired}}$ is discarded after function evaluation so that distribution updates are performed using the original sampled $x$ . 3. General Non-linear Constraints ( $c_i(x) \le 0$ ): Infeasible solutions are penalized relative to the feasible population:

$f_{\text{fitness}}(x) = f_{\text{offset}} + \alpha \sum_i \mathbb{I}_{c_i(x) > 0} \, c_i(x)^2$

where $f_{\text{offset}}$ is chosen as a percentile (e.g., median or 25th percentile) of feasible solutions in the current population. 4. Injected Solution Regularization: When external or repaired points are injected directly into distribution updates, their Mahalanobis step length must be clipped to obey $\|x - m\|_{\sigma^2 C} \le \sqrt{n} + 2n/(n+2)$ to avoid severe distortion of the covariance matrix.
Knowl 10 — Degrees-of-Freedom Parameterization for Covariance Learning Rates
theoretical result
The learning rates $c_1$ and $c_\mu$ for the covariance matrix update can be parameterized directly via the number of degrees of freedom in a symmetric $n \times n$ matrix, $m = \frac{n^2 + n}{2}$ :

$c_1 = \frac{\min(1, \lambda/6)}{m + 2\sqrt{m} + \frac{\mu_{\text{eff}}}{n}}$

$c_\mu = \min\left(1 - c_1, \frac{\alpha_\mu^0 + \mu_{\text{eff}} - 2 + \frac{1}{\mu_{\text{eff}}}}{m + 4\sqrt{m} + \frac{\mu_{\text{eff}}}{2}}\right)$

with constant offset $\alpha_\mu^0 = 0.3$ .

Compared to classical formulations where $c_1 = c_{\text{cov}}/\mu_{\text{cov}}$ and $c_\mu = c_{\text{cov}}(1 - 1/\mu_{\text{cov}})$ , this degrees-of-freedom formulation ensures:
1. $c_1$ is strictly monotonically decreasing with respect to $\mu_{\text{eff}}$ , avoiding non-monotonic artifacts when varying parent population sizes;
2. The total learning rate $c_1 + c_\mu$ is strictly monotonic with respect to $\mu_{\text{eff}}$ ;
3. For $\mu_{\text{eff}} = 1$ (where rank- $\mu$ update reduces to a single point), $c_\mu > 0$ remains strictly positive due to $\alpha_\mu^0 > 0$ , enabling continuous adaptation even in $(1, \lambda)$ selection regimes.

Coverage note — Omitted historical reviews comparing CMA-ES to other estimation of distribution algorithms (EMNA, Cross-Entropy) and the verbatim MATLAB source listing code from Appendix C, as its operational flow and mathematics are fully captured by the complete algorithm knowl and default parameter table.

References

1.Akimoto Y, Auger A, Hansen N. Quality gain analysis of the weighted recombination evolution strategy on general convex quadratic functions. In Proceedings of the 14th ACM/SIGEVO Conference on Foundations of Genetic Algorithms (FOGA ’17), pages 111–126. ACM, New York, NY, USA, 2017.
2.Akimoto Y, Hansen N. Diagonal acceleration for covariance matrix adaptation evolution strategies. Evolutionary computation, 28(3):405–435, 2020.
3.Auger A, Hansen N. A restart CMA evolution strategy with increasing population size. In Proceedings of the IEEE Congress on Evolutionary Computation, 2005.
4.Arnold DV. Weighted multirecombination evolution strategies. Theoretical computer science, 361.1:18–37, 2006.
5.Arnold DV, Beyer HG. Performance analysis of evolutionary optimization with cumulative step length adaptation. IEEE Transactions on Automatic Control, 49(4):617–622, 2004.
6.Beyer HG. The Theory of Evolution Strategies. Springer, Berlin, 2001.
7.Beyer HG, Arnold DV. Qualms regarding the optimality of cumulative path length control in CSA/CMA-evolution strategies. Evolutionary Computation, 11(1):19–28, 2003.
8.Beyer HG, Deb K. On self-adaptive features in real-parameter evolutionary algorithms. IEEE Transactions on Evolutionary Computation, 5(3):250–270, 2001.
9.Collange G, Delattre N, Hansen N, Quinquis I, Schoenauer M. Multidisciplinary optimisation in the design of future space launchers. In Breitkopf and Coelho, editors, Multidisciplinary Design Optimization in Computational Mechanics, chapter 12, pages 487–496. Wiley, 2010.
10.Dufossé P, Hansen N. Augmented Lagrangian, penalty techniques and surrogate modeling for constrained optimization with CMA-ES. In Proceedings of the Genetic and Evolutionary Computation Conference (GECCO ’21), pages 519–527, 2021.
11.Gissler A, Auger A, Hansen N. Learning rate adaptation by line search in evolution strategies with recombination. In Proceedings of the Genetic and Evolutionary Computation Conference (GECCO ’22), pages 630–638. ACM, New York, NY, USA, 2022.
12.Glasmachers T, Schaul T, Yi S, Wierstra D, Schmidhuber J. Exponential natural evolution strategies. In Proceedings of the 12th annual Genetic and Evolutionary Computation Conference, GECCO, pages 393–400. ACM, 2010.
13.Hansen N. Verallgemeinerte individuelle Schrittweitenregelung in der Evolutionsstrategie. Mensch und Buch Verlag, Berlin, 1998.
14.Hansen N. Invariance, self-adaptation and correlated mutations in evolution strategies. In Schoenauer M, Deb K, Rudolph G, Yao X, Lutton E, Merelo JJ, Schwefel HP, editors, Parallel Problem Solving from Nature - PPSN VI, pages 355–364. Springer, 2000.
15.Hansen N. The CMA evolution strategy: a comparing review. In Lozano JA, Larranaga P, Inza I, and Bengoetxea E, editors, Towards a new evolutionary computation. Advances on estimation of distribution algorithms, pages 75–102. Springer, 2006.
16.Hansen N. Benchmarking a BI-Population CMA-ES on the BBOB-2009 Function Testbed. In the workshop Proceedings of the Genetic and Evolutionary Computation Conference, GECCO, pages 2389–2395. ACM, 2009.
17.Hansen N. Variable Metrics in Evolutionary Computation. Habilitation à diriger des recherches, Université Paris-Sud, 2010.
18.Hansen N. Injecting External Solutions Into CMA-ES. CoRR, arXiv:1110.4181, 2011.
19.Hansen N, Auger A. Principled design of continuous stochastic search: From theory to practice. In Y Borenstein and A Moraglio, eds.: Theory and Principled Methods for Designing Metaheustics. Springer, pages 145–180, 2014.
20.Hansen N, Atamna A, Auger A. How to Assess Step-Size Adaptation Mechanisms in Randomised Search. In Parallel Problem Solving from Nature – PPSN XIII, pages 60–69. Springer, 2014.
21.Hansen N, Kern S. Evaluating the CMA evolution strategy on multimodal test functions. In Xin Yao et al., editors, Parallel Problem Solving from Nature – PPSN VIII, pages 282–291. Springer, 2004.
22.Hansen N, Niederberger SPN, Guzzella L, Koumoutsakos P. A method for handling uncertainty in evolutionary optimization with an application to feedback control of combustion. IEEE Transactions on Evolutionary Computation, 13(1):180–197, 2009.
23.Hansen N, Müller SD, Koumoutsakos P. Reducing the time complexity of the derandomized evolution strategy with covariance matrix adaptation (CMA-ES). Evolutionary Computation, 11(1):1–18, 2003.
24.Hansen N, Ostermeier A. Adapting arbitrary normal mutation distributions in evolution strategies: The covariance matrix adaptation. In Proceedings of the 1996 IEEE Conference on Evolutionary Computation (ICEC ’96), pages 312–317, 1996.
25.Hansen N, Ostermeier A. Convergence properties of evolution strategies with the derandomized covariance matrix adaptation: The (µ/µI , λ)-CMA-ES. In Proceedings of the 5th European Congress on Intelligent Techniques and Soft Computing, pages 650–654, 1997.
26.Hansen N, Ostermeier A. Completely derandomized self-adaptation in evolution strategies. Evolutionary Computation, 9(2):159–195, 2001.
27.Hansen N, Ros R. Benchmarking a weighted negative covariance matrix update on the BBOB-2010 noiseless testbed. In Proceedings companion of the 12th annual Genetic and Evolutionary Computation Conference, GECCO, pages 1673–1680. ACM, 2010.
28.Jastrebski G, Arnold DV. Improving evolution strategies through active covariance matrix adaptation. In Proceedings of the 2006 IEEE Congress on Evolutionary Computation, CEC, pages 2814–2821. IEEE, 2006.
29.Kern S, Müller SD, Hansen N, Büche D, Ocenasek J, Koumoutsakos P. Learning probability distributions in continuous evolutionary algorithms – a comparative review. Natural Computing, 3:77–112, 2004.
30.Larrañaga P. A review on estimation of distribution algorithms. In P. Larrañaga and J. A. Lozano, editors, Estimation of Distribution Algorithms, pages 80–90. Kluwer Academic Publishers, 2002.
31.Larrañaga P, Lozano JA, Bengoetxea E. Estimation of distribution algorithms based on multivariate normal and Gaussian networks. Technical report, Dept. of Computer Science and Artificial Intelligence, University of the Basque Country, 2001. KZAA-IK-1-01.
32.Nelder JA, Mead R. A simplex method for function minimization. The Computer Journal 7.4:308-313, 1965.
33.Rechenberg I. Evolutionsstrategie ’94. Frommann-Holzboog, Stuttgart, Germany, 1994.
34.Rubenstein RY, Kroese DP. The Cross-Entropy Method: a unified approach to combinatorial optimization, Monte-Carlo simulation, and machine learning. Springer, 2004.
35.Suttorp T, Hansen N, Igel C. Efficient Covariance Matrix Update for Variable Metric Evolution Strategies. Machine Learning 75(2): 167–197, 2009.

Citation

MLA

Hansen, N. “The CMA Evolution Strategy: A Tutorial”. arXiv, 2016, http://arxiv.org/abs/1604.00772v2.

APA

Hansen, N. (2016). The CMA Evolution Strategy: A Tutorial. arXiv. http://arxiv.org/abs/1604.00772v2

Chicago

Hansen, N. 2016. “The CMA Evolution Strategy: A Tutorial”. arXiv. http://arxiv.org/abs/1604.00772v2.

Harvard

Hansen, N. (2016) “The CMA Evolution Strategy: A Tutorial”, arXiv [Preprint]. Available at: http://arxiv.org/abs/1604.00772v2.

Vancouver

1. Hansen N (2016) The CMA Evolution Strategy: A Tutorial. arXiv

BibTeX

@article{hansen2016the,
  title = {The CMA Evolution Strategy: A Tutorial},
  author = {Hansen, Nikolaus},
  year = {2016},
  journal = {arXiv},
  url = {http://arxiv.org/abs/1604.00772v2},
  eprint = {1604.00772}
}

Metadata:arXiv

Source Code

This paper has an official code repository available. Click below to access the source code.

View Repository

Access the Paper

This paper is available from its original source. Click below to access the PDF.

Open PDF

License: Authors

The CMA Evolution Strategy: A Tutorial

Abstract

Topics

Keywords

Table of Contents

Knowls

Knowl 1 — The $(\mu/\mu_W, \lambda)$-CMA-ES Algorithm

Knowl 2 — Default Strategy Parameter Settings for CMA-ES

Knowl 3 — Combined Rank-One and Active Rank-$\mu$ Covariance Matrix Adaptation

Knowl 4 — Cumulative Step-Size Adaptation via Conjugate Evolution Path

Knowl 5 — Evolution Path Cumulation and Heaviside Stalling for Rank-One Updates

Knowl 6 — Variance Effective Selection Mass $\mu_{\text{eff}}$

Knowl 7 — Invariance Properties of the CMA-ES

Knowl 8 — Numerical Stability and Termination Criteria for CMA-ES

Knowl 9 — Boundary and Constraint Handling Strategies in CMA-ES

Knowl 10 — Degrees-of-Freedom Parameterization for Covariance Learning Rates

References

Citation

BibTeX

Source Code

Access the Paper
