Pymoo: Multi-Objective Optimization in Python

Julian BlankKalyanmoy Deb

article2020IEEE Access2,019 citations

Presents pymoo, an open-source Python framework that provides modular algorithms, automatic differentiation, high-dimensional visualization, and decision-making methods for solving complex multi- and many-objective optimization problems.

Listen

Modern engineering, data analytics, and machine learning increasingly rely on Python to solve complex computational problems. However, many real-world challenges require balancing multiple conflicting goals at once, such as minimizing cost while maximizing safety and performance. While various optimization tools exist, existing Python environments have lacked a single, comprehensive system that covers the entire optimization lifecycle, from problem formulation and algorithm execution to advanced visualization and decision-making.

The article demonstrates the architecture, capabilities, and practical application of pymoo, an open-source Python framework designed specifically for multi-objective optimization. The framework provides an integrated, modular environment that enables practitioners to benchmark algorithms, handle complex operational constraints, and translate technical trade-offs into actionable choices.

To establish its credibility and utility, the article outlines the framework's core design across three main pillars: problem specification, optimization algorithms, and analytics. The authors demonstrate its performance using standard test problems as well as a constrained two-objective optimization scenario. The platform incorporates flexible computational workflows, supporting automatic gradient calculation, parallel processing across central processing units and graphics processing units, and distributed computing across clusters.

The key findings highlight that pymoo successfully unifies several critical aspects of multi-objective problem-solving. First, it offers a modular, plug-and-play structure that allows domain experts to customize key evolutionary mechanisms, such as initial sampling and search operators, to fit proprietary business logic. Second, it integrates high-performance execution options, enabling vectorized computations and multi-threaded processing to prevent computational bottlenecks when evaluating complex models. Third, it provides multi-dimensional visual analytics, such as radar charts, heat maps, and parallel coordinate plots, alongside multi-criteria decision-making tools. These analytical tools allow decision-makers to evaluate trade-offs and systematically identify single preferred solutions from a set of non-dominated alternatives.

These capabilities significantly lower implementation costs, reduce development time, and eliminate the risks associated with writing optimization routines from scratch. By integrating decision support directly into the software pipeline, the platform helps bridge the gap between technical data modeling and executive decision-making. Leadership teams can balance conflicting priorities with greater confidence, using mathematically sound metrics to assess solution quality and proximity to optimal performance.

Organizations developing complex simulation or machine-learning pipelines in Python should consider piloting pymoo to address multi-objective trade-offs. Teams are advised to leverage the framework's parallelization capabilities when working with resource-intensive models and to establish standardized decision-making rules early in the project lifecycle. Future planned enhancements include automated multi-algorithm benchmarking tools and broader integration of classical single-objective methods to support local searches. Overall, the framework provides a highly credible and robust toolkit for multi-objective optimization, though practitioners should remain aware of computational limits when calculating exact performance metrics in very high-dimensional problem spaces.

Michigan State Universityconflicting objectivesdeep learningmulti-criteria decision makingmulti-objective optimizationmany-objective optimization algorithmEvolutionary Multi-Criterion Optimization
arXiv: 2002.04504anyoptimization/pymoo

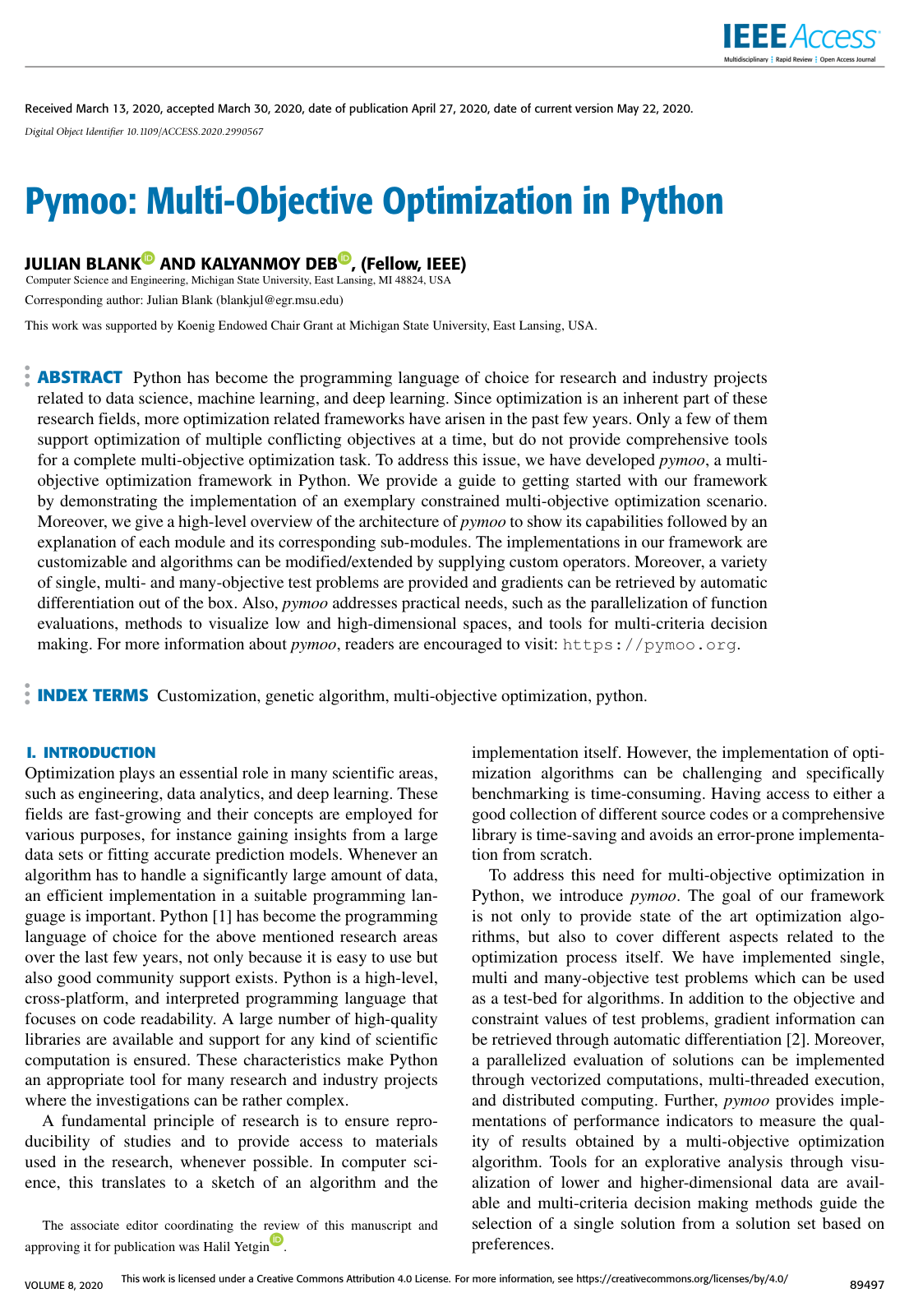

Cover for Pymoo: Multi-Objective Optimization in Python

Abstract

Python has become the programming language of choice for research and industry projects related to data science, machine learning, and deep learning. Since optimization is an inherent part of these research fields, more optimization related frameworks have arisen in the past few years. Only a few of them support optimization of multiple conflicting objectives at a time, but do not provide comprehensive tools for a complete multi-objective optimization task. To address this issue, we have developed pymoo, a multi-objective optimization framework in Python. We provide a guide to getting started with our framework by demonstrating the implementation of an exemplary constrained multi-objective optimization scenario. Moreover, we give a high-level overview of the architecture of pymoo to show its capabilities followed by an explanation of each module and its corresponding sub-modules. The implementations in our framework are customizable and algorithms can be modified/extended by supplying custom operators. Moreover, a variety of single, multi and many-objective test problems are provided and gradients can be retrieved by automatic differentiation out of the box. Also, pymoo addresses practical needs, such as the parallelization of function evaluations, methods to visualize low and high-dimensional spaces, and tools for multi-criteria decision making. For more information about pymoo, readers are encouraged to visit: this https URL

Topics

conflicting objectivesdeep learningmulti-criteria decision makingoptimizationparallelizationsprogramming languagespythonmulti-objective problem

Keywords

multi-objective optimizationmany-objective optimization algorithmEvolutionary Multi-Criterion Optimizationgenetic algorithmsPareto-optimal setmany-objective test problemsachievement scalarizationbinary crossoverevolutionary operators

Table of Contents

  • 1 Introduction
  • 2 Related Works
  • 3 Getting Started 11 1 All source codes in this paper are related to pymoo version 0.3.2. A getting started guide for upcoming versions can be found at pymoo.org.
  • 3.1 Installation
  • 3.2 Problem Definition
  • 3.3 Algorithm Initialization
  • 3.4 Optimization
  • 4 Architecture
  • 5 Problems
  • 5.1 Implementations
  • 5.2 Gradients
  • 5.3 Parallelization
  • 6 Optimization Module
  • 6.1 Algorithms
  • 6.2 Operators
  • 6.3 Termination Criterion
  • 6.4 Decomposition
  • 7 Analytics
  • 7.1 Performance Indicators
  • 7.2 Visualization
  • 7.3 Decision Making
  • 8 Concluding Remarks
  • References

Knowls

  1. Knowl 1 — Architecture of the Pymoo Optimization Framework

    model/method

    Pymoo is an open-source Python framework structured around three foundational modules designed for multi-objective and many-objective optimization:

    • Problems: Encapsulates single-, multi-, and many-objective problem definitions. It standardizes inputs and outputs, provides automatic differentiation for analytical or algorithmic gradient calculation using Autograd, and supports parallelization across multiple compute paradigms.
    • Optimization: Houses modular components for evolutionary and metaheuristic optimization algorithms. Algorithms are assembled in a plug-and-play architecture from interchangeable sub-modules, including initial population sampling (random, Latin-Hypercube), mating selection, crossover operators (single-point, two-point, uniform, half-uniform, simulated binary crossover), mutation operators (polynomial, bitflip), survival selection, constraint handling, reference direction generators (Das-Dennis and Riesz-Energy methods), decomposition strategies, and convergence-based termination criteria.
    • Analytics: Contains post-processing, visualization, and decision-support utilities. This includes low- and high-dimensional visualization tools, performance quality indicators (such as Generational Distance, Inverted Generational Distance, and Hypervolume), theoretical optimality metrics (Karush-Kuhn-Tucker Proximity Metric), and multi-criteria decision making (MCDM) tools for a posteriori solution selection.

  2. Knowl 2 — Standard Optimization Problem Formulation and Normalization in Pymoo

    definition

    In pymoo, optimization problems are internally defined and processed as pure minimization problems with inequality constraints in less-than-or-equal-to form and equality constraints in zero-sum form:

    min⁡fm(x),m=1,…,M,s.t.gj(x)≤0,j=1,…,J,hk(x)=0,k=1,…,K,xiL≤xi≤xiU,i=1,…,N,\begin{aligned} \min \quad & f_m(\mathbf{x}), \quad m = 1, \dots, M, \\ \text{s.t.} \quad & g_j(\mathbf{x}) \le 0, \quad j = 1, \dots, J, \\ & h_k(\mathbf{x}) = 0, \quad k = 1, \dots, K, \\ & x_i^L \le x_i \le x_i^U, \quad i = 1, \dots, N, \end{aligned}

    where x=(x1,…,xN)T\mathbf{x} = (x_1, \dots, x_N)^T is the vector of NN decision variables bounded by lower limits xiLx_i^L and upper limits xiUx_i^U, MM is the number of objective functions, JJ is the number of inequality constraints, and KK is the number of equality constraints.

    To adhere to this standard form:

    1. Maximization Objectives: Any objective forig(x)f_{\text{orig}}(\mathbf{x}) that is to be maximized is converted into a minimization objective via −forig(x)-f_{\text{orig}}(\mathbf{x}).
    2. Greater-Than-or-Equal Constraints: Any constraint formulated as gorig(x)≥0g_{\text{orig}}(\mathbf{x}) \ge 0 is converted into ≤0\le 0 format by multiplying by −1-1, yielding −gorig(x)≤0-g_{\text{orig}}(\mathbf{x}) \le 0.
    3. Constraint Normalization: To prevent constraints with large numerical magnitudes from dominating the feasibility metric, inequality constraints are normalized by dividing the constraint expression by its constant resource term CjC_j:
    g~j(x)=gj(x)Cj≤0\tilde{g}_j(\mathbf{x}) = \frac{g_j(\mathbf{x})}{C_j} \le 0

    where CjC_j represents the absolute constant boundary value of constraint jj.

  3. Knowl 3 — Pseudo-Weight Vector Decision Making Method

    equation

    The pseudo-weight vector method is an a posteriori multi-criteria decision making technique used to select a single representative solution x\mathbf{x} from an obtained non-dominated Pareto set based on user-defined objective priorities. For an MM-objective problem, the pseudo-weight wiw_i corresponding to the ii-th objective function for a solution x\mathbf{x} is calculated as:

    wi=(fimax⁡−fi(x))/(fimax⁡−fimin⁡)∑m=1M(fmmax⁡−fm(x))/(fmmax⁡−fmmin⁡),i=1,…,M,w_i = \frac{(f_i^{\max} - f_i(\mathbf{x})) / (f_i^{\max} - f_i^{\min})}{\sum_{m=1}^M (f_m^{\max} - f_m(\mathbf{x})) / (f_m^{\max} - f_m^{\min})}, \quad i = 1, \dots, M,

    where fmmax⁡f_m^{\max} and fmmin⁡f_m^{\min} denote the maximum and minimum values of the mm-th objective function across all solutions in the non-dominated set, respectively.

    The pseudo-weight vector w=(w1,w2,…,wM)T\mathbf{w} = (w_1, w_2, \dots, w_M)^T satisfies ∑i=1Mwi=1\sum_{i=1}^M w_i = 1 and quantifies the relative closeness of the solution to the best value of each objective. A solution is chosen by finding the point in the Pareto set whose pseudo-weight vector w\mathbf{w} has the minimum Euclidean distance to a target preference weight vector wtarget\mathbf{w}^{\text{target}}. For non-convex Pareto fronts, the pseudo-weight vector yields trade-off distributions that differ from those generated by the weighted-sum method.

  4. Knowl 4 — High Trade-Off (Knee Point) Selection Metric

    equation

    To identify high trade-off or "knee" solutions from a non-dominated set SS of an MM-objective minimization problem during post-processing, the pairwise trade-off metric T(xi,xj)T(\mathbf{x}_i, \mathbf{x}_j) between two distinct non-dominated solutions xi,xj∈S\mathbf{x}_i, \mathbf{x}_j \in S measures the ratio of aggregated sacrifice to aggregated gain:

    T(xi,xj)=∑m=1Mmax⁡[0,fm(xj)−fm(xi)]∑m=1Mmax⁡[0,fm(xi)−fm(xj)],T(\mathbf{x}_i, \mathbf{x}_j) = \frac{\sum_{m=1}^M \max[0, f_m(\mathbf{x}_j) - f_m(\mathbf{x}_i)]}{\sum_{m=1}^M \max[0, f_m(\mathbf{x}_i) - f_m(\mathbf{x}_j)]},

    where the numerator represents the total degradation (sacrifice) in objectives where xj\mathbf{x}_j is worse than xi\mathbf{x}_i, and the denominator represents the total improvement (gain) where xj\mathbf{x}_j is better than xi\mathbf{x}_i.

    For a candidate solution xi\mathbf{x}_i, the overall trade-off measure μ(xi,S)\mu(\mathbf{x}_i, S) evaluated over a neighborhood set of solutions Sneighbor⊆SS_{\text{neighbor}} \subseteq S (such as the kk-nearest neighbors in the objective space) is defined as:

    μ(xi,S)=min⁡xj∈SneighborT(xi,xj).\mu(\mathbf{x}_i, S) = \min_{\mathbf{x}_j \in S_{\text{neighbor}}} T(\mathbf{x}_i, \mathbf{x}_j).

    The solution with the maximum value of μ(xi,S)\mu(\mathbf{x}_i, S) across the Pareto set is selected as the preferred knee solution, representing the design point where any further gain in an objective requires the greatest minimum unit sacrifice across other objectives.

  5. Knowl 5 — Spatial Movement Convergence Termination Criterion

    model/method

    Pymoo provides a convergence-based termination criterion that monitors the stability of evolutionary algorithms in multi-objective and many-objective optimization without relying solely on fixed evaluation budgets.

    The procedure operates as follows:

    1. Distance Tracking: At each generation, the algorithm computes the movement of each solution relative to its nearest neighbor in both the decision variable space and the normalized objective space.
    2. Windowed Assessment: To ensure robustness against stochastic generational fluctuations, the maximum movement among all population members is recorded over a sliding window of the last kk generations.
    3. Objective Space Normalization: In the objective space, the extreme boundary points are dynamically tracked across generations. Normalization bounds are locked and applied once these boundary points stabilize.
    4. Stopping Condition: When the maximum movement across the population over the kk-generation window falls below a predefined tolerance threshold ϵ\epsilon, the algorithm terminates, indicating that population movement has plateaued.

  6. Knowl 6 — Multi-Objective Decomposition Methods in Pymoo

    model/method

    Pymoo implements several decomposition scalarization functions to transform an MM-objective optimization problem into parameterized single-objective subproblems using a reference direction vector w=(w1,…,wM)T\mathbf{w} = (w_1, \dots, w_M)^T and an ideal objective vector z∗=(z1∗,…,zM∗)T\mathbf{z}^* = (z_1^*, \dots, z_M^*)^T:

    • Weighted-Sum Method (p=1p=1 lpl_p-metric):
    min⁡x∑m=1Mwmfm(x)\min_{\mathbf{x}} \sum_{m=1}^M w_m f_m(\mathbf{x})

    This linear scalarization can only find solutions located on convex regions of the Pareto front.

    • Tchebysheff Method (p=∞p=\infty lpl_p-metric):
    min⁡xmax⁡m=1,…,M{wm∣fm(x)−zm∗∣}\min_{\mathbf{x}} \max_{m=1,\dots,M} \left\{ w_m |f_m(\mathbf{x}) - z_m^*| \right\}

    This method can identify solutions on both convex and non-convex regions of the Pareto front.

    • Achievement Scalarization Function (ASF) and Augmented ASF (AASF): Extends Tchebysheff scalarization with an augmentation term to avoid weakly Pareto-optimal solutions:
    min⁡x(max⁡m=1,…,M{fm(x)−zm∗wm}+ρ∑m=1Mfm(x)−zm∗wm)\min_{\mathbf{x}} \left( \max_{m=1,\dots,M} \left\{ \frac{f_m(\mathbf{x}) - z_m^*}{w_m} \right\} + \rho \sum_{m=1}^M \frac{f_m(\mathbf{x}) - z_m^*}{w_m} \right)

    where ρ>0\rho > 0 is a small scalar parameter.

    • Penalty Boundary Intersection (PBI): Decomposes the objective vector into a projection distance d1d_1 along the reference line and a perpendicular distance d2d_2 from the reference line:
    min⁡x(d1+θd2)=(∥(f(x)−z∗)Tw∥∥w∥+θ∥(f(x)−z∗)−d1w∥w∥∥)\min_{\mathbf{x}} \left( d_1 + \theta d_2 \right) = \left( \frac{\|(\mathbf{f}(\mathbf{x}) - \mathbf{z}^*)^T \mathbf{w}\|}{\|\mathbf{w}\|} + \theta \left\| (\mathbf{f}(\mathbf{x}) - \mathbf{z}^*) - d_1 \frac{\mathbf{w}}{\|\mathbf{w}\|} \right\| \right)

    where θ\theta is a user-defined penalty parameter balancing convergence along the direction against diversity perpendicular to it.

  7. Knowl 7 — Performance Quality Indicators in Pymoo

    model/method

    Pymoo includes performance indicators to quantitatively evaluate the convergence, diversity, and optimality of a non-dominated solution set SS obtained by a multi-objective algorithm:

    • Generational Distance (GD): Measures convergence by calculating the average Euclidean distance from each solution in SS to its nearest point on the true Pareto front PFPF:
    GD(S,PF)=1∣S∣(∑s∈Smin⁡p∈PF∥s−p∥2p)1/p\text{GD}(S, PF) = \frac{1}{|S|} \left( \sum_{\mathbf{s} \in S} \min_{\mathbf{p} \in PF} \|\mathbf{s} - \mathbf{p}\|_2^p \right)^{1/p}
    • Inverted Generational Distance (IGD): Measures both convergence and coverage by calculating the average Euclidean distance from each reference point on PFPF to its nearest solution in SS:
    IGD(S,PF)=1∣PF∣(∑p∈PFmin⁡s∈S∥p−s∥2p)1/p\text{IGD}(S, PF) = \frac{1}{|PF|} \left( \sum_{\mathbf{p} \in PF} \min_{\mathbf{s} \in S} \|\mathbf{p} - \mathbf{s}\|_2^p \right)^{1/p}

    (with p=1p=1 commonly used). IGD is not strictly Pareto compliant.

    • Modified Generational Distance Plus (GD+ / IGD+): Modifies the distance calculation to account for Pareto dominance relations, replacing Euclidean distance with a directional distance:
    d+(p,s)=∑m=1M(max⁡[0,sm−pm])2d^+(\mathbf{p}, \mathbf{s}) = \sqrt{\sum_{m=1}^M \left(\max[0, s_m - p_m]\right)^2}

    This formulation ensures that IGD+ is weakly Pareto compliant.

    • Hypervolume (HV): Computes the multi-dimensional volume of the objective space dominated by SS and bounded by a predefined reference point zref\mathbf{z}^{\text{ref}}. Hypervolume is strictly Pareto compliant.

    • Karush-Kuhn-Tucker Proximity Metric (KKTPM): An analytical indicator for continuous problems that evaluates the theoretical proximity of a solution set to the true Pareto-optimal set using KKT optimality conditions, enabling performance assessment when the exact Pareto front is analytically unknown.

  8. Knowl 8 — High-Dimensional Objective Space Visualization Techniques in Pymoo

    model/method

    Pymoo provides a visualization suite built on top of Matplotlib tailored for multi-objective (M≤3M \le 3) and many-objective (M>3M > 3) optimization data:

    • Scatter Plots and Pairwise Scatter Matrix: Displays 2D and 3D objective trade-offs directly, or generates an M×MM \times M matrix of 2D projections for problems with more than three objectives.
    • Parallel Coordinate Plots (PCP): Maps MM objectives onto MM parallel vertical axes. Each solution is rendered as a continuous polyline intersecting each axis at its corresponding objective value, allowing pattern inspection across large solution sets.
    • Radviz Projection: Positions MM objective axes as anchors uniformly distributed along the circumference of a 2D unit circle. Solutions are represented as points whose coordinates result from a spring-force equilibrium determined by their normalized objective values.
    • Star Coordinate Plots: Similar to Radviz, projects high-dimensional points into a 2D radial coordinate system but allows points to extend beyond the circle based on axis transformations.
    • Heatmaps: Presents the population as a 2D grid where rows represent individual solutions and columns represent objective or decision variables, with numerical values mapped to color scales and sorted lexicographically.
    • Petal Diagrams: Displays an individual solution as a circular diagram where each objective is represented by a pie segment (petal) whose radius corresponds to the objective magnitude.
    • Spider-Web (Radar) Diagrams: Plots a single solution's objective vector on radial axes bounded between an inner polygon representing the ideal point and an outer polygon representing the nadir point.

  9. Knowl 9 — Parallel Evaluation Strategies in Pymoo

    model/method

    Pymoo supports three execution models to parallelize computationally expensive objective and constraint function evaluations across candidate solutions:

    1. Vectorized Evaluation: Evaluates an entire population of nn candidate solutions simultaneously by structuring the population as an n×Nn \times N matrix (where NN is the number of decision variables). Operations are executed via vectorized NumPy routines or GPU tensors via PyTorch.
    2. Threaded Loop-Wise Evaluation: Executes independent single-solution evaluations concurrently across CPU threads using Python's built-in thread pool infrastructure, controlled by specifying the thread count in the problem evaluation interface.
    3. Distributed Evaluation: Distributes individual or batch solution evaluations across multi-core processors or multi-node computing clusters using Dask. This supports distributed matrix operations and element-wise task scheduling on remote worker nodes.

Coverage note — Concrete definitions and formulas of external benchmark suites (e.g., ZDT, DTLZ, WFG) and standard evolutionary operators (e.g., one-point crossover, bitflip mutation) were omitted as knowls because they represent standard literature integrated into the library rather than original contributions of the paper.
