Surface Reconstruction from Point Clouds by Learning Predictive Context Priors

Baorui MaYu-Shen LiuMatthias ZwickerZhizhong Han

article2022CVPR89 citations

Presents a surface reconstruction framework that learns test-time predictive query displacements to flexibly query pre-trained local signed distance functions, achieving accurate 3D geometry without requiring ground truth normals or distances.

Listen

Surface reconstruction from 3D point clouds is an essential task across 3D computer vision, autonomous systems, and digital modeling. Modern state-of-the-art approaches train neural networks to learn local geometric shape representations, called signed distance functions, across large datasets. However, these methods typically restrict spatial queries to fixed target coordinates during reconstruction, severely limiting the model's ability to generalize to novel, unseen geometries and complex scenes.

The article demonstrates a novel framework called Predictive Context Priors to overcome this generalization bottleneck. The primary objective is to evaluate whether predicting flexible, adjusted spatial query locations at inference time enables neural networks to match learned geometric shapes more accurately to new point clouds without requiring ground truth surface normals or signed distance annotations.

The researchers developed a two-stage approach. First, a neural network learns a local context prior across partitioned local regions from a large point cloud dataset using a pulling optimization objective, which moves sampled query points toward the true surface based on predicted distances and gradients. Second, when reconstructing a specific target point cloud at test time, the local prior is frozen, and an additional query network is trained on that specific shape to predict spatial query displacements and condition features. This procedure allows the model to flexibly search the entire learned prior space. The framework was evaluated across standard single-shape datasets, such as ShapeNet, ABC, and FAMOUS, as well as complex multi-object scene datasets, including 3D Scene and SceneNet.

The experimental findings show significant performance advantages over existing methods. Across single shapes in the ShapeNet benchmark, the proposed method achieved a Chamfer distance error roughly 60% lower than the closest competitive neural implicit method (Neural-pull) and reduced error by over 90% compared to traditional spatial grid methods. On the FAMOUS dataset, the method cut surface reconstruction error by approximately 80% compared to Neural-pull and by over 95% compared to Points2Surf. In complex scene evaluations, the framework consistently achieved superior normal consistency and the lowest average metric distance errors, such as cutting mean vertex error down to 6.33–9.28 millimeters across challenging indoor scenes. Furthermore, tests demonstrated strong robustness against substantial sensor noise and sparse sampling densities.

These results show that relaxing fixed spatial coordinate constraints allows learned geometric priors to adapt to complex and irregular structures with high precision. By eliminating the requirement for pre-computed surface normals or ground truth distance supervision, this method lowers data preparation costs and simplifies 3D processing pipelines for real-world scans.

Organizations handling high-precision 3D scanning, digital twin generation, or CAD reconstruction should evaluate the adoption of predictive query techniques within their reconstruction workflows. Implementation teams should weigh the trade-off between higher geometric accuracy and computational runtime, as the per-shape optimization during inference requires more processing time than direct feed-forward models. Future efforts should focus on optimizing this test-time inference process to accelerate reconstruction speeds for time-critical operational deployments.

The findings are supported with high confidence across standard academic benchmarks and diverse shape categories. Readers should note that performance depends on the test-time optimization phase, meaning real-time or low-latency operational environments may face computational bottlenecks until further inference speed optimizations are introduced.

Tsinghua University University of Maryland Wayne State University computer vision inference neural networks surface reconstruction point clouds predictive context priors

arXiv: 2204.11015 mabaorui/PredictableContextPrior

Paper: DeepSDF: Learning Continuous Signed Distance Functions for Shape Representation, Jeong Joon Park et al. (2019). DeepSDF introduced neural signed distance functions for continuous 3D shape representation, providing the foundational implicit surface formulation and test-time latent optimization that this work directly builds on and refines.
Paper: Occupancy Networks: Learning 3D Reconstruction in Function Space, Lars Mescheder et al. (2018). Occupancy Networks established functional implicit continuous representations for 3D reconstruction from partial data, which motivates neural implicit prior modeling for surface recovery.
Paper: Learning Implicit Fields for Generative Shape Modeling, Zhiqin Chen et al. (2018). IM-NET develops implicit field neural networks for continuous shape auto-encoding and reconstruction, directly preceding modern neural SDF priors.
Paper: PointNet++: Deep Hierarchical Feature Learning on Point Sets in a Metric Space, Charles R. Qi et al. (2017). PointNet++ establishes multi-scale hierarchical local context feature learning on unordered point clouds, underlying the local context encoder paradigms adapted in point cloud processing.
Paper: Surface reconstruction from unorganized points, Hugues Hoppe et al. (1992). This seminal work establishes the foundational principles of estimating signed distance functions from unorganized point clouds for surface reconstruction.

Paper: 2D Gaussian Splatting for Geometrically Accurate Radiance Fields, Binbin Huang et al. (2024). This work explores advancing geometric accuracy in neural surface reconstruction by shifting from volumetric implicit querying to oriented 2D Gaussian primitives.
Paper: DUSt3R: Geometric 3D Vision Made Easy, Shuzhe Wang et al. (2023). DUSt3R extends data-driven 3D geometric surface recovery by formulating dense 3D pointmap regression directly from unposed multi-view imagery.
Paper: PointNeXt: Revisiting PointNet++ with Improved Training and Scaling Strategies, Guocheng Qian et al. (2022). PointNeXt investigates modern architectural scaling and training strategies for point set processing backbones commonly leveraged in 3D point cloud analysis.

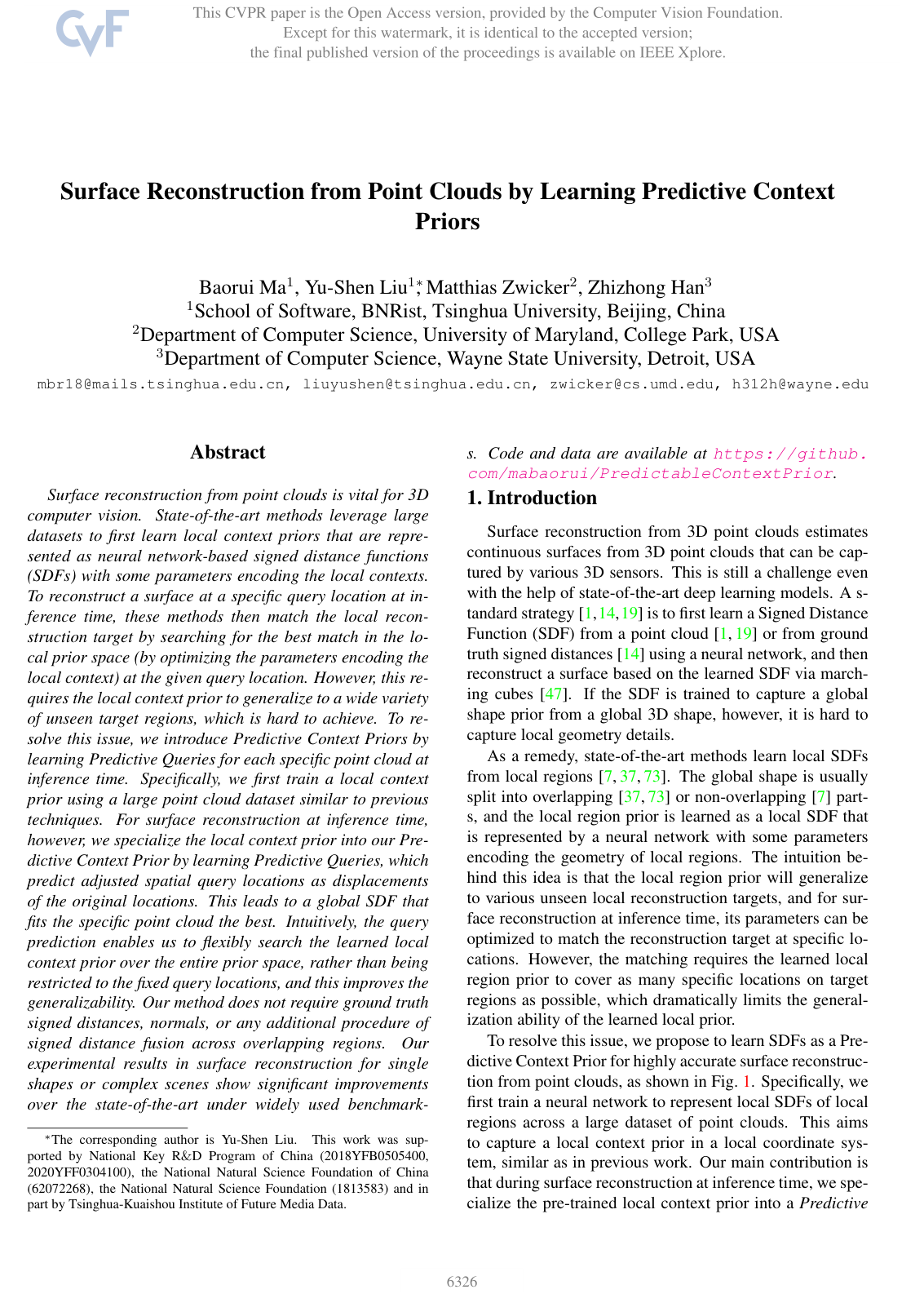

Cover for Surface Reconstruction from Point Clouds by Learning Predictive Context Priors

Abstract

Surface reconstruction from point clouds is vital for 3D computer vision. State-of-the-art methods leverage large datasets to first learn local context priors that are represented as neural network-based signed distance functions (SDFs) with some parameters encoding the local contexts. To reconstruct a surface at a specific query location at inference time, these methods then match the local reconstruction target by searching for the best match in the local prior space (by optimizing the parameters encoding the local context) at the given query location. However, this requires the local context prior to generalize to a wide variety of unseen target regions, which is hard to achieve. To resolve this issue, we introduce Predictive Context Priors by learning Predictive Queries for each specific point cloud at inference time. Specifically, we first train a local context prior using a large point cloud dataset similar to previous techniques. For surface reconstruction at inference time, however, we specialize the local context prior into our Predictive Context Prior by learning Predictive Queries, which predict adjusted spatial query locations as displacements of the original locations. This leads to a global SDF that fits the specific point cloud the best. Intuitively, the query prediction enables us to flexibly search the learned local context prior over the entire prior space, rather than being restricted to the fixed query locations, and this improves the generalizability. Our method does not require ground truth signed distances, normals, or any additional procedure of signed distance fusion across overlapping regions. Our experimental results in surface reconstruction for single shapes or complex scenes show significant improvements over the state-of-the-art under widely used benchmarks. Code and data are available at https://github.com/mabaorui/PredictableContextPrior.

Topics

computer vision inference neural networks point cloud reconstruction signed distance function markov random fields 3d reconstruction probabilistic inference

Keywords

surface reconstruction point clouds predictive context priors neural implicit surfaces shape priors shape completion deep implicit functions point convolution geometric regularization

1. Introduction
2. Related Work
3. Method
4. Experiments, Analysis, and Discussion
4.1. Setup
4.2. Surface Reconstruction for Single Shapes
4.3. Surface Reconstruction for Scenes
4.4. Analysis and Discussion
5. Conclusion
References

Knowls

Knowl 1 — Predictive Context Prior Formulation for Neural Signed Distance Functions
model/method
The Predictive Context Prior framework reconstructs continuous 3D surfaces from unoriented point clouds $G$ by separating shape representation into pre-training a local context prior and specializing it at test time via learned predictive queries. Traditional local implicit approaches fix query points in local coordinate systems and optimize latent codes (via auto-decoding) to match the target geometry, requiring the pre-trained prior to cover every possible local geometric configuration at fixed query coordinates.

In contrast, the Predictive Context Prior specializes a fixed, pre-trained local Signed Distance Function (SDF) $F$ by training a shape-specific neural query network parameterized by $\theta_3$ . For any spatial query point $q_g \in \mathbb{R}^3$ sampled in the global coordinate frame of the target point cloud $G$ , the query network predicts a spatial displacement $\Delta q \in \mathbb{R}^3$ and a local condition vector $f'_l \in \mathbb{R}^{512}$ . The predicted local query is given by:

$q'_l = q_g + \Delta q$

The global SDF $F_g(q_g, G)$ is evaluated by feeding the transformed query and predicted condition into the frozen local SDF network:

$s' = F_g(q_g, G) = F(q'_l, f'_l)$

This formulation enables the model to flexibly search the entire continuous prior space of the pre-trained local SDF rather than restricting the search to fixed query locations, thereby overcoming local generalization bottlenecks without requiring ground-truth signed distances, surface normals, or post-hoc blending across overlapping partitions.
Knowl 2 — Local Context Prior Training Objective and Architecture
equation
The local context prior is learned across a training collection of shapes divided into local point cloud regions $t_i \in T$ . Each local region $t_i$ is normalized by centering its points at the origin and scaling them linearly so the longest bounding-box dimension lies in $[-0.5, 0.5]$ .

A feature encoder (PointNet parameterized by $\theta_1$ ) extracts a 512-dimensional local condition $f_l \in \mathbb{R}^{512}$ for each region $t_i$ . A neural implicit network (an Occupancy Network architecture without activation on the final output layer, parameterized by $\theta_2$ ) represents the local SDF $s = F(q_l, f_l)$ , where $q_l \in \mathbb{R}^3$ is a local spatial query.

Without requiring ground-truth signed distances or surface normals, $\theta_1$ and $\theta_2$ are jointly optimized using a pulling cost $C^1_{\mathrm{Pull}}$ :

$\min_{\theta_1, \theta_2} \left\| \mathrm{nn}(q_l) - \left( q_l - s \frac{\nabla s}{\|\nabla s\|_2^2} \right) \right\|_2$

where $\mathrm{nn}(q_l) \in t_i$ denotes the Euclidean nearest neighbor of $q_l$ in the point set $t_i$ , and $\nabla s = \frac{\partial F}{\partial q_l}$ is the analytical gradient of the predicted signed distance with respect to the query location $q_l$ .
Knowl 3 — Test-Time Query Specialization Objective and Network Architecture
equation
At inference time, the pre-trained local SDF network parameters $\theta_2$ are frozen. For an unnormalized target point cloud $G$ in the global coordinate frame, an 8-layer feed-forward neural query network parameterized by $\theta_3$ is trained to map global query coordinates $q_g \in \mathbb{R}^3$ to the local prior domain. Each of the first 7 layers contains 512 nodes with ReLU activations, and the 8th layer has 515 nodes with linear activations, outputting the displacement $\Delta q \in \mathbb{R}^3$ (giving $q'_l = q_g + \Delta q$ ) and the latent condition $f'_l \in \mathbb{R}^{512}$ .

The query network parameters $\theta_3$ are optimized by minimizing the test pulling cost $C^2_{\mathrm{Pull}}$ :

$\min_{\theta_3} \left\| \mathrm{nn}(q_g) - \left( q_g - s' \frac{\nabla s'}{\|\nabla s'\|_2^2} \right) \right\|_2$

where $\mathrm{nn}(q_g) \in G$ is the nearest neighbor to $q_g$ on the target point cloud $G$ , $s' = F(q'_l, f'_l)$ is the signed distance produced by the frozen implicit network, and $\nabla s' = \frac{\partial F}{\partial q'_l}$ is the gradient of $F$ with respect to the predicted local query $q'_l$ .
Knowl 4 — Surface Reconstruction via Predictive Context Prior Optimization
algorithm
The complete surface reconstruction pipeline optimizes the predictive query network $\theta_3$ on a target point cloud $G$ and extracts the explicit polygonal mesh via Marching Cubes.
Input: Target point cloud $G \subset \mathbb{R}^3$ , pre-trained local SDF network $F(\cdot; \theta_2)$
Output: Triangle mesh $M = (V, E)$
Initialize neural query network $Q(\cdot; \theta_3)$ with parameters $\theta_3$
Freeze parameters $\theta_2$
for each optimization epoch do
    Sample $N_q$ query points $q_g$ around each point $p \in G$ using Gaussian sampling $\mathcal{N}(p, \sigma^2)$
    Find nearest neighbors $\mathrm{nn}(q_g) \in G$ for each query
    Predict local offsets and conditions: $(\Delta q, f'_l) \leftarrow Q(q_g; \theta_3)$
    Compute local queries: $q'_l \leftarrow q_g + \Delta q$
    Compute signed distances: $s' \leftarrow F(q'_l, f'_l; \theta_2)$
    Compute gradients: $\nabla s' \leftarrow \frac{\partial F}{\partial q'_l}$
    Compute pulled query positions: $q_{\mathrm{pull}} \leftarrow q_g - s' \frac{\nabla s'}{\|\nabla s'\|_2^2}$
    Compute loss: $L \leftarrow \| \mathrm{nn}(q_g) - q_{\mathrm{pull}} \|_2$
    Update $\theta_3$ via gradient descent to minimize $L$
end for
Define continuous global field: $F_g(x) = F(x + Q_{\Delta q}(x), Q_f(x); \theta_2)$
Extract mesh $M \leftarrow \mathrm{MarchingCubes}(F_g, \mathrm{resolution})$
return $M$
In standard execution, $N_q = 40$ queries per point are sampled where $\sigma^2$ is set to the squared distance to the 50-th nearest neighbor of $p$ in $G$ . The marching cubes grid resolution is set to $128^3$ for single objects or $512^3$ for complex scenes.

Knowl 5 — Surface Reconstruction Accuracy on ShapeNet Benchmark

data/table

The Predictive Context Prior method was evaluated on a subset of the ShapeNet benchmark comprising 8 object categories (Display, Lamp, Airplane, Cabinet, Vessel, Table, Chair, Sofa) using L2 Chamfer Distance ( $L_2$ -CD $\times 100$ ), Normal Consistency (NC), and F-score thresholds ( $\mu = 0.002$ and $2\mu = 0.004$ ). Reconstructions were generated using Marching Cubes on a $128^3$ grid and compared against 100,000 ground truth surface points.

Method	$L_2$ -CD $(\times 100) \downarrow$	NC $\uparrow$	F-score( $\mu$ ) $\uparrow$	F-score( $2\mu$ ) $\uparrow$
PSR	0.286	0.866	0.407	0.618
DMC	0.276	0.836	0.446	0.626
BPA	0.116	0.923	0.769	0.885
AtlasNet	1.368	0.695	0.062	0.158
DeepSDF	0.766	0.884	0.468	0.647
DGP	0.228	0.962	0.425	0.649
MeshP	0.071	0.903	0.872	0.959
SALD	0.062	0.666	0.429	0.950
LIG	-	0.939	0.961	0.976
Neural-Pull	0.038	-	-	-
Ours	0.0136	0.9590	0.9871	0.9899

The Predictive Context Prior achieves the lowest Chamfer Distance and highest F-score across all categories, substantially outperforming prior implicit function baselines (e.g., DeepSDF, SALD, and Neural-Pull) without requiring ground-truth distance supervision or normal vectors.

Knowl 6 — Reconstruction Robustness Under Noise and Point Density Variations

data/table

The model's robustness was evaluated on the ABC and FAMOUS datasets under clean point clouds, variable noise (var-noise), maximum noise (max-noise), medium noise (med-noise), sparse density (F-Sparse), and dense density (F-Dense). Metrics are reported in $L_2$ -Chamfer Distance ( $L_2$ -CD $\times 100$ ) evaluated on 10,000 sampled points.

Dataset / Condition	DSDF	ATLAS	PSR	P2S	IGR	NP	Ours
ABC (clean)	8.41	4.69	2.49	1.80	0.51	0.48	0.200
FAMOUS (clean)	10.08	4.69	1.67	1.41	1.65	0.22	0.044
ABC var-noise	12.51	4.04	3.29	2.14	-	0.72	0.488
ABC max-noise	11.34	4.47	3.89	2.76	-	1.24	0.571
F-med-noise	9.89	4.54	1.80	1.51	-	0.28	0.071
F-max-noise	13.17	4.14	3.41	2.52	-	0.31	0.298
F-Sparse	10.41	4.91	2.17	1.93	-	0.84	0.083
F-Dense	9.49	4.35	1.60	1.33	-	0.22	0.087
Overall Mean (Variants)	11.73	4.30	3.10	2.23	-	0.60	0.266

Compared to DeepSDF (DSDF), AtlasNet (ATLAS), Screened Poisson (PSR), Points2Surf (P2S), Implicit Geometric Regularization (IGR), and Neural-Pull (NP), the Predictive Context Prior demonstrates superior noise resilience and consistency across varying point densities.

Knowl 7 — Surface Reconstruction Performance on Complex Indoor Scenes

data/table

Scene-level surface reconstruction was evaluated on five scenes from the 3D Scene benchmark (Burghers, Lounge, Copyroom, Stonewall, Totempole) and on SceneNet at varying sampling densities (20, 100, 500, and 1000 points/ $\text{m}^2$ ). Marching Cubes was executed on a $512^3$ grid. In 3D Scene, accuracy is measured by $L_2$ -CD ( $\times 1000$ ), $L_1$ -CD, Normal Consistency (Norm), and average vertex-to-mesh distance error (mm).

Scene (3D Scene)	Metric	LIG	Neural-Pull	Ours
Burghers	$L_2$ -CD $\downarrow$ / Error (mm) $\downarrow$	0.839 / 28.70	1.76 / 11.23	0.267 / 9.28
Lounge	$L_2$ -CD $\downarrow$ / Error (mm) $\downarrow$	0.789 / 28.20	39.71 / 98.03	0.061 / 6.76
Copyroom	$L_2$ -CD $\downarrow$ / Error (mm) $\downarrow$	0.906 / 30.50	0.51 / 8.76	0.076 / 7.76
Stonewall	$L_2$ -CD $\downarrow$ / Error (mm) $\downarrow$	1.08 / 33.65	0.063 / 6.84	0.061 / 6.33
Totempole	$L_2$ -CD $\downarrow$ / Error (mm) $\downarrow$	1.37 / 38.90	0.19 / 10.21	0.10 / 8.36

On the SceneNet dataset, the Predictive Context Prior achieves mean $L_1$ -CD values of 0.029, 0.017, 0.017, and 0.017 across 20, 100, 500, and 1000 points/ $\text{m}^2$ respectively (compared to 0.030, 0.018, 0.018, 0.018 for LIG, and 0.037, 0.047, 0.047, 0.054 for Neural-Pull), with F-scores reaching 0.831, 0.943, 0.962, and 0.965, outperforming Convolutional OccNet, LIG, and Neural-Pull.

Knowl 8 — Ablation on Predictive Query Network Components and Prior Specialization
empirical result
Ablation experiments conducted on the ABC dataset justify the critical design choices of the Predictive Context Prior architecture (evaluated in $L_2$ -CD $\times 1000$ and Normal Consistency):
1. Predicted Query Offset ( $\Delta q$ ): Directly setting $q'_l = q_g$ ("No $\Delta q$ ") increases $L_2$ -CD error from 2.090 to 3.13 (NC drops from 0.945 to 0.924). Predicting $q'_l$ directly as absolute coordinates ("Direct $q'_l$ ") increases $L_2$ -CD to 2.78 (NC 0.935). Learning residual displacement $\Delta q$ relative to $q_g$ is essential for stable optimization.
2. Predicted Condition ( $f'_l$ ): Removing the query-dependent condition prediction and relying solely on auto-decoding ("No $f'_l$ ") increases $L_2$ -CD error to 4.03. Using a static PointNet feature $f_l$ alongside $\Delta q$ ("No $f'_l + f_l$ ") increases error to 4.21, proving that the condition $f'_l$ must be dynamically predicted per query point alongside $q'_l$ .
3. Prior Freezing vs. Joint Tuning: Fitting the target point cloud without any pre-trained local prior ("No Prior") yields an $L_2$ -CD error of 4.04 (NC 0.9200). Initializing with the pre-trained prior but jointly tuning $\theta_2$ and $\theta_3$ at test time ("Tune $\theta_2 + \theta_3$ ") results in an $L_2$ -CD of 3.60 (NC 0.9250). Keeping the pre-trained prior $\theta_2$ strictly frozen while specializing $\theta_3$ achieves the optimal $L_2$ -CD of 2.09 (NC 0.9446).
Knowl 9 — Impact of Local Region Partitioning and Coordinate Normalization
empirical result
Ablation analysis on the ABC dataset evaluates the effect of spatial partitioning resolution, boundary overlap, and normalization during local context prior learning (measured by $L_2$ -CD $\times 1000$ and Normal Consistency):
1. Grid Partitioning Resolution: Dividing training shapes into a $6^3$ bounding-box grid achieves the best performance ( $L_2$ -CD 2.09, NC 0.945). Coarser partitions ( $0^3$ unpartitioned yields 12.06; $4^3$ yields 4.43) create overly complex regions that degrade prior learning. Overly fine partitions ( $8^3$ yields 2.58) provide insufficient geometric context.
2. Patch Overlap and Self-Prior: Overlapping adjacent regions ("Lap", $L_2$ -CD 2.09) or learning the prior exclusively from local regions of the test target itself ("Self", $L_2$ -CD 2.09, NC 0.942) yields nearly identical final accuracy to multi-shape training, demonstrating that flexible query prediction compensates for limited training diversity, though larger datasets accelerate optimization convergence.
3. Geodesic Patches: Constructing local regions $t_i$ using geodesic neighborhoods (1000, 2000, or 4000 neighbors: G1, G2, G4) yields $L_2$ -CDs of 2.9, 2.3, and 2.5, underperforming simple regular bounding-box grid partitioning.
4. Region Normalization: Centering and scale normalization of local regions $t_i$ improves performance from 2.83 (no normalization) to 2.09 (both centering and scaling; centering alone yields 2.13, scaling alone yields 2.67).
Knowl 10 — Computational Overhead of Test-Time Query Optimization
limitation
A primary limitation of the Predictive Context Prior framework is that reconstructing the surface of an unseen target shape or scene requires per-instance gradient-based optimization of the neural query network parameters $\theta_3$ at test time. Consequently, the method incurs higher inference latency than feed-forward single-pass networks (such as Points2Surf or direct regression baselines) that produce geometry via a single forward evaluation without test-time fine-tuning.

Coverage note — Deliberately omitted the 2D circle-to-square illustrative toy example (Fig. 5) and qualitative video descriptions, as their mathematical and conceptual insights are fully captured by the Predictive Context Prior formulation and ablation knowls.
