V2V4Real: A Real-World Large-Scale Dataset for Vehicle-to-Vehicle Cooperative Perception

Runsheng XuXin XiaJinlong LiHanzhao LiShuo ZhangZhengzhong TuZonglin MengHao XiangXiaoyu DongRui Song

article2023CVPR263 citations

Introduces the first large-scale real-world dataset and benchmark for vehicle-to-vehicle cooperative perception, providing synchronized multimodal sensor data across 410 kilometers to evaluate cooperative 3D detection, tracking, and sim-to-real domain adaptation.

Listen

Autonomous driving systems rely heavily on accurate environmental perception to operate safely. However, single-vehicle perception systems face fundamental physical limitations, such as occlusions caused by surrounding traffic and limited sensor ranges. Vehicle-to-vehicle cooperative perception—where multiple connected vehicles share sensor data over wireless links—addresses these safety-critical blind spots. While theoretical concepts are well established, evaluating cooperative perception algorithms under realistic real-world road conditions and addressing performance degradation caused by data shifts remains an urgent industry challenge.

The article demonstrates and evaluates multiple cooperative perception baseline algorithms using the real-world V2V4Real dataset. It specifically benchmarks 3D object detection across various vehicle communication architectures, establishes a framework for cooperative multi-object tracking, and evaluates domain adaptation techniques designed to transfer synthetic training knowledge to real-world operational environments.

To conduct this evaluation, the analysis tested several intermediate feature fusion methods alongside early fusion, late fusion, and standalone single-vehicle baselines across urban and highway driving environments equipped with light detection and ranging sensors and cameras. The evaluation assessed both synchronized and asynchronous communication conditions, analyzed the impact of point-cloud data augmentations, and incorporated feature-level and object-level domain discriminators to adapt models trained on synthetic data to real-world scenarios.

The findings show that cooperative perception substantially improves 3D object detection accuracy compared to single-vehicle sensing, particularly in congested urban scenes where occlusions are prevalent. Among all tested architectures, advanced intermediate fusion models—specifically transformer-based methods like CoBEVT and V2X-ViT—achieved the highest overall accuracy, reaching up to 51.1% average precision under synchronized settings. Furthermore, data augmentations proved critical, as omitting rotations, scaling, and flips reduced intermediate fusion detection performance by 13.7% to 16.9%. Finally, applying domain adaptation substantially improved target detection when transferring from synthetic source data to real-world environments, though simpler feature-fusion methods exhibited higher false-positive rates in complex intersections compared to transformer-based approaches.

These results demonstrate that cooperative vehicle perception provides meaningful safety and situational awareness gains that individual vehicle sensors cannot achieve alone. For engineering and product leaders, intermediate fusion presents an optimal balance, delivering near-raw-sensor detection accuracy while maintaining low communication bandwidth requirements. Additionally, effective domain adaptation reduces the financial and operational costs associated with collecting exhaustive real-world training datasets by unlocking the value of synthetic simulation data.

Development teams should prioritize intermediate fusion architectures, particularly transformer-based designs, for connected vehicle platforms while standardizing rigorous point-cloud data augmentation pipelines. Future work should focus on testing these pipelines under broader weather, road, and high-density traffic conditions to further validate operational reliability.

Cleveland State University Fraunhofer Institute Northwestern University Technical University of Munich University of California, Los Angeles University of Texas at Austin 3d object 3d objects autonomous driving V2V4Real dataset vehicle-to-vehicle cooperative perception cooperative detection

arXiv: 2303.07601

Paper: Where2comm: Communication-Efficient Collaborative Perception via Spatial Confidence Maps, Yue Hu et al. (2022). Introduces foundational communication-efficient spatial confidence mechanisms for collaborative perception across connected agents that directly motivate the intermediate fusion benchmarks in V2V4Real.
Paper: BEVFusion: Multi-Task Multi-Sensor Fusion with Unified Bird's-Eye View Representation, Zhijian Liu et al. (2022). Establishes the unified bird's-eye view multi-sensor fusion architecture that serves as a core baseline and architectural principle evaluated across V2V4Real's vehicle-to-vehicle pipelines.
Paper: BEVFormer: Learning Bird's-Eye-View Representation from Multi-Camera Images via Spatiotemporal Transformers, Zhiqi Li et al. (2022). Details the transformer-based bird's-eye view feature extraction principles that underpin advanced intermediate fusion models tested in the benchmark.
Paper: Domain Adaptive Faster R-CNN for Object Detection in the Wild, Yuhua Chen et al. (2018). Presents essential adversarial domain adaptation techniques for object detection that prepare readers for V2V4Real's synthetic-to-real domain adaptation experiments.
Paper: Center-based 3D Object Detection and Tracking, Tianwei Yin et al. (2020). Provides the anchor-free 3D detection and velocity-based tracking baseline used as the standard backbone across modern multi-object perception pipelines.

Paper: DI-V2X: Learning Domain-Invariant Representation for Vehicle-Infrastructure Collaborative 3D Object Detection, Xiang Li et al. (2024). Extends collaborative 3D perception by tackling domain gaps caused by disparate sensor modalities between roadside infrastructure and moving vehicles.
Paper: DeepAccident: A Motion and Accident Prediction Benchmark for V2X Autonomous Driving, Tianqi Wang et al. (2024). Builds upon V2X collaborative bird's-eye-view perception datasets to benchmark end-to-end motion forecasting and accident prediction in safety-critical collision scenarios.
Paper: Collaboration Helps Camera Overtake LiDAR in 3D Detection, Yue Hu et al. (2023). Applies collaborative multi-agent perception principles to camera-only systems, demonstrating how sharing visual cues across agents can mitigate the absence of expensive LiDAR.

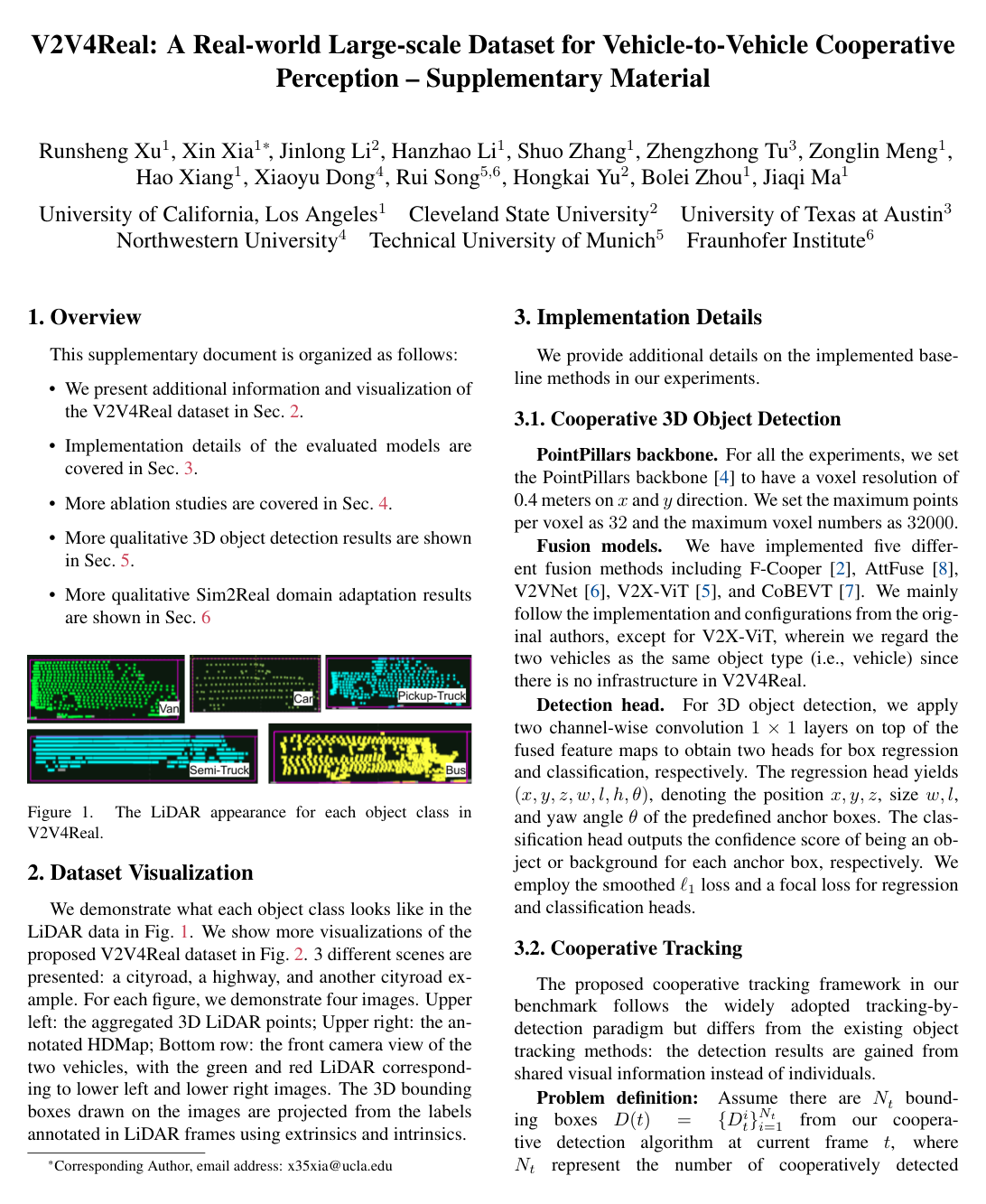

Cover for V2V4Real: A Real-World Large-Scale Dataset for Vehicle-to-Vehicle Cooperative Perception

Abstract

Modern perception systems of autonomous vehicles are known to be sensitive to occlusions and lack the capability of long perceiving range. It has been one of the key bottlenecks that prevents Level 5 autonomy. Recent research has demonstrated that the Vehicle-to-Vehicle (V2V) cooperative perception system has great potential to revolutionize the autonomous driving industry. However, the lack of a real-world dataset hinders the progress of this field. To facilitate the development of cooperative perception, we present V2V4Real, the first large-scale real-world multi-modal dataset for V2V perception. The data is collected by two vehicles equipped with multi-modal sensors driving together through diverse scenarios. Our V2V4Real dataset covers a driving area of 410 km, comprising 20K LiDAR frames, 40K RGB frames, 240K annotated 3D bounding boxes for 5 classes, and HDMaps that cover all the driving routes. V2V4Real introduces three perception tasks, including cooperative 3D object detection, cooperative 3D object tracking, and Sim2Real domain adaptation for cooperative perception. We provide comprehensive benchmarks of recent cooperative perception algorithms on three tasks. The V2V4Real dataset can be found at this https URL.

Topics

3d object 3d objects autonomous driving frames object detection object tracking v2v

Keywords

V2V4Real dataset vehicle-to-vehicle cooperative perception cooperative detection cooperative tracking intermediate fusion feature-level domain discriminator V2VNet domain adaptation

1 Introduction
2 Relaed Work
2.1 Autonomous Driving Datasets.
2.2 3D Detection
2.3 V2V/V2X Cooperative Perception
3 V2V4Real Dataset
3.1 Data Acquisition
3.2 Data Annotation
3.3 Data Analysis
4 Tasks
4.1 Cooperative 3D Object Detection
4.2 Object Tracking
4.3 Sim2Real Domain Adaptation
5 Experiments
5.1 Implementation Details
5.2 3D LiDAR Object Detection
5.3 3D Object Tracking
5.4 Sim2Real Domain Adaptation
6 Conclusion
7 Acknowledgement
References
A Appendix
B Dataset Visualization
C Implementation Details
C.1 Cooperative 3D Object Detection
C.2 Cooperative Tracking
C.3 Domain Adaption
D Ablation Studies
E Detection Results
F Domain Adaptation Results

Knowls

Knowl 1 — Cooperative 3D Multi-Object Tracking Framework
model/method
The cooperative 3D tracking framework adopts a tracking-by-detection paradigm where detection bounding boxes are derived from cooperatively fused multi-agent visual perception rather than single-vehicle observations.

At time frame $t$ , the cooperative detection network outputs $N_t$ bounding boxes $D(t) = \{D_i^t\}_{i=1}^{N_t}$ , where each detection is parameterized as $D_i^t = (x_i^t, y_i^t, z_i^t, \theta_i^t, w_i^t, h_i^t, l_i^t, s_i^t)$ , with center coordinates $(x_i^t, y_i^t, z_i^t)$ , heading yaw angle $\theta_i^t$ , dimensions $(w_i^t, h_i^t, l_i^t)$ , and detection confidence score $s_i^t$ .

The tracker maintains $M_{t-1}$ previously confirmed trajectories $T(t-1) = \{T_j^{t-1}\}_{j=1}^{M_{t-1}}$ , where each trajectory state is represented as $T_j^{t-1} = (x_j^{t-1}, y_j^{t-1}, z_j^{t-1}, \theta_j^{t-1}, w_j^{t-1}, h_j^{t-1}, l_j^{t-1}, s_j^{t-1}, vx_j^{t-1}, vy_j^{t-1}, vz_j^{t-1})$ , incorporating 3D linear velocities $(vx_j^{t-1}, vy_j^{t-1}, vz_j^{t-1})$ .
1. Kinematic Trajectory Prediction: A constant-velocity kinematic vehicle model within a Kalman filter predicts the spatial state for each active trajectory at frame $t$ : $x_{t,\text{pred}}^j = x_{t-1}^j + vx_{t-1}^j$ $y_{t,\text{pred}}^j = y_{t-1}^j + vy_{t-1}^j$ $z_{t,\text{pred}}^j = z_{t-1}^j + vz_{t-1}^j$ $T_{t,\text{pred}}^j = (x_{t,\text{pred}}^j, y_{t,\text{pred}}^j, z_{t,\text{pred}}^j, \theta_{t-1}^j, w_{t-1}^j, h_{t-1}^j, l_{t-1}^j, s_{t-1}^j, vx_{t-1}^j, vy_{t-1}^j, vz_{t-1}^j)$
2. Data Association: An affinity matrix $A \in \mathbb{R}^{M_{t-1} \times N_t}$ is constructed where entry $A_{i,j}$ is the 3D Intersection-over-Union (3D IoU) between predicted trajectory $i$ and detection bounding box $j$ at frame $t$ . Bipartite matching is solved globally via the Hungarian algorithm.
3. State Update: For each matched pair of predicted trajectory $T_{t,\text{pred}}^m$ and detection $D_t^k$ , a Kalman filter updates the trajectory state: $T_t^m = \text{KF}(T_{t,\text{pred}}^m, D_t^k)$
4. Trajectory Management: When an unmatched detection enters the field of view, it is initialized as a new trajectory candidate only if it can be consistently matched across subsequent frames (preventing false positive detections from initiating tracks). When an existing active trajectory is unmatched, it is retained for several frames before being terminated as dead (preventing missed detections from prematurely ending true tracks).
Knowl 2 — Dual-Level Adversarial Domain Adaptation Architecture for Cooperative Perception
model/method
To mitigate the simulation-to-real domain shift between synthetic cooperative datasets (such as OPV2V as the source domain) and real-world vehicle-to-vehicle datasets (such as V2V4Real as the target domain), an adversarial domain adaptation framework utilizes two distinct domain discriminators:
1. Feature-Level Domain Discriminator: Receives the fused multi-agent feature maps output by the intermediate fusion backbone. It consists of two convolutional layers with $3 \times 3$ kernels, where the second layer projects the channel dimension to $1$ to produce a spatial domain classification map distinguishing source from target representations.
2. Object-Level Domain Discriminator: Receives the object classification confidence score map generated by the 3D detection classification head. It comprises three linear projection layers interleaved with Rectified Linear Unit (ReLU) activation functions.
Both discriminators are trained using binary cross-entropy loss against domain source/target labels. Gradient Reversal Layers (GRL) are placed between the feature extraction/detection heads and the discriminators to invert the gradient signs during backpropagation, enforcing domain-invariant representations across connected vehicles.
Knowl 3 — PointPillars Backbone and Detection Head Configuration for Cooperative 3D Object Detection
experimental setup
Cooperative 3D object detection baseline models evaluated on the V2V4Real benchmark are configured as follows:
- PointPillars Backbone: The point cloud spatial voxel resolution is set to $0.4\,\text{m} \times 0.4\,\text{m}$ along the $x$ and $y$ axes. The maximum number of points per voxel is set to $32$ , and the maximum number of voxels per scene is capped at $32,000$ .
- Detection Heads: Two channel-wise $1 \times 1$ convolutional layers are placed directly on top of the fused bird's-eye-view feature maps:
  - Regression Head: Outputs 7 degrees of freedom $(x, y, z, w, l, h, \theta)$ representing center position $(x, y, z)$ , dimensions $(w, l, h)$ , and yaw orientation $\theta$ for predefined 3D anchor boxes. It is optimized using smoothed $\ell_1$ loss.
  - Classification Head: Outputs the object versus background confidence score for each predefined anchor box. It is optimized using focal loss.

Knowl 4 — Impact of Data Augmentation on Cooperative 3D Object Detection

data/table

Ablating point cloud data augmentations (specifically random rotation, random flipping, and random scaling) causes marked performance drops across all cooperative 3D object detection methods on the V2V4Real dataset. Intermediate fusion architectures (CoBEVT, V2X-ViT, V2VNet, AttFuse, and F-Cooper) suffer larger relative performance degradations than single-vehicle No Fusion or Early Fusion, indicating higher sensitivity to data diversity and volume in complex fusion networks.

The quantitative detection performance (Average Precision at $\text{IoU}=0.5$ ) without data augmentation across distance ranges ( $0\text{--}30\,\text{m}$ , $30\text{--}50\,\text{m}$ , $50\text{--}100\,\text{m}$ ) and transmission message sizes (AM in megabytes, MB) under time-synchronized (Sync) and time-asynchronous (Async) settings is:

Method	Sync (AP@IoU=0.5)				Async (AP@IoU=0.5)				AM
	Overall	0-30m	30-50m	50-100m	Overall	0-30m	30-50m	50-100m	(MB)
No Fusion	28.7 (-11.1)	50.0	22.9	4.9	28.7 (-11.1)	50.0	22.9	4.9	0
Late Fusion	43.0 (-12.0)	55.1	34.4	31.9	40.9 (-9.3)	54.6	33.5	30.9	0.003
Early Fusion	48.2 (-11.5)	64.3	33.2	34.0	41.0 (-11.1)	62.5	27.3	18.1	0.96
F-Cooper	45.6 (-15.1)	65.3	35.3	25.9	37.6 (-16.0)	62.1	28.6	13.4	0.20
V2VNet	49.0 (-15.5)	69.2	35.0	30.6	41.5 (-14.9)	65.5	32.4	13.7	0.20
AttFuse	47.9 (-16.8)	67.9	34.6	26.8	40.8 (-16.9)	65.8	28.6	13.9	0.20
V2X-ViT	48.9 (-16.0)	66.0	38.1	30.0	41.6 (-14.3)	62.8	32.9	17.5	0.20
CoBEVT	51.1 (-15.4)	69.3	40.0	32.4	44.9 (-13.7)	65.2	35.6	19.8	0.20

Numbers in parentheses indicate the performance decrease in Average Precision percentage points compared to the identical model trained with full data augmentation.

Knowl 5 — Sim2Real Domain Adaptation Trade-offs Across Cooperative Fusion Models
empirical result
When transferring cooperative perception models trained on simulated data (OPV2V) to real-world driving data (V2V4Real) via adversarial domain adaptation:
1. In highway driving scenarios with higher vehicle speeds and low vehicle density, all evaluated cooperative fusion architectures benefit from domain adaptation, with AttFuse and F-Cooper showing the largest qualitative improvements in true-positive bounding box alignment.
2. In high-density intersection scenarios characterized by heavy occlusion, intermediate fusion methods (F-Cooper, V2X-ViT, and CoBEVT) achieve superior detection accuracy. However, feature-fusion methods like F-Cooper exhibit a higher rate of false-positive bounding box predictions after adaptation, whereas vision-transformer-based architectures like V2X-ViT maintain high detection precision with fewer false positives.

Coverage note — Visual sensor point cloud renderings and camera perspective snapshots across scenarios were omitted as their qualitative and quantitative insights are fully captured in the knowls.

References

1.Qi Chen, Xu Ma, Sihai Tang, Jingda Guo, Qing Yang, and Song Fu. F-cooper: Feature based cooperative perception for autonomous vehicle edge computing system using 3d point clouds. In Proceedings of the 4th ACM/IEEE Symposium on Edge Computing, pages 88–100, 2019. 4, 7, 8
2.Qi Chen, Sihai Tang, Qing Yang, and Song Fu. Cooper: Coop- erative perception for connected autonomous vehicles based on 3d point clouds. In 2019 IEEE 39th International Confer- ence on Distributed Computing Systems (ICDCS), pages 514– 524. IEEE, 2019. 1
3.Yaroslav Ganin and Victor Lempitsky. Unsupervised domain adaptation by backpropagation. In International conference on machine learning, pages 1180–1189. PMLR, 2015. 3
4.Alex H Lang, Sourabh Vora, Holger Caesar, Lubing Zhou, Jiong Yang, and Oscar Beijbom. Pointpillars: Fast encoders for object detection from point clouds. In Proceedings of the IEEE/CVF conference on computer vision and pattern recog- nition, pages 12697–12705, 2019. 1, 4
5.Zhengzhong Tu Xin Xia Ming-Hsuan Yang Jiaqi Ma Run- sheng Xu, Hao Xiang. V2x-vit: Vehicle-to-everything coop- erative perception with vision transformer. In Proceedings of the European Conference on Computer Vision (ECCV), 2022. 1, 4, 5, 6, 7, 8
6.Tsun-Hsuan Wang, Sivabalan Manivasagam, Ming Liang, Bin Yang, Wenyuan Zeng, and Raquel Urtasun. V2vnet: Vehicle- to-vehicle communication for joint perception and prediction. In European Conference on Computer Vision, pages 605–621. Springer, 2020. 1, 4, 5, 6, 7, 8
7.Runsheng Xu, Zhengzhong Tu, Hao Xiang, Wei Shao, Bolei Zhou, and Jiaqi Ma. Cobevt: Cooperative bird’s eye view se- mantic segmentation with sparse transformers. arXiv preprint arXiv:2207.02202, 2022. 1, 4, 5, 6, 7, 8
8.Runsheng Xu, Hao Xiang, Xin Xia, Xu Han, Jinlong Li, and Jiaqi Ma. Opv2v: An open benchmark dataset and fusion pipeline for perception with vehicle-to-vehicle communica- tion. In 2022 International Conference on Robotics and Au- tomation (ICRA), pages 2583–2589. IEEE, 2022. 1, 4, 7, 8
9.Yin Zhou and Oncel Tuzel. Voxelnet: End-to-end learning for point cloud based 3d object detection. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 4490–4499, 2018. 4
