CroCo: Self-Supervised Pre-training for 3D Vision Tasks by Cross-View Completion

Philippe WeinzaepfelVincent LeroyThomas LucasRomain BrégierYohann CabonVaibhav AroraLeonid AntsfeldBoris ChidlovskiiGabriela CsurkaJérôme Revaud

article2022NeurIPS188 citations

Proposes a self-supervised cross-view image completion framework that learns spatial and geometric relationships across viewpoint pairs, effectively transferring to both monocular and binocular 3D vision downstream tasks such as depth estimation, optical flow, and relative camera pose regression.

Listen

Modern computer vision models increasingly rely on self-supervised pre-training to learn useful representations from unlabeled images before adapting to specific downstream tasks. While masked image modeling techniques excel at capturing high-level semantic features for tasks like image classification, they do not inherently teach models the spatial and geometric relationships required for three-dimensional (3D) vision. Consequently, tasks such as depth estimation, optical flow, and camera tracking often require separate, task-specific architectures and costly supervised training data.

The article demonstrates a novel self-supervised pre-training framework called Cross-View Completion (CroCo), designed specifically to learn 3D scene geometry and spatial relationships from unlabeled image pairs without human supervision.

The approach uses a Vision Transformer architecture consisting of a shared encoder and an attention-based decoder. The model receives two images depicting the same scene from different viewpoints. An aggressive 90% of the visual patches from the first image are masked out, and the model must reconstruct these hidden patches by conditioning its predictions on the visible patches and the unmasked second reference image. To evaluate this method, the model was pre-trained on roughly 1.82 million synthetic image pairs of indoor environments generated via a 3D simulator, then tested across multiple single-image (monocular) and two-image (binocular) downstream tasks.

The findings establish that CroCo significantly improves performance on geometric and 3D vision applications. In monocular depth estimation on the standard NYUv2 benchmark, CroCo achieved an accuracy of 85.6%, outperforming competing self-supervised models such as Masked Autoencoders (79.6%) and Multi-Modal Masked Autoencoders (83.0%). Across eight dense 2D and 3D regression tasks on the Taskonomy benchmark, CroCo secured the top performance on six tasks and ranked best overall. For two-image tasks, the generic pre-trained architecture transferred directly without specialized engineering: it reduced optical flow endpoint errors on the MPI-Sintel benchmark by approximately 1.6 to 1.7 pixels compared to baseline models, and achieved a competitive median position error of 5.0 centimeters in relative camera pose estimation.

These results imply that forcing a neural network to reconcile visual discrepancies across distinct viewpoints naturally encodes 3D geometric awareness into the model representations. This reduces the need for expensive multi-modal ground-truth labels and eliminates the requirement for complex, task-specific model architectures in downstream 3D applications. The findings also reveal a trade-off: because the model was trained on indoor scenes rather than object-centric datasets, its accuracy on purely semantic tasks like ImageNet classification is lower than models pre-trained specifically for high-level object recognition.

Organizations developing spatial computing, robotics, autonomous navigation, or augmented reality systems should consider viewpoint-conditioned pre-training as a cost-effective strategy to build foundational geometric models. Future technical initiatives should expand pre-training data beyond synthetic indoor environments to real-world multi-view imagery and explore hybrid datasets that balance geometric learning with semantic classification.

Confidence in these findings is high across geometric and spatial transfer tasks, supported by consistent ablation studies on masking ratios, dataset co-visibility, and decoder variants. However, decision-makers should note that the current pre-training relies entirely on synthetic indoor datasets, and the fixed 224-by-224 input resolution limits test performance on large visual displacements and high-resolution inputs.

Naver Labs Europe binoculars camera pose estimation classification CroCo model cross-view completion self-supervised representation learning

arXiv: 2210.10716 naver/croco

Paper: Masked Autoencoders Are Scalable Vision Learners, Kaiming He et al. (2022). It introduces the foundational masked autoencoder (MAE) framework for self-supervised representation learning via masked visual patch reconstruction, which CroCo directly adapts and generalizes to multi-view image pairs.
Paper: SimMIM: a Simple Framework for Masked Image Modeling, Zhenda Xie et al. (2021). It demonstrates that simple masked image modeling using direct raw-pixel regression provides an effective pre-training signal, establishing core design principles underlying masked visual representation learning.
Paper: BEiT: BERT Pre-Training of Image Transformers, Hangbo Bao et al. (2022). It pioneers masked image modeling for Vision Transformers by recovering corrupted visual tokens, setting the stage for self-supervised reconstruction objectives in vision.
Paper: Context Encoders: Feature Learning by Inpainting, Deepak Pathak et al. (2016). It introduces the foundational concept of visual representation learning through inpainting and spatial context completion.
Paper: Contrastive Multiview Coding, Yonglong Tian et al. (2019). It establishes the principle of learning visual representations by contrasting shared information across multiple views of a scene, motivating cross-view self-supervision.
Paper: Unsupervised Monocular Depth Estimation with Left-Right Consistency, Clément Godard et al. (2016). It formalizes cross-view consistency and stereo image reconstruction as effective self-supervised mechanisms for learning geometric scene representations like depth.

Paper: VGGT: Visual Geometry Grounded Transformer, Jianyuan Wang et al. (2025). It builds upon multi-view visual representation concepts by training large-scale transformers to directly predict unified 3D attributes like poses, depth, and dense point clouds across multiple views.
Paper: Zero-1-to-3: Zero-shot One Image to 3D Object, Ruoshi Liu et al. (2023). It explores cross-view geometric synthesis by conditioning generative diffusion models on viewpoint transformations to reconstruct 3D objects from single views.
Paper: SyncDreamer: Generating Multiview-consistent Images from a Single-view Image, Yuan Liu et al. (2024). It extends cross-view feature alignment and geometric conditioning to generate synchronized, multiview-consistent images for 3D reconstruction.
Paper: Depth Anything V2, Lihe Yang et al. (2024). It scales foundational monocular depth estimation representations learned from extensive synthetic and real image distributions, advancing downstream geometric perception.

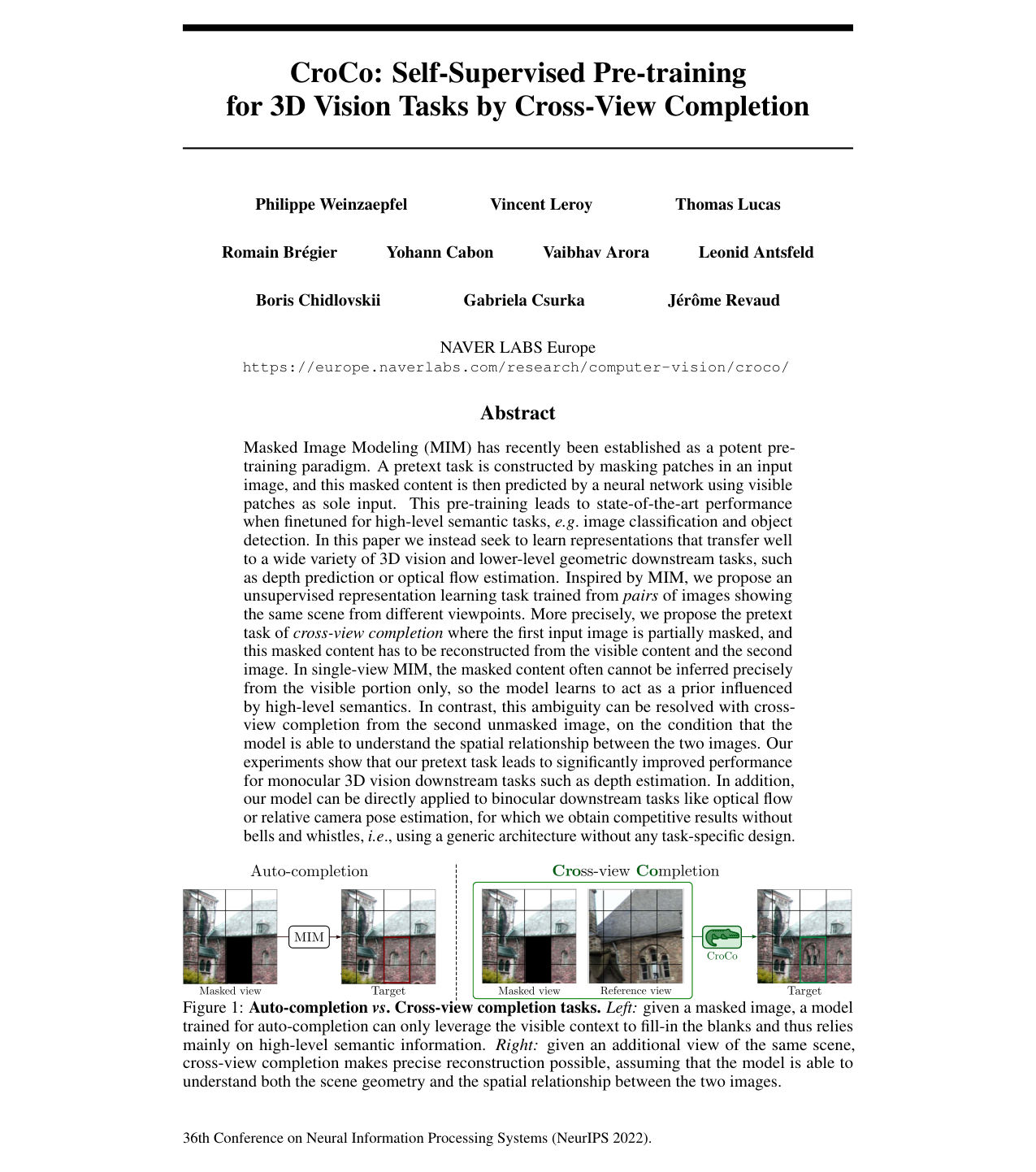

Cover for CroCo: Self-Supervised Pre-training for 3D Vision Tasks by Cross-View Completion

Abstract

Masked Image Modeling (MIM) has recently been established as a potent pre-training paradigm. A pretext task is constructed by masking patches in an input image, and this masked content is then predicted by a neural network using visible patches as sole input. This pre-training leads to state-of-the-art performance when finetuned for high-level semantic tasks, e.g. image classification and object detection. In this paper we instead seek to learn representations that transfer well to a wide variety of 3D vision and lower-level geometric downstream tasks, such as depth prediction or optical flow estimation. Inspired by MIM, we propose an unsupervised representation learning task trained from pairs of images showing the same scene from different viewpoints. More precisely, we propose the pretext task of cross-view completion where the first input image is partially masked, and this masked content has to be reconstructed from the visible content and the second image. In single-view MIM, the masked content often cannot be inferred precisely from the visible portion only, so the model learns to act as a prior influenced by high-level semantics. In contrast, this ambiguity can be resolved with cross-view completion from the second unmasked image, on the condition that the model is able to understand the spatial relationship between the two images. Our experiments show that our pretext task leads to significantly improved performance for monocular 3D vision downstream tasks such as depth estimation. In addition, our model can be directly applied to binocular downstream tasks like optical flow or relative camera pose estimation, for which we obtain competitive results without bells and whistles, i.e., using a generic architecture without any task-specific design.

1 Introduction
2 Related work
3 Cross-view Completion Pre-training
4 Experimental results
4.1 Monocular transfer tasks
4.1.1 Ablations
4.1.2 Comparison to the state of the art
4.2 Applications to binocular tasks
5 Discussion
References
Checklist

Knowls

Knowl 1 — Cross-View Completion (CroCo) Pre-training Architecture and Task
model/method
Cross-view Completion (CroCo) is a self-supervised representation learning framework designed to learn 3D scene geometry and spatial relationships from pairs of unlabeled images showing the same scene from different viewpoints.

Given two views $x_1$ and $x_2$ of a 3D scene, each image is divided into $N$ non-overlapping spatial patches $p_1 = \{p_1^1, \dots, p_1^N\}$ and $p_2 = \{p_2^1, \dots, p_2^N\}$ . A fraction $r \in [0, 1]$ (masking ratio, typically $r = 0.9$ ) of patches from $p_1$ is randomly masked out, leaving visible patches $\tilde{p}_1 = \{p_1^i \mid m_i = 0\}$ , where $m_i \in \{0, 1\}$ is the binary mask indicator for patch $i$ .

A Siamese Vision Transformer (ViT) encoder $E_\theta$ independently extracts token representations from the visible patches of the first image $\tilde{p}_1$ and all patches of the reference image $p_2$ :

$z_1 = E_\theta(\tilde{p}_1), \quad z_2 = E_\theta(p_2)$

A transformer decoder $D_\phi$ takes the encoded visible tokens $z_1$ padded with a learned mask token $e_{\text{mask}}$ at masked patch locations, and conditions on the reference tokens $z_2$ to reconstruct the original first image patches $p_1$ :

$\hat{p}_1 = D_\phi(E_\theta(\tilde{p}_1); E_\theta(p_2))$

To solve this reconstruction task under heavy masking, the network cannot rely solely on monocular semantic priors; it must infer 3D scene geometry and cross-view spatial correspondence between $x_1$ and $x_2$ .
Knowl 2 — CroCo Reconstruction Loss Function
equation
The CroCo self-supervised objective trains the Siamese encoder $E_\theta$ and conditional decoder $D_\phi$ by minimizing the Mean Squared Error (MSE) pixel reconstruction loss computed exclusively over the masked patches $p_1 \setminus \tilde{p}_1$ of the first image:

$\mathcal{L}(x_1, x_2) = \frac{1}{|p_1 \setminus \tilde{p}_1|} \sum_{p_1^i \in p_1 \setminus \tilde{p}_1} \| \hat{p}_1^i - p_1^i \|^2$

where $p_1^i \in \mathbb{R}^{P^2 \times 3}$ is the target RGB pixel vector for the $i$ -th patch (with patch side length $P=16$ , yielding $16 \times 16 \times 3 = 768$ values), and $\hat{p}_1^i$ is the decoder output for patch $i$ .

In normalized-target pre-training, each target ground-truth patch $p_1^i$ is normalized by subtracting its mean pixel value and dividing by its standard deviation across all pixels within that patch before computing the MSE loss.
Knowl 3 — CrossBlock and CatBlock Attention Mechanisms in the CroCo Decoder
model/method
The CroCo decoder combines tokens from the masked input view and the reference view using one of two attention-based block designs:
1. CrossBlock: Uses alternating self-attention and cross-attention. Tokens from the first image (visible tokens plus repeated learned mask tokens $e_{\text{mask}}$ ) undergo multi-head self-attention, followed by multi-head cross-attention where the first image tokens serve as queries and the encoded reference image tokens $E_\theta(p_2)$ serve as keys and values, followed by a Multi-Layer Perceptron (MLP). This avoids computing joint self-attention across all $2N$ tokens, lowering computational complexity (FLOPs) at the expense of additional parameters in the cross-attention layers.
2. CatBlock: Concatenates the $N$ tokens of the first image (visible and masked) with the $N$ tokens of the reference image along the sequence dimension, adding a learned view embedding to differentiate between views. The combined sequence of $2N$ tokens passes through standard transformer blocks (multi-head self-attention over the joint sequence followed by an MLP). Only the $N$ tokens corresponding to the first image are projected to predict patch pixels.

Knowl 4 — Decoder Architecture and Target Normalization Ablation

data/table

Ablations on target normalization and decoder design (using a ViT-Base/16 encoder, 8 decoder blocks, 90% masking ratio, and 400 epochs of pre-training on the Habitat dataset) show that per-patch pixel normalization consistently improves downstream performance across semantic segmentation (ADE20k mIoU), depth estimation (NYUv2 $\delta_1$ accuracy), and the Taskonomy benchmark (average L1 error $\times 1000$ and average rank across 8 tasks).

Normalized	Decoder	ADE20k $\uparrow$	NYUv2 $\uparrow$	Taskonomy $\downarrow$		FLOPs / Params
Target	Block	mIoU	depth ( $\delta_1$ )	avg.	rank	(Encoder + Decoder)
No	CrossBlock	39.0	83.4	34.74	2.50	50.2G / 120M
Yes	CrossBlock	40.6	85.6	33.00	1.63	50.2G / 120M
Yes	CatBlock	41.3	86.2	33.35	1.88	58.5G / 111M

CatBlock achieves slightly higher performance on semantic segmentation and depth estimation at the cost of higher FLOPs (58.5G vs. 50.2G), while CrossBlock achieves better average ranking across Taskonomy dense regression tasks.

Knowl 5 — Optimal Masking Ratio in Cross-View Completion
empirical result
Unlike single-view Masked Image Modeling (e.g., Masked Autoencoders), which typically uses masking ratios around $75\%$ , cross-view completion achieves peak downstream performance across semantic segmentation (ADE20k), monocular depth prediction (NYUv2), and Taskonomy dense prediction tasks at a high masking ratio of $r = 0.90$ ( $90\%$ of patches masked).

Because the reference view provides complementary visual information of the scene, retaining only $10\%$ of visible patches from the target view provides sufficient anchor points to establish correspondence and reconstruct the missing $90\%$ of the image without collapsing the difficulty of the pretext task.

Knowl 6 — Comparison of Pre-training Methods on Monocular 3D and Semantic Downstream Tasks

data/table

Evaluation of ViT-Base/16 pre-trained representations across monocular high-level semantic tasks (ImageNet-1K linear probing, ADE20k semantic segmentation mIoU) and dense 3D/geometric tasks (NYUv2 depth $\delta_1$ accuracy at threshold 1.25, and Taskonomy 8-task L1-loss $\times 1000$ and average rank):

Method	Pre-train Data	IN1K Top-1 $\uparrow$	ADE20k $\uparrow$	NYUv2 $\uparrow$	Taskonomy Avg $\downarrow$	Taskonomy Rank $\downarrow$
DINO	IN1K	78.2	44.7	66.8	39.07	5.00
MAE	IN1K	68.0	46.1	79.6	36.09	2.13
MultiMAE	IN1K	60.2	46.4	83.0	36.17	2.75
MAE	Habitat	32.5	40.3	79.0	35.65	2.88
CroCo	Habitat	37.0	40.6	85.6	33.00	1.25

When pre-trained on identical indoor scene pairs (Habitat), CroCo outperforms single-view MAE by $+6.6\%$ on NYUv2 depth accuracy (85.6 vs 79.0) and achieves the best overall score and average rank (1.25/5) across Taskonomy tasks, outperforming models pre-trained on ImageNet-1K (including MultiMAE, which utilizes multi-modal supervision).

Knowl 7 — Requirement of True Multi-View Pairs vs. 2D Synthetic Transformations
empirical result
Cross-view completion pre-training requires genuine 3D viewpoint variation rather than artificial 2D geometric augmentations.

When CroCo is pre-trained using image pairs generated via 2D synthetic transformations (homographies, rotations, scaling, cropping) applied to single images rather than pairs sampled from two distinct camera viewpoints in 3D scenes, downstream performance degrades drastically after 400 epochs:
- ADE20k semantic segmentation mIoU drops from $38.8$ to $27.0$ .
- NYUv2 depth $\delta_1$ accuracy drops from $86.8$ to $66.1$ .
- Taskonomy average L1 error rises from $33.56$ to $47.81$ (average rank worsens from $1.25$ to $1.75$ ).
When reference images are generated by synthetic 2D transforms, the network solves the completion task by directly fitting the global transformation shortcut without learning underlying 3D scene geometry.

Knowl 8 — Binocular Transfer: Optical Flow Regression with CroCo

empirical result

CroCo transfers directly to binocular optical flow estimation without task-specific 4D cost volumes or complex architectures. The pre-trained encoder and decoder are fine-tuned on 40,000 synthetic image pairs from AutoFlow by changing the output linear projection to regress 2 flow channels $(u, v)$ per pixel under an MSE loss.

Evaluation on the MPI-Sintel dataset training split (average endpoint error, AEPE, where lower is better):

Encoder Init	Decoder Init	Sintel Clean (AEPE) $\downarrow$	Sintel Final (AEPE) $\downarrow$
Random	Random	18.81	18.97
MAE (IN1K)	Random	4.68	5.16
MAE (Habitat)	Random	4.63	5.24
CroCo (Habitat)	CroCo (Habitat)	3.00	3.60

Pre-training both the encoder and decoder with CroCo cross-view completion reduces the optical flow error by approximately $1.6$ pixels compared to initializing only the encoder from an MAE auto-completion model.

Knowl 9 — Binocular Transfer: Relative Camera Pose Regression
model/method
CroCo can be applied to Relative Pose Regression (RPR) between two camera views $(x_1, x_2)$ . A prediction head coupled with a differentiable Procrustes layer is placed on top of the CroCo model to output a rigid transformation $(R, t) \in SO(3) \times \mathbb{R}^3$ , ensuring that $R$ is a mathematically valid rotation matrix.

The network is fine-tuned using the loss:

$\mathcal{L}_{\text{pose}} = \| R - \hat{R} \|_F^2 + \lambda \| t - \hat{t} \|^2$

where $\| \cdot \|_F$ is the Frobenius norm, $(R, t)$ is the predicted transformation, $(\hat{R}, \hat{t})$ is the ground truth relative pose, and $\lambda = 100$ .

On the 7-scenes benchmark (evaluating median translation and rotation errors across test scenes relative to retrieved training images via AP-GeM-18 descriptors), CroCo achieves an average error of $5.0\text{ cm} / 3.46^\circ$ , significantly outperforming a model initialized with MAE (Habitat) ( $24.8\text{ cm} / 13.09^\circ$ ), RelocNet ( $21\text{ cm} / 6.74^\circ$ ), and NC-EssNet ( $21\text{ cm} / 7.50^\circ$ ) without requiring multiple-pose fusion or temporal sequences.
Knowl 10 — CroCo Pre-training Dataset and Implementation Specifications
experimental setup
The pre-training dataset (termed Habitat) comprises 1,821,391 synthetic image pairs generated from 3D indoor meshes of HM3D, ScanNet, Replica, and ReplicaCAD using the Habitat simulator. In each scene, up to 1,000 viewpoint pairs are randomly sampled subject to having a co-visibility ratio greater than $50\%$ .

Pre-training specifications:
- Resolution & Patching: $224 \times 224$ pixels with patch size $16 \times 16$ ( $N=196$ tokens per image).
- Encoder Backbone: ViT-Base/16 (12 transformer blocks, 768 feature dimensions, 12 attention heads).
- Decoder: 8 blocks, 512 feature dimensions, 16 attention heads (interfaced with the encoder via a linear projection layer).
- Optimization: AdamW optimizer, base learning rate $1.5 \times 10^{-4}$ , effective batch size 256, 400 epochs, cosine learning rate schedule with 40 warmup epochs.
Knowl 11 — Limitations of Domain Transfer and Semantic Pre-training in CroCo
limitation
Models pre-trained with CroCo exhibit specific limitations:
1. Semantic Task Degradation: CroCo representations obtain lower classification performance on ImageNet-1K linear probing ( $37.0\%$ ) compared to models pre-trained directly on ImageNet-1K using DINO ( $78.2\%$ ) or MAE ( $68.0\%$ ). This stems primarily from pre-training on indoor scene environments (Habitat) rather than object-centric datasets.
2. Paired Data Requirement: CroCo requires multi-view image pairs observing the same underlying 3D scene with sufficient co-visibility ( $>50\%$ ), limiting its direct application on unorganized, single-image collections unless multi-view pairs are mined via Structure-from-Motion (SfM) or camera pose metadata.
3. Test-Time Resolution for Binocular Displacement: Fine-tuning CroCo on fixed $224 \times 224$ resolutions degrades performance on optical flow displacements exceeding the receptive patch tile bounds.

Coverage note — None was omitted; all key contributions including pretext task design, decoder architectures, pre-training setup, monocular transfer comparisons, binocular downstream evaluations (optical flow and relative pose regression), ablations, and stated limitations are represented.
