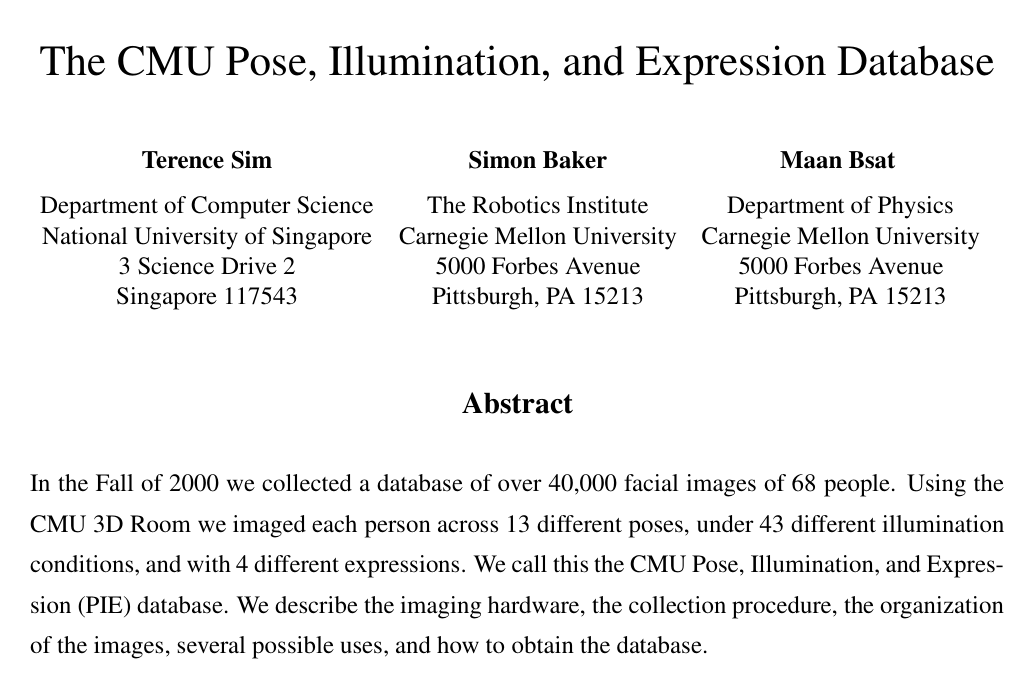

The CMU Pose, Illumination, and Expression Database
Terence SimSimon BakerMaan Bsat
Presents the CMU Pose, Illumination, and Expression database, providing an extensive benchmark of over 40,000 systematically varied facial images across 68 subjects to advance face recognition and 3D modeling research.
Real-world facial recognition and computer vision systems often struggle when faced with variations in viewing angles, lighting conditions, and facial expressions. Developing reliable algorithms requires standardized benchmarks that capture these real-world factors systematically. The article describes the creation, organization, and distribution of the Carnegie Mellon University Pose, Illumination, and Expression database to provide researchers with a controlled, high-volume image dataset.
The authors set out to construct and document an extensive image database capturing dozens of individuals across a wide spectrum of poses, lighting configurations, and facial expressions. The objective was to supply a rigorous benchmark to evaluate and improve face detection, head pose estimation, and recognition algorithms.
To achieve this, the team collected over 40,000 uncompressed color images from 68 individuals over a three-month period in late 2000. They used a specialized synchronized facility equipped with 13 progressive-scan cameras and an electronically controlled system of 21 flash units. Each subject completed an approximately 10-minute session featuring systematically varied viewing angles, lighting conditions both with and without ambient room illumination, and four distinct expressions (neutral, smiling, blinking, and talking).
The key findings center on the characteristics and utility of the collected dataset. First, the setup successfully produced 43 distinct illumination conditions per subject, capturing natural ambient lighting alongside direct flash variations to replicate realistic environments. Second, the 13 fixed camera positions enabled synchronized multi-angle coverage ranging from full left profile to full right profile, supplemented by typical surveillance and vertical angles. Third, the inclusion of precise geometric measurements for cameras and flashes, background reference frames, and subject demographic attributes provides a fully calibrated environment for three-dimensional modeling and algorithmic stress testing.
These results provide a critical foundation for advancing face-processing technologies by exposing algorithm vulnerabilities to common real-world conditions, such as altered lighting or eye closure during alignment. Access to such varied data reduces development risk and enhances algorithmic performance across security, surveillance, and human-computer interaction applications.
The article recommends that researchers utilize the dataset to benchmark pose-invariant detectors, cross-pose recognition systems, and 3D facial reconstruction models. Interested organizations can obtain the 40-gigabyte database by mailing physical storage drives to the researchers. While the dataset offers controlled precision, users should note that the sample size is limited to 68 subjects captured within an indoor laboratory setting, and the uncompressed storage format requires dedicated data handling.
