Overview of the face recognition grand challenge

P. Jonathon PhillipsPatrick J. FlynnW. T. ScruggsKevin W. BowyerJin ChangKevin HoffmanJoe MarquesJaesik MinWilliam J. Worek

article2005CVPR2,789 citations

Establishes the Face Recognition Grand Challenge benchmark with a 50,000-image dataset of 3D scans and high-resolution stills across six experimental protocols to drive an order-of-magnitude reduction in face recognition error rates.

Listen

The article addresses the challenge of substantially improving automatic face recognition performance beyond the levels achieved in the 2002 Face Recognition Vendor Test, where the best systems reached an 80 percent verification rate at a 0.1 percent false accept rate. Advances in computer vision, sensors, and algorithms created an opportunity to reduce error rates by an order of magnitude, yet questions remained about which approaches, such as three-dimensional scans or high-resolution still images, would deliver the gains and how to measure them objectively.

The article set out to establish a standardized challenge problem, data corpus, and evaluation infrastructure that would let researchers develop and compare techniques aimed at reaching a 98 percent verification rate at the same false accept rate.

Researchers collected a corpus of roughly 50,000 images at the University of Notre Dame during the 2002–2004 academic years, including controlled and uncontrolled still images plus three-dimensional scans with registered texture. They divided the data into training and validation partitions and defined six experiments that isolate performance on controlled stills, multiple stills, uncontrolled stills, three-dimensional imagery alone, and cross-modal three-dimensional to two-dimensional matching. A principal-component-analysis baseline was run on the first four experiments to confirm the protocol could be executed and to supply reference scores.

The baseline results showed that fusing four controlled still images produced the strongest verification performance, followed by a single controlled still image, then fused three-dimensional shape and texture channels; recognition from uncontrolled still images remained the most difficult. Increasing the training set size up to roughly 4,000 images improved results before performance plateaued or declined, and the main portion of the eigenvalue spectrum proved stable across different training sizes. Preliminary analysis also indicated that combining a three-dimensional shape channel with a high-quality controlled still image outperformed either modality alone.

These outcomes suggest that high-resolution multi-image still approaches may currently offer the most immediate gains, while three-dimensional methods show promise mainly when query images are uncontrolled or when sensors incorporate better still cameras. Meeting the performance target would likely require changes in image-collection standards, storage, and transmission practices for operational systems.

The next independent evaluation, Face Recognition Vendor Test 2005, will run on sequestered test data to provide an objective measure of progress. Researchers are encouraged to test the five stated conjectures that compare three-dimensional and two-dimensional methods across the six experiments.

The reported baselines rely on a single algorithm family and data collected at one institution, so generalization to other populations or sensors remains uncertain; the article therefore advises caution until the sequestered evaluation and additional statistical studies are completed.

National Institute of Standards and TechnologySAICThe MITRE CorporationUniversity of Notre Damecomputer visioncorrelation analysisface recognition systemsFace Recognition Grand Challenge3D scanhigh‑resolution still image
Phillips et al (2005).pdf
  • Paper: A Morphable Model For The Synthesis Of 3D Faces, Volker Blanz et al. (1999). It introduces foundational 3D morphable face models and analysis-by-synthesis optimization that underpin the 3D face representations and cross-modal matching experiments evaluated in the Face Recognition Grand Challenge.
  • Paper: Face Recognition Based on Fitting a 3D Morphable Model, Volker Blanz et al. (2003). It establishes how 3D morphable models can decouple intrinsic facial identity from illumination and viewpoint, providing the conceptual and methodological framework for the 3D-to-2D face matching evaluated in the challenge.
  • Paper: Eigenfaces vs. Fisherfaces: Recognition Using Class Specific Linear Projection, Peter N. Belhumeur et al. (1996). It establishes the classic linear subspace and projection frameworks (Eigenfaces and Fisherfaces) that serve as the baseline methodology and historical reference points in the Face Recognition Grand Challenge.
  • Paper: Active Appearance Models, Timothy F. Cootes et al. (1998). It presents Active Appearance Models combining statistical shape and texture representations, which directly influenced the multi-channel 2D and 3D facial feature modeling utilized in the grand challenge.
  • Paper: Two-dimensional PCA: a new approach to appearance-based face representation and recognition, Jian Yang et al. (2004). It introduces two-dimensional principal component analysis for appearance-based face recognition, establishing important foundational linear subspace theory directly relevant to the PCA baselines evaluated across the challenge experiments.
  • Paper: On Combining Classifiers, Josef Kittler et al. (1998). It provides the foundational Bayesian theory and decision rules for multi-modal classifier combination that motivate the multi-image and cross-channel fusion experiments tested in the grand challenge.
  • Paper: Face Recognition: Features Versus Templates, R. Brunelli et al. (1993). It provides fundamental empirical analysis on principal-component template matching versus feature-based face recognition that directly informs the PCA baseline protocols developed in the challenge.

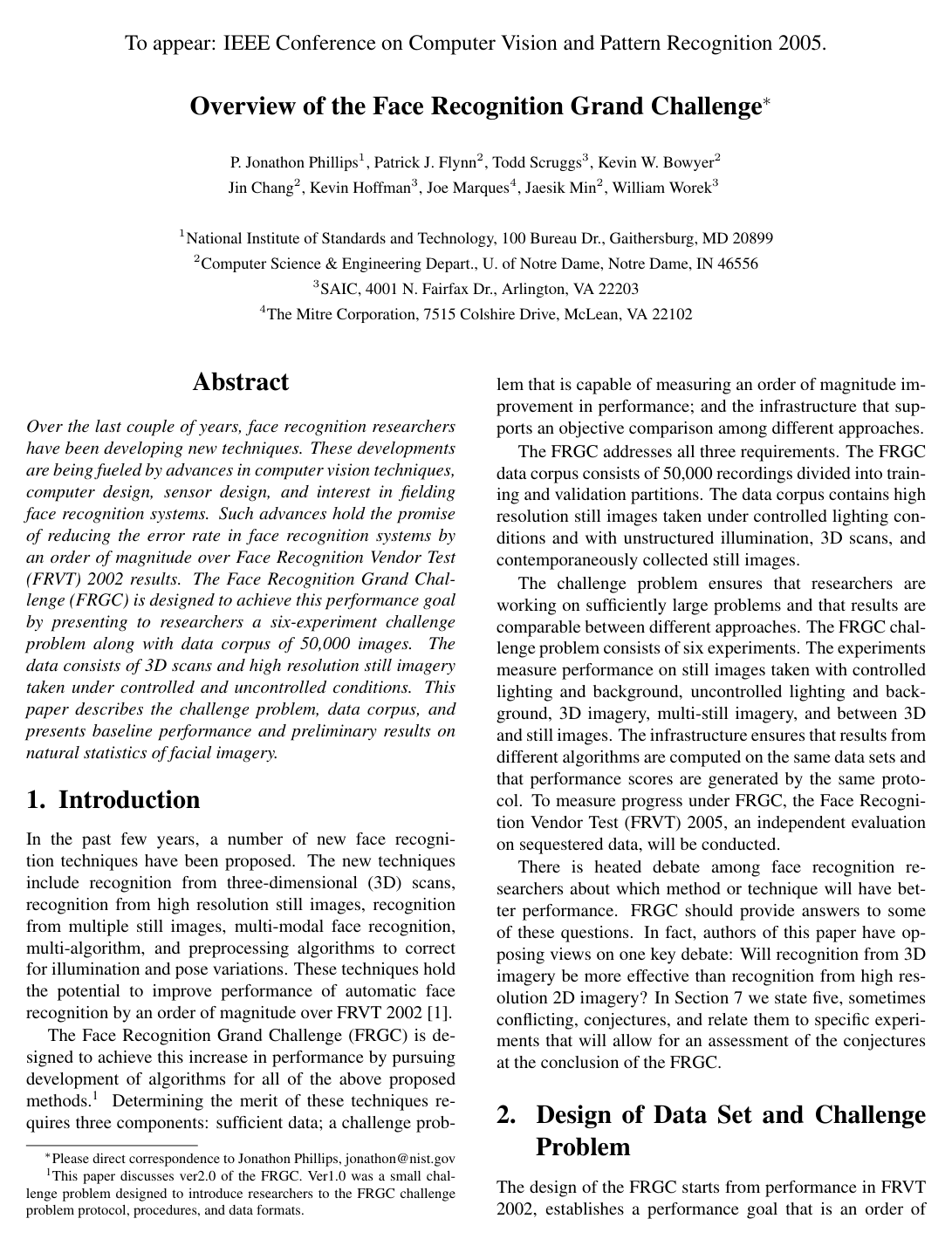

Cover for Overview of the face recognition grand challenge

Abstract

Over the last couple of years, face recognition researchers have been developing new techniques. These developments are being fueled by advances in computer vision techniques, computer design, sensor design, and interest in fielding face recognition systems. Such advances hold the promise of reducing the error rate in face recognition systems by an order of magnitude over Face Recognition Vendor Test (FRVT) 2002 results. The Face Recognition Grand Challenge (FRGC) is designed to achieve this performance goal by presenting to researchers a six-experiment challenge problem along with data corpus of 50,000 images. The data consists of 3D scans and high resolution still imagery taken under controlled and uncontrolled conditions. This paper describes the challenge problem, data corpus, and presents baseline performance and preliminary results on natural statistics of facial imagery.

Topics

computer visioncorrelation analysisface recognition systemsfacial imagessensorsrecognition algorithmface identificationfrontal facescharacter recognition

Keywords

Face Recognition Grand Challenge3D scanhigh‑resolution still imageverification ratefalse accept ratePCA‑based algorithmtraining set sizeexperimentconjecturemulti‑modal biometric

Table of Contents

  • 1. Introduction
  • 2. Design of Data Set and Challenge Problem
  • 3. Description of Data Set
  • 4. Description of Experiments
  • 5. Baseline Performance
  • 6. Facial Image Statistics
  • 7. Conclusions and Conjectures
  • Acknowledgments
  • References

Knowls

  1. Knowl 1 — FRGC Performance Benchmark Goal and Statistical Sizing Methodology

    experimental setup

    The Face Recognition Grand Challenge (FRGC) is designed to drive an order-of-magnitude reduction in automatic face recognition error rates relative to the Face Recognition Vendor Test (FRVT) 2002 baseline.

    The benchmark reference performance established in the FRVT 2002 High Computational Intensity (HCInt) protocol under controlled indoor illumination is a verification rate (VR) of 80%80\% (a verification error rate of 20%20\%) at a fixed false accept rate (FAR) of 0.1%0.1\%. An order-of-magnitude improvement is defined as achieving a verification rate of 98%98\% (a verification error rate of 2%2\%) at the same fixed FAR of 0.1%0.1\%.

    To statistically validate an error rate of 2%2\%, the data collection protocol must supply a sufficient number of genuine matching pairs. While non-match score counts scale quadratically with dataset size (O(N2)O(N^2)), match score counts scale linearly (O(N)O(N)). At a 98%98\% verification rate, an error occurs on average once every 50 match comparisons. In order to observe approximately 1,000 verification errors at target performance to support robust statistical significance testing, the challenge requires at least 50,000 match scores. This requirement is met by collecting longitudinal data from approximately 200 subjects imaged weekly over an academic year.

  2. Knowl 2 — FRGC ver2.0 Dataset Structure and Demographics

    data/table

    The FRGC ver2.0 data corpus consists of multimodal biometric acquisitions partitioned into training, validation, and sequestered test sets. Each subject session records:

    1. Four controlled still images: full frontal studio captures under two studio lighting configurations (two or three studio lights) with two facial expressions (smiling and neutral), captured using a 4 Megapixel Canon PowerShot G2 (1704×22721704 \times 2272 or 1200×16001200 \times 1600 pixels, JPEG format, 1.2 to 3.1 MB).
    2. Two uncontrolled still images: frontal captures taken in variable ambient lighting environments (e.g., hallways, atria, or outdoor locations) with smiling and neutral expressions.
    3. One 3D scan: range and registered color texture captured via a Minolta Vivid 900/910 structured light sensor (640×480640 \times 480 range sampling) with the subject seated or standing at approximately 1.5 meters.

    Face resolution in the validation set is characterized by the inter-pupillary distance (distance between eye centers):

    Category Mean (pixels) Median (pixels) Std. Dev. (pixels)
    Controlled Stills 261 260 19
    Uncontrolled Stills 144 143 14
    3D Scans 160 162 15

    (For reference, the FERET database has an average eye distance of 68±8.768 \pm 8.7 pixels).

    The data is divided as follows:

    • Training Partition (2002–2003): Distributed as a Large Still Training Set (12,776 images from 222 subjects; 6,388 controlled and 6,388 uncontrolled stills; 9 to 16 sessions per subject, mode 16) and a 3D Training Set (3D scans, controlled stills, and uncontrolled stills from 943 subject sessions).
    • Validation Partition (2003–2004): 466 subjects across 4,007 subject sessions (1 to 22 replicate sessions per subject). Demographics: 57%57\% male, 43%43\% female; 65%65\% age 18–22, 18%18\% age 23–27, 17%17\% age 28+; 68%68\% White, 22%22\% Asian, 10%10\% Other.
    • Testing Partition: Sequestered for independent third-party evaluations (FRVT 2005).

  3. Knowl 3 — FRGC ver2.0 Challenge Experiments Specification

    data/table

    FRGC ver2.0 defines six distinct challenge experiments to systematically test 2D, 3D, multi-image, and cross-modal face recognition across controlled and uncontrolled conditions:

    • Experiment 1: Single controlled high-resolution still target vs. single controlled high-resolution still query.
    • Experiment 2: Multi-still target (all 4 controlled stills from a session) vs. multi-still query (all 4 controlled stills from a session).
    • Experiment 3: 3D target (range shape and texture) vs. 3D query.
    • Experiment 4: Single controlled still target vs. single uncontrolled still query.
    • Experiment 5: 3D target vs. single controlled still query.
    • Experiment 6: 3D target vs. single uncontrolled still query.
    Experiment Training Set Size (Still / 3D) Target Set Size Query Set Size Similarity Scores (Millions)
    1 12,776 / – 16,028 16,028 257
    2 12,776 / – 4,007 4,007 16
    3 – / 943 4,007 4,007 16
    4 12,776 / – 16,028 8,014 128
    5 3,772 / 943 4,007 16,028 64
    6 1,886 / 943 4,007 8,014 32

  4. Knowl 4 — PCA Baseline Face Recognition and Biometric Fusion Algorithm

    algorithm

    The standard baseline evaluation for FRGC employs Principal Component Analysis (PCA) with projection space whitening and nearest-neighbor classification using cosine similarity.

    1. Preprocessing: Facial images undergo geometric normalization based on annotated eye coordinates, non-face region masking, histogram equalization, and pixel intensity normalization to mean zero and unit variance.
    2. Subspace Training: PCA is trained on a designated subset (e.g., 2,048 images from the training set), retaining the top 60%60\% of eigenfeatures (1,228 components). The feature space is whitened by scaling by the inverse standard deviation of each principal component.
    3. Pairwise Similarity: The similarity score between two whitened feature vectors u\mathbf{u} and v\mathbf{v} is the cosine of the angle between them: sim(u,v)=u⋅v∥u∥2∥v∥2\text{sim}(\mathbf{u}, \mathbf{v}) = \frac{\mathbf{u} \cdot \mathbf{v}}{\|\mathbf{u}\|_2 \|\mathbf{v}\|_2}
    4. Multi-Sample Score Fusion: When comparing two biometric samples TT and QQ each comprising multiple images (such as K=4K=4 controlled stills in Experiment 2), all K×MK \times M pairwise similarity scores are computed and averaged: Sim(T,Q)=1∣T∣⋅∣Q∣∑i=1∣T∣∑j=1∣Q∣sim(ti,qj)\text{Sim}(T, Q) = \frac{1}{|T| \cdot |Q|} \sum_{i=1}^{|T|} \sum_{j=1}^{|Q|} \text{sim}(\mathbf{t}_i, \mathbf{q}_j)
    5. 3D Multimodal Fusion: For 3D scans, PCA is performed separately on the range shape channel and the color texture channel (or studio still), and the resulting distance/similarity metrics are fused.
    Input: Whitened target sample set T={t1,…,tK}T = \{\mathbf{t}_1, \dots, \mathbf{t}_K\}, whitened query sample set Q={q1,…,qM}Q = \{\mathbf{q}_1, \dots, \mathbf{q}_M\}
    Output: Scalar similarity score SS
    function CosineSimilarity(u\mathbf{u}, v\mathbf{v})
        return (u⋅v\mathbf{u} \cdot \mathbf{v}) / (∣∣u∣∣2⋅∣∣v∣∣2||\mathbf{u}||_2 \cdot ||\mathbf{v}||_2)
    end function
    total=0.0total = 0.0
    for each ti\mathbf{t}_i in TT do
        for each qj\mathbf{q}_j in QQ do
            total=total+CosineSimilarity(ti,qj)total = total + \text{CosineSimilarity}(\mathbf{t}_i, \mathbf{q}_j)
        end for
    end for
    S=total/(K⋅M)S = total / (K \cdot M)
    return SS

  5. Knowl 5 — Baseline Verification Performance Across Modalities and Illumination Conditions

    empirical result

    Baseline verification performance evaluated using Receiver Operating Characteristic (ROC) curve III (target images acquired in the Fall semester matched against query images acquired in the Spring semester, spanning an elapsed time of 2 to 10 months) reveals clear performance stratification across modalities at FAR=0.1%\text{FAR} = 0.1\%:

    1. Multi-still controlled capture (Experiment 2) achieves the highest baseline verification rate, demonstrating that averaging features/scores across 4 controlled still images substantially improves recognition accuracy.
    2. Single controlled still capture (Experiment 1) achieves the second highest verification performance.
    3. Fused 3D shape and texture (Experiment 3) ranks third, below controlled 2D stills.
    4. Uncontrolled still queries against controlled targets (Experiment 4) yields by far the lowest verification rate, highlighting that unstructured illumination remains the most severe challenge for automated 2D face recognition.

  6. Knowl 6 — Baseline Verification Performance Breakdown Across 3D and 2D Sensor Configurations

    empirical result

    An ablation of 3D baseline matching in Experiment 3 comparing five sensor and channel configurations yields the following ranking in verification rate at FAR=0.1%\text{FAR} = 0.1\%:

    3D Shape fused with 2D Controlled Still>2D Controlled Still Alone>3D Shape fused with 3D Texture>3D Shape Alone>3D Texture Alone\text{3D Shape fused with 2D Controlled Still} > \text{2D Controlled Still Alone} > \text{3D Shape fused with 3D Texture} > \text{3D Shape Alone} > \text{3D Texture Alone}

    Key observations:

    • Fusing 3D shape with a separate high-resolution controlled studio still outperforms both the controlled still alone and the native 3D scanner output (shape + texture).
    • The sensor-native texture channel performs worse than the 3D shape channel, and both perform worse than a standalone controlled 2D studio photograph. This performance gap is attributed to the range sensor's lower optical quality and subject motion occurring during the sequential delay between shape and texture acquisition.
    • Equipping 3D range sensors with higher-quality optical still cameras and matched illumination offers substantial recognition performance gains.

  7. Knowl 7 — Stability and 1/f Power-Law Spectrum of Facial Principal Component Variances

    empirical result

    Analysis of the eigenspectrum computed for training sets of size N∈{512,1024,2048,4096,8192}N \in \{512, 1024, 2048, 4096, 8192\} sampled from the FRGC large still dataset demonstrates structural stability in facial image statistics:

    1. Variance Stability: Across low- to mid-order eigenvalue ranks, the eigenspectra for all five training set sizes overlap almost perfectly on a logarithmic scale, proving that facespace variance estimates along principal components are invariant to training sample size above small thresholds.
    2. Power-Law Decay: The main region of the eigenspectrum exhibits a linear slope on log-log axes, indicating an approximate 1/f1/f relationship between eigenvalue variance λk\lambda_k and eigen-index kk: λk∝k−αwhere α≈1\lambda_k \propto k^{-\alpha} \quad \text{where } \alpha \approx 1 This mirrors the power-law spectral behavior observed in the natural scene statistics literature.
    3. High-Order Tails: Each spectrum displays a sharp downward drop-off in high-order eigenvalues. The location of this tail shifts to higher component indices proportionally as the training sample size NN increases.

  8. Knowl 8 — Bimodal Distribution of the First Principal Component Coefficient in Facial Imagery

    empirical result

    Empirical probability density estimations of facial image projections onto individual eigenfeatures across varying training set sizes (N∈{512,1024,2048,4096,8192}N \in \{512, 1024, 2048, 4096, 8192\}) reveal:

    • The coefficient distribution for the first eigenfeature (1st principal component) is distinctly bimodal across all training set sizes.
    • The coefficient distributions for higher-order eigenfeatures (e.g., the 5th principal component) are unimodal and bell-shaped, maintaining consistent density profiles across all training sample sizes.

    This finding demonstrates that the common assumption in PCA-based recognition that face distributions follow a unimodal multivariate Gaussian distribution in projection space is violated along the primary axis of facial variation.

  9. Knowl 9 — Effect of Training Set Size and Retained Eigenfeatures on Face Verification Performance

    empirical result

    Evaluating baseline PCA verification rate at FAR=0.1%\text{FAR} = 0.1\% on Experiment 1 as a function of the number of retained eigenfeatures nn across training set sizes N∈{512,1024,2048,4096,8192}N \in \{512, 1024, 2048, 4096, 8192\} establishes:

    1. Performance Scaling with Sample Size: Verification rate increases markedly when increasing training set size from N=512N = 512 up to N=2048N = 2048 and N=4096N = 4096. However, increasing further to N=8192N = 8192 results in a slight drop in peak verification performance.
    2. Subspace Dimension Robustness: For intermediate-to-large training sets (N=2048,4096N = 2048, 4096), verification performance forms a broad, stable plateau over a wide range of retained eigenfeatures (e.g., between ~500 and ~1,500 components), indicating that exact cutoff selection is not critical within this regime.
    3. Tail Component Degradation: For all training set sizes, retaining the full set of eigenfeatures causes verification performance to collapse toward zero due to the inclusion of noisy high-order components.
    4. Small-Sample Bias: The N=512N = 512 training set (comparable to the FERET Sep96 protocol) exhibits an early, sharp peak followed by rapid degradation, demonstrating that small training sets produce unrepresentative performance curves and misleading conclusions about optimal subspace dimensionality.

  10. Knowl 10 — The Five FRGC Conjectures on 2D, 3D, and Multimodal Face Recognition

    definition

    FRGC frames the core research debates in automated face recognition into five testable conjectures linked to specific challenge experiments:

    • Conjecture I (Bowyer's): The shape channel of one 3D image is more powerful for face recognition than one 2D image.
      • Criterion I-A: Exp 3 (shape only) >> Exp 3 (texture only).
      • Criterion I-B: Exp 3 (shape only) >> Exp 1 (images scaled to 90 pixels inter-pupillary distance; ISO SC-37 standard).
      • Criterion I-C: Exp 3 (shape and texture) >> Exp 1 (scaled to 90 pixels inter-pupillary distance).
      • Criterion I-D: Exp 3 (shape only) >> Exp 1 (original high resolution).
      • Criterion I-E: Exp 3 (shape and texture) >> Exp 1 (original high resolution).
    • Conjecture II (Phillips'): One high-resolution 2D image is more powerful for face recognition than one 3D image (defined as the opposite of Criteria I-D and I-E).
    • Conjecture III: Using 4 or 5 well-chosen 2D still images is more powerful for recognition than one 3D face image or one multimodal 3D+2D fusion.
      • Criterion III-A: Exp 2 >> Exp 3 (shape and texture).
      • Criterion III-B: Exp 2 >> Exp 3 (shape only).
    • Conjecture IV: The most promising application of 3D is matching enrolled 3D biometric models against uncontrolled 2D query stills.
      • Criterion IV-A: Exp 6 >> Exp 4.
    • Conjecture V: Solutions to the FRGC will compel a fundamental redesign of operational face recognition systems, shifting away from single, low-resolution compressed stills (60–90 pixels between eyes, ~10 KB) toward 3D facial scans, multi-still biometric samples, or high-resolution imagery.

Coverage note — None was omitted. All contributed aspects of FRGC ver2.0—including benchmark design targets, corpus composition, the six challenge experiments, baseline algorithms, empirical performance comparisons, natural statistics of facial images, and the five research conjectures—are fully represented.

References

  1. 1.P.J. Phillips, P.J. Grother, R.J. Micheals, D.M. Blackburn, E. Tabassi, and J.M. Bone, “Face recognition vendor test 2002: Evaluation report”, Tech. Rep. NISTIR 6965, National Institute of Standards and Technology, 2003, http://www.frvt.org.
  2. 2.Kyong I. Chang, Kevin W. Bowyer, and Patrick J. Flynn, “An evaluation of multi-modal 2d+3d face biometrics”, IEEE Trans. PAMI, vol. 27, no. 4, pp. 619–624, 2005.
  3. 3.P.J. Grother, “Face recognition vendor test 2002: Supplemental report”, Tech. Rep. NISTIR 7083, National Institute of Standards and Technology, 2004, http://www.frvt.org.
  4. 4.M. Turk and A. Pentland, “Eigenfaces for recognition”, J. Cognitive Neuroscience, vol. 3, no. 1, pp. 71–86, 1991.
  5. 5.H. Moon and P. J. Phillips, “Computational and performance aspects of PCA-based face-recognition algorithms”, Perception, vol. 30, pp. 303–321, 2001.
  6. 6.J. R. Beveridge, D. Bolme, B. A. Draper, and M. Teixera, “The CSU face identification evaluation system”, Machine Vision and Applications, 2004.
  7. 7.D. L. Ruderman, “The statistics of natural images”, Network: Computation in Neural Systems, vol. 5, pp. 517–548, 1994.
