Ensemble Tracking

S. Avidan

article2005TPAMI1,590 citations

Proposes a visual tracking framework that treats tracking as an online binary classification problem by combining AdaBoost and mean-shift optimization to adaptively distinguish target objects from complex backgrounds across video frames.

Listen

Visual tracking is essential for applications such as automated surveillance, driver assistance systems, and human-computer interfaces. However, conventional tracking algorithms often fail when target objects encounter complex visual conditions, changing backgrounds, or appearance variations. Many traditional systems focus exclusively on modeling the tracked object rather than separating it from its immediate background, leading to tracking loss when colors or textures overlap.

The article demonstrates an online tracking framework called ensemble tracking, which frames the tracking task as an active binary classification problem to continually distinguish foreground objects from changing background environments. Rather than relying on a static object representation, the approach evaluates how combining multiple simple models in real time improves tracking robustness under dynamic real-world conditions.

The framework trains a collection of simple classifiers on individual video frames to label pixels as either object or background. An adaptive boosting procedure combines these simple models into a single weighted classifier that generates a spatial confidence map for subsequent frames. A mode-seeking search algorithm identifies the confidence peak to locate the object's new position. The tracker continuously adapts by discarding the oldest weak classifier, updating the weights of remaining models, and learning a new classifier from the most recent frame. Testing evaluated this framework across several real-world video sequences—including moving cameras, pedestrians crossing in front of similarly colored backgrounds, out-of-plane facial rotations, and a 225-frame grayscale vehicle sequence—using multi-scale image processing and pixel-level color and edge orientation features.

The evaluation produced four key operational findings. First, continuous online model updating is necessary to maintain target lock; a static baseline model lost track of its target by frame 30, whereas the adaptive tracker followed the target successfully through the entire sequence. Second, the system dynamically shifts feature emphasis as conditions change, automatically relying more heavily on edge orientations when the target and background share identical colors. Third, the framework operates effectively on high-dimensional feature spaces and low-information grayscale footage where conventional color-histogram trackers struggle. Fourth, incorporating an outlier rejection mechanism successfully cleans noisy training labels caused by rectangular bounding boxes, producing clearer confidence maps and preventing tracking drift.

These findings indicate that treating tracking as an ongoing classification problem delivers stable, high-performance tracking without requiring complex offline training or static camera setups. By breaking computation into sequential, lightweight learning tasks, the method achieves adaptability at low computational cost, significantly mitigating risks related to false detections, lighting shifts, and partial occlusions in automated vision systems.

Organizations developing computer vision systems should adopt this ensemble-based framework to enhance tracking reliability in environments with mobile cameras or visually confusing backgrounds. Further work should explore porting the prototype implementation from development environments to optimized production code to achieve higher processing frame rates, as well as integrating predefined domain-specific detectors as permanent classifiers within the ensemble.

Confidence in these findings is high for the evaluated video sequences and feature sets. However, readers should note that the current implementation requires manual target initialization in the first frame and currently operates at a few frames per second in a development environment, meaning additional optimization is necessary before deployment in hard real-time systems.

Mitsubishi Electric Research Laboratories binary classification problems mean shift weak classifiers ensemble tracking visual tracking weak classifiers

Avidan (2005).pdf

Paper: Kernel-Based Object Tracking, Dorin Comaniciu et al. (2003). It introduces real-time kernel-based mode-seeking tracking via mean shift, establishing the foundation for the confidence-map peak localization used in Ensemble Tracking.
Paper: CONDENSATION—Conditional Density Propagation for Visual Tracking, MICHAEL ISARD et al. (1998). It presents foundational probabilistic tracking under clutter, motivating the need for robust online models that separate foreground from background.
Paper: Learning Patterns of Activity Using Real-Time Tracking, Chris Stauffer et al. (2000). It provides the conceptual foundation for online background-foreground modeling and adaptive real-time visual tracking.
Paper: Non-parametric Model for Background Subtraction, Ahmed Elgammal et al. (2000). It introduces non-parametric statistical modeling to separate dynamic targets from complex backgrounds in video streams.
Paper: Active Appearance Models Revisited, Iain Matthews et al. (2004). It formalizes efficient visual model fitting and gradient descent alignment algorithms used in dynamic appearance modeling.

Paper: Incremental Learning for Robust Visual Tracking, David A. Ross et al. (2008). It extends online adaptive appearance modeling for visual tracking by introducing incremental subspace learning with forgetting factors to handle severe appearance shifts.
Paper: Robust Object Tracking with Online Multiple Instance Learning, Boris Babenko et al. (2011). It advances online discriminative tracking-by-detection by addressing bounding-box label noise through multiple instance learning.
Paper: Tracking-Learning-Detection, Zdenek Kalal et al. (2012). It builds on the tracking-by-detection paradigm by decomposing long-term tracking into simultaneous tracking, learning, and detection to recover from full object disappearances.
Paper: Exploiting the Circulant Structure of Tracking-by-Detection with Kernels, João F. Henriques et al. (2012). It advances discriminative tracking-by-detection by exploiting circulant matrix structures in the Fourier domain to achieve dense subwindow classification in real time.
Paper: High-Speed Tracking with Kernelized Correlation Filters, João F. Henriques et al. (2014). It extends fast discriminative tracking via kernelized correlation filters over multi-channel feature representations.
Paper: Staple: Complementary Learners for Real-Time Tracking, Luca Bertinetto et al. (2015). It expands the ensemble idea of combining complementary visual cues by integrating spatial correlation templates and pixel-wise color histogram learners into a real-time tracker.
Paper: Object Tracking Benchmark, Yi Wu et al. (2015). It establishes a standardized benchmark to rigorously evaluate and compare online single-target tracking algorithms, including discriminative tracking-by-detection approaches.
Paper: Learning Multi-domain Convolutional Neural Networks for Visual Tracking, Hyeonseob Nam et al. (2016). It extends online discriminative visual tracking into the deep learning era using multi-domain convolutional networks that adapt online to sequence-specific targets.
Paper: Fully-Convolutional Siamese Networks for Object Tracking, Luca Bertinetto et al. (2016). It rethinks the online adaptation requirement by demonstrating that offline-trained fully convolutional Siamese architectures can achieve high-speed visual tracking without per-frame model updates.

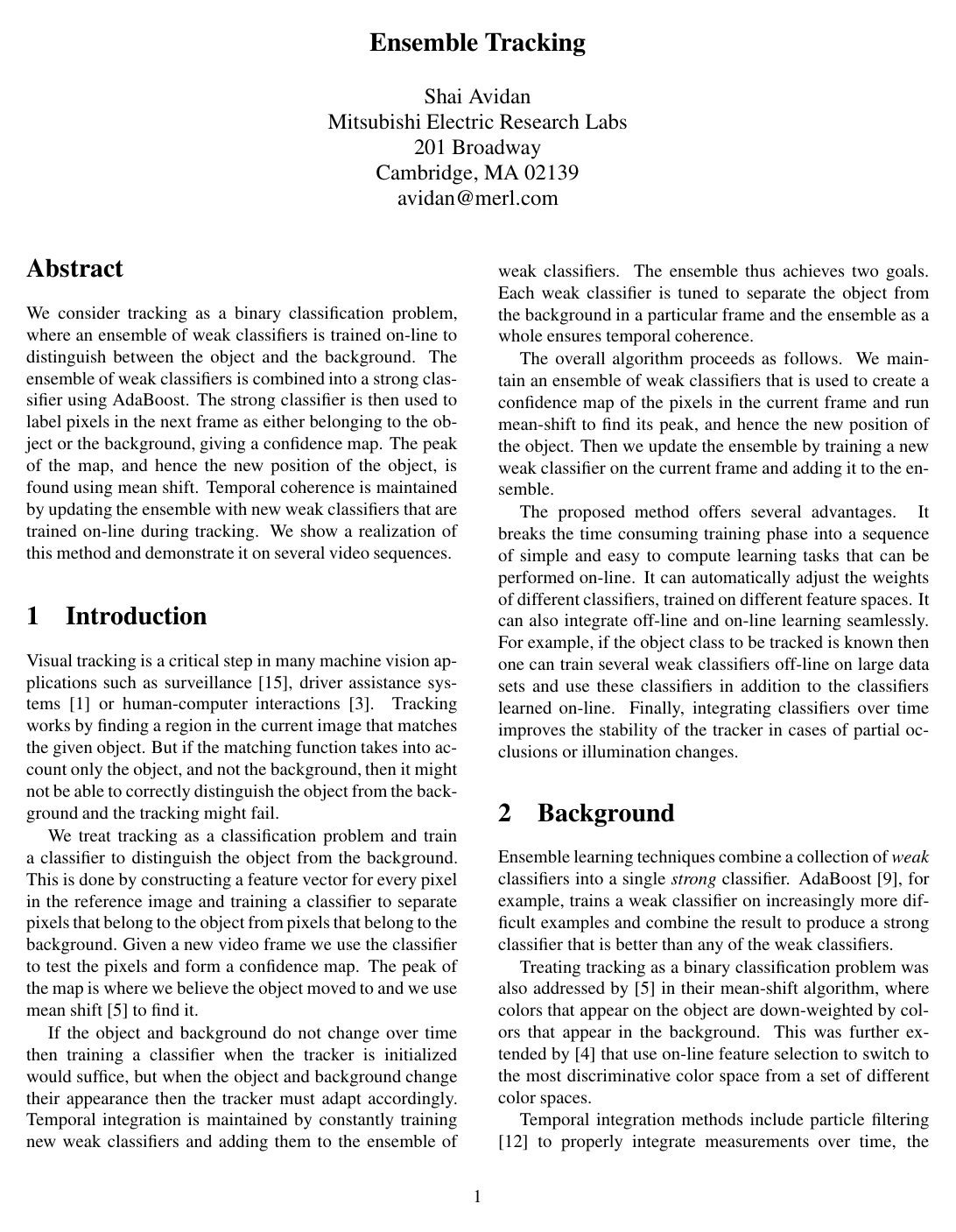

Abstract

We consider tracking as a binary classification problem, where an ensemble of weak classifiers is trained on-line to distinguish between the object and the background. The ensemble of weak classifiers is combined into a strong classifier using AdaBoost. The strong classifier is then used to label pixels in the next frame as either belonging to the object or the background, giving a confidence map. The peak of the map, and hence the new position of the object, is found using mean shift. Temporal coherence is maintained by updating the ensemble with new weak classifiers that are trained on-line during tracking. We show a realization of this method and demonstrate it on several video sequences.

Topics

binary classification problems mean shift weak classifiers ensemble classifiers svm

Keywords

ensemble tracking visual tracking weak classifiers classifier update strong classifier confidence maps local orientation histogram outlier rejection process binary classification temporal coherence

1 Introduction
2 Background
3 Ensemble Tracking
3.1 The weak classifier
3.2 Ensemble update
3.3 Outlier rejection
3.4 Multi-resolution tracking
4 Experiments
5 Conclusions
References

Knowls

Knowl 1 — Online Ensemble Tracking via AdaBoost and Mean Shift
algorithm
Ensemble Tracking treats visual tracking as an online binary classification problem that discriminates foreground object pixels ( $y = +1$ ) from surrounding background pixels ( $y = -1$ ). The tracker maintains an ensemble of $T$ weak linear classifiers combined into a strong classifier $H(x) = \sum_{t=1}^T \alpha_t h_t(x)$ . At each video frame, pixel classifications form a confidence map whose spatial peak is located using mean shift. Temporal adaptation is achieved by discarding the $K$ oldest weak classifiers, updating the weights $\alpha_t$ of the remaining $T-K$ classifiers, and training $K$ new weak classifiers using the AdaBoost sample weight distribution.
Input: Video frames $I_1, \dots, I_n$ ; initial bounding rectangle $r_1$
Output: Object bounding rectangles $r_2, \dots, r_n$
Initialization (for frame $I_1$ ):
  Extract pixel feature vectors and labels $\{x_i, y_i\}_{i=1}^N$ from $I_1$ using $r_1$
  Initialize sample weights $w_i \leftarrow \frac{1}{N}$ for all $i \in \{1, \dots, N\}$
  for $t = 1$ to $T$ do
    Normalize sample weights: $w_i \leftarrow \frac{w_i}{\sum_{j=1}^N w_j}$
    Train weak classifier $h_t(x) \in \{-1, +1\}$
    Compute classification error $\text{err}_t = \sum_{i=1}^N w_i \cdot \mathbb{I}(h_t(x_i) \ne y_i)$
    Compute classifier weight $\alpha_t = \frac{1}{2} \ln\left(\frac{1 - \text{err}_t}{\text{err}_t}\right)$
    Update sample weights: $w_i \leftarrow w_i \exp(\alpha_t \cdot \mathbb{I}(h_t(x_i) \ne y_i))$
  end for
  Form strong classifier $H(x) = \sum_{t=1}^T \alpha_t h_t(x)$
Tracking loop (for each frame $I_j$ , $j = 2, \dots, n$ ):
  Extract pixel feature vectors $\{x_i\}_{i=1}^N$ over the search window in $I_j$
  Evaluate $H(x_i)$ to compute confidence map $L_j$
  Run mean shift on $L_j$ initialized at $r_{j-1}$ to find mode rectangle $r_j$
  Assign labels $y_i = +1$ for pixels inside $r_j$ and $y_i = -1$ outside
  Remove the $K$ oldest weak classifiers from the ensemble
  Reset sample weights $w_i \leftarrow \frac{1}{N}$
  for $l = K+1$ to $T$ do
    Normalize sample weights: $w_i \leftarrow \frac{w_i}{\sum_{k=1}^N w_k}$
    Select $h_t(x)$ from remaining classifiers that minimizes error $\text{err}$
    Update $\alpha_t$ and sample weights $\{w_i\}_{i=1}^N$
    Remove selected $h_t(x)$ from pool of unweighted existing classifiers
  end for
  for $t = 1$ to $K$ do
    Normalize sample weights: $w_i \leftarrow \frac{w_i}{\sum_{k=1}^N w_k}$
    Train new weak classifier $h_t(x)$ on current frame data
    Compute error $\text{err}_t$ and weight $\alpha_t$
    if $\text{err}_t \ge 0.4$ then
      Abort training new weak classifier for this step
    end if
    Update sample weights $\{w_i\}_{i=1}^N$
  end for
  Update strong classifier $H(x) = \sum_{t=1}^T \alpha_t h_t(x)$
In typical implementations, $K = 1$ weak classifier is added and removed per frame, and $T = 5$ weak classifiers are retained in the temporal ensemble.
Knowl 2 — Pixel Feature Representation and Least-Squares Weak Classifier
model/method
Each pixel in an image is represented as a $d$ -dimensional feature vector $x \in \mathbb{R}^d$ capturing local appearance and geometry:
1. Color Sequences ( $d=11$ ): An 11-dimensional feature vector consisting of an 8-bin local orientation histogram computed over a $5 \times 5$ pixel neighborhood around the pixel, concatenated with the 3 color channels ( $R, G, B$ ). To ensure robustness against noise, only gradient edges with intensity differences greater than or equal to a threshold of 10 intensity levels are counted in the histogram.
2. Grayscale Sequences ( $d=9$ ): A 9-dimensional feature vector consisting of the 8-bin local orientation histogram (with gradient threshold 10 over a $5 \times 5$ window) concatenated with the single grayscale intensity value.
The weak learner trains a linear binary classifier $h(x): \mathbb{R}^d \to \{-1, +1\}$ using a least-squares formulation on weighted positive (object) and negative (background) pixel samples. While least-squares classifiers require slightly more computation than color histograms, they scale efficiently to high dimensions ( $d=9$ or $d=11$ ). Combining these classifiers with spatial mean shift enables indirect mean shift optimization over high-dimensional feature spaces.
Knowl 3 — Confidence-Weight-Based Outlier Rejection for Online Labeling
model/method
Because object bounding rectangles generally enclose non-rectangular objects, some background pixels are located inside the positive bounding box. AdaBoost is sensitive to such label noise and places disproportionately large weights on difficult or mislabeled pixels. To prevent these outliers from corrupting subsequent weak learners, an outlier rejection rule is applied during label assignment:

$y_i = \begin{cases} +1 & \text{if } \text{inside}(r_j, p_i) \land \left(w_i < \frac{3}{N}\right) \\ -1 & \text{otherwise} \end{cases}$

where:
- $p_i$ is the 2D spatial coordinate of pixel sample $i$ ,
- $r_j$ is the current estimated object bounding rectangle at frame $j$ ,
- $\text{inside}(r_j, p_i)$ evaluates to true if pixel $p_i$ lies within rectangle $r_j$ ,
- $w_i$ is the normalized sample weight of pixel $i$ produced by testing the sample against the current strong classifier, with $\sum_{k=1}^N w_k = 1$ ,
- $N$ is the total number of pixel samples within the search region, setting the outlier threshold to $\Theta = \frac{3}{N}$ .
Pixels located inside the bounding rectangle whose classification difficulty exceeds $\Theta$ have their label flipped from $+1$ to $-1$ , filtering out background clutter within the object box and yielding cleaner confidence maps.
Knowl 4 — Margin-to-Confidence Transformation and Mean Shift Object Localization
model/method
Given a strong classifier $H(x) = \sum_{t=1}^T \alpha_t h_t(x)$ , where $h_t(x) \in \{-1, +1\}$ and $\alpha_t > 0$ , the classification margin for a pixel at spatial position $p$ with feature vector $x(p)$ is converted into a normalized confidence value $c(x(p)) \in [0, 1]$ via the mapping:

$c(x(p)) = \begin{cases} 0 & \text{if } H(x(p)) < 0 \\ \frac{H(x(p))}{\max_{q} H(x(q))} & \text{if } H(x(p)) \ge 0 \end{cases}$

where negative margins are clipped to zero and non-negative margins are linearly scaled into the interval $[0, 1]$ .

The 2D array of values $c(x(p))$ across the search region constitutes the spatial confidence map $L_j$ for frame $j$ . Mean shift is executed on $L_j$ , initialized at the previous bounding rectangle center $r_{j-1}$ , iteratively climbing the density gradient to find the local peak (mode) representing the updated object bounding rectangle $r_j$ .
Knowl 5 — Multi-Resolution Feature Integration via Pyramid Confidence Maps
model/method
To capture features and spatial structures at multiple spatial scales, ensemble tracking runs in parallel across multiple levels of an image pyramid (e.g., three levels: original resolution $1\times$ , half-size $\frac{1}{2}\times$ , and quarter-size $\frac{1}{4}\times$ ):
1. At each pyramid level $s$ , an independent strong classifier $H^{(s)}(x)$ is maintained and updated with its own weak classifier per frame.
2. In each frame, each pyramid level computes a multi-scale confidence map $L_j^{(s)}$ over its downscaled input image.
3. All individual confidence maps $\{L_j^{(s)}\}$ are spatially rescaled (interpolated) back to the dimensions of the original image.
4. The rescaled confidence maps are combined via a weighted average (or score-based combination) into a single composite confidence map $L_j$ .
5. Mean shift optimization is executed on the combined map $L_j$ to determine the updated object position $r_j$ .
Knowl 6 — Dynamic Cue Re-Weighting Under Background Camouflage
empirical result
In a video sequence tracking a pedestrian crossing a street who passes in front of a vehicle with the exact same color, the ensemble tracker automatically modulates classifier feature weights across time. When the pedestrian is in front of the road, RGB color features carry the largest positive weights among the weak classifiers. When the pedestrian stands directly in front of the identically colored vehicle, color loses its discriminative power; the online ensemble adapts by automatically increasing the weights of the 8-bin local orientation histogram features, successfully maintaining continuous track of the pedestrian through complete background color camouflage.
Knowl 7 — Tracking Robustness of Online Ensemble Updating Compared to Static Classifiers
empirical result
In a comparative evaluation on a 90-frame video sequence exhibiting background and appearance variation:
- An adaptive ensemble tracker (updating $K=1$ weak classifier per frame in an ensemble of $T=5$ classifiers) maintains accurate tracking across the entire 90 frames.
- A static tracker (trained with 5 weak classifiers on frame 1 without subsequent updates) loses the target and permanently locks onto background clutter at frame 30.
This demonstrates that continuous online replacement and re-weighting of weak classifiers is necessary to accommodate changing target appearances and dynamic backgrounds.
Knowl 8 — Tracking in Grayscale Video Sequences using 9D Orientation-Intensity Features
empirical result
Conventional mean shift tracking based on color histograms often fails on single-channel grayscale video due to insufficient discriminative information in a 1D color histogram. Evaluated on a 225-frame grayscale sequence tracking a car moving through an intersection recorded from a freely moving camera, the ensemble tracker using a 9-dimensional feature vector (8-bin orientation histogram from a $5 \times 5$ window with edge threshold 10 plus 1 intensity value) successfully tracks the car across all 225 frames, with the learned confidence maps progressively conforming to the vehicle's geometric shape over time.

Coverage note — None was omitted; all significant contributed methods, algorithms, and experimental evaluations from the paper are captured.
