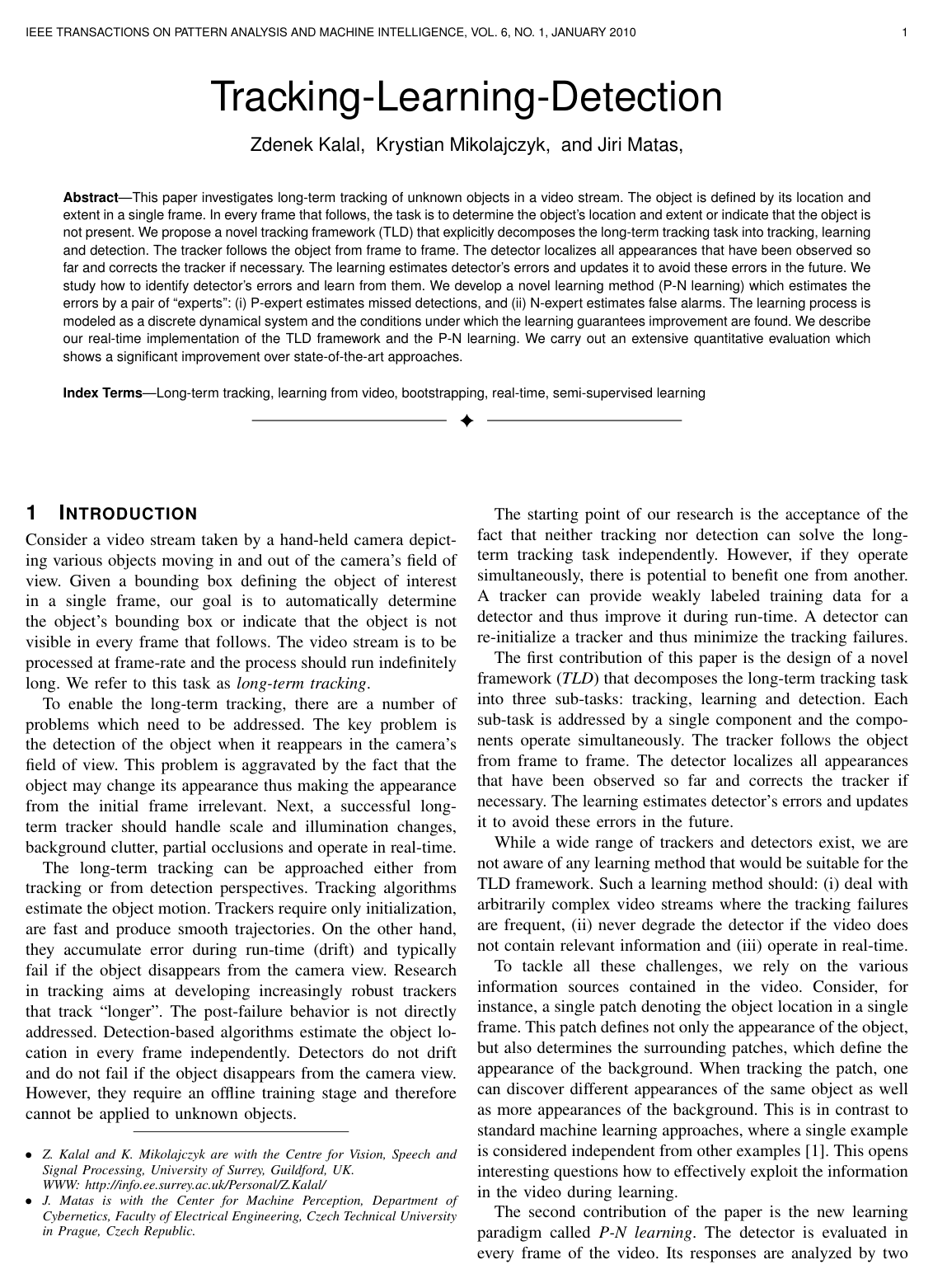

Tracking-Learning-Detection

Zdenek KalalKrystian MikolajczykJiri Matas

article2012TPAMI3,272 citations

Proposes a real-time framework that decomposes long-term visual tracking into tracking, detection, and self-correcting P-N learning to sustain tracking of unknown objects through full occlusions, camera disappearances, and severe appearance changes.

Listen

The paper addresses the challenge of long-term tracking of unknown objects in video streams captured by moving cameras. Objects frequently change appearance, undergo scale and illumination shifts, suffer partial or full occlusions, and move in or out of view, while processing must occur in real time and continue indefinitely. Existing trackers accumulate drift and fail on disappearance, while detectors require offline training and cannot handle novel objects.

The work develops and evaluates the TLD framework, which decomposes the task into three simultaneously operating components: a frame-to-frame tracker, a detector that localizes all previously seen appearances, and a learning process that identifies and corrects detector errors from the video itself. The learning component, called P-N learning, employs two independent “experts” that estimate missed detections and false alarms, then augments the detector’s training set accordingly. The process is modeled as a discrete dynamical system whose stability conditions are derived analytically.

Experiments on six established benchmark sequences and four new, more demanding sequences demonstrate that the initial detector improves substantially after one pass through each video. On the new dataset the final detector reaches f-measures between 0.25 and 0.95, while the complete TLD system attains an overall f-measure of 0.81, more than three times higher than the strongest competing tracker. The system runs at 20 frames per second after a single-frame initialization and maintains real-time performance on QVGA imagery.

These results show that online, error-canceling learning can produce a detector sufficiently accurate and general to re-initialize tracking after prolonged absences or drastic appearance changes, eliminating the need for offline training or manual re-initialization. The approach therefore enables reliable, indefinite tracking of arbitrary objects under realistic conditions.

The main limitations are reduced reliability under full out-of-plane rotation, difficulty with highly articulated objects, and restriction to a single target. Extensions that also adapt the tracker, incorporate background subtraction for static-camera cases, and scale to multiple targets are identified as the next steps needed to broaden applicability.

Czech Technical University in Prague University of Surrey discrete dynamical systems missed detections online learning long-term tracking object tracking object detection

zk00006/OpenTLD Kalal et al (2012).pdf

Paper: Incremental Learning for Robust Visual Tracking, David A. Ross et al. (2008). This paper establishes foundational techniques for incremental appearance model updates during visual tracking, providing the adaptive representation strategies built upon by the TLD framework.
Paper: Kernel-Based Object Tracking, Dorin Comaniciu et al. (2003). This kernel-based tracking approach provides baseline methodology for real-time localization and scale adaptation that informs the tracker component of the TLD architecture.

Paper: High-Speed Tracking with Kernelized Correlation Filters, João F. Henriques et al. (2014). This paper directly builds on and outperforms the TLD framework by introducing circulant-matrix correlation filters that achieve higher accuracy at significantly faster frame rates.

Abstract

This paper investigates long-term tracking of unknown objects in a video stream. The object is defined by its location and extent in a single frame. In every frame that follows, the task is to determine the object's location and extent or indicate that the object is not present. We propose a novel tracking framework (TLD) that explicitly decomposes the long-term tracking task into tracking, learning and detection. The tracker follows the object from frame to frame. The detector localizes all appearances that have been observed so far and corrects the tracker if necessary. The learning estimates detector's errors and updates it to avoid these errors in the future. We study how to identify detector's errors and learn from them. We develop a novel learning method (P-N learning) which estimates the errors by a pair of “experts”: (i) P-expert estimates missed detections, and (ii) N-expert estimates false alarms. The learning process is modeled as a discrete dynamical system and the conditions under which the learning guarantees improvement are found. We describe our real-time implementation of the TLD framework and the P-N learning. We carry out an extensive quantitative evaluation which shows a significant improvement over state-of-the-art approaches.

Topics

discrete dynamical systems missed detections online learning video streams detection algorithm

Keywords

long-term tracking object tracking object detection Median-Flow tracker semi-supervised learning keypoint recognition template tracking discriminative trackers

1 INTRODUCTION
2 RELATED WORK
2.1 Object tracking
2.2 Object detection
2.3 Machine learning
2.4 Most related approaches
3 TRACKING-LEARNING-DETECTION
4 P-N LEARNING
4.1 Formalization
4.2 Stability
4.3 Experiments with simulated experts
4.4 Design of real experts
5 IMPLEMENTATION OF TLD
5.1 Prerequisites
5.2 Object model
5.3 Object detector
5.3.1 Patch variance
5.3.2 Ensemble classifier
5.3.3 Nearest neighbor classifier
5.4 Tracker
5.5 Integrator
5.6 Learning component
5.6.1 Initialization
5.6.2 P-expert
5.6.3 N-expert
6 QUANTITATIVE EVALUATION
6.1 Comparison 1: CoGD
6.2 Comparison 2: Prost
6.3 TLD dataset
6.4 Improvement of the object detector
6.5 Comparison 3: TLD dataset
CONCLUSIONS
LIMITATIONS AND FUTURE WORK
ACKNOWLEDGMENTS
REFERENCES

Knowls

Knowl 1 — Tracking-Learning-Detection (TLD) Framework
model/method
The Tracking-Learning-Detection (TLD) framework addresses long-term visual tracking of an unknown target object defined by a single bounding box in an initial frame. TLD decomposes the long-term tracking task into three distinct, simultaneously operating components coordinated by an Integrator:
1. Tracker: Follows the target from frame to frame under the assumption of limited inter-frame displacement and continuous visibility. It produces smooth trajectories and requires no prior training, but it accumulates drift over time and cannot recover if the object becomes occluded or leaves the field of view.
2. Detector: Performs an independent full-image scan in every frame to localize all known appearances of the target learned so far. It does not suffer from drift and operates regardless of whether the object was visible in previous frames, but it is prone to false positives and false negatives.
3. Learner (P-N Learning): Observes the joint operation of both the tracker and detector, identifies their classification errors in real time using structural constraints, and updates the detector's model online. Learning expands the detector's generality to newly discovered target appearances while sharpening its discriminability against background clutter.
4. Integrator: Fuses the tracker's bounding box and the detector's candidate bounding boxes to produce the final object state estimate for each frame, and uses high-confidence detections to re-initialize the tracker upon tracking failure.
Knowl 2 — Stability Analysis of P-N Learning via Discrete Dynamical System
theoretical result
P-N learning is modeled as a discrete dynamical system tracking how classifier errors evolve across bootstrap iterations on an unlabeled set $X_u$ . Let $\alpha(k)$ denote the number of false positives and $\beta(k)$ denote the number of false negatives produced by the classifier at iteration $k$ .

The quality of the P-expert (which labels negative classifications as positive) and N-expert (which labels positive classifications as negative) is parameterized by four quality metrics:
- P-precision: $P^+ = \frac{n_c^+}{n_c^+ + n_f^+}$ (fraction of true positives among all samples relabeled positive by the P-expert)
- P-recall: $R^+ = \frac{n_c^+}{\beta}$ (fraction of classifier false negatives identified by the P-expert)
- N-precision: $P^- = \frac{n_c^-}{n_c^- + n_f^-}$ (fraction of true negatives among all samples relabeled negative by the N-expert)
- N-recall: $R^- = \frac{n_c^-}{\alpha}$ (fraction of classifier false positives identified by the N-expert)
where $n_c^+, n_f^+$ are the number of correct and false positive relabelings by the P-expert, and $n_c^-, n_f^-$ are the correct and false negative relabelings by the N-expert.

Defining the system error state vector $\vec{x}(k) = \begin{bmatrix} \alpha(k) \\ \beta(k) \end{bmatrix}$ , error propagation is governed by the linear dynamical recurrence:

$\vec{x}(k+1) = \mathbf{M} \vec{x}(k)$

where the transition matrix $\mathbf{M}$ is defined as:

$\mathbf{M} = \begin{bmatrix} 1 - R^- & \frac{1 - P^+}{P^+} R^+ \\ \frac{1 - P^-}{P^-} R^- & 1 - R^+ \end{bmatrix}$

Convergence Theorem: The error state vector $\vec{x}(k)$ converges to zero as $k \to \infty$ if and only if both eigenvalues $\lambda_1, \lambda_2$ of the matrix $\mathbf{M}$ have absolute values strictly less than one ( $|\lambda_1| < 1$ and $|\lambda_2| < 1$ ). Experts satisfying this condition are termed error-canceling because their mutual error compensation stabilizes the online learning process.

In the symmetric case where $P^+ = R^+ = P^- = R^- = 1 - \epsilon$ for error rate $\epsilon$ , the eigenvalues simplify to $\lambda_1 = 0$ and $\lambda_2 = 2\epsilon$ , which guarantees error decay and stable improvement whenever $\epsilon < 0.5$ .
Knowl 3 — Spatio-Temporal P-Expert and N-Expert for Video Streams
model/method
P-N learning exploits the spatio-temporal structure inherent in video sequences to identify detector errors without ground-truth supervision:
- P-Expert (Temporal Continuity): Assumes that the target object moves along a smooth, continuous spatio-temporal trajectory. It tracks the target's location from the previous frame to the current frame using a frame-to-frame tracker. A trajectory is classified as reliable if it enters the core of the object model (where Conservative similarity $S_c$ exceeds a set threshold) and remains reliable until tracking failure is flagged or re-initialization occurs. If the detector predicts a negative label at the current reliable location, the P-expert identifies a false negative and outputs positive training patches (the current bounding box plus 10 closest bounding boxes perturbed by affine warps and Gaussian noise), thereby expanding the detector's generalization to new appearances.
- N-Expert (Spatial Exclusivity): Assumes that the target object can occupy at most one location in any given video frame. When the trajectory is reliable, the N-expert takes the maximally confident location output by the integrator/tracker and labels all distant, non-overlapping candidate bounding boxes (bounding box overlap $< 0.2$ ) as negative training examples. This identifies false alarms and increases the detector's discriminative power against background clutter.
Knowl 4 — Three-Stage Cascaded Object Detector
model/method
To evaluate approximately 50,000 scanning windows per frame in real time on standard resolution images (e.g., $320 \times 240$ ), the TLD detector organizes classification into a three-stage cascade where each stage can rapidly reject negative candidates:
1. Patch Variance Filter: Rejects any candidate patch $p$ whose gray-level variance $\mathbb{E}[p^2] - (\mathbb{E}[p])^2$ is less than $50\%$ of the variance of the initial target patch defined in the first frame. This value is computed in $O(1)$ time per patch using integral images and typically filters out over $50\%$ of background patches (e.g., uniform regions such as sky and road).
2. Ensemble Classifier: Evaluates surviving patches using an ensemble of $n$ randomized base classifiers. Each base classifier $i$ evaluates $d = 13$ predefined, pairwise pixel intensity comparisons on a blurred patch to generate a 13-bit binary code $x \in \{0, 1\}^{13}$ . The code indexes a posterior probability lookup table $P_i(y=1|x) = \frac{\#p}{\#p + \#n}$ , where $\#p$ and $\#n$ are counts of positive and negative patches assigned that code during learning. The ensemble calculates the mean posterior $\bar{P}(y=1|x) = \frac{1}{n} \sum_{i=1}^n P_i(y=1|x)$ and passes patches only if $\bar{P}(y=1|x) > 0.5$ .
3. Nearest Neighbor (NN) Classifier: Evaluates the remaining candidate patches (typically $\approx 50$ ) using the Relative similarity metric $S_r(p, M)$ . The patch is classified as the target object if $S_r(p, M) > \theta_{\text{NN}}$ with threshold $\theta_{\text{NN}} = 0.6$ .
Knowl 5 — TLD Object Model and Similarity Metrics
definition
The TLD object model $M = \{p_1^+, p_2^+, \dots, p_m^+, p_1^-, p_2^-, \dots, p_n^-\}$ is an online collection of historical positive ( $p^+$ ) and negative ( $p^-$ ) image patches, each normalized to a canonical resolution of $15 \times 15$ pixels. The positive patches are ordered chronologically, where $p_1^+$ is the initial template and $p_m^+$ is the most recently added positive patch.

The similarity between two patches $p_i, p_j$ is defined using the Normalized Correlation Coefficient (NCC):

$S(p_i, p_j) = 0.5 \cdot (\text{NCC}(p_i, p_j) + 1) \in [0, 1]$

For an arbitrary patch $p$ and model $M$ , the following similarity measures are defined:
- Positive Nearest Neighbor Similarity: $S^+(p, M) = \max_{p_i^+ \in M} S(p, p_i^+)$
- Negative Nearest Neighbor Similarity: $S^-(p, M) = \max_{p_i^- \in M} S(p, p_i^-)$
- Conservative Positive Similarity: $S^+_{50\%}(p, M) = \max_{p_i^+ \in M, \, i \le m/2} S(p, p_i^+)$ (similarity restricted to the oldest $50\%$ of positive patches)
- Relative Similarity: $S_r(p, M) = \frac{S^+(p, M)}{S^+(p, M) + S^-(p, M)} \in [0, 1]$
- Conservative Similarity: $S_c(p, M) = \frac{S^+_{50\%}(p, M)}{S^+_{50\%}(p, M) + S^-(p, M)} \in [0, 1]$
Model Update Rule: A new labeled patch $p$ from P-N experts is inserted into $M$ if the 1-NN prediction differs from the expert label, or if the classification margin satisfies $|S_r(p, M) - \theta_{\text{NN}}| < \lambda$ (with $\lambda = 0.1$ and $\theta_{\text{NN}} = 0.6$ ).
Knowl 6 — Median-Flow Tracker with Failure Detection
model/method
The tracking module in TLD tracks target bounding boxes between consecutive frames using a Median-Flow point-tracker augmented with an explicit failure detection rule:
1. Point Tracking: A regular grid of $10 \times 10$ points is placed within the bounding box. Displacements $d_i$ for each point between frame $t$ and frame $t+1$ are estimated using a two-level pyramidal Lucas-Kanade optical flow tracker on $10 \times 10$ pixel patches.
2. Median Motion Filtering: The overall bounding box displacement is computed by taking the median over the $50\%$ most reliable point displacement vectors.
3. Failure Detection: Let $d_m$ denote the median displacement vector. The motion residual for each tracked point is defined as $|d_i - d_m|$ . A tracking failure is declared if:
$\text{median}_i |d_i - d_m| > 10 \text{ pixels}$

When this threshold is exceeded (typically caused by rapid motion, background occlusion, or target disappearance), the tracker outputs no bounding box, signaling the framework that tracker output is invalid and preventing drift.
Knowl 7 — Integrator Decision Rule
model/method
The Integrator merges the current bounding box hypotheses produced by the frame-to-frame tracker and the scanning-window detector into a unified output:
1. If neither the tracker nor the detector outputs a bounding box, the object is declared not visible.
2. If bounding boxes are produced by either or both components, the Integrator outputs the single bounding box that achieves the maximal Conservative similarity $S_c(p, M)$ .
3. The detector's highest-confidence detection is used to re-initialize the tracker state when the tracker has suffered a detected failure or drift.

Knowl 8 — Detector Improvement and P-N Expert Metrics Across TLD Sequences

data/table

The quantitative evaluation of P-N learning demonstrates that retraining an initial detector (trained on frame 1) over a video stream via P-N experts increases detector recall substantially while preserving high precision. On the challenging sequences 7–10, where the initial detector fails completely (F-measure 0.00–0.01), P-N learning increases F-measure to 0.25–0.83. All transition matrix eigenvalues $\lambda_1, \lambda_2$ remain strictly below 1.0, confirming the empirical validity of the dynamical system stability criterion.

Sequence	Frames	Initial Detector	Final Detector	P-expert	N-expert	Eigenvalues
		Precision / Recall / F-m	Precision / Recall / F-m	$P^+, R^+$	$P^-, R^-$	$\lambda_1, \lambda_2$
1. David	761	1.00 / 0.01 / 0.02	1.00 / 0.32 / 0.49	1.00 / 0.08	0.99 / 0.17	0.92 / 0.83
2. Jumping	313	1.00 / 0.01 / 0.02	0.99 / 0.88 / 0.93	0.86 / 0.24	0.98 / 0.30	0.70 / 0.77
3. Pedestrian 1	140	1.00 / 0.06 / 0.12	1.00 / 0.12 / 0.22	0.81 / 0.04	1.00 / 0.04	0.96 / 0.96
4. Pedestrian 2	338	1.00 / 0.02 / 0.03	1.00 / 0.34 / 0.51	1.00 / 0.25	1.00 / 0.24	0.76 / 0.75
5. Pedestrian 3	184	1.00 / 0.73 / 0.84	0.97 / 0.93 / 0.95	0.98 / 0.78	0.98 / 0.68	0.32 / 0.22
6. Car	945	1.00 / 0.04 / 0.08	0.99 / 0.82 / 0.90	1.00 / 0.52	1.00 / 0.46	0.48 / 0.54
7. Motocross	2665	1.00 / 0.00 / 0.00	0.92 / 0.32 / 0.47	0.96 / 0.19	0.84 / 0.08	0.92 / 0.81
8. Volkswagen	8576	1.00 / 0.00 / 0.00	0.92 / 0.75 / 0.83	0.70 / 0.23	0.99 / 0.09	0.91 / 0.77
9. Car Chase	9928	0.36 / 0.00 / 0.00	0.90 / 0.42 / 0.57	0.64 / 0.19	0.95 / 0.22	0.76 / 0.83
10. Panda	3000	0.79 / 0.01 / 0.01	0.51 / 0.16 / 0.25	0.31 / 0.02	0.96 / 0.19	0.81 / 0.99

Knowl 9 — Tracking Performance Benchmark Comparison on TLD Dataset

data/table

TLD was evaluated against five baseline tracking algorithms across 10 challenging video sequences (totalling 26,850 frames) containing full occlusions, pose variations, illumination changes, and camera motion: Online Boosting (OB), Semi-Supervised Online Boosting (SB), Beyond Semi-Supervised Tracking (BS), Multiple Instance Learning (MIL), and Co-trained Generative-Discriminative Tracker (CoGD). Trajectories were evaluated using Precision (P), Recall (R), and F-measure (F) with a bounding box overlap threshold $> 25\%$ .

TLD achieved the highest overall performance on 9 out of 10 sequences, with a weighted mean F-measure of 0.81 compared to 0.22 for the second-best algorithm (CoGD) and 0.13–0.15 for the others, while running in real time at 20 frames per second.

Sequence	Frames	OB	SB	BS	MIL	CoGD	TLD
1. David	761	0.41/0.29/0.34	0.35/0.35/0.35	0.32/0.24/0.28	0.15/0.15/0.15	1.00/1.00/1.00	1.00/1.00/1.00
2. Jumping	313	0.47/0.05/0.09	0.25/0.13/0.17	0.17/0.14/0.15	1.00/1.00/1.00	1.00/0.99/1.00	1.00/1.00/1.00
3. Pedestrian 1	140	0.61/0.14/0.23	0.48/0.33/0.39	0.29/0.10/0.15	0.69/0.69/0.69	1.00/1.00/1.00	1.00/1.00/1.00
4. Pedestrian 2	338	0.77/0.12/0.21	0.85/0.71/0.77	1.00/0.02/0.04	0.10/0.12/0.11	0.72/0.92/0.81	0.89/0.92/0.91
5. Pedestrian 3	184	1.00/0.33/0.49	0.41/0.33/0.36	0.92/0.46/0.62	0.69/0.81/0.75	0.85/1.00/0.92	0.99/1.00/0.99
6. Car	945	0.94/0.59/0.73	1.00/0.67/0.80	0.99/0.56/0.72	0.23/0.25/0.24	0.95/0.96/0.96	0.92/0.97/0.94
7. Motocross	2665	0.33/0.00/0.01	0.13/0.03/0.05	0.14/0.00/0.00	0.05/0.02/0.03	0.93/0.30/0.45	0.89/0.77/0.83
8. Volkswagen	8576	0.39/0.02/0.04	0.04/0.04/0.04	0.02/0.01/0.01	0.42/0.04/0.07	0.79/0.06/0.11	0.80/0.96/0.87
9. Carchase	9928	0.79/0.03/0.06	0.80/0.04/0.09	0.52/0.12/0.19	0.62/0.04/0.07	0.95/0.04/0.08	0.86/0.70/0.77
10. Panda	3000	0.95/0.35/0.51	1.00/0.17/0.29	0.99/0.17/0.30	0.36/0.40/0.38	0.12/0.12/0.12	0.58/0.63/0.60
Mean	26850	0.62/0.09/0.13	0.50/0.10/0.14	0.39/0.10/0.15	0.44/0.11/0.13	0.80/0.18/0.22	0.82/0.81/0.81

Knowl 10 — Limitations of the TLD Framework
limitation
The TLD system exhibits several specific limitations documented by the authors:
1. Out-of-Plane Rotations: Under full out-of-plane rotation, the Median-Flow tracker drifts away and fails, and the detector cannot reacquire the object until it returns to an appearance or pose that was previously observed and trained into the model.
2. Fixed Tracker Component: Online learning updates only the object detector while the frame-to-frame tracker remains static, causing the tracker to make the same recurring tracking errors over time.
3. Single Target Constraint: TLD tracks a single object instance and lacks mechanisms for joint model training or feature sharing across multiple simultaneous targets.
4. Articulated Objects: Performance degrades on highly deformable or articulated non-rigid targets (e.g., pedestrians) relative to rigid and semi-rigid objects.

Coverage note — Preliminary benchmark evaluations on older short datasets (Tables 1, 2, and 3 comparing with IVT, ODF, ET, ORF, FT, and PROST) were omitted because they showed saturated performance on short sequences and are fully superseded by the comprehensive evaluation on the 10-sequence TLD dataset.
