Deep Neural Networks for Object Detection

Christian SzegedyAlexander ToshevD. Erhan

article2013NeurIPS1,559 citations

Formulates object detection as a neural network regression task that predicts multi-scale bounding box masks, enabling precise multi-instance localization across diverse object categories using only a few forward passes.

Listen

Accurately identifying and locating objects within digital images is a foundational challenge in computer vision with major implications for automated image analysis. While deep neural networks have achieved breakthrough performance in whole-image classification, adapting them to object detection has traditionally been difficult and computationally expensive due to the need to locate multiple objects of varying sizes without evaluating hundreds of thousands of candidate image regions.

The article demonstrates an effective and computationally efficient method for multi-object detection by formulating localization as a deep neural network regression problem. The objective is to evaluate whether deep networks can directly predict binary object bounding box masks and achieve high localization accuracy with minimal computational overhead.

The researchers developed DetectorNet, a seven-layer convolutional neural network adapted to output binary masks covering full objects and their directional halves (top, bottom, left, and right). To handle multiple objects and varying resolutions, the network applies a multi-scale inference strategy across the full image and a small number of overlapping sub-windows, followed by a refinement step on candidate detections. The approach was evaluated on the standard Pascal VOC 2007 benchmark of approximately 5,000 test images across 20 object classes, following training on roughly 11,000 annotated images from the VOC 2012 dataset.

The findings show that DetectorNet achieved state-of-the-art detection precision, outperforming leading part-based and compositional baselines on 8 out of 20 benchmark classes and matching performance on another. Notably, the system proved exceptionally strong on non-rigid and deformable categories, such as dogs (0.282 average precision versus 0.088 for standard part-based models), cats, birds, and sheep, while remaining competitive on rigid objects like cars and buses. Computationally, the multi-scale approach requires evaluating only about 120 image crops per class—taking 5 to 6 seconds per image on a 12-core machine—compared to approximately 150,000 evaluations required by traditional sliding-window deep network baselines. Additionally, the secondary refinement stage significantly boosted precision by re-evaluating enlarged candidate boxes at higher resolution.

These results demonstrate that deep convolutional networks inherently preserve rich geometric and spatial information despite their translation invariance, eliminating the need to manually engineer complex part-based models. This architectural simplicity reduces engineering overhead and improves detection robustness across diverse object categories. However, because the current implementation trains separate networks for each object category and mask type, training resource requirements remain significant.

Moving forward, technical teams should explore shared multi-class network architectures where a single model detects multiple object categories simultaneously to reduce training and deployment costs. Stakeholders should note that the system's current inference speed of several seconds per image makes it suitable for batch image indexing but will require further acceleration before deployment in hard real-time environments. In addition, decision-makers should account for performance variations caused by visual ambiguities, such as cropped objects or visually similar classes, when planning pilot implementations.

Google classification classification methods image classification object detection deep neural networks object localization

Szegedy et al (2013).pdf

Paper: Object Detection with Discriminatively Trained Part-Based Models, Pedro F. Felzenszwalb et al. (2010). Understanding deformable part-based models (DPM) provides the essential baseline and classical benchmark architecture that DetectorNet seeks to surpass and replace with deep convolutional networks.
Paper: Sharing visual features for multiclass and multiview object detection, Antonio Torralba et al. (2007). This foundational work on multi-class visual feature sharing introduces the core motivation for joint feature representations in multi-object detection.

Paper: Rich feature hierarchies for accurate object detection and semantic segmentation, Ross Girshick et al. (2014). R-CNN builds on the breakthrough of deep learning for object detection by combining category-independent region proposals with convolutional network feature extraction.
Paper: OverFeat: Integrated Recognition, Localization and Detection using Convolutional Networks, Pierre Sermanet et al. (2014). OverFeat advances multi-scale convolutional bounding-box regression and sliding-window localization into a fully integrated multi-task framework.
Paper: Fast R-CNN, Ross B. Girshick (2015). Fast R-CNN unifies multi-task bounding-box regression and classification into a streamlined, single-stage training pipeline over shared feature maps.
Paper: Faster R-CNN: Towards Real-Time Object Detection with Region Proposal Networks, Shaoqing Ren et al. (2015). Faster R-CNN replaces separate proposal mechanisms with an integrated Region Proposal Network, realizing an end-to-end deep detection pipeline.
Paper: You Only Look Once: Unified, Real-Time Object Detection, Joseph Redmon et al. (2016). YOLO takes the concept of direct bounding-box regression from full images to its logical conclusion as a unified, real-time single-stage framework.
Paper: SSD: Single Shot MultiBox Detector, Wei Liu et al. (2015). SSD extends multi-scale regression by predicting bounding boxes directly across multiple pyramid feature layers in a single feed-forward pass.
Paper: Object Detection With Deep Learning: A Review, Zhong-Qiu Zhao et al. (2018). This review surveys the broader evolution of both region-proposal and single-shot deep learning detection paradigms that originated with early models like DetectorNet.

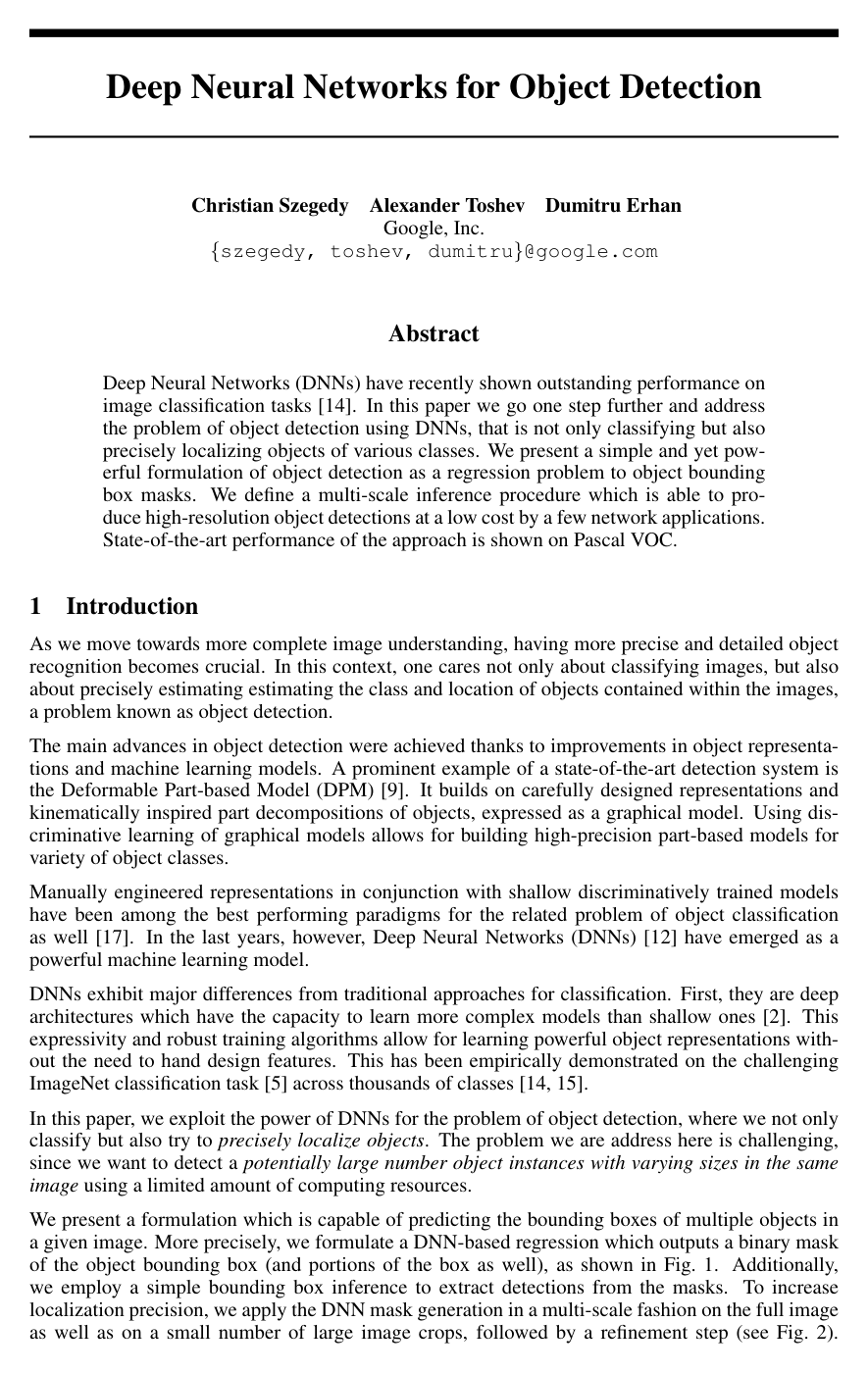

Cover for Deep Neural Networks for Object Detection

Abstract

Deep Neural Networks (DNNs) have recently shown outstanding performance on image classification tasks [14]. In this paper we go one step further and address the problem of object detection using DNNs, that is not only classifying but also precisely localizing objects of various classes. We present a simple and yet powerful formulation of object detection as a regression problem to object bounding box masks. We define a multi-scale inference procedure which is able to produce high-resolution object detections at a low cost by a few network applications. State-of-the-art performance of the approach is shown on Pascal VOC.

Topics

classification classification methods image classification inference neural networks object detection network architecture probabilistic inference

Keywords

object detection deep neural networks object localization DNN-based regression object masks object box extraction box inference convolutional neural networks

1 Introduction
2 Related Work
3 DNN-based Detection
4 Detection as DNN Regression
5 Precise Object Localization via DNN-generated Masks
5.1 Multiple Masks for Robust Localization
5.2 Object Localization from DNN Output
5.3 Multi-scale Refinement of DNN Localizer
6 DNN Training
7 Experiments
8 Conclusion
References

Knowls

Knowl 1 — Object Detection via Deep Neural Network Mask Regression
model/method
The detection of objects within an image is formulated as a regression problem that outputs a spatial binary mask corresponding to the bounding boxes of target objects.

The architecture is based on a convolutional neural network with 7 layers (5 convolutional layers followed by 2 fully connected layers) using Rectified Linear Units (ReLU) as activation functions and max-pooling after three of the convolutional layers, operating on an input receptive field of $225 \times 225$ pixels. The standard classification softmax output layer is replaced by a linear regression layer that outputs a vector of fixed dimension $N = d \times d$ , with $d = 24$ (yielding $N = 576$ output cells), representing a spatial mask $\text{DNN}(x; \Theta) \in \mathbb{R}^N$ parameterized by network weights $\Theta$ .

For an input image $x$ of dimensions $d_1 \times d_2$ , the output grid is mapped onto the image coordinate space such that each output cell $(i, j)$ predicts the presence of an object within the image rectangle $T(i, j)$ with top-left corner at $\left(\frac{d_1}{d}(i-1), \frac{d_2}{d}(j-1)\right)$ and dimensions $\frac{d_1}{d} \times \frac{d_2}{d}$ . If an image pixel falls inside the bounding box of an object of the target class, the corresponding target value is set to 1, and 0 otherwise.
Knowl 2 — Weighted L2 Loss for Mask Regression
equation
To optimize the network parameters $\Theta$ for predicting an object mask $m \in [0, 1]^N$ ( $N = d \times d$ ) from an input image $x$ , a weighted $L_2$ regression loss over a training dataset $D$ is minimized:

$\min_{\Theta} \sum_{(x, m) \in D} \|(\text{Diag}(m) + \lambda I)^{1/2} (\text{DNN}(x; \Theta) - m)\|_2^2$

where:
- $D$ is the training dataset consisting of pairs $(x, m)$ of input image crops $x$ and ground-truth mask targets $m \in [0, 1]^N$ .
- $\text{DNN}(x; \Theta) \in \mathbb{R}^N$ is the predicted output mask from the network parameterized by weights $\Theta$ .
- $\text{Diag}(m) \in \mathbb{R}^{N \times N}$ is a diagonal matrix containing the ground-truth mask vector $m$ along its diagonal.
- $I \in \mathbb{R}^{N \times N}$ is the identity matrix.
- $\lambda \in \mathbb{R}^+$ is a positive regularization hyperparameter.
When $\lambda$ is chosen to be small, errors on background output cells (where $m(i, j) = 0$ , having weight $\lambda^{1/2}$ ) are penalized significantly less than errors on foreground cells containing an object (where $m(i, j) = 1$ , having weight $(1 + \lambda)^{1/2}$ ). This weighting prevents the non-convex optimization from collapsing to the trivial all-zero prediction when objects occupy a small fraction of the image area.
Knowl 3 — Multi-Part Mask Decomposition for Adjacent Object Disambiguation
model/method
To disambiguate touching or closely placed instances of the same object category that would otherwise merge into a single connected component in a full mask, the detection framework generates five distinct masks per bounding box $bb$ :
1. $m^{\text{full}}$ : covering the full object bounding box $bb(\text{full})$ .
2. $m^{\text{bottom}}$ : covering the bottom half of the bounding box $bb(\text{bottom})$ .
3. $m^{\text{top}}$ : covering the top half of the bounding box $bb(\text{top})$ .
4. $m^{\text{left}}$ : covering the left half of the bounding box $bb(\text{left})$ .
5. $m^{\text{right}}$ : covering the right half of the bounding box $bb(\text{right})$ .
For each mask type $h \in \{\text{full}, \text{bottom}, \text{top}, \text{left}, \text{right}\}$ , the ground-truth continuous target value $m^h(i, j; bb) \in [0, 1]$ assigned to the network output cell $(i, j)$ is computed as the fractional overlap between the corresponding sub-box $bb(h)$ and the image cell $T(i, j)$ :

$m^h(i, j; bb) = \frac{\text{area}(bb(h) \cap T(i, j))}{\text{area}(T(i, j))}$

where $T(i, j)$ is the rectangular image region mapped to output cell $(i, j)$ with size $\frac{d_1}{d} \times \frac{d_2}{d}$ for an image of dimensions $d_1 \times d_2$ and mask grid resolution $d \times d$ .

Even when two adjacent objects merge in the full mask $m^{\text{full}}$ , their corresponding directional half masks (such as left and right halves) remain separated, allowing individual instances to be distinguished.
Knowl 4 — Bounding Box Agreement Scoring Across Complementary Masks
equation
To evaluate how well a candidate bounding box $bb$ matches a predicted mask $m$ , an agreement score $S(bb, m)$ measures the average mask activation within the candidate box:

$S(bb, m) = \frac{1}{\text{area}(bb)} \sum_{(i,j)} m(i, j) \, \text{area}(bb \cap T(i, j))$

where $T(i, j)$ is the image patch corresponding to network output cell $(i, j)$ , and $m(i, j)$ is the predicted mask value at $(i, j)$ .

To score candidate bounding boxes across all five predicted masks $m^h$ for $h \in \text{halves} = \{\text{full}, \text{bottom}, \text{top}, \text{left}, \text{right}\}$ , a combined score $S(bb)$ incorporates penalties for mask activations in complementary regions:

$S(bb) = \sum_{h \in \text{halves}} \left( S(bb(h), m^h) - S(bb(\bar{h}), m^h) \right)$

where:
- $bb(h)$ is the region of $bb$ corresponding to part $h$ (e.g., top half for $h = \text{top}$ ).
- $\bar{h}$ represents the opposite region: for half masks (bottom, top, left, right), $\bar{h}$ is the opposite half (e.g., if $h = \text{top}$ , $\bar{h} = \text{bottom}$ ); for $h = \text{full}$ , $\bar{h}$ is an expanded rectangular border region surrounding $bb$ that penalizes full-mask activations extending outside the candidate box.
A high score $S(bb)$ indicates that the candidate box is strongly supported by all five masks while exhibiting minimal spillover into opposing or surrounding regions.
Knowl 5 — Multi-Scale Inference and Box Refinement Algorithm
algorithm
The multi-scale DNN-based localization and refinement procedure evaluates an image across multiple scales, extracts candidate bounding boxes from the merged masks, and refines the top detections with high-resolution crops.
Input: Input image $x$ ; mask regression networks $\text{DNN}^h$ for $h \in \{\text{full}, \text{bottom}, \text{top}, \text{left}, \text{right}\}$
Output: Set of refined detected bounding boxes with confidence scores
$\text{detections} \leftarrow \emptyset$
$\text{scales} \leftarrow \text{compute 3 scales (full image, half size, quarter size)}$
for $s \in \text{scales}$ do
     $\text{windows} \leftarrow \text{generate sliding crops at scale } s \text{ with 20\% area overlap}$
    for $w \in \text{windows}$ do
        for $h \in \{\text{full}, \text{bottom}, \text{top}, \text{left}, \text{right}\}$ do
             $m^h_w \leftarrow \text{DNN}^h(w)$
        end
    end
     $m^h \leftarrow \text{merge crops } \{m^h_w : w \in \text{windows}\} \text{ across image using pixel-wise maximum}$
     $\text{detections}_s \leftarrow \text{extract top 5 bounding boxes scored against } \{m^h\} \text{ using Eq. (3)}$
     $\text{detections} \leftarrow \text{detections} \cup \text{detections}_s$
end
$\text{refined} \leftarrow \emptyset$
for $d \in \text{detections}$ do
     $c \leftarrow \text{crop sub-image covering } d \text{ enlarged by a scale factor of 1.2}$
    for $h \in \{\text{full}, \text{bottom}, \text{top}, \text{left}, \text{right}\}$ do
         $m^h_c \leftarrow \text{DNN}^h(c)$
    end
     $d_{\text{refined}} \leftarrow \text{infer highest scoring bounding box from } \{m^h_c\}$
     $\text{refined} \leftarrow \text{refined} \cup \{d_{\text{refined}}\}$
end
return $\text{refined}$
The algorithm evaluates fewer than 40 window crops across three pyramid scales (image size, $1/2$ size, and $1/4$ size). From the 15 candidate boxes (top 5 per scale), each box is enlarged by $1.2\times$ , cropped, and re-evaluated through the DNN regression network to achieve precise localized boundaries.
Knowl 6 — Exhaustive Bounding Box Search and Filtering Pipeline
model/method
To extract discrete bounding boxes from predicted continuous masks, an exhaustive scoring and filtering pipeline is applied:
1. Candidate Box Generation: A candidate set of 90 box shapes is constructed from 9 relative mean scale dimensions $\{0.1, 0.2, \ldots, 0.9\}$ of the mean image size combined with 10 aspect ratios obtained via k-means clustering on the bounding boxes in the training set.
2. Dense Spatial Search: Each candidate box shape is evaluated across the image with a spatial stride of 5 pixels. Using precomputed integral images of the five predicted masks, the agreement score for each box candidate is computed using $5 \times (2 \times \#\text{pixels} + 20 \times \#\text{boxes})$ total operations.
3. Score Thresholding: Candidate boxes with a normalized mask agreement score $S(bb, m^{\text{full}}) \le 0.5$ are eliminated.
4. Classification Pruning: The remaining candidate box crops are passed through a 21-way deep convolutional network classifier (20 object classes plus background). Boxes not classified positively as the detector's target class are discarded.
5. Non-Maximum Suppression: Standard non-maximum suppression (NMS) is applied to remove overlapping duplicate detections based on Jaccard intersection-over-union similarity.
Knowl 7 — Training Data Sampling and Pretraining Pipeline
experimental setup
The training workflow for mask regression and classification pruning networks uses specific sampling and fine-tuning procedures:
- Mask Regression Training: For each training image, several thousand crops are extracted with crop widths distributed uniformly between a prescribed minimum scale and the image width. The dataset is balanced to 40% positive crops (covering at least 80% of the area of some ground-truth bounding box) and 60% negative crops (having 0 intersection with any ground-truth object bounding box). Total training volume is 10 million samples per class.
- Pruning Classifier Training: Crops are sampled to 40% positives (Jaccard similarity $\ge 0.6$ with a ground-truth object box, labeled by the class of the most similar box) and 60% negatives (Jaccard similarity $< 0.2$ with all ground-truth boxes, labeled as background). Total training volume is 10 million samples per class.
- Transfer Learning and Optimization: The convolutional layers are first initialized by pretraining the 7-layer architecture on the ImageNet classification task. All layers including the convolutional layers are then fine-tuned for mask regression using stochastic gradient descent with the AdaGrad adaptive learning rate algorithm.

Knowl 8 — Object Detection Performance on Pascal VOC 2007 Test Set

data/table

The DetectorNet approach was evaluated on the Pascal VOC 2007 test set (approximately 5,000 images across 20 classes) after training on the Pascal VOC 2012 training and validation sets (approximately 11,000 images). Performance is measured in Average Precision (AP) per class and compared against a sliding-window deep neural network baseline, the 3-layer compositional model of Zhu et al. (2010), and Deformable Part Models (Felzenszwalb et al., 2010; Girshick et al., 2011).

Class	aero	bicycle	bird	boat	bottle	bus	car	cat	chair	cow
DetectorNet	.292	.352	.194	.167	.037	.532	.502	.272	.102	.348
Sliding windows	.213	.190	.068	.120	.058	.294	.237	.101	.059	.131
3-layer model	.294	.558	.094	.143	.286	.440	.513	.213	.200	.193
Felzenszwalb et al.	.328	.568	.025	.168	.285	.397	.516	.213	.179	.185
Girshick et al.	.324	.577	.107	.157	.253	.513	.542	.179	.210	.240
Class	table	dog	horse	m-bike	person	plant	sheep	sofa	train	tv
DetectorNet	.302	.282	.466	.417	.262	.103	.328	.268	.398	.470
Sliding windows	.110	.134	.220	.243	.173	.070	.118	.166	.240	.119
3-layer model	.252	.125	.504	.384	.366	.151	.197	.251	.368	.393
Felzenszwalb et al.	.259	.088	.492	.412	.368	.146	.162	.244	.392	.391
Girshick et al.	.257	.116	.556	.475	.435	.145	.226	.342	.442	.413

DetectorNet achieves top performance on 8 out of 20 classes (bird, bus, cat, cow, table, dog, sheep, tv) and performs on par with state-of-the-art models on horse, sofa, and train. It substantially outperforms DPM baselines on highly deformable categories (e.g., bird .194 vs .107, cat .272 vs .179, dog .282 vs .116, sheep .328 vs .226, cow .348 vs .240) while maintaining strong accuracy on rigid object categories.

Knowl 9 — Effect of Coarse-to-Fine Refinement on Precision-Recall
empirical result
Applying the second-stage refinement step—wherein candidate bounding box crops are enlarged by a factor of 1.2 and re-evaluated through the mask regression network—produces a substantial improvement in detection accuracy compared to the initial multi-scale detection stage (Stage 1).

Across diverse object classes (such as bird, bus, and dining table), precision-recall curves demonstrate that the refinement stage consistently shifts the precision-recall frontier upward across all recall levels. The primary mechanism driving this improvement is that re-evaluating the DNN localizer at higher resolution on tightly cropped windows eliminates boundary quantization errors from coarse grid predictions ( $24 \times 24$ output masks), boosting the agreement scores of accurately localized true positives while suppressing poorly aligned false candidates.
Knowl 10 — Training and Model Complexity Limitations of DetectorNet
limitation
The proposed detection framework exhibits several operational and structural limitations:
1. Training Overhead per Class and Mask: Separate mask regression networks are trained for each object class and for each of the 5 mask types (full, top, bottom, left, right), leading to significant training computation overhead and lack of cross-class parameter sharing.
2. Ambiguity in Ground-Truth Extents: In standard object detection datasets (such as Pascal VOC), annotations sometimes label partial objects (e.g., only the head of a bird) and other times label the full body. This annotation inconsistency causes the regressor to predict conflicting masks for the same object instance, occasionally leading to duplicate detections of sub-parts (e.g., simultaneous bounding boxes for both bird head and full body).
3. Confusion on Visually Similar Classes: Mask regression can produce high-confidence false positive masks for visually similar distractor categories when context alone cannot disambiguate fine category features.

Coverage note — No substantial contributed material was omitted; all key architectural components, loss equations, inference algorithms, training setups, empirical results, and failure modes are covered.
