EHRXQA: A Multi-Modal Question Answering Dataset for Electronic Health Records with Chest X-ray Images

Seongsu BaeDaeun KyungJaehee RyuEunbyeol ChoGyubok LeeSunjun KweonJungwoo OhLei JiEric I-Chao ChangTackeun Kim

article2023NeurIPS51 citations

Presents EHRXQA, a multimodal electronic health record benchmark integrating structured patient tables with chest X-ray images alongside a NeuralSQL-based baseline to enable joint clinical reasoning across text and imaging modalities.

Listen

Modern healthcare relies heavily on Electronic Health Records (EHRs) to track patient care, combining structured tabular data such as diagnoses, procedures, and prescriptions with visual diagnostic data like chest X-ray images. While automated question-answering systems offer substantial promise for clinical decision support and medical research, current solutions remain siloed. They operate either exclusively over structured relational databases using standard database queries or exclusively over individual medical images using visual reasoning. This lack of integration prevents healthcare providers from asking complex, cross-modal questions that connect clinical timelines and interventions with radiological findings.

The article introduces and evaluates EHRXQA, the first multi-modal question answering dataset and benchmark bridging structured EHR relational tables with chest X-ray images. The main objective is to establish a standardized benchmark for multi-modal clinical question answering and demonstrate a system capable of joint reasoning across tabular and visual medical records.

To build this benchmark, the researchers integrated three established medical databases: structured clinical tables from MIMIC-IV, radiological images from MIMIC-CXR, and annotated anatomical scene graphs from Chest ImaGenome. They established an intermediate visual question answering benchmark named MIMIC-CXR-VQA comprising 377,391 unique instances across 48 clinically validated templates. Combining these resources yielded the EHRXQA dataset containing 46,152 questions spanning single-modality and multi-modality inquiries across individual and cohort patient scopes. To answer these queries, the authors proposed a framework that couples a large language model with an external visual perception programming interface, translating natural language questions into an executable query language that queries tables and triggers image analysis.

The evaluation revealed several critical findings. First, purely table-based questions achieved high overall execution accuracy of approximately 92.9%, demonstrating that large language models handle complex clinical database queries effectively when supplied with relevant examples. Second, performance dropped significantly when answering questions requiring visual perception: overall execution accuracy fell to 65.9% for combined image-and-table queries and 48.2% for image-only queries. Third, system accuracy declined sharply as the number of required images increased; accuracy dropped to 39.6% when evaluating multiple sequential images for a single patient and plunged to 1.7% when processing broader patient cohorts. Fourth, while the language model achieved high logical parsing accuracy across all categories (72.5% to 87.3%), the visual models failed to match this precision, reaching a peak standalone visual accuracy of only 69.2%.

These findings indicate that logical reasoning and query translation are not the primary bottlenecks preventing real-world deployment of multi-modal clinical intelligence tools. Instead, visual perception accuracy is the main limiting factor. The compounding of minor visual misclassifications across multiple studies or patient groups rapidly undermines final answers, posing safety and reliability risks in critical clinical settings where precise decision-making is vital.

Organizations developing healthcare artificial intelligence should prioritize advancing core medical computer vision models before deploying automated clinical query systems. Future research and development should concentrate on integrating visual uncertainty estimation, expanding datasets to include unanswerable queries to mitigate false conclusions, and developing multi-modal systems capable of dialogue. Decision-makers should treat current multi-modal question-answering systems as experimental research tools rather than autonomous clinical solutions, keeping in mind that the current dataset relies on a single institutional database and a constrained set of visual labels.

Centre for Perceptual and Interactive Intelligence (CPII)Korea Advanced Institute of Science and Technology Microsoft Seoul National University health records high resolution image question answering EHRXQA multi-modal EHR QA dataset EHR Question Answering

arXiv: 2310.18652 baeseongsu/ehrxqa

Paper: CheXpert: A Large Chest Radiograph Dataset with Uncertainty Labels and Expert Comparison, Jeremy Irvin et al. (2019). This paper establishes foundational methodologies for extracting chest radiograph labels and handling uncertainty, which underpin the radiological reasoning and visual perception challenges addressed in EHRXQA.
Paper: ChestX-ray8: Hospital-scale Chest X-ray Database and Benchmarks on Weakly-Supervised Classification and Localization of Common Thorax Diseases, Xiaosong Wang et al. (2017). It introduces hospital-scale chest X-ray disease classification and localization benchmarks that ground the automated thoracic pathology recognition leveraged by multi-modal EHR question answering.
Paper: Scalable and accurate deep learning with electronic health records, Alvin Rajkomar et al. (2018). It provides the foundational framework for scalable deep learning over structured electronic health records that EHRXQA integrates with visual imaging data.
Paper: VQA: Visual Question Answering, Stanislaw Antol et al. (2015). It formulates the standard Visual Question Answering task and baseline multimodal architectures that EHRXQA adapts to the clinical domain.
Paper: VisualBERT: A Simple and Performant Baseline for Vision and Language, Liunian Harold Li et al. (2019). It introduces a foundational unified transformer baseline for vision-and-language tasks that informs cross-modal reasoning architectures.
Paper: Large language models encode clinical knowledge, Karan Singhal et al. (2022). It benchmarks large language models on clinical knowledge retrieval and reasoning, establishing the linguistic capabilities required for parsing medical queries in EHRXQA.

Paper: LLaVA-Med: Training a Large Language-and-Vision Assistant for Biomedicine in One Day, Chunyuan Li et al. (2023). This paper develops an end-to-end multimodal biomedical conversational assistant, extending the joint vision-language clinical capabilities benchmarked in EHRXQA.
Paper: MedXpertQA: Benchmarking Expert-Level Medical Reasoning and Understanding, Yuxin Zuo et al. (2025). It extends multimodal clinical evaluation by benchmarking expert-level medical reasoning across complex patient records and diagnostic imagery.
Paper: Visual CoT: Advancing Multi-Modal Language Models with a Comprehensive Dataset and Benchmark for Chain-of-Thought Reasoning, Hao Shao et al. (2024). It advances multimodal reasoning by introducing step-by-step visual chain-of-thought localization, addressing the visual perception bottlenecks identified in EHRXQA.

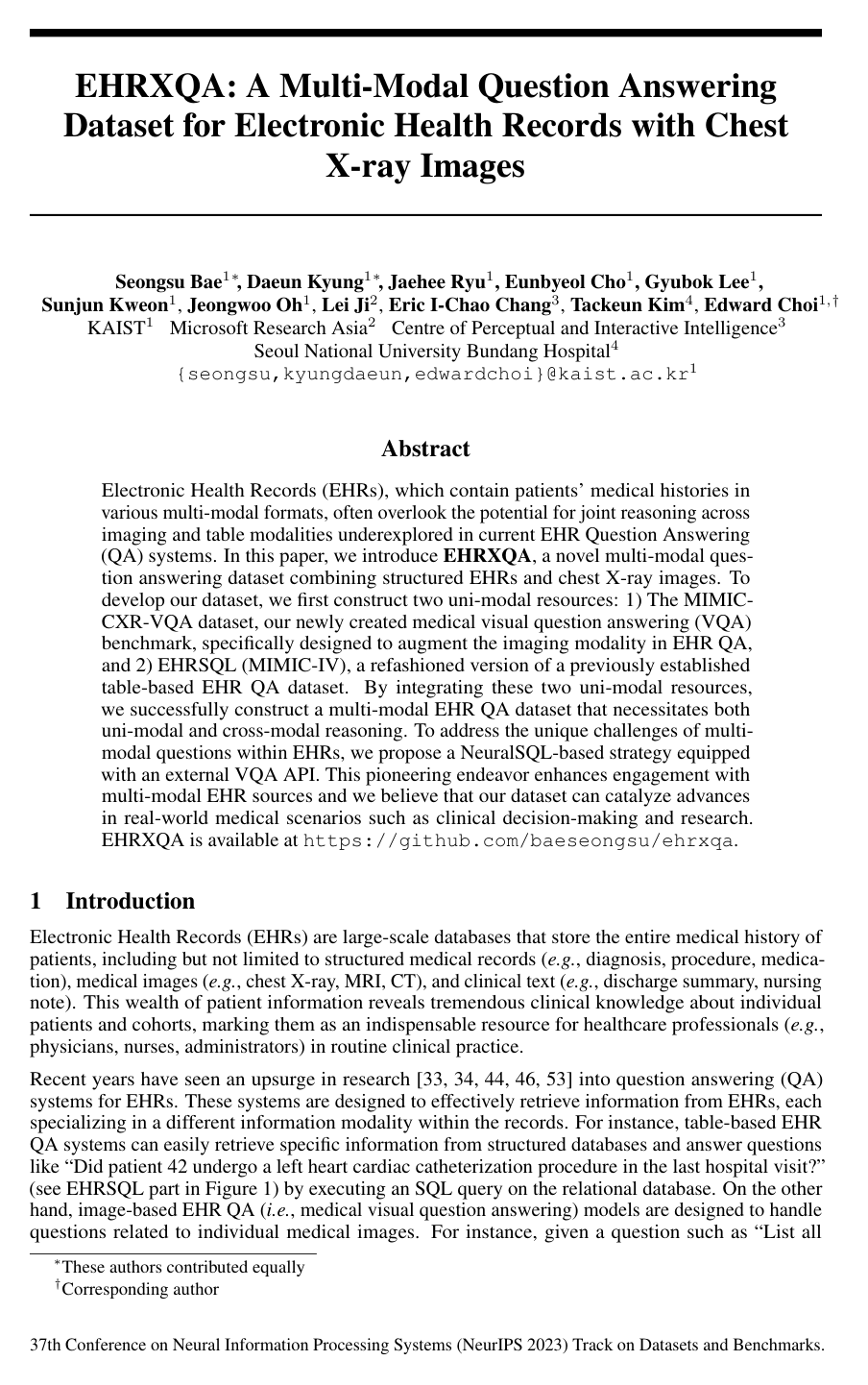

Cover for EHRXQA: A Multi-Modal Question Answering Dataset for Electronic Health Records with Chest X-ray Images

Abstract

Electronic Health Records (EHRs), which contain patients’ medical histories in various multi-modal formats, often overlook the potential for joint reasoning across imaging and table modalities underexplored in current EHR Question Answering (QA) systems. In this paper, we introduce EHRXQA, a novel multi-modal question answering dataset combining structured EHRs and chest X-ray images. To develop our dataset, we first construct two uni-modal resources: 1) The MIMIC-CXR-VQA dataset, our newly created medical visual question answering (VQA) benchmark, specifically designed to augment the imaging modality in EHR QA, and 2) EHRSQL (MIMIC-IV), a refashioned version of a previously established table-based EHR QA dataset. By integrating these two uni-modal resources, we successfully construct a multi-modal EHR QA dataset that necessitates both uni-modal and cross-modal reasoning. To address the unique challenges of multi-modal questions within EHRs, we propose a NeuralSQL-based strategy equipped with an external VQA API. This pioneering endeavor enhances engagement with multi-modal EHR sources and we believe that our dataset can catalyze advances in real-world medical scenarios such as clinical decision-making and research. EHRXQA is available at https://github.com/baeseongsu/ehrxqa.

Topics

health records high resolution image question answering

Keywords

EHRXQA multi-modal EHR QA dataset EHR Question Answering medical VQA datasets cross-modal reasoning structured EHRs chest radiographs

1 Introduction
2 Related Work
3 Preliminary: Ingredients for Multi-Modal EHR QA
3.1 Uni-Modal Data Resources
3.2 Uni-Modal EHR QA datasets
3.2.1 Table-based EHR QA: EHRSQL
3.2.2 Image-based EHR QA: MIMIC-CXR-VQA
4 EHRXQA: A Multi-Modal EHR Question Answering Dataset
4.1 Dataset Construction
4.1.1 Database Construction
4.1.2 Question Template Construction
4.1.3 SQL/NeuralSQL Annotation
4.1.4 Data Generation
4.2 Data Statistics and Comparisons with other EHR QA datasets
5 NeuralSQL with Visual Question Answering
6 Experiments
6.1 MIMIC-CXR-VQA
6.2 EHRXQA
7 Discussion
Acknowledgments and Disclosure of Funding
References

Knowls

Knowl 1 — EHRXQA Dataset
definition
EHRXQA is a multi-modal electronic health record (EHR) question answering dataset that integrates structured relational tables from MIMIC-IV with chest X-ray (CXR) images from MIMIC-CXR and scene-graph annotations from Chest ImaGenome. It contains a total of 46,152 question-query-answer samples split across training (36,174), validation (5,170), and test (4,808) sets.

The dataset spans three modality-based query scopes:
1. Table-related QA (16,529 samples: 12,961 train / 1,852 valid / 1,716 test): Questions answered exclusively through structured EHR tables using SQL queries.
2. Image-related QA (16,366 samples: 12,860 train / 1,838 valid / 1,668 test): Questions requiring visual reasoning over CXR images linked to patient records using NeuralSQL queries.
3. Image+Table-related QA (13,257 samples: 10,353 train / 1,480 valid / 1,424 test): Questions requiring joint cross-modal reasoning over structured clinical tables and CXR images using NeuralSQL queries.
The questions also span three patient-level scopes:
- None: General questions not specific to individual patients.
- Single: Questions about a specific patient, querying single images (1-image), comparing consecutive studies (2-image), or aggregating across multiple studies ( $N$ -image).
- Group: Cohort-level questions aggregating records across multiple patients.
Knowl 2 — MIMIC-CXR-VQA Benchmark Dataset
definition
MIMIC-CXR-VQA is a medical visual question answering (VQA) benchmark constructed by pairing frontal-view (AP/PA) chest radiographs from MIMIC-CXR with bounding-box and relationship annotations from the Chest ImaGenome silver and gold scene graph datasets. Each CXR image is characterized across 563 distinct relations between 36 anatomical objects and 68 attributes grouped into 5 categories ('anatomical finding', 'disease', 'device', 'tubes/lines', 'technical assessment').

The dataset comprises 377,391 unique $(\text{Image } I, \text{Question } Q, \text{Answer } A)$ triples across seven content categories: presence, anatomy, attribute, abnormality, size, plane, and gender. Question generation uses 48 seed templates expanded with logical/set operations and paraphrased using GPT-4 (averaging 16.5 paraphrases per template). The VQA task is formulated as multi-label classification over 110 target labels (36 objects, 68 attributes, 'M', 'F', 'AP', 'PA', 'yes', and 'no'). The training and validation sets are constructed from 800 patients in the machine-generated silver dataset (95:5 split), while the test set is constructed from 400 patients in the clinician-validated gold dataset.
Knowl 3 — EHR-Image Database Integration and Timeframe Normalization
model/method
To link unstructured chest radiographs with relational EHR databases, an image reference table named TB_CXR is added to the MIMIC-IV relational schema. The TB_CXR table consists of six schema columns:
- subject_id: Unique identifier for the patient.
- hadm_id: Unique identifier for the hospital admission.
- study_id: Unique identifier for the radiological study.
- image_id: Unique identifier for the specific frontal chest X-ray image.
- studydatetime: Timestamp when the imaging study occurred.
- viewposition: Radiographic projection (e.g., AP or PA).
To establish consistent temporal references (e.g., 'last year', 'this month', 'since 2102') across patients whose timestamps were artificially shifted between 2100 and 2200 for de-identification:
1. Patient medical event timelines are compressed into a standardized 2100–2105 timeframe while preserving relative intervals and study order.
2. The current evaluation timestamp is fixed to 2105-12-31 23:59:00. Any medical record or image timestamp occurring after this cutoff is excluded.
3. Patients with an admission timestamp prior to the cutoff but lacking a discharge timestamp due to the cutoff are designated as currently admitted.
Knowl 4 — NeuralSQL Framework with External VQA API
model/method
NeuralSQL is an executable querying framework that extends standard SQL to process multi-modal EHR databases by delegating image perception subqueries to an external Visual Question Answering (VQA) model.

The framework operates in two distinct stages:
1. NeuralSQL Parsing ( $Q \to Z$ ): A Large Language Model (LLM) translates a natural language question $Q$ into an executable NeuralSQL query $Z$ . For image-dependent sub-tasks, the query embeds a specialized API call: $\text{FUNC\_VQA}(q_I, c_I)$ where $q_I$ is a natural language subquestion targeting visual findings (e.g., "does a chest x-ray study indicate lung cancer in the left lung?") and $c_I$ is the database column containing image study identifiers (referencing TB_CXR.study_id).
2. NeuralSQL Execution ( $Z \to A$ ): The NeuralSQL query $Z$ is parsed into an abstract syntax tree (AST). When evaluating a node containing $\text{FUNC\_VQA}(q_I, c_I)$ , the interpreter retrieves the corresponding chest radiograph(s) $I$ via an internal image loader using identifier $c_I$ . The image(s) $I$ and visual subquestion $q_I$ are passed to a fine-tuned vision-language model (such as $\text{M}^3\text{AE}$ ), which executes perception inference. The boolean or categorical output of the VQA model is returned as a structured relational column object, enabling the SQL engine to continue relational filtering, aggregation, and sorting to output the final answer $A$ .
Knowl 5 — Four-Stage Templated Data Generation Pipeline for EHRXQA
algorithm
The generation of question-query-answer tuples in EHRXQA follows a structured five-phase pipeline (Stage 0 to Stage 4) followed by neural execution filtering and linguistic paraphrasing:
Input: Base question template schema $T$ , Database $D$ , Preprocessed visual attributes $V$
Output: Set of valid (Question $Q$ , Query $Z$ , Answer $A$ ) pairs
Stage 0: Select a base question-query template from $T$ (categorized by modality and patient scope).
Stage 1 (Visual Value Sampling):
    Fill visual placeholders ${object},$ {attribute}, and ${category} using valid clinical tuples from$ V$.
Stage 2 (Operation Value Sampling):
    Sample operation/grouping values from predefined domain constraints (e.g., [age_group] in {20s, 30s, 40s, 50s, 60 or above}).
Stage 3 (Time Template Sampling):
    Instantiate temporal operators with natural language templates (e.g., [time_filter_global], [time_filter_within], [time_filter_exact]).
Stage 4 (Condition Value Sampling):
    Sample database-grounded condition placeholders (e.g., {gender}, {year}, {drug_name}, {procedure_name}).
Construct synchronized (Question $Q_{\text{raw}}$ , Query $Z$ ) pair with matching sampled arguments.
Execute $Z$ on database $D$ to obtain Answer $A$ .
if $A$ is non-empty and valid then
    Generate paraphrased question variations $Q$ using GPT-4.
    Manually review paraphrased candidates for medical and grammatical fidelity.
    Add ( $Q$ , $Z$ , $A$ ) to dataset pool.
end if
Knowl 6 — Relative AUROC Metric for Medical VQA Perception Upper-Bound Calibration
equation
Because human radiologists exhibit diagnostic discrepancy and imperfect perceptual accuracy on chest radiographs, the achievable upper bound on image perception tasks is below 100%. To calibrate VQA model performance against an empirical perceptual upper bound on basic single-image verification queries (e.g., "Is there ${attribute} in$ {object}?"), a relative metric $m_{\text{rel}}$ is defined:

$m_{\text{rel}}(o, a) = \frac{m_{\text{VQA}}(o, a)}{m_{\text{ref}}(o, a)}$

where:
- $o$ denotes a specific anatomical object (from 36 candidate anatomical locations).
- $a$ denotes a specific attribute or finding (from 68 candidate attributes).
- $m_{\text{VQA}}(o, a)$ is the metric score achieved by the evaluated VQA model on the verification task for pair $(o, a)$ .
- $m_{\text{ref}}(o, a)$ is the reference metric score achieved by a dedicated multi-label visual classification reference model trained directly on the gold/silver scene graph labels for pair $(o, a)$ .
When Area Under the Receiver Operating Characteristic is used as the base metric $m$ , the overall relative metric is denoted as $\text{AUROC}_{\text{rel}}$ .
Knowl 7 — Semantic Parsing and Execution Evaluation Metrics for EHRXQA
definition
To isolate the performance of the semantic parsing stage from the neural visual execution stage in multi-modal EHR question answering, EHRXQA uses three distinct evaluation metrics:
1. Logical Form Accuracy ( $\text{Acc}_{\text{LF}}$ ): Evaluates the semantic parsing stage ( $Q \to Z$ ). It measures the exact match percentage between the predicted executable query $\hat{Z}$ (SQL or NeuralSQL) and the ground-truth query $Z$ : $\text{Acc}_{\text{LF}} = \mathbb{I}(\hat{Z} \equiv Z)$
2. Ground-truth Execution Accuracy ( $\text{Acc}_{\text{EX}|\text{gt}}$ ): Evaluates the execution stage ( $Z \to A$ ) using the ground-truth query $Z$ . It compares the result obtained by executing $Z$ with the true answer $A$ : $\text{Acc}_{\text{EX}|\text{gt}} = \mathbb{I}(\text{Execute}(Z) = A)$ For Table-related QA, $\text{Acc}_{\text{EX}|\text{gt}} = 100\%$ , whereas for Image-related and Image+Table-related QA, this metric measures the isolated accuracy of the external VQA perception module.
3. Prediction Execution Accuracy ( $\text{Acc}_{\text{EX}|\text{pred}}$ ): Evaluates the end-to-end question answering pipeline by executing the predicted query $\hat{Z}$ and comparing the result with ground-truth answer $A$ : $\text{Acc}_{\text{EX}|\text{pred}} = \mathbb{I}(\text{Execute}(\hat{Z}) = A)$

Knowl 8 — Performance of Vision-Language Pre-trained Baselines on MIMIC-CXR-VQA

data/table

Evaluation of baseline VQA models on the MIMIC-CXR-VQA benchmark demonstrates that vision-language pre-trained (VLP) models outperform language-only priors, with $\text{M}^3\text{AE}$ achieving the highest accuracy and perceptual alignment. Models marked with an asterisk ( $*$ ) were pre-trained on a standardized MIMIC-CXR corpus of chest radiographs and free-text reports.

Model	Validation Set		Test Set
	Acc (%)	F1 (micro)	Acc (%)	F1 (micro)	$\textbf{AUC}_{\textbf{rel}}$
Prior (Most)	26.8	0.27	25.4	0.25	-
Prior (Question)	34.3	0.34	32.4	0.32	-
PubMedCLIP	$55.1 \pm 1.7$	$0.56 \pm 0.02$	$54.9 \pm 1.3$	$0.54 \pm 0.02$	$0.82 \pm 0.09$
PubMedCLIP $^*$	$56.6 \pm 1.9$	$0.58 \pm 0.02$	$56.5 \pm 2.1$	$0.56 \pm 0.02$	$0.83 \pm 0.09$
MedViLL $^*$	$64.7 \pm 0.2$	$0.69 \pm 0.00$	$63.6 \pm 0.1$	$0.67 \pm 0.00$	$0.98 \pm 0.08$
$\text{M}^3\text{AE}$	$68.9 \pm 0.2$	$0.73 \pm 0.00$	$68.9 \pm 0.3$	$0.72 \pm 0.00$	$1.02 \pm 0.08$
$\text{M}^3\text{AE}^*$	$\mathbf{70.2 \pm 0.1}$	$\mathbf{0.74 \pm 0.00}$	$\mathbf{69.2 \pm 0.4}$	$\mathbf{0.73 \pm 0.00}$	$\mathbf{1.05 \pm 0.09}$

The language-only baseline Prior (Question) achieves only 32.4% test accuracy, confirming low language shortcut bias in the dataset. $\text{M}^3\text{AE}^*$ reaches $69.2\%$ test accuracy and an $\text{AUC}_{\text{rel}}$ of $1.05 \pm 0.09$ , indicating visual perception on par with dedicated task-specific classifiers.

Knowl 9 — EHRXQA Benchmark Performance with ChatGPT and M3AE

data/table

Benchmark results on the EHRXQA test set using ChatGPT (gpt-3.5-turbo-0613) as the semantic parser and a fine-tuned $\text{M}^3\text{AE}$ vision-language model as the external VQA API demonstrate the impact of few-shot in-context retrieval (Fixed 10-shot vs BM25 10-shot retrieval from the training set).

Model	Prompt	Image-related			Table-related			Image+Table-related
		$\text{Acc}_{\text{LF}}$	$\text{Acc}_{\text{EX}\|\text{gt}}$	$\text{Acc}_{\text{EX}\|\text{pred}}$	$\text{Acc}_{\text{LF}}$	$\text{Acc}_{\text{EX}\|\text{gt}}$	$\text{Acc}_{\text{EX}\|\text{pred}}$	$\text{Acc}_{\text{LF}}$	$\text{Acc}_{\text{EX}\|\text{gt}}$	$\text{Acc}_{\text{EX}\|\text{pred}}$
ChatGPT	Fixed	1.1	49.4	17.4	4.9	100.0	30.0	4.8	68.8	35.7
+ $\text{M}^3\text{AE}$	BM25	87.3	49.4	48.2	73.0	100.0	92.9	72.5	68.8	65.9

Retrieving domain-specific few-shot examples via BM25 dramatically improves logical form parsing accuracy across all scopes: from 1.1% to 87.3% on Image-related QA, 4.9% to 73.0% on Table-related QA, and 4.8% to 72.5% on Image+Table-related QA.

Knowl 10 — Visual Perception Bottleneck in Multi-Image and Group Queries
empirical result
In multi-modal EHR question answering with NeuralSQL, the primary performance bottleneck stems from perceptual error propagation across multiple images rather than logical parsing errors. When evaluating ChatGPT (gpt-3.5-turbo-0613) with BM25 in-context learning paired with an $\text{M}^3\text{AE}$ VQA API on the EHRXQA benchmark:
1. Discrepancy Between Parsing and Execution Accuracy: On Image-related QA, logical form parsing accuracy is high ( $\text{Acc}_{\text{LF}} = 87.3\%$ ), but predicted execution accuracy drops significantly ( $\text{Acc}_{\text{EX}|\text{pred}} = 48.2\%$ ) due to the ground-truth execution bound ( $\text{Acc}_{\text{EX}|\text{gt}} = 49.4\%$ ). In contrast, Table-related QA achieves $\text{Acc}_{\text{EX}|\text{pred}} = 92.9\%$ with $\text{Acc}_{\text{LF}} = 73.0\%$ .
2. Impact of Multi-Image Aggregation: For Image-related queries within a single patient scope, $\text{Acc}_{\text{EX}|\text{pred}}$ drops to $39.6\%$ when querying across multiple images ( $N$ -image scope).
3. Severe Degradation on Group-Level Queries: In cohort/group queries requiring visual inference across many patients' chest radiographs, cumulative classification errors cause $\text{Acc}_{\text{EX}|\text{pred}}$ to plummet to $1.7\%$ .
4. Modality Filtering Effect: Image+Table queries achieve higher predicted execution accuracy ( $65.9\%$ ) than pure Image-related queries ( $48.2\%$ ) because relational table constraints filter and restrict the candidate image set to a smaller size, mitigating cascading perception errors.

Coverage note — None was omitted. All primary dataset contributions (EHRXQA, MIMIC-CXR-VQA), the NeuralSQL method, database schemas, evaluation metrics, and empirical baseline results are covered.
