Scalable and accurate deep learning with electronic health records

Alvin RajkomarEyal OrenKai ChenAndrew M. DaiNissan HajajMichaela HardtPeter J. LiuXiaobing LiuJake MarcusMimi Sun

article2018npj Digital Medicine2,898 citations

Demonstrates that deep learning models trained on raw electronic health records structured with the FHIR standard outperform traditional clinical risk scores across multiple hospital systems for predicting mortality, readmission, length of stay, and discharge diagnoses without manual feature engineering.

Listen

A deep learning system was developed to predict key clinical events directly from the full, uncurated electronic health records of hospitalized adults, rather than from a small set of hand-selected variables. The work addressed the practical barriers that have long limited predictive modeling in health care: the high cost of creating task-specific datasets, the loss of most available information when records are reduced to a few dozen variables, and the difficulty of deploying models across different hospitals without extensive manual harmonization.

Researchers converted raw records from two large academic medical centers into a uniform Fast Healthcare Interoperability Resources format and trained neural-network models on more than 46 billion discrete data points drawn from 216,221 admissions. The same modeling approach was applied without site-specific tuning to four clinically distinct tasks: inpatient mortality, 30-day unplanned readmission, length of stay of seven days or longer, and the full set of discharge diagnoses. Performance was compared with established clinical scores and logistic-regression baselines that used far fewer inputs.

The deep-learning models achieved AUROCs of 0.93–0.94 for mortality, 0.75–0.76 for readmission, 0.85–0.86 for prolonged stay, and 0.90 for diagnoses—each materially higher than the corresponding traditional models. The improvement translated into roughly half as many false alerts for mortality risk and allowed accurate predictions 24–48 hours earlier than baseline methods. Attribution techniques showed that the networks identified clinically meaningful elements such as malignant effusions, antibiotic orders, and nursing assessments within individual charts.

These results indicate that accurate, scalable forecasts for safety, quality, and resource-use outcomes can be generated from existing hospital data without laborious feature engineering. Because the approach works on the entire record, including free-text notes, it reduces reliance on incomplete or noisy structured fields and may lower alert fatigue for clinicians.

Further prospective trials are required to determine whether the improved predictions actually change care and outcomes. Additional work is also needed to test transfer of models to new sites, to quantify the incremental value of narrative notes, and to confirm that interpretability methods remain reliable at scale. The current evidence rests on retrospective data from two U.S. academic centers; performance in community hospitals or outside the United States remains untested.

GoogleStanford UniversityUniversity of California, San FranciscoUniversity of Chicagodata pointsdeep learningehrelectronic health recordsdeep learningrecurrent neural networks
arXiv: 1801.07860
  • Paper: Representation Learning: A Review and New Perspectives, Yoshua Bengio et al. (2012). Reading this review of representation learning provides the necessary foundational concepts on unsupervised feature learning and deep architectures before exploring their application to raw electronic health records.
  • Paper: Long Short-Term Memory, Sepp Hochreiter et al. (1997). Understanding the mechanics of Long Short-Term Memory networks in this foundational paper prepares the reader for how sequential clinical events are modeled over time in raw patient records.
  • Paper: Model Cards for Model Reporting, Margaret Mitchell et al. (2019). Following the source study on scalable deep learning for electronic health records, this paper introduces model cards to rigorously document performance disaggregation and safety limitations for deployed healthcare models.

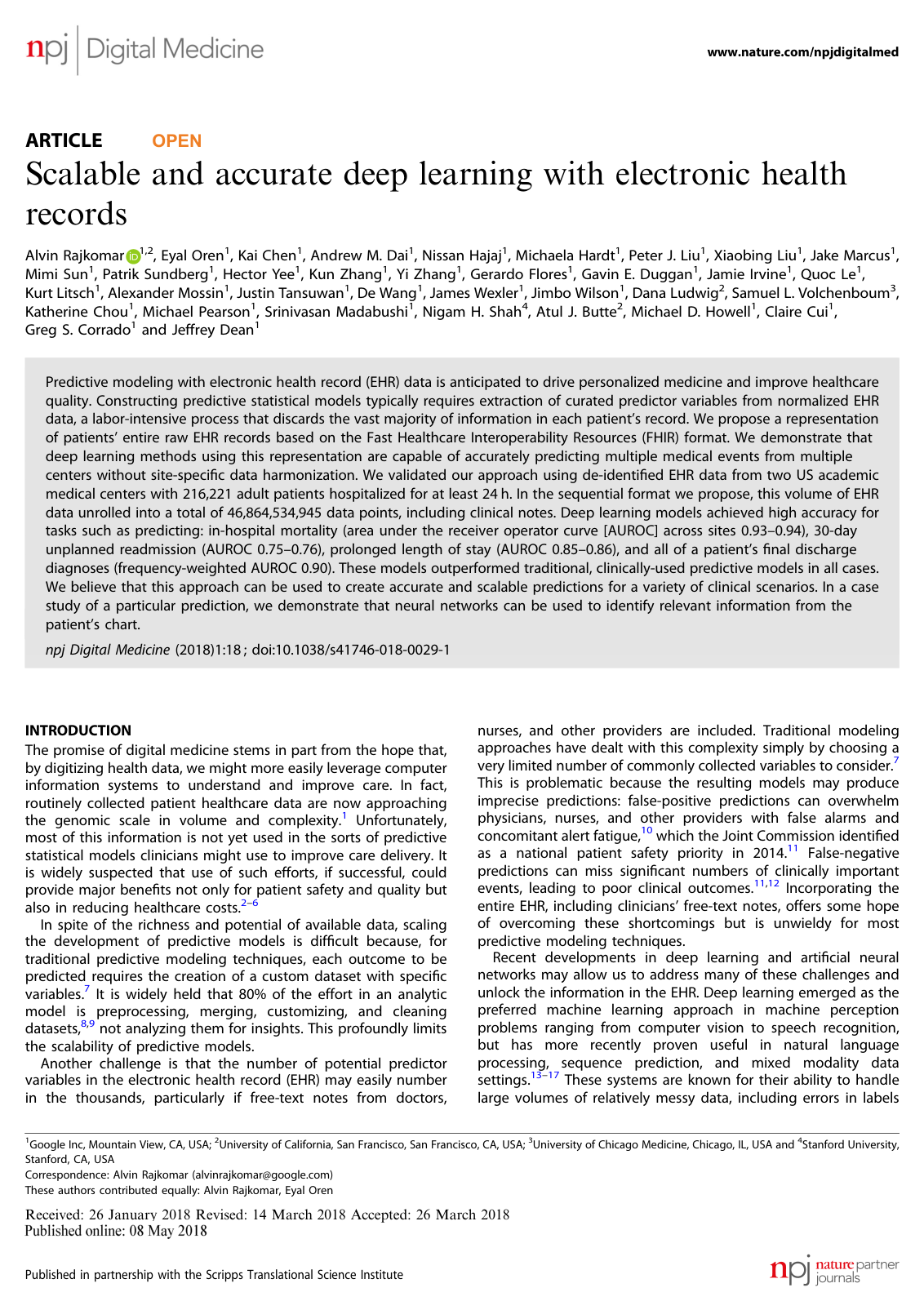

Cover for Scalable and accurate deep learning with electronic health records

Abstract

Predictive modeling with electronic health record (EHR) data is anticipated to drive personalized medicine and improve healthcare quality. Constructing predictive statistical models typically requires extraction of curated predictor variables from normalized EHR data, a labor-intensive process that discards the vast majority of information in each patient’s record. We propose a representation of patients’ entire raw EHR records based on the Fast Healthcare Interoperability Resources (FHIR) format. We demonstrate that deep learning methods using this representation are capable of accurately predicting multiple medical events from multiple centers without site-specific data harmonization. We validated our approach using de-identified EHR data from two US academic medical centers with 216,221 adult patients hospitalized for at least 24 h. In the sequential format we propose, this volume of EHR data unrolled into a total of 46,864,534,945 data points, including clinical notes. Deep learning models achieved high accuracy for tasks such as predicting: in-hospital mortality (area under the receiver operator curve [AUROC] across sites 0.93–0.94), 30-day unplanned readmission (AUROC 0.75–0.76), prolonged length of stay (AUROC 0.85–0.86), and all of a patient’s final discharge diagnoses (frequency-weighted AUROC 0.90). These models outperformed traditional, clinically-used predictive models in all cases. We believe that this approach can be used to create accurate and scalable predictions for a variety of clinical scenarios. In a case study of a particular prediction, we demonstrate that neural networks can be used to identify relevant information from the patient’s chart.

Topics

data pointsdeep learningehrhealth recordsstochastic processesregression modelconvolutional neural networksintegrated datatransmitterselectronic health record systems

Keywords

electronic health recordsdeep learningrecurrent neural networksinpatient mortalityhospital readmissionsICD-9 diagnosesnursing flowsheetsprecision medicine

Table of Contents

  • INTRODUCTION
  • Related work
  • RESULTS
  • Mortality
  • Readmissions
  • Long length of stay
  • Inferring discharge diagnoses
  • Case study of model interpretation
  • DISCUSSION
  • METHODS
  • Datasets
  • Data representation and processing
  • Outcomes
  • Prediction timing
  • Study cohort
  • Algorithm development and analysis
  • Comparison to previously published algorithms
  • Explanation of predictions
  • Model evaluation and statistical analysis
  • Data availability
  • Code availability
  • ACKNOWLEDGEMENTS
  • AUTHOR CONTRIBUTIONS
  • ADDITIONAL INFORMATION
  • REFERENCES

Knowls

  1. Knowl 1 — FHIR-Based Raw EHR Sequence Representation

    model/method

    To represent electronic health record (EHR) data without site-specific manual variable curation or data harmonization, all clinical records for a patient are structured as a chronological sequence of Fast Healthcare Interoperability Resources (FHIR) data objects.

    Raw EHR data—encompassing patient demographics, clinician orders, diagnoses, procedures, medications, laboratory values, vital signs, nursing flowsheets, and unstructured free-text clinical notes—are mapped directly into standard FHIR resource containers. Within each resource, data attributes are decomposed into discrete categorical tokens (e.g., individual medication ingredients, generic and brand names, order types, and individual words from clinical text) and normalized numerical values.

    The input to predictive neural networks is the full temporal sequence of tokens ordered by timestamp from the start of a patient's historical medical record up to the designated prediction time-point, allowing direct feature learning across tens of thousands of raw variables.

  2. Knowl 2 — Ensemble Deep Learning Architecture for Longitudinal EHR Modeling

    model/method

    To process longitudinal sequences of variable-length EHR tokens, an ensemble of three distinct model architectures is deployed for each clinical prediction task:

    1. Long Short-Term Memory (LSTM) Recurrent Neural Networks: Processes sequential token streams to capture long-range temporal dependencies and order of clinical events.
    2. Time-Aware Neural Networks (TANN): Employs attention mechanisms that explicitly encode continuous time intervals between clinical events, allowing the network to weight relevant historical data points.
    3. Boosted Time-Based Decision Stumps: Uses ensemble boosting over temporal decision stumps to model sparse and non-linear interactions across time-indexed variables.

    Each model architecture is trained independently on the full sequence of patient tokens available up to a given prediction time point, and their predicted probabilities are combined via ensembling to yield final predictions.

  3. Knowl 3 — Clinical Prediction Performance Across Tasks and Time Points

    data/table

    The deep learning models outperform traditional clinical baseline scoring algorithms across four distinct predictive tasks evaluated at various time points during hospital admission on test cohorts from Hospital A (UCSF) and Hospital B (UCM):

    Task and Prediction Time Hospital A AUROC (95% CI) Hospital B AUROC (95% CI)
    Inpatient mortality
    24 h before admission 0.87 (0.85–0.89) 0.81 (0.79–0.83)
    At admission 0.90 (0.88–0.92) 0.90 (0.86–0.91)
    24 h after admission 0.95 (0.94–0.96) 0.93 (0.92–0.94)
    Baseline (aEWS) at 24 h after admission 0.85 (0.81–0.89) 0.86 (0.83–0.88)
    30-day readmission
    At admission 0.73 (0.71–0.74) 0.72 (0.71–0.73)
    At 24 h after admission 0.74 (0.72–0.75) 0.73 (0.72–0.74)
    At discharge 0.77 (0.75–0.78) 0.76 (0.75–0.77)
    Baseline (mHOSPITAL) at discharge 0.70 (0.68–0.72) 0.68 (0.67–0.69)
    Length of stay ≥\ge 7 days
    At admission 0.81 (0.80–0.82) 0.80 (0.80–0.81)
    At 24 h after admission 0.86 (0.86–0.87) 0.85 (0.85–0.86)
    Baseline (mLiu) at 24 h after admission 0.76 (0.75–0.77) 0.74 (0.73–0.75)
    Discharge diagnoses (weighted AUROC)
    At admission 0.87 0.86
    At 24 h after admission 0.89 0.88
    At discharge 0.90 0.90

    The deep learning ensemble achieved higher discrimination (AUROC) than standard clinical baselines at every evaluated time point for in-hospital mortality (compared to the 28-variable augmented Early Warning Score, aEWS), 30-day unplanned readmissions (compared to modified HOSPITAL score), and long length of stay ≥7\ge 7 days (compared to the modified Liu logistic regression model).

  4. Knowl 4 — Inpatient Mortality Discrimination and Alert Reduction

    empirical result

    For predicting inpatient mortality 24 hours after hospital admission, the deep learning model achieved an AUROC of 0.95 (95% CI 0.94–0.96) for Hospital A and 0.93 (95% CI 0.92–0.94) for Hospital B, compared to 0.85 (95% CI 0.81–0.89) and 0.86 (95% CI 0.83–0.88) for the augmented Early Warning Score (aEWS) baseline.

    At an alert threshold corresponding to 80% sensitivity, the deep learning model roughly halved the work-up-to-detection ratio (number of patients needed to evaluate per true positive case) compared to aEWS:

    • Hospital A: 7.4 needed to evaluate for the deep learning model vs. 14.3 for aEWS.
    • Hospital B: 8.0 needed to evaluate for the deep learning model vs. 15.4 for aEWS.

    Furthermore, the deep learning model attained a level of predictive discrimination comparable to baseline 24-hour scores at 24 to 48 hours earlier in the patient's stay (achieving an AUROC of 0.87–0.81 at 24 hours prior to inpatient admission).

  5. Knowl 5 — 30-Day Unplanned Readmission and Prolonged Length of Stay Accuracy

    empirical result

    When evaluated on unplanned readmissions within 30 days of discharge, the deep learning model at discharge achieved an AUROC of 0.77 (95% CI 0.75–0.78) for Hospital A and 0.76 (95% CI 0.75–0.77) for Hospital B, significantly outperforming the baseline modified HOSPITAL score of 0.70 (95% CI 0.68–0.72) and 0.68 (95% CI 0.67–0.69).

    For predicting prolonged hospitalization (length of stay ≥7\ge 7 days, representing the ~75th percentile of stays), the deep learning model at 24 hours after admission achieved an AUROC of 0.86 (95% CI 0.86–0.87) for Hospital A and 0.85 (95% CI 0.84–0.86) for Hospital B, compared to 0.76 (95% CI 0.75–0.77) and 0.74 (95% CI 0.73–0.75) for the modified Liu baseline model.

  6. Knowl 6 — Multi-Label Discharge Diagnosis Code Assignment

    empirical result

    The deep learning system predicted the entire set of primary and secondary billing diagnoses simultaneously from a vocabulary of 14,025 ICD-9 codes without requiring manual feature selection. Correctness required full-length ICD-9 code agreement (e.g., code 250.4 was evaluated as distinct from 250.42).

    • Macro-weighted AUROC: Reached 0.86–0.87 at hospital admission, 0.88–0.89 at 24 hours post-admission, and 0.90 for both Hospital A and Hospital B at discharge.
    • Micro-weighted F1 Score: Reached 0.41 for Hospital A and 0.40 for Hospital B at discharge using a single global threshold selected on the validation set.

  7. Knowl 7 — Token-Level Attribution and Clinical Explainability

    model/method

    To explain individual predictions and mitigate the 'black box' opacity of deep neural networks, token-level attribution mechanisms (derived from attention weights in Time-Aware Neural Networks) highlight the specific raw EHR tokens that contributed most strongly to a prediction.

    When evaluated on specific patient cases, the attribution mechanism isolated clinically relevant multi-modal concepts without manual rules, including:

    1. Mentions of critical findings in free-text clinical notes and radiology reports (e.g., 'malignant pleural effusions', 'empyema', trade names for chest drainage catheters like 'pleurx').
    2. Nursing flowsheet scores indicating high functional risk (e.g., elevated Braden scale scores for pressure ulcer risk).
    3. Timelines of specific intravenous antibiotic and medication administrations.

  8. Knowl 8 — Experimental Cohort and Multi-Center Evaluation Setup

    experimental setup

    The evaluation cohort comprised 216,221 inpatient hospitalizations representing 114,003 unique adult patients (ge18\\ge 18 years of age) with hospital stays ge24\\ge 24 hours from two geographically distinct US academic medical centers:

    • Hospital A (University of California, San Francisco): 2012–2016; 85,522 training encounters, 9,624 test encounters.
    • Hospital B (University of Chicago Medicine): 2009–2016; 108,948 training encounters, 12,127 test encounters (including de-identified clinical free-text notes).

    Datasets were split at the patient level into 80% development/training, 10% validation, and 10% held-out test sets. Model discrimination was evaluated on the test set using AUROC with 95% confidence intervals derived from 1,000 bootstrap iterations. Across both centers, the unrolled raw sequence data at discharge totaled 46,864,534,945 discrete tokens.

  9. Knowl 9 — Methodological and Practical Limitations of Raw EHR Deep Learning

    limitation

    The deep learning approach on raw FHIR records exhibits several key limitations:

    1. Retrospective Evaluation: The findings are derived entirely from retrospective observational EHR data; prospective clinical trials are necessary to verify whether alerting on these predictions improves clinical outcomes.
    2. Lack of Cross-Site Data Harmonization: Because variables and local site codes are not mapped to a shared semantic ontology, the models do not support direct zero-shot transfer learning between hospitals and require retraining on site-specific historical records.
    3. Computational Complexity: Training deep sequence models over billions of tokens is computationally intensive and demands distributed infrastructure, although per-patient inference execution takes only a few milliseconds.
    4. Unmeasured Component Contributions: The study evaluated aggregate predictive accuracy rather than quantifying the isolated incremental contribution of individual data modalities (such as unstructured notes versus structured laboratory and flowsheet elements) on identical patient cohorts.

Coverage note — None was omitted; all primary architectural methods, predictive tasks, empirical metrics, attribution mechanisms, experimental cohorts, and stated limitations were fully extracted into self-contained knowls.
