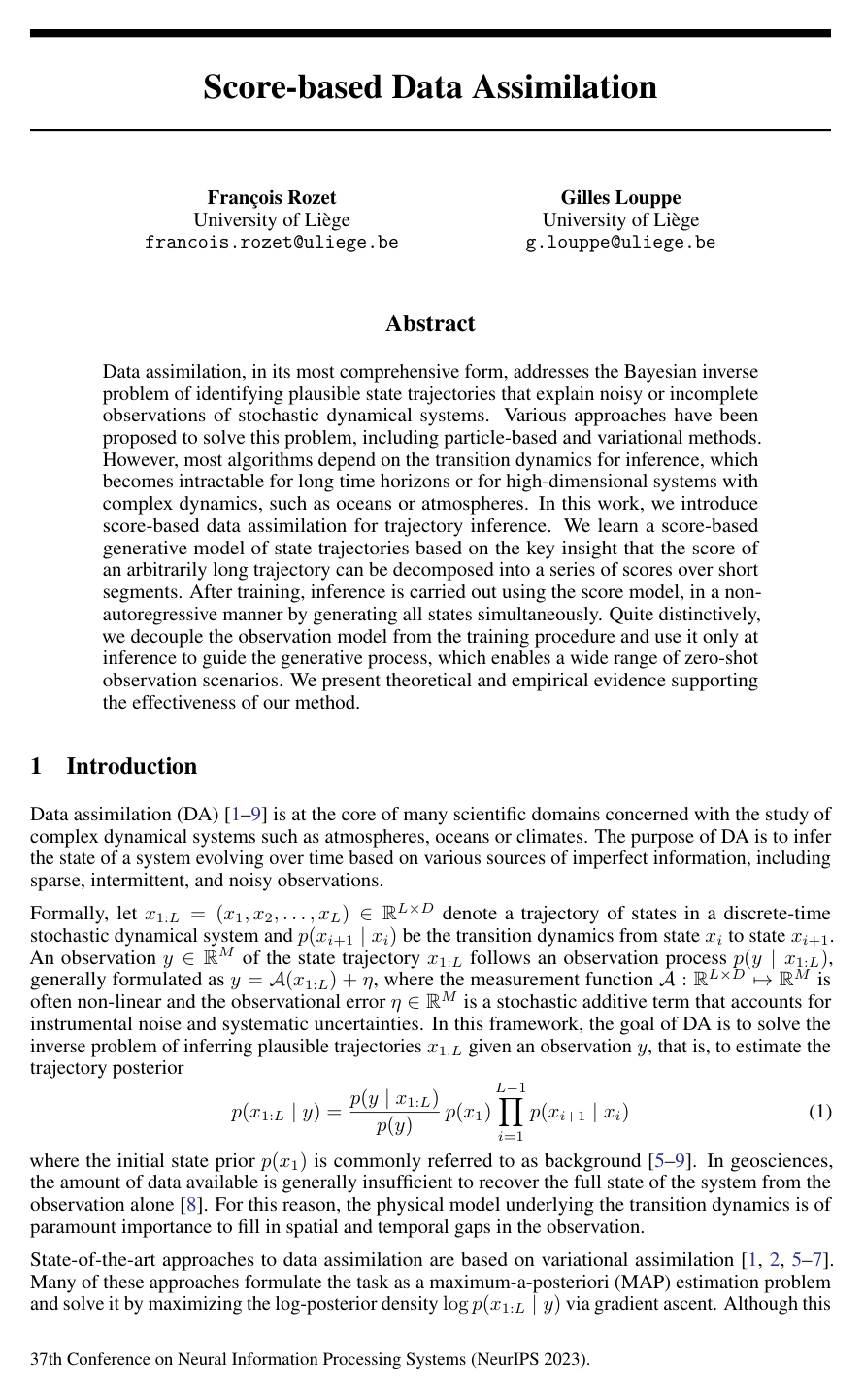

Score-based Data Assimilation

François RozetGilles Louppe

article2023NeurIPS89 citations

Proposes a score-based data assimilation framework that trains on short trajectory segments to enable non-autoregressive, zero-shot posterior sampling over long time horizons without running or differentiating through physical forward models during inference.

Listen

Complex real-world dynamical systems, such as atmospheric weather patterns and ocean currents, are difficult to track because observational data is often sparse, intermittent, and noisy. Data assimilation seeks to reconstruct complete, physically plausible state trajectories from these incomplete measurements. However, conventional operational methods rely heavily on simulating and differentiating through complex numerical physical models. This requirement becomes computationally intractable over extended time horizons or high-dimensional systems, consuming massive computing budgets and forcing operational agencies to discard large volumes of available satellite data.

The article introduces and evaluates Score-based Data Assimilation, a generative machine learning approach designed to reconstruct full state trajectories without running or differentiating through underlying physical equations during inference. The authors demonstrate that generative models can capture the full probability distribution of possible states directly from data while maintaining physical consistency.

The approach relies on three key mechanisms. First, it exploits the step-by-step structure of dynamical systems to approximate trajectory probabilities using local short segments, allowing score networks to train on small temporal windows rather than complete long sequences. Second, it decouples the observation process from training, using a stabilized likelihood approximation at inference time to enable zero-shot assimilation under varying observation conditions. Third, it generates all trajectory states simultaneously via a predictor-corrector diffusion process that applies corrective steps to eliminate accumulated numerical errors. The authors evaluated this framework on two standard benchmarks: the chaotic three-dimensional Lorenz 1963 atmospheric convection system and a high-dimensional, two-dimensional turbulent fluid simulation governed by Navier-Stokes equations.

The evaluation yielded several key findings. First, the method closely matched ground-truth posterior distributions on the Lorenz system, achieving near-optimal statistical accuracy when using local windows of at least three steps and two or more corrective iterations. Second, unlike traditional variational techniques that produce single-point estimates, the proposed framework successfully recovered multi-modal posterior distributions, capturing multiple distinct and physically plausible operational scenarios from the same observation. Third, in high-dimensional fluid simulations, the framework accurately reconstructed continuous flow fields from heavily degraded, low-resolution, and spatially sparse observations where existing baseline methods failed. Fourth, when fed unlikely terminal conditions, the model generated dynamically valid trajectories whose initial states naturally reproduced the target evolution when verified against the true physical equations.

These findings suggest substantial practical implications for operational forecasting, environmental monitoring, and mission-critical decision-making. By bypassing physical model simulation during inference, the method reduces the computational burden of data assimilation, opening paths to ingest richer satellite streams and parallelize inference on modern hardware. Moreover, capturing multi-modal distributions provides decision-makers with comprehensive risk profiles rather than a single overconfident estimate, improving safety and contingency planning for high-consequence weather events.

Organizations evaluating this technology should begin with pilot deployments on lower-dimensional or regional forecasting tasks to benchmark inference speed and accuracy trade-offs against established Kalman filtering and variational baselines. Practitioners can adjust the number of corrective steps during sampling to trade computational throughput for physical accuracy as needed. However, further research and validation are required before applying the method to full-scale numerical weather prediction. Key limitations include the current assumption of fixed physical parameters across all trajectories, the unquantified theoretical error bounds of the score approximations, and the substantial engineering challenge of scaling the framework from tens of thousands of dimensions to the millions of dimensions used in operational forecasting systems.

University of Liège data assimilation score-based data assimilation state estimation score matching

arXiv: 2306.10574

Paper: Score-Based Generative Modeling through Stochastic Differential Equations, Yang Song et al. (2021). Provides the foundational continuous-time stochastic differential equation formulation for score-based generative modeling and score estimation that the source adapts for state trajectories.
Paper: Diffusion Posterior Sampling for General Noisy Inverse Problems, Hyungjin Chung et al. (2022). Introduces diffusion posterior sampling to guide unconditional score models with observation likelihoods at inference time, underpinning the decoupled observation guidance used in the source.
Paper: Planning with Diffusion for Flexible Behavior Synthesis, Michael Janner et al. (2022). Pioneers the use of non-autoregressive diffusion models over whole trajectories with test-time conditional guidance, establishing the trajectory generation paradigm that the source extends to data assimilation.
Paper: Generative Modeling by Estimating Gradients of the Data Distribution, Yang Song et al. (2019). Establishes generative modeling via noise-conditional score matching and annealed Langevin dynamics, which serves as the core sampling engine for trajectory inference.
Paper: Estimation of Non-Normalized Statistical Models by Score Matching, Aapo Hyvärinen (2005). Introduces the classical score matching objective for unnormalized statistical models that enables learning data distribution gradients without computing intractable normalization constants.
Paper: The frontier of simulation-based inference, Kyle Cranmer et al. (2019). Surveys machine learning approaches for Bayesian inverse problems and intractable likelihoods in physical simulators, framing the core data assimilation problem tackled by the source.

Paper: A Variational Perspective on Solving Inverse Problems with Diffusion Models, Morteza Mardani et al. (2024). Develops a variational framework (RED-diff) to solve general inverse problems via diffusion models without crude score approximations, complementing the inference-time guidance in score-based assimilation.
Paper: Score-Based Diffusion Models in Function Space, Jae Hyun Lim 0001 et al. (2025). Extends score-based diffusion models to infinite-dimensional function spaces and neural operators, providing a natural progression for continuous spatio-temporal data assimilation.
Paper: A General Framework for Inference-time Scaling and Steering of Diffusion Models, Raghav Singhal et al. (2025). Presents an inference-time particle steering and resampling framework (Feynman-Kac steering) that can enhance the zero-shot conditional trajectory generation introduced in the source.
Paper: Round-Trip Consistency: Bidirectional Diffusion Models Can Predict Their Own Rollout Errors, Alexander Scheinker (2026). Employs bidirectional diffusion models to evaluate and predict rollout errors in complex physical systems, addressing trajectory drift and uncertainty estimation.
Paper: Sundial: A Family of Highly Capable Time Series Foundation Models, Yong Liu 0007 et al. (2025). Applies continuous generative flow matching to large-scale time series foundation models, scaling continuous trajectory generation to multi-domain temporal settings.

Abstract

Data assimilation, in its most comprehensive form, addresses the Bayesian inverse problem of identifying plausible state trajectories that explain noisy or incomplete observations of stochastic dynamical systems. Various approaches have been proposed to solve this problem, including particle-based and variational methods. However, most algorithms depend on the transition dynamics for inference, which becomes intractable for long time horizons or for high-dimensional systems with complex dynamics, such as oceans or atmospheres. In this work, we introduce score-based data assimilation for trajectory inference. We learn a score-based generative model of state trajectories based on the key insight that the score of an arbitrarily long trajectory can be decomposed into a series of scores over short segments. After training, inference is carried out using the score model, in a non-autoregressive manner by generating all states simultaneously. Quite distinctively, we decouple the observation model from the training procedure and use it only at inference to guide the generative process, which enables a wide range of zero-shot observation scenarios. We present theoretical and empirical evidence supporting the effectiveness of our method.

Topics

data assimilation

Keywords

score-based data assimilation state estimation score matching posterior inference predictor-corrector sampling forward SDE Kalman filters sequential Monte Carlo methods weather prediction

1 Introduction
2 Background
3 Score-based data assimilation
3.1 How is your blanket?
3.2 Stable likelihood score
3.3 Predictor-Corrector sampling
4 Results
4.1 Lorenz 1963
4.2 Kolmogorov flow
5 Conclusion
References
A The pseudo-blanket approximation is unbiased
B On the covariance of p⁡(x∣x⁡(t))p(x\mid x(t))
C Algorithms
D Experiment details
E Assimilation examples

Knowls

Knowl 1 — Trajectory Prior Score Approximation via Pseudo-Markov Blankets
model/method
In a discrete-time stochastic dynamical system, a state trajectory $\mathbf{x}_{1:L} = (\mathbf{x}_1, \mathbf{x}_2, \dots, \mathbf{x}_L) \in \mathbb{R}^{L \times D}$ is a first-order Markov chain whose clean-data score can be decomposed using the Markov blanket $\mathbf{x}_{b_i} = \{\mathbf{x}_{i-1}, \mathbf{x}_{i+1}\}$ of each state $\mathbf{x}_i$ :

$\nabla_{\mathbf{x}_i} \log p(\mathbf{x}_{1:L}) = \nabla_{\mathbf{x}_i} \log p(\mathbf{x}_i, \mathbf{x}_{b_i})$

When trajectories are perturbed by continuous-time Gaussian diffusion $p(\mathbf{x}_{1:L}(t) \mid \mathbf{x}_{1:L}) = \mathcal{N}(\mathbf{x}_{1:L}(t) \mid \mu(t) \mathbf{x}_{1:L}, \sigma(t)^2 \mathbf{I})$ , conditional independence is broken for diffusion time $t \in (0, 1)$ . However, a local temporal window $\bar{b}_i = \{i - k, \dots, i + k\} \setminus \{i\}$ of half-width $k \ge 1$ acts as a pseudo-Markov blanket:

$\nabla_{\mathbf{x}_i(t)} \log p(\mathbf{x}_{1:L}(t)) \approx \nabla_{\mathbf{x}_i(t)} \log p(\mathbf{x}_{i-k:i+k}(t))$

Because mutual information between states vanishes at $t=1$ and the exact Markov property holds at $t=0$ , this approximation remains accurate across $t \in [0, 1]$ for $k \ll L$ . Consequently, a neural score model $s_\phi(\mathbf{x}_{i-k:i+k}(t), t) \approx \nabla_{\mathbf{x}_{i-k:i+k}(t)} \log p(\mathbf{x}_{i-k:i+k}(t))$ trained only on short sub-segments of length $2k + 1$ can be applied in a sliding-window fashion along a trajectory to approximate the full score $\nabla_{\mathbf{x}_{1:L}(t)} \log p(\mathbf{x}_{1:L}(t))$ of arbitrarily long sequences non-autoregressively.
Knowl 2 — Unbiasedness of the Pseudo-Markov Blanket Score Approximation
theoretical result
For any continuous random variables $a$ , $b$ , and $c$ , the score of the marginal density satisfies:

$\nabla_a \log p(a, b) = \frac{1}{p(a, b)} \nabla_a \int p(a, b, c) \, \mathrm{d}c = \int \frac{p(c \mid a, b)}{p(a, b, c)} \nabla_a p(a, b, c) \, \mathrm{d}c = \mathbb{E}_{p(c \mid a, b)} \left[ \nabla_a \log p(a, b, c) \right]$

Setting $a = \mathbf{x}_i(t)$ , $b = \mathbf{x}_{\bar{b}_i}(t)$ (the pseudo-Markov blanket of $\mathbf{x}_i(t)$ ), and $c = \mathbf{x}_{\notin}(t) = \{\mathbf{x}_j(t) : j \neq i \wedge j \notin \bar{b}_i\}$ (the remaining states in the diffusion-perturbed trajectory $\mathbf{x}_{1:L}(t)$ ), it holds that:

$\nabla_{\mathbf{x}_i(t)} \log p(\mathbf{x}_i(t), \mathbf{x}_{\bar{b}_i}(t)) = \mathbb{E}_{p(\mathbf{x}_{\notin}(t) \mid \mathbf{x}_i(t), \mathbf{x}_{\bar{b}_i}(t))} \left[ \nabla_{\mathbf{x}_i(t)} \log p(\mathbf{x}_{1:L}(t)) \right]$

Thus, the pseudo-Markov blanket score approximation is an unbiased estimator (exact in expectation over all variables outside the pseudo-blanket) of the true full-trajectory score $\nabla_{\mathbf{x}_i(t)} \log p(\mathbf{x}_{1:L}(t))$ , irrespective of the chosen blanket size or composition.
Knowl 3 — Extended Kalman-Inspired Likelihood Score for Score-Based Inverse Problems
equation
For an observation process $\mathbf{y} = \mathcal{A}(\mathbf{x}_{1:L}) + \boldsymbol{\eta}$ with differentiable measurement operator $\mathcal{A} : \mathbb{R}^{L \times D} \to \mathbb{R}^M$ and Gaussian noise $\boldsymbol{\eta} \sim \mathcal{N}(0, \boldsymbol{\Sigma}_y)$ , zero-shot posterior sampling requires the likelihood score $\nabla_{\mathbf{x}_{1:L}(t)} \log p(\mathbf{y} \mid \mathbf{x}_{1:L}(t))$ . Approximating the posterior covariance under diffusion with $\frac{\sigma(t)^2}{\mu(t)^2} \boldsymbol{\Gamma}$ (where $\boldsymbol{\Gamma} = \mathbf{Q} \boldsymbol{\Lambda} (\boldsymbol{\Lambda} + \mathbf{I})^{-1} \mathbf{Q}^{-1}$ is derived from the eigendecomposition $\mathbf{Q} \boldsymbol{\Lambda} \mathbf{Q}^{-1}$ of the prior covariance $\boldsymbol{\Sigma}_x$ ), the perturbed likelihood is approximated as:

$p(\mathbf{y} \mid \mathbf{x}_{1:L}(t)) \approx \mathcal{N}\left(\mathbf{y} \;\middle|\; \mathcal{A}(\hat{\mathbf{x}}(\mathbf{x}_{1:L}(t))), \; \boldsymbol{\Sigma}_y + \frac{\sigma(t)^2}{\mu(t)^2} \mathbf{A} \boldsymbol{\Gamma} \mathbf{A}^T\right)$

where $\hat{\mathbf{x}}(\mathbf{x}_{1:L}(t)) = \frac{\mathbf{x}_{1:L}(t) + \sigma(t)^2 s_\phi(\mathbf{x}_{1:L}(t), t)}{\mu(t)}$ is the Tweedie posterior expectation computed via the score network $s_\phi$ , and $\mathbf{A} = \left. \frac{\partial \mathcal{A}}{\partial \mathbf{x}_{1:L}} \right|_{\hat{\mathbf{x}}(\mathbf{x}_{1:L}(t))}$ is the Jacobian of $\mathcal{A}$ . In practice, $\mathbf{A} \boldsymbol{\Gamma} \mathbf{A}^T$ is typically fixed to a constant diagonal matrix (e.g., $10^{-2} \mathbf{I}$ ), which stabilizes gradient computation in low signal-to-noise regimes without requiring ad-hoc score rescaling.
Knowl 4 — Local Score Network Training and Full Trajectory Score Composition
algorithm
Training is performed on trajectory sub-segments of length $2k + 1$ using the parameterization $\boldsymbol{\epsilon}_\phi(\mathbf{x}_{i-k:i+k}(t), t) = -\sigma(t) s_\phi(\mathbf{x}_{i-k:i+k}(t), t)$ . During inference, the full trajectory score is composed by querying the local score network across overlapping segments.
procedure TrainLocalScore(dataset p(x_{1:L}), iterations N, radius k)
    for step = 1 to N do
        Sample x_{1:L} ~ p(x_{1:L})
        Sample i ~ Uniform({k + 1, ..., L - k})
        Sample t ~ Uniform(0, 1)
        Sample \epsilon ~ N(0, I)
        x_{i-k:i+k}(t) <- \mu(t) x_{i-k:i+k} + \sigma(t) \epsilon
        loss <- || \epsilon_\phi(x_{i-k:i+k}(t), t) - \epsilon ||_2^2
        \phi <- GradientDescent(\phi, \nabla_\phi loss)
    end for
end procedure
procedure ComposeTrajectoryScore(x_{1:L}(t), t, score_net s_\phi, radius k)
    s_{1:k+1} <- s_\phi(x_{1:2k+1}(t), t)[1 : k+1]
    for i = k + 2 to L - k - 1 do
        s_i <- s_\phi(x_{i-k:i+k}(t), t)[k + 1]
    end for
    s_{L-k:L} <- s_\phi(x_{L-2k:L}(t), t)[k + 1 : 2k+1]
    return s_{1:L}
end procedure
Knowl 5 — Predictor-Corrector Sampling Algorithm for Score-Based Data Assimilation
algorithm
Posterior trajectory generation integrates the reverse SDE from $t=1$ to $t=0$ using the Exponential Integrator discretization as a predictor, followed by Langevin Monte Carlo (LMC) correction steps between consecutive time discretization points to prevent the accumulation of approximation errors.
procedure SampleTrajectory(discretization {t_i}_{i=0}^N, corrections C, scale \tau, y, \Sigma_y, \Gamma)
    x(1) ~ N(0, \Sigma(1))
    for i = N down to 1 do
        // Posterior score evaluation
        s_x <- ComposeTrajectoryScore(x(t_i), t_i)
        x_hat <- (x(t_i) + \sigma(t_i)^2 s_x) / \mu(t_i)
        s_y <- \nabla_{x(t_i)} log N(y | A(x_hat), \Sigma_y + (\sigma(t_i)^2 / \mu(t_i)^2) \Gamma)
        s_post <- s_x + s_y
        // Predictor step (Exponential Integrator)
        x(t_{i-1}) <- (\mu(t_{i-1}) / \mu(t_i)) * x(t_i) + (\mu(t_{i-1}) / \mu(t_i) - \sigma(t_{i-1}) / \sigma(t_i)) * \sigma(t_i)^2 * s_post
        // Corrector steps (Langevin Monte Carlo)
        for j = 1 to C do
            \epsilon ~ N(0, I)
            s_x_corr <- ComposeTrajectoryScore(x(t_{i-1}), t_{i-1})
            x_hat_corr <- (x(t_{i-1}) + \sigma(t_{i-1})^2 s_x_corr) / \mu(t_{i-1})
            s_y_corr <- \nabla_{x(t_{i-1})} log N(y | A(x_hat_corr), \Sigma_y + (\sigma(t_{i-1})^2 / \mu(t_{i-1})^2) \Gamma)
            s_corr <- s_x_corr + s_y_corr
            \delta <- \tau * dim(s_corr) / || s_corr ||_2^2
            x(t_{i-1}) <- x(t_{i-1}) + \delta * s_corr + sqrt(2 * \delta) * \epsilon
        end for
    end for
    return x(0)
end procedure
Knowl 6 — Posterior Accuracy and Convergence on the Chaotic Lorenz 1963 System
empirical result
On the stochastic Lorenz 1963 system integrated with time step $\Delta = 0.025$ and Brownian noise $\boldsymbol{\eta} \sim \mathcal{N}(0, \Delta \mathbf{I})$ , SDA was evaluated against the ground-truth trajectory posterior computed via a Bootstrap Particle Filter (BPF) with $2^{16}$ particles across 64 evaluation observations of length $L=65$ . Under both low-frequency sparse observations ( $y \sim \mathcal{N}(\tilde{a}_{1:L:8}, 0.05^2 \mathbf{I})$ ) and high-frequency noisy observations ( $y \sim \mathcal{N}(\tilde{a}_{1:L}, 0.25^2 \mathbf{I})$ ):
1. Increasing the pseudo-blanket radius $k$ and the number of LMC corrections $C$ monotonically brings the expected log-prior $\mathbb{E}_{q}[\log p(\mathbf{x}_{2:L} \mid \mathbf{x}_1)]$ , expected log-likelihood $\mathbb{E}_{q}[\log p(\mathbf{y} \mid \mathbf{x}_{1:L})]$ , and 1-Wasserstein distance $W_1(p, q)$ closer to the BPF ground truth.
2. The improvements exhibit diminishing returns, with approximate posteriors for $k \ge 3$ and $C \ge 2$ performing almost identically to higher values.
3. In multi-modal posterior settings (e.g., observing $c_{1:L:4}$ where the sign of coordinates $a$ and $b$ is ambiguous), SDA generates distinct plausible trajectory modes consistent with the observations.
Knowl 7 — Zero-Shot Data Assimilation on 2D Turbulent Kolmogorov Flow
empirical result
SDA was evaluated on 2D incompressible Navier-Stokes turbulence subject to Kolmogorov forcing ( $Re = 10^3$ , $64 \times 64$ spatial velocity grid, integration step $\Delta = 0.2$ time units corresponding to 82 forward Euler solver steps per state snapshot) using a U-Net score network with pseudo-blanket radius $k=2$ :
1. For trajectories of length $L=32$ observed intermittently every 4 steps at coarse $8 \times 8$ resolution with noise $\boldsymbol{\Sigma}_y = 0.1^2 \mathbf{I}$ , SDA ( $C=1, \tau=0.5$ ) accurately reconstructs the true vorticity field trajectories. In contrast, standard Diffusion Posterior Sampling (DPS) yields unphysical artifacts and trajectories inconsistent with observations.
2. When observing non-linear saturating transformations $\mathbf{x} \mapsto \frac{\mathbf{x}}{1 + |\mathbf{x}|}$ or spatially subsampled measurements down to subsampling factor $n=16$ , SDA maintains high physical consistency and satisfies observation constraints where DPS degrades.
3. Conditioning on an unlikely synthetic observation (uniform positive vorticity in a circular sub-domain at final state $\mathbf{x}_L$ ) produces an initial state $\mathbf{x}_1$ that, when evolved purely forward through the physical Navier-Stokes equations, reproduces the target trajectory, proving SDA propagates dynamic information rather than merely interpolating states.

Knowl 8 — Hyperparameters for Lorenz 1963 and Kolmogorov Flow Score Networks

data/table

The score networks for both the Lorenz 1963 and 2D Kolmogorov flow experiments were trained using the AdamW optimizer with weight decay $10^{-3}$ and linearly decaying learning rates for 1024 epochs, utilizing SiLU activations and LayerNorm.

Hyperparameter	Lorenz ( $k \le 4$ )	Lorenz ( $k > 4$ )	Kolmogorov Flow
Architecture	Fully-connected	Fully-convolutional	U-Net
Residual blocks	5	$k - 2$	(3, 3, 3) per level
Channels / Features	256	64	(96, 192, 384)
Kernel size	–	3	3 (circular padding)
Activation	SiLU	SiLU	SiLU
Normalization	LayerNorm	LayerNorm	LayerNorm
Optimizer	AdamW	AdamW	AdamW
Weight decay	$10^{-3}$	$10^{-3}$	$10^{-3}$
Learning rate	$10^{-3}$	$10^{-3}$	$2 \times 10^{-4}$
Scheduler	Linear	Linear	Linear
Epochs	1024	1024	1024
Batches per epoch	256	256	128
Batch size	256	64	32

The table lists the exact architectural specifications and optimization configurations required to train the local score models for low-dimensional ODE dynamics and high-dimensional PDE fluid dynamics.

Knowl 9 — Limitations of Score-Based Data Assimilation
limitation
The method is subject to several core limitations:
1. Inference Latency: Simulating the reverse SDE with multiple Langevin Monte Carlo corrector steps is computationally demanding compared to single-pass state estimators.
2. Unbounded Approximation Error: The local pseudo-Markov blanket approximation and the perturbed likelihood covariance approximation introduce errors whose impact on the resulting posterior density has not been theoretically quantified.
3. Dimensional Scaling Gap: While demonstrated on systems with tens of thousands of dimensions ( $64 \times 64 \times 2$ grids in Kolmogorov flow), operational weather and ocean prediction systems operate on $10^7$ -- $10^8$ state dimensions, presenting unresolved engineering and memory scaling challenges.
4. Fixed Shared Dynamics Assumption: SDA assumes all trajectories are generated from identical, stationary physical dynamics with known parameters; it cannot infer physical parameters online or guarantee robustness against physical model misspecification.

Coverage note — Standard background derivations of score-based SDEs (Song et al., 2021) and general surveys of deep learning for variational data assimilation were omitted as they constitute contextual prior work.
