Out-of-Candidate Rectification for Weakly Supervised Semantic Segmentation

Zesen ChengPengchong QiaoKehan LiSiheng LiPengxu WeiXiangyang JiLi YuanChang LiuJie Chen

article2023CVPR61 citations

Proposes a plug-and-play rectification mechanism that detects and corrects out-of-candidate pixel errors contradicting image-level labels via a differentiable group ranking loss, consistently boosting existing weakly supervised semantic segmentation baselines with minimal overhead.

Listen

Training computer vision models to accurately outline and identify objects in images typically demands dense, pixel-by-pixel manual annotations, which are expensive and time-consuming to produce. Weakly supervised semantic segmentation addresses this challenge by training models using only image-level tags that indicate which objects are present. However, because standard intermediate cues capture only the most prominent parts of an object, generated training masks contain substantial noise. This noise causes segmentation models to routinely assign pixels to categories that are entirely absent from the image tags—a flaw defined in the article as out-of-candidate errors.

The article demonstrates an out-of-candidate rectification framework designed to systematically detect and correct these out-of-candidate pixel errors during model training. The approach evaluates whether enforcing consistency between pixel predictions and known image-level tags can improve final segmentation performance across standard computer vision benchmarks.

The proposed framework operates in three steps during network training. First, it automatically flags out-of-candidate pixels whenever predicted categories contradict known image tags. Second, it adaptively divides categories into in-candidate and out-of-candidate groups by combining historical co-occurrence patterns across the dataset with current model prediction probabilities. Third, it applies a smooth, differentiable ranking loss that forces model activations for valid in-candidate classes to exceed those for out-of-candidate classes. The authors integrated this plug-and-play module into three established baseline systems and tested them on standard benchmarks, including the PASCAL VOC 2012 and MS COCO 2014 datasets.

The analysis produced several key findings. First, applying the rectification method reduced the rate of out-of-candidate pixel errors substantially across evaluated baselines, cutting error rates on the PASCAL VOC validation set from baseline levels of 21.5%–32.4% down to 7.9%–10.1%. Second, this error suppression produced consistent accuracy gains across all evaluated models, boosting mean intersection-over-union scores by 0.8% to 3.3% on PASCAL VOC and by 0.5% to 1.3% on the more complex MS COCO dataset. Third, combining the rectification module with a state-of-the-art transformer baseline established new top-tier benchmark performance on both datasets. Finally, the framework achieved these gains with negligible overhead, adding only 0.56 to 1.18 minutes per training epoch and requiring zero additional computation during final inference.

These findings indicate that directly penalizing logical contradictions against image-level labels is an effective, low-risk way to enhance weakly supervised vision pipelines. Organizations developing vision systems can reduce manual labeling costs without sacrificing accuracy by incorporating this loss function into existing training workflows. Because the rectification step is removed during inference, the performance improvements come with no operational latency or deployment cost trade-offs.

Teams training semantic segmentation models under weak supervision should consider integrating out-of-candidate rectification as a standard regularizer. When deploying the method, teams should use adaptive group splitting rather than simple rule-based assignment, as ablations show adaptive filtering provides the strongest accuracy improvements. While confidence in the reported experimental improvements is high across the evaluated datasets, validation on specialized, non-standard visual domains or with alternative network architectures would further confirm the module's broader generalizability.

Peking University Peng Cheng Laboratory Sun Yat-sen University Tsinghua University ocr semantics correlation coefficient weakly supervised semantic segmentation out-of-candidate rectification class activation maps

arXiv: 2211.12268 sennnnn/Out-of-Candidate-Rectification

Paper: Regional Semantic Contrast and Aggregation for Weakly Supervised Semantic Segmentation, Tianfei Zhou et al. (2022). It introduces a framework for weakly supervised semantic segmentation that leverages dataset-wide semantic representations to address noisy intermediate label cues, providing essential background on training segmentation models from image-level tags.
Paper: Self-supervised Image-specific Prototype Exploration for Weakly Supervised Semantic Segmentation, Qi Chen et al. (2022). It establishes key techniques for refining initial class activation seeds into full object masks under image-level supervision, laying the groundwork for addressing noise and false activations in weakly supervised segmentation.
Paper: Adaptive Early-Learning Correction for Segmentation from Noisy Annotations, Sheng Liu et al. (2022). It analyzes the dynamics of deep networks memorizing noisy segmentation masks and proposes early label correction, motivating the need for targeted loss rectification against erroneous pixel assignments.
Paper: Making Deep Neural Networks Robust to Label Noise: A Loss Correction Approach, Giorgio Patrini et al. (2016). It details foundational loss correction mechanisms that model class-conditional mislabeling, directly informing loss-based rectification strategies for noisy supervision.
Paper: Fully convolutional networks for semantic segmentation, Jonathan Long et al. (2015). It provides the foundational end-to-end dense pixel classification framework that all modern semantic segmentation and weakly supervised segmentation architectures build upon.

Paper: Weakly Supervised Semantic Segmentation via Adversarial Learning of Classifier and Reconstructor, Hyeokjun Kweon et al. (2023). It develops an adversarial classifier-reconstructor setup to prevent class activation bleeding into irrelevant backgrounds, extending the goal of eliminating false object activations under weak supervision.
Paper: Token Contrast for Weakly-Supervised Semantic Segmentation, Lixiang Ru et al. (2023). It addresses token over-smoothing and boundary inaccuracies in transformer-based weakly supervised semantic segmentation using contrastive token learning, building on the single-stage rectification of noisy pseudo-labels.
Paper: pix2gestalt: Amodal Segmentation by Synthesizing Wholes, Ege Ozguroglu et al. (2024). It advances pixel-level segmentation beyond visible candidate regions by synthesizing occluded object boundaries, offering a natural next step in dense mask recovery under partial supervision.

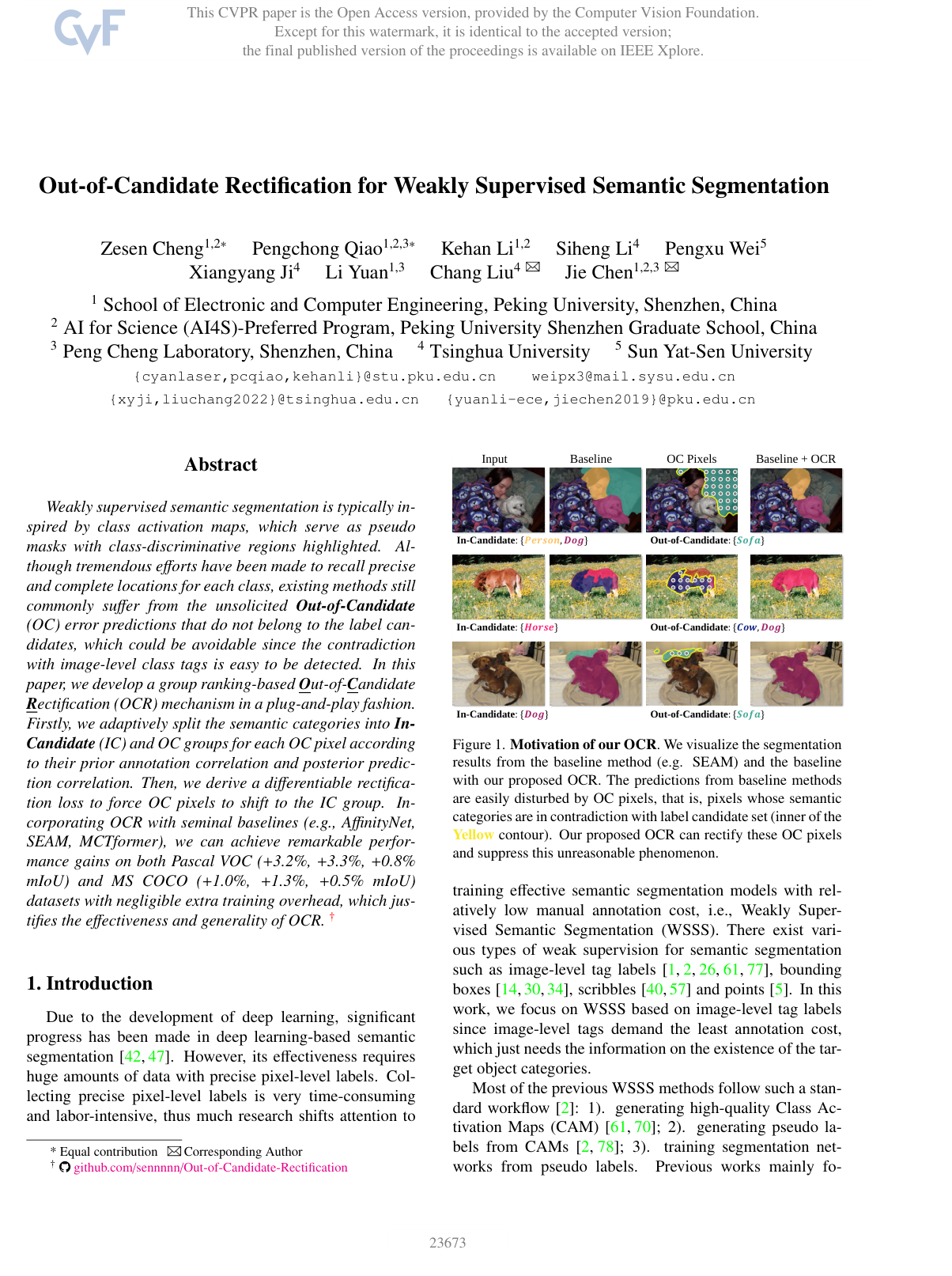

Cover for Out-of-Candidate Rectification for Weakly Supervised Semantic Segmentation

Abstract

Weakly supervised semantic segmentation is typically inspired by class activation maps, which serve as pseudo masks with class-discriminative regions highlighted. Although tremendous efforts have been made to recall precise and complete locations for each class, existing methods still commonly suffer from the unsolicited Out-of-Candidate (OC) error predictions that do not belong to the label candidates, which could be avoidable since the contradiction with image-level class tags is easy to be detected. In this paper, we develop a group ranking-based Out-of-Candidate Rectification (OCR) mechanism in a plug-and-play fashion. Firstly, we adaptively split the semantic categories into In-Candidate (IC) and OC groups for each OC pixel according to their prior annotation correlation and posterior prediction correlation. Then, we derive a differentiable rectification loss to force OC pixels to shift to the IC group. Incorporating OCR with seminal baselines (e.g., AffinityNet, SEAM, MCTformer), we can achieve remarkable performance gains on both Pascal VOC (+3.2%, +3.3%, +0.8% mIoU) and MS COCO (+1.0%, +1.3%, +0.5% mIoU) datasets with negligible extra training overhead, which justifies the effectiveness and generality of OCR.

Topics

ocr semantics correlation coefficient

Keywords

weakly supervised semantic segmentation out-of-candidate rectification class activation maps rectification loss contrastive learning object localization image-level tag labels COCO dataset

1. Introduction
2. Related works
3. Method
3.1. Preliminaries
3.2. Overall Pipeline
3.3. Out-of-Candidate Rectification
Posterior Prediction
4. Experiments
4.1. Experimental Settings
4.2. Main Results
4.3. Quantitative Analysis
4.4. Qualitative Analysis
5. Conclusion
References

Knowls

Knowl 1 — Out-of-Candidate (OC) and In-Candidate (IC) Errors in Weakly Supervised Semantic Segmentation
definition
In weakly supervised semantic segmentation (WSSS) supervised only by image-level tags, an image $x_i$ has an associated candidate label set $S_i \subset \{1, 2, \dots, C\}$ , where $C$ is the number of semantic foreground classes.

An Out-of-Candidate (OC) error occurs when a pixel in $x_i$ is predicted by the segmentation network as a semantic class $l$ that is not present in the candidate set and is not background, i.e., $l \notin S_i \cup \{bg\}$ , where $bg$ represents the background class.
- OC pixels: Pixels whose predicted class label belongs to the complement set $\overline{S_i \cup \{bg\}}$ .
- OC categories ( $G_{oc}$ ): Categories that do not belong to the candidate set of image $x_i$ , i.e., $G_{oc} = \{l \mid l \notin S_i \cup \{bg\}\}$ .
- In-Candidate (IC) categories ( $G_{ic}$ ): Categories that belong to the candidate label set including background ( $S_i \cup \{bg\}$ ) and are potentially correct semantic labels for the given pixel.
Knowl 2 — Out-of-Candidate Rectification (OCR) Mechanism
model/method
Out-of-Candidate Rectification (OCR) is a plug-and-play training framework designed to eliminate Out-of-Candidate (OC) prediction errors during the segmentation network training stage in weakly supervised semantic segmentation (WSSS). Rather than relying solely on noisy pseudo-labels generated from Class Activation Maps (CAMs), OCR utilizes the ground-truth image-level label candidates $S_i$ to enforce group-level prediction ranking constraints on pixel logits.

The OCR workflow operates in three sequential steps:
1. OC Pixel Selection: Identifies pixels whose predicted class contradicts the image-level candidate label set $S_i \cup \{bg\}$ .
2. IC and OC Group Split: Adaptively partitions the class label space into an In-Candidate group $G_{ic}$ and an Out-of-Candidate group $G_{oc}$ for each OC pixel by filtering out irrelevant candidate classes using prior label co-occurrence correlation and posterior network predictions.
3. Group Ranking Rectification: Applies a differentiable rectification loss $\mathcal{L}_{rec}$ to penalize instances where the maximum logit in $G_{oc}$ exceeds the minimum logit in $G_{ic}$ by a margin $\Delta$ , pulling OC pixels toward valid IC classes and pushing them away from invalid OC classes.
OCR adds negligible computation during training and zero computation during inference, as it modifies only the training loss function.
Knowl 3 — Adaptive IC and OC Group Splitting Algorithm
algorithm
The adaptive splitting procedure determines the subset of valid candidate classes $G_{ic}$ and invalid candidate classes $G_{oc}$ for a given pixel identified as an Out-of-Candidate (OC) error.
Input: Segmentation logits vector $z \in \mathbb{R}^{C+1}$ , posterior probability vector $P = \mathrm{softmax}(z)$ , image-level candidate label set $S_i$ , dataset label co-occurrence matrix $\mathcal{M} \in \mathbb{R}^{(C+1) \times (C+1)}$ , threshold $t$
Output: OC indicator $m_{oc}$ , In-Candidate class set $G_{ic}$ , Out-of-Candidate class set $G_{oc}$
predicted_class = $\mathrm{argmax}_{k} (z^k)$
if predicted_class $\in \overline{S_i \cup \{bg\}}$ :
     $m_{oc} = 1$
else:
     $m_{oc} = 0$
    return $m_{oc}, \emptyset, \emptyset$
$\mathcal{A} = \mathrm{argmax}_{j \in S_i \cup \{bg\}} (z^j)$
$G_{oc} = \{l \mid l \notin S_i \cup \{bg\}\}$
$G_{ic} = \emptyset$
for each class $k \in S_i \cup \{bg\}$ :
    if $P^{\mathcal{A}} - P^k \times \mathcal{M}_{\mathcal{A}, k} < t$ :
         $G_{ic} = G_{ic} \cup \{k\}$
return $m_{oc}, G_{ic}, G_{oc}$
The co-occurrence prior correlation matrix $\mathcal{M}$ is computed across the training dataset of $L$ images as: $\mathcal{M}_{k,l} = \frac{1}{L} \sum_{i=1}^L \mathbb{I}(k \in S_i \land l \in S_i)$ where $\mathbb{I}(\cdot)$ is the indicator function. The anchor class $\mathcal{A}$ acts as the most confident valid candidate and is used to prune unpromising candidate tags from $G_{ic}$ using threshold $t = 0.2$ .
Knowl 4 — Smooth Differentiable Group-Ranking Rectification Loss
equation
The goal of Out-of-Candidate Rectification is to ensure that for every Out-of-Candidate pixel, the network's logits for all classes in the In-Candidate group $G_{ic}$ are strictly higher than those in the Out-of-Candidate group $G_{oc}$ by a margin $\Delta > 0$ : $\max_{l \in G_{oc}} z^l < \min_{k \in G_{ic}} z^k$

The non-differentiable margin ranking loss is formulated as: $\mathcal{L}_{rec}^{\text{raw}} = \max_{l \in G_{oc}} z^l - \min_{k \in G_{ic}} z^k + \Delta = \max_{l \in G_{oc}} z^l + \max_{k \in G_{ic}} (-z^k) + \Delta$

Applying the smooth approximation $\max(u_1, \dots, u_n) \approx \log \sum_{i=1}^n e^{u_i}$ and softplus approximation for $\mathrm{ReLU}(u) \approx \log(1 + e^u)$ , the pixel-level differentiable rectification loss is: $\mathcal{L}_{rec} = m_{oc} \log \left[ 1 + \left( \sum_{k \in G_{ic}} e^{-z^k} \right) \times \left( \sum_{l \in G_{oc}} e^{z^l + \Delta} \right) \right]$ where $m_{oc} \in \{0, 1\}$ is the OC pixel selection mask indicating whether the predicted class is in $\overline{S_i \cup \{bg\}}$ .

The total training objective for the segmentation network is: $\mathcal{L} = \mathcal{L}_{seg} + \alpha \mathcal{L}_{rec}$ where $\mathcal{L}_{seg}$ is the standard cross-entropy loss against CAM-derived pseudo-labels $\hat{y}$ , and $\alpha$ is the loss modulation coefficient (set to $\alpha = 1.0, \Delta = 2.0$ ).
Knowl 5 — Experimental Setup for Weakly Supervised Semantic Segmentation with OCR
experimental setup
The Out-of-Candidate Rectification (OCR) method is evaluated on two standard semantic segmentation benchmarks under image-level weak supervision:
- PASCAL VOC 2012: 20 foreground classes plus background. Augmented training set contains 10,582 images; validation set contains 1,449 images; test set contains 1,456 images.
- MS COCO 2014: 80 foreground classes plus background, using COCO stuff ground-truth annotations. Training set contains 82,081 images; validation set contains 40,137 images.
Network Architecture & Training:
- Segmentation Network: DeepLab-LargeFOV (DeepLabv1) with a ResNet38 backbone pre-trained on ImageNet, using an output stride of 8.
- Baselines: AffinityNet (ResNet38 classifier), SEAM (ResNet38 classifier), and MCTformer (DeiT-S classifier).
- Optimizer: SGD with momentum $0.9$ , weight decay $5 \times 10^{-4}$ , initial learning rate $1 \times 10^{-3}$ with exponential decay.
- Training Details: Batch size 16, trained for 30 epochs. Training images are randomly rescaled between scales $0.7$ and $1.3$ , then cropped to $321 \times 321$ .
- Hyperparameters: Filtering threshold $t = 0.2$ , margin $\Delta = 2.0$ , loss weight $\alpha = 1.0$ .
- Evaluation & Post-processing: Evaluated using mean Intersection-over-Union (mIoU, %). Test-time augmentation and DenseCRF post-processing are applied.

Knowl 6 — Performance Improvement of OCR on PASCAL VOC 2012 and MS COCO 2014

data/table

Integrating Out-of-Candidate Rectification (OCR) into existing WSSS baselines consistently improves validation and test mIoU across both PASCAL VOC 2012 and MS COCO 2014 datasets.

Method	Classification Backbone	Segmentation Network	VOC val mIoU (%)	VOC test mIoU (%)
AffinityNet	ResNet38	V1-Res38	61.7	63.7
OCR + AffinityNet	ResNet38	V1-Res38	64.9 (+3.2)	65.2 (+1.5)
SEAM	ResNet38	V1-Res38	64.5	65.7
OCR + SEAM	ResNet38	V1-Res38	67.8 (+3.3)	68.4 (+2.7)
MCTformer	DeiT-S	V1-Res38	71.9	71.6
OCR + MCTformer	DeiT-S	V1-Res38	72.7 (+0.8)	72.0 (+0.4)

Method	Classification Backbone	Segmentation Network	COCO val mIoU (%)
AffinityNet	ResNet38	V1-Res38	29.5
OCR + AffinityNet	ResNet38	V1-Res38	30.5 (+1.0)
SEAM	ResNet38	V1-Res38	31.9
OCR + SEAM	ResNet38	V1-Res38	33.2 (+1.3)
MCTformer	DeiT-S	V1-Res38	42.0
OCR + MCTformer	DeiT-S	V1-Res38	42.5 (+0.5)

On PASCAL VOC 2012, OCR provides gains of +3.2% mIoU on AffinityNet, +3.3% mIoU on SEAM, and +0.8% mIoU on MCTformer. On MS COCO 2014 (which contains 80 classes where OC confusion is more frequent), OCR yields improvements of +1.0%, +1.3%, and +0.5% mIoU over AffinityNet, SEAM, and MCTformer, respectively.

Knowl 7 — Ablation on IC/OC Group Splitting and Target Pixel Selection Strategies

data/table

Ablation experiments evaluated on the PASCAL VOC 2012 validation set using SEAM as the baseline (64.5% baseline mIoU) demonstrate the necessity of adaptive candidate splitting and restricting rectification strictly to OC pixels.

Strategy Variant	$G_{ic}$ Specification	$G_{oc}$ Specification	mIoU (%)
Baseline (No OCR)	None	None	64.5
All Candidates: all( $\cdot$ )	$S \cup \{bg\}$	$\overline{S \cup \{bg\}}$	63.4 (-1.1)
Max Only: max( $\cdot$ )	$\{\mathcal{A}\}$	$\overline{S \cup \{bg\}}$	67.2 (+2.7)
Adaptive: ada( $\cdot$ )	$\{k \in S \cup \{bg\} \mid P^{\mathcal{A}} - P^k \mathcal{M}_{\mathcal{A},k} < t\}$	$\overline{S \cup \{bg\}}$	67.8 (+3.3)

Target Rectified Pixels	Applied Pixel Subset	mIoU (%)
None	None	64.5
IC Pixels Only	$\{p \mid \mathrm{argmax}_k(z_p^k) \in S \cup \{bg\}\}$	64.7 (+0.2)
All Pixels	All image pixels	66.9 (+2.4)
OC Pixels Only	$\{p \mid \mathrm{argmax}_k(z_p^k) \notin S \cup \{bg\}\}$	67.8 (+3.3)

Key takeaways:

Including all candidate tags in $G_{ic}$ degrades performance below the baseline ( $-1.1\%$ ) because irrelevant candidate tags mislead pixel rectification.
Pruning via the adaptive strategy ada(·) outperforms the single top-prediction strategy max(·) by $+0.6\%$ , demonstrating that the top anchor class $\mathcal{A}$ is not always the sole ground-truth class for the pixel.
Applying rectification exclusively to OC pixels yields the optimal $+3.3\%$ gain; applying it to all pixels dilutes precision on already correct pixels.

Knowl 8 — Out-of-Candidate Error Rate Suppression Across Baseline Models
empirical result
On the PASCAL VOC 2012 validation set, incorporating Out-of-Candidate Rectification (OCR) substantially reduces the fraction of images exhibiting Out-of-Candidate (OC) prediction errors:
- AffinityNet: OC error image rate drops from 32.4% (baseline) to 9.7% with OCR (relative reduction of 70.1%). Corresponding segmentation mIoU increases from 61.7% to 64.9%.
- SEAM: OC error image rate drops from 21.5% (baseline) to 10.1% with OCR (relative reduction of 53.0%). Corresponding segmentation mIoU increases from 64.5% to 67.8%.
- MCTformer: OC error image rate drops from 22.4% (baseline) to 7.9% with OCR (relative reduction of 64.7%). Corresponding segmentation mIoU increases from 71.9% to 72.7%.
This confirms that suppressing OC errors directly correlates with improved final semantic segmentation accuracy.
Knowl 9 — Hyperparameter Sensitivity and Computational Overhead of OCR
empirical result
Empirical sensitivity analysis and computational overhead measurements on PASCAL VOC 2012 validation using SEAM show:
- Margin $\Delta$ : Swept across values in $[0, 8]$ . The peak validation mIoU occurs at $\Delta = 2.0$ . Smaller values provide insufficient separation between IC and OC classes, while larger values impose over-regularization that impairs performance.
- Loss Coefficient $\alpha$ : Swept across $\{0.1, 1.0, 10.0\}$ . The optimal coefficient is $\alpha = 1.0$ ; setting $\alpha = 10.0$ leads to degraded performance due to over-penalization.
- Training Speed & Efficiency: Benchmarked with SEAM across various crop sizes:
  - At $256 \times 256$ : Training time is $14.38$ min/epoch ( $+0.56$ min/epoch overhead vs. baseline), yielding $63.6\%$ mIoU ( $+3.2\%$ gain).
  - At $321 \times 321$ : Training time is $23.32$ min/epoch ( $+0.83$ min/epoch overhead vs. baseline), yielding $67.8\%$ mIoU ( $+3.3\%$ gain).
  - At $448 \times 448$ : Training time is $42.29$ min/epoch ( $+1.18$ min/epoch overhead vs. baseline), yielding $68.4\%$ mIoU ( $+3.7\%$ gain).
- Inference Overhead: Zero additional parameters or compute are required at test time because OCR is strictly an auxiliary loss during training.

Coverage note — None was omitted; all key contributions including definitions, algorithms, loss formulations, benchmark results, ablations, and analysis were included.
