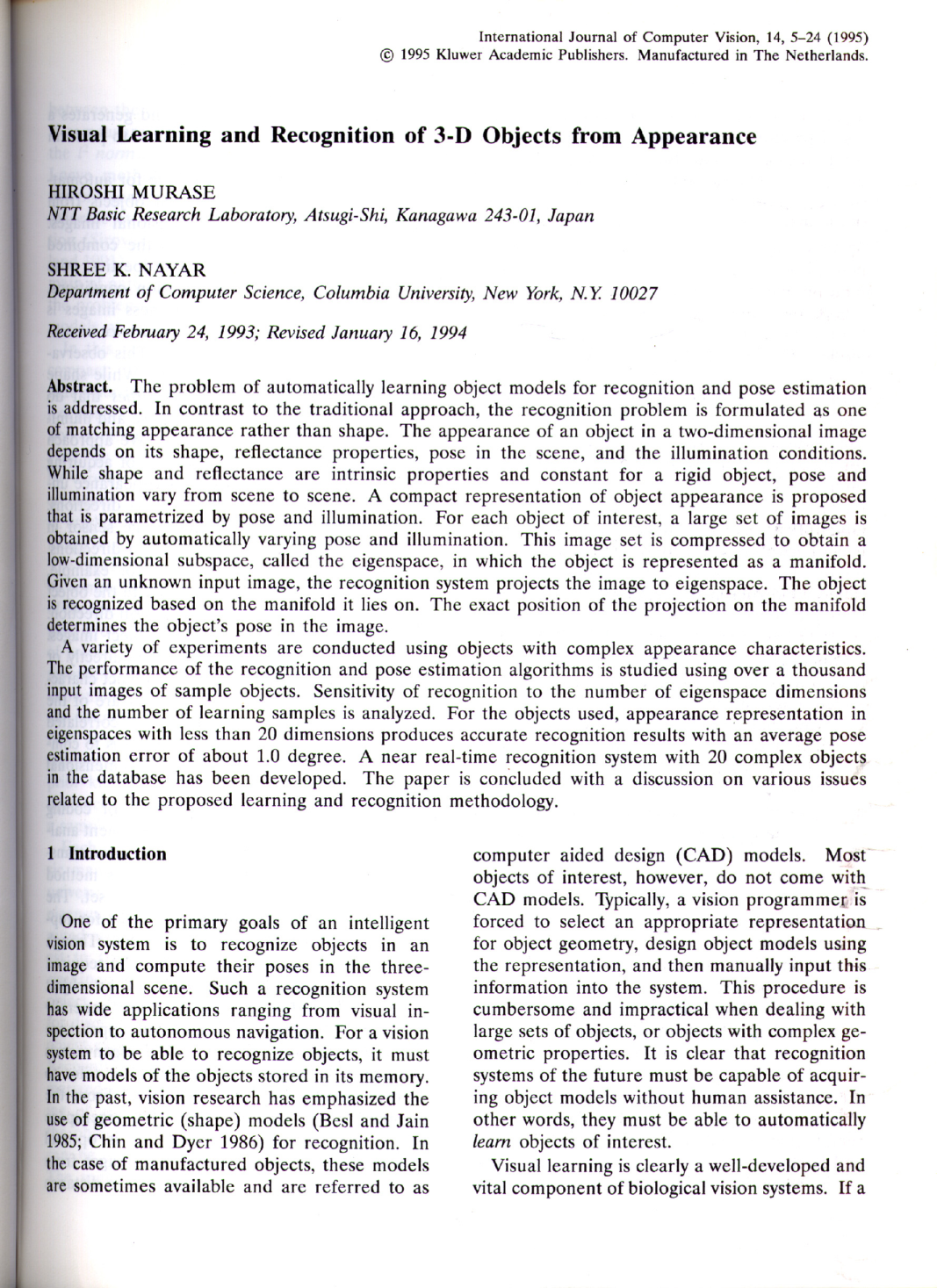

Visual learning and recognition of 3-d objects from appearance
HIROSHI MURASESHREE K. NAYAR
Develops a parametric eigenspace representation that automatically learns compact visual models from raw 2D images, enabling fast 3D object recognition and precise pose estimation under varying illumination without relying on CAD models.
Automated object recognition and pose estimation are critical for applications such as industrial inspection, assembly planning, and autonomous navigation. Traditional machine vision systems depend heavily on pre-designed three-dimensional geometric models, which require tedious manual input and struggle with complex shapes, textures, and specular reflections. To eliminate human intervention and manual modeling, machine vision requires systems capable of automatically learning representations directly from sensory observations.
The article demonstrates an appearance-based approach that automatically learns compact models of three-dimensional objects from two-dimensional brightness images. It presents the parametric eigenspace framework, which captures the combined effects of object geometry, surface reflectance, pose variations, and illumination changes without requiring prior knowledge of shape or material properties.
The system operates in two phases: offline visual learning and online execution. During learning, an automated setup featuring a motorized turntable and a robotic arm varies an object’s orientation and lighting to capture comprehensive sets of scale- and brightness-normalized images. The approach compresses these high-dimensional image sets into low-dimensional subspaces using principal component analysis, representing each object as a continuous parametric manifold via cubic spline interpolation. For online evaluation, unknown input images are projected into a universal eigenspace to classify the object identity and into dedicated object eigenspaces to calculate precise pose estimates. The authors evaluated the system using over 1,000 test images across sets of objects exhibiting subtle shape variations and complex reflective surfaces, and implemented a prototype with 20 distinct objects.
The experimental findings show that low-dimensional eigenspaces with fewer than 20 dimensions capture sufficient visual information for highly reliable performance. Across 1,080 test images, the system achieved near-perfect recognition rates when using approximately 10 eigenspace dimensions and 30 training poses. The average absolute pose estimation error remained between 0.5 and 1.2 degrees across test sets, and the manifold representation provided a massive compression ratio of roughly 1,600 to 1 over raw image data. In a real-time system managing a 20-object database, the approach correctly identified 100 percent of 320 test images with an average pose error of 1.59 degrees, completing full segmentation, projection, and recognition cycles in under one second.
These findings indicate that direct appearance matching provides a practical alternative to complex geometric reconstruction, significantly reducing the labor and time needed to program vision systems. Because the heavy computational burden of eigenvector calculation is confined to offline preparation, online recognition remains computationally simple, inexpensive, and fast enough for real-time industrial deployment. The approach bypasses the difficult task of mathematically modeling complex lighting physics and surface textures.
Organizations should consider deploying this appearance-based framework for structured environments such as visual inspection, robotic positioning, and tracking where lighting and viewpoints can be controlled. To expand the approach to broader applications, future development must address its key operational limitations: the method requires segmented, unoccluded objects against clear backgrounds and is restricted to low-dimensional parameter variations. Readers can place high confidence in these performance results under controlled conditions, though caution is warranted before deploying the system in unstructured scenes with heavy occlusions or cluttered backgrounds.
