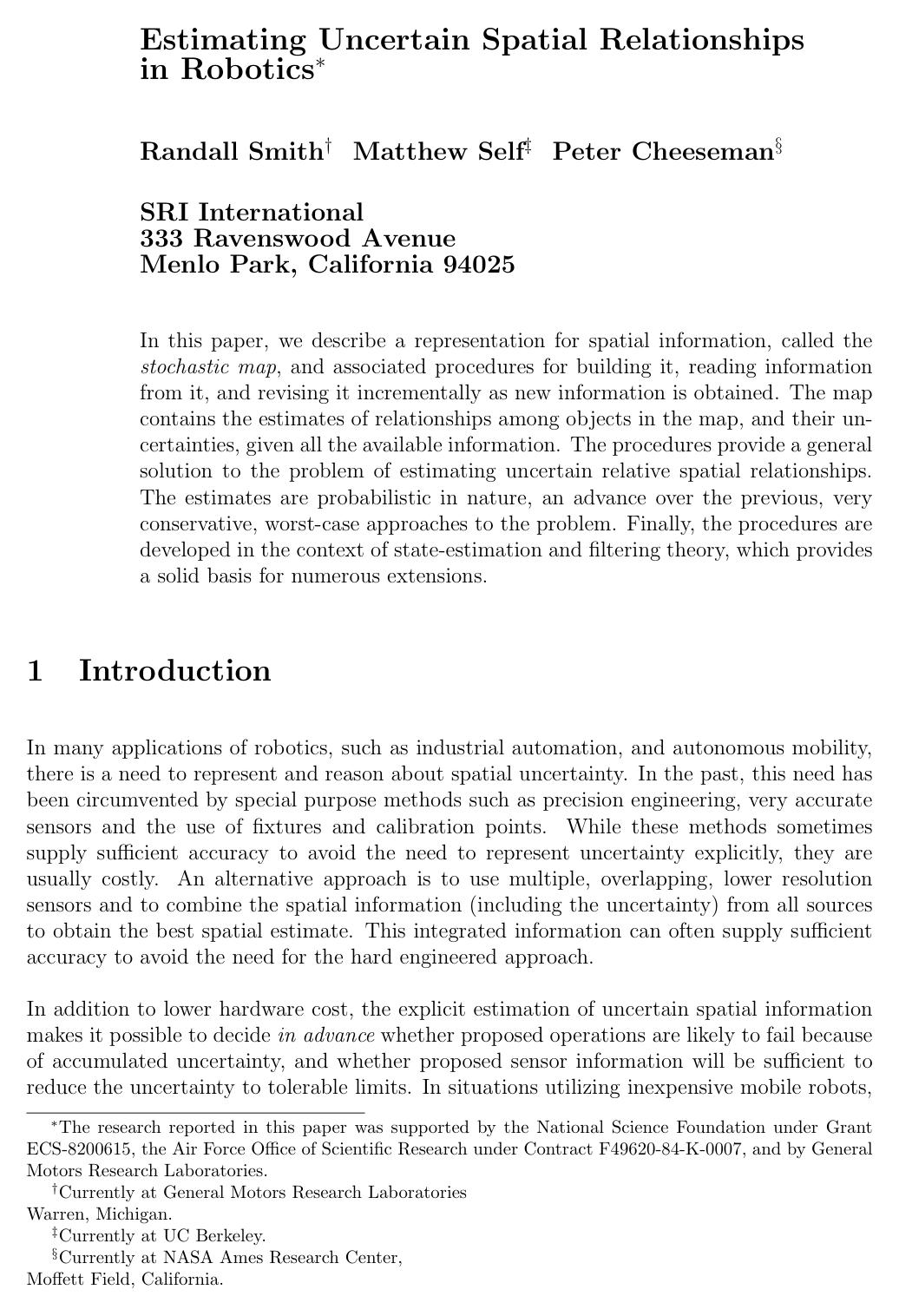

Estimating uncertain spatial relationships in robotics
Randall SmithMatthew SelfPeter Cheeseman
Introduces the stochastic map, establishing a probabilistic state-estimation framework that enables autonomous robots to incrementally map spatial landmarks and maintain accurate relationships under geometric uncertainty.
In robotics applications such as autonomous mobile navigation and industrial automation, systems must routinely operate under spatial uncertainty caused by manufacturing tolerances, sensor measurement noise, and actuation errors. Traditionally, engineers have managed this uncertainty through costly pre-engineering, including high-precision hardware, rigid fixtures, and structured environments, or through overly conservative worst-case error bounds that compound rapidly. The article introduces a statistical framework to overcome these limitations by explicitly modeling and updating spatial uncertainty across multiple coordinate frames, enabling systems to achieve high positioning accuracy using lower-cost, overlapping sensors.
The article set out to formulate, implement, and demonstrate the "stochastic map," a unified probabilistic representation and state-estimation framework that models uncertain spatial relationships among objects and updates them incrementally as new spatial data or geometric constraints are introduced. The authors developed their approach by linking multivariate probability distributions with classical estimation and filtering theory. They evaluated the framework using mathematical derivations for two- and three-dimensional spaces, a simulated planar navigation scenario involving an autonomous mobile robot, and constraint validation tests including geometric shape fitting.
The analysis yielded several key findings regarding spatial representation and estimation. First, representing spatial relationships using only the first two statistical moments—the estimated mean vector and the system covariance matrix—accurately captures positions, orientations, and the statistical dependencies between distinct objects without requiring full probability density functions. Second, tracking cross-covariance terms across reference frames ensures that when a robot re-observes a previously mapped landmark, the uncertainty of the entire interconnected network—including the robot's own position and other mapped objects—is simultaneously reduced. Third, linearizing non-linear spatial transformations through first-order Taylor series approximations maintains high accuracy; simulations demonstrate that angular errors with standard deviations as large as 5 degrees yield mean and variance estimates within 1% of true values. Fourth, casting spatial updates into standard estimation filter equations allows systems to seamlessly integrate dynamic process extrapolation, independent sensor readings, and geometric shape constraints within a single recursive matrix routine.
These findings indicate that autonomous systems can operate reliably with lower-cost sensors and less structured environments by mathematically fusing multiple uncertain measurements. This reduces equipment costs and improves operational performance, while allowing automated systems to predict whether planned trajectories will succeed or fail prior to execution. By adopting a probabilistic model rather than worst-case bounds, systems avoid the excessive conservatism that previously constrained autonomous path planning and off-line robot programming.
Organizations developing autonomous mobile systems or automated manufacturing workflows should adopt this recursive stochastic mapping framework to fuse multi-sensor data and reduce reliance on rigid physical fixtures. Before deploying the system in operations with severe non-linear dynamics or extreme rotational ranges, engineering teams must evaluate whether standard linear approximations are sufficient or if iterative filtering is necessary to maintain convergence. The primary limitation of the framework is its reliance on first-order approximations and small-angle assumptions, as well as the risk of mathematical singularities when orientation angles reach specific configurations in three-dimensional coordinate transformations. Overall confidence in the theoretical formulation and two-dimensional navigation results is high, provided that sensor noise remains uncorrelated and operational rotations stay within moderate bounds.
