Ordered GNN: Ordering Message Passing to Deal with Heterophily and Over-smoothing

Yunchong SongChenghu ZhouXinbing WangZhouhan Lin

article2023ICLR109 citations

Proposes Ordered GNN, a message-passing architecture that aligns neighborhood tree hierarchies with dedicated neuron blocks to prevent over-smoothing in deep networks while matching state-of-the-art accuracy across both homophilic and heterophilic graphs.

Listen

Graph neural networks are vital machine learning tools for analyzing interconnected data across domains like social networks, biology, and communication systems. However, standard models suffer from two major flaws: "over-smoothing," where node representations become indistinguishable and degrade in performance as models grow deeper, and "heterophily," where connected nodes have dissimilar attributes or labels, causing harmful mixing of conflicting information.

The article introduces and evaluates "Ordered GNN," a novel architecture designed to resolve both challenges by restructuring how information is merged across network neighborhoods. The approach aligns a node's local network hierarchy with specific blocks of artificial neurons in its representation. Using a specialized gating mechanism, the model assigns distinct neuron segments to specific neighborhood distances, preventing the conflation of local and distant features without requiring complex structural modifications.

The authors evaluated the framework across 11 benchmark datasets spanning citation and web networks, including large-scale graphs with over 160,000 nodes. The evaluation assessed classification accuracy across homophilic networks (where connected nodes are similar), heterophilic networks (where connected nodes differ), and deep network architectures scaling up to 64 layers.

The results show that Ordered GNN consistently matches or surpasses current state-of-the-art models across both network types. In heterophilic environments, it achieved major gains, such as reaching 62.44% accuracy on the dense Squirrel benchmark compared to 36.48%–38.47% from leading baselines. Crucially, the model maintained high classification accuracy even at depths of 32 and 64 layers, completely avoiding the severe performance drops typical of deep baseline architectures. Visualizations confirmed that the model automatically adapts its internal gating, preserving local identities on heterophilic data and filtering distant noise in deep configurations, all while maintaining competitive per-epoch training speeds comparable to standard models.

These findings demonstrate that managing the combination stage of message passing is an efficient, unified solution to multiple core graph learning limitations. By eliminating the need for ad-hoc heuristics, special edge-dropping training tricks, or separate models for different network types, Ordered GNN reduces engineering complexity and deployment risk in enterprise applications.

Organizations deploying graph machine learning should consider incorporating ordered gating principles into their model pipelines, particularly for deep networks or non-homophilic data. For future initiatives, the framework can be extended to link-level and graph-level tasks or tailored for complex graph types like knowledge graphs. However, practitioners should exercise caution on highly skewed, scale-free networks with extreme hub structures, where varying local topologies may require additional few-shot techniques or further data balancing.

Chinese Academy of SciencesShanghai Jiao Tong Universitygraph neural networksintermediate nodedestination nodesOrdered GNNordered message passingheterophily
arXiv: 2302.01524LUMIA-Group/OrderedGNN
  • Paper: A Generalization of ViT/MLP-Mixer to Graphs, Xiaoxin He et al. (2023). This work extends beyond local message passing by adapting vision-style patch and channel mixing to graphs, presenting an alternative way to bypass neighborhood over-squashing and long-range bottlenecks.
  • Paper: Simple and Efficient Heterogeneous Graph Neural Network, Xiaocheng Yang et al. (2023). It explores architectural simplifications and efficiency improvements for complex heterogeneous networks, continuing the investigation of tailored graph message passing.

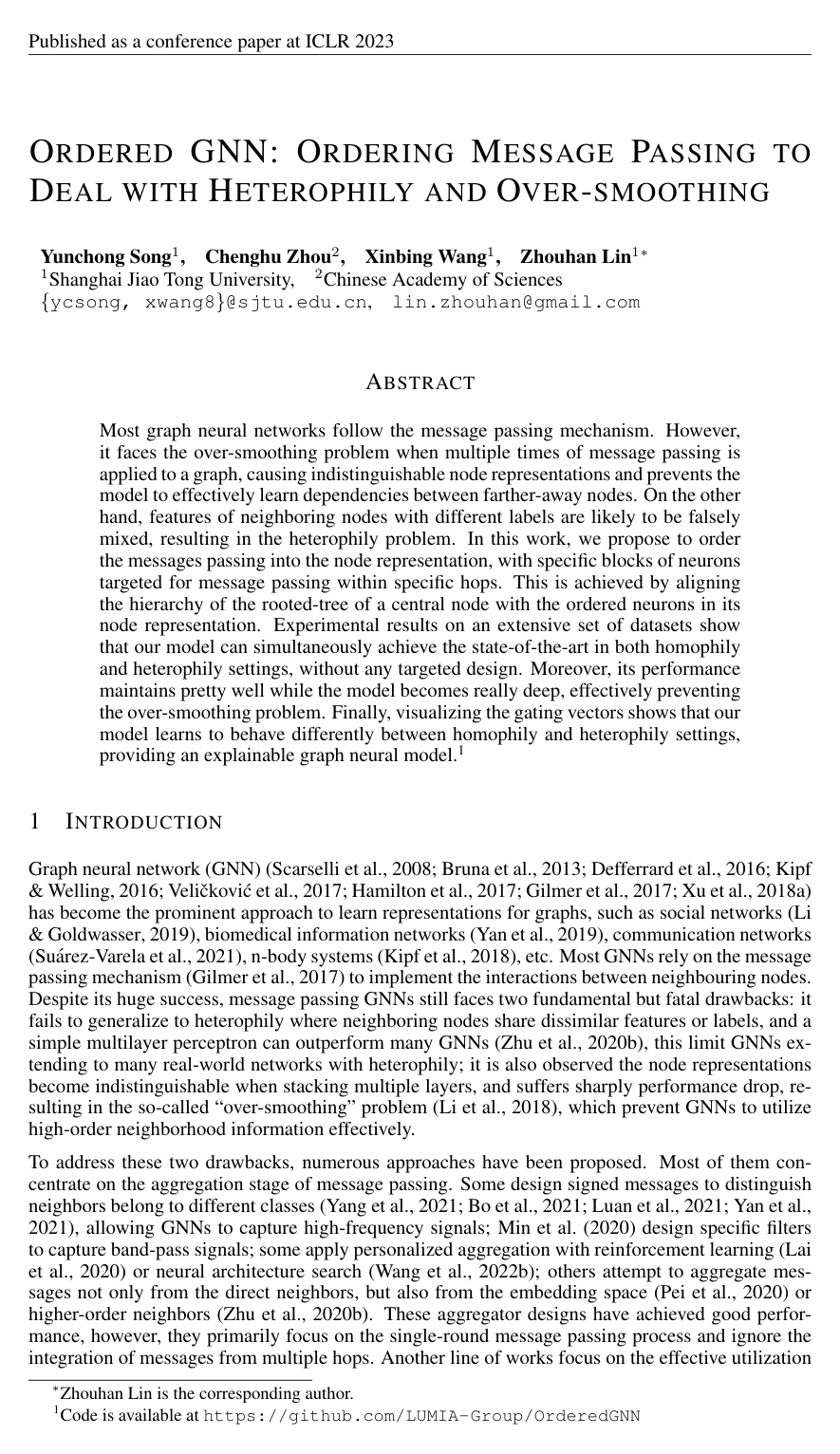

Cover for Ordered GNN: Ordering Message Passing to Deal with Heterophily and Over-smoothing

Abstract

Most graph neural networks follow the message passing mechanism. However, it faces the over-smoothing problem when multiple times of message passing is applied to a graph, causing indistinguishable node representations and prevents the model to effectively learn dependencies between farther-away nodes. On the other hand, features of neighboring nodes with different labels are likely to be falsely mixed, resulting in the heterophily problem. In this work, we propose to order the messages passing into the node representation, with specific blocks of neurons targeted for message passing within specific hops. This is achieved by aligning the hierarchy of the rooted-tree of a central node with the ordered neurons in its node representation. Experimental results on an extensive set of datasets show that our model can simultaneously achieve the state-of-the-art in both homophily and heterophily settings, without any targeted design. Moreover, its performance maintains pretty well while the model becomes really deep, effectively preventing the over-smoothing problem. Finally, visualizing the gating vectors shows that our model learns to behave differently between homophily and heterophily settings, providing an explainable graph neural model.

Topics

graph neural networksintermediate nodedestination nodessource nodeshierarchical modelsms messages

Keywords

Ordered GNNordered message passingheterophilyover-smoothingmessage passinggraph neural networkshigh-order neighborspositional encodinglabel propagationnode representations

Table of Contents

  • 1 Introduction
  • 2 Our Approach
  • 2.1 Graph Neural Networks
  • 2.2 Aligning Rooted-Tree with Node Embedding
  • 2.3 The Split Points
  • 2.4 The Differentiable OR\operatorname{OR} Operator
  • 2.5 Putting it All Together
  • 3 Experiments
  • 3.1 Homophily and Heterophily
  • 3.2 Over-smoothing
  • 3.3 Visualizing the Gating Vectors
  • 3.4 Scaling to Larger Datasets
  • 3.5 Ablation Study
  • 4 Conclusion
  • 5 Ethics Statement
  • 6 Reproducibility Statement
  • References
  • A Proof
  • A.1 Soft Binary Gate
  • A.2 Convergence Rate of Gates
  • B Discussion
  • B.1 Connections with Related Works
  • B.2 Limitations
  • B.3 Broader Impact
  • C Running Time
  • D Further Increasing the GNN Layers
  • E Experimental Details

Knowls

  1. Knowl 1 — Ordered GNN Layer Formulation

    model/method

    Ordered GNN modifies the combine stage of graph neural message passing by ordering the hidden neurons to match the rooted-tree hierarchy of a node's multi-hop neighborhood. Given an unweighted graph G = (V, &\mathcal{E}) with node feature matrix X∈RN×FX \in \mathbb{R}^{N \times F}, an initial node representation is computed via an MLP projection hv(0)=fθ(Xv)∈RDh_v^{(0)} = f_\theta(X_v) \in \mathbb{R}^D for each node v∈Vv \in V.

    For layer k∈{1,…,K}k \in \{1, \dots, K\}, node vv updates its representation hv(k)∈RDh_v^{(k)} \in \mathbb{R}^D via the following message passing and ordered gating equations:

    mv(k)=MEAN({hu(k−1):u∈N(v)})m_v^{(k)} = \text{MEAN}\left(\{h_u^{(k-1)} : u \in \mathcal{N}(v)\}\right)

    g^v(k)=cumax←(fξ(k)(hv(k−1),mv(k)))=cumsum←(softmax(W(k)[hv(k−1);mv(k)]+b(k)))\hat{g}_v^{(k)} = \text{cumax}_\leftarrow\left(f_\xi^{(k)}\left(h_v^{(k-1)}, m_v^{(k)}\right)\right) = \text{cumsum}_\leftarrow\left(\text{softmax}\left(W^{(k)} [h_v^{(k-1)}; m_v^{(k)}] + b^{(k)}\right)\right)

    g~v(k)=SOFTOR(g~v(k−1),g^v(k))=g~v(k−1)+(1−g~v(k−1))∘g^v(k)\tilde{g}_v^{(k)} = \text{SOFTOR}\left(\tilde{g}_v^{(k-1)}, \hat{g}_v^{(k)}\right) = \tilde{g}_v^{(k-1)} + \left(1 - \tilde{g}_v^{(k-1)}\right) \circ \hat{g}_v^{(k)}

    hv(k)=g~v(k)∘hv(k−1)+(1−g~v(k))∘mv(k)h_v^{(k)} = \tilde{g}_v^{(k)} \circ h_v^{(k-1)} + \left(1 - \tilde{g}_v^{(k)}\right) \circ m_v^{(k)}

    where N(v)\mathcal{N}(v) is the immediate neighborhood of node vv, [⋅;⋅][\cdot ; \cdot] denotes vector concatenation, W(k)∈RDm×2DW^{(k)} \in \mathbb{R}^{D_m \times 2D} and b(k)∈RDmb^{(k)} \in \mathbb{R}^{D_m} are learnable parameters of the gating function fξ(k)f_\xi^{(k)}, ∘\circ denotes element-wise multiplication, and cumsum←\text{cumsum}_\leftarrow denotes cumulative summation evaluated from right to left across neuron indices.

  2. Knowl 2 — Alignment of Rooted-Tree Subtree Hierarchy with Node Embedding Blocks

    model/method

    The kk-hop neighborhood around a node vv can be represented as a rooted tree Tv(k)T_v^{(k)} of depth kk, with node vv at the root and its kk-th order neighbors at the leaves. Because lower-depth trees are strictly nested subtrees of higher-depth trees:

    Tv(0)⊆Tv(1)⊆⋯⊆Tv(k)⊆⋯⊆Tv(K)T_v^{(0)} \subseteq T_v^{(1)} \subseteq \dots \subseteq T_v^{(k)} \subseteq \dots \subseteq T_v^{(K)}

    Ordered GNN maps this nested hierarchy into the sequence of DD ordered neurons of the node embedding vector hv∈RDh_v \in \mathbb{R}^D by learning a monotonically non-decreasing set of split points:

    Pv(0)≤Pv(1)≤⋯≤Pv(k)≤⋯≤Pv(K)=DP_v^{(0)} \le P_v^{(1)} \le \dots \le P_v^{(k)} \le \dots \le P_v^{(K)} = D

    Information within the (k−1)(k-1)-th order tree Tv(k−1)T_v^{(k-1)} is confined to the first Pv(k−1)P_v^{(k-1)} neurons in hvh_v, while neurons located in the interval [Pv(k−1),Pv(k))[P_v^{(k-1)}, P_v^{(k)}) represent the delta between k−1k-1 and kk rounds of message passing. This structure restricts incoming messages from kk-th hop neighbors to specific neuron blocks, avoiding feature mixing across distinct topological distances.

  3. Knowl 3 — Soft Gating Vector Estimation via Cumulative Softmax

    equation

    To represent a split point Pv(k)∈{0,…,D−1}P_v^{(k)} \in \{0, \dots, D-1\} differentiably, the point is modeled as a categorical random variable with probability distribution p(Pv(k)=i)=softmax(z)ip(P_v^{(k)} = i) = \text{softmax}(z)_i, where z=W(k)[hv(k−1);mv(k)]+b(k)∈RDz = W^{(k)} [h_v^{(k-1)}; m_v^{(k)}] + b^{(k)} \in \mathbb{R}^D.

    The probability that the ll-th entry gv(k)[l]g_v^{(k)}[l] in a binary gating vector gv(k)∈{0,1}Dg_v^{(k)} \in \{0, 1\}^D equals 1 is given by the probability that Pv(k)≥lP_v^{(k)} \ge l:

    p(gv(k)[l]=1)=p(Pv(k)≥l)=∑i=lDp(Pv(k)=i)p(g_v^{(k)}[l] = 1) = p(P_v^{(k)} \ge l) = \sum_{i=l}^D p(P_v^{(k)} = i)

    Because gv(k)[l]∈{0,1}g_v^{(k)}[l] \in \{0, 1\}, its expected value equals p(gv(k)[l]=1)p(g_v^{(k)}[l] = 1). The expected gating vector g^v(k)=E[gv(k)]\hat{g}_v^{(k)} = \mathbb{E}[g_v^{(k)}] is computed across all dimensions simultaneously using the right-to-left cumulative softmax operator cumax←\text{cumax}_\leftarrow:

    g^v(k)=cumax←(z)=cumsum←(softmax(z))\hat{g}_v^{(k)} = \text{cumax}_\leftarrow(z) = \text{cumsum}_\leftarrow(\text{softmax}(z))

  4. Knowl 4 — Differentiable Bitwise OR Operator (SOFTOR)

    model/method

    To enforce the ordering constraint Pv(k−1)≤Pv(k)P_v^{(k-1)} \le P_v^{(k)} across GNN layers, the gating vector g~v(k)\tilde{g}_v^{(k)} at layer kk must maintain a coordinate-wise upper bound over its predecessor g~v(k−1)\tilde{g}_v^{(k-1)}. Ordered GNN achieves this differentiably via the SOFTOR\text{SOFTOR} operator:

    g~v(k)=SOFTOR(g~v(k−1),g^v(k))=g~v(k−1)+(1−g~v(k−1))∘g^v(k)\tilde{g}_v^{(k)} = \text{SOFTOR}\left(\tilde{g}_v^{(k-1)}, \hat{g}_v^{(k)}\right) = \tilde{g}_v^{(k-1)} + \left(1 - \tilde{g}_v^{(k-1)}\right) \circ \hat{g}_v^{(k)}

    where g^v(k)∈[0,1]D\hat{g}_v^{(k)} \in [0, 1]^D is the newly predicted soft gating vector at layer kk, and ∘\circ denotes Hadamard (element-wise) multiplication. Because g~v(k−1)[l]∈[0,1]\tilde{g}_v^{(k-1)}[l] \in [0, 1] and g^v(k)[l]∈[0,1]\hat{g}_v^{(k)}[l] \in [0, 1], the updated gate satisfies g~v(k)[l]≥g~v(k−1)[l]\tilde{g}_v^{(k)}[l] \ge \tilde{g}_v^{(k-1)}[l] for all dimensions l∈{1,…,D}l \in \{1, \dots, D\}, guaranteeing monotonic gate expansion across layers while remaining fully differentiable.

  5. Knowl 5 — Chunking Mechanism for Gating Network Efficiency

    model/method

    To reduce parameter count and computational complexity in the gating network, Ordered GNN groups hidden neurons into chunks using an integer chunking factor C∈N+C \in \mathbb{N}^+. The dimensionality of the predicted gating vector is reduced from the hidden embedding size DD to Dm=D/CD_m = D / C.

    Each gate coordinate in the predicted DmD_m-dimensional gating vector controls a contiguous block of CC hidden units in the node embedding hv(k)∈RDh_v^{(k)} \in \mathbb{R}^D, reducing the number of predicted gate parameters by a factor of CC.

  6. Knowl 6 — Flexibility of Inter-Layer Split Point Deltas Under SOFTOR

    theoretical result

    For the soft gating vector g~v(k)=g~v(k−1)+(1−g~v(k−1))∘g^v(k)\tilde{g}_v^{(k)} = \tilde{g}_v^{(k-1)} + (1 - \tilde{g}_v^{(k-1)}) \circ \hat{g}_v^{(k)}, the inter-layer finite difference is Δg~v(k)=g~v(k+1)−g~v(k)=(1−g~v(k))∘g^v(k+1)>0\Delta \tilde{g}_v^{(k)} = \tilde{g}_v^{(k+1)} - \tilde{g}_v^{(k)} = (1 - \tilde{g}_v^{(k)}) \circ \hat{g}_v^{(k+1)} > 0, ensuring monotonic gate growth. For any two indices i<ji < j, the difference in finite differences between dimensions is:

    Δg~i(k)−Δg~j(k)=g^j(k+1)∘(g~j(k)−g~i(k))+ϵ^(k+1)∘(1−g~i(k))\Delta \tilde{g}_i^{(k)} - \Delta \tilde{g}_j^{(k)} = \hat{g}_j^{(k+1)} \circ (\tilde{g}_j^{(k)} - \tilde{g}_i^{(k)}) + \hat{\epsilon}^{(k+1)} \circ (1 - \tilde{g}_i^{(k)})

    where ϵ^(k+1)=∑n=ij−1gn∗(k+1)\hat{\epsilon}^{(k+1)} = \sum_{n=i}^{j-1} g_n^{*(k+1)}, and gn∗(k+1)g_n^{*(k+1)} denotes the raw pre-accumulation softmax output from the linear gating layer at coordinate nn.

    Because each raw output gn∗(k+1)g_n^{*(k+1)} is produced independently by a linear layer without historical recurrence, the ratio g^j(k+1)/ϵ^(k+1)∈(0,+∞)\hat{g}_j^{(k+1)} / \hat{\epsilon}^{(k+1)} \in (0, +\infty) is unconstrained. Consequently, the convergence rate between different gate positions is unrestricted, proving that Ordered GNN constrains the relative ordering of split points (Pv(k−1)≤Pv(k)P_v^{(k-1)} \le P_v^{(k)}) without restricting the number of neurons ΔPv(k)=Pv(k)−Pv(k−1)\Delta P_v^{(k)} = P_v^{(k)} - P_v^{(k-1)} allocated to any individual hop.

  7. Knowl 7 — Node Classification Performance on Homophily and Heterophily Benchmarks

    empirical result

    Ordered GNN evaluated across 9 benchmark datasets (6 heterophilous web networks and 3 homophilous citation networks) using 10 random splits demonstrates state-of-the-art accuracy compared to classical GNNs, heterophily-specific baselines, and initial/residual connection methods.

    Model Texas Wisconsin Actor Squirrel Chameleon Cornell CiteSeer PubMed Cora
    Ordered GNN 86.22±\pm4.12 88.04±\pm3.63 37.99±\pm1.00 62.44±\pm1.96 72.28±\pm2.29 87.03±\pm4.73 77.31±\pm1.73 90.15±\pm0.38 88.37±\pm0.75
    H2GCN 84.86±\pm7.23 87.65±\pm4.98 35.70±\pm1.00 36.48±\pm1.86 60.11±\pm2.15 82.70±\pm5.28 77.11±\pm1.57 89.49±\pm0.38 87.87±\pm1.20
    GPRGNN 78.38±\pm4.36 82.94±\pm4.21 34.63±\pm1.22 31.61±\pm1.24 46.58±\pm1.71 80.27±\pm8.11 77.13±\pm1.67 87.54±\pm0.38 87.95±\pm1.18
    GGCN 84.86±\pm4.55 86.86±\pm3.29 37.54±\pm1.56 55.17±\pm1.58 71.14±\pm1.84 85.68±\pm6.63 77.14±\pm1.45 89.15±\pm0.37 87.95±\pm1.05
    GCNII 77.57±\pm3.83 80.39±\pm3.40 37.44±\pm1.30 38.47±\pm1.58 63.86±\pm3.04 77.86±\pm3.79 77.33±\pm1.48 90.15±\pm0.43 88.37±\pm1.25
    Geom-GCN 66.76±\pm2.72 64.51±\pm3.66 31.59±\pm1.15 38.15±\pm0.92 60.00±\pm2.81 60.54±\pm3.67 78.02±\pm1.15 89.95±\pm0.47 85.35±\pm1.57
    MixHop 77.84±\pm7.73 75.88±\pm4.90 32.22±\pm2.34 43.80±\pm1.48 60.50±\pm2.53 73.51±\pm6.34 76.26±\pm1.33 85.31±\pm0.61 87.61±\pm0.85
    JK-Net 83.78±\pm2.21 82.55±\pm4.57 35.14±\pm1.37 45.03±\pm1.73 63.79±\pm2.27 75.68±\pm4.03 76.05±\pm1.37 88.41±\pm0.45 85.96±\pm0.83
    GCN 55.14±\pm5.16 51.76±\pm3.06 27.32±\pm1.10 53.43±\pm2.01 64.82±\pm2.24 60.54±\pm5.30 76.50±\pm1.36 88.42±\pm0.50 86.98±\pm1.27
    GAT 52.16±\pm6.63 49.41±\pm4.09 27.44±\pm0.89 40.72±\pm1.55 60.26±\pm2.50 61.89±\pm5.05 76.55±\pm1.23 86.33±\pm0.48 87.30±\pm1.10
    GraphSAGE 82.43±\pm6.14 81.18±\pm5.56 34.23±\pm0.99 41.61±\pm0.74 58.73±\pm1.68 75.95±\pm5.01 76.04±\pm1.30 88.45±\pm0.50 86.90±\pm1.04
    MLP 80.81±\pm4.75 85.29±\pm3.31 36.53±\pm0.70 28.77±\pm1.56 46.21±\pm2.99 81.89±\pm6.40 74.02±\pm1.90 87.16±\pm0.37 75.69±\pm2.00

    Ordered GNN matches SOTA on homophilous datasets (tying GCNII on PubMed at 90.15% and Cora at 88.37%) and achieves large improvements on dense heterophilous graphs such as Squirrel (62.44% vs next-best GGCN at 55.17% and GCNII at 38.47%).

  8. Knowl 8 — Robustness to Over-Smoothing at Deep Model Configurations

    empirical result

    When scaling model depth to 64 layers on citation network benchmarks (Cora, CiteSeer, PubMed), Ordered GNN maintains high classification accuracy without requiring graph modification techniques like DropEdge.

    Methods (64 layers) Cora CiteSeer PubMed
    Ordered GNN 89.10 80.50 91.60
    GCN 52.00 44.60 79.70
    ResGCN 79.80 21.20 87.90
    JKNet 86.30 76.70 90.60
    IncepGCN 85.30 79.00 OOM
    GraphSAGE 31.90 16.90 40.70
    GCN+DropEdge 53.20 45.60 79.00
    ResGCN+DropEdge 84.80 75.30 90.20
    JKNet+DropEdge 87.90 80.00 91.60
    IncepGCN+DropEdge 88.20 79.90 90.00
    GraphSAGE+DropEdge 31.90 25.10 63.20

    While standard message passing networks (GCN, GraphSAGE) degrade severely at 64 layers due to over-smoothing, Ordered GNN outperforms both base deep models and models regularized with DropEdge.

  9. Knowl 9 — Performance on Large-Scale Homophily and Heterophily Benchmarks

    empirical result

    Ordered GNN evaluated on large-scale datasets with 169,343 nodes and 1,166,243 edges:

    Dataset GCN SGC LP CS JK-Net APPNP GCNII / LINK UniMP / H2GCN Ordered GNN
    ogbn-arxiv 71.74±\pm0.29 69.39 68.50 72.62 72.19±\pm0.21 66.38 72.74±\pm0.16 73.11±\pm0.21 72.81±\pm0.21
    arXiv-year 46.02±\pm0.26 32.83±\pm0.13 46.07±\pm0.15 42.17±\pm0.27 46.28±\pm0.29 38.15±\pm0.26 53.97±\pm0.18 49.09±\pm0.10 54.49±\pm0.29

    On the homophilous benchmark ogbn-arxiv (edge homophily H(G)=0.66\mathcal{H}(G)=0.66), Ordered GNN achieves 72.81% accuracy, outperforming GCNII (72.74%) and standard GNNs, trailing only UniMP (which uses a large Transformer backbone and masked node labels). On the heterophilous benchmark arXiv-year (edge homophily H(G)=0.22\mathcal{H}(G)=0.22), Ordered GNN achieves 54.49% accuracy, establishing a new state-of-the-art over LINK (53.97%) and H2GCN (49.09%).

  10. Knowl 10 — Ablation Study of Ordered GNN Components

    empirical result

    An ablation study isolating the architectural components of Ordered GNN shows progressive improvements across homophily (CiteSeer, 8 layers), heterophily (Wisconsin, 8 layers), and over-smoothing (CiteSeer, 32 layers) settings:

    Model Variant Homophily (CiteSeer 8L) Heterophily (Wisconsin 8L) Over-smoothing (CiteSeer 32L)
    Bare GNN (mean aggregator) 73.79 ±\pm 1.57 53.92 ±\pm 5.79 74.70
    +simple gating (Gated GNN) 75.78 ±\pm 1.49 86.27 ±\pm 5.23 79.30
    ++ordered gating (cumax) 76.45 ±\pm 1.35 85.69 ±\pm 4.90 79.40
    +++SOFTOR (Ordered GNN) 77.31 ±\pm 1.73 88.04 ±\pm 3.63 80.80

    Independent gate prediction (+simple gating) improves over Bare GNN by allowing selective suppression of messages, but the inclusion of ordered gating combined with the SOFTOR operator (+++SOFTOR) delivers the highest accuracy across all three settings.

  11. Knowl 11 — Gating Vector Interpretability Across Graph Regimes

    empirical result

    Visualizing the learned gating vectors g~v(k)\tilde{g}_v^{(k)} across network layers reveals distinct behaviors conditioned on the graph's structural properties:

    • Homophily: Gates distribute uniformly at layer 1 with a smooth gradient, and progressively saturate toward 1 as depth increases. After layer 4, most gate entries are saturated, suppressing higher-order aggregation precisely where standard GNNs begin to suffer from over-smoothing.
    • Heterophily: A large block of gates saturates to 1 in layer 1, preserving node ego embeddings by suppressing incoming neighbor representations. On datasets like Texas, gate saturation remains constant between layers 1 and 2, but expands at layer 3, demonstrating adaptive filtering of 1st-hop bad heterophily while preserving 2nd-hop shared neighborhood patterns.
    • Deep layers: In very deep models (e.g., 32–64 layers on Cora), almost all gates saturate to 1, completely shutting off message passing from distant nodes to retain distinct node representations.

  12. Knowl 12 — Limitations of Ordered GNN on Scale-Free Graphs and Relation Modeling

    limitation

    The authors identify two key limitations of Ordered GNN:

    1. Sensitivity to Degree Imbalance: In scale-free graphs featuring both extreme hub nodes and low-degree nodes, the neighborhood tree rollout varies significantly across nodes. Model performance can depend on degree balance, potentially requiring few-shot learning adaptations for outlier topologies.
    2. Reliance on Simple Aggregation for Complex Relations: Ordered GNN modifies only the combine stage of the message passing mechanism (using mean pooling for aggregation). Applying the model to multi-relational graphs, such as knowledge graphs with heterogeneous edge dependencies, will require extending the aggregation stage accordingly.

Coverage note — None was omitted; all contributed models, theoretical results, core benchmark tables (homophily, heterophily, over-smoothing, and large-scale), component ablations, gating interpretability analyses, and explicit limitations have been captured.
