EscherNet: A Generative Model for Scalable View Synthesis

Xin KongShikun LiuXiaoyang LyuMarwan TaherXiaojuan QiAndrew J. Davison

article2024CVPR126 citations

Introduces a multi-view conditioned diffusion model with relative camera positional encoding that synthesizes over 100 consistent target views simultaneously on a single GPU from arbitrary reference angles, unifying novel view synthesis and 3D reconstruction without expensive 3D convolutions or volumetric rendering.

Listen

Synthesizing new camera viewpoints and generating 3D models from limited 2D imagery are critical capabilities for spatial computing, robotics, and digital content creation. Existing neural rendering methods typically require expensive, scene-specific optimization tied to explicit coordinate systems, which prevents them from generalizing across different scenes and causes them to fail when only a few reference images are available. Meanwhile, recent 3D generative diffusion models remain rigid, typically supporting only a single reference viewpoint or producing a fixed number of target camera angles.

The article introduces and evaluates EscherNet, a conditional diffusion framework designed to enable scalable, coordinate-free view synthesis and 3D reconstruction. The primary objective is to demonstrate a generative model capable of producing an arbitrary number of consistent novel target views from an arbitrary number of reference views with continuous relative camera control.

To achieve this, the authors adapt a standard 2D latent diffusion model by incorporating a lightweight visual encoder to capture image details and introducing a specialized camera positional encoding mechanism. This encoding allows internal transformer attention layers to compute cross-view relationships purely based on relative camera transformations rather than fixed global coordinates. The model was trained on roughly 800,000 synthetic 3D objects using sets of three reference and three target views. The authors evaluated the system across standard benchmarks for novel view synthesis, 3D object reconstruction, and two-stage text-to-3D generation, comparing performance against leading diffusion baselines and neural rendering techniques.

The experimental findings demonstrate significant technical and qualitative improvements over existing methods. First, the framework substantially outperformed competing 3D diffusion baselines in novel view synthesis quality, surpassing models trained on ten times more data. Second, when tested on 3D shape reconstruction, the model achieved approximately a 25% improvement in geometric accuracy (measured by Chamfer distance) over the best baseline when starting from a single image, widening to a 60% improvement when conditioned on ten images. Third, in few-view scenarios with fewer than five input images, the zero-shot framework synthesized plausible images where state-of-the-art scene-specific optimization methods failed to construct meaningful geometry. Finally, rendering quality scaled consistently as more reference images were provided, enabling the simultaneous generation of over 100 mutually consistent target views on a single consumer-grade graphics processing unit.

These results demonstrate that 3D synthesis can be effectively achieved through 2D generative priors without requiring explicit 3D volumetric operations or ground-truth 3D meshes. By unifying novel view synthesis, few-shot 3D reconstruction, and multi-view generation into one system, the approach lowers the computational and data barriers needed to generate high-quality 3D assets. However, while the model excels in sparse-data settings, scene-specific optimization methods still provide superior photorealism when rich data (more than ten reference images) is available.

Organizations developing spatial computing and 3D asset generation workflows should consider adopting relative-pose generative models to automate few-image reconstruction pipelines. Future technical exploration should prioritize bridging the rendering fidelity gap in dense-image scenarios and extending model training from bounded object-centric settings to unconstrained, complex real-world environments with full six-degree-of-freedom camera movement.

Readers should interpret these findings within the context of current system boundaries. The primary evaluations rely on object-centric synthetic datasets, and generating views autoregressively across very long sequences leads to accumulated quality degradation. Overall, there is high confidence that relative camera conditioning provides an efficient and scalable foundation for generalized 3D view synthesis.

generative model view synthesis EscherNet scalable view synthesis multi-view diffusion

arXiv: 2402.03908

Paper: Zero-1-to-3: Zero-shot One Image to 3D Object, Ruoshi Liu et al. (2023). Zero-1-to-3 establishes the fundamental paradigm of viewpoint-conditioned 2D diffusion models for novel view synthesis that EscherNet generalizes to multi-view conditions.
Paper: pixelNeRF: Neural Radiance Fields from One or Few Images, Alex Yu et al. (2021). pixelNeRF introduces the conditioning of neural radiance and view synthesis architectures directly on sparse input views and relative camera poses.
Paper: NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis, Ben Mildenhall et al. (2020). NeRF provides the essential foundation of continuous coordinate representations and positional encodings for novel view synthesis from posed images.
Paper: Scene Representation Networks: Continuous 3D-Structure-Aware Neural Scene Representations, V. Sitzmann et al. (2019). Scene Representation Networks formulate continuous, structure-aware implicit scene representations conditioned on camera poses without requiring explicit 3D geometry.
Paper: Look Outside the Room: Synthesizing A Consistent Long-Term 3D Scene Video from A Single Image, Xuanchi Ren et al. (2022). This work introduces relative camera transformation conditioning in attention mechanisms for consistent novel view synthesis.
Paper: 3D-R2N2: A Unified Approach for Single and Multi-view 3D Object Reconstruction, Christopher B. Choy et al. (2016). 3D-R2N2 provides the foundational architecture for unifying single- and multi-view 3D synthesis within a cohesive learned neural network.

Paper: Free3D: Consistent Novel View Synthesis Without 3D Representation, Chuanxia Zheng et al. (2024). Free3D develops camera-ray conditioned normalization and multi-view attention mechanisms to synthesize consistent 360-degree views without explicit 3D representations.
Paper: SyncDreamer: Generating Multiview-consistent Images from a Single-view Image, Yuan Liu et al. (2024). SyncDreamer explores synchronized multi-view generation with 3D-aware cross-attention to address consistency bottlenecks in novel view diffusion.
Paper: Wonder3D: Single Image to 3D Using Cross-Domain Diffusion, Xiaoxiao Long et al. (2024). Wonder3D extends generative multi-view diffusion models by cross-domain coupling of normal maps and color views for downstream reconstruction.
Paper: VGGT: Visual Geometry Grounded Transformer, Jianyuan Wang et al. (2025). VGGT scales transformer-based feed-forward multi-view geometry estimation across dense sets of images, building on scalable neural camera conditioning concepts.
Paper: DL3DV-10K: A Large-Scale Scene Dataset for Deep Learning-based 3D Vision, Lu Ling et al. (2024). DL3DV-10K provides a large-scale real-world multi-view dataset and benchmark to evaluate generalizable novel view synthesis frameworks like EscherNet.

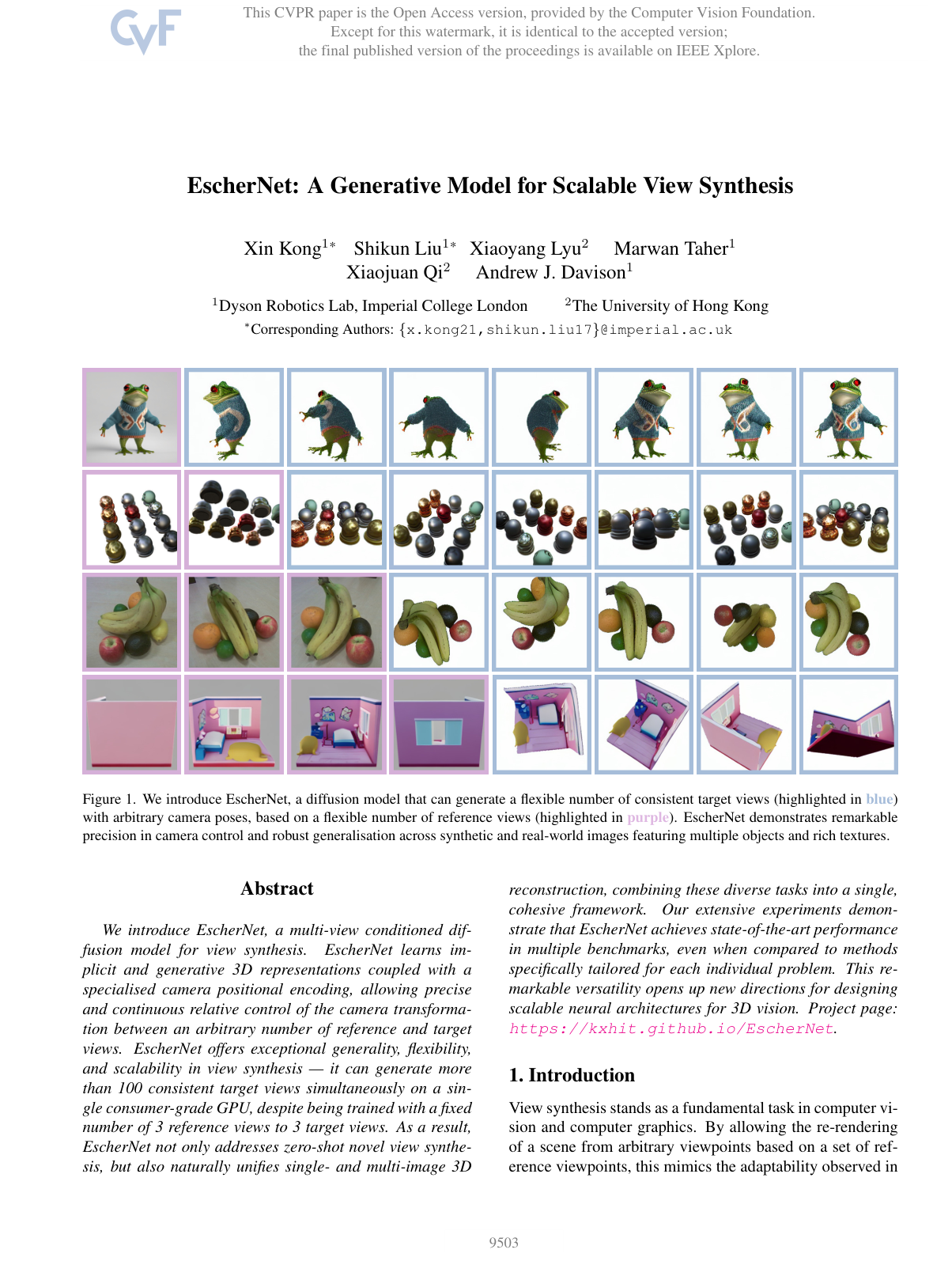

Cover for EscherNet: A Generative Model for Scalable View Synthesis

Abstract

We introduce EscherNet, a multi-view conditioned diffusion model for view synthesis. EscherNet learns implicit and generative 3D representations coupled with a specialised camera positional encoding, allowing precise and continuous relative control of the camera transformation between an arbitrary number of reference and target views. EscherNet offers exceptional generality, flexibility, and scalability in view synthesis — it can generate more than 100 consistent target views simultaneously on a single consumer-grade GPU, despite being trained with a fixed number of 3 reference views to 3 target views. As a result, EscherNet not only addresses zero-shot novel view synthesis, but also naturally unifies single- and multi-image 3D reconstruction, combining these diverse tasks into a single, cohesive framework. Our extensive experiments demonstrate that EscherNet achieves state-of-the-art performance in multiple benchmarks, even when compared to methods specifically tailored for each individual problem. This remarkable versatility opens up new directions for designing scalable neural architectures for 3D vision. Project page: https://kxhit.github.io/EscherNet.

Topics

generative model view synthesis

Keywords

EscherNet scalable view synthesis multi-view diffusion neural rendering camera positional encoding volumetric rendering

1. Introduction
2. Related Work
3. EscherNet
3.1. Architecture Design
3.2. Camera Positional Encoding (CaPE)
4. Experiments
4.1. Results on Novel View Synthesis
4.2. Results on 3D Generation
4.3. Results on Text-to-3D Generation
5. Conclusions
References

Knowls

Knowl 1 — Scalable conditional formulation for arbitrary reference and target views
model/method
EscherNet treats view synthesis as conditional generative modeling. Let $X^R=\{X^R_j\}_{j=1}^{N}$ be $N$ reference images with global camera poses $P^R=\{P^R_j\}_{j=1}^{N}$ , and let $X^T=\{X^T_i\}_{i=1}^{M}$ be $M$ target images with poses $P^T=\{P^T_i\}_{i=1}^{M}$ . The model samples target images according to
$X^T \sim p\left(X^T\mid X^R,P^R,P^T\right).$
The numbers of reference views $N$ and target views $M$ are not fixed by the formulation. Each target image $X^T_i$ is designed to depend on the relative camera transformations $(P^R_j)^{-1}P^T_i$ rather than on absolute scene coordinates. This gives EscherNet an implicit, generative 3D representation learned from image colors, geometry, and inter-view relationships, without ground-truth 3D geometry, volumetric rendering, or a scene-specific global coordinate system.
Knowl 2 — Multi-view latent-diffusion architecture with consistency-aware attention
model/method
EscherNet adapts the Stable Diffusion v1.5 latent-diffusion architecture for multi-view image generation. A fine-tuned ConvNeXt-v2-Tiny vision encoder converts every reference image into compact conditioning tokens that preserve both high-level semantics and low-level texture; using sets of tokens allows a variable number of reference views, unlike concatenating one reference image into the denoising network.

Within the denoising U-Net, self-attention is applied across patches from all $M$ target views, rather than only within one image, to learn target-to-target consistency. Cross-attention connects target-view patches to tokens from all $N$ reference views, providing reference-to-target consistency. Camera positional encoding is applied to the key and query features in both attention mechanisms, so their attention scores can depend on relative camera transformations. The design uses ordinary 2D transformer operations and does not require 3D convolutions or volumetric rendering; the camera positional encoding itself adds no learned parameters.
Knowl 3 — Four-degree-of-freedom camera positional encoding
model/method
For object-centric cameras, EscherNet represents a pose as $P=(\alpha,\beta,\gamma,r)$ , where $\alpha$ is azimuth, $\beta$ is elevation, $\gamma$ is camera orientation about the look-at direction, and $r>0$ is camera radius. The ranges are $\alpha,\gamma\in[0,2\pi)$ and $\beta\in[0,\pi)$ . For a token feature $v\in\mathbb{R}^{d}$ , the 4-DoF Camera Positional Encoding (CaPE) is
$\pi(v,P)=\phi(P)v, \qquad \phi(P)=\operatorname{blkdiag}_{d/8}(\Psi), \qquad \Psi=\operatorname{blkdiag}(\Psi_{\alpha},\Psi_{\beta},\Psi_{\gamma},\Psi_r),$
where each $\Psi$ block is $2\times2$ and $d$ must be divisible by $8$ . For an angular component $\theta\in\{\alpha,\beta,\gamma\}$ ,
$\Psi_{\theta}=\begin{bmatrix}\cos\theta&-\sin\theta\\\sin\theta&\cos\theta\end{bmatrix},$
and the radius block is $\Psi_r$ with the same rotation form evaluated at
$f(r)=\pi\,\frac{\log r-\log r_{\min}}{\log r_{\max}-\log r_{\min}}\in[0,\pi],$
where $r_{\min}$ and $r_{\max}$ bound the radius range used for encoding. The construction makes dot products depend on relative angular differences and relative radius $r_1/r_2$ : for feature vectors $v_1,v_2\in\mathbb{R}^{d}$ ,
$\left\langle\pi(v_1,\theta_1),\pi(v_2,\theta_2)\right\rangle = \left\langle\pi(v_1,\theta_1-\theta_2),\pi(v_2,0)\right\rangle,$
and
$\left\langle\pi(v_1,r_1),\pi(v_2,r_2)\right\rangle = \left\langle\pi(v_1,r_1/r_2),\pi(v_2,1)\right\rangle.$
Thus, attention can encode the relative object-centric camera transformation independently of the choice of global coordinate origin.
Knowl 4 — Six-degree-of-freedom CaPE for general camera transformations
model/method
For generic cameras, EscherNet represents the pose as a homogeneous transformation $P\in SE(3)$ ,
$P=\begin{bmatrix}R&t\\0&1\end{bmatrix},$
where $R\in\mathbb{R}^{3\times3}$ is rotation and $t\in\mathbb{R}^{3}$ is translation. The desired attention equivariance for a key feature $v_1\in\mathbb{R}^{d}$ at pose $P_1$ and a query feature $v_2\in\mathbb{R}^{d}$ at pose $P_2$ is
$\left\langle\pi(v_1,P_1),\pi(v_2,P_2)\right\rangle = \left\langle\pi(v_1,P_2^{-1}P_1),\pi(v_2,I)\right\rangle,$
where $I$ is the $4\times4$ identity transformation. The implementation expands each $4\times4$ pose block diagonally:
$\pi(v,P)=\phi(P)v, \qquad \phi(P)=\operatorname{blkdiag}_{d/4}(\Psi), \qquad \Psi= \begin{cases} P,&\text{for a key feature},\\ P^{-\mathsf{T}},&\text{for a query feature}, \end{cases}$
where $P^{-\mathsf{T}}=(P^{-1})^{\mathsf{T}}$ and $d$ must be divisible by $4$ . Translation is rescaled to a unit range for each scene during training. The block structure permits efficient implementation by reshaping token features instead of constructing a dense $d\times d$ matrix.
Knowl 5 — Training regime and inference scalability
experimental setup
EscherNet is trained on approximately 800,000 Objaverse-1.0 objects. Each object supplies 12 randomly rendered views with randomized environment lighting; roughly 1% of rendered images are removed because they are empty. The principal reported model uses 4-DoF object-centric camera poses and is trained with a fixed arrangement of 3 reference views and 3 target views.

At inference time, the same architecture accepts arbitrary numbers of reference and target views and arbitrary camera poses. The paper reports that it can generate more than 100 mutually consistent target views simultaneously on a single consumer-grade GPU, despite the fixed three-view-to-three-view training arrangement. Both 4-DoF and 6-DoF CaPE variants were trained; the 6-DoF variant had slightly better measured performance, while the 4-DoF variant produced more visually consistent results on real-world images.

Knowl 6 — Novel-view synthesis against 3D diffusion baselines

data/table

On Google Scanned Objects (GSO-30) and RTMV, EscherNet is compared with RealFusion, Zero-1-to-3, and Zero-1-to-3-XL. PSNR and SSIM are higher-is-better metrics, while LPIPS is lower-is-better. The results show that adding reference views steadily improves EscherNet, and that its 800K-object training set is sufficient to exceed Zero-1-to-3-XL on GSO despite Zero-1-to-3-XL using 10M training objects. On RTMV, EscherNet becomes clearly stronger as the number of references increases; RealFusion has no reported RTMV scores.

Method	Training data	Reference views	GSO-30 PSNR	GSO-30 SSIM	GSO-30 LPIPS	RTMV PSNR	RTMV SSIM	RTMV LPIPS
RealFusion	-	1	12.76	0.758	0.382	-	-	-
Zero123	800K	1	18.51	0.856	0.127	10.16	0.505	0.418
Zero123-XL	10M	1	18.93	0.856	0.124	10.59	0.520	0.401
EscherNet	800k	1	20.24	0.884	0.095	10.56	0.518	0.410
EscherNet	800k	2	22.91	0.908	0.064	12.66	0.585	0.301
EscherNet	800k	3	24.09	0.918	0.052	13.59	0.611	0.258
EscherNet	800k	5	25.09	0.927	0.043	14.52	0.633	0.222
EscherNet	800k	10	25.90	0.935	0.036	15.55	0.657	0.185

EscherNet also generates multiple target views jointly with camera control, whereas Zero-1-to-3 is designed for a single target view and does not enforce consistency among multiple generated targets.

Knowl 7 — Zero-shot synthesis versus scene-specific neural rendering

data/table

On the NeRF Synthetic benchmark, EscherNet performs zero-shot inference, while InstantNGP and 3D Gaussian Splatting optimize a separate scene representation. With one, two, or three reference views, EscherNet has the best PSNR, SSIM, and LPIPS among the three methods. At larger reference counts, the scene-specific methods improve more rapidly and eventually obtain higher PSNR, demonstrating the trade-off between EscherNet's immediate generalization and per-scene optimization.

Method	Metric	1 reference	2 references	3 references	5 references	10 references	20 references	50 references	100 references
InstantNGP	PSNR	10.92	12.42	14.27	18.17	22.96	24.99	26.86	27.30
InstantNGP	SSIM	0.449	0.521	0.618	0.761	0.881	0.917	0.946	0.953
InstantNGP	LPIPS	0.627	0.499	0.391	0.228	0.091	0.058	0.034	0.031
GaussianSplatting	PSNR	9.44	10.78	12.87	17.09	23.04	25.34	26.98	27.11
GaussianSplatting	SSIM	0.391	0.432	0.546	0.732	0.876	0.919	0.942	0.944
GaussianSplatting	LPIPS	0.610	0.541	0.441	0.243	0.085	0.054	0.041	0.041
EscherNet	PSNR	13.36	14.95	16.19	17.16	17.74	17.91	18.05	18.15
EscherNet	SSIM	0.659	0.700	0.729	0.748	0.761	0.765	0.769	0.771
EscherNet	LPIPS	0.291	0.208	0.161	0.127	0.114	0.106	0.099	0.097

The comparison establishes that EscherNet can produce plausible novel views from very sparse input without scene-specific optimization, but it does not match the high-reference-count rendering accuracy achieved by methods optimized separately for each scene.

Knowl 8 — Dense consistent views enable improved few-image 3D reconstruction

model/method

EscherNet can be coupled with NeuS for single- and few-image 3D reconstruction. Given any reference views, EscherNet first generates 36 target views: azimuths from $0^\circ$ through $360^\circ$ at $30^\circ$ increments and elevations of $-30^\circ$ , $0^\circ$ , and $30^\circ$ . These generated views are then supplied to NeuS to reconstruct an implicit surface.

Method	Reference views	Chamfer distance ↓	Volume IoU ↑
Point-E	1	0.0447	0.2503
Shape-E	1	0.0448	0.3762
One2345	1	0.0632	0.4209
One2345-XL	1	0.0667	0.4016
DreamGaussian	1	0.0605	0.3757
DreamGaussian-XL	1	0.0459	0.4531
SyncDreamer	1	0.0400	0.5220
NeuS	3	0.0366	0.5352
NeuS	5	0.0245	0.6742
NeuS	10	0.0195	0.7264
EscherNet	1	0.0314	0.5974
EscherNet	2	0.0215	0.6868
EscherNet	3	0.0190	0.7189
EscherNet	5	0.0175	0.7423
EscherNet	10	0.0167	0.7478

The EscherNet-plus-NeuS pipeline obtains lower Chamfer distance and higher Volume IoU than the compared image-to-3D generative methods. It also improves as more reference views are supplied, and its generated views provide denser geometric constraints than methods restricted to a small fixed set of target poses.

Knowl 9 — Two-stage text-to-3D extension
model/method
EscherNet supports a text-to-3D workflow by decomposing the task into text-to-image and image-to-3D stages. An off-the-shelf text-conditioned generator first produces one or more reference images; EscherNet then generates dense, camera-controlled novel views from those images. The paper demonstrates this with MVDream for text-to-four-view generation and with SDXL for text-to-image generation.

The qualitative results include synthetic, out-of-distribution, and counterfactual prompts such as a wooden carved bald eagle and a robot made of vegetables. EscherNet produces visually appealing views with consistent object structure and textures across viewpoints, although no quantitative text-to-3D metric is reported for this extension.
Knowl 10 — Limitations of autoregressive scaling and training coverage
limitation
EscherNet's ability to accommodate arbitrary numbers of views permits autoregressive generation, but the paper reports a quality decrease when this strategy is used, despite its reduction in inference time. The demonstrated model is also constrained by its object-centric training distribution: the paper characterizes its current capability as operating within a 3-DoF setting, whereas real-world camera motion generally occupies the full $SE(3)$ space. The proposed direction for addressing this limitation is training EscherNet with 6-DoF real-world scenes and data.

Coverage note — No substantial main-text contribution was omitted; appendix-only ablations, implementation details, and checkpoint-specific settings were not expanded because they are not included in the provided paper text.
