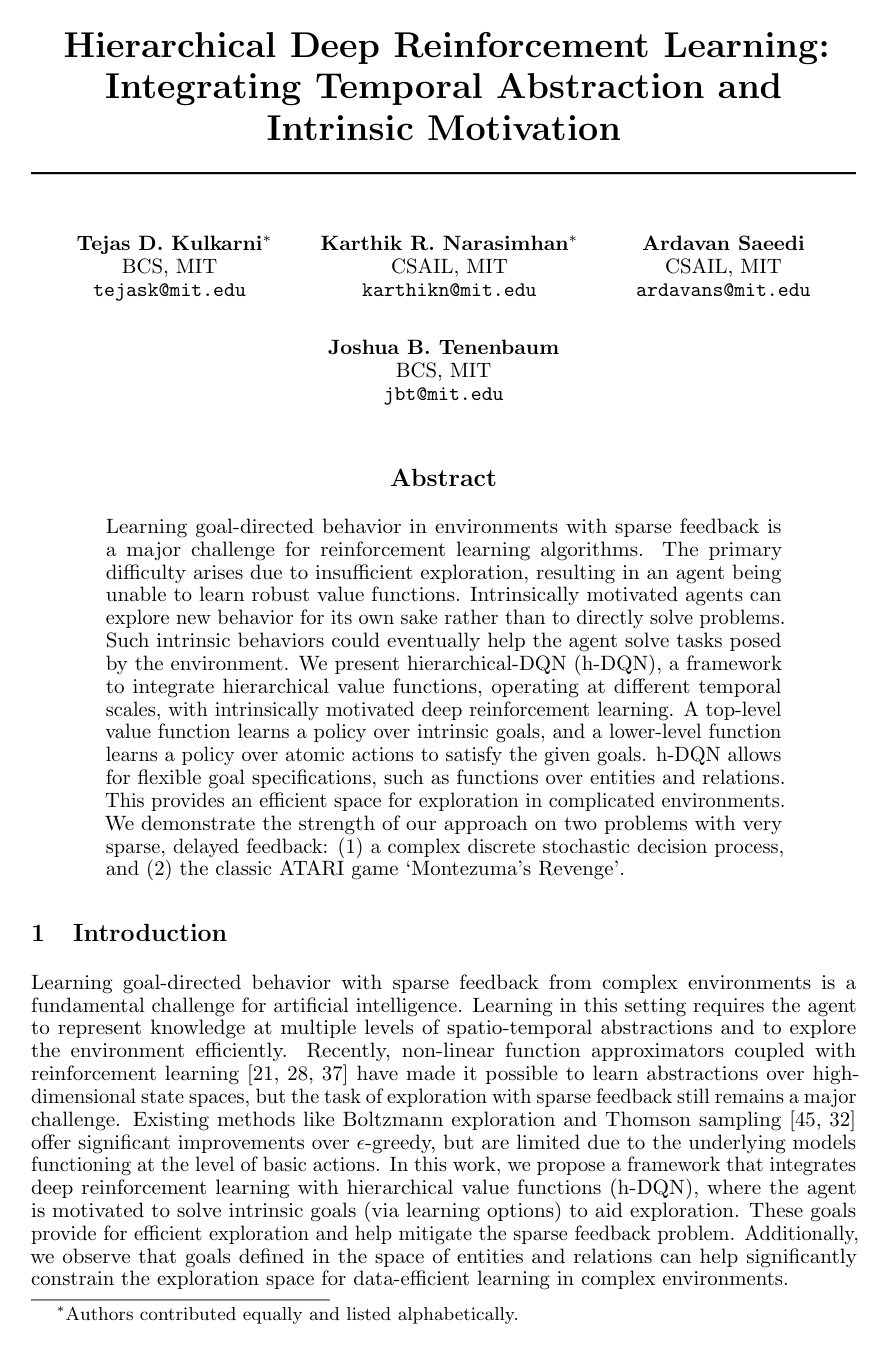

Hierarchical Deep Reinforcement Learning: Integrating Temporal Abstraction and Intrinsic Motivation

Tejas D. KulkarniKarthik R. NarasimhanArdavan SaeediJoshua B. Tenenbaum

article2016NeurIPS1,319 citations

Proposes hierarchical-DQN, a framework that integrates multi-timescale value functions with intrinsic motivation to solve sparse-reward reinforcement learning problems like Montezuma's Revenge by decoupling goal selection from action execution.

Listen

Reinforcement learning systems often struggle in environments where meaningful feedback is delayed or sparse. Standard exploration techniques rely on random, low-level trial and error, which makes it nearly impossible for an automated agent to discover complex sequences of actions needed to achieve long-term objectives. The article introduces hierarchical Deep Q-Networks (h-DQN) to evaluate whether integrating hierarchical value functions operating over different time scales with intrinsic motivation can enable efficient exploration and long-range planning.

The framework divides decision-making into a two-level hierarchy. A top-level module (the meta-controller) selects intrinsic goals to maximize long-term external rewards from the environment, while a lower-level module (the controller) generates primitive actions to accomplish the chosen goal and receives intrinsic rewards from an internal critic. The authors tested this system on two challenging domains with delayed rewards: a six-state stochastic decision process and the complex video game 'Montezuma's Revenge', where goals were parameterized using objects and relational entities detected in visual scenes.

The empirical findings demonstrate significant performance gains over traditional reinforcement learning approaches. In the stochastic environment, the hierarchical method learned the optimal exploratory strategy to achieve an average reward of about 0.13, whereas standard baseline methods converged to a suboptimal reward of 0.01. In 'Montezuma's Revenge', where standard deep reinforcement learning models score 0 and state-of-the-art parallel approaches score only around 4.16, the proposed framework consistently achieved scores of approximately 400 per episode. The system successfully discovered critical intermediate sub-goals, such as retrieving keys and navigating ladders, progressing systematically from simpler milestones to more complex objectives.

These results demonstrate that temporal abstraction and goal-driven intrinsic exploration can dramatically reduce the sample complexity and exploration bottlenecks of artificial intelligence systems in sparse environments. By organizing exploration around entities and intermediate objectives rather than raw actions, artificial intelligence can navigate complex, multi-stage workflows that were previously intractable. Organizations seeking to deploy autonomous agents in sparse-feedback environments should explore hierarchical goal-setting architectures to improve sample efficiency and task success.

To scale these capabilities further, future development should focus on integrating automatic, unsupervised object discovery directly from raw sensory inputs and incorporating flexible short-term memory to handle long-range dependencies and non-Markovian settings. Decision-makers should note that current implementations rely on custom, pre-defined object detectors to specify the candidate goal space, meaning broad generalization to entirely unstructured environments remains an ongoing area of research.

Massachusetts Institute of Technology deep reinforcement learning stochastic value functions hierarchical deep reinforcement learning intrinsic motivation temporal abstraction

arXiv: 1604.06057 mrkulk/hierarchical-deep-RL

Paper: Between MDPs and semi-MDPs: A framework for temporal abstraction in reinforcement learning, Richard S. Sutton et al. (1999). This seminal paper introduces the options framework and semi-Markov decision processes, establishing the theoretical foundations of temporal abstraction that h-DQN integrates into deep architectures.
Paper: Human-level control through deep reinforcement learning, Volodymyr Mnih et al. (2015). This foundational work demonstrates human-level control from raw pixels using Deep Q-Networks, providing the core value-function approximation algorithm extended by h-DQN.
Paper: Hierarchical Reinforcement Learning with the MAXQ Value Function Decomposition, Thomas G. Dietterich (1999). This work establishes the MAXQ value function decomposition for hierarchical reinforcement learning, providing key concepts for separating top-level goal selection from subtask execution.
Paper: Policy Invariance Under Reward Transformations: Theory and Application to Reward Shaping, Andrew Y. Ng et al. (1999). This paper formalizes potential-based reward shaping to guide exploration in sparse-reward tasks, laying theoretical groundwork for intrinsic reward and goal motivation mechanisms.

Paper: Exploration by Random Network Distillation, Yuri Burda et al. (2019). Building on the challenge of sparse-feedback benchmarks like Montezuma's Revenge explored by h-DQN, this work introduces Random Network Distillation to scale intrinsic novelty rewards in complex deep RL environments.
Paper: Curiosity-Driven Exploration by Self-Supervised Prediction, Deepak Pathak et al. (2017). This paper advances intrinsic motivation by using self-supervised prediction error as curiosity rewards, offering an unsupervised alternative to explicit multi-level goal specifications.
Paper: The Option-Critic Architecture, Pierre-Luc Bacon et al. (2016). This work extends temporal abstraction by learning options and their termination conditions end-to-end via policy gradients, removing the need to manually define intrinsic goal spaces.
Paper: Hindsight Experience Replay, Marcin Andrychowicz et al. (2017). This work addresses goal-conditioned reinforcement learning in sparse-reward settings by replaying trajectories with hindsight goals, providing a complementary approach to hierarchical exploration.
Paper: Diversity is All You Need: Learning Skills without a Reward Function, Benjamin Eysenbach et al. (2018). This paper generalizes intrinsic motivation by learning task-agnostic, diverse repertoires of skills entirely without external reward functions for downstream hierarchical transfer.

Abstract

Learning goal-directed behavior in environments with sparse feedback is a major challenge for reinforcement learning algorithms. The primary difficulty arises due to insufficient exploration, resulting in an agent being unable to learn robust value functions. Intrinsically motivated agents can explore new behavior for its own sake rather than to directly solve problems. Such intrinsic behaviors could eventually help the agent solve tasks posed by the environment. We present hierarchical-DQN (h-DQN), a framework to integrate hierarchical value functions, operating at different temporal scales, with intrinsically motivated deep reinforcement learning. A top-level value function learns a policy over intrinsic goals, and a lower-level function learns a policy over atomic actions to satisfy the given goals. h-DQN allows for flexible goal specifications, such as functions over entities and relations. This provides an efficient space for exploration in complicated environments. We demonstrate the strength of our approach on two problems with very sparse, delayed feedback: (1) a complex discrete stochastic decision process, and (2) the classic ATARI game `Montezuma's Revenge'.

Topics

deep reinforcement learning stochastic value functions

Keywords

hierarchical deep reinforcement learning intrinsic motivation temporal abstraction intrinsic reward hierarchical value functions efficient exploration goal-directed behavior cumulative extrinsic reward atomic actions

1 Introduction
2 Literature Review
2.1 Reinforcement Learning with Temporal Abstractions
2.2 Intrinsically motivated RL
2.3 Object-based RL
2.4 Deep Reinforcement Learning
2.5 Cognitive Science and Neuroscience
3 Model
4 Experiments
4.1 Discrete stochastic decision process
4.2 ATARI game with delayed rewards
5 Conclusion
References

Knowls

Knowl 1 — Hierarchical Deep Q-Network (h-DQN) Framework
model/method
The hierarchical Deep Q-Network (h-DQN) framework integrates temporal abstraction with intrinsic motivation to solve reinforcement learning tasks characterized by sparse, delayed feedback. The architecture operates over two levels of hierarchy functioning at different temporal scales:
1. Meta-Controller: Operates at a coarse temporal scale. Given the environment state $s_t \in \mathcal{S}$ , it selects a discrete intrinsic goal $g_t \in \mathcal{G}$ using an action-value function $Q_2(s_t, g_t; \theta_2)$ . The meta-controller's objective is to maximize the cumulative discounted extrinsic reward $F_t = \sum_{t'=t}^{\infty} \gamma^{t'-t} f_{t'}$ received from the external environment.
2. Controller: Operates at a single-step temporal scale. Conditioned on the state $s_t$ and the selected goal $g_t$ , it selects a primitive action $a_t \in \mathcal{A}$ using an action-value function $Q_1(s_t, a_t; \theta_1, g_t)$ . The controller's objective is to maximize cumulative discounted intrinsic rewards $R_t(g) = \sum_{t'=t}^{\infty} \gamma^{t'-t} r_{t'}(g)$ .
3. Internal Critic: A module that evaluates the agent's progress towards goal $g$ and provides the intrinsic reward signal $r_t(g)$ to the controller. The controller persists in pursuing $g_t$ for $N$ steps until $g_t$ is achieved or a terminal state is reached, at which point the meta-controller observes next state $s_{t+N}$ and selects a new goal.
Knowl 2 — Bellman Equations and Optimization Objectives in h-DQN
equation
In the h-DQN framework, the controller and meta-controller optimize distinct Bellman equations over different temporal intervals and reward structures.

For the controller, the optimal action-value function $Q_1^*(s, a; g)$ under a policy $\pi_{ag} = P(a \mid s, g)$ satisfies: $Q_1^*(s, a; g) = \max_{\pi_{ag}} \mathbb{E}\left[r_t + \gamma \max_{a_{t+1}} Q_1^*(s_{t+1}, a_{t+1}; g) \,\Big|\, s_t = s, a_t = a, g_t = g, \pi_{ag}\right]$ where $r_t$ is the intrinsic reward provided by the internal critic for transitioning toward goal $g$ , and $\gamma \in [0, 1)$ is the discount factor.

For the meta-controller, which selects goals for durations of $N$ steps under goal policy $\pi_g = P(g \mid s)$ , the semi-Markov action-value function $Q_2^*(s, g)$ satisfies: $Q_2^*(s, g) = \max_{\pi_g} \mathbb{E}\left[\sum_{t'=t}^{t+N} f_{t'} + \gamma \max_{g'} Q_2^*(s_{t+N}, g') \,\Big|\, s_t = s, g_t = g, \pi_g\right]$ where $f_{t'}$ represents the extrinsic environment reward at step $t'$ , and $N$ is the number of steps until the controller terminates the sub-policy for goal $g$ .

The parameterized networks $\theta_1$ and $\theta_2$ are trained by gradient descent on the mean squared temporal-difference errors with target network parameters $\theta_{1,i-1}$ and $\theta_{2,i-1}$ : $L_1(\theta_{1,i}) = \mathbb{E}_{(s, a, g, r, s') \sim \mathcal{D}_1}\left[\left(r + \gamma \max_{a'} Q_1(s', a'; \theta_{1,i-1}, g) - Q_1(s, a; \theta_{1,i}, g)\right)^2\right]$ $L_2(\theta_{2,i}) = \mathbb{E}_{(s, g, F, s') \sim \mathcal{D}_2}\left[\left(F + \gamma \max_{g'} Q_2(s', g'; \theta_{2,i-1}) - Q_2(s, g; \theta_{2,i})\right)^2\right]$ where $\mathcal{D}_1$ and $\mathcal{D}_2$ are disjoint experience replay memories storing atomic transitions $(\{s, g\}, a, r, \{s', g\})$ and multi-step meta-transitions $(s_t, g_t, F_t, s_{t+N})$ , respectively.
Knowl 3 — h-DQN Training with Dual Replay and Adaptive Exploration
algorithm
The h-DQN algorithm simultaneously trains the controller over primitive actions and the meta-controller over intrinsic goals using two distinct replay buffers and decoupled time scales.
Input: Set of primitive actions $\mathcal{A}$ , set of goals $\mathcal{G}$ , discount factor $\gamma$ , learning rates, replay buffer capacities
Output: Controller parameters $\theta_1$ and meta-controller parameters $\theta_2$
Initialize experience replay memories $\mathcal{D}_1$ and $\mathcal{D}_2$
Initialize network parameters $\theta_1$ and $\theta_2$
Initialize meta-controller exploration probability $\epsilon_2 \leftarrow 1.0$
Initialize controller exploration probabilities $\epsilon_{1,g} \leftarrow 1.0$ for all $g \in \mathcal{G}$
for episode = 1 to num_episodes do
    Initialize environment and obtain initial state $s$
    Sample goal $g \sim \text{epsGreedy}(s, \mathcal{G}, \epsilon_2, Q_2)$
    while $s$ is not terminal do
         $F \leftarrow 0$
         $s_0 \leftarrow s$
        while not ( $s$ is terminal or goal $g$ is reached) do
            Sample action $a \sim \text{epsGreedy}(\{s, g\}, \mathcal{A}, \epsilon_{1,g}, Q_1)$
            Execute $a$ , observe next state $s'$ and extrinsic reward $f$
            Obtain intrinsic reward $r \leftarrow \text{critic}(s, a, s', g)$
            Store transition $(\{s, g\}, a, r, \{s', g\})$ in $\mathcal{D}_1$
            Sample mini-batch from $\mathcal{D}_1$ and perform gradient descent on $L_1(\theta_1)$
            Sample mini-batch from $\mathcal{D}_2$ and perform gradient descent on $L_2(\theta_2)$
             $F \leftarrow F + f$
             $s \leftarrow s'$
        Store multi-step transition $(s_0, g, F, s')$ in $\mathcal{D}_2$
        if $s$ is not terminal then
            Sample goal $g \sim \text{epsGreedy}(s, \mathcal{G}, \epsilon_2, Q_2)$
    Anneal $\epsilon_2$ and adaptively anneal each $\epsilon_{1,g}$ based on empirical success rate of reaching $g$
The exploration probability $\epsilon_2$ of the meta-controller is annealed gradually from $1.0$ , while $\epsilon_{1,g}$ for each goal $g$ is dynamically annealed based on the empirical success rate of the controller in reaching $g$ .
Knowl 4 — Entity-Relation Parameterization for Intrinsic Goal Spaces
model/method
In complex visual reinforcement learning domains, structuring the intrinsic goal space around detected objects and relational interactions constrains exploration to semantically relevant state spaces.
1. Object Detection: A vision front-end provides bounding boxes or candidate spatial locations of entities present in the scene (such as key, doors, ladders, or enemies).
2. Relational Internal Critic: The internal critic evaluates transitions over structured relational tuples of the form $\langle \text{entity}_1, \text{relation}, \text{entity}_2 \rangle$ , where $\text{entity}_1$ is the controllable agent, $\text{entity}_2$ is a candidate object chosen by the meta-controller, and $\text{relation}$ is a spatial condition (such as reaching or touching $\text{entity}_2$ ).
3. Goal Specification: When the meta-controller chooses a target entity $g = \text{entity}_2$ , the internal critic yields an intrinsic reward $r(s, a, s') = 1$ when the agent satisfies the relational predicate with the target entity, and $0$ otherwise.
Knowl 5 — Hierarchical Exploration on Stochastic Chain MDP
empirical result
On a 6-state discrete stochastic chain Markov Decision Process with states $\{s_1, s_2, s_3, s_4, s_5, s_6\}$ , the agent starts at $s_2$ with $s_1$ being the terminal state. Choosing the action 'left' moves left deterministically, whereas choosing 'right' succeeds with probability $0.5$ (and moves left with probability $0.5$ ). The extrinsic reward at $s_1$ is $1.0$ if state $s_6$ was visited earlier in the trajectory, and $0.01$ if $s_1$ is reached without having visited $s_6$ .
- Standard Q-learning Baseline: With $\epsilon$ -greedy exploration annealed from $1$ to $0.1$ over 50,000 steps, standard flat Q-learning converges to the suboptimal policy of navigating immediately from $s_2$ to $s_1$ , yielding an average extrinsic reward of $0.01$ .
- Hierarchical Q-learning (h-DQN framework): Defining each state $\{s_1, \dots, s_6\}$ as a possible goal and providing positive intrinsic rewards when reaching the selected goal state enables the meta-controller to learn to select intermediate goals $s_4, s_5,$ and $s_6$ . This leads the agent to regularly visit $s_6$ before terminating at $s_1$ , achieving an average extrinsic reward of approximately $0.13$ over 10 random runs.
Knowl 6 — Neural Network Architecture and Two-Phase Training on Montezuma's Revenge
experimental setup
For the visual domain of Montezuma's Revenge on the Arcade Learning Environment:
1. Input Representation:
  - Meta-Controller: Four consecutive grayscale frames resized to $84 \times 84$ pixels.
  - Controller: The four consecutive $84 \times 84$ frames concatenated with a binary spatial mask channel corresponding to the chosen goal object's location in image coordinates (5 channels total).
2. Network Architecture:
  - Three convolutional layers: Conv1 (32 filters of size $8 \times 8$ , stride 4, ReLU), Conv2 (64 filters of size $4 \times 4$ , stride 2, ReLU), Conv3 (64 filters of size $3 \times 3$ , stride 1, ReLU).
  - Fully connected layer of 512 ReLU units followed by a linear output layer producing Q-values ( $|\mathcal{A}|$ outputs for the controller $Q_1$ , and $|\mathcal{G}|$ outputs for the meta-controller $Q_2$ ).
3. Hyperparameters and Two-Phase Protocol:
  - Optimizer: RMSprop with learning rate $2.5 \times 10^{-4}$ and discount factor $\gamma = 0.99$ .
  - Replay buffer capacities: $|\mathcal{D}_1| = 10^6$ transitions for the controller; $|\mathcal{D}_2| = 5 \times 10^4$ transitions for the meta-controller.
  - Phase 1 (Pre-training): $\epsilon_2$ is fixed to $1.0$ for approximately $2.3 \times 10^6$ steps so the meta-controller samples goals uniformly at random while the controller learns low-level sub-policies to reach accessible entities.
  - Phase 2 (Joint Training): Controller and meta-controller are jointly trained for an additional $2.0 \times 10^6$ steps with $\epsilon_2$ annealed.
Knowl 7 — Performance on Montezuma's Revenge with Sparse Delayed Rewards
empirical result
In the ATARI game Montezuma's Revenge, which requires navigating ladders, avoiding obstacles (a skull), acquiring a key ( $+100$ reward), and unlocking a door ( $+300$ reward):
- Baseline DQN: Achieves an average score of $0$ because random primitive exploration cannot discover the multi-step action sequence needed to collect the key.
- Gorila DQN (Massively Parallel DQN): Achieves an average score of only $4.16$ .
- h-DQN: Following the two-phase training protocol ( $2.3 \times 10^6$ pre-training steps followed by $2.0 \times 10^6$ joint training steps), h-DQN consistently reaches a score of approximately $+400$ per episode by learning to navigate to the key and subsequently opening the door.
During training progression, the meta-controller first masters choosing easier proximal goals (such as the middle ladder and right door) before increasing its selection and success rate for harder distant goals (such as the key and bottom ladders).
Knowl 8 — Limitations of the h-DQN Architecture
limitation
The h-DQN framework has three primary stated limitations:
1. Manual / Custom Object Proposal: Entity and goal proposals rely on a customized object detector rather than end-to-end unsupervised visual representation learning or automated object discovery from raw video frames.
2. Fixed Option Termination: The low-level controller executes until the target goal is reached or the episode terminates, lacking dynamic, intermittent termination mechanisms to abort suboptimal sub-policies mid-execution.
3. Lack of Episodic Memory: Because the policy relies on feed-forward convolutions over 4 stacked frames, it lacks an explicit short-term or episodic memory module to track history across long sequences of sub-goals in non-Markovian environments.

Coverage note — None was omitted; all core contributions, theoretical formulations, algorithms, experimental setups, empirical results, and stated limitations from the paper are represented.
