VRL3: A Data-Driven Framework for Visual Deep Reinforcement Learning

Che WangXufang LuoKeith W. RossDongsheng Li

article2022NeurIPS71 citations

Presents a three-stage visual deep reinforcement learning framework that systematically integrates ImageNet pretraining, offline expert demonstrations, and online fine-tuning to dramatically increase sample efficiency and reduce compute on complex robotic manipulation tasks.

Listen

Deploying visual reinforcement learning in realistic domains like robotic manipulation has long been hindered by poor sample efficiency, sparse reward signals, and high computational costs. While standard benchmarks rely heavily on direct physical state inputs or simplistic visuals, real-world tasks require processing complex camera streams. Existing solutions typically tackle visual pretraining, offline demonstrations, or online exploration in isolation, missing the opportunity to leverage diverse data sources within a single, unified pipeline.

The article introduces and evaluates VRL3, a streamlined, three-stage data-driven framework designed to solve complex visual control tasks efficiently. The core objective is to demonstrate that systematically integrating non-reinforcement learning datasets, small sets of offline demonstrations, and targeted online reinforcement learning dramatically improves learning efficiency, model size, and task success rates compared to existing state-of-the-art approaches.

The framework proceeds across three structured phases: First, it pretrains a lightweight convolutional visual encoder on standard image classification data (ImageNet) to capture general visual features, adapting it to multi-frame inputs via a convolutional channel expansion technique. Second, it initializes an actor-critic agent using offline demonstrations and applies conservative offline reinforcement learning updates to build task-specific representations across the entire network. Third, it fine-tunes the policy online using off-policy updates, stabilized by a Safe Q-target mechanism that caps value estimates to prevent divergence during the offline-to-online transition. The authors evaluate this approach primarily on four simulated dexterous hand manipulation tasks (the Adroit suite) and 24 DeepMind Control Suite tasks, comparing results against established baselines across multiple random seeds.

The evaluation yields several critical findings. On the visual Adroit benchmark, the framework improves average sample efficiency by 780% over the previous state-of-the-art method. On the most difficult hand manipulation task (Relocate), it achieves a 1,220% improvement in sample efficiency—rising to 2,440% when using a wider encoder—while solving the task using only 10% of the total computation. Additionally, the architecture is roughly 50 times smaller in its visual encoder and 3 times smaller across the entire agent compared to prior competitive models. Ablations show that conservative offline reinforcement learning in the second stage significantly outperforms behavioral cloning or contrastive learning by priming both the policy and value networks for subsequent online fine-tuning.

These findings indicate that complex visual control policies can be trained with substantially lower data-collection overhead, shorter training timelines, and minimal compute expenses. By demonstrating that compact encoders initialized on standard computer vision data can outperform much larger architectures, the article establishes that structured multi-stage data integration provides a practical pathway toward affordable real-world robotic learning.

For engineering and research teams deploying visual control, the article recommends adopting multi-stage training pipelines that combine general image pretraining with conservative offline updates before online exploration. Practitioners should prioritize tuning the encoder learning rate scale and utilizing data augmentation, while maintaining stable value targets during online transitions. Future work should focus on testing this pipeline on physical robotic hardware to confirm performance outside simulated environments and investigating performance bounds when task visual styles diverge sharply from standard pretraining datasets.

MicrosoftNew York Universitydeep reinforcement learningdemonstrationsvisual representationsvisual deep reinforcement learningVRL3robotic reinforcement learning
arXiv: 2202.10324

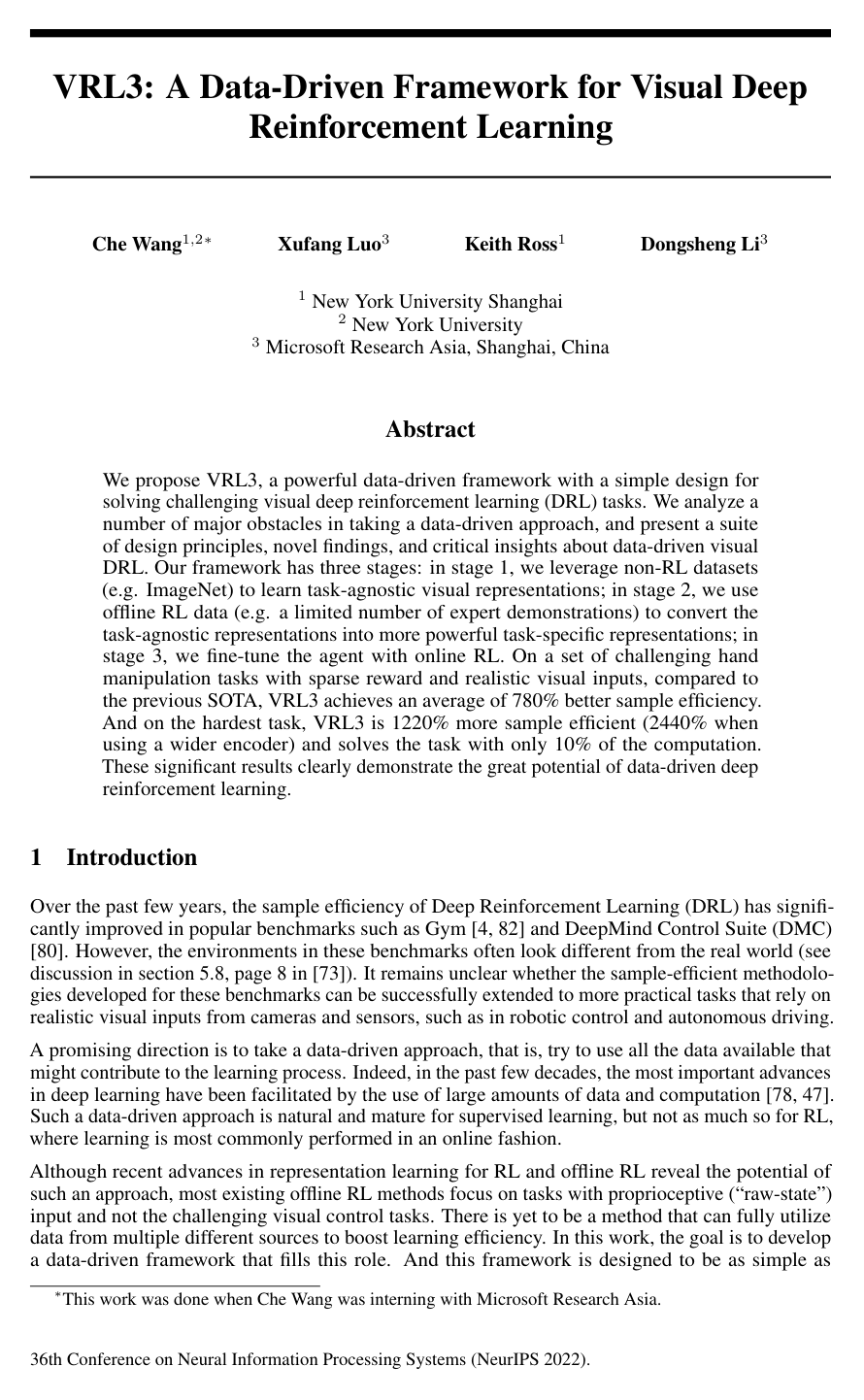

Cover for VRL3: A Data-Driven Framework for Visual Deep Reinforcement Learning

Abstract

We propose VRL3, a powerful data-driven framework with a simple design for solving challenging visual deep reinforcement learning (DRL) tasks. We analyze a number of major obstacles in taking a data-driven approach, and present a suite of design principles, novel findings, and critical insights about data-driven visual DRL. Our framework has three stages: in stage 1, we leverage non-RL datasets (e.g. ImageNet) to learn task-agnostic visual representations; in stage 2, we use offline RL data (e.g. a limited number of expert demonstrations) to convert the task-agnostic representations into more powerful task-specific representations; in stage 3, we fine-tune the agent with online RL. On a set of challenging hand manipulation tasks with sparse reward and realistic visual inputs, compared to the previous SOTA, VRL3 achieves an average of 780% better sample efficiency. And on the hardest task, VRL3 is 1220% more sample efficient (2440% when using a wider encoder) and solves the task with only 10% of the computation. These significant results clearly demonstrate the great potential of data-driven deep reinforcement learning.

Topics

deep reinforcement learningdemonstrationsvisual representationsimitation learningonline learning

Keywords

visual deep reinforcement learningVRL3robotic reinforcement learningmodel-based policy optimizationactor-critic RL agentImageNet-pretrained encoderDeepMind Control Suiteimitation learningcontrastive learningcontinuous control

Table of Contents

  • 1 Introduction
  • 2 Related Work
  • 2.1 Learning visual tasks with online RL
  • 2.2 RL with ImageNet pretraining
  • 2.3 Offline RL and data-driven RL
  • 3 VRL3: Visual DRL in 3 stages
  • 4 Results
  • 5 Challenges, Design Decisions, and Insights
  • 5.1 Stage 1: Pretraining with non-RL data
  • 5.2 Stage 2 and Stage 3
  • 5.3 Contribution of each stage
  • 5.4 Additional Studies and Analysis
  • 6 Discussion, Limitations and Future Work
  • Acknowledgments and Disclosure of Funding
  • References

Knowls

  1. Knowl 1 — Three-Stage Architecture of the VRL3 Framework

    model/method

    Visual Deep Reinforcement Learning in 3 Stages (VRL3) is a framework designed to solve complex visual continuous control tasks with sparse rewards by sequentially utilizing non-reinforcement learning (non-RL) data, offline RL data, and online RL interactions.

    The framework consists of three sequential training stages:

    1. Stage 1 (Task-Agnostic Visual Pretraining): A convolutional encoder fξf_\xi is pretrained via supervised learning on a general-domain image classification dataset (such as 1000-class ImageNet), resizing training images to 84×8484 \times 84 pixels to match the downstream reinforcement learning observation resolution.
    2. Stage 2 (Offline RL Task-Specific Adaptation): The actor-critic agent is initialized with the pretrained encoder fξf_\xi, two critic Q-networks Qθ1,Qθ2Q_{\theta_1}, Q_{\theta_2}, target critics Qθˉ1,Qθˉ2Q_{\bar{\theta}_1}, Q_{\bar{\theta}_2}, and a policy network πϕ\pi_\phi. Offline task data (e.g., expert demonstration trajectories) is loaded into a replay buffer D\mathcal{D}. The agent optimizes the actor, critic, and fine-tunes the encoder using an off-policy actor-critic objective augmented with a conservative Q-learning penalty and a Safe Q target technique.
    3. Stage 3 (Online Off-Policy Fine-Tuning): The replay buffer D\mathcal{D} retaining the offline transitions is augmented with newly collected online rollouts. The agent fine-tunes all network parameters online using standard off-policy RL updates with image augmentation and Safe Q target regulation, omitting the conservative Q penalty.

    For an observation comprising visual frames xx and optional proprioceptive sensor vectors zz, the visual input is augmented with random shift augmentations aug(x)\mathrm{aug}(x), processed into visual features h=fξ(aug(x))h = f_\xi(\mathrm{aug}(x)), concatenated into state representation s=cat(h,z)s = \mathrm{cat}(h, z), and supplied to the policy and Q-value networks.

  2. Knowl 2 — Convolutional Channel Expansion (CCE)

    model/method

    Convolutional Channel Expansion (CCE) is an architectural adaptation method that converts a 2D convolutional encoder pretrained on single 3-channel RGB images into an encoder capable of processing mm consecutive stacked video frames or multi-camera inputs (3m3m total channels) without disrupting learned spatial representations.

    Let the first convolutional layer of the pretrained encoder possess a weight tensor W∈RCout×3×Kh×KwW \in \mathbb{R}^{C_{out} \times 3 \times K_h \times K_w}, where CoutC_{out} is the number of output channels and Kh,KwK_h, K_w are the spatial kernel dimensions. CCE replicates the weight tensor mm times along the input channel dimension and scales the resulting values by 1/m1/m:

    WCCE=1m[W  ∥  W  ∥  …  ∥  W]⏟m copies∈RCout×3m×Kh×KwW_{\mathrm{CCE}} = \frac{1}{m} \underbrace{\Big[ W \;\Vert\; W \;\Vert\; \dots \;\Vert\; W \Big]}_{m \text{ copies}} \in \mathbb{R}^{C_{out} \times 3m \times K_h \times K_w}

    where ∥\Vert denotes concatenation along the input channel axis. If the input consists of identical repeated frames, this transformation guarantees that the layer output is mathematically identical to that of the single-image pretrained layer, enabling seamless initialization for temporal observation processing with zero added computational overhead.

  3. Knowl 3 — Safe Q Target Technique for Offline-to-Online Reinforcement Learning

    model/method

    The Safe Q target technique stabilizes critic updates and prevents value overestimation caused by distribution shift during offline RL training and offline-to-online transitions.

    Given discount factor γ∈(0,1)\gamma \in (0, 1) and maximum per-step environmental reward normalized such that rmax⁡=1r_{\max} = 1, the maximum theoretical return achievable by an optimal policy is defined by the infinite geometric series sum:

    Qmax⁡=∑t=0∞γtrmax⁡=rmax⁡1−γQ_{\max} = \sum_{t=0}^\infty \gamma^t r_{\max} = \frac{r_{\max}}{1 - \gamma}

    For γ=0.99\gamma = 0.99, Qmax⁡=100Q_{\max} = 100.

    During temporal-difference updates with nn-step returns, target values are computed as:

    y=∑i=0n−1γirt+i+γnmin⁡k=1,2Qθˉk(st+n,a~t+n)y = \sum_{i=0}^{n-1} \gamma^i r_{t+i} + \gamma^n \min_{k=1, 2} Q_{\bar{\theta}_k}(s_{t+n}, \tilde{a}_{t+n})

    where a~t+n∼πϕ(st+n)\tilde{a}_{t+n} \sim \pi_\phi(s_{t+n}) and QθˉkQ_{\bar{\theta}_k} are target critic networks. Whenever a target value yy exceeds the threshold Qmax⁡+1Q_{\max} + 1, it is compressed via a soft-saturation update:

    y←Qmax⁡+(y−Qmax⁡)ηy \leftarrow Q_{\max} + (y - Q_{\max})^\eta

    where η∈[0,1]\eta \in [0, 1] is the Safe Q factor that attenuates anomalous value spikes.

  4. Knowl 4 — Optimization Objectives and Parameter Updates in Stage 2 Offline RL

    model/method

    In Stage 2 of VRL3, the agent samples mini-batches of transitions (xt,zt,at,rt:t+n−1,xt+n,zt+n)(x_t, z_t, a_t, r_{t:t+n-1}, x_{t+n}, z_{t+n}) from replay buffer D\mathcal{D}. Let st=cat(fξ(aug(xt)),zt)s_t = \mathrm{cat}(f_\xi(\mathrm{aug}(x_t)), z_t) and a~t∼πϕ(st)\tilde{a}_t \sim \pi_\phi(s_t).

    The Q-networks Qθ1,Qθ2Q_{\theta_1}, Q_{\theta_2} and encoder fξf_\xi are updated via gradient descent on the joint loss LQ(D)+LQC(D)\mathcal{L}_Q(\mathcal{D}) + \mathcal{L}_{QC}(\mathcal{D}), where the standard Q-loss for k∈{1,2}k \in \{1, 2\} is:

    LQ(D)=Eτ∼D[(Qθk(st,at)−y)2]\mathcal{L}_Q(\mathcal{D}) = \mathbb{E}_{\tau \sim \mathcal{D}}\left[ \left(Q_{\theta_k}(s_t, a_t) - y\right)^2 \right]

    and the conservative Q-loss penalty is:

    LQC(D)=Eτ∼D[log⁡∑a~texp⁡(Qθk(st,a~t))−Qθk(st,at)]\mathcal{L}_{QC}(\mathcal{D}) = \mathbb{E}_{\tau \sim \mathcal{D}}\left[ \log \sum_{\tilde{a}_t} \exp\left(Q_{\theta_k}(s_t, \tilde{a}_t)\right) - Q_{\theta_k}(s_t, a_t) \right]

    The policy network πϕ\pi_\phi is updated by gradient descent on:

    Lπ(D)=−Eτ∼D[min⁡k=1,2Qθk(st,a~t)]\mathcal{L}_\pi(\mathcal{D}) = -\mathbb{E}_{\tau \sim \mathcal{D}}\left[ \min_{k=1, 2} Q_{\theta_k}(s_t, \tilde{a}_t) \right]

    Policy gradients do not propagate into encoder fξf_\xi. The encoder learning rate is scaled by βenc∈(0,1]\beta_{\mathrm{enc}} \in (0, 1] relative to the base actor-critic learning rate α\alpha:

    αenc=βencα\alpha_{\mathrm{enc}} = \beta_{\mathrm{enc}} \alpha

    Target networks QθˉkQ_{\bar{\theta}_k} are updated via Polyak averaging with parameter τ\tau.

  5. Knowl 5 — Reduced Learning Rate for Visual Encoder Fine-Tuning in Reinforcement Learning

    model/method

    When transferring a visual encoder pretrained on non-RL datasets (e.g., ImageNet) to reinforcement learning tasks, noisy policy and value gradients can destroy visual representations in early training stages.

    VRL3 decouples the optimization speed by setting the encoder learning rate αenc\alpha_{\mathrm{enc}} to a fraction of the learning rate α\alpha used for policy and Q-value MLPs:

    αenc=βencα\alpha_{\mathrm{enc}} = \beta_{\mathrm{enc}} \alpha

    where βenc∈[0.001,0.1]\beta_{\mathrm{enc}} \in [0.001, 0.1]. Setting βenc=0\beta_{\mathrm{enc}} = 0 (completely freezing the encoder) retains useful visual features despite domain gaps but limits performance. Setting βenc=1.0\beta_{\mathrm{enc}} = 1.0 (equal learning rate) leads to catastrophic forgetting of visual features due to gradient instability. An intermediate scale (e.g., βenc≈0.01\beta_{\mathrm{enc}} \approx 0.01) protects pretrained spatial representations while allowing domain adaptation.

  6. Knowl 6 — Empirical Performance on the Visual Adroit Dexterous Manipulation Benchmark

    empirical result

    VRL3 was evaluated across four sparse-reward visual dexterous manipulation tasks in the Adroit suite (Door, Hammer, Pen, Relocate) initialized with 25 human expert demonstration trajectories per task.

    Key empirical findings include:

    • Sample Efficiency: Across all 4 Adroit tasks, VRL3 achieves an average of 780% higher sample efficiency compared to the prior state-of-the-art on visual Adroit, RRL (ResNet as Representation for Reinforcement Learning).
    • Relocate Task Performance: On Relocate (the most challenging task requiring grasping and placing a ball to a target position), VRL3 requires 1220% less online environment data than RRL to reach a 90% success rate, which increases to 2440% higher sample efficiency when utilizing a wider convolutional encoder.
    • Computational and Parameter Efficiency: VRL3 utilizes a lightweight 5-layer convolutional encoder that has 50 times fewer parameters than the ResNet-34 backbone used in RRL and achieves a 3-fold parameter reduction across the full agent. Furthermore, VRL3 solves Relocate with 10% of the total computation required by RRL.
    • Baseline Comparisons: Standard online RL without offline data (DrQv2) and demonstration-buffered variants without Stage 2 offline updates (DrQv2fD) fail completely on the Relocate task.

  7. Knowl 7 — Suboptimality of Behavioral Cloning and Contrastive Representation Learning in Offline Pre-training

    empirical result

    Ablation experiments comparing Stage 2 offline training strategies demonstrate that conservative RL updates outperform Behavioral Cloning (BC) and contrastive unsupervised representation learning (FERM) when leveraging limited expert demonstrations for visual RL:

    1. Behavioral Cloning Failure: Replacing conservative RL in Stage 2 with BC on expert demonstrations yields performance equivalent to completely omitting Stage 2. BC optimizes only policy parameters πϕ\pi_\phi without training critic networks QθQ_\theta, resulting in an actor-critic distribution mismatch that destabilizes early Stage 3 online training.
    2. Contrastive Learning Limitations: Utilizing contrastive representation learning in Stage 2 (as in FERM) updates only visual representations fξf_\xi and leaves the actor and critic uninitialized. In complex sparse-reward environments (Adroit), contrastive pretraining fails to solve the exploration bottleneck and performs substantially worse than conservative RL pre-training.
    3. Joint Agent Training: Training the encoder, critic networks, and actor simultaneously via conservative RL in Stage 2 provides both task-specific representations and calibrated value/policy initializations for Stage 3.

  8. Knowl 8 — Ablation Analysis of VRL3 Training Stages and Encoder Learning

    empirical result

    Empirical ablations isolating individual training stages and encoder update schedules on the Adroit manipulation suite reveal the following behaviors:

    • Stage Inclusion Ablations: Complete execution (S123S123) outperforms removing Stage 1 pretraining (S23S23). Removing Stage 2 offline RL training (S13S13) causes severe performance degradation, confirming that offline demonstration exploitation cannot be compensated for by online RL (S3S3) alone in sparse-reward visual domains.
    • Encoder Update Ablations: Restricting encoder updates exclusively to Stage 3 while freezing it in Stage 2 (S3S3-encoder) achieves substantially higher performance than freezing it across all RL stages (S1S1-encoder or S2S2-encoder), demonstrating that task-specific visual fine-tuning via RL gradients is critical for optimal performance.
    • Non-RL vs. RL Data Regimes: When downstream RL transition data is scarce, Stage 1 ImageNet pretraining provides a superior visual representation despite the large cross-domain gap (S1>S2S1 > S2 encoder performance). When downstream online RL data is abundant, task-specific RL representations outperform frozen out-of-domain representations (S3>S1S3 > S1).

  9. Knowl 9 — Hyperparameter Robustness and Sensitivity Landscape of VRL3

    empirical result

    An evaluation of 16 hyperparameters and architectural components across the four Adroit tasks identified 9 parameters critical to performance, categorized into robust and sensitive groups:

    • Critical and Robust Components (6 parameters):
      1. Stage 1 Pretraining: Essential for difficult manipulation tasks (Pen, Hammer, Relocate); negligible impact on the simple Door task.
      2. Data Augmentation: Random shift augmentation during Stages 2 and 3 is universally critical across all tasks.
      3. Safe Q Target Application: Prevents value blowup without requiring task-specific threshold tuning.
      4. Stage 2 Offline Update Steps: Even small budgets of offline updates (e.g., 5,000–30,000 updates) provide the majority of performance gains.
      5. Batch Size
      6. Target Network Polyak Factor (τ\tau)
    • Critical and Sensitive Hyperparameters (3 parameters):
      1. Encoder Learning Rate Scale (βenc\beta_{\mathrm{enc}}): The only sensitive hyperparameter unique to VRL3, requiring tuning between 0.0010.001 and 0.10.1.
      2. Base Learning Rate (α\alpha): Inherited from the backbone RL optimizer.
      3. Exploration Action Noise Standard Deviation: Inherited from the backbone RL optimizer.

  10. Knowl 10 — Limitations of the VRL3 Framework

    limitation

    The VRL3 framework has several documented limitations:

    1. Evaluation Restricted to Simulation: Experimental validation is conducted entirely within simulated environments (Adroit dexterous hand suite and DeepMind Control Suite). Real-world deployment on physical robotic platforms with physical sensors, latencies, and real camera feeds remains unverified.
    2. Sensitivity to Extreme Domain Gaps: The efficacy of Stage 1 ImageNet pretraining when task visuals drastically diverge from natural image statistics (e.g., extreme non-photorealistic or non-natural sensor modalities) has not been established.
    3. Model-Free Scope: The framework is restricted to model-free off-policy reinforcement learning and does not integrate model-based dynamics pretraining or world-model trajectory rollouts.

Coverage note — No substantial contributed material was omitted. DeepMind Control Suite (DMC) benchmark details from Section 4 are covered comparatively, and all core algorithms, ablations, formulas, and empirical findings are fully captured.
