Graphix-T5: Mixing Pre-trained Transformers with Graph-Aware Layers for Text-to-SQL Parsing

Jinyang LiBinyuan HuiReynold ChengBowen QinChenhao MaNan HuoFei HuangWenyu DuLuo SiYongbin Li

article2023AAAI161 citations

Proposes Graphix-T5, a text-to-SQL architecture that integrates relational graph neural network layers directly into pre-trained T5 encoder blocks to improve multi-hop reasoning over database schemas, achieving state-of-the-art cross-domain parsing accuracy while outperforming much larger standard models.

Listen

Non-technical users face significant barriers when querying relational databases because formulating Structured Query Language (SQL) statements requires specialized expertise. While automated text-to-SQL systems aim to translate plain language questions into executable database queries, existing models struggle to generalize across unfamiliar database domains. State-of-the-art language models, such as the text-to-text transformer model known as T5, excel at understanding natural language but often fail to capture the complex, multi-hop relational structures inherent in database schemas.

The article introduces and evaluates Graphix-T5, a novel architecture designed to augment standard pre-trained language models with graph-aware structural reasoning capabilities. The primary objective is to demonstrate that integrating structural graph mechanisms directly into the language model improves the accuracy and robustness of cross-domain database querying without losing the foundational strengths of pre-trained language understanding.

To achieve this, the authors designed specialized Graphix layers that combine standard transformer self-attention with relational graph neural network blocks. These layers explicitly map relationships among question tokens, tables, and columns, while employing an efficient "bridge node" strategy to connect questions and schemas without overwhelming the network with excessive noisy links. Crucially, the authors stacked these layers into the model encoder to maintain deep, layer-by-layer interactions between semantics and structure, rather than inserting an isolated graph module that disrupts model information flow. The approach was evaluated on four benchmark datasets (Spider, SYN, DK, and Realistic) across varying query difficulties and compositional splits using exact match and execution accuracy metrics.

The experimental findings show substantial performance improvements across all tested benchmarks. Most notably, the mid-sized Graphix-T5-large model achieved a 5.7 percentage point gain in exact match accuracy (reaching 72.7%) and a 6.6 percentage point gain in execution accuracy (reaching 75.9%) over the standard T5-large baseline on the Spider benchmark. This enhanced mid-sized model even surpassed the much larger baseline model (T5-3B) by 1.2% in exact match accuracy. When combined with constrained decoding techniques, Graphix-T5-3B established a new state-of-the-art result of 81.0% execution accuracy. The model demonstrated especially large gains on complex, multi-hop reasoning tasks, synonym variations, and queries missing explicit schema mentions, while ablation experiments confirmed that placing graph layers strictly in the encoder avoids the catastrophic forgetting observed in alternate architectures.

These findings indicate that structural inductive bias is critical for deploying reliable natural language interfaces over enterprise databases. By enabling smaller models to outperform significantly larger language models, this architectural approach can reduce computational and operational costs while delivering higher accuracy on complex queries. Furthermore, the robust performance under realistic and synonym-perturbed settings reduces the risk of systems generating syntactically valid but structurally incorrect queries that return flawed business data.

Organizations developing database query interfaces should consider integrating graph-aware structural layers into encoder architectures rather than relying purely on sequence-to-sequence scaling or disjoint graph modules. Where applicable, pairing this model with constrained decoding mechanisms yields the highest execution reliability. Further research is recommended to explore structural grounding across broader low-resource database settings and multi-turn conversational querying.

The conclusions are supported by thorough evaluations on standard industry benchmarks and isolated ablation studies. However, confidence should be tempered by the fact that evaluation was conducted primarily on curated academic benchmarks and single-turn query settings, meaning additional piloting in unstructured production environments and highly customized enterprise databases is advisable before widespread operational deployment.

Alibaba Group Guangdong–Hong Kong-Macau Joint Laboratory Shenzhen Institute of Advanced Technology, Chinese Academy of Sciences The Chinese University of Hong Kong University of Hong Kong encoder-decoder parsing algorithm sql Graphix-T5 text-to-SQL parsing graph-aware layers

arXiv: 2301.07507

Paper: Spider: A Large-Scale Human-Labeled Dataset for Complex and Cross-Domain Semantic Parsing and Text-to-SQL Task, Tao Yu et al. (2018). It introduces Spider, the primary cross-domain text-to-SQL benchmark used directly to evaluate Graphix-T5's multi-hop relational parsing capabilities.
Paper: Modeling Relational Data with Graph Convolutional Networks, Michael Schlichtkrull et al. (2018). It develops Relational Graph Convolutional Networks (R-GCNs), providing the foundational relational graph neural network formulation integrated into Graphix layers.
Paper: Heterogeneous Graph Transformer, Ziniu Hu et al. (2020). It introduces the Heterogeneous Graph Transformer architecture for modeling multi-typed relational entities, motivating the design of graph-aware transformer layers across question tokens and schema elements.
Paper: TIARA: Multi-grained Retrieval for Robust Question Answering over Large Knowledge Base, Yiheng Shu et al. (2022). It establishes techniques for combining sequence-to-sequence language models with constrained decoding to ensure syntactically valid relational query generation.
Paper: Do Transformers Really Perform Bad for Graph Representation?, Chengxuan Ying et al. (2021). It demonstrates how to inject structural graph biases directly into standard Transformer attention mechanisms, informing Graphix-T5's layer-by-layer architectural integration.
Paper: Relational inductive biases, deep learning, and graph networks, Peter W. Battaglia et al. (2018). It establishes the theoretical principles of relational inductive biases and graph networks necessary to understand why integrating structural reasoning improves combinatorial generalization in deep neural models.
Paper: Seq2SQL: Generating Structured Queries from Natural Language using Reinforcement Learning, Victor Zhong et al. (2017). It defines the foundational sequence-to-sequence framework for translating natural language questions into structured SQL queries over relational database schemas.

Paper: DIN-SQL: Decomposed In-Context Learning of Text-to-SQL with Self-Correction, Mohammadreza Pourreza et al. (2023). It extends the cross-domain text-to-SQL paradigm to large language models through decomposed in-context prompting and schema linking on benchmarks like Spider.
Paper: StructGPT: A General Framework for Large Language Model to Reason over Structured Data, Jinhao Jiang et al. (2023). It generalizes structured reasoning across databases and knowledge graphs by employing iterative reading-then-reasoning interfaces with large language models.
Paper: MultiTabQA: Generating Tabular Answers for Multi-Table Question Answering, Vaishali Pal et al. (2023). It expands multi-table structured question answering from generating SQL syntax to synthesizing tabular outputs directly via end-to-end transformers.
Paper: Rethinking Tabular Data Understanding with Large Language Models, Tianyang Liu et al. (2024). It investigates the robustness and limitations of large language models when reasoning over complex, perturbed tabular data structures.
Paper: TableBench: A Comprehensive and Complex Benchmark for Table Question Answering, Xianjie Wu et al. (2025). It introduces a broader evaluation benchmark to test advanced multi-step numerical and analytical reasoning capabilities over tabular schemas in modern language models.

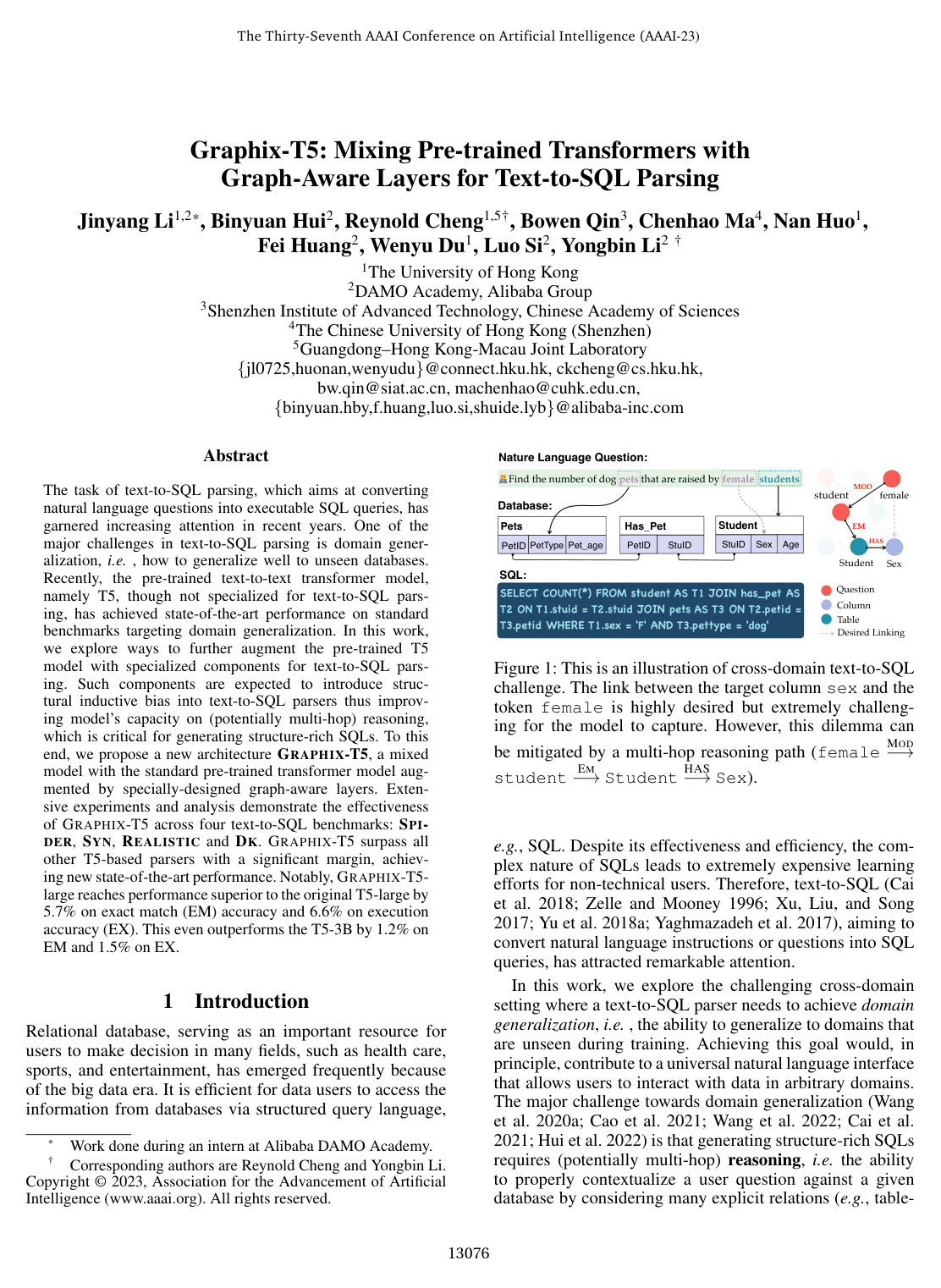

Cover for Graphix-T5: Mixing Pre-trained Transformers with Graph-Aware Layers for Text-to-SQL Parsing

Abstract

The task of text-to-SQL parsing, which aims at converting natural language questions into executable SQL queries, has garnered increasing attention in recent years. One of the major challenges in text-to-SQL parsing is domain generalization, i.e., how to generalize well to unseen databases. Recently, the pre-trained text-to-text transformer model, namely T5, though not specialized for text-to-SQL parsing, has achieved state-of-the-art performance on standard benchmarks targeting domain generalization. In this work, we explore ways to further augment the pre-trained T5 model with specialized components for text-to-SQL parsing. Such components are expected to introduce structural inductive bias into text-to-SQL parsers thus improving model's capacity on (potentially multi-hop) reasoning, which is critical for generating structure-rich SQLs. To this end, we propose a new architecture GRAPHIX-T5, a mixed model with the standard pre-trained transformer model augmented by specially-designed graph-aware layers. Extensive experiments and analysis demonstrate the effectiveness of GRAPHIX-T5 across four text-to-SQL benchmarks: SPIDER, SYN, REALISTIC and DK. GRAPHIX-T5 surpass all other T5-based parsers with a significant margin, achieving new state-of-the-art performance. Notably, GRAPHIX-T5-large reaches performance superior to the original T5-large by 5.7% on exact match (EM) accuracy and 6.6% on execution accuracy (EX). This even outperforms the T5-3B by 1.2% on EM and 1.5% on EX.

Topics

encoder-decoder parsing algorithm sql

Keywords

Graphix-T5 text-to-SQL parsing graph-aware layers relational graph attention semantic parsing pre-trained transformers T5 encoder multi-hop reasoning compositional generalization

1 Introduction
2 Task Formulation and Notations
2.1 Task Definition
2.2 Vanilla T5 Architecture
Model Inputs
Encoder-Decoder Training Mechanism
3 Proposed Approach: Graphix-T5
3.1 Model Inputs
Contextual Encoding
Graph Construction
No-Match Mode vs. Bridge Mode
3.2 Graphix-Layer
3.3 Graphix-T5
3.4 Training
4 Experiment
4.1 Set up
4.2 Overall Performance
4.3 Ablation Study
4.4 Case Study
5 Related Works
6 Conclusion
References
A Fine-grained Syntax Relations
B Leadboard Result

Knowls

Knowl 1 — GRAPHIX-T5 Architecture for Cross-Domain Text-to-SQL Parsing
model/method
GRAPHIX-T5 is an encoder-decoder architecture for cross-domain text-to-SQL semantic parsing that integrates relational graph neural networks directly into each layer of a pre-trained sequence-to-sequence Transformer (specifically T5).

In standard text-to-SQL parsing with T5, natural language questions and relational database schemas are linearized into a single token sequence $x$ , and the model is trained to output SQL tokens $y$ . GRAPHIX-T5 replaces the standard T5 encoder layers with a stack of GRAPHIX layers while preserving the pre-trained autoregressive T5 decoder. Each GRAPHIX layer contains two parallel processing components:
1. A contextual semantic Transformer block initialized with the corresponding layer weights $\Theta$ of the pre-trained T5 encoder.
2. A Relational Graph Attention Network (RGAT) block parameterized by $\Psi$ (initialized randomly) operating over a question-schema heterogeneous graph $G = \langle V, R \rangle$ .
The final representation of each layer is formed by fusing the contextualized semantic representation with the structural node representations. The encoder output connects to the pre-trained T5 decoder parameterized by $\Upsilon$ . The model is trained by maximizing the conditional log-likelihood:

$\max_{\Theta, \Upsilon, \Psi} \sum_{i=1}^{|y|} \log p_{\Theta, \Upsilon, \Psi}(y_i \mid y_{1:i-1}, x, G)$

GRAPHIX layers are restricted to the encoder; adding relational graph layers to the autoregressive decoder disrupts causal masking because global graph linking provides representations of future tokens.
Knowl 2 — Mathematical Formulation of the GRAPHIX Layer
equation
Let $H^{(l)}_S = \{h^{(l)}_1, \dots, h^{(l)}_N\}$ denote the input hidden representations to the $l$ -th GRAPHIX layer for a sequence of length $N$ . The semantic block applies Multi-Head Attention (MHA) and a Feed-Forward Network (FFN) initialized from T5:

$\hat{H}^{(l)}_S = \text{MHA}(H^{(l)}_S) = \text{Concat}(\text{head}_1, \dots, \text{head}_h) W^O$

$\text{head}_i = \text{softmax}\left(\frac{Q W_i^Q (K W_i^K)^\top}{\sqrt{d_k}}\right) V W_i^V$

$\tilde{H}^{(l)}_S = \text{LayerNorm}\left(\hat{H}^{(l)}_S + \text{FFN}(\hat{H}^{(l)}_S)\right)$

where $W_i^Q, W_i^K \in \mathbb{R}^{d_m \times d_k}$ , $W_i^V \in \mathbb{R}^{d_m \times d_v}$ , $W^O \in \mathbb{R}^{d_m h \times d_m}$ , and $d_k = d_v = d_m / h$ .

In parallel, the structural representation is computed via Relational Graph Attention Network (RGAT) over the input node embeddings $e^{\text{init}}_i$ (initialized from the layer's semantic representations) and neighbor set $\mathcal{N}_{e_i}$ :

$\vec{\alpha}_{ij} = \frac{e^{\text{init}}_i \tilde{W}^Q (e^{\text{init}}_j \tilde{W}^K + \phi(r_{ij}))^\top}{\sqrt{d_z}}$

$\alpha_{ij} = \text{softmax}_j(\vec{\alpha}_{ij}) = \frac{\exp(\vec{\alpha}_{ij})}{\sum_{k \in \mathcal{N}_{e_i}} \exp(\vec{\alpha}_{ik})}$

$\hat{e}^{\text{init}}_i = \sum_{j \in \mathcal{N}_{e_i}} \alpha_{ij} (e^{\text{init}}_j \tilde{W}^V + \phi(r_{ij}))$

$\hat{e}^{(l)}_i = \text{LayerNorm}(e^{\text{init}}_i + \hat{e}^{\text{init}}_i \tilde{W}^O)$

$\tilde{e}^{(l)}_i = \text{LayerNorm}(\hat{e}^{(l)}_i + \text{FFN}(\hat{e}^{(l)}_i))$

where $\tilde{W}^Q, \tilde{W}^K, \tilde{W}^V, \tilde{W}^O \in \mathbb{R}^{d \times d}$ , $\phi(r_{ij})$ is a learned $d$ -dimensional embedding for relation $r_{ij}$ , and $d_z$ is the scaling dimension. The structural output is collected as $\tilde{E}^{(l)}_G = \{\tilde{e}^{(l)}_1, \dots, \tilde{e}^{(l)}_N\}$ .

The combined representation output by the $l$ -th GRAPHIX layer is defined as the element-wise sum:

$\tilde{H}^{(l)}_M = \tilde{H}^{(l)}_S + \tilde{E}^{(l)}_G$
Knowl 3 — Heterogeneous Graph Construction and Bridge Node Mechanism
model/method
Given a natural language question $Q = \{q_1, \dots, q_{|Q|}\}$ and database schema $D = \langle C, T \rangle$ with columns $C$ and tables $T$ , the unified input sequence is formatted as:

$x = [q_1, \dots, q_{|Q|} \mid D_{name} \mid t_1 : c^{t_1}_1, \dots, c^{t_1}_{|C|} \mid \dots \mid t_{|T|} : c^{t_{|T|}}_1, \dots, c^{t_{|T|}}_{|C|} \mid *]$

where $*$ is a special column token and $D_{name}$ is the database name.

A heterogeneous graph $G = \langle V, R \rangle$ is built over the node set $V = Q \cup C \cup T$ using three relation families:
1. Schema relations: FOREIGN-KEY, PRIMARY-KEY, and SAME-TABLE capturing explicit database constraints.
2. Schema linking relations: EXACT-MATCH, PARTIAL-MATCH, VALUE-MATCH, and BRIDGE.
3. Question relations: MODIFIER and ARGUMENT capturing dependency relationships between question tokens.
To handle question tokens and schema items that are semantically related but lack lexical matching, previous methods instantiate dense dummy NO-MATCH edges between all unmatched pairs, resulting in $A \times B$ edges for $A$ question tokens and $B$ schema items and causing over-smoothing. The Bridge Node mechanism connects the unlinked question tokens and schema nodes through the special token node $*$ as an intermediate hub. This reduces the number of required edges from $A \times B$ to $A + B$ , enabling multi-hop structural grounding while avoiding noisy neighborhood over-smoothing.

Knowl 4 — Cross-Domain Text-to-SQL Parsing Performance on SPIDER

data/table

The table below reports Exact Match (EM) and Execution Accuracy (EX) percentages on the official SPIDER development set across baseline text-to-SQL models, vanilla T5 models, and GRAPHIX-T5 variants. Models marked with $\heartsuit$ do not predict values, and models marked with $\clubsuit$ use the PICARD constrained decoding procedure.

Model	EM (%)	EX (%)
RAT-SQL + BERT $\heartsuit$	69.7	-
RAT-SQL + Grappa $\heartsuit$	73.9	-
GAZP + BERT	59.1	59.2
BRIDGE v2 + BERT	70.0	68.3
NatSQL + GAP	73.7	75.0
SMBOP + GRAPPA	74.7	75.0
LGESQL + ELECTRA $\heartsuit$	75.1	-
S $^2$ SQL + ELECTRA $\heartsuit$	76.4	-
T5-large	67.0	69.3
GRAPHIX-T5-large	72.7	75.9
T5-large + PICARD $\clubsuit$	69.1	72.9
GRAPHIX-T5-large + PICARD $\clubsuit$	76.6	80.5
T5-3B	71.5	74.4
GRAPHIX-T5-3B	75.6	78.2
T5-3B + PICARD $\clubsuit$	75.5	79.3
GRAPHIX-T5-3B + PICARD $\clubsuit$	77.1	81.0

GRAPHIX-T5-large achieves +5.7% EM and +6.6% EX over vanilla T5-large. When combined with PICARD constrained decoding, GRAPHIX-T5-large reaches 76.6% EM and 80.5% EX, outperforming the larger vanilla T5-3B + PICARD (75.5% EM / 79.3% EX). GRAPHIX-T5-3B + PICARD achieves 77.1% EM and 81.0% EX.

Knowl 5 — Robustness and Zero-Shot Evaluation on SYN, DK, and REALISTIC Benchmarks

data/table

The table below presents Exact Match (EM) accuracy percentages under zero-shot evaluation on three challenging robustness benchmarks: SPIDER-SYN (synonym substitutions in questions/schemas), SPIDER-DK (requiring domain knowledge reasoning), and REALISTIC (removal/alteration of explicit schema mentions).

Model	SYN (%)	DK (%)	REALISTIC (%)
GNN	23.6	26.0	-
IRNet	28.4	33.1	-
RAT-SQL	33.6	35.8	-
RAT-SQL + BERT	48.2	40.9	58.1
RAT-SQL + Grappa	49.1	38.5	59.3
LGESQL + ELECTRA	64.6	48.4	69.2
T5-large	53.6	40.0	58.5
GRAPHIX-T5-large	61.1	48.6	67.3
T5-3B	58.0	46.9	62.0
GRAPHIX-T5-3B	66.9	51.2	72.4

GRAPHIX-T5-large improves upon vanilla T5-large by +7.5% on SYN, +8.6% on DK, and +8.8% on REALISTIC. GRAPHIX-T5-3B improves upon vanilla T5-3B by +8.9% on SYN, +4.3% on DK, and +10.4% on REALISTIC, establishing superior generalization when lexical surface cues are perturbed or absent.

Knowl 6 — Compositional Generalization on SPIDER-SSP Benchmark

data/table

The table below shows Exact Match (EM) accuracy percentages on the SPIDER-SSP compositional generalization benchmark across three structural splits: Template (split by distinct query templates), Length (split by query length), and TMCD (Target Maximum Compound Divergence).

While natural language grammar-augmented models like NQG-T5-3B fail to outperform vanilla T5-3B, GRAPHIX-T5-3B achieves absolute improvements of +5.4% on Template, +3.9% on Length, and +4.3% on TMCD over vanilla T5-3B, confirming that injecting structural relational inductive bias aids compositional SQL generalization.

Knowl 7 — Architectural Ablation Studies on Graph Placement and Linking Strategy

data/table

Ablation experiments evaluated on the SPIDER development set using the T5-large base illustrate the impact of graph module placement and schema-linking designs:

Configuration	EM (%)	EX (%)
(a) RAT-SQL + BERT	69.7	-
(b) Vanilla T5-large	67.0	69.3
(c) GNN-T5-large (Encoder $\rightarrow$ GNN $\rightarrow$ Decoder)	51.6	54.5
(d) GRAPHIX-T5-large (BRIDGE Mode)	72.7	75.9
w/ NO-MATCH Mode	71.1	74.2
w/ DOUBLE-GRAPH (Encoder + Decoder GNN)	72.0	74.7

Key architectural conclusions include:

Catastrophic forgetting in severed pipelines: Placing an isolated GNN between the T5 encoder and T5 decoder (GNN-T5) drops performance by ~20% compared to GRAPHIX-T5 (51.6% vs 72.7% EM) and maintains 0% accuracy over the initial thousands of training steps due to severed contextual information flow.
Decoder GNN degradation: Adding GRAPHIX layers to both encoder and decoder (DOUBLE-GRAPH) decreases EM accuracy by 0.7% (72.0% vs 72.7%) because global graph attention leaks future token context into the autoregressive decoder.
Linking efficiency: Using the BRIDGE token $*$ outperforms the quadratic NO-MATCH linking strategy by 1.6% EM (72.7% vs 71.1%) by avoiding over-smoothing from noisy dense edges.

Knowl 8 — SQL Generation Performance by Query Difficulty

data/table

The table below breaks down Exact Match (EM) accuracy percentages across query difficulty levels (Easy, Medium, Hard, Extra-hard, and All) on the SPIDER, SYN, and REALISTIC datasets for T5 and GRAPHIX-T5 models.

Model	SPIDER					SYN					REALISTIC
	Easy	Med	Hard	Extra	All	Easy	Med	Hard	Extra	All	Easy	Med	Hard	Extra	All
T5-large	85.5	70.9	55.2	41.6	67.0	69.0	56.8	46.3	30.2	53.6	79.8	68.0	44.4	28.9	58.5
GRAPHIX-T5-large	89.9	78.7	59.8	44.0	72.6	75.8	67.5	50.6	33.1	61.1	88.1	77.3	50.5	40.2	67.3
T5-3B	89.5	78.3	58.6	40.4	71.6	74.2	64.5	48.0	27.8	58.0	85.3	73.4	46.5	27.8	62.0
GRAPHIX-T5-3B	91.9	81.6	61.5	50.0	75.6	80.6	73.1	52.9	44.6	66.9	93.6	85.7	52.5	41.2	72.4

The performance gains of GRAPHIX-T5 over vanilla T5 are particularly pronounced on Hard and Extra-hard query subsets (e.g., on SPIDER Extra-hard, GRAPHIX-T5-3B achieves 50.0% vs 40.4% for T5-3B, a +9.6% absolute gain; on REALISTIC Extra-hard, 41.2% vs 27.8%, a +13.4% gain), illustrating that multi-hop structural reasoning is most critical for complex queries.

Coverage note — Qualitative case study examples illustrating specific SQL predictions from Figure 5 were omitted as their conceptual points (multi-hop path grounding and prevention of hallucinated column names) are fully captured in the methodology and quantitative knowls.
