Toward Multimodal Image-to-Image Translation

Jun-Yan ZhuRichard ZhangDeepak PathakTrevor DarrellAlexei A. EfrosOliver WangEli Shechtman

article2017NeurIPS1,472 citations

Proposes a conditional generative framework that enforces bijective consistency between latent codes and generated images, effectively overcoming mode collapse to produce diverse, realistic outputs for ambiguous image-to-image translation tasks.

Listen

Many real-world computer vision tasks involve translating an image from one domain to another, such as converting a daytime scene to nighttime or generating a photo from an architectural sketch. These tasks are inherently ambiguous because a single input image can legitimately correspond to many different plausible outputs. Existing conditional image generation techniques tend to produce only a single deterministic result or suffer from mode collapse, where the system ignores input randomness and repeatedly generates the same few patterns. This limitation severely restricts their utility for creative and practical applications that require diverse, realistic options.

The article evaluates and demonstrates a framework, termed BicycleGAN, designed to model a full distribution of potential outputs from a single input image. The primary objective is to produce results that are simultaneously perceptually realistic, faithful to the input context, and visually diverse.

To achieve this, the article establishes a two-way, invertible mapping between the generated output images and a low-dimensional latent code. The framework was evaluated across multiple benchmark translation tasks, including edge drawings to photos, semantic labels to building facades, and aerial maps to satellite imagery. Performance was assessed through systematic testing, using human perceptual evaluations to measure photorealism and a standard deep feature distance metric to quantify output diversity across thousands of generated image pairs.

The findings show that combining latent-to-image and image-to-latent cycle constraints significantly outperforms existing approaches. In human perceptual testing on map-to-satellite translation, the BicycleGAN model achieved a 34.33% fooling rate, notably higher than baseline methods such as pix2pix with noise (27.93%) and standard conditional autoencoders (13.64%). Concurrently, the model maintained high diversity without suffering from the mode collapse seen in alternative approaches, where roughly 15% of outputs collapsed to identical results. Comparative architecture tests also confirmed that residual network encoders provide superior image reconstruction performance across tasks.

These results demonstrate that enforcing bidirectional consistency allows generative models to navigate ambiguous image tasks reliably without sacrificing visual fidelity. For organizations deploying generative image systems, this approach reduces the risk of repetitive, unrepresentative outputs and improves automated synthesis quality across commercial design and simulation pipelines.

Practitioners implementing these models should adopt residual network encoders and tune the dimensionality of the latent code based on the ambiguity of the specific dataset. The primary limitation of the study is that the latent variables do not yet map to explicitly controlled, human-interpretable attributes. Future initiatives should focus on structuring the latent space to allow users to directly manipulate specific visual parameters, such as lighting, season, or texture.

Adobe University of California Berkeley gan latent factor latent variable multimodal image-to-image translation BicycleGAN conditional GANs

arXiv: 1711.11586 junyanz/BicycleGAN

Paper: Image-to-Image Translation with Conditional Adversarial Networks, Phillip Isola et al. (2017). This foundational pix2pix paper establishes the paired conditional GAN framework for image-to-image translation that BicycleGAN directly builds upon to address mode collapse and multimodal distribution modeling.
Paper: Learning Structured Output Representation using Deep Conditional Generative Models, Kihyuk Sohn et al. (2015). This work introduces conditional variational autoencoders (CVAEs) for structured one-to-many prediction, providing the core latent variable modeling strategy combined with GAN objectives in multimodal translation.
Paper: Adversarial Feature Learning, Jeff Donahue et al. (2016). This paper presents Bidirectional GANs (BiGAN) for jointly learning generative mapping and latent-space encoding, inspiring the bijective consistency and encoder-generator coupling mechanisms used in the source.
Paper: Autoencoding beyond pixels using a learned similarity metric, Anders Boesen Lindbo Larsen et al. (2015). This work establishes the hybrid VAE-GAN framework that combines variational latent representations with adversarial training losses to generate sharp, realistic outputs.
Paper: Tutorial on Variational Autoencoders, Carl Doersch (2016). This tutorial details the variational inference formulations, reparameterization mechanics, and conditional VAE architectures foundational to understanding latent-space sampling in image synthesis.
Paper: Generative Adversarial Networks, Ian J. Goodfellow et al. (2014). This foundational text introduces generative adversarial networks and the minimax optimization principles underlying conditional translation and discriminator objectives.

Paper: Multimodal Unsupervised Image-to-Image Translation, Xun Huang et al. (2018). This paper extends multimodal image-to-image translation principles to the unsupervised setting by disentangling shared content representations from domain-specific style latent codes.
Paper: StarGAN v2: Diverse Image Synthesis for Multiple Domains, Yunjey Choi et al. (2019). StarGAN v2 generalizes diverse and multimodal image translation across multiple distinct visual domains using a unified generator and domain-specific style codes.
Paper: High-Resolution Image Synthesis and Semantic Manipulation with Conditional GANs, Ting-Chun Wang et al. (2018). Pix2pixHD scales conditional image-to-image translation to high-resolution synthesis while incorporating instance-level latent features for diverse, interactive manipulation.
Paper: Contrastive Learning for Unpaired Image-to-Image Translation, Taesung Park et al. (2020). This work leverages contrastive patch learning to perform unpaired image translation without bidirectional cycle-consistency constraints, advancing one-sided conditional generative modeling.
Paper: Palette: Image-to-Image Diffusion Models, Chitwan Saharia et al. (2021). Palette demonstrates how conditional diffusion models can replace GAN frameworks to accomplish diverse, multimodal image-to-image translation tasks without adversarial training instability.

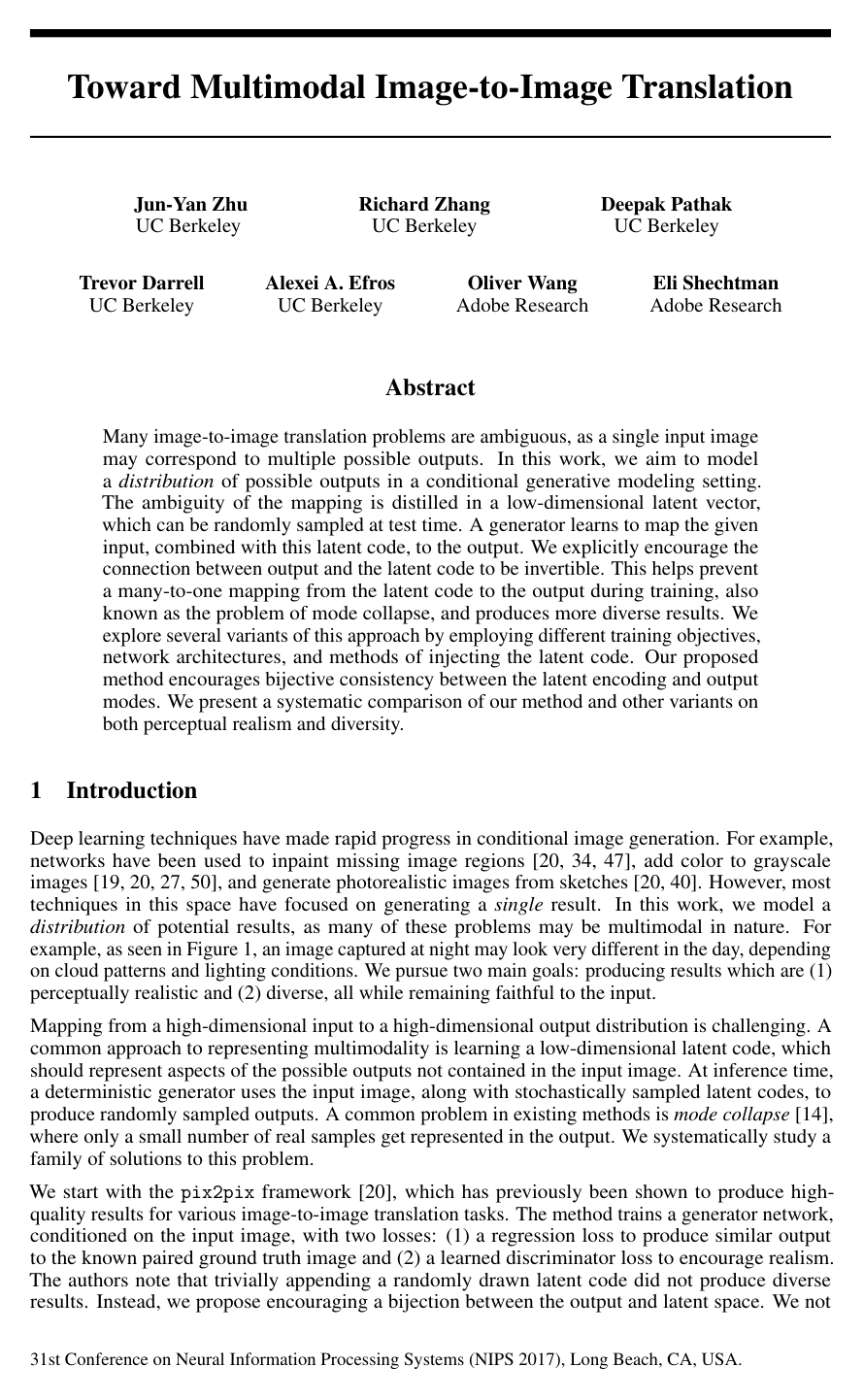

Cover for Toward Multimodal Image-to-Image Translation

Abstract

Many image-to-image translation problems are ambiguous, as a single input image may correspond to multiple possible outputs. In this work, we aim to model a \emph{distribution} of possible outputs in a conditional generative modeling setting. The ambiguity of the mapping is distilled in a low-dimensional latent vector, which can be randomly sampled at test time. A generator learns to map the given input, combined with this latent code, to the output. We explicitly encourage the connection between output and the latent code to be invertible. This helps prevent a many-to-one mapping from the latent code to the output during training, also known as the problem of mode collapse, and produces more diverse results. We explore several variants of this approach by employing different training objectives, network architectures, and methods of injecting the latent code. Our proposed method encourages bijective consistency between the latent encoding and output modes. We present a systematic comparison of our method and other variants on both perceptual realism and diversity.

Topics

gan latent factor latent variable network architecture variational autoencoders variational auto encoders

Keywords

multimodal image-to-image translation BicycleGAN conditional GANs Variational Autoencoder GAN Latent Regressor GAN deep image synthesis style transfer image colorization

1 Introduction
2 Related Work
3 Multimodal Image-to-Image Translation
3.1 Baseline: pix2pix+noise (𝐳→𝐁^\mathbf{z}\rightarrow\widehat{\mathbf{B}})
3.2 Conditional Variational Autoencoder GAN: cVAE-GAN (𝐁→𝐳→𝐁^\mathbf{B}\rightarrow\mathbf{z}\rightarrow\widehat{\mathbf{B}})
3.3 Conditional Latent Regressor GAN: cLR-GAN (𝐳→𝐁^→𝐳^\mathbf{z}\rightarrow\widehat{\mathbf{B}}\rightarrow\widehat{\mathbf{z}})
3.4 Our Hybrid Model: BicycleGAN
4 Implementation Details
5 Experiments
5.1 Qualitative Evaluation
5.2 Quantitative Evaluation
6 Conclusions
References

Knowls

Knowl 1 — BicycleGAN Framework for Multimodal Image-to-Image Translation
model/method
In conditional image-to-image translation, a single input image $A \in \mathcal{A} \subset \mathbb{R}^{H \times W \times 3}$ may correspond to multiple plausible output images $B \in \mathcal{B} \subset \mathbb{R}^{H \times W \times 3}$ , defining a multimodal distribution $p(B|A)$ . The BicycleGAN framework distills this ambiguity into a low-dimensional stochastic latent code $z \in \mathbb{R}^Z \sim \mathcal{N}(0, I)$ and learns a deterministic generator $G: (A, z) \to B$ together with an encoder $E: B \to z$ .

To prevent mode collapse (where the generator ignores the latent vector $z$ and collapses to a single deterministic output), BicycleGAN explicitly enforces bijective consistency between the latent space and the output image space by jointly optimizing two complementary cycles:
1. Image reconstruction cycle ( $B \to z \to \hat{B}$ ): An encoder maps a ground-truth image $B$ into latent distribution $Q(z|B) = E(B)$ . Latent vector $z$ sampled from this distribution is combined with input $A$ in generator $G(A, z)$ to reconstruct the target image $B$ , regularized by a Kullback-Leibler divergence loss to align $Q(z|B)$ with standard Gaussian prior $\mathcal{N}(0, I)$ .
2. Latent reconstruction cycle ( $z \to \hat{B} \to \hat{z}$ ): A latent vector is sampled randomly from the prior $z \sim \mathcal{N}(0, I)$ and fed with $A$ to generator $G(A, z)$ to generate an output $\hat{B}$ . An encoder then reconstructs the latent vector $\hat{z} = E(\hat{B})$ .
At test time, diverse and realistic outputs are synthesized for any given input image $A$ by sampling random vectors $z \sim \mathcal{N}(0, I)$ and evaluating $G(A, z)$ .
Knowl 2 — BicycleGAN Training Objective
equation
The BicycleGAN model jointly trains a generator $G$ , an encoder $E$ , and a discriminator $D$ using a combined minimax objective over paired training images $(A, B) \sim p(A, B)$ and latent codes $z \sim p(z) = \mathcal{N}(0, I)$ :

$\min_{G, E} \max_{D} \mathcal{L}_{\text{BicycleGAN}}(G, D, E) = \mathcal{L}_{\text{GAN}}^{\text{VAE}}(G, D, E) + \lambda \mathcal{L}_1^{\text{VAE}}(G, E) + \mathcal{L}_{\text{GAN}}(G, D) + \lambda_{\text{latent}} \mathcal{L}_1^{\text{latent}}(G, E) + \lambda_{\text{KL}} \mathcal{L}_{\text{KL}}(E)$

where the individual loss components are:
- The conditional VAE adversarial loss: $\mathcal{L}_{\text{GAN}}^{\text{VAE}}(G, D, E) = \mathbb{E}_{A, B \sim p(A, B)} [\log D(A, B)] + \mathbb{E}_{A, B \sim p(A, B), z \sim E(B)} [\log (1 - D(A, G(A, z)))]$
- The ground-truth image reconstruction $\ell_1$ loss: $\mathcal{L}_1^{\text{VAE}}(G, E) = \mathbb{E}_{A, B \sim p(A, B), z \sim E(B)} [\|B - G(A, z)\|_1]$
- The standard conditional GAN adversarial loss on randomly sampled latent codes: $\mathcal{L}_{\text{GAN}}(G, D) = \mathbb{E}_{A, B \sim p(A, B)} [\log D(A, B)] + \mathbb{E}_{A \sim p(A), z \sim p(z)} [\log (1 - D(A, G(A, z)))]$
- The latent code reconstruction $\ell_1$ loss: $\mathcal{L}_1^{\text{latent}}(G, E) = \mathbb{E}_{A \sim p(A), z \sim p(z)} [\|z - E(G(A, z))\|_1]$
- The Kullback-Leibler divergence regularizer: $\mathcal{L}_{\text{KL}}(E) = \mathbb{E}_{B \sim p(B)} [D_{\text{KL}}(E(B) \parallel \mathcal{N}(0, I))]$
The hyperparameters $\lambda$ , $\lambda_{\text{latent}}$ , and $\lambda_{\text{KL}}$ weight the relative importance of image reconstruction, latent recovery, and latent distribution regularization, respectively.
Knowl 3 — Conditional Latent Regressor GAN (cLR-GAN)
model/method
The conditional Latent Regressor GAN (cLR-GAN) enforces a connection between the latent space and the output image space via the forward-backward cycle $z \to \hat{B} \to \hat{z}$ .

A latent code is randomly sampled from a prior distribution $z \sim p(z) = \mathcal{N}(0, I)$ , and the generator produces a synthetic output $\hat{B} = G(A, z)$ conditioned on input image $A$ . An encoder $E$ then produces a deterministic point estimate $\hat{z} = E(\hat{B})$ attempting to recover the original latent vector $z$ . The objective function is formulated as:

$\min_{G, E} \max_{D} \mathcal{L}_{\text{cLR-GAN}}(G, D, E) = \mathcal{L}_{\text{GAN}}(G, D) + \lambda_{\text{latent}} \mathcal{L}_1^{\text{latent}}(G, E)$

where: $\mathcal{L}_1^{\text{latent}}(G, E) = \mathbb{E}_{A \sim p(A), z \sim p(z)} [\|z - E(G(A, z))\|_1]$

Because $z$ is drawn at random and does not correspond to a specific ground-truth target $B$ , no image reconstruction loss $\|B - \hat{B}\|_1$ is used. While cLR-GAN forces $G$ to use the latent vector, training it in isolation can still lead to mode collapse, where approximately $15\%$ of latent vectors generate identical outputs independent of the input.
Knowl 4 — Conditional Variational Autoencoder GAN (cVAE-GAN) and Variants
model/method
The conditional Variational Autoencoder GAN (cVAE-GAN) connects the ground-truth output to the latent space through the cycle $B \to z \to \hat{B}$ . An encoder network $E$ maps target image $B$ to Gaussian parameters $\mu(B)$ and $\Sigma(B)$ , defining distribution $Q(z|B) = \mathcal{N}(\mu(B), \Sigma(B))$ . Latent code $z$ is sampled via the reparameterization trick $z = \mu(B) + \Sigma(B)^{1/2} \odot \epsilon$ with $\epsilon \sim \mathcal{N}(0, I)$ . Generator $G$ reconstructs target image $B$ from $(A, z)$ , penalized by an $\ell_1$ reconstruction loss and a conditional adversarial discriminator loss, while $Q(z|B)$ is regularized toward $\mathcal{N}(0, I)$ using KL divergence.

Two related model variants include:
- cAE-GAN: A deterministic baseline that drops the KL-divergence loss (setting $z = E(B)$ ). Because the resulting latent space is unconstrained, randomly drawing $z \sim \mathcal{N}(0, I)$ at test time queries unpopulated latent regions, resulting in severe visual artifacts.
- cVAE-GAN++: An extension of cVAE-GAN that includes an additional adversarial loss $\mathcal{L}_{\text{GAN}}(G, D)$ evaluated on outputs generated from prior-sampled codes $z \sim \mathcal{N}(0, I)$ . This exposes discriminator $D$ to samples from the prior during training but omits the latent reconstruction loss $\mathcal{L}_1^{\text{latent}}$ .
Knowl 5 — Gradient Isolation Strategy for Latent Code Reconstruction Loss
model/method
When optimizing the latent reconstruction loss $\mathcal{L}_1^{\text{latent}}(G, E) = \mathbb{E}_{A \sim p(A), z \sim p(z)} [\|z - E(G(A, z))\|_1]$ , gradients are backpropagated solely through generator $G$ , while the parameters of encoder $E$ are held fixed.

If generator $G$ and encoder $E$ are optimized simultaneously on $\mathcal{L}_1^{\text{latent}}$ , the two networks collude to hide imperceptible trivial signals into the synthesized image $\hat{B}$ that permit $E$ to recover $z$ without $G$ actually producing semantically distinct output modes. By keeping $E$ fixed during this step, $E$ must rely on the feature representations learned via the VAE reconstruction branch ( $B \to z$ ), forcing $G$ to synthesize realistic visual changes that reflect the latent code.
Knowl 6 — BicycleGAN Network Architecture and Training Configuration
experimental setup
The BicycleGAN implementation uses the following architectural and training configurations:
- Generator $G$ : A U-Net architecture containing symmetric skip connections between corresponding encoder and decoder layers to preserve spatial structure between input $A$ and output $B$ .
- Discriminator $D$ : Two multi-scale PatchGAN discriminators operating on image patches of sizes $70 \times 70$ and $140 \times 140$ . Discriminator training uses the Least Squares GAN (LSGAN) objective. Discriminator $D$ is unconditional with respect to input $A$ (it evaluates target/generated images alone), which empirically stabilizes training.
- Encoder $E$ : A convolutional neural network with residual blocks ( $E_{\text{ResNet}}$ ). In the VAE branch, it outputs mean and variance; in the latent regression branch, only the predicted mean is used.
- Latent Injection: Latent vectors $z \in \mathbb{R}^8$ are spatially tiled and injected into the generator either by concatenation with input image $A$ (add_to_input) or by addition/concatenation to every intermediate encoder layer of $G$ (add_to_all).
- Hyperparameters: Latent dimension $|z| = 8$ ; loss weights $\lambda_{\text{image}} = 10$ , $\lambda_{\text{latent}} = 0.5$ , $\lambda_{\text{KL}} = 0.01$ ; Adam optimizer with learning rate $0.0002$ and batch size $1$ on $256 \times 256$ images.

Knowl 7 — Realism versus Diversity Evaluation Across Model Variants

data/table

Visual realism is quantified by Amazon Mechanical Turk (AMT) fooling rate (percentage of trials where human evaluators misidentify a 1-second presentation of a generated image as real; real images achieve $50.0\%$ ). Output diversity is quantified by average Learned Perceptual Image Patch Similarity (LPIPS) distance in AlexNet feature space across 1900 randomly sampled generated image pairs from 100 inputs on the Google maps $\to$ satellites dataset:

Method	AMT Fooling Rate [%]	LPIPS Distance
Random real images	50.0%	0.262 $\pm$ 0.007
pix2pix + noise	27.93 $\pm$ 2.40%	0.013 $\pm$ 0.000
cAE-GAN	13.64 $\pm$ 1.80%	0.204 $\pm$ 0.002
cVAE-GAN	24.93 $\pm$ 2.27%	0.096 $\pm$ 0.001
cVAE-GAN++	29.19 $\pm$ 2.43%	0.098 $\pm$ 0.002
cLR-GAN	29.23 $\pm$ 2.48%	0.090 $\pm$ 0.002
BicycleGAN	34.33 $\pm$ 2.69%	0.110 $\pm$ 0.002

pix2pix + noise generates realistic outputs ( $27.93\%$ ) but suffers almost complete mode collapse (LPIPS $0.013$ ).
cAE-GAN exhibits high output variation ( $0.204$ ) but causes severe visual artifacts, dropping fooling rate to $13.64\%$ .
cLR-GAN exhibits mode collapse on approximately $15\%$ of images (omitted from the LPIPS computation).
BicycleGAN achieves the highest realism score ( $34.33\%$ ) among generative models while maintaining high diversity ( $0.110$ ) without mode collapse.

Knowl 8 — Encoder Architecture and Latent Injection Ablation Study

data/table

The image reconstruction performance $\|B - G(A, E(B))\|_1$ is evaluated across two encoder architectures ( $E_{\text{ResNet}}$ with residual blocks vs. standard $E_{\text{CNN}}$ ) and two latent code injection strategies (add_to_all vs. add_to_input) on validation datasets:

Dataset	$E_{\text{ResNet}}$		$E_{\text{CNN}}$
	add_to_all	add_to_input	add_to_all	add_to_input
label $\to$ photo	0.292 $\pm$ 0.058	0.292 $\pm$ 0.054	0.326 $\pm$ 0.066	0.339 $\pm$ 0.069
map $\to$ satellite	0.268 $\pm$ 0.070	0.266 $\pm$ 0.068	0.287 $\pm$ 0.067	0.272 $\pm$ 0.069

$E_{\text{ResNet}}$ systematically achieves lower reconstruction error than $E_{\text{CNN}}$ across both tasks (e.g., $0.292$ vs. $0.326$ on label $\to$ photo). In contrast, injecting the latent vector into all intermediate generator layers (add_to_all) versus only the input layer (add_to_input) yields statistically comparable performance, demonstrating that the U-Net architecture propagates latent information throughout the network without requiring multi-layer injection.

Knowl 9 — Effect of Latent Vector Dimensionality on Output Diversity
empirical result
The dimensionality $|z|$ of the latent vector controls the capacity of BicycleGAN to represent multimodal variations:
- Low latent dimensionality ( $|z| = 2$ ) limits the amount of diversity and variation that the generator can express across output modes.
- High latent dimensionality ( $|z| = 256$ ) allows the network to encode rich details during reconstruction ( $B \to z$ ), but fitting the encoder distribution to a 256-dimensional standard Gaussian makes random sampling at inference time difficult, producing visual artifacts.
- An intermediate dimensionality of $|z| = 8$ provides an optimal balance, capturing meaningful semantic variations (e.g., textures, lighting, sky conditions) while maintaining stable Gaussian sampling at inference time.

Coverage note — No substantial contributed material was omitted from the extracted knowls.
