TPH-YOLOv5: Improved YOLOv5 Based on Transformer Prediction Head for Object Detection on Drone-captured Scenarios

Xingkui ZhuShuchang LyuXu WangQi Zhao

article2021ICCV1,800 citationsVisDrone Challenge 2021 4th place

Proposes TPH-YOLOv5, an aerial object detector that incorporates Transformer-based prediction heads and attention modules into YOLOv5 to effectively identify densely packed, scale-varying objects in drone imagery.

Listen

Unmanned aerial vehicles, commonly known as drones, are increasingly deployed in applications such as agricultural monitoring, wildlife preservation, and urban surveillance. However, standard computer vision algorithms struggle when applied to drone imagery. Drones operate across varying altitudes, causing target objects to fluctuate wildly in scale, while wide-area coverage and high-density environments introduce distracting background elements, motion blur, and significant object occlusion. This article sets out to design and demonstrate an improved object detection architecture tailored specifically to overcome these drone-specific visual challenges.

To address these limitations, the authors developed TPH-YOLOv5, an enhanced version of the YOLOv5 object detector. The framework incorporates four key modifications: adding a dedicated high-resolution prediction head to capture tiny objects, integrating Transformer-based prediction heads that use attention mechanisms to resolve dense and occluded objects, embedding a convolutional attention module to suppress confusing background terrain, and pairing the model with an auxiliary classification network to resolve visually similar categories. The system was trained and evaluated on the benchmark VisDrone2021 dataset, combining experimental ablation tests with multi-scale testing and model ensemble strategies.

The experimental findings show substantial improvements in visual recognition accuracy across drone scenarios. On the benchmark test challenge dataset, TPH-YOLOv5 achieved an average precision of 39.18%, surpassing the previous state-of-the-art detector by 1.81% and trailing the top-ranking challenge model by only 0.25%. Relative to the standard baseline detector, the proposed architecture improved overall precision by approximately 7%. Detailed testing confirmed that adding the fourth prediction head for tiny objects provided the largest single architectural gain, boosting average precision by 2.15%, while the transformer encoder blocks contributed an additional 1.81% improvement. Furthermore, introducing the secondary classifier successfully resolved confusion among ambiguous categories, delivering an extra 0.8% to 1.0% precision increase.

These results demonstrate that drone-based surveillance and inspection systems can achieve much higher reliability in complex real-world conditions without requiring fundamentally new architectures from scratch. By enhancing existing vision detectors with attention modules and targeted classification heads, organizations can improve automated tracking accuracy and reduce operational risk in critical monitoring tasks. While the extra detection head increases computational demand, the integration of transformer blocks partially offsets this by streamlining network layers, presenting a viable performance-to-compute balance for aerial operations.

For practical deployment, organizations should adopt multi-head attention enhancements and multi-model ensembling when maximum detection precision is needed. Future efforts should evaluate deployment constraints on edge devices with limited computational power and explore further optimizations to maintain real-time processing speeds. The findings provide high confidence regarding detection gains on aerial benchmark datasets, though practitioners should anticipate higher hardware and memory requirements when deploying high-resolution input pipelines.

Beihang Universityattention mechanismcbamclassifiersTPH-YOLOv5Transformer Prediction Headobject detection
arXiv: 2108.11539cv516Buaa/tph-yolov5

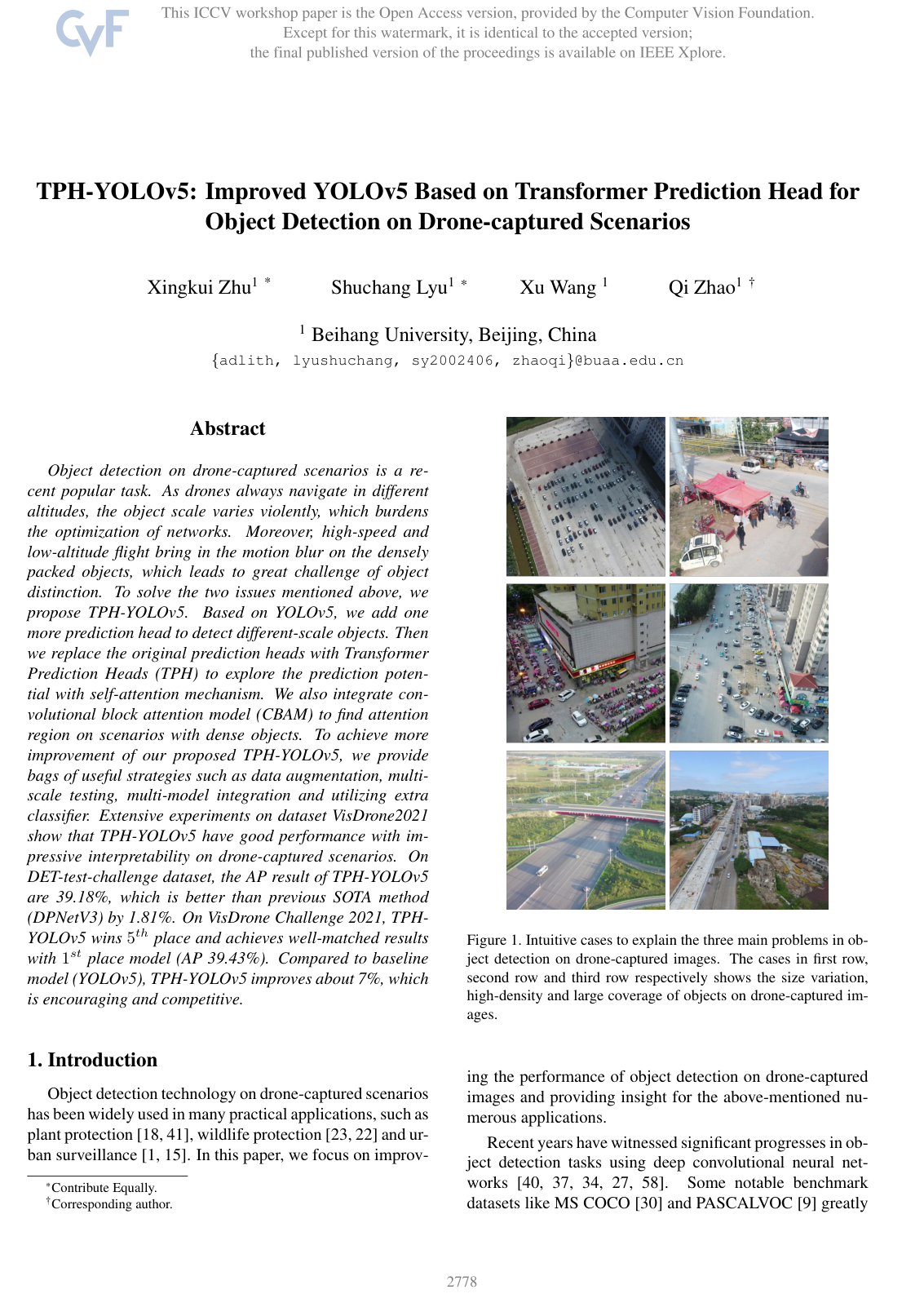

Cover for TPH-YOLOv5: Improved YOLOv5 Based on Transformer Prediction Head for Object Detection on Drone-captured Scenarios

Abstract

Object detection on drone-captured scenarios is a recent popular task. As drones always navigate in different altitudes, the object scale varies violently, which burdens the optimization of networks. Moreover, high-speed and low-altitude flight bring in the motion blur on the densely packed objects, which leads to great challenge of object distinction. To solve the two issues mentioned above, we propose TPH-YOLOv5. Based on YOLOv5, we add one more prediction head to detect different-scale objects. Then we replace the original prediction heads with Transformer Prediction Heads (TPH) to explore the prediction potential with self-attention mechanism. We also integrate convolutional block attention model (CBAM) to find attention region on scenarios with dense objects. To achieve more improvement of our proposed TPH-YOLOv5, we provide bags of useful strategies such as data augmentation, multiscale testing, multi-model integration and utilizing extra classifier. Extensive experiments on dataset VisDrone2021 show that TPH-YOLOv5 have good performance with impressive interpretability on drone-captured scenarios. On DET-test-challenge dataset, the AP result of TPH-YOLOv5 are 39.18%, which is better than previous SOTA method (DPNetV3) by 1.81%. On VisDrone Challenge 2021, TPHYOLOv5 wins 5th place and achieves well-matched results with 1st place model (AP 39.43%). Compared to baseline model (YOLOv5), TPH-YOLOv5 improves about 7%, which is encouraging and competitive.

Topics

attention mechanismcbamclassifiersdata augmentationencoder-decoderinterpretabilitymotion blurobject detectionoptimization

Keywords

TPH-YOLOv5Transformer Prediction Headobject detectiondrone-captured scenariosvision transformerConvolutional Block Attention ModuleVisDrone2021 datasettransformer encoderfeature pyramidSwin Transformer

Table of Contents

  • 1 Introduction
  • 2 Related Work
  • 2.1 Data Augmentation
  • 2.2 Multi-Model Ensemble Method in Object Detection
  • 2.3 Object Detection
  • 3 TPH-YOLOv5
  • 3.1 Overview of YOLOv5
  • 3.2 TPH-YOLOv5
  • 4 Experiments
  • 4.1 Implementation Details
  • 4.2 Comparisons with the State-of-the-art
  • 4.3 Ablation Studies
  • 5 Conclusion
  • 6 Acknowledgments
  • References

Knowls

  1. Knowl 1 — TPH-YOLOv5 Architecture for Aerial Object Detection

    model/method

    TPH-YOLOv5 is a one-stage object detection architecture modified from YOLOv5x to address the domain-specific challenges of drone-captured imagery: extreme scale variance, dense object packing with occlusion, and large image coverage containing confusing geographic background elements.

    The core architectural modifications comprise:

    1. Four-Head Detection Structure: An extra high-resolution prediction head (P2P_2) is added alongside standard small (P3P_3), medium (P4P_4), and large (P5P_5) heads to detect tiny objects.
    2. Transformer Prediction Heads (TPH): Transformer encoder blocks replace standard convolutional and CSP bottleneck blocks at the deep end of the CSPDarknet53 backbone and within the Path Aggregation Network (PANet) neck to model global contextual dependencies via self-attention.
    3. Convolutional Block Attention Module (CBAM): CBAM modules are incorporated sequentially along channel and spatial dimensions into the neck to suppress irrelevant background clutter and focus on regions of interest.

  2. Knowl 2 — Transformer Prediction Head and Encoder Block Integration

    model/method

    The Transformer Prediction Head (TPH) integrates vision transformer encoder blocks into the YOLOv5 detection head and the low-resolution end of the CSPDarknet53 backbone. Each transformer encoder block contains two sub-layers: a multi-head self-attention (MHSA) module and a feed-forward multi-layer perceptron (MLP) module, augmented with LayerNorm, Dropout, and residual connections across each sub-layer.

    Applying self-attention captures long-range dependencies and global semantics, which enhances the model's ability to localize and discriminate densely packed or occluded objects in aerial scenes. Restricting transformer encoder blocks to low-resolution feature maps mitigates the computational and memory overhead inherent to self-attention. Replacing convolutional blocks with transformer encoder blocks reduces total model layers from 719 to 705 and computation from 259.0 GFLOPs to 237.3 GFLOPs in the four-head YOLOv5x configuration while improving mean Average Precision (mAP).

  3. Knowl 3 — High-Resolution P2 Detection Head for Tiny Objects

    model/method

    Standard YOLOv5 architectures utilize three prediction heads downsampled by factors of 8×8\times, 16×16\times, and 32×32\times (P3,P4,P5P_3, P_4, P_5). Because drone-captured images are dominated by extremely small instances due to high flight altitudes, TPH-YOLOv5 incorporates a fourth prediction head (P2P_2) generated from a low-level, high-resolution feature map (downsampled by 4×4\times).

    This high-resolution head enhances the network's spatial sensitivity to tiny objects. Incorporating the P2P_2 head increases the model layer count from 607 to 719 and computational complexity from 219.0 GFLOPs to 259.0 GFLOPs on YOLOv5x, while yielding a +2.15% gain in mAP on aerial object detection.

  4. Knowl 4 — Component-Wise Ablation Study of TPH-YOLOv5

    data/table

    The ablation study evaluates the incremental contribution of each component on the VisDrone2021-DET test-dev dataset. Baseline YOLOv5 corresponds to YOLOv5x trained with MixUp and Mosaic augmentations.

    Method mAP (%) AP50\text{AP}_{50} (%)
    YOLOv5 28.88 49.33
    YOLOv5 + P_2 31.03 (↑2.15\uparrow 2.15) 51.61 (↑2.28\uparrow 2.28)
    YOLOv5 + P_2 + transformer 32.84 (↑1.81\uparrow 1.81) 53.87 (↑2.26\uparrow 2.26)
    TPH-YOLOv5 (previous + CBAM) 33.63 (↑0.79\uparrow 0.79) 54.77 (↑0.90\uparrow 0.90)
    TPH-YOLOv5 + ms-testing 34.90 (↑1.27\uparrow 1.27) 56.40 (↑1.63\uparrow 1.63)
    TPH-YOLOv5 + ms-testing + Classifier 35.74 (↑0.84\uparrow 0.84) 57.31 (↑0.91\uparrow 0.91)

    The evaluation metrics are mAP\text{mAP} (average AP across 10 IoU thresholds from 0.50 to 0.95 with step 0.05) and AP50\text{AP}_{50} (AP at IoU=0.50\text{IoU} = 0.50). The additions of the P2P_2 tiny-object head (+2.15% mAP) and the transformer encoder blocks (+1.81% mAP) provide the largest individual performance increases.

  5. Knowl 5 — Self-Trained Cropped-Patch Classifier for Fine-Grained Aerial Categories

    model/method

    Analysis of the TPH-YOLOv5 confusion matrix indicates that while spatial localization is accurate, the detector exhibits classification confusion among visually similar drone-captured categories (such as tricycle versus awning-tricycle).

    To correct classification errors, an auxiliary ResNet-18 classifier is trained separately on image patches cropped from ground-truth bounding boxes in the training set, resized to 64×6464 \times 64 pixels. During inference, predicted bounding boxes generated by TPH-YOLOv5 are passed to this classifier to update category labels, providing an improvement of 0.8%∼1.0%0.8\%\sim1.0\% in mAP.

  6. Knowl 6 — Benchmark Comparison on VisDrone2021-DET Test-Challenge Dataset

    data/table

    The detection performance of TPH-YOLOv5 ensemble was evaluated on the VisDrone2021-DET test-challenge dataset and compared against previous state-of-the-art methods and challenge submissions.

    Methods mAP (%) AP50\text{AP}_{50} (%)
    RetinaNet 11.81 21.37
    RefineDet 14.90 28.76
    DetNet59 15.26 29.23
    Cascade-RCNN 16.09 31.91
    FPN 16.51 32.20
    Light-RCNN 16.53 32.78
    CornerNet 17.41 34.12
    RRNet (2019 2nd2^{\text{nd}}) 29.13 55.82
    DPNet-ensemble (2019 SOTA) 29.62 54.00
    SMPNet (2020 2nd2^{\text{nd}}) 35.98 59.53
    DPNetV3 (2020 SOTA) 37.37 62.05
    TPH-YOLOv5 ensemble 39.18 –

    TPH-YOLOv5 ensemble achieves 39.18% mAP, outperforming the previous state-of-the-art model (DPNetV3, 37.37% mAP) by 1.81% and placing 5th in the VisDrone 2021 challenge (first place was 39.43% mAP).

  7. Knowl 7 — Multi-Scale Testing and Weighted Boxes Fusion Ensemble

    model/method

    TPH-YOLOv5 improves inference performance via multi-scale testing (ms-testing) and multi-model ensembling using Weighted Boxes Fusion (WBF):

    1. Multi-Scale Testing Pipeline: For a single model, each test image is resized to three scales (1.3×1.3\times, 1.0×1.0\times, and 0.83×0.83\times or 0.67×0.67\times) and horizontally flipped, yielding 6 test image variants. Predictions across all 6 variants are merged using Non-Maximum Suppression (NMS).
    2. Multi-Model Fusion via WBF: Five TPH-YOLOv5 model variants trained with diverse configurations (input sizes of 1536 or 1920, uniform category weights versus inverse-frequency loss weights, and YOLOv5x versus YOLOv5l backbones) are individually evaluated with ms-testing. Their bounding boxes are subsequently ensembled using Weighted Boxes Fusion (WBF), which computes confidence-weighted coordinate averages of overlapping boxes rather than discarding non-maximum boxes.

  8. Knowl 8 — Per-Category Evaluation of TPH-YOLOv5 Model Variants and Ensemble

    data/table

    Performance (mAP in %) across all 10 object classes on the VisDrone2021-DET test-dev dataset for five individual TPH-YOLOv5 configurations and their final ensemble.

    Method all pedestrian people bicycle car van truck tricycle awning-tricycle bus motor
    TPH-YOLOv5-1 34.90 27.52 15.32 15.21 65.99 44.23 47.56 23.96 22.11 58.85 28.44
    TPH-YOLOv5-2 34.29 27.97 14.88 14.17 67.63 45.01 44.76 25.12 20.48 55.72 27.74
    TPH-YOLOv5-3 34.68 22.88 16.01 19.26 48.88 42.98 47.82 32.86 35.65 54.16 28.25
    TPH-YOLOv5-4 34.17 23.48 15.79 17.62 49.99 42.76 47.13 31.66 32.21 54.19 27.37
    TPH-YOLOv5-5 33.04 25.98 14.90 13.10 63.05 43.45 42.56 25.20 21.06 53.65 27.10
    TPH-YOLOv5 ensemble 37.32 29.00 16.75 15.69 68.94 49.79 45.16 27.33 24.72 61.80 30.90

    Model specifications:

    • TPH-YOLOv5-1: Input image size 1920, equal category loss weighting.
    • TPH-YOLOv5-2: Input image size 1536, equal category loss weighting.
    • TPH-YOLOv5-3: Input image size 1920, category loss weights inversely proportional to class label count.
    • TPH-YOLOv5-4: Input image size 1536, category loss weights inversely proportional to class label count.
    • TPH-YOLOv5-5: YOLOv5l backbone, input image size 1536.
    • TPH-YOLOv5 ensemble: WBF fusion of all five models.

  9. Knowl 9 — Sub-3-Pixel Object Filtering via Gray Masking

    model/method

    In the VisDrone2021 dataset at an input image size of 1536 pixels, 622 out of 342,391 bounding box labels have a side length of less than 3 pixels. Because instances of this scale lack recognizable visual features and introduce optimization noise during backpropagation, these bounding box regions are covered with gray square masks during training, which yields an improvement of +0.2% mAP.

  10. Knowl 10 — Implementation and Training Configuration for TPH-YOLOv5

    experimental setup

    TPH-YOLOv5 is implemented in PyTorch 1.8.1 and trained on an NVIDIA RTX 3090 GPU with the following experimental parameters:

    • Weight Transfer: Backbone blocks (0–8) and head layers (10–13, 15–18) are initialized using pretrained YOLOv5x weights.
    • Training Schedule: 65 total epochs on the VisDrone2021 training set, comprising 2 warm-up epochs.
    • Optimization: Adam optimizer with initial learning rate η0=3×10−4\eta_0 = 3 \times 10^{-4} and a cosine decay schedule down to ηfinal=0.12×η0\eta_{\text{final}} = 0.12 \times \eta_0.
    • Batch Size & Input Scale: Long image side scaled to 1536 pixels with a batch size of 2.
    • Data Augmentation: MixUp, Mosaic, photometric distortions (hue, saturation, value), and geometric distortions (random scaling, cropping, translation, shearing, rotation).

Coverage note — None was omitted; all key architectural components, training strategies, ablation studies, and benchmark results are represented.
