LLM in a flash: Efficient Large Language Model Inference with Limited Memory

Keivan AlizadehIman MirzadehDmitry BelenkoS. KhatamifardMinsik ChoCarlo C. del MundoMohammad RastegariMehrdad Farajtabar

article2024ACL308 citations

Presents hardware-informed techniques that exploit activation sparsity and chunked data access to run large language models exceeding device DRAM directly from flash memory with up to a twentyfold speedup over standard offloading methods.

Listen

Deploying modern large language models on personal and edge devices is currently constrained by limited high-speed system memory (DRAM). Standard inference requires loading the full model into DRAM, which prevents personal devices such as smartphones and laptops from running models that exceed their memory capacity. The article evaluates a framework designed to run large language models that are up to twice the size of available DRAM by storing parameters in larger flash storage and loading them on demand during inference.

To overcome the significant latency and throughput penalties of flash storage, the article demonstrates a hardware-informed approach evaluated across diverse hardware backends, including Apple Silicon central processing units (CPUs) and graphics processing units (GPUs) as well as NVIDIA GPUs. The evaluation focuses on popular model families, such as OPT, Falcon, Persimmon, Phi-2, and Llama 2. Rather than loading full layers, the framework exploits natural neuron activation sparsity within feed-forward networks by using a lightweight low-rank predictor to forecast which weights are required for upcoming tokens. It also applies a sliding-window caching technique to retain recently activated neurons in memory and bundles corresponding weight rows and columns to double flash read chunk sizes for increased input/output throughput.

The findings show substantial performance gains over conventional on-demand loading approaches. Combining sparsity prediction, windowing, and bundling reduces data transfer by over 90% in tested configurations, enabling models twice the size of available DRAM to execute efficiently. The proposed method accelerates single-token inference speed by 4 to 5 times on CPUs, about 7 times on Apple Metal GPUs, and 20 to 25 times on NVIDIA GPUs compared to naive baseline loading. When speculative decoding is integrated on GPUs, the inference pipeline achieves an additional 1.4 times speedup without degrading baseline task accuracy or output perplexity.

These results demonstrate that high-capability language models can operate directly on consumer hardware without incurring the high manufacturing costs of expanding device DRAM. This capability enhances user privacy, reduces dependence on centralized cloud infrastructure, and lowers response latency. However, while instantaneous operational power is lower due to sparse execution, the total energy consumed across token generation is slightly higher due to the extended duration of flash memory transfers compared to fully DRAM-resident models.

Organizations developing on-device artificial intelligence should implement sparsity-aware parameter streaming and hardware-aligned memory caching to deploy larger models on constrained devices. Product teams should further explore combining this approach with 4-bit model quantization to reduce the memory footprint beneath 2 gigabytes on mobile platforms. Prior to commercial deployment, technical teams should conduct broader evaluations covering multi-batch inference, prompt processing stages, and device-level thermal and battery dissipation over sustained workloads. The reported findings provide high confidence for single-sequence, on-device text generation under tightly constrained memory conditions.

Apple flash inference large language models efficient large language model inference limited memory flash memory

arXiv: 2312.11514

Paper: Deja Vu: Contextual Sparsity for Efficient LLMs at Inference Time, Zichang Liu et al. (2023). Deja Vu establishes the foundational concept of dynamic contextual sparsity and neuron activation prediction during LLM inference upon which on-demand parameter loading is built.
Paper: FlashAttention: Fast and Memory-Efficient Exact Attention with IO-Awareness, Tri Dao et al. (2022). FlashAttention introduces the core principles of IO-aware memory hierarchies and hardware-oriented data movement optimization that guide flash-to-DRAM transfer design.
Paper: Efficient Memory Management for Large Language Model Serving with PagedAttention, Woosuk Kwon et al. (2023). PagedAttention demonstrates OS-inspired memory management and non-contiguous memory allocation techniques for LLMs that motivate structured memory bundling and caching strategies.
Paper: LLM.int8(): 8-bit Matrix Multiplication for Transformers at Scale, Tim Dettmers et al. (2022). LLM.int8() provides essential background on memory footprint reduction and outlier-aware matrix operations for running large models on constrained hardware.

Paper: Scaling Embedding Layers in Language Models, Da Yu et al. (2025). SCONE extends the paradigm of offloading model components to secondary storage by caching contextualized n-gram embeddings in off-accelerator memory during inference.
Paper: Speed Always Wins: A Survey on Efficient Architectures for Large Language Models, Weigao Sun et al. (2025). This comprehensive survey contextualizes hardware-aware IO kernels, sparse activation strategies, and efficient serving architectures across the broader landscape of modern LLM design.
Paper: Dynamic Memory Compression: Retrofitting LLMs for Accelerated Inference, Piotr Nawrot et al. (2024). Dynamic Memory Compression complements parameter offloading by dynamically compressing runtime key-value memory during decoding to further alleviate DRAM constraints.
Paper: ThinK: Thinner Key Cache by Query-Driven Pruning, Yuhui Xu et al. (2025). ThinK builds upon activation-aware memory reduction by applying query-driven pruning to key cache channels in constrained deployment setups.
Paper: Efficient Reasoning on the Edge, Yelysei Bondarenko et al. (2026). Efficient Reasoning on the Edge applies hardware-constrained model optimizations and dynamic caching to execute complex multi-step reasoning models on consumer edge devices.

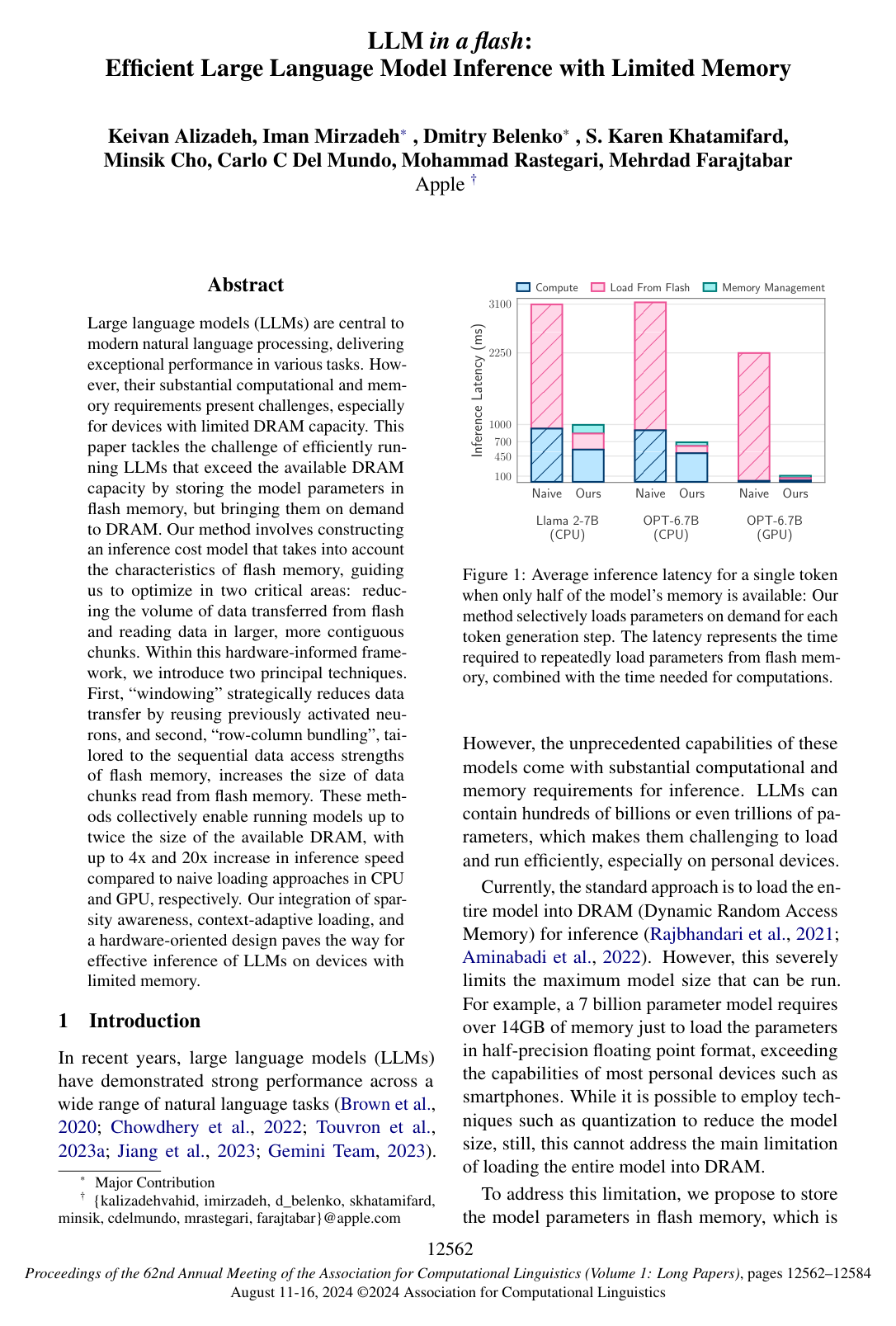

Cover for LLM in a flash: Efficient Large Language Model Inference with Limited Memory

Abstract

Large language models (LLMs) are central to modern natural language processing, delivering exceptional performance in various tasks. However, their substantial computational and memory requirements present challenges, especially for devices with limited DRAM capacity. This paper tackles the challenge of efficiently running LLMs that exceed the available DRAM capacity by storing the model parameters in flash memory, but bringing them on demand to DRAM. Our method involves constructing an inference cost model that takes into account the characteristics of flash memory, guiding us to optimize in two critical areas: reducing the volume of data transferred from flash and reading data in larger, more contiguous chunks. Within this hardware-informed framework, we introduce two principal techniques. First, “windowing” strategically reduces data transfer by reusing previously activated neurons, and second, “row-column bundling”, tailored to the sequential data access strengths of flash memory, increases the size of data chunks read from flash memory. These methods collectively enable running models up to twice the size of the available DRAM, with up to 4x and 20x increase in inference speed compared to naive loading approaches in CPU and GPU, respectively. Our integration of sparsity awareness, context-adaptive loading, and a hardware-oriented design paves the way for effective inference of LLMs on devices with limited memory.

Topics

flash inference large language models probabilistic inference random access memory n-gram language models statistical language models

Keywords

efficient large language model inference limited memory flash memory memory management speculative decoding inference latency DRAM memory sparse models

1 Introduction
2 Flash Memory & LLM Inference
2.1 Bandwidth and Energy Constraints
2.2 Read Throughput
3 Load From Flash
3.1 Reducing Data Transfer
3.2 Increasing Transfer Throughput
3.3 Optimized Data Management in DRAM
4 Experiments and Results
4.1 Experimental Setup
4.2 Faster Load From Flash
4.3 The Memory-Latency Tradeoff
5 Ablation analysis
5.1 The Impact of Longer Generation
5.2 Speculative Decoding
5.3 A Note on Power Consumption
6 Related Works
7 Discussion
8 Limitations
Acknowledgements
References
A Appendix Overview
B Low-Rank Activation Predictor: Additional Results
B.1 Sparsity patterns of predictors
B.2 Accuracy of models using predictors
B.3 Overhead of predictors
C Extended Results
C.1 Results for OPT 6.7B Model
C.2 Results for Falcon 7B Model
C.3 Persimmon 8B
C.4 Phi-2
C.5 Llama 2
D Bundling Based on Co-activation
E Extended Related Works
F Small Device Implications
G Qualitative Evaluations

Knowls

Knowl 1 — Flash-resident inference cost model
model/method
The paper introduces an inference design for transformer language models whose full parameter set does not fit in device DRAM or GPU memory. All model parameters are stored in flash, while only parameters needed for the current generation step are transferred into DRAM or accelerator-accessible memory. The latency objective is decomposed into three components:
$L = L_{\mathrm{flash}} + L_{\mathrm{memory}} + L_{\mathrm{compute}},$
where $L$ is total per-token inference latency, $L_{\mathrm{flash}}$ is the time to transfer parameters from flash to DRAM, $L_{\mathrm{memory}}$ is the cost of inserting and removing loaded parameters in DRAM, and $L_{\mathrm{compute}}$ is the neural-network computation time. The proposed techniques target the first two terms rather than optimizing computation itself. By combining selective weight loading, larger flash reads, and efficient DRAM management, the system is intended to run models up to approximately twice the available DRAM capacity.
Knowl 2 — Low-rank predictor for selective FFN weight loading
model/method
The system exploits activation sparsity in transformer feed-forward networks (FFNs). Embedding parameters and attention-module matrices remain resident in DRAM, while FFN weights associated with inactive intermediate neurons remain in flash. For each FFN layer, a low-rank predictor receives the output of that layer's attention module and predicts which intermediate neurons will produce positive or otherwise active outputs. If $N=d_{\mathrm{model}}$ is the attention-output dimension, $M=d_{\mathrm{ffn}}$ is the number of FFN intermediate neurons, and $r$ is the predictor rank, the predictor maps $\mathbb{R}^{N}\rightarrow\mathbb{R}^{r}\rightarrow\mathbb{R}^{M}$ and applies a sigmoid threshold to obtain an active-neuron mask. Only the predicted active neurons' up-projection columns and down-projection rows are loaded from flash.

The predictors use balanced positive/negative training loss, 10,000 samples from the C4 training set, and two training epochs; training each predictor took approximately four hours on an NVIDIA A100 GPU. Unlike an earlier predictor design that uses the preceding FFN output, this predictor uses only the current layer's attention output, which is sufficient for the hardware-aware loading procedure. The approach relies on sparse or sparsified models: the paper reports approximately 97% FFN sparsity for OPT 6.7B, 95% for a sparsified Falcon 7B, 90% for a sparsified Llama 2, and more than 90% for the relevant sparse configurations.
Knowl 3 — Sliding-window reuse of active neurons
model/method
To avoid repeatedly loading the same FFN weights, the system maintains in DRAM the weights of neurons predicted active for a recent window of input tokens. Let $k$ be the number of recent tokens represented by the window, and let $s_{\mathrm{agg}}(k)$ be the number or fraction of distinct neuron weights used across those $k$ tokens. When a new token arrives, only the incremental set
$s_{\mathrm{agg}}(k+1)-s_{\mathrm{agg}}(k)$
is fetched from flash, while weights associated with tokens that have left the window are evicted. The window size is chosen as large as the DRAM budget permits. Because the cumulative set of active neurons grows sublinearly with the number of recent tokens, the incremental transfer per new token decreases for larger windows, at the cost of retaining more FFN weights in DRAM. In the OPT 6.7B implementation, a window configuration using the recent four-token setting reduced the FFN data required per token from roughly 10% of DRAM capacity for predictor-only loading to about 2.4%.
Knowl 4 — Row-column bundling for larger flash reads
model/method
For an FFN intermediate neuron $i$ , the $i$ th column of the up-projection matrix and the $i$ th row of the down-projection matrix are consumed together. The system stores these two pieces contiguously in flash, so a predicted active neuron can be loaded with one larger read rather than two separate small reads. If each weight element occupies $b$ bytes and the model dimension is $d_{\mathrm{model}}$ , a separately stored row or column has size $d_{\mathrm{model}}b$ , whereas the bundled pair has size $2d_{\mathrm{model}}b$ . This doubles the nominal read chunk and amortizes flash latency-to-first-byte.

The method may intentionally read some unneeded data and discard it, because a larger contiguous read can have higher effective throughput than several smaller sparse reads. The paper also tested bundling neurons according to co-activation patterns. Although closest-neighbor neurons co-activated frequently, that strategy repeatedly included highly active neurons and therefore increased duplicate loading rather than improving transfer efficiency.
Knowl 5 — Preallocated DRAM structure for dynamic FFN weights
model/method
Dynamic insertion and deletion of FFN neurons can be expensive if each update reallocates and copies a matrix. The system therefore preallocates, for layer $i$ , a matrix with capacity $R_i\times 2d_{\mathrm{model}}$ , where $R_i$ is the maximum number of neurons expected for the selected window and $d_{\mathrm{model}}$ is the transformer model dimension. Each active row stores the concatenated up-projection column and down-projection row for one intermediate neuron. Associated metadata contains the original-neuron pointer, the up-projection bias or scalar, the number of occupied rows, and the set of neurons active in the last $k$ tokens.

When neurons leave the window, their rows and metadata are replaced by the most recently occupied rows so that active entries remain contiguous. If $c$ neurons are deleted, identifying them takes linear time in the relevant neuron metadata and rewriting the corresponding matrix data costs $O(c\,d_{\mathrm{model}})$ . Newly required rows are then appended at the end without reallocating or copying the existing matrix. During inference, the first $d_{\mathrm{model}}$ columns of the active matrix provide the up projection, while the transposed remaining columns provide the down projection. Reordering intermediate neurons does not change the final FFN output, enabling this compact representation.
Knowl 6 — Flash hardware observations guiding the design
experimental setup
The hardware study establishes that flash capacity is much larger than DRAM but has substantially lower transfer bandwidth: the unified-memory illustration uses approximately 100 GB of flash versus approximately 10 GB of DRAM, with roughly 1 GB/s flash-to-DRAM bandwidth versus roughly 100 GB/s for DRAM-to-CPU/GPU access. On an Apple M1 Max, a 1 GiB uncached sequential read exceeded 6 GiB/s, but small random reads were much slower because operating-system, driver, interrupt, controller, and transfer-start latencies are paid for each read.

Random-read throughput increased with both read-chunk size and the number of concurrent threads. The paper therefore uses parallel reads over 32 threads and targets chunks of at least 32 KiB. For sparse reads, reading larger chunks—even when some contents are discarded—can be preferable to reading only the exact required weights in many small requests. This hardware behavior motivates both row-column bundling and multithreaded loading.
Knowl 7 — Evaluation protocol for limited-memory inference
experimental setup
The experiments process one sequence at a time and reserve part of memory for the key-value cache, focusing the remaining capacity on model parameters. The primary evaluations use OPT 6.7B and a sparsified Falcon 7B, with additional evaluations on Persimmon 8B, Phi-2 2.7B, and sparsified Llama 2 7B. Each C4 validation example contributes a 128-token prompt followed by 256 generated tokens. The main condition allocates approximately half of the model's total memory requirement to model computation; Phi-2 uses a 65% allocation because its sparsity is lower and its model is smaller.

The hardware consists of an Apple M1 Max with 1 TB flash, an Apple M2 Ultra with 2 TB flash, and a Linux system with a 24 GB NVIDIA RTX 4090. CPU execution uses float32 on Apple systems, Metal GPU execution uses float16, and the NVIDIA GPU uses bfloat16. The naive baseline loads the model on demand for each forward pass. A hybrid baseline persistently stores half of the model and loads the other half at every generation step without exploiting sparsity. The reported I/O comparisons use theoretical best-case transfer costs for these baselines, and flash benchmarks disable operating-system file caching to measure a conservative uncached throughput.
Knowl 8 — Ablation of predictor, windowing, and bundling
data/table
The following ablation measures OPT 6.7B 16-bit inference on an Apple M1 Max when half of the model memory is available. The columns distinguish the hybrid baseline, the activation predictor, sliding-window reuse, and row-column bundling. Predictor and windowing sharply reduce the transferred volume, while bundling restores part of the throughput lost by scattered sparse reads.
Could not parse LaTeX table
The ablation shows that reducing data volume alone is not sufficient: sparse scattered reads reduce throughput from 6.10 GB/s to 1.25 GB/s. Bundling increases the measured throughput to 2.25 GB/s in the complete configuration and reduces I/O latency to 87 ms, compared with 2,196 ms for naive loading.
Knowl 9 — End-to-end latency improvements across models and hardware
data/table
The complete method, denoted by “All,” uses the activation predictor, sliding-window reuse, row-column bundling, and dynamic DRAM management. The following per-inference latency measurements are in milliseconds and decompose total latency into flash I/O, DRAM management, neural computation, and their sum. The measurements use the limited-memory protocol described for the evaluation models.
Could not parse LaTeX table
The complete method reduces OPT 6.7B total latency from 3,182 to 669 ms on CPU, from 2,389 to 565 ms on Metal M1, from 2,270 to 305 ms on Metal M2, and from 2,218 to 84 ms on the NVIDIA GPU. It also outperforms both naive and hybrid loading for Falcon 7B, Persimmon 8B, Phi-2, and Llama 2 on CPU.
Knowl 10 — Accuracy and decoding robustness of predictor-based loading
empirical result
For OPT 6.7B, the activation predictor preserved the reported zero-shot task scores while enabling selective loading. The scores below compare the original model with the model using predictors; Arc Easy, Arc Challenge, and HellaSwag are zero-shot accuracy percentages.
Could not parse LaTeX table
For the OPT configuration with rank-128 predictors in the first 28 layers and rank-1024 predictors in the final four layers, the paper reports approximately 5% false negatives and 7% false positives. False negatives were usually near-zero preactivations, so omitting them had little observed effect on the listed zero-shot scores. Predictor quality is not uniformly lossless across every sparsified model and threshold: the paper reports some metric degradation for certain Falcon, Persimmon, and Phi-2 settings, making predictor rank and threshold model-dependent.

The method also remains effective for longer generation: generating 1,000 tokens with OPT 6.7B did not produce the expected flash-thermal-throttling degradation, and average flash latency decreased after the initially empty cache was populated. With speculative decoding on OPT 6.7B, the system used a draft length of $\lambda=4$ and achieved a reported 1.4× speedup over its non-speculative implementation. The paper conjectures that, if the acceptance ratio is $\alpha$ , retaining a window ending near token $\alpha(\lambda+1)$ is preferable to blindly retaining the most recent tokens, but presents this as a heuristic rather than a proven rule.

Coverage note — Detailed qualitative generations, the full cross-model predictor-accuracy tables, quantitative power measurements, and the paper's broader single-batch/multi-batch and prompt-processing limitations were omitted as secondary validation or scope material rather than load-bearing components of the proposed flash-loading method.
