WebVoyager: Building an End-to-End Web Agent with Large Multimodal Models

Hongliang HeWenlin YaoKaixin MaWenhao YuYong DaiHongming ZhangZhenzhong LanDong Yu

article2024ACL452 citations

Presents WebVoyager, an end-to-end multimodal web agent that interacts directly with live websites using visual and textual cues, outperforming text-only baselines alongside a benchmark of real-world tasks and an automated evaluation protocol.

Listen

Autonomous web agents have significant potential to automate complex online tasks, yet existing systems rely primarily on simplified simulators or raw website code. These text-only approaches ignore the visual layout and intuitive design of modern websites, making it difficult for automated tools to handle dynamic online interfaces. To address this limitation, the article introduces and evaluates WebVoyager, an end-to-end multimodal agent designed to navigate live, real-world websites autonomously by combining visual screenshots with textual interface elements.

The research evaluated the agent across an automated browsing environment using a new benchmark of 643 real-world tasks across 15 popular websites, including Amazon, Booking.com, and Google Flights. The agent identified interactive components by overlaying visual tags onto webpage screenshots, allowing it to reason through decisions and execute human-like actions such as clicking, typing, and scrolling. In addition to testing against standard baselines, the article introduced an automated evaluation method powered by a multimodal model to score navigation recordings, validating these scores against independent human evaluations.

The findings show that WebVoyager achieved a 59.1% task success rate, substantially outperforming both a text-only setup at 40.1% and a leading commercial integrated tool at 30.8%. Visual perception proved particularly decisive on complex interfaces; for instance, on booking and flight platforms that require calendar interactions, the visual agent succeeded where text-only agents failed. Conversely, text-only inputs performed slightly better on text-heavy websites where small text was harder to resolve from screenshots alone. Additionally, the automated scoring framework demonstrated an 85.3% agreement rate with human judges, confirming that vision-language models can reliably evaluate multi-step web navigation without constant manual oversight.

These results indicate that effective digital assistants require both visual and textual understanding to navigate modern web interfaces reliably. When the agent failed, the primary bottlenecks were getting stuck in repetitive navigation loops (44.4% of errors), visual misidentification of closely grouped elements (24.8%), and generating incomplete or hallucinated responses (21.8%). Organizations building or adopting web automation should focus future development on hybrid inputs that extract clean text alongside visual snapshots to handle dense content, while refining navigation prompts to prevent looping.

While confidence in the reported performance gains is supported by solid human validation, leaders should account for current operational boundaries. The agent does not support complex input actions like dragging, cannot parse video media, and was evaluated exclusively on public, non-login workflows without security verifications. Before deploying autonomous web agents into live operational settings, organizations must implement robust safety safeguards to prevent unintended actions, such as submitting unauthorized information or interacting with insecure sites.

Tencent Westlake University Zhejiang University intelligent agents software agents WebVoyager multimodal web agents large multimodal models

arXiv: 2401.13919 MinorJerry/WebVoyager

Paper: WebArena: A Realistic Web Environment for Building Autonomous Agents, Shuyan Zhou et al. (2023). WebArena established the benchmark environment and task formulation for autonomous web agents that WebVoyager directly builds upon and extends to live websites.
Paper: Mind2Web: Towards a Generalist Agent for the Web, Xiang Deng et al. (2023). Mind2Web introduced realistic, multi-website navigation tasks and element-interaction pipelines that serve as the direct conceptual foundation for WebVoyager's real-world agent design.
Paper: Voyager: An Open-Ended Embodied Agent with Large Language Models, Guanzhi Wang et al. (2023). Voyager pioneered the paradigm of LLM-driven autonomous agents interacting iteratively with open-ended environments, directly inspiring WebVoyager's end-to-end framework.
Paper: From Pixels to UI Actions: Learning to Follow Instructions via Graphical User Interfaces, Peter Shaw et al. (2023). This work demonstrates how agents can transition from structured code to raw visual pixel inputs for GUI actions, an essential design prerequisite for multimodal web agents.
Paper: WebGPT: Browser-assisted question-answering with human feedback, Reiichiro Nakano et al. (2021). WebGPT established foundational browser-assisted interaction and web navigation paradigms for language models.
Paper: Visual Instruction Tuning, Haotian Liu et al. (2023). LLaVA provides the core visual instruction tuning architecture that powers modern large multimodal models used in WebVoyager.

Paper: WebPilot: A Versatile and Autonomous Multi-Agent System for Web Task Execution with Strategic Exploration, Yao Zhang et al. (2025). WebPilot extends autonomous web navigation by introducing strategic exploration and tree search to solve complex web tasks beyond single-trajectory agent models.
Paper: AssistantBench: Can Web Agents Solve Realistic and Time-Consuming Tasks?, Ori Yoran et al. (2024). AssistantBench builds on web agent benchmarks to evaluate whether autonomous systems can execute complex, time-consuming multi-page research on the live web.
Paper: SafeArena: Evaluating the Safety of Autonomous Web Agents, Ada Defne Tur et al. (2025). SafeArena analyzes the safety risks and adversarial vulnerabilities that arise when deploying autonomous multimodal web agents like WebVoyager across interactive platforms.
Paper: CogAgent: A Visual Language Model for GUI Agents, Wenyi Hong et al. (2024). CogAgent advances visual web navigation by implementing dedicated high-resolution visual modules for fine-grained GUI element perception and grounding.
Paper: FilMaster: Bridging Cinematic Principles and Generative AI for Automated Film Generation, Kaiyi Huang et al. (2026). AGUVIS generalizes multimodal web interaction into a purely vision-based GUI automation architecture featuring explicit planning and inner monologue.

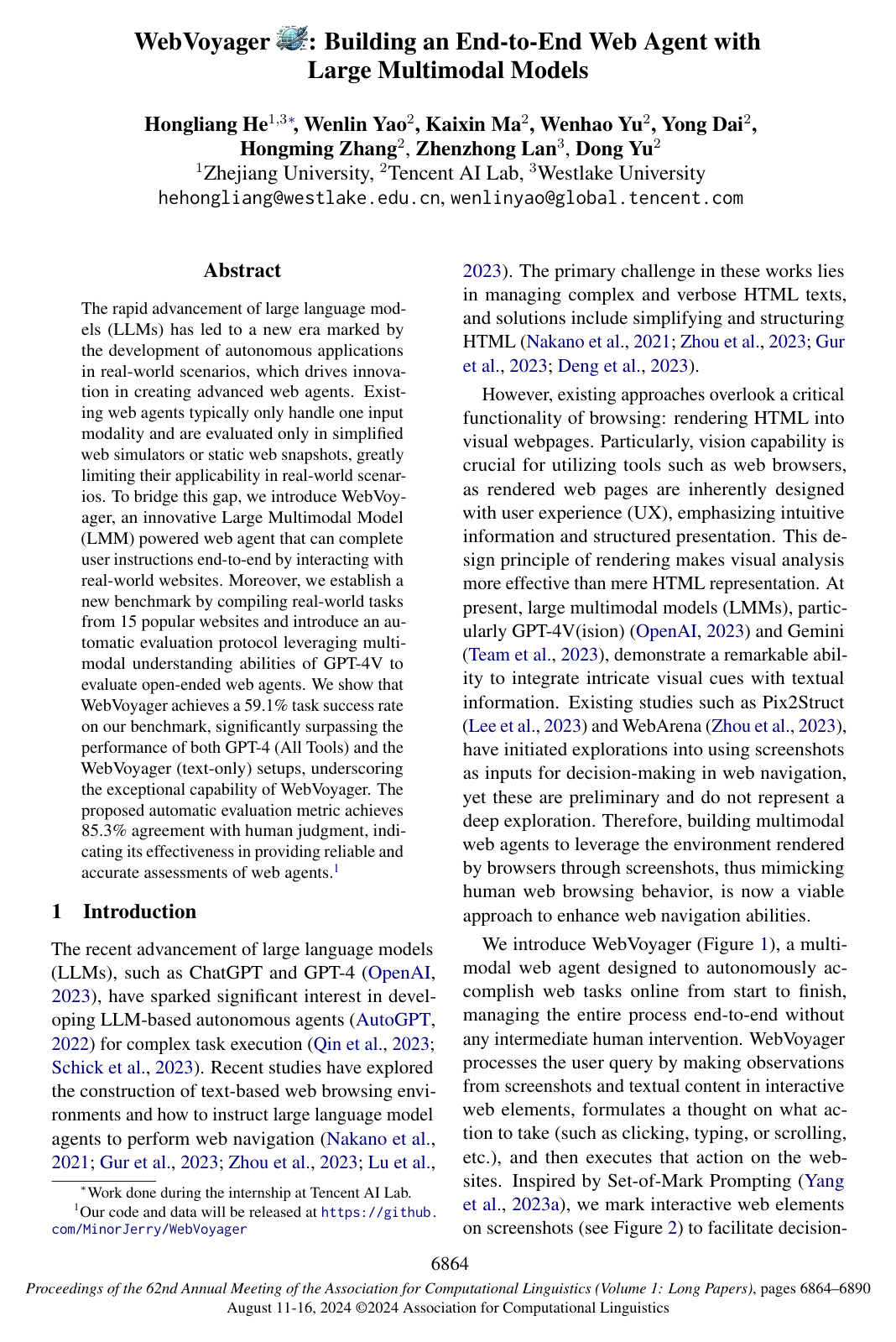

Cover for WebVoyager: Building an End-to-End Web Agent with Large Multimodal Models

Abstract

The rapid advancement of large language models (LLMs) has led to a new era marked by the development of autonomous applications in real-world scenarios, which drives innovation in creating advanced web agents. Existing web agents typically only handle one input modality and are evaluated only in simplified web simulators or static web snapshots, greatly limiting their applicability in real-world scenarios. To bridge this gap, we introduce WebVoyager, an innovative Large Multimodal Model (LMM) powered web agent that can complete user instructions end-to-end by interacting with real-world websites. Moreover, we establish a new benchmark by compiling real-world tasks from 15 popular websites and introduce an automatic evaluation protocol leveraging multimodal understanding abilities of GPT-4V to evaluate open-ended web agents. We show that WebVoyager achieves a 59.1% task success rate on our benchmark, significantly surpassing the performance of both GPT-4 (All Tools) and the WebVoyager (text-only) setups, underscoring the exceptional capability of WebVoyager. The proposed automatic evaluation metric achieves 85.3% agreement with human judgment, indicating its effectiveness in providing reliable and accurate assessments of web agents.

Topics

intelligent agents software agents

Keywords

WebVoyager multimodal web agents large multimodal models autonomous agents web browsing web environments automatic evaluation protocol SeeAct agent

1 Introduction
2 Related Work
3 WebVoyager
3.1 Browsing Environment
3.2 Interaction Formulation
3.3 Observation Space
3.4 Action Space
4 Benchmark for WebVoyager
4.1 Website Selection
4.2 Data Construction
4.3 Annotation Process
5 Experiment
5.1 Evaluation Methods
5.2 Result
5.3 Discussions
5.4 Error Analysis
6 Conclusion
References
A Prompt for WebVoyager
B Prompt for Auto Evaluation
C Action Space
D Additional Trajectories
E Additional Related Work
F Error Cases

Knowls

Knowl 1 — WebVoyager Autonomous Multimodal Web Agent Architecture
model/method
WebVoyager is an autonomous, end-to-end multimodal web browsing agent powered by a Large Multimodal Model (LMM). Given a natural language user instruction $I$ , the agent interacts with live websites via Selenium without intermediate human intervention.

At time step $t$ , the context $c_t$ is constructed from the user instruction $I$ , historical actions $a_i$ , and observations $o_i$ : $c_t = (o_1, a_1, \dots, o_{t-1}, a_{t-1}, o_t, I)$

Following the ReAct paradigm, the model generates a step output $a_t = (s_t, \hat{a}_t) = \mathcal{M}(c_t)$ , where $s_t$ is a natural language thought process and $\hat{a}_t$ is an executable action code. The environment $\mathcal{E}$ executes $\hat{a}_t$ to return the next observation $o_{t+1} = \mathcal{E}(o_t, \hat{a}_t)$ . The cycle repeats until the agent outputs a termination action or exceeds the maximum budget of 15 steps.

To prevent context overflow and visual confusion across long browsing episodes, WebVoyager implements context clipping: only the three most recent webpage observations $(o_{t-2}, o_{t-1}, o_t)$ are retained in the multimodal prompt, while the complete textual history of thoughts and actions is preserved. If an action raises an execution exception in Selenium, the error message is appended to the prompt for a retry, which consumes one step from the exploration budget.
Knowl 2 — Set-of-Mark Web Observation and Visual Grounding in WebVoyager
model/method
Rather than relying solely on verbose HTML DOM trees or accessibility trees, WebVoyager processes rendered webpage screenshots paired with auxiliary textual metadata.

To ground agent decisions without training an external object detector, WebVoyager uses a rule-based JavaScript tool (GPT-4V-ACT) to identify interactive elements based on HTML tag types. The tool overlays bounding boxes with unique numerical index tags in the top-left corner of each element directly onto the screenshot. Black borders and black label backgrounds are used uniformly, which empirically yields higher action success rates than multi-colored labeling.

At step $t$ , the observation $o_t$ consists of:
1. A rendered screenshot of the viewport at a standardized resolution of $1024 \times 768$ pixels with black numerical Set-of-Mark labels.
2. Auxiliary text comprising the interactable element's HTML type, embedded inner text, and aria-label accessibility text.
3. Text extracted from downloaded PDF files parsed automatically via the OpenAI Assistant API when clicking a document link.
Interactions are restricted to a single browser tab to simplify the observation space.
Knowl 3 — WebVoyager Browser Action Space
definition
WebVoyager operates on live web pages using a discrete set of keyboard and mouse action primitives formatted with numerical element IDs:
1. Click [Numerical_Label]: Clicks on the specified webpage element (e.g., link or button). If the click initiates a PDF download, the PDF content is parsed and incorporated into the observation.
2. Type [Numerical_Label]; [Content]: A composite action that focuses on the text box indexed by Numerical_Label, deletes any pre-existing text, inputs Content, and automatically executes an ENTER keystroke.
3. Scroll [Numerical_Label or WINDOW]; [up or down]: Scrolls the entire browser window or a specific scrollable element container vertically up or down.
4. Wait: Pauses execution to wait for dynamic webpage assets, AJAX requests, or rendering scripts to finish loading.
5. GoBack: Navigates to the previous URL in the browser history.
6. Google: Jumps directly to Google Search to start a new search trajectory when navigation is blocked or unproductive.
7. ANSWER; [Content]: Concludes the interaction episode and returns the final response Content to the user.
Knowl 4 — WebVoyager Benchmark for Real-World Web Navigation
experimental setup
The WebVoyager benchmark evaluates end-to-end autonomous web browsing on live, real-world websites. It comprises 643 tasks spanning 15 popular websites: Allrecipes, Amazon, Apple, ArXiv, BBC News, Booking, Cambridge Dictionary, Coursera, ESPN, GitHub, Google Flights, Google Map, Google Search, Huggingface, and Wolfram Alpha.

The benchmark dataset was constructed via a three-step semi-automated process:
1. Initial seed tasks were manually sampled and rewritten from Mind2Web for 5 websites.
2. In-context self-instruct generation with GPT-4 Turbo produced candidate tasks across all 15 websites, followed by manual verification to confirm that each task was solvable on the target site.
3. Iterative task pool expansion generated 40+ unique tasks per website. Task diversity was confirmed using the all-mpnet-base-v2 sentence embedding model: $99.68\%$ of all $206,403$ task pairs exhibited pairwise cosine similarity under $0.60$ , and only $49$ pairs exceeded $0.80$ .
Tasks are categorized by answer evaluation type:
- Golden Responses (22.3% of tasks): Tasks with fixed, stable, and exhaustively verifiable ground-truth answers.
- Possible Responses (77.7% of tasks): Tasks involving open-ended summaries, multiple valid answers, or real-time information (e.g., live flight prices or hotel availability).
Knowl 5 — GPT-4V Multimodal Trajectory Auto-Evaluation Protocol
model/method
To automatically evaluate open-ended web agent navigation trajectories without predefined golden action paths, WebVoyager introduces an LMM-based evaluation protocol using GPT-4V.

The auto-evaluator receives three components:
1. The natural language web task instruction.
2. The sequence of $k$ screenshots from the interaction episode (where $k \in \{1, 2, 3\}$ or $k = \text{Full}$ for the entire trajectory).
3. The textual final response produced by the web agent.
With decoding temperature set to $0$ , GPT-4V evaluates whether the visual states and final response satisfy all requirements in the instruction, outputting either SUCCESS or NOT SUCCESS. When supplied with full trajectory screenshots ( $k = \text{Full}$ ), the auto-evaluator achieves an $85.3\%$ agreement and a Cohen's kappa $\kappa = 0.70$ with consolidated human expert judgments, matching human-to-human inter-annotator agreement (Fleiss's $\kappa = 0.70$ ).

Knowl 6 — Task Success Rate on the WebVoyager Benchmark

data/table

The table below compares the Task Success Rate across 15 websites on the 643-task WebVoyager benchmark. Evaluated systems include GPT-4 (All Tools), a text-only WebVoyager baseline using accessibility trees, and multimodal WebVoyager across multiple LMM backbones. Human evaluations and GPT-4V auto-evaluations (mean $\pm$ std over 3 runs) are reported.

Method	Allrecipes	Amazon	Apple	ArXiv	GitHub	Booking	ESPN	Coursera
GPT-4 (All Tools)	11.1%	17.1%	44.2%	14.0%	48.8%	22.7%	31.8%	31.0%
WebVoyager $_{\text{Text-only}}$	55.6%	31.7%	34.9%	32.6%	61.0%	2.3%	36.4%	23.8%
WebVoyager (Human)	53.3%	58.5%	65.1%	51.2%	63.4%	43.2%	38.6%	73.8%
WebVoyager $_{\text{Text-only}}^*$	57.8% $\pm$ 0.0%	43.1% $\pm$ 1.4%	36.4% $\pm$ 3.5%	50.4% $\pm$ 1.4%	63.4% $\pm$ 2.5%	2.3% $\pm$ 0.0%	38.6% $\pm$ 2.3%	24.6% $\pm$ 1.4%
WebVoyager $^*$ (GPT-4V)	51.1% $\pm$ 2.2%	52.9% $\pm$ 1.4%	62.8% $\pm$ 2.3%	52.0% $\pm$ 1.3%	59.3% $\pm$ 3.7%	32.6% $\pm$ 2.7%	47.0% $\pm$ 1.3%	57.9% $\pm$ 2.7%
WebVoyager $_{\text{Claude}}^*$	45.9% $\pm$ 3.4%	58.6% $\pm$ 4.2%	58.1% $\pm$ 4.0%	55.0% $\pm$ 7.0%	56.9% $\pm$ 1.4%	19.0% $\pm$ 1.3%	46.2% $\pm$ 1.3%	68.2% $\pm$ 1.3%
WebVoyager $_{\text{GPT-4o}}^*$	56.3% $\pm$ 1.3%	53.7% $\pm$ 2.5%	56.6% $\pm$ 1.3%	60.5% $\pm$ 0.0%	57.7% $\pm$ 3.7%	43.9% $\pm$ 3.5%	44.0% $\pm$ 2.7%	65.1% $\pm$ 2.8%
Method	Cambridge	BBC News	Google Flights	Google Map	Google Search	Huggingface	Wolfram	Overall
GPT-4 (All Tools)	25.6%	9.5%	2.4%	53.7%	60.5%	37.2%	52.2%	30.8%
WebVoyager $_{\text{Text-only}}$	62.8%	45.2%	7.1%	61.0%	67.4%	20.9%	58.7%	40.1%
WebVoyager (Human)	65.1%	61.9%	59.5%	70.7%	76.7%	44.2%	63.0%	59.1%
WebVoyager $_{\text{Text-only}}^*$	66.7% $\pm$ 3.6%	45.2% $\pm$ 2.4%	7.1% $\pm$ 0.0%	62.6% $\pm$ 2.8%	75.2% $\pm$ 1.3%	31.0% $\pm$ 1.4%	60.2% $\pm$ 1.3%	44.3% $\pm$ 0.6%
WebVoyager $^*$ (GPT-4V)	71.3% $\pm$ 1.3%	60.3% $\pm$ 2.8%	51.6% $\pm$ 1.4%	64.3% $\pm$ 2.8%	77.5% $\pm$ 2.7%	55.8% $\pm$ 2.3%	60.9% $\pm$ 2.2%	57.1% $\pm$ 0.2%
WebVoyager $_{\text{Claude}}^*$	71.3% $\pm$ 3.6%	66.7% $\pm$ 4.8%	15.1% $\pm$ 5.5%	55.3% $\pm$ 1.4%	72.9% $\pm$ 1.3%	53.5% $\pm$ 4.7%	51.5% $\pm$ 5.4%	52.8% $\pm$ 1.4%
WebVoyager $_{\text{GPT-4o}}^*$	82.2% $\pm$ 1.3%	54.8% $\pm$ 2.4%	28.6% $\pm$ 0.0%	56.9% $\pm$ 2.8%	63.6% $\pm$ 1.3%	42.6% $\pm$ 3.6%	65.2% $\pm$ 2.2%	55.5% $\pm$ 0.8%

Multimodal WebVoyager achieves a human-evaluated overall success rate of $59.1\%$ , substantially outperforming GPT-4 (All Tools) ( $30.8\%$ ) and WebVoyager $_{\text{Text-only}}$ ( $40.1\%$ ). Text-only baselines drop markedly on visually rich websites such as Booking ( $2.3\%$ ) and Google Flights ( $7.1\%$ ) where accessibility trees are verbose and complex.

Knowl 7 — Agreement and Cross-Evaluator Consistency of Multimodal Auto-Evaluators

data/table

The reliability of GPT-4V as an automatic trajectory evaluator was validated against consolidated human expert annotations on a subset of 300 tasks by varying the number $k$ of trajectory screenshots provided:

Evaluation Context	Overall Success Rate	Human Agreement (%)	Cohen's Kappa ( $\kappa$ )
$k = 1$	47.7%	75.3%	0.51
$k = 2$	55.3%	79.7%	0.59
$k = 3$	54.3%	81.3%	0.62
Full trajectory	58.3%	85.3%	0.70

Auto-evaluator consistency with human judgments increases with the number of trajectory frames provided. When comparing multiple multimodal backbones acting as both agent and evaluator across all tasks:

GPT-4o auto-evaluation is more lenient across all backbones ( $63.0\%\text{--}64.1\%$ ), while GPT-4V auto-evaluation is stricter. Claude-3-Opus auto-evaluation exhibits self-preference bias ( $61.6\%$ for Claude-3-Opus vs. $\approx 55\%$ for GPT-4V and GPT-4o). GPT-4o achieves $\kappa = 0.72$ with human judges, compared to $\kappa = 0.70$ for GPT-4V and $\kappa = 0.60$ for Claude-3-Opus.

Knowl 8 — Performance on GAIA and SeeAct External Benchmarks
empirical result
WebVoyager was evaluated on external autonomous web agent benchmarks to test generalization:
1. GAIA Benchmark (Web browsing subset, initialized via Google Search):
  - Level 1 tasks ( $n=26$ ): WebVoyager achieves a $38.5\%$ task success rate, outperforming GPT-4 (All Tools) ( $23.1\%$ ) and WebVoyager $_{\text{Text-only}}$ ( $19.2\%$ ).
  - Level 2 tasks ( $n=64$ ): WebVoyager achieves a $15.6\%$ task success rate, outperforming GPT-4 (All Tools) ( $12.5\%$ ) and WebVoyager $_{\text{Text-only}}$ ( $12.5\%$ ).
2. SeeAct Online Test Set (50 interactive open-web tasks):
  - WebVoyager attains a $30\%$ task success rate without task-specific fine-tuning or specialized candidate selection modules, outperforming the best autonomous SeeAct agent ( $26\%$ ), which relies on a fine-tuned cross-encoder model.

Knowl 9 — Taxonomy and Distribution of WebVoyager Failure Modes

data/table

A manual error analysis of 300 failed navigation episodes from the WebVoyager benchmark identified four primary failure categories:

The mechanisms causing these failures include:

Navigation Stuck (44.4%): Step exhaustion caused by imprecise search queries overwhelmed by irrelevant results, failure to locate small scrollable viewport elements, indecision between scrolling up or down, or repeating previously failed actions due to context clipping of older observations.
Visual Grounding Issue (24.8%): Misinterpretation of visual patterns (e.g., phonetic pronunciation marks or mathematical symbols), failing to recognize subtle UI state changes, or selecting incorrect elements due to visual proximity (such as confusing calendar day numbers with Set-of-Mark numerical tags).
Hallucination (21.8%): Overlooking constraints in the prompt (e.g., picking a visible cheap product without applying the required sorting filter) or entering data into an incorrect input field without raising an execution error.
Prompt Misalignment (9.0%): Outputting unparseable responses missing the required action code syntax, or executing ANSWER prematurely while stating in text that the task remains incomplete.

Knowl 10 — Limitations and Safety Risks of WebVoyager
limitation
The design and deployment of WebVoyager have several documented constraints:
1. Incomplete Action Space: WebVoyager supports discrete mouse and keyboard actions but lacks continuous operations like drag-and-drop (e.g., dragging sliders, reordering items, or panning map regions) due to the non-finite pixel coordinate space.
2. File Format Constraints: The observation pipeline handles text and downloaded PDF documents (via the OpenAI Assistant API) but cannot parse dynamic media such as video streams or complex binary formats.
3. Incompatibility with Open-Source LMMs: Open-source models (such as LLaVA) are hindered by low input image resolutions ( $224 \times 224$ or $336 \times 336$ ) that render fine web text illegible, and context limits of $\le 4096$ tokens that cannot support 15-step multimodal trajectories requiring $7000+$ tokens.
4. Autonomous Deployment Risks: Open-web execution carries risks of unintentionally submitting sensitive personal data, interacting with unauthorized malicious sites, triggering anti-bot CAPTCHAs, or sending high-frequency requests that burden web servers. The framework is restricted to non-login tasks to comply with website terms of service.

Coverage note — None was omitted; the top 10 knowls comprehensively capture WebVoyager's agent architecture, visual grounding approach, action space, benchmark dataset creation, auto-evaluation protocol, benchmark results, cross-evaluator consistency, external benchmark performance, error taxonomy, and limitations.
