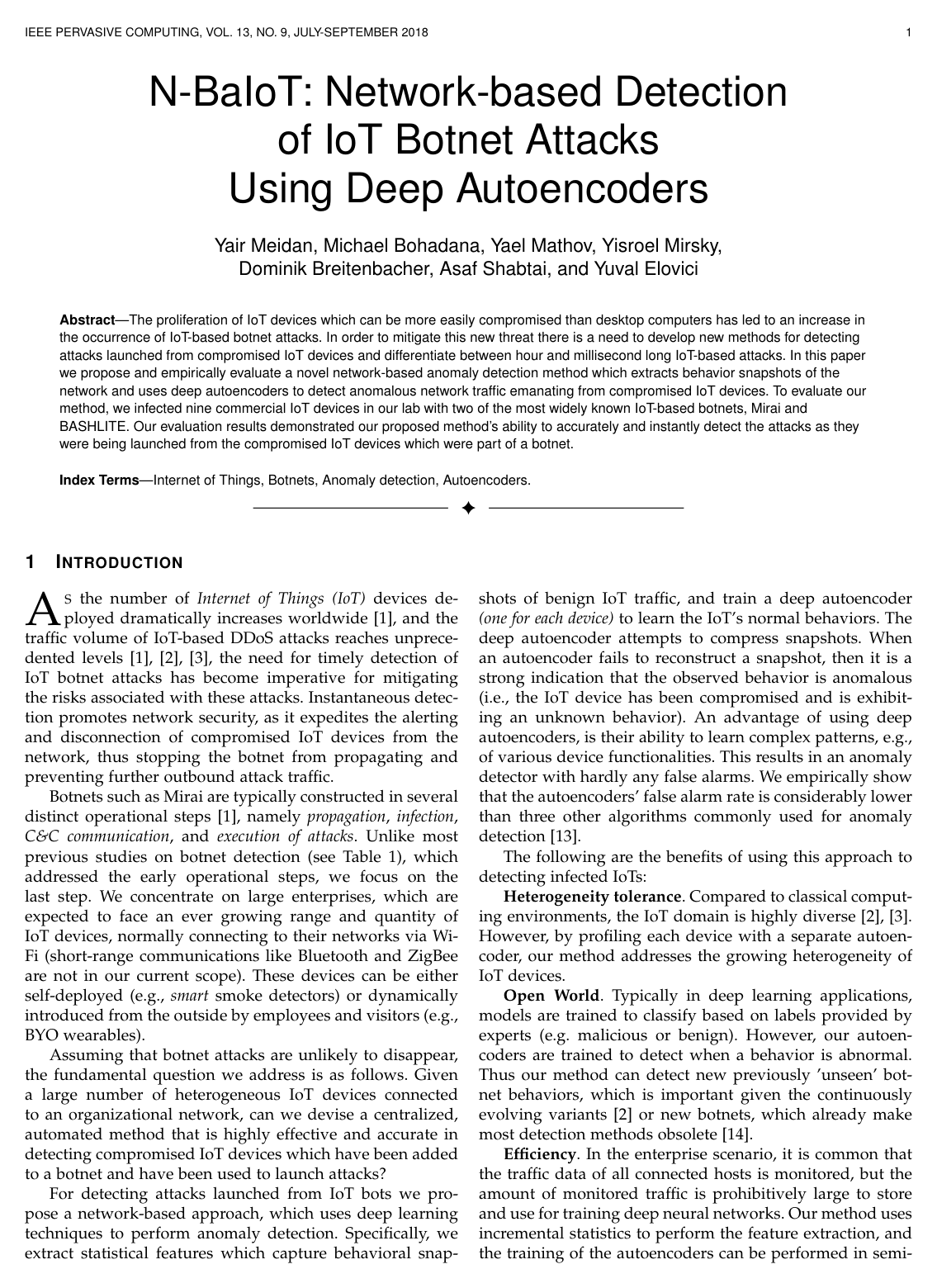

N-BaIoT—Network-Based Detection of IoT Botnet Attacks Using Deep Autoencoders
Yair MeidanMichael BohadanaYael MathovYisroel MirskyDominik BreitenbacherAsaf ShabtaiYuval Elovici
Presents a network-based anomaly detection framework using deep autoencoders to instantly identify active botnet attacks, such as Mirai and BASHLITE, originating from compromised IoT devices.
Enterprise networks face an escalating threat from the rapid proliferation of Internet of Things (IoT) devices, such as smart doorbells, thermostats, and surveillance cameras. Unlike traditional personal computers, these connected devices often lack robust built-in security, making them vulnerable targets for attackers who compromise them to form botnets that launch massive distributed denial-of-service (DDoS) attacks. Because early malware propagation stages and encrypted control channels can easily bypass perimeter defenses, organizations urgently need a reliable way to identify and neutralize infected endpoints at the moment an attack begins.
The article demonstrates and evaluates an automated, network-based anomaly detection framework called N-BaIoT. The objective is to determine whether training deep autoencoders—unsupervised neural networks designed to learn and compress baseline patterns—on benign network traffic from individual IoT devices can accurately and instantaneously detect attacks launched from compromised hardware.
The authors conducted empirical lab experiments using authentic network traffic captured via switch port mirroring from nine commercial IoT devices, including webcams, doorbells, a thermostat, and a baby monitor. The researchers infected these devices with two prominent IoT botnets, Mirai and BASHLITE, and executed ten distinct attack types, including network scans, spam, and various packet-flooding attacks. To monitor traffic without burdening device processing power, the system continuously extracted 115 statistical features across multiple temporal windows and trained a tailored deep autoencoder for each device using only benign behavior.
The evaluation showed that the proposed method achieved a 100% true positive rate, successfully detecting every attack launched across all nine infected devices. It generated a very low average false positive rate of 0.007, significantly outperforming standard anomaly detection algorithms such as Local Outlier Factor (0.086), Isolation Forest (0.027), and One-Class Support Vector Machines (0.026). Furthermore, the autoencoders detected attacks in an average of 174 milliseconds, enabling near-instantaneous threat discovery far below the typical 20-to-90-second duration of standard denial-of-service floods.
These findings indicate that anomaly detection using deep autoencoders can serve as an effective final line of defense for enterprise networks. By operating entirely at the network switch level, the approach secures resource-constrained IoT hardware without requiring host software installation or vendor cooperation. Detecting malicious behaviors in less than a second enables automated containment, dramatically lowering operational risk, preventing downstream service outages, and safeguarding network bandwidth.
Organizations should consider deploying centralized, network-level anomaly detection that maintains separate behavioral baselines for each connected IoT device type. Before introducing new hardware to production environments, security teams should assess device traffic predictability, as units with complex features—such as multi-sensor baby monitors—exhibit higher baseline traffic variance and longer detection times. Enterprises should also establish automated policy rules to isolate endpoints instantly upon receiving an anomaly alert.
While the empirical results provide high confidence in the method's accuracy under controlled conditions, several limitations remain. The evaluation was conducted in an isolated laboratory setting across nine specific device models and two botnet families, assuming that clean, uncompromised traffic is available during initial installation. Further validation is needed through transfer learning pilots to test whether pre-trained models can generalize across identical devices in different enterprise environments without requiring separate on-site training phases.
- Paper: Isolation-Based Anomaly Detection, Fei Tony Liu et al. (2012). Introduces the Isolation Forest algorithm, providing the foundational principles of unsupervised, tree-based anomaly isolation that serve as a key baseline for modern network anomaly detection methods.
- Paper: Support Vector Data Description, DAVID M.J. TAX et al. (2004). Establishes Support Vector Data Description for modeling nominal data boundaries, defining the core one-class boundary estimation paradigm adapted by modern deep network anomaly detectors.
- Paper: Deep Learning for Anomaly Detection: A Survey, Raghavendra Chalapathy et al. (2019). Provides a comprehensive survey contextualizing reconstruction-based autoencoder architectures alongside modern deep anomaly detection paradigms across diverse security applications.
- Paper: Memorizing Normality to Detect Anomaly: Memory-Augmented Deep Autoencoder for Unsupervised Anomaly Detection, Dong Gong et al. (2019). Extends deep autoencoder anomaly detection by adding a memory module to prevent over-generalization on anomalous inputs during reconstruction.
- Paper: Deep Learning for Anomaly Detection, Guansong Pang et al. (2020). Systematically categorizes and analyzes advanced deep normality representation learning and end-to-end anomaly scoring frameworks beyond basic autoencoders.
- Paper: Deep One-Class Classification, Lukas Ruff et al. (2018). Addresses the limitations of heuristic autoencoder reconstruction errors by introducing an end-to-end objective that maps nominal representations into an enclosing hypersphere.
- Paper: Deep Learning in Mobile and Wireless Networking: A Survey, Chaoyun Zhang et al. (2018). Surveys the broader deployment landscape and architectural considerations of applying deep learning models to IoT, mobile, and wireless network security environments.
