Graph Neural Network-Based Anomaly Detection in Multivariate Time Series

Ailin DengBryan Hooi

article2021AAAI1,530 citations

Proposes a graph neural network method that explicitly learns relationship structures among multivariate time-series variables to deliver accurate anomaly detection alongside explainable root-cause diagnosis.

Listen

Modern industrial operations, transportation systems, and critical infrastructure increasingly depend on complex networks of interconnected sensors. These cyber-physical systems generate massive volumes of continuous time-series data, making manual monitoring impractical and leaving infrastructure vulnerable to operational faults and cyberattacks. Traditional and existing deep learning detection tools frequently struggle because they fail to explicitly capture the complex, nonlinear relationships among different sensors, which limits their ability to pinpoint root causes when anomalies occur.

The article demonstrates the effectiveness of a novel framework called the Graph Deviation Network, designed to automatically learn relationship structures across multivariate sensor networks. The core objective is to detect operational anomalies accurately while providing human operators with interpretable explanations of how and where system behaviors deviate from established baselines.

The proposed method operates in an unsupervised manner using normal historical data. It assigns high-dimensional embedding vectors to capture unique sensor characteristics, dynamically learns inter-sensor dependencies as a directed graph, and forecasts expected values using an attention mechanism over neighboring sensors. When observed values diverge from forecasts, the framework flags anomalies using a robust normalized deviation score. The researchers evaluated the approach against seven baseline methods on two physical water treatment testbeds: the 51-sensor Secure Water Treatment system and the 127-sensor Water Distribution system, both containing simulated real-world attack scenarios.

The evaluation produced several key findings. First, the proposed framework outperformed all baseline models in detection accuracy, achieving precision scores of approximately 99% on the first dataset and 98% on the second. Second, it delivered an F1-score—a metric balancing precision and recall—of 0.81 on the first system and 0.57 on the second, surpassing the next-best baseline by roughly 54% on the larger, more imbalanced network. Third, ablation analyses confirmed that learning graph structures, utilizing sensor embeddings, and applying graph attention mechanisms were all vital to performance, with the removal of attention causing the steepest accuracy drop. Finally, case studies demonstrated that the framework effectively localizes faulty sensors and explains anomalies by highlighting deviations between expected and observed behaviors among closely linked components.

These results demonstrate significant practical benefits for risk management, operational safety, and incident response timelines. Because the framework can automatically discover unknown relationships among hundreds of variables and identify specific deviating subgraphs, human operators can rapidly diagnose root causes rather than manually investigating vast sensor streams. This reduces downtime risks and strengthens defenses against subtle cyberattacks where individual sensor values remain within standard operating limits but violate relational patterns.

Organizations managing critical physical infrastructure should consider evaluating graph-based anomaly detection frameworks to monitor complex multivariate environments. Deployment strategies should leverage the framework's explainability features to assist security and operations teams during triage. However, because the study focused exclusively on stationary, offline training across water treatment testbed datasets, decision-makers should recognize that model performance under dynamic online operating conditions remains to be demonstrated. Further development should focus on adapting the framework for real-time online learning and testing across diverse industrial domains.

National University of Singapore anomalous behavior deep learning graph neural networks multivariate time series anomaly detection Graph Deviation Network graph neural networks

arXiv: 2106.06947 d-ailin/GDN

Paper: Connecting the Dots: Multivariate Time Series Forecasting with Graph Neural Networks, Zonghan Wu et al. (2020). Introduces graph structure learning combined with graph neural networks for multivariate time series modeling without predefined graphs, providing the foundational architecture that the source adapts for anomaly detection.
Paper: Graph WaveNet for Deep Spatial-Temporal Graph Modeling, Zonghan Wu et al. (2019). Establishes adaptive spatial-temporal graph neural networks that learn latent relational structure among series, directly informing the source's variable-relationship modeling.
Paper: Robust Anomaly Detection for Multivariate Time Series through Stochastic Recurrent Neural Network, Ya Su et al. (2019). Provides a primary deep multivariate time series anomaly detection benchmark and baseline that highlights the need for explicit inter-sensor relationship modeling and explainability.
Paper: Detecting Spacecraft Anomalies Using LSTMs and Nonparametric Dynamic Thresholding, Kyle Hundman et al. (2018). Presents core methods and telemetry datasets for sensor anomaly detection using predictive discrepancies and dynamic thresholding upon which deep multivariate anomaly detectors build.
Paper: Graph Attention Networks, Petar Veličković et al. (2018). Introduces the graph attention mechanism whose learned attention weights provide the basis for the explainability and relational modeling used in the source.
Paper: Graph based anomaly detection and description: a survey, Leman Akoglu et al. (2014). Surveys classical graph-based anomaly detection and root-cause attribution paradigms, framing the conceptual motivation for relational anomaly analysis.
Paper: Deep Learning for Anomaly Detection: A Survey, Raghavendra Chalapathy et al. (2019). Offers a comprehensive survey of deep anomaly detection principles across temporal and high-dimensional settings, contextualizing the limitations of non-graph deep architectures.

Paper: Transformers in Time Series: A Survey, Qingsong Wen et al. (2022). Surveys subsequent attention- and transformer-based architectures for multivariate time series anomaly detection and forecasting that extend beyond graph-based attention approaches.
Paper: TimesNet: Temporal 2D-Variation Modeling for General Time Series Analysis, Haixu Wu et al. (2023). Develops a generalized 2D temporal variation backbone for unified time series tasks including anomaly detection, representing a major subsequent evolution in temporal modeling.
Paper: How Attentive are Graph Attention Networks?, Shaked Brody et al. (2021). Critiques the static ranking limitations of standard graph attention mechanisms and introduces dynamic graph attention, offering a direct improvement for attention-driven explainability.

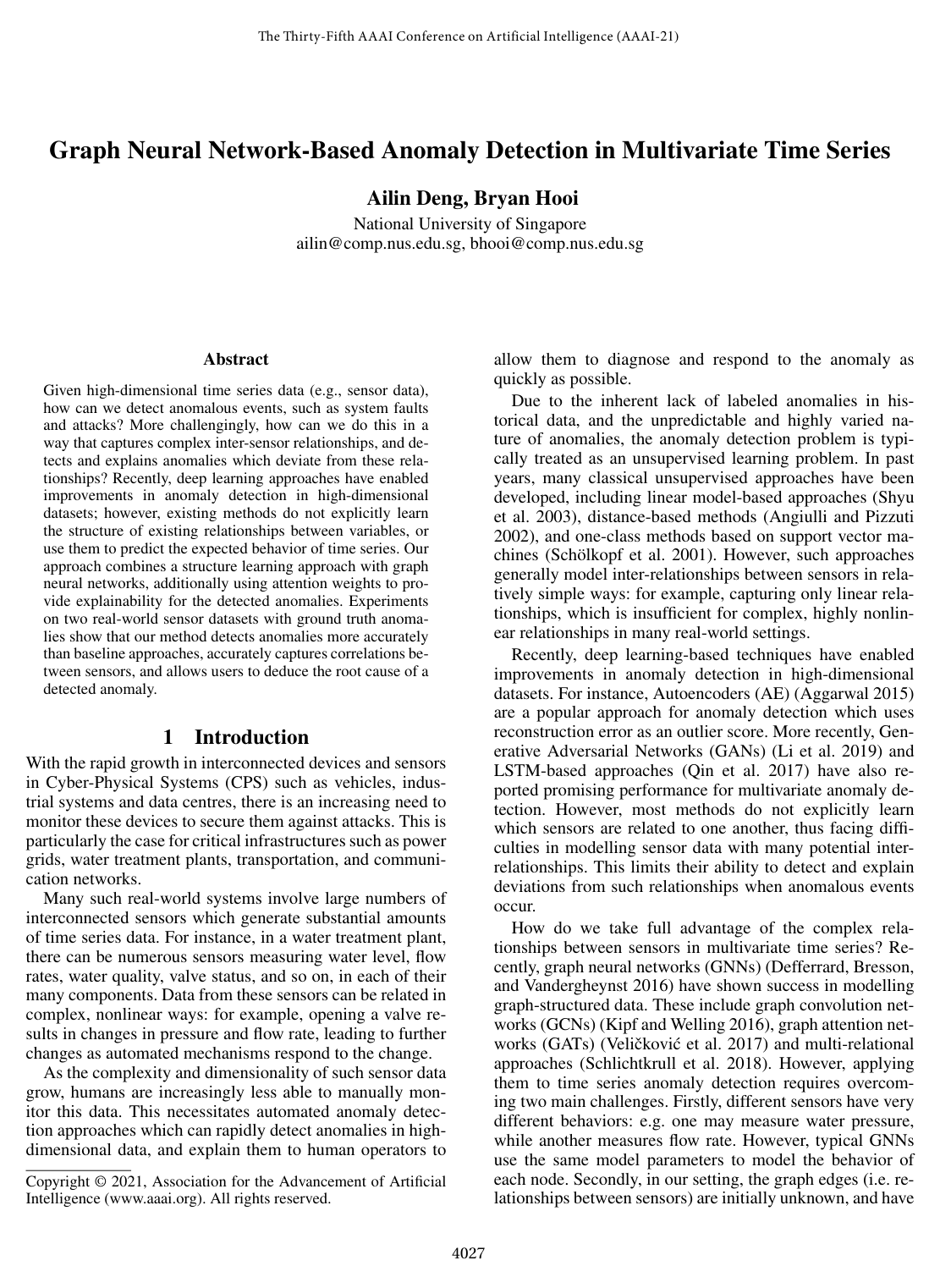

Cover for Graph Neural Network-Based Anomaly Detection in Multivariate Time Series

Abstract

Given high-dimensional time series data (e.g., sensor data), how can we detect anomalous events, such as system faults and attacks? More challengingly, how can we do this in a way that captures complex inter-sensor relationships, and detects and explains anomalies which deviate from these relationships? Recently, deep learning approaches have enabled improvements in anomaly detection in high-dimensional datasets; however, existing methods do not explicitly learn the structure of existing relationships between variables, or use them to predict the expected behavior of time series. Our approach combines a structure learning approach with graph neural networks, additionally using attention weights to provide explainability for the detected anomalies. Experiments on two real-world sensor datasets with ground truth anomalies show that our method detects anomalies more accurately than baseline approaches, accurately captures correlations between sensors, and allows users to deduce the root cause of a detected anomaly.

Topics

anomalous behavior deep learning graph neural networks sensor data structure-learning anomaly detection methods

Keywords

multivariate time series anomaly detection Graph Deviation Network graph neural networks graph structure learning graph attention mechanism multivariate time series sensor embeddings WADI dataset

1 Introduction
2 Related Work
3 Proposed Framework
3.1 Problem Statement
3.2 Overview
3.3 Sensor Embedding
3.4 Graph Structure Learning
3.5 Graph Attention-Based Forecasting
3.6 Graph Deviation Scoring
4 Experiments
4.1 Datasets
4.2 Baselines
4.3 Evaluation Metrics
4.4 Experimental Setup
4.5 RQ1. Accuracy
4.6 RQ2. Ablation
4.7 RQ3. Interpretability of Model
4.8 RQ4. Localizing Anomalies
5 Conclusion
References

Knowls

Knowl 1 — Problem Formulation for Multivariate Time Series Anomaly Detection
definition
Let training data be denoted as $\mathbf{s}_{\text{train}} = [\mathbf{s}_{\text{train}}^{(1)}, \mathbf{s}_{\text{train}}^{(2)}, \dots, \mathbf{s}_{\text{train}}^{(T_{\text{train}})}]$ , where each observation $\mathbf{s}_{\text{train}}^{(t)} \in \mathbb{R}^N$ is an $N$ -dimensional vector representing the readings of $N$ continuous sensor variables at time tick $t \in \{1, \dots, T_{\text{train}}\}$ . Under the unsupervised anomaly detection formulation, $\mathbf{s}_{\text{train}}$ is assumed to contain exclusively normal operational data.

The testing data originates from the identical $N$ sensors across a separate sequence of $T_{\text{test}}$ time ticks, denoted as $\mathbf{s}_{\text{test}} = [\mathbf{s}_{\text{test}}^{(1)}, \mathbf{s}_{\text{test}}^{(2)}, \dots, \mathbf{s}_{\text{test}}^{(T_{\text{test}})}]$ with $\mathbf{s}_{\text{test}}^{(t)} \in \mathbb{R}^N$ . The objective is to produce a sequence of binary anomaly labels $a(t) \in \{0, 1\}$ for each test time tick $t \in \{1, \dots, T_{\text{test}}\}$ , where $a(t) = 1$ indicates that the system is in an anomalous state at time $t$ , and $a(t) = 0$ indicates normal operation.
Knowl 2 — Sensor Embedding and Directed Graph Structure Learning
model/method
In the Graph Deviation Network (GDN), each sensor $i \in \{1, \dots, N\}$ is assigned a multidimensional embedding vector $\mathbf{v}_i \in \mathbb{R}^d$ , initialized randomly and optimized end-to-end along with the model parameters to capture sensor-specific characteristics.

To represent inter-sensor relationship structures without requiring a predefined graph, GDN learns a directed adjacency matrix $\mathbf{A} \in \{0, 1\}^{N \times N}$ , where $A_{ji} = 1$ denotes a directed edge from node $j$ to node $i$ (meaning sensor $j$ is used to forecast sensor $i$ ). For each sensor $i$ , candidate relations are specified as $C_i \subseteq \{1, \dots, N\} \setminus \{i\}$ . When no prior topological information is available, $C_i = \{1, \dots, N\} \setminus \{i\}$ .

The similarity coefficient $e_{ji}$ between sensor $i$ and candidate neighbor $j \in C_i$ is computed as the cosine similarity between their embedding vectors:

$e_{ji} = \frac{\mathbf{v}_i^\top \mathbf{v}_j}{\|\mathbf{v}_i\|_2 \|\mathbf{v}_j\|_2} \quad \text{for } j \in C_i$

The directed adjacency matrix is formed by selecting the top- $k$ candidate sensors with the highest similarity scores for each node $i$ :

$A_{ji} = \mathbf{1}\left\{j \in \text{TopK}\left(\{e_{ki} : k \in C_i\}\right)\right\}$

where $\text{TopK}$ returns the indices of the $k$ largest values among candidate similarity scores, with $k$ serving as a sparsity parameter.
Knowl 3 — Graph Attention-Based Time Series Forecasting
model/method
GDN forecasts the expected sensor measurements $\mathbf{s}^{(t)} \in \mathbb{R}^N$ at time $t$ from a historical sliding window of width $w$ , where the input for sensor $i$ is $\mathbf{x}_i^{(t)} = [s_i^{(t-w)}, s_i^{(t-w+1)}, \dots, s_i^{(t-1)}] \in \mathbb{R}^w$ .

To fuse features across dependent sensors according to the learned adjacency matrix $\mathbf{A}$ , a graph attention mechanism conditions on both historical observations and sensor embeddings $\mathbf{v}_i \in \mathbb{R}^d$ . The joint representation for node $i$ is formed by concatenation:

$\mathbf{g}_i^{(t)} = \mathbf{v}_i \oplus \mathbf{W}\mathbf{x}_i^{(t)}$

where $\oplus$ denotes concatenation and $\mathbf{W} \in \mathbb{R}^{d \times w}$ is a shared trainable projection matrix. The unnormalized attention coefficient from node $j$ to node $i$ is:

$\pi(i, j) = \text{LeakyReLU}\left(\mathbf{a}^\top \left(\mathbf{g}_i^{(t)} \oplus \mathbf{g}_j^{(t)}\right)\right)$

where $\mathbf{a} \in \mathbb{R}^{4d}$ is a trainable attention parameter vector. The normalized attention weights are calculated via softmax over neighbor set $\mathcal{N}(i) = \{j \mid A_{ji} > 0\}$ and node $i$ itself:

$\alpha_{i,j} = \frac{\exp(\pi(i, j))}{\sum_{k \in \mathcal{N}(i) \cup \{i\}} \exp(\pi(i, k))}$

The aggregated neighbor representation $\mathbf{z}_i^{(t)} \in \mathbb{R}^d$ for sensor $i$ is:

$\mathbf{z}_i^{(t)} = \text{ReLU}\left(\alpha_{i,i}\mathbf{W}\mathbf{x}_i^{(t)} + \sum_{j \in \mathcal{N}(i)} \alpha_{i,j}\mathbf{W}\mathbf{x}_j^{(t)}\right)$

The predicted sensor values $\hat{\mathbf{s}}^{(t)} \in \mathbb{R}^N$ are obtained by element-wise multiplying each representation with its embedding vector and applying stacked fully-connected layers $f_\theta$ :

$\hat{\mathbf{s}}^{(t)} = f_\theta\left(\left[\mathbf{v}_1 \circ \mathbf{z}_1^{(t)}, \mathbf{v}_2 \circ \mathbf{z}_2^{(t)}, \dots, \mathbf{v}_N \circ \mathbf{z}_N^{(t)}\right]\right)$

where $\circ$ denotes the Hadamard product. Model parameters are trained by minimizing the Mean Squared Error (MSE) loss on normal training data:

$L_{\text{MSE}} = \frac{1}{T_{\text{train}} - w} \sum_{t=w+1}^{T_{\text{train}}} \|\hat{\mathbf{s}}^{(t)} - \mathbf{s}^{(t)}\|_2^2$
Knowl 4 — Graph Deviation Scoring and Anomaly Thresholding
model/method
To identify deviations between observed sensor behaviors and predicted expectations, GDN calculates an individual prediction error for each sensor $i \in \{1, \dots, N\}$ at time $t$ :

$\text{Err}_i(t) = |s_i^{(t)} - \hat{s}_i^{(t)}|$

To prevent sensors with naturally large error scales from dominating the detection score, each sensor's error is normalized using its median $\tilde{\mu}_i$ and inter-quartile range (IQR) $\tilde{\sigma}_i$ computed across historical time ticks:

$a_i(t) = \frac{\text{Err}_i(t) - \tilde{\mu}_i}{\tilde{\sigma}_i}$

where $\tilde{\sigma}_i$ is the difference between the 75th percentile ( $Q_3$ ) and 25th percentile ( $Q_1$ ) of $\text{Err}_i$ . The system-level anomaly score at time $t$ aggregates across all sensors via the maximum operator:

$A(t) = \max_{i \in \{1, \dots, N\}} a_i(t)$

To dampen sudden transient spikes, a simple moving average (SMA) filter is applied to $A(t)$ to yield smoothed anomaly scores $A_s(t)$ . A time tick $t$ is declared anomalous ( $a(t) = 1$ ) if $A_s(t)$ exceeds a detection threshold $\tau$ , where $\tau$ is set to the maximum smoothed score over the validation set:

$\tau = \max_{t \in \mathcal{T}_{\text{val}}} A_s(t)$
Knowl 5 — Experimental Setup and Cyber-Physical System Test-Beds
experimental setup
GDN was evaluated on two industrial cyber-physical test-bed datasets with ground-truth physical attack scenarios:
1. SWaT (Secure Water Treatment): Comprises 51 continuous sensor and actuator features. The training split contains 47,515 normal time ticks, and the test split contains 44,986 time ticks with an anomaly rate of 11.97%.
2. WADI (Water Distribution): A larger distribution network comprising 127 sensor and actuator features. The training split contains 118,795 normal time ticks, and the test split contains 17,275 time ticks with an anomaly rate of 5.99%.
Both datasets provide approximately two weeks of normal physical operations for training, followed by several days of controlled physical attacks for evaluation. All measurements are downsampled to 10-second intervals using median pooling, assigning the most frequent binary label within each 10-second interval. The initial 2,160 samples (5–6 hours) from each dataset are removed to eliminate initial system stabilization transients.

Models are trained with the Adam optimizer (learning rate $10^{-3}$ , $\beta_1 = 0.9, \beta_2 = 0.99$ ) for up to 50 epochs with early stopping patience of 10. The sliding window size is $w = 5$ . Hyperparameters are configured based on input dimensionality: for SWaT ( $N=51$ ), embedding dimension $d=64$ , top- $k=15$ , and hidden layer size $64$ ; for WADI ( $N=127$ ), embedding dimension $d=128$ , top- $k=30$ , and hidden layer size $128$ .

Knowl 6 — Anomaly Detection Performance Comparison on SWaT and WADI

empirical result

GDN was evaluated against seven baseline methods on the SWaT and WADI test sets in terms of Precision (Prec, in %), Recall (Rec, in %), and F1-Score (F1):

	SWaT			WADI
Method	Prec (%)	Rec (%)	F1	Prec (%)	Rec (%)	F1
PCA	24.92	21.63	0.23	39.53	5.63	0.10
KNN	7.83	7.83	0.08	7.76	7.75	0.08
FB	10.17	10.17	0.10	8.60	8.60	0.09
AE	72.63	52.63	0.61	34.35	34.35	0.34
DAGMM	27.46	69.52	0.39	54.44	26.99	0.36
LSTM-VAE	96.24	59.91	0.74	87.79	14.45	0.25
MAD-GAN	98.97	63.74	0.77	41.44	33.92	0.37
GDN	99.35	68.12	0.81	97.50	40.19	0.57

GDN achieves the highest F1-score and precision on both datasets. On SWaT, GDN achieves an F1-score of 0.81 (Precision 99.35%, Recall 68.12%). On the more complex and unbalanced WADI dataset (127 sensors, 5.99% anomalies), GDN achieves an F1-score of 0.57, outperforming the best-performing baseline (MAD-GAN with F1 0.37) by 54% relative F1 improvement.

Knowl 7 — Ablation Analysis of Graph Structure, Embeddings, and Attention

empirical result

An ablation study evaluated the relative contribution of each architectural component of GDN by comparing the full model against three stripped variants on SWaT and WADI:

-TOPK: Substitutes the learned sparse directed graph structure with a static, complete graph connecting each node to all other nodes.
-EMB: Removes sensor embeddings from the attention feature representation, setting $\mathbf{g}_i = \mathbf{W}\mathbf{x}_i$ .
-ATT: Replaces graph attention aggregation with uniform, unweighted averaging across all neighbors.

	SWaT			WADI
Method	Prec (%)	Rec (%)	F1	Prec (%)	Rec (%)	F1
GDN	99.35	68.12	0.81	97.50	40.19	0.57
- TOPK	97.41	64.70	0.78	92.21	35.12	0.51
- EMB	92.31	61.25	0.76	91.86	33.49	0.49
- ATT	71.05	65.06	0.68	61.33	38.85	0.48

The ablation results demonstrate:

Learning a sparse graph via TopK selection improves performance over a dense complete graph, with a larger benefit on the higher-dimensional WADI dataset (F1 drops from 0.57 to 0.51 without TopK structure learning).
Incorporating sensor embeddings into the attention mechanism increases F1 from 0.76 to 0.81 on SWaT and from 0.49 to 0.57 on WADI.
Disabling the attention mechanism (-ATT) causes the largest performance degradation on both datasets (F1 drops to 0.68 on SWaT and 0.48 on WADI), showing that treating heterogeneous sensor neighbors with uniform weights introduces noise.

Knowl 8 — Model Interpretability and Anomaly Root-Cause Localization
model/method
GDN provides interpretability and root-cause localization across four distinct levels:
1. Sensor Behavior Clustering: Two-dimensional t-SNE projections of the trained sensor embeddings $\mathbf{v}_i \in \mathbb{R}^d$ show clustering of sensors that measure identical physical indicators or serve analogous functions across water distribution subsystems.
2. Sensor Deviation Localization: The individual normalized anomaly score $a_i(t) = \frac{\text{Err}_i(t) - \tilde{\mu}_i}{\tilde{\sigma}_i}$ pinpoints the specific sensor exhibiting maximum deviation from expected relationships during an anomaly.
3. Relational Context via Attention Weights: The learned attention coefficients $\alpha_{i,j}$ from neighboring nodes $j \in \mathcal{N}(i)$ identify which correlated physical variables were expected to govern sensor $i$ 's dynamics.
4. Mechanism Explanation via Observed vs. Predicted Traces: By overlaying observed time series $s_i^{(t)}$ against predicted behavior $\hat{s}_i^{(t)}$ , GDN explains the nature of anomalous failures. For example, during a cyber-physical attack where flow sensor 1_FIT_001_PV in WADI is manipulated with in-range false readings, GDN identifies valve status sensor 1_MV_001_STATUS as the primary deviator: GDN predicts that 1_MV_001_STATUS should increase in tandem with 1_FIT_001_PV, and flags an anomaly when 1_MV_001_STATUS remains constant despite false increases in flow rate.

Coverage note — None was omitted; all key architectural components, mathematical formulations, experimental settings, empirical comparisons, ablation studies, and explainability mechanisms are captured in the knowls.
