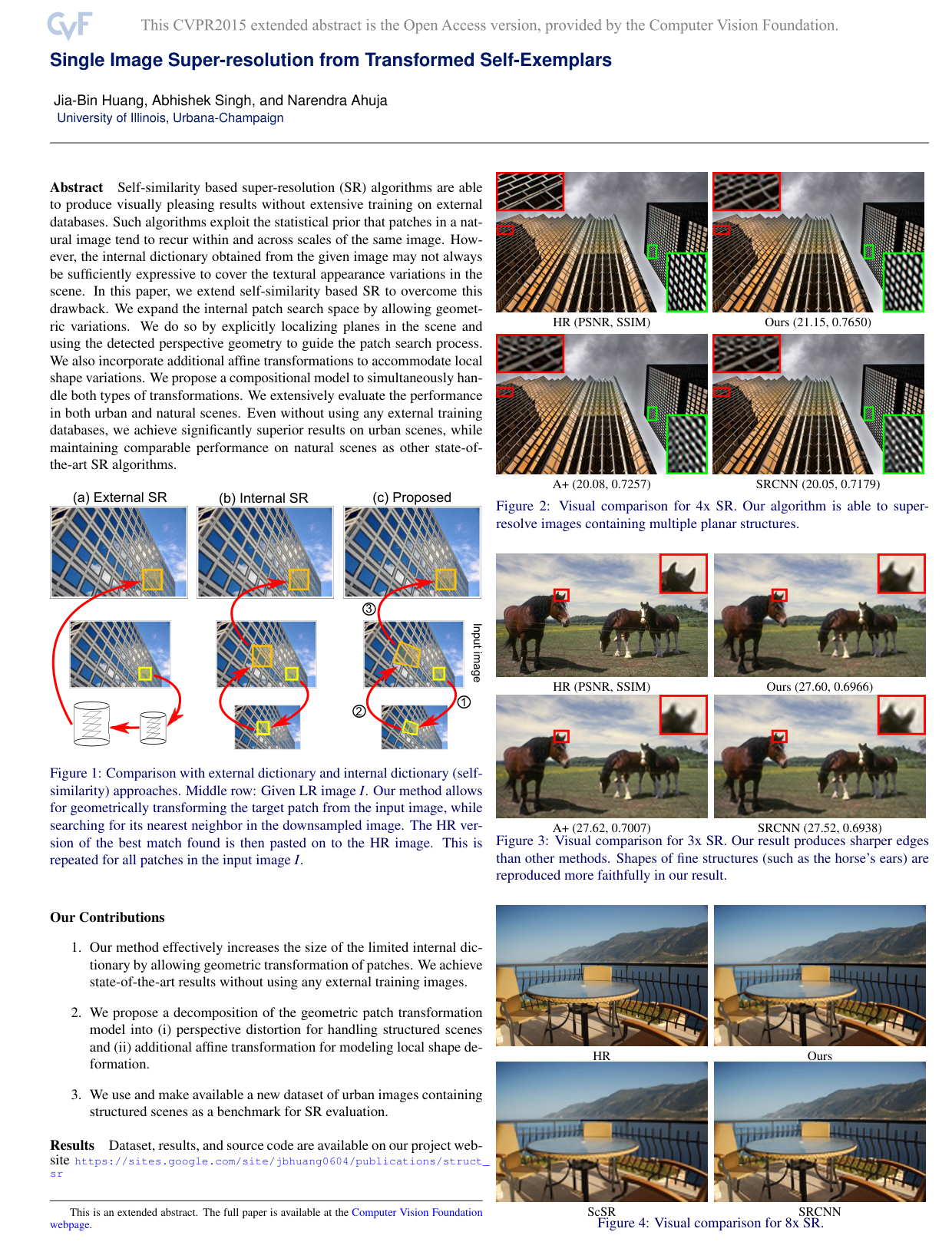

Single image super-resolution from transformed self-exemplars
Jia-Bin HuangAbhishek SinghNarendra Ahuja
Develops a self-similarity super-resolution method that expands internal patch matching through perspective and affine transformations, delivering state-of-the-art reconstruction on structured scenes without requiring external training datasets.
Researchers developed an improved approach to single-image super-resolution that builds solely on recurring patches inside the input image rather than relying on large external training sets. Conventional self-similarity methods often produce pleasing results yet fall short when the internal collection of patches cannot capture the range of textures and shapes present in structured scenes such as buildings or cityscapes. The work therefore set out to enlarge the effective internal dictionary by allowing controlled geometric changes to candidate patches while preserving the advantage of operating without outside data.
The authors first detect planar surfaces and their perspective geometry in the scene, then apply those transformations to guide patch search across scales. They further compose these perspective corrections with additional affine adjustments that accommodate small local shape variations. Performance was assessed on both urban images containing strong planar structure and on natural scenes, using quantitative measures such as peak signal-to-noise ratio and structural similarity together with visual inspection at magnification factors of three, four, and eight.
The method yields noticeably higher fidelity on urban scenes, improving peak signal-to-noise ratio by roughly one decibel over leading external-dictionary techniques while producing sharper edges and more faithful reproduction of fine architectural details. On natural scenes the results remain comparable to state-of-the-art alternatives. The approach also generates a new public benchmark of urban images that supports reproducible evaluation of super-resolution algorithms.
These outcomes indicate that modest geometric expansion of an image’s own patch collection can rival or exceed the performance of far larger external databases when the scene contains regular structure, thereby lowering data and compute requirements for practical deployment. The gains are most pronounced precisely where existing internal methods have been weakest, suggesting immediate utility in applications such as urban mapping or architectural photography.
Further validation on wider scene categories and integration with lightweight external priors would strengthen generalizability. The current evaluation is limited to the scenes and magnification factors shown; readers should therefore treat the reported margins as indicative rather than universal until larger-scale testing confirms consistency across varied imaging conditions.
- Paper: Learning a Deep Convolutional Network for Image Super-Resolution, Chao Dong et al. (2014). SRCNN established the foundational end-to-end convolutional framework for single-image super-resolution that the source paper and related geometric extensions build upon.
- Paper: Image Super-Resolution Using Deep Convolutional Networks, Chao Dong et al. (2014). Understanding this early convolutional super-resolution approach is a prerequisite for grasping how subsequent works expanded internal patch searches and spatial priors.
- Paper: An Iterative Image Registration Technique with an Application to Stereo Vision, B. D. Lucas et al. (1981). The classical iterative image registration and optical flow techniques described here underpin the geometric transformations and alignment procedures used in the source paper.
- Paper: Photo-Realistic Single Image Super-Resolution Using a Generative Adversarial Network, Christian Ledig et al. (2017). This work extends single-image super-resolution beyond PSNR-focused optimization by introducing generative adversarial networks and perceptual losses to synthesize photo-realistic textures.
- Paper: Enhanced Deep Residual Networks for Single Image Super-Resolution, Bee Lim et al. (2017). This paper continues the push for superior super-resolution performance by designing enhanced, deeper residual network architectures that surpass prior self-similarity and early CNN baselines.
- Paper: Accurate Image Super-Resolution Using Very Deep Convolutional Networks, Jiwon Kim et al. (2016). This research follows up on early SR networks by investigating the performance and scaling benefits of substantially deeper convolutional architectures.
- Paper: Real-Time Single Image and Video Super-Resolution Using an Efficient Sub-Pixel Convolutional Neural Network, Wenzhe Shi et al. (2016). This paper builds on standard super-resolution pipelines by introducing an efficient sub-pixel convolution layer that shifts computation to lower resolutions for real-time processing.
- Paper: Perceptual Losses for Real-Time Style Transfer and Super-Resolution, Justin Johnson et al. (2016). This work extends image reconstruction and super-resolution tasks by training feed-forward networks directly on feature-based perceptual losses rather than pixel-wise differences.
- Paper: Accelerating the Super-Resolution Convolutional Neural Network, Chao Dong et al. (2016). This paper continues the exploration of efficient super-resolution architectures by redesigning convolutional layers to drastically accelerate inference speeds.
- Paper: Image Super-Resolution Using Very Deep Residual Channel Attention Networks, Yulun Zhang et al. (2018). This study advances super-resolution even further by introducing very deep residual networks equipped with channel attention mechanisms to selectively emphasize high-frequency features.
- Paper: Residual Dense Network for Image Super-Resolution, Yulun Zhang et al. (2018). This paper extends deep image restoration by proposing residual dense networks that fully exploit hierarchical features across all layers for improved super-resolution.
