Second-Order Attention Network for Single Image Super-Resolution

Tao DaiJianrui CaiYongbing ZhangShutao XiaLei Zhang

article2019CVPR1,840 citations

Proposes a second-order attention network that exploits higher-order feature statistics and non-local spatial context to capture inter-channel dependencies, achieving superior image super-resolution performance over standard deep CNNs.

Listen

Single image super-resolution—the process of reconstructing high-resolution images from low-resolution inputs—is a fundamental challenge in digital imaging and computer vision. While deep convolutional neural networks have achieved strong results in this area, existing approaches have largely relied on building deeper or wider networks. In doing so, they have neglected intermediate feature correlations and failed to fully exploit information directly available in the original low-resolution inputs, constraining overall image restoration quality.

The article evaluates whether incorporating second-order feature statistics and regional spatial relationships into a deep network can improve reconstruction accuracy and visual quality. To demonstrate this, the authors develop a novel architecture termed the Second-order Attention Network (SAN).

The approach introduces a second-order channel attention mechanism that adaptively rescales feature channels by computing covariance statistics rather than traditional first-order averages. To ensure computational efficiency during graphics processor training, the method incorporates a fast iterative matrix normalization technique. The architecture also introduces a non-locally enhanced residual group structure that uses regional non-local operations to capture wide spatial context, paired with shared skip connections that bypass low-frequency information from the low-resolution input. The authors trained the network on 800 high-resolution images from the standard DIV2K dataset and evaluated performance across five standard benchmark datasets under bicubic and blur-downscale degradation models across multiple scaling factors.

The experimental findings show that the proposed network consistently outperforms state-of-the-art super-resolution methods across the evaluated benchmarks. Ablation experiments demonstrate that second-order channel attention delivers measurable accuracy improvements over first-order alternatives, and the regional non-local design effectively boosts reconstruction performance. In visual assessments, the model produces sharper structural boundaries and restores complex high-frequency details with fewer blurring artifacts compared to existing techniques. Furthermore, the model achieves these gains while requiring approximately 15.7 million parameters, fewer than comparable leading models such as RDN (22.3 million) and EDSR (43 million).

These results demonstrate that capturing higher-order feature statistics and spatial context offers a more parameter-efficient path to enhancing image quality than simply expanding network depth. For organizations deploying imaging pipelines, this approach reduces model size trade-offs while improving visual fidelity, particularly in texture-rich scenes. However, while the model excels on high-order patterns like textures, performance gains were less pronounced on simple geometric edges compared to select channel-attention models. Decision-makers should evaluate this architecture for tasks requiring fine detail recovery, while validating performance against specific real-world operational degradation types.

Alibaba Group Hong Kong Polytechnic University Peng Cheng Laboratory Tsinghua University architecture designs convolutional neural networks image super-resolution second-order attention network single image super-resolution local-source residual attention

daitao/SAN Dai et al (2019).pdf

Paper: Image Super-Resolution Using Very Deep Residual Channel Attention Networks, Yulun Zhang et al. (2018). RCAN establishes the residual-group architecture and first-order channel-attention baseline that SAN modifies with covariance-based, second-order attention.

No sufficiently relevant recommendations were found.

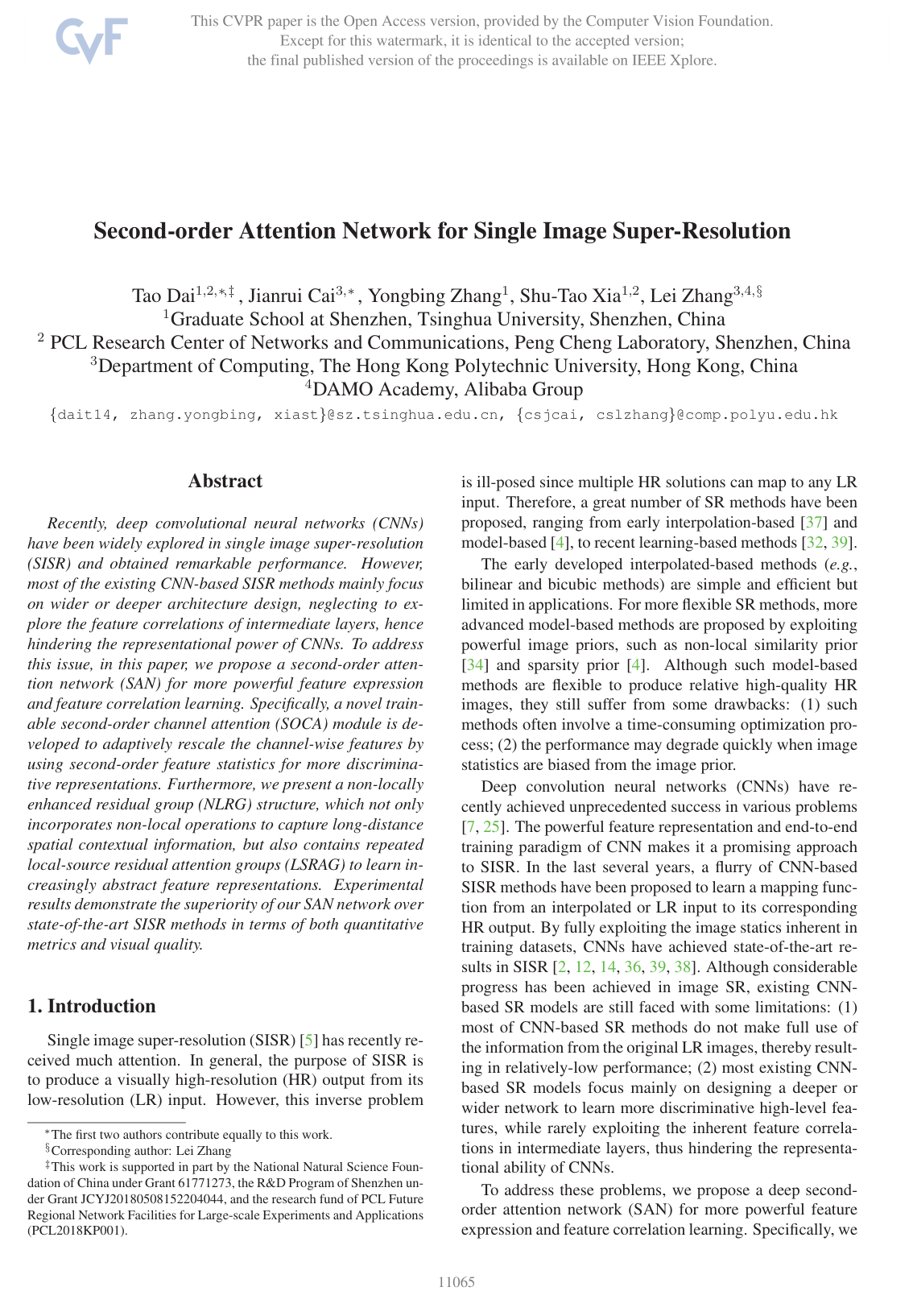

Cover for Second-Order Attention Network for Single Image Super-Resolution

Abstract

Recently, deep convolutional neural networks (CNNs) have been widely explored in single image super-resolution (SISR) and obtained remarkable performance. However, most of the existing CNN-based SISR methods mainly focus on wider or deeper architecture design, neglecting to explore the feature correlations of intermediate layers, hence hindering the representational power of CNNs. To address this issue, in this paper, we propose a second-order attention network (SAN) for more powerful feature expression and feature correlation learning. Specifically, a novel trainable second-order channel attention (SOCA) module is developed to adaptively rescale the channel-wise features by using second-order feature statistics for more discriminative representations. Furthermore, we present a non-locally enhanced residual group (NLRG) structure, which not only incorporates non-local operations to capture long-distance spatial contextual information, but also contains repeated local-source residual attention groups (LSRAG) to learn increasingly abstract feature representations. Experimental results demonstrate the superiority of our SAN network over state-of-the-art SISR methods in terms of both quantitative metrics and visual quality.

1. Introduction
2. Related Work
3. Second-order Attention Network (SAN)
3.1. Network Framework
3.2. Non-locally Enhanced Residual Group (NLRG)
3.3. Second-order Channel Attention (SOCA)
3.4. Covariance Normalization Acceleration
3.5. Implementations
3.6. Discussions
4. Experiments
4.1. Setup
4.2. Ablation Study
4.3. Results with Bicubic Degradation (BI)
4.4. Results with Blur-downscale Degradation (BD)
4.5. Model Size Analyses
5. Conclusions
References

Knowls

Knowl 1 — Second-order Attention Network (SAN) Architecture for SISR
model/method
The Second-order Attention Network (SAN) is an end-to-end deep convolutional neural network for single image super-resolution (SISR) consisting of four functional stages: shallow feature extraction, deep feature extraction via a Non-locally Enhanced Residual Group (NLRG), an upscale module, and an image reconstruction layer.

Given a low-resolution input image $I_{LR}$ , a single convolutional layer $H_{SF}(\cdot)$ with $C = 64$ filters of size $3 \times 3$ extracts an initial shallow feature map: $F_0 = H_{SF}(I_{LR})$

The shallow feature $F_0$ is fed into the NLRG module $H_{NLRG}(\cdot)$ to extract high-level discriminative deep representations: $F_{DF} = H_{NLRG}(F_0)$

The extracted deep feature $F_{DF}$ is upscaled to the target spatial resolution using an efficient sub-pixel convolution module $H_{\uparrow}(\cdot)$ (ESPCNN): $F_{\uparrow} = H_{\uparrow}(F_{DF})$

Finally, a reconstruction convolutional layer $H_R(\cdot)$ with 3 filters of size $3 \times 3$ transforms the upscaled feature into the final super-resolved RGB image $I_{SR} = H_{SAN}(I_{LR})$ : $I_{SR} = H_R(F_{\uparrow}) = H_{SAN}(I_{LR})$

The network parameters $\Theta$ are optimized across $N$ training pairs $\{I_{LR}^i, I_{HR}^i\}_{i=1}^N$ using the $L_1$ loss function: $\mathcal{L}(\Theta) = \frac{1}{N} \sum_{i=1}^N \|H_{SAN}(I_{LR}^i) - I_{HR}^i\|_1$

Training is performed with the ADAM optimizer ( $\beta_1 = 0.9, \beta_2 = 0.99, \epsilon = 10^{-8}$ ) using minibatches of 8 color patches of size $48 \times 48$ , an initial learning rate of $10^{-4}$ reduced by half every 200 epochs, and data augmentation via random rotations ( $90^\circ, 180^\circ, 270^\circ$ ) and horizontal flips.
Knowl 2 — Second-order Channel Attention (SOCA) Mechanism
model/method
The Second-Order Channel Attention (SOCA) module adaptively rescales channel-wise feature responses by exploiting second-order feature statistics rather than first-order global pooling, enhancing the network's discriminative representation of high-frequency textures.

Given an intermediate feature map $F = [f_1, f_2, \dots, f_C] \in \mathbb{R}^{H \times W \times C}$ with $C$ channels and spatial dimensions $H \times W$ , $F$ is reshaped into a matrix $X \in \mathbb{R}^{C \times s}$ where $s = HW$ . The sample covariance matrix $\Sigma \in \mathbb{R}^{C \times C}$ is computed as: $\Sigma = X \bar{I} X^T$ where $\bar{I} = \frac{1}{s}\left(I - \frac{1}{s}\mathbf{1}\right)$ , with $I$ being the $s \times s$ identity matrix and $\mathbf{1}$ the $s \times s$ matrix of all ones.

Covariance normalization is applied to nonlinearly scale the eigenvalues $\Lambda = \operatorname{diag}(\lambda_1, \dots, \lambda_C)$ of $\Sigma = U\Lambda U^T$ (with orthogonal matrix $U$ ) using a power $\alpha = 1/2$ : $\hat{Y} = \Sigma^{1/2} = U \Lambda^{1/2} U^T$

Global Covariance Pooling (GCP) shrinks the normalized covariance matrix $\hat{Y} = [y_1, \dots, y_C]$ into a channel descriptor vector $z \in \mathbb{R}^{C \times 1}$ , where the $c$ -th channel statistic is the column-wise mean: $z_c = H_{GCP}(y_c) = \frac{1}{C} \sum_{i=1}^C y_c(i)$

A gating mechanism with channel reduction ratio $r = 16$ computes the final channel attention weights $w \in \mathbb{R}^{C \times 1}$ : $w = f(W_U \delta(W_D z))$ where $W_D \in \mathbb{R}^{\frac{C}{r} \times C}$ and $W_U \in \mathbb{R}^{C \times \frac{C}{r}}$ are convolutional weight matrices with $1 \times 1$ filters, $\delta(\cdot)$ is the ReLU activation function, and $f(\cdot)$ is the sigmoid gating function.

The input channel feature maps are rescaled element-wise by the attention weights: $\hat{f}_c = w_c \cdot f_c, \quad c \in \{1, \dots, C\}$
Knowl 3 — Covariance Normalization Acceleration via Newton-Schulz Iteration
algorithm
Because exact eigenvalue decomposition (EIG) on GPU platforms is computationally slow, the matrix square root normalization $\Sigma^{1/2}$ in the second-order channel attention (SOCA) module is approximated iteratively using the Newton-Schulz iterative method.

To ensure convergence, the covariance matrix $\Sigma \in \mathbb{R}^{C \times C}$ is pre-normalized by its trace $\operatorname{tr}(\Sigma) = \sum_{i=1}^C \lambda_i$ , ensuring that $\|\hat{\Sigma} - I\|_2 < 1$ . After $N$ iterations (where $N \le 5$ in practice), post-compensation restores the data magnitude.
Input: Sample covariance matrix $\Sigma \in \mathbb{R}^{C \times C}$ , number of iterations $N \le 5$
Output: Normalized covariance matrix $\hat{Y} \approx \Sigma^{1/2} \in \mathbb{R}^{C \times C}$
1. Compute trace: $t = \operatorname{tr}(\Sigma) = \sum_{i=1}^C \Sigma_{i,i}$
2. Pre-normalize covariance matrix: $Y_0 = \frac{1}{t} \Sigma$
3. Initialize inverse approximation: $Z_0 = I_C$ (where $I_C$ is the $C \times C$ identity matrix)
4. for $n = 1$ to $N$ do:
5. $Y_n = \frac{1}{2} Y_{n-1} (3 I_C - Z_{n-1} Y_{n-1})$
6. $Z_n = \frac{1}{2} (3 I_C - Z_{n-1} Y_{n-1}) Z_{n-1}$
7. end for
8. Compensate scale: $\hat{Y} = \sqrt{t} Y_N$
9. return $\hat{Y}$
Knowl 4 — Share-Source Residual Group (SSRG) with Share-Source Skip Connections
model/method
The Share-Source Residual Group (SSRG) structure stacks $G = 20$ Local-Source Residual Attention Groups (LSRAG) coupled with share-source skip connections (SSC) to ease information flow and bypass abundant low-frequency details from the original low-resolution input.

Let $F_0$ denote the shallow feature extracted from the input image. The feature transformation for the $g$ -th LSRAG ( $g \in \{1, \dots, G\}$ ) is defined by: $F_g = W_{SSC} F_0 + H_g(F_{g-1})$ where $H_g(\cdot)$ denotes the operation of the $g$ -th LSRAG, $F_{g-1}$ and $F_g$ are its input and output, and $W_{SSC}$ is a learnable convolutional weight matrix. $W_{SSC}$ is initialized to 0 and gradually learns to weight the contribution of the shallow feature $F_0$ .

After passing through all $G$ groups, the deep feature $F_{DF}$ produced by the SSRG is obtained as: $F_{DF} = W_{SSC} F_0 + F_G$

This continuous share-source routing prevents gradient vanishing and exploding in networks with more than 400 convolutional layers while enabling the deeper blocks to concentrate on residual high-frequency details.
Knowl 5 — Region-Level Non-Local (RL-NL) Module
model/method
The Region-Level Non-Local (RL-NL) module captures spatial correlations and self-similarities within localized image regions while avoiding the quadratic computational and memory footprint of full-image non-local operations.

Given an intermediate feature map of spatial dimensions $H \times W$ with $C$ channels, the RL-NL module partitions the feature map into a uniform grid of $k \times k$ rectangular regions (yielding $k^2$ sub-blocks of spatial size $\frac{H}{k} \times \frac{W}{k}$ with $C$ channels, where $k = 2$ ). Non-local self-attention operations are then executed independently within each sub-block.

Two RL-NL modules ( $k = 2$ ) are incorporated into the Non-locally Enhanced Residual Group (NLRG): one immediately before the Share-Source Residual Group (SSRG) to enrich shallow representations with spatial structure cues, and one immediately following the SSRG to integrate spatial contextual information into the deep features before upscaling.
Knowl 6 — Local-Source Residual Attention Group (LSRAG)
model/method
A Local-Source Residual Attention Group (LSRAG) serves as the primary building unit of the Share-Source Residual Group (SSRG). Each of the $G = 20$ LSRAGs contains $M = 10$ simplified residual blocks followed by a single Second-Order Channel Attention (SOCA) module.

Within the $g$ -th LSRAG, the $m$ -th residual block ( $m \in \{1, \dots, M\}$ ) transforms its input $F_{g,m-1}$ according to: $F_{g,m} = H_{g,m}(F_{g,m-1})$ where each simplified residual block consists of two $3 \times 3$ convolutional layers with $C = 64$ filters separated by a ReLU activation function.

A local-source skip connection combines the group input $F_{g-1}$ with the output of the final residual block $F_{g,M}$ : $F_g = W_g F_{g-1} + F_{g,M}$ where $W_g$ is a learnable weighting parameter. The resulting feature is then recalibrated by the SOCA module at the tail of the LSRAG.

Knowl 7 — Ablation Study on Architecture Modules

data/table

An ablation study on the Set5 dataset ( $4\times$ super-resolution evaluated after $5.6 \times 10^5$ training iterations) isolates the individual and cumulative performance contributions of the Region-Level Non-Local (RL-NL) modules, the Share-Source Skip Connection (SSC), First-Order Channel Attention (FOCA), and Second-Order Channel Attention (SOCA).

Module	Base	$R_a$	$R_b$	$R_c$	$R_d$	$R_e$	$R_f$	$R_g$	$R_h$	$R_i$
RL-NL (before SSRG)		✓					✓	✓	✓	✓
RL-NL (after SSRG)			✓				✓	✓	✓	✓
Share-source skip connection (SSC)				✓				✓	✓	✓
First-order channel attention (FOCA)					✓				✓
Second-order channel attention (SOCA)						✓				✓
PSNR (dB) on Set5 ( $4\times$ )	32.00	32.04	32.06	32.07	32.12	32.16	32.08	32.10	32.14	32.20

The baseline model (Base) contains 20 LSRAGs and 10 residual blocks per group (>400 convolutional layers) with conventional skip connections, yielding 32.00 dB. Adding individual modules increases PSNR to 32.04 dB ( $R_a$ ), 32.06 dB ( $R_b$ ), and 32.07 dB ( $R_c$ ). Second-order channel attention ( $R_e$ , 32.16 dB) outperforms first-order channel attention ( $R_d$ , 32.12 dB). Combining all proposed modules ( $R_i$ ) achieves the highest PSNR of 32.20 dB.

Knowl 8 — Quantitative Evaluation under Bicubic Degradation

data/table

Quantitative benchmark comparison under standard Bicubic (BI) downscaling degradation across five benchmark datasets (Set5, Set14, BSD100, Urban100, Manga109) for scaling factors $2\times, 3\times, 4\times,$ and $8\times$ . Evaluation metrics are PSNR (dB) and SSIM evaluated on the luminance (Y) channel of the YCbCr color space. SAN+ denotes the model evaluated with self-ensemble.

Method	Scale	Set5	Set14	BSD100	Urban100	Manga109
		PSNR / SSIM	PSNR / SSIM	PSNR / SSIM	PSNR / SSIM	PSNR / SSIM
Bicubic	$2\times$	33.66 / 0.9299	30.24 / 0.8688	29.56 / 0.8431	26.88 / 0.8403	30.80 / 0.9339
RCAN	$2\times$	38.27 / 0.9614	34.11 / 0.9216	32.41 / 0.9026	33.34 / 0.9384	39.43 / 0.9786
SAN	$2\times$	38.31 / 0.9620	34.07 / 0.9213	32.42 / 0.9028	33.10 / 0.9370	39.32 / 0.9792
SAN+	$2\times$	38.35 / 0.9619	34.44 / 0.9244	32.50 / 0.9038	33.73 / 0.9416	39.72 / 0.9797
Bicubic	$3\times$	30.39 / 0.8682	27.55 / 0.7742	27.21 / 0.7385	24.46 / 0.7349	26.95 / 0.8556
EDSR	$3\times$	34.65 / 0.9280	30.52 / 0.8462	29.25 / 0.8093	28.80 / 0.8653	34.17 / 0.9476
RDN	$3\times$	34.71 / 0.9296	30.57 / 0.8468	29.26 / 0.8093	28.80 / 0.8653	34.13 / 0.9484
RCAN	$3\times$	34.74 / 0.9299	30.64 / 0.8481	29.32 / 0.8111	29.08 / 0.8702	34.43 / 0.9498
SAN	$3\times$	34.75 / 0.9300	30.59 / 0.8476	29.33 / 0.8112	28.93 / 0.8671	34.30 / 0.9494
SAN+	$3\times$	34.89 / 0.9306	30.77 / 0.8498	29.38 / 0.8121	29.29 / 0.8730	34.74 / 0.9512
Bicubic	$4\times$	28.42 / 0.8104	26.00 / 0.7027	25.96 / 0.6675	23.14 / 0.6577	24.89 / 0.7866
EDSR	$4\times$	32.46 / 0.8968	28.80 / 0.7876	27.71 / 0.7420	26.64 / 0.8033	31.02 / 0.9148
RDN	$4\times$	32.47 / 0.8990	28.81 / 0.7871	27.72 / 0.7419	26.61 / 0.8028	31.00 / 0.9151
RCAN	$4\times$	32.62 / 0.9001	28.86 / 0.7888	27.76 / 0.7435	26.82 / 0.8087	31.21 / 0.9172
SAN	$4\times$	32.64 / 0.9003	28.92 / 0.7888	27.78 / 0.7436	26.79 / 0.8068	31.18 / 0.9169
SAN+	$4\times$	32.70 / 0.9013	29.05 / 0.7921	27.86 / 0.7457	27.23 / 0.8169	31.66 / 0.9222
Bicubic	$8\times$	24.40 / 0.6580	23.10 / 0.5660	23.67 / 0.5480	20.74 / 0.5160	21.47 / 0.6500
EDSR	$8\times$	26.96 / 0.7762	24.91 / 0.6420	24.81 / 0.5985	22.51 / 0.6221	24.69 / 0.7841
DBPN	$8\times$	27.21 / 0.7840	25.13 / 0.6480	24.88 / 0.6010	22.73 / 0.6312	25.14 / 0.7987
SAN	$8\times$	27.22 / 0.7829	25.14 / 0.6476	24.88 / 0.6011	22.70 / 0.6314	24.85 / 0.7906
SAN+	$8\times$	27.30 / 0.7849	25.23 / 0.6493	24.97 / 0.6031	22.91 / 0.6369	25.17 / 0.7964

SAN+ achieves the highest quantitative scores across all scales and datasets. SAN demonstrates advantages on datasets rich in high-order texture patterns (Set5, Set14, BSD100), while performing competitively with first-order attention methods on datasets dominated by repeated sharp edges (Urban100, Manga109).

Knowl 9 — Quantitative Evaluation under Blur-Downscale Degradation

data/table

Quantitative comparison under the Blur-Downscale (BD) degradation model for $3\times$ super-resolution across Set5, Set14, BSD100, Urban100, and Manga109 datasets. PSNR and SSIM are evaluated on the Y channel in YCbCr space.

Method	Set5	Set14	BSD100	Urban100	Manga109
	PSNR / SSIM	PSNR / SSIM	PSNR / SSIM	PSNR / SSIM	PSNR / SSIM
Bicubic	28.78 / 0.8308	26.38 / 0.7271	26.33 / 0.6918	23.52 / 0.6862	25.46 / 0.8149
SPMSR	32.21 / 0.9001	28.89 / 0.8105	28.13 / 0.7740	25.84 / 0.7856	29.64 / 0.9003
SRCNN	32.05 / 0.8944	28.80 / 0.8074	28.13 / 0.7736	25.70 / 0.7770	29.47 / 0.8924
FSRCNN	26.23 / 0.8124	24.44 / 0.7106	24.86 / 0.6832	22.04 / 0.6745	23.04 / 0.7927
VDSR	33.25 / 0.9150	29.46 / 0.8244	28.57 / 0.7893	26.61 / 0.8136	31.06 / 0.9234
IRCNN	33.38 / 0.9182	29.63 / 0.8281	28.65 / 0.7922	26.77 / 0.8154	31.15 / 0.9245
SRMD	34.01 / 0.9242	30.11 / 0.8364	28.98 / 0.8009	27.50 / 0.8370	32.97 / 0.9391
RDN	34.58 / 0.9280	30.53 / 0.8447	29.23 / 0.8079	28.46 / 0.8582	33.97 / 0.9465
RCAN	34.70 / 0.9288	30.63 / 0.8462	29.32 / 0.8093	28.81 / 0.8645	34.38 / 0.9483
SAN	34.75 / 0.9290	30.68 / 0.8466	29.33 / 0.8101	28.83 / 0.8646	34.46 / 0.9487
SAN+	34.86 / 0.9297	30.77 / 0.8481	29.39 / 0.8112	29.03 / 0.8674	34.76 / 0.9501

SAN consistently outperforms all compared methods across all five datasets under the BD degradation setting without requiring self-ensemble, achieving up to a 0.37 dB to 0.49 dB PSNR gain over RDN on the Urban100 and Manga109 benchmarks.

Knowl 10 — Model Complexity and Parameter Efficiency Analysis

data/table

Comparison of parameter count (in millions/thousands) and reconstruction performance (PSNR in dB on Set5 for $2\times$ super-resolution) between SAN and contemporary deep CNN super-resolution architectures.

Metric	EDSR	MemNet	NLRG	DBPN	RDN	RCAN	SAN
Parameters	43M	677k	330k	10M	22.3M	16M	15.7M
PSNR (dB)	38.11	37.78	38.00	38.09	38.24	38.27	38.31

SAN achieves a higher PSNR (38.31 dB) than EDSR (38.11 dB, 43M parameters), RDN (38.24 dB, 22.3M parameters), and RCAN (38.27 dB, 16.0M parameters) while utilizing fewer parameters (15.7M), demonstrating superior parameter efficiency and representational capacity.

Coverage note — No substantial contributed material was omitted. All structural modules (SAN architecture, SOCA, SSRG, RL-NL, LSRAG), the Newton-Schulz matrix square root acceleration algorithm, and full quantitative evaluations (ablation studies, BI and BD degradation benchmarks, and parameter analysis) are completely covered.
