NetVLAD: CNN Architecture for Weakly Supervised Place Recognition

Relja ArandjelovićPetr GronatAkihiko ToriiTomas PajdlaJosef Sivic

article2015CVPR3,274 citations

Introduces NetVLAD, a differentiable aggregation layer and weakly supervised ranking loss that allow standard convolutional neural networks to be trained end-to-end for visual place recognition and image retrieval.

Listen

The research addresses the challenge of large-scale visual place recognition, in which a query photograph must be matched to its correct geographic location within a database of millions of images despite large changes in viewpoint, illumination, season, and scene content such as moving vehicles or people. Accurate, efficient recognition supports applications including autonomous driving, augmented reality, and archival image geolocation, yet existing hand-engineered descriptors and off-the-shelf convolutional networks still fall short on challenging benchmarks.

The work set out to create a convolutional architecture that can be trained end-to-end directly for place recognition, rather than relying on features optimized for unrelated tasks such as object classification.

The authors replaced the final pooling stage of standard networks with a new, differentiable NetVLAD layer that aggregates mid-level convolutional features in a manner inspired by the Vector of Locally Aggregated Descriptors (VLAD) representation. They trained the resulting networks on large collections of Google Street View Time Machine imagery using a weakly supervised ranking loss that requires only approximate GPS labels. Training and evaluation used geographically disjoint splits of the Pittsburgh and Tokyo datasets containing up to 250,000 database images and thousands of queries.

The trained NetVLAD representations raised recall@1 by roughly 47 percent relative to the best off-the-shelf convolutional descriptors on the Pittsburgh benchmark and established new state-of-the-art results for compact descriptors on the Tokyo 24/7 benchmark, which includes night and sunset queries. The same networks also improved mean average precision by about 20 percent relative on the Oxford 5k image-retrieval task when reduced to 256 dimensions. VLAD-style aggregation consistently outperformed simple max pooling, and training the pooling layer itself produced the largest single gain.

These gains demonstrate that task-specific training on weakly labeled, temporally diverse street-level imagery yields descriptors that are both more discriminative and more robust to real-world appearance change than generic features. The resulting compact vectors enable faster and more reliable retrieval while remaining compatible with existing indexing methods.

The NetVLAD layer and the weakly supervised ranking loss are modular components that can be inserted into other convolutional architectures or applied to additional ranking problems that possess only coarse labels. Further gains are likely from training on more diverse geographic and scene content and from joint optimization with dimensionality-reduction stages.

The primary limitations are that all training data came from urban street-level panoramas, so generalization to non-urban or indoor environments remains untested, and modest overfitting was observed when lower network layers were updated. Results are nevertheless consistent across multiple datasets and architectures, supporting high confidence in the reported improvements for the evaluated conditions.

CNRS Czech Technical University in Prague Ecole Normale Supérieure INRIA Institute of Science Tokyo backpropagation algorithm convolutional neural networks image representations NetVLAD Weakly Supervised Ranking Loss Google Street View Time Machine

arXiv: 1511.07247 relja/netvlad

Paper: ImageNet Classification with Deep Convolutional Neural Networks, Alex Krizhevsky et al. (2012). Reading the foundational ImageNet paper helps understand the standard convolutional network backbones that NetVLAD adapts for end-to-end place recognition.
Paper: Visual categorization with bags of keypoints, Gabriella Csurka et al. (2004). Understanding classic bag-of-features and VLAD representations provides essential context for NetVLAD's generalized aggregation layer.

No sufficiently relevant recommendations were found.

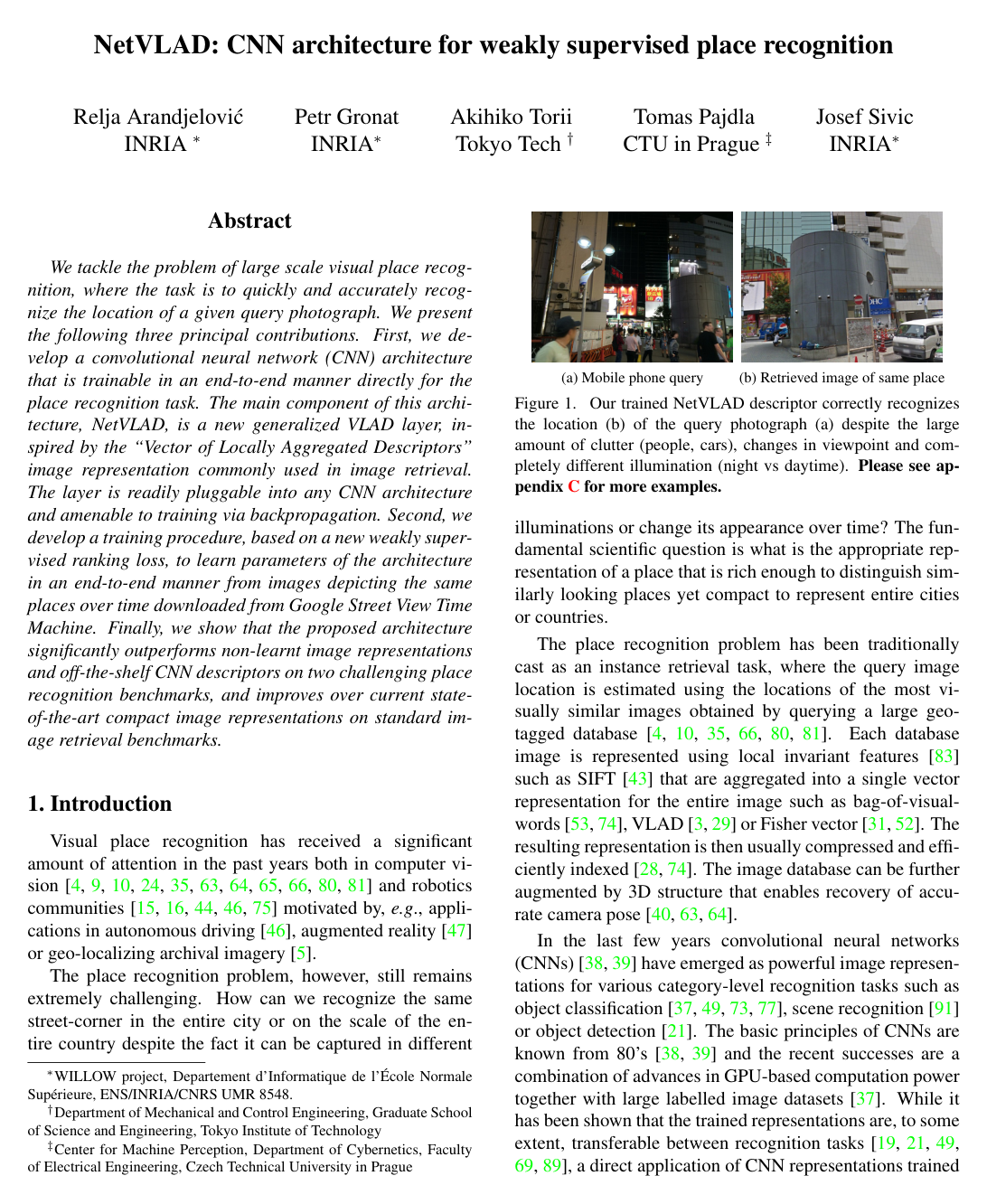

Cover for NetVLAD: CNN Architecture for Weakly Supervised Place Recognition

Abstract

We tackle the problem of large scale visual place recognition, where the task is to quickly and accurately recognize the location of a given query photograph. We present the following three principal contributions. First, we develop a convolutional neural network (CNN) architecture that is trainable in an end-to-end manner directly for the place recognition task. The main component of this architecture, NetVLAD, is a new generalized VLAD layer, inspired by the "Vector of Locally Aggregated Descriptors" image representation commonly used in image retrieval. The layer is readily pluggable into any CNN architecture and amenable to training via backpropagation. Second, we develop a training procedure, based on a new weakly supervised ranking loss, to learn parameters of the architecture in an end-to-end manner from images depicting the same places over time downloaded from Google Street View Time Machine. Finally, we show that the proposed architecture significantly outperforms non-learnt image representations and off-the-shelf CNN descriptors on two challenging place recognition benchmarks, and improves over current state-of-the-art compact image representations on standard image retrieval benchmarks.

Topics

backpropagation algorithm convolutional neural networks image representations proposed architectures image features image descriptors architecture designs

Keywords

NetVLAD Weakly Supervised Ranking Loss Google Street View Time Machine VLAD Layer Place Recognition Convolutional Neural Network Train End‑to‑End Image Retrieval Apply PCA Compute Recall

1. Introduction
1.1. Related work
2. Method overview
3. Deep architecture for place recognition
3.1. NetVLAD: A Generalized VLAD layer ( $f_{VLAD}$ )
4. Learning from Time Machine data
5. Experiments
5.1. Datasets and evaluation methodology
5.2. Results and discussion
5.3. Qualitative evaluation
5.4. Image retrieval
6. Conclusions
Appendices
A. Implementation details
B. Google Street View Time Machine datasets
C. Additional results and discussions

Knowls

Knowl 1 — NetVLAD Differentiable Pooling Layer
model/method
The NetVLAD layer is a differentiable, trainable pooling layer that maps an input array of $N$ local $D$ -dimensional feature vectors $\{\mathbf{x}_i\}_{i=1}^N$ (extracted as the $H \times W \times D$ activation map of a CNN convolutional layer) into a fixed-length descriptor matrix $V \in \mathbb{R}^{K \times D}$ , where $K$ is the number of learned visual clusters.

The $(j, k)$ -th entry of $V$ , representing the $j$ -th feature dimension ( $j \in \{1, \dots, D\}$ ) for cluster $k$ ( $k \in \{1, \dots, K\}$ ), is computed as:

$V(j, k) = \sum_{i=1}^N \bar{a}_k(\mathbf{x}_i) (x_i(j) - c_k(j))$

where $\mathbf{c}_k \in \mathbb{R}^D$ is the cluster anchor center, $x_i(j)$ and $c_k(j)$ are the $j$ -th dimensions of descriptor $\mathbf{x}_i$ and anchor $\mathbf{c}_k$ , and $\bar{a}_k(\mathbf{x}_i)$ is a soft-assignment weight given by:

$\bar{a}_k(\mathbf{x}_i) = \frac{e^{\mathbf{w}_k^T \mathbf{x}_i + b_k}}{\sum_{k'=1}^K e^{\mathbf{w}_{k'}^T \mathbf{x}_i + b_{k'}}}$

The parameters $\{\mathbf{w}_k \in \mathbb{R}^D\}$ and $\{b_k \in \mathbb{R}\}$ are trainable filter weights and biases decoupled from the cluster anchor centers $\{\mathbf{c}_k\}$ .

The layer is implemented in standard CNN components as a $1 \times 1$ convolution with $K$ filters $\{\mathbf{w}_k\}$ and biases $\{b_k\}$ , followed by a channel-wise spatial softmax to compute assignment weights $\bar{a}_k(\mathbf{x}_i)$ , and a residual accumulation core that evaluates the sum of weighted differences $(\mathbf{x}_i - \mathbf{c}_k)$ . Following accumulation, the matrix $V$ undergoes intra-normalization (L2 normalization of each $D$ -dimensional column independently), is serialized into a $(K \times D)$ -dimensional vector, and undergoes global L2 normalization.
Knowl 2 — Weakly Supervised Triplet Ranking Loss
model/method
When training place recognition models using GPS-tagged database imagery where exact visual correspondences are unknown, supervision is weak: a query image $q$ has a set of potential positive images $\{p_i^q\}_{i=1}^{P}$ (images within a geographical proximity threshold of $q$ ) and a set of definite negative images $\{n_j^q\}_{j=1}^{M}$ (images beyond a separation threshold from $q$ ).

To handle the fact that not all geographically proximate images depict overlapping visual content, the training objective identifies the single best matching potential positive image $p_{i^*}^q$ under the current model parameters $\theta$ :

$p_{i^*}^q = \arg\min_{p_i^q} d_\theta(q, p_i^q)$

where $d_\theta(a, b) = \|f_\theta(a) - f_\theta(b)\|_2$ is the Euclidean distance between the L2-normalized image embeddings extracted by the network $f_\theta$ .

The weakly supervised ranking loss $L_\theta$ for a training tuple $(q, \{p_i^q\}, \{n_j^q\})$ is defined as:

$L_\theta = \sum_{j=1}^M \max\left(0, \, \min_{i} d_\theta^2(q, p_i^q) + m - d_\theta^2(q, n_j^q)\right)$

where $m > 0$ is a constant margin parameter. The loss incurs a penalty whenever the squared Euclidean distance between the query and a negative image fails to exceed the squared Euclidean distance to the closest positive by at least $m$ .
Knowl 3 — Cached Hard Negative Mining Algorithm for Weakly Supervised Triplet Ranking
algorithm
Training with weakly supervised tuples $(q, \{p_i^q\}, \{n_j^q\})$ involves mining hard negatives from thousands of candidates. Computing full forward passes through the CNN for all negative candidates at every SGD step is computationally prohibitive. To scale training, image representations are precomputed across the dataset and cached, and backpropagation is executed only on the mined hard negatives.
Input: Training query $q$ , potential positives $\{p_i^q\}$ , database pool $\mathcal{D}_{neg}$ (images $> 25\text{ m}$ from $q$ )
Input: Cache update interval $N_{cache}$ , margin $m$ , network parameters $\theta$
Output: Updated network parameters $\theta$
Initialize cache of image descriptors $\mathcal{C} = \{f_\theta(I) \mid I \in \mathcal{D}\}$
for each training iteration step $t$ do
    if $t \bmod N_{cache} == 0$ then
        Recompute descriptor cache $\mathcal{C}$ for all database and query images using $f_\theta$
    end if

    Compute exact representations $f_\theta(q)$ and $\{f_\theta(p_i^q)\}$ for current query and all potential positives
    Determine best matching positive: $p_{i^*}^q = \arg\min_{p_i^q} \|f_\theta(q) - f_\theta(p_i^q)\|_2$

    Sample a random candidate set $\mathcal{S} \subset \mathcal{D}_{neg}$ of size 1000
    Using cached representations from $\mathcal{C}$ , identify the 10 hardest negatives from $\mathcal{S}$ and include the 10 hardest negatives from the previous epoch

    Execute forward and backward passes on $q$ , $\{p_i^q\}$ , and the selected 10 hardest negatives $\{n_j^q\}_{j=1}^{10}$
    Compute loss: $L_\theta = \sum_{j=1}^{10} \max(0, \|f_\theta(q) - f_\theta(p_{i^*}^q)\|_2^2 + m - \|f_\theta(q) - f_\theta(n_j^q)\|_2^2)$
    Update parameters $\theta$ via SGD step
end for
Knowl 4 — NetVLAD Parameter Initialization and Decoupling
model/method
In standard VLAD, the soft-assignment weights $\bar{a}_k(\mathbf{x}_i) \propto e^{-\alpha \|\mathbf{x}_i - \mathbf{c}_k\|^2}$ couple the cluster center $\mathbf{c}_k$ used for soft assignment to the anchor used for residual difference $(\mathbf{x}_i - \mathbf{c}_k)$ . Expanding the squared Euclidean distance yields:

$\bar{a}_k(\mathbf{x}_i) = \frac{e^{\mathbf{w}_k^T \mathbf{x}_i + b_k}}{\sum_{k'} e^{\mathbf{w}_{k'}^T \mathbf{x}_i + b_{k'}}}$

where $\mathbf{w}_k = 2\alpha \mathbf{c}_k$ and $b_k = -\alpha \|\mathbf{c}_k\|^2$ .

NetVLAD decouples the parameters by treating $\{\mathbf{w}_k\}$ , $\{b_k\}$ , and $\{\mathbf{c}_k\}$ as three independent sets of learnable parameters for each cluster $k \in \{1, \dots, K\}$ . This decoupling provides additional flexibility: the anchor $\mathbf{c}_k$ acts as a local coordinate origin that can be shifted during end-to-end training to minimize residual inner products between non-matching images, while $\mathbf{w}_k$ and $b_k$ control the partitioning of the descriptor space.

To initialize NetVLAD to reproduce conventional VLAD prior to gradient descent:
1. Run $k$ -means clustering on conv5 local descriptors sampled from the training set to obtain initial cluster centers $\{\mathbf{c}_k\}_{k=1}^K$ .
2. Set $\mathbf{w}_k = 2\alpha \mathbf{c}_k$ and $b_k = -\alpha \|\mathbf{c}_k\|^2$ .
3. Choose the scalar scaling factor $\alpha > 0$ to be sufficiently large such that soft assignments are sparse; specifically, $\alpha$ is set so that the ratio of the largest to the second largest assignment weight $\bar{a}_k(\mathbf{x}_i)$ is on average 100 across descriptors.

Knowl 5 — Ablation of Training CNN Layer Depths for Place Recognition

data/table

The effect of varying the depth to which backpropagation updates network weights was evaluated using AlexNet on the Pitts30k-val dataset. Training the NetVLAD pooling layer while keeping convolutional layers fixed provides the largest individual performance gain over off-the-shelf baselines, while fine-tuning down to mid-level convolutional layers (conv3) yields the highest recognition accuracy. Backpropagating all the way to early layers (conv1/conv2) results in mild overfitting.

Lowest trained	$f_{\text{max}}$			$f_{\text{VLAD}}$
layer	r@1	r@5	r@10	r@1	r@5	r@10
none (off-the-shelf)	33.5	57.3	68.4	54.5	69.8	76.1
NetVLAD	—	—	—	80.5	91.8	95.2
conv5	63.8	83.8	89.0	84.1	94.6	95.5
conv4	62.1	83.6	89.2	85.1	94.4	96.1
conv3	69.8	86.7	90.3	85.5	94.6	96.5
conv2	69.1	87.6	91.5	84.5	94.6	96.6
conv1 (full)	68.5	86.2	90.8	84.2	94.7	96.1

In the table, Lowest trained layer indicates that weights in that layer and all layers above it are learned, while layers below remain fixed to their pretrained states. r@N denotes Recall@N (percentage of queries with at least one correct match within 25 meters among the top $N$ ranked candidates).

Knowl 6 — Necessity of Multi-Temporal Street View Time Machine Supervision

data/table

Training place recognition networks requires multi-temporal imagery depicting the same geographical locations across different times, seasons, and lighting conditions. When trained on images captured at the identical time, the network overfits to transient visual elements (such as parked cars or identical lighting) and fails to generalize to test queries.

Results are reported for Max-pooling ( $f_{\text{max}}$ ) with AlexNet evaluated on Pitts30k-val. In the Trained without Time Machine condition, training queries and database images are sampled from imagery captured at the same time. Training with multi-temporal Google Street View Time Machine data improves Recall@1 from 38.7% to 68.5%.

Knowl 7 — Visual Place Recognition Performance on Pitts250k and Tokyo 24/7
empirical result
The end-to-end trained NetVLAD architecture ( $f_{\text{VLAD}}$ with $K=64$ ) combined with PCA dimensionality reduction, whitening, and L2 normalization achieves state-of-the-art visual place recognition across large-scale benchmarks:
1. Pittsburgh (Pitts250k-test): End-to-end trained AlexNet with NetVLAD achieves 81.0% Recall@1, outperforming off-the-shelf AlexNet with standard VLAD (55.0% Recall@1) by a 47% relative margin. Trained VGG-16 with NetVLAD and PCA whitening achieves the top performance on Pitts250k.
2. Tokyo 24/7 (Day/Sunset/Night mobile queries vs. Day Street View database): Under severe day-to-night lighting and viewpoint shifts, VGG-16 NetVLAD with whitening sets the state of the art, outperforming previous hand-engineered methods (RootSIFT + VLAD + whitening and the view-synthesis approach of Torii et al., CVPR 2015).
3. Compactness vs. Max Pooling: 128-dimensional NetVLAD achieves 42.9% Recall@1 on Tokyo 24/7, exceeding the 38.4% Recall@1 of a 4-times larger 512-dimensional Max-pooling descriptor ( $f_{\text{max}}$ ).

Knowl 8 — Performance on Compact Image Retrieval Benchmarks

data/table

When trained on Pittsburgh street imagery, VGG-16 with NetVLAD and PCA whitening reduced to 256 dimensions achieves state-of-the-art retrieval accuracy (mean Average Precision, mAP) on standard object and instance retrieval benchmarks (Oxford 5k, Paris 6k, and Holidays).

Method	Oxford 5k		Paris 6k		Holidays
	full	crop	full	crop	orig	rot
Jégou and Zisserman	—	47.2	—	—	65.7	65.7
Gordo et al.	—	—	—	—	78.3	—
Razavian et al.	53.3	—	67.0	—	74.2	—
Babenko and Lempitsky	58.9	53.1	—	—	—	80.2
NetVLAD off-the-shelf	53.4	55.5	64.3	67.7	82.1	86.0
NetVLAD trained	62.5	63.5	72.0	73.5	79.9	84.3

full uses the uncropped query image, while crop crops the query to the region of interest (ROI). On Oxford 5k (crop), trained NetVLAD reaches 63.5% mAP (a +20% relative improvement over prior compact 256-D representations). On Holidays, where images contain non-urban scenes (landscapes, underwater, animals), off-the-shelf features outperform the Pittsburgh-trained model (86.0% vs 84.3% on rotated images) due to urban domain specificity.

Coverage note — None was omitted; all key contributions (NetVLAD layer formulation, weakly supervised ranking loss, caching algorithm, parameter initialization/decoupling, depth ablations, Time Machine supervision ablation, place recognition benchmarks, and instance retrieval results) are covered.
