Wide & Deep Learning for Recommender Systems

Heng-Tze Cheng, Levent Koc, Jeremiah Harmsen, Tal Shaked, Tushar Chandra, Hrishi Aradhye, Glen Anderson, Greg Corrado, Wei Chai, Mustafa Ispir, Rohan Anil, Zakaria Haque, Lichan Hong, Vihan Jain, Xiaobing Liu, Hemal Shah
Google Inc.$^{*}$

Abstract

Generalized linear models with nonlinear feature transformations are widely used for large-scale regression and classification problems with sparse inputs. Memorization of feature interactions through a wide set of cross-product feature transformations are effective and interpretable, while generalization requires more feature engineering effort. With less feature engineering, deep neural networks can generalize better to unseen feature combinations through low-dimensional dense embeddings learned for the sparse features. However, deep neural networks with embeddings can over-generalize and recommend less relevant items when the user-item interactions are sparse and high-rank. In this paper, we present Wide & Deep learning---jointly trained wide linear models and deep neural networks---to combine the benefits of memorization and generalization for recommender systems. We productionized and evaluated the system on Google Play, a commercial mobile app store with over one billion active users and over one million apps. Online experiment results show that Wide & Deep significantly increased app acquisitions compared with wide-only and deep-only models. We have also open-sourced our implementation in TensorFlow.

CCS Concepts

•Computing methodologies → Machine learning; Neural networks; Supervised learning; •Information systems → Recommender systems;

Keywords

Wide & Deep Learning, Recommender Systems.

\keywords{Wide & Deep Learning, Recommender Systems.}

Executive Summary: Recommender systems power many online services, including app stores like Google Play, where they suggest items to users based on past behavior and context. A key challenge is balancing "memorization"—recommending items similar to what users have liked before, which ensures relevance—with "generalization"—suggesting new items to increase variety and discoverability. This balance is crucial now because Google Play serves over one billion active users and hosts more than one million apps, making accurate recommendations essential for driving user engagement and business growth in a crowded digital marketplace.

This document introduces and evaluates the Wide & Deep learning framework to address these needs in recommender systems. It aims to create a single model that leverages the strengths of simple linear models for memorization and complex neural networks for generalization, specifically for ranking apps on Google Play.

The approach involved developing a hybrid model that jointly trains two components: a "wide" linear model using direct feature combinations, like linking a user's past app installs to current suggestions, and a "deep" neural network that learns compact representations of user and app features to predict unseen matches. Researchers used real-world data from Google Play, including billions of user interactions over several weeks, to train the model on whether users installed suggested apps. They focused on sparse data like user demographics, device types, and app details, assuming binary outcomes for installs. The system was built into Google's production pipeline, tested offline on held-out data, and validated through live online experiments with random user groups, all while ensuring fast serving speeds for real-time use.

The most important results showed that the Wide & Deep model outperformed alternatives. In live tests with one percent of users over three weeks, it increased app installations by 3.9 percent compared to the existing linear model baseline, and by about one percent more than a neural network-only version using the same features. Offline tests confirmed a slight edge in prediction accuracy, with the hybrid model's area under the curve score at 0.728 versus 0.726 for the baseline. Serving performance met strict requirements, scoring millions of apps per second with an average latency of 14 milliseconds per request, down from 31 milliseconds in initial setups through parallel processing optimizations.

These findings mean that combining memorization and generalization leads to more effective recommendations without the pitfalls of over-generalizing, where neural networks alone might suggest irrelevant apps for niche users. For Google Play, this translates to higher user satisfaction, faster app discoveries, and measurable gains in key metrics like installs, which directly impact revenue and retention. Unlike prior models that required heavy manual tuning or produced less diverse suggestions, this hybrid approach reduces engineering effort while boosting performance, marking an improvement over traditional methods.

Based on these results, organizations should integrate Wide & Deep models into their recommender systems, starting with high-scale applications like e-commerce or content platforms. For Google Play, full rollout across all users is recommended to capture the full acquisition gains. Trade-offs include slightly higher computational needs during training, but serving remains efficient. Further steps could involve adapting the model to other domains, such as video or product recommendations, and conducting pilots to test scalability on custom datasets.

The work relies on Google Play's specific data, so results may vary in sparser or different contexts, and assumptions like feature normalization could introduce minor biases. Confidence in the core findings is high, backed by statistically significant A/B tests and massive-scale validation, though readers should verify adaptations in their own environments before broad decisions.

1. Introduction

Section Summary: Recommender systems work like search engines that use a user's history and context to suggest and rank items, such as apps, with the goal of predicting actions like clicks or purchases. A key challenge is balancing memorization, which relies on patterns from past data to recommend familiar items, with generalization, which explores new combinations to increase variety, though traditional linear models excel at the former but struggle with unseen pairs, while embedding-based neural networks handle the latter but can suggest irrelevant options in sparse data. This paper introduces the Wide & Deep framework, which combines a simple linear model for memorization and a neural network for generalization, and it has been successfully applied to Google Play's app recommendations, boosting user engagement while remaining efficient and open-sourced in TensorFlow.

A recommender system can be viewed as a search ranking system, where the input query is a set of user and contextual information, and the output is a ranked list of items. Given a query, the recommendation task is to find the relevant items in a database and then rank the items based on certain objectives, such as clicks or purchases.

One challenge in recommender systems, similar to the general search ranking problem, is to achieve both memorization and generalization. Memorization can be loosely defined as learning the frequent co-occurrence of items or features and exploiting the correlation available in the historical data. Generalization, on the other hand, is based on transitivity of correlation and explores new feature combinations that have never or rarely occurred in the past. Recommendations based on memorization are usually more topical and directly relevant to the items on which users have already performed actions. Compared with memorization, generalization tends to improve the diversity of the recommended items. In this paper, we focus on the apps recommendation problem for the Google Play store, but the approach should apply to generic recommender systems.

For massive-scale online recommendation and ranking systems in an industrial setting, generalized linear models such as logistic regression are widely used because they are simple, scalable and interpretable. The models are often trained on binarized sparse features with one-hot encoding. E.g., the binary feature "user_installed_app=netflix" has value 1 if the user installed Netflix. Memorization can be achieved effectively using cross-product transformations over sparse features, such as AND(user_installed_app=netflix, 'impression_app=pandora''), whose value is 1 if the user installed Netflix and then is later shown Pandora. This explains how the co-occurrence of a feature pair correlates with the target label. Generalization can be added by using features that are less granular, such as AND(user_installed_category=video, impression_category=music`), but manual feature engineering is often required. One limitation of cross-product transformations is that they do not generalize to query-item feature pairs that have not appeared in the training data.

Embedding-based models, such as factorization machines [1] or deep neural networks, can generalize to previously unseen query-item feature pairs by learning a low-dimensional dense embedding vector for each query and item feature, with less burden of feature engineering. However, it is difficult to learn effective low-dimensional representations for queries and items when the underlying query-item matrix is sparse and high-rank, such as users with specific preferences or niche items with a narrow appeal. In such cases, there should be no interactions between most query-item pairs, but dense embeddings will lead to nonzero predictions for all query-item pairs, and thus can over-generalize and make less relevant recommendations. On the other hand, linear models with cross-product feature transformations can memorize these "exception rules" with much fewer parameters.

In this paper, we present the Wide & Deep learning framework to achieve both memorization and generalization in one model, by jointly training a linear model component and a neural network component as shown in Figure 1.

The main contributions of the paper include:

• The Wide & Deep learning framework for jointly training feed-forward neural networks with embeddings and linear model with feature transformations for generic recommender systems with sparse inputs.
• The implementation and evaluation of the Wide & Deep recommender system productionized on Google Play, a mobile app store with over one billion active users and over one million apps.
• We have open-sourced our implementation along with a high-level API in TensorFlow[^1].

[^1]: See Wide & Deep Tutorial on http://tensorflow.org.

While the idea is simple, we show that the Wide & Deep framework significantly improves the app acquisition rate on the mobile app store, while satisfying the training and serving speed requirements.

2. Recommender System Overview

Section Summary: When a user visits an app store, the recommender system creates a query based on their details like location or device, then suggests a short list of relevant apps for them to browse, click, or buy. These interactions, along with the suggestions, get logged to train the system. Because there are millions of apps, the process starts with quick retrieval of promising candidates using smart models and rules, followed by ranking them by the likelihood of user interest based on various features, and this paper dives into that ranking using a Wide & Deep learning approach.

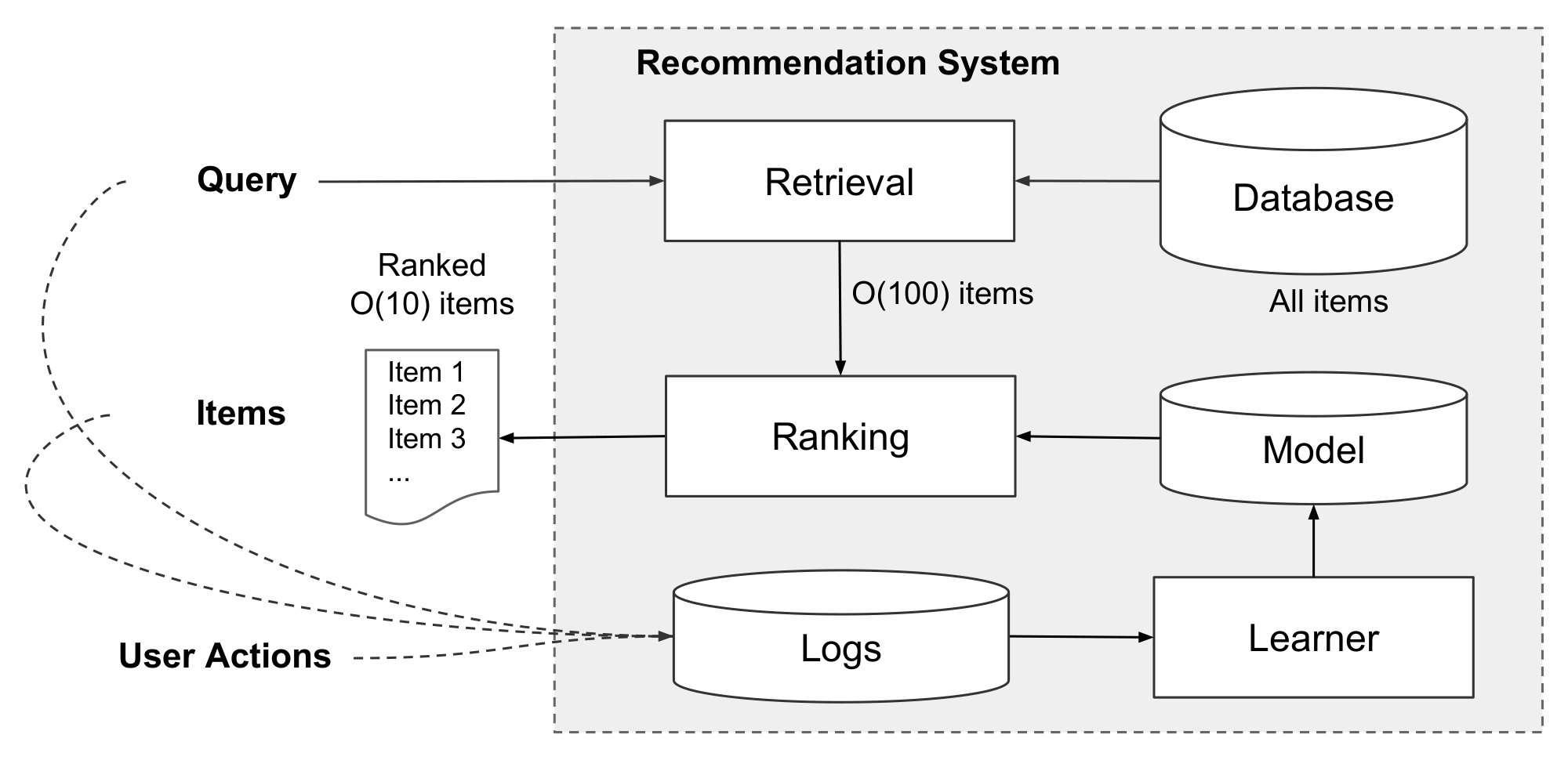

An overview of the app recommender system is shown in Figure 2. A query, which can include various user and contextual features, is generated when a user visits the app store. The recommender system returns a list of apps (also referred to as impressions) on which users can perform certain actions such as clicks or purchases. These user actions, along with the queries and impressions, are recorded in the logs as the training data for the learner.

Since there are over a million apps in the database, it is intractable to exhaustively score every app for every query within the serving latency requirements (often $O(10)$ milliseconds). Therefore, the first step upon receiving a query is retrieval. The retrieval system returns a short list of items that best match the query using various signals, usually a combination of machine-learned models and human-defined rules. After reducing the candidate pool, the ranking system ranks all items by their scores. The scores are usually $P(y|\mathbf{x})$, the probability of a user action label $y$ given the features $\mathbf{x}$, including user features (e.g., country, language, demographics), contextual features (e.g., device, hour of the day, day of the week), and impression features (e.g., app age, historical statistics of an app). In this paper, we focus on the ranking model using the Wide & Deep learning framework.

3. Wide & Deep Learning

Section Summary: The Wide & Deep learning model combines two parts: a "wide" component, which is a simple linear equation that uses raw data and special combinations of features to capture specific patterns, and a "deep" component, which is a neural network that transforms categorical data into compact numerical representations and processes them through layered calculations to learn general trends. These two parts are trained together at the same time, blending their predictions with a shared goal to improve accuracy, unlike separate models that are just averaged later. This joint approach allows the model to remember important details from the wide side while generalizing from the deep side, using tailored optimization methods for each part.

3.1 The Wide Component

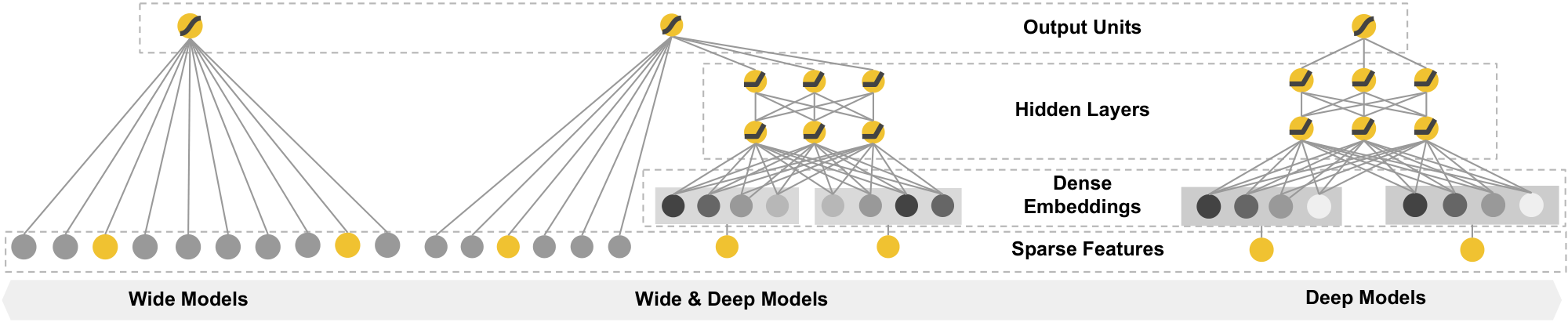

The wide component is a generalized linear model of the form $y = \mathbf{w}^T\mathbf{x}+b$, as illustrated in Figure 1 (left). $y$ is the prediction, $\mathbf{x}=[x_1, x_2, ..., x_d]$ is a vector of $d$ features, $\mathbf{w}=[w_1, w_2, ..., w_d]$ are the model parameters and $b$ is the bias. The feature set includes raw input features and transformed features. One of the most important transformations is the cross-product transformation, which is defined as:

$ \phi_k(\mathbf{x}) = \prod_{i=1}^{d} x_i^{c_{ki}} \quad c_{ki} \in {0, 1} $

where $c_{ki}$ is a boolean variable that is 1 if the $i$-th feature is part of the $k$-th transformation $\phi_k$, and 0 otherwise. For binary features, a cross-product transformation (e.g., ```AND(gender=female, 'language=en)'') is 1 if and only if the constituent features ("gender=female" and "language=en") are all 1, and 0 otherwise. This captures the interactions between the binary features, and adds nonlinearity to the generalized linear model.

3.2 The Deep Component

The deep component is a feed-forward neural network, as shown in Figure 1 (right). For categorical features, the original inputs are feature strings (e.g., "language=en"). Each of these sparse, high-dimensional categorical features are first converted into a low-dimensional and dense real-valued vector, often referred to as an embedding vector. The dimensionality of the embeddings are usually on the order of $O(10)$ to $O(100)$. The embedding vectors are initialized randomly and then the values are trained to minimize the final loss function during model training. These low-dimensional dense embedding vectors are then fed into the hidden layers of a neural network in the forward pass. Specifically, each hidden layer performs the following computation:

$ a^{(l+1)} = f(W^{(l)} a^{(l)} + b^{(l)}) $

where $l$ is the layer number and $f$ is the activation function, often rectified linear units (ReLUs). $a^{(l)}$, $b^{(l)}$, and $W^{(l)}$ are the activations, bias, and model weights at $l$-th layer.

3.3 Joint Training of Wide & Deep Model

The wide component and deep component are combined using a weighted sum of their output log odds as the prediction, which is then fed to one common logistic loss function for joint training. Note that there is a distinction between joint training and ensemble. In an ensemble, individual models are trained separately without knowing each other, and their predictions are combined only at inference time but not at training time. In contrast, joint training optimizes all parameters simultaneously by taking both the wide and deep part as well as the weights of their sum into account at training time. There are implications on model size too: For an ensemble, since the training is disjoint, each individual model size usually needs to be larger (e.g., with more features and transformations) to achieve reasonable accuracy for an ensemble to work. In comparison, for joint training the wide part only needs to complement the weaknesses of the deep part with a small number of cross-product feature transformations, rather than a full-size wide model.

Joint training of a Wide & Deep Model is done by back-propagating the gradients from the output to both the wide and deep part of the model simultaneously using mini-batch stochastic optimization. In the experiments, we used Follow-the-regularized-leader (FTRL) algorithm [2] with $L_1$ regularization as the optimizer for the wide part of the model, and AdaGrad [3] for the deep part.

The combined model is illustrated in Figure 1 (center). For a logistic regression problem, the model's prediction is:

$ P(Y=1|\mathbf{x}) = \sigma(\mathbf{w}{wide}^T[\mathbf{x}, \mathbf{\phi(x)}] + \mathbf{w}{deep}^T a^{(l_f)} + b) $

where $Y$ is the binary class label, $\sigma(\cdot)$ is the sigmoid function, $\mathbf{\phi(x)}$ are the cross product transformations of the original features $\mathbf{x}$, and $b$ is the bias term. $\mathbf{w}{wide}$ is the vector of all wide model weights, and $\mathbf{w}{deep}$ are the weights applied on the final activations $a^{(l_f)}$.

4. System Implementation

Section Summary: The apps recommendation system is built through three main stages: generating data, training the model, and serving it to users. In data generation, user interactions with apps are turned into training examples that label whether an app was installed after being shown, while categorizing features and normalizing numerical ones for consistency. Model training uses a combined wide-and-deep approach to learn from billions of examples, starting from previous versions to save time, followed by testing; serving then quickly scores and ranks app suggestions for users in real-time using optimized parallel processing.

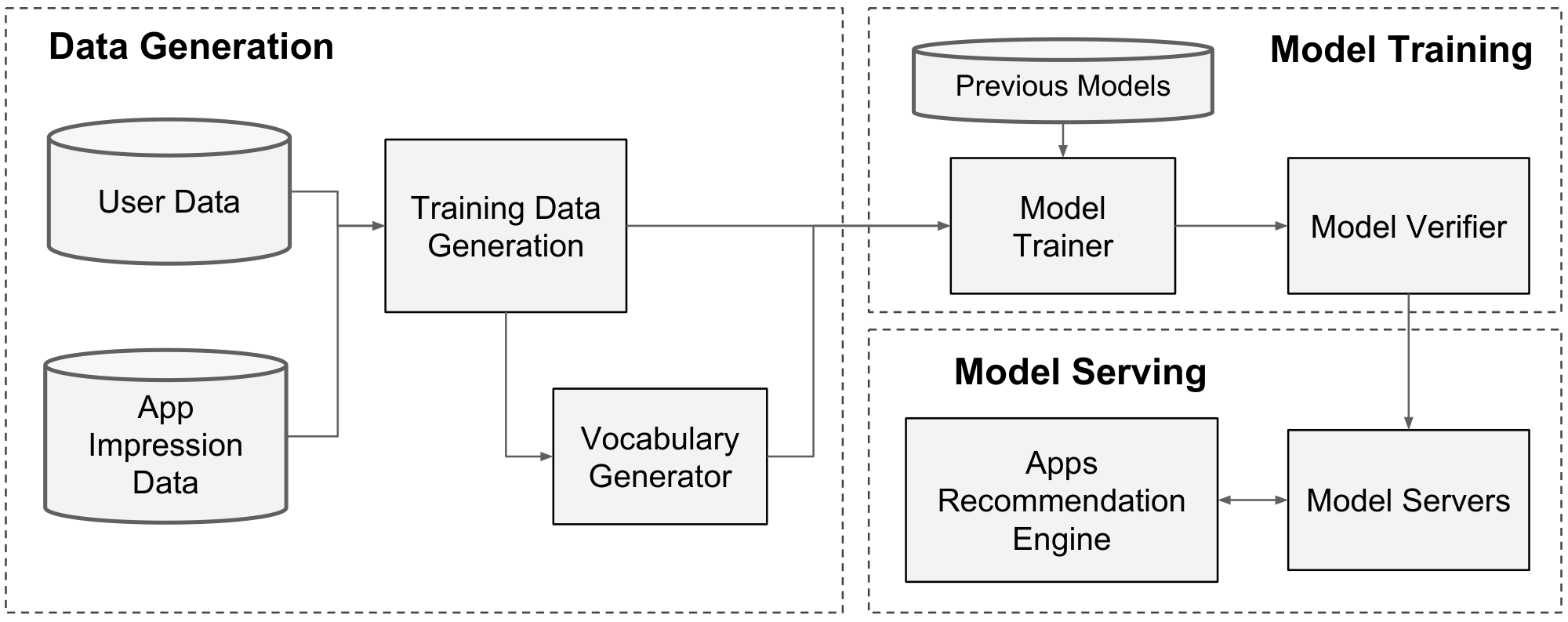

The implementation of the apps recommendation pipeline consists of three stages: data generation, model training, and model serving as shown in Figure 3.

4.1 Data Generation

In this stage, user and app impression data within a period of time are used to generate training data. Each example corresponds to one impression. The label is app acquisition: 1 if the impressed app was installed, and 0 otherwise.

Vocabularies, which are tables mapping categorical feature strings to integer IDs, are also generated in this stage. The system computes the ID space for all the string features that occurred more than a minimum number of times. Continuous real-valued features are normalized to $[0, 1]$ by mapping a feature value $x$ to its cumulative distribution function $P(X \le x)$, divided into $n_q$ quantiles. The normalized value is $\frac{i-1}{n_q-1}$ for values in the $i$-th quantiles. Quantile boundaries are computed during data generation.

4.2 Model Training

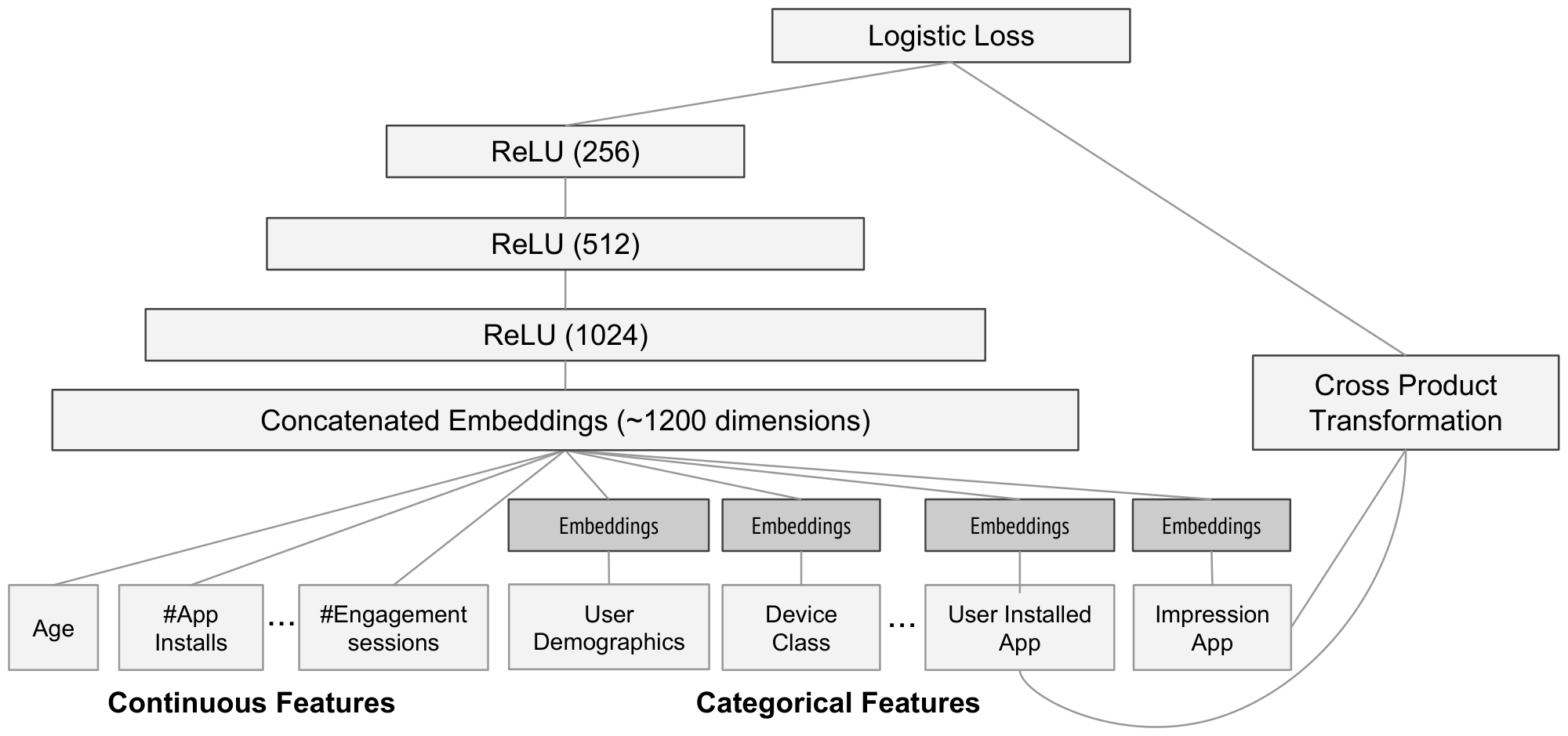

The model structure we used in the experiment is shown in Figure 4. During training, our input layer takes in training data and vocabularies and generate sparse and dense features together with a label. The wide component consists of the cross-product transformation of user installed apps and impression apps. For the deep part of the model, A 32-dimensional embedding vector is learned for each categorical feature. We concatenate all the embeddings together with the dense features, resulting in a dense vector of approximately 1200 dimensions. The concatenated vector is then fed into 3 ReLU layers, and finally the logistic output unit.

The Wide & Deep models are trained on over 500 billion examples. Every time a new set of training data arrives, the model needs to be re-trained. However, retraining from scratch every time is computationally expensive and delays the time from data arrival to serving an updated model. To tackle this challenge, we implemented a warm-starting system which initializes a new model with the embeddings and the linear model weights from the previous model.

Before loading the models into the model servers, a dry run of the model is done to make sure that it does not cause problems in serving live traffic. We empirically validate the model quality against the previous model as a sanity check.

4.3 Model Serving

Once the model is trained and verified, we load it into the model servers. For each request, the servers receive a set of app candidates from the app retrieval system and user features to score each app. Then, the apps are ranked from the highest scores to the lowest, and we show the apps to the users in this order. The scores are calculated by running a forward inference pass over the Wide & Deep model.

In order to serve each request on the order of 10 ms, we optimized the performance using multithreading parallelism by running smaller batches in parallel, instead of scoring all candidate apps in a single batch inference step.

5. Experiment Results

Section Summary: In experiments testing the Wide & Deep learning model for recommending apps in a mobile app store, the new model boosted app downloads by 3.9% compared to the older, simpler ranking system during three weeks of A/B testing with real users, and it performed 1% better than a version using only the deep learning part. Offline tests showed a modest improvement in prediction accuracy, but the online gains were larger because the model could adaptively suggest new apps based on user feedback. To handle massive traffic—scoring over 10 million apps per second—engineers optimized the system with multithreading, cutting recommendation processing time from 31 milliseconds to 14 milliseconds per batch.

To evaluate the effectiveness of Wide & Deep learning in a real-world recommender system, we ran live experiments and evaluated the system in a couple of aspects: app acquisitions and serving performance.

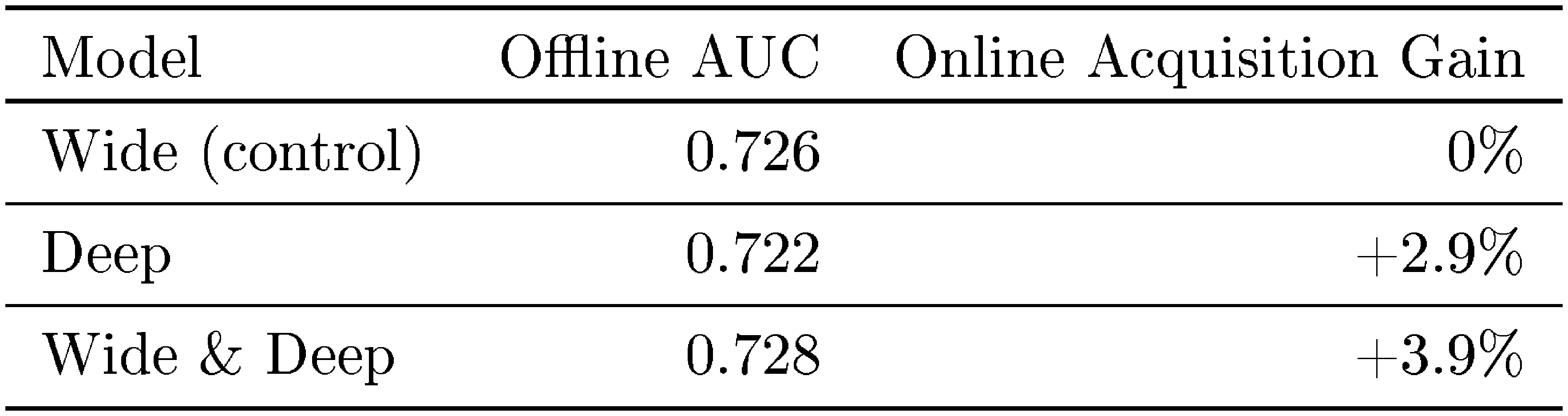

::: {caption="Table 1: Offline & online metrics of different models. Online Acquisition Gain is relative to the control."}

:::

5.1 App Acquisitions

We conducted live online experiments in an A/B testing framework for 3 weeks. For the control group, 1% of users were randomly selected and presented with recommendations generated by the previous version of ranking model, which is a highly-optimized wide-only logistic regression model with rich cross-product feature transformations. For the experiment group, 1% of users were presented with recommendations generated by the Wide & Deep model, trained with the same set of features. As shown in Table 1, Wide & Deep model improved the app acquisition rate on the main landing page of the app store by +3.9% relative to the control group (statistically significant). The results were also compared with another 1% group using only the deep part of the model with the same features and neural network structure, and the Wide & Deep mode had +1% gain on top of the deep-only model (statistically significant).

Besides online experiments, we also show the Area Under Receiver Operator Characteristic Curve (AUC) on a holdout set offline. While Wide & Deep has a slightly higher offline AUC, the impact is more significant on online traffic. One possible reason is that the impressions and labels in offline data sets are fixed, whereas the online system can generate new exploratory recommendations by blending generalization with memorization, and learn from new user responses.

5.2 Serving Performance

Serving with high throughput and low latency is challenging with the high level of traffic faced by our commercial mobile app store. At peak traffic, our recommender servers score over 10 million apps per second. With single threading, scoring all candidates in a single batch takes 31 ms. We implemented multithreading and split each batch into smaller sizes, which significantly reduced the client-side latency to 14 ms (including serving overhead) as shown in Table 2.

6. Related Work

Section Summary: This section discusses how the Wide & Deep model draws inspiration from earlier techniques like factorization machines, which enhance simple linear models by capturing interactions between variables using low-dimensional embeddings, but extends them further by incorporating neural networks to handle more complex, nonlinear relationships. It also reviews joint training approaches in areas like language processing, where recurrent neural networks are combined with simpler models to cut down on complexity, and in computer vision, where shortcut connections in deep networks improve training and accuracy, applying similar ideas to recommendation systems with sparse data. Unlike prior recommender systems that separately use collaborative filtering for user ratings or content analysis, this work uniquely trains Wide & Deep models together on user behavior and impression data for mobile app recommendations.

The idea of combining wide linear models with cross-product feature transformations and deep neural networks with dense embeddings is inspired by previous work, such as factorization machines [1] which add generalization to linear models by factorizing the interactions between two variables as a dot product between two low-dimensional embedding vectors. In this paper, we expanded the model capacity by learning highly nonlinear interactions between embeddings via neural networks instead of dot products.

In language models, joint training of recurrent neural networks (RNNs) and maximum entropy models with n-gram features has been proposed to significantly reduce the RNN complexity (e.g., hidden layer sizes) by learning direct weights between inputs and outputs [4]. In computer vision, deep residual learning [5] has been used to reduce the difficulty of training deeper models and improve accuracy with shortcut connections which skip one or more layers. Joint training of neural networks with graphical models has also been applied to human pose estimation from images [6]. In this work we explored the joint training of feed-forward neural networks and linear models, with direct connections between sparse features and the output unit, for generic recommendation and ranking problems with sparse input data.

In the recommender systems literature, collaborative deep learning has been explored by coupling deep learning for content information and collaborative filtering (CF) for the ratings matrix [7]. There has also been previous work on mobile app recommender systems, such as AppJoy which used CF on users' app usage records [8]. Different from the CF-based or content-based approaches in the previous work, we jointly train Wide & Deep models on user and impression data for app recommender systems.

7. Conclusion

Section Summary: Memorization and generalization are key for recommender systems, with wide linear models excelling at remembering specific user-item patterns through feature combinations, and deep neural networks capturing broader trends using compact data representations. The Wide & Deep framework merges these approaches to leverage both strengths. When tested on Google Play's app recommendation system, it significantly boosted user app downloads compared to using either model alone.

Memorization and generalization are both important for recommender systems. Wide linear models can effectively memorize sparse feature interactions using cross-product feature transformations, while deep neural networks can generalize to previously unseen feature interactions through low-dimensional embeddings. We presented the Wide & Deep learning framework to combine the strengths of both types of model. We productionized and evaluated the framework on the recommender system of Google Play, a massive-scale commercial app store. Online experiment results showed that the Wide & Deep model led to significant improvement on app acquisitions over wide-only and deep-only models.

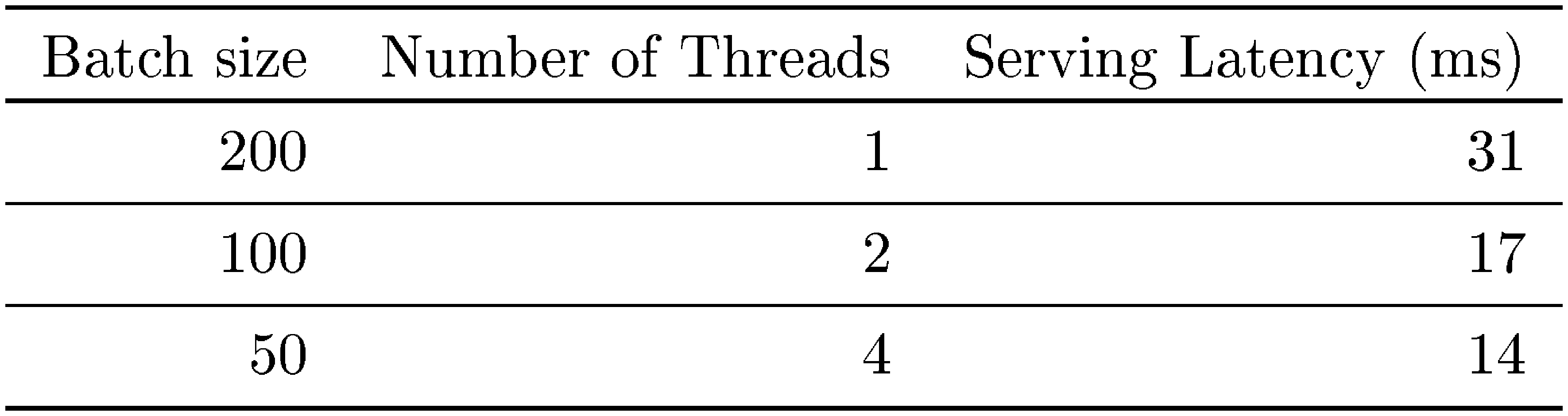

::: {caption="Table 2: Serving latency vs. batch size and threads."}

:::

References

Section Summary: This section lists eight key academic references in the field of machine learning and artificial intelligence, spanning topics like recommender systems, optimization techniques for learning algorithms, and neural network applications. It includes foundational works on factorization machines, adaptive subgradient methods, large-scale language models, deep residual learning for images, human pose estimation, collaborative deep learning, and personalized mobile app discovery. The citations draw from prestigious conferences and journals between 2011 and 2016, providing a scholarly foundation for related research.

[1] S. Rendle. Factorization machines with libFM. ACM Trans. Intell. Syst. Technol., 3(3):57:1–57:22, May 2012.

[2] H. B. McMahan. Follow-the-regularized-leader and mirror descent: Equivalence theorems and l1 regularization. In Proc. AISTATS, 2011.

[3] J. Duchi, E. Hazan, and Y. Singer. Adaptive subgradient methods for online learning and stochastic optimization. Journal of Machine Learning Research, 12:2121–2159, July 2011.

[4] T. Mikolov, A. Deoras, D. Povey, L. Burget, and J. H. Cernocky. Strategies for training large scale neural network language models. In IEEE Automatic Speech Recognition & Understanding Workshop, 2011.

[5] K. He, X. Zhang, S. Ren, and J. Sun. Deep residual learning for image recognition. Proc. IEEE Conference on Computer Vision and Pattern Recognition, 2016.

[6] J. J. Tompson, A. Jain, Y. LeCun, and C. Bregler. Joint training of a convolutional network and a graphical model for human pose estimation. In Z. Ghahramani, M. Welling, C. Cortes, N. D. Lawrence, and K. Q. Weinberger, editors, NIPS, pages 1799–1807. 2014.

[7] H. Wang, N. Wang, and D.-Y. Yeung. Collaborative deep learning for recommender systems. In Proc. KDD, pages 1235–1244, 2015.

[8] B. Yan and G. Chen. AppJoy: Personalized mobile application discovery. In MobiSys, pages 113–126, 2011.
