Validation of Quantum Elliptic Curve Point Addition Circuits

Frankie Papa

article2025arXiv1 citations

Resolves four critical ancilla-uncomputation errors in the state-of-the-art quantum circuit for elliptic curve point addition, ensuring computational validity without increasing leading-order gate costs.

Listen

Elliptic curve cryptography protects modern digital communications, but sufficiently powerful quantum computers could compromise it by breaking private keys. Accurately assessing how long current cryptographic protocols will remain secure requires designing minimal, fully correct quantum circuits for elliptic curve arithmetic. An essential requirement in these quantum circuits is that all auxiliary working qubits—known as ancilla qubits—must be restored exactly to their original zero states after intermediate computations. Failing to reset these qubits can corrupt the entire quantum computation through decoherence, producing incorrect results and leading to flawed security estimates.

The article evaluates the state-of-the-art quantum circuit design for elliptic curve point addition to verify whether it operates correctly and clears its auxiliary qubits under all mathematical conditions. To carry out this evaluation, the author implemented the complete point addition procedure within Qualtran, a software framework designed for modeling, validating, and classically simulating quantum algorithms. The testing approach employed three rigorous verification checks: structural validity checks to ensure circuit components connect properly, symbolic gate-cost tracking, and hierarchical classical simulations using selected points from a standard elliptic curve to ensure that the circuit reproduces exact classical arithmetic.

The analysis identified four distinct design inconsistencies across three stages of the leading point addition circuit, occurring in steps 2, 5, and 6. In these edge cases—such as rare modular inversions of zero or operations involving origin points—auxiliary flag registers failed to reset to their initial zero states. To fix these issues, the author introduced targeted logic modifications, including adding a small set of multi-controlled logic gates, reordering two modular arithmetic operations, and allocating one additional auxiliary qubit. The updated circuit completely resolves all four failure modes while leaving the leading-order computational cost unchanged at 126n² Toffoli gates, adding only 18n - 5 lower-order gates.

These findings mean that the foundational quantum circuit previously believed to be exact contained hidden failure points that would degrade quantum cryptanalysis algorithms in specific edge cases. By resolving these flaws without a significant computational cost penalty, the article provides a dependable, exact benchmark for calculating the resource requirements needed to break elliptic curve cryptography. This ensures that cybersecurity roadmaps, quantum risk assessments, and migration timelines to quantum-resistant encryption are based on mathematically sound circuit designs rather than flawed models.

Organizations developing quantum algorithms should incorporate rigorous classical simulation and automated unit testing to validate quantum subroutines before publishing resource estimates or executing algorithms on hardware. Researchers building on this work can directly adopt the verified, open-source implementations integrated into the Qualtran library. Confidence in these corrected circuits is high because the fixes have been proven mathematically and verified through direct classical simulation on test points, though future analysis could explore validating additional cryptographic curve parameters to extend coverage.

Google cryptographic protocols quantum gates validation quantum elliptic curve point addition circuits Qualtran framework Montgomery form

arXiv: 2506.03318 quantumlib/Qualtran

No sufficiently relevant recommendations were found.

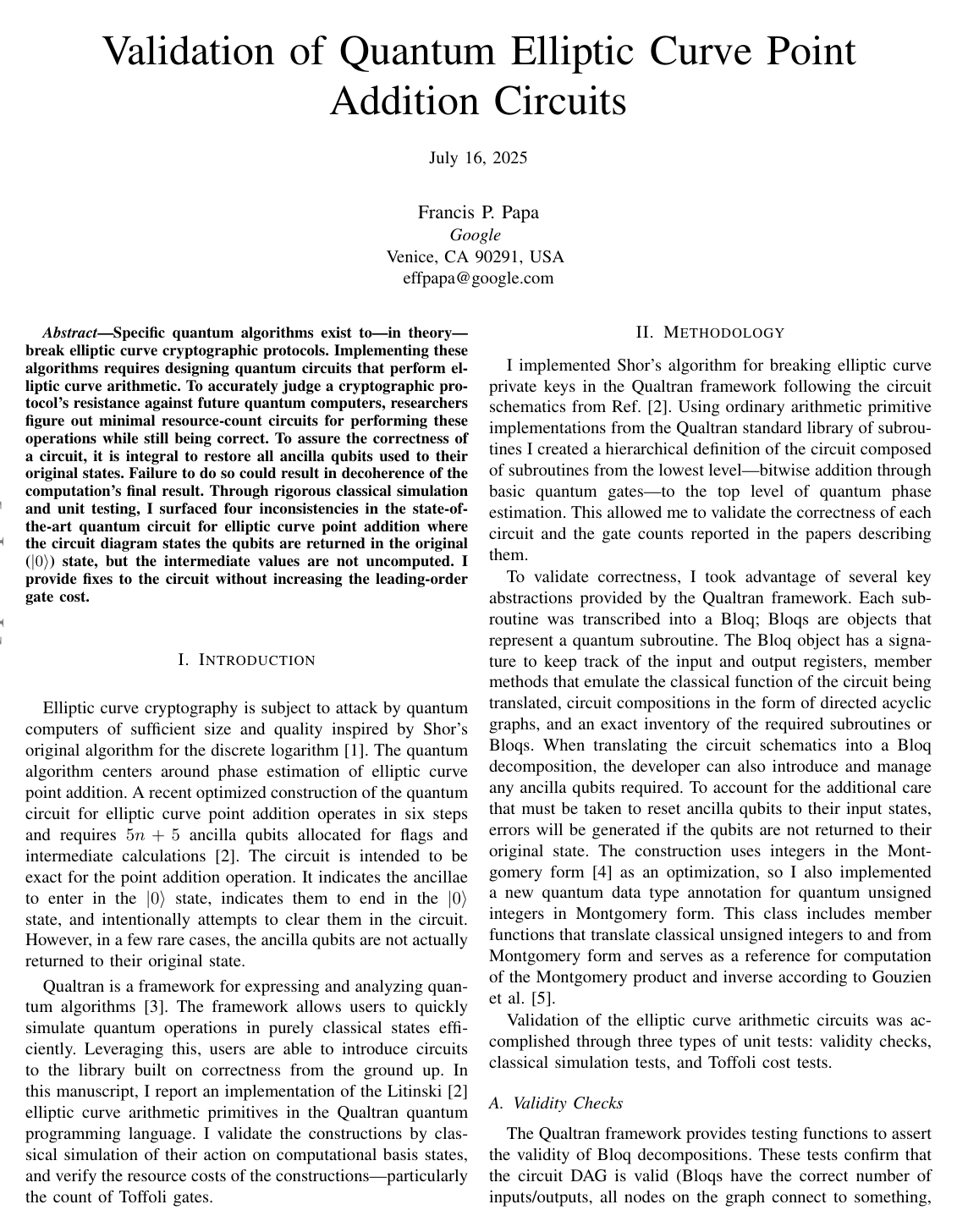

Cover for Validation of Quantum Elliptic Curve Point Addition Circuits

Abstract

Specific quantum algorithms exist to-in theory-break elliptic curve cryptographic protocols. Implementing these algorithms requires designing quantum circuits that perform elliptic curve arithmetic. To accurately judge a cryptographic protocol's resistance against future quantum computers, researchers figure out minimal resource-count circuits for performing these operations while still being correct. To assure the correctness of a circuit, it is integral to restore all ancilla qubits used to their original states. Failure to do so could result in decoherence of the computation's final result. Through rigorous classical simulation and unit testing, I surfaced four inconsistencies in the state-of-the-art quantum circuit for elliptic curve point addition where the circuit diagram states the qubits are returned in the original ( $|0\rangle$ ) state, but the intermediate values are not uncomputed. I provide fixes to the circuit without increasing the leading-order gate cost.

Topics

cryptographic protocols quantum gates validation elliptic curve cryptosystem security protocols

Keywords

quantum elliptic curve point addition circuits Qualtran framework Montgomery form modular multiplication modular addition ancilla qubits gate counts classical simulation tests

I Introduction
II Methodology
II-A Validity Checks
II-B Classical Simulation Tests
II-C Toffoli Cost Tests
III Results
III-A Step 2
III-B Step 5
III-C Step 6
III-D Resource Cost of Fixes
IV Conclusion
V Code Repository
References

Knowls

Knowl 1 — Ancilla-corrected elliptic-curve point addition
theoretical result
The paper identifies and corrects four cases in the six-step elliptic-curve point-addition circuit in which flag or intermediate ancilla qubits can be left uncleared or cleared incorrectly. The corrected construction returns the ancillas to their required initial states for all cases considered by the circuit, while retaining a leading-order cost of $126n^2$ Toffoli gates for $n$ -bit field elements. The circuit diagrams on pages 3–4 depict the added conditional cleanup operations and the reordering used in the corrections.
Knowl 2 — Step 2 flag cleanup when the slopes coincide
model/method
In step 2 of the point-addition circuit, the flag $f_1$ distinguishes a branch that computes a slope $\lambda$ from one that copies a reference slope $\lambda_r$ . The original cleanup logic assumes these slopes differ, and can therefore leave $f_1$ set when $\lambda=\lambda_r$ . The correction adds one clean ancilla bit, flips it when the computed slopes are equal, and controls the Equals operation that clears $f_1$ on this bit being $0$ . The added bit is then uncomputed and released. This prevents the incorrect flag clearing in the equality case without changing the circuit's leading-order Toffoli cost.
Knowl 3 — Step 5 cleanup when the modular inverse input is zero
theoretical result
In step 5, the circuit attempts to erase the slope register by recomputing the slope from $a-x_r$ and $y_r+b$ . If $a-x_r=0$ , the modular inverse is undefined, so this uncomputation need not erase the slope register; the result can depend on how the circuit implements $\operatorname{ModInv}(0)$ . For distinct input points on the elliptic curve, the paper establishes that this zero-denominator case cannot occur: it implies the points coincide and the operation is point doubling. In that case the computed slope equals the reference point-doubling slope $\lambda_r$ . The fix therefore conditionally XORs $\lambda_r$ into the slope register when the control is $1$ and $a-x_r=0$ , after the ordinary cleanup attempt. This uses a $2n$ -controlled Toffoli gate.
Knowl 4 — Step 6 cleanup of the point-comparison flags
model/method
Step 6 can leave either comparison flag uncleared when one input is represented by the origin sentinel $(0,0)$ . The $f_1$ flag can remain set when either $(x,y)=(0,0)$ with $a=0$ and $b\ne0$ , or $(a,b)=(0,0)$ with $x=0$ and $y\ne0$ . The analogous $f_2$ failure occurs when either $(x,y)=(0,0)$ with $b=0$ and $a\ne0$ , or $(a,b)=(0,0)$ with $y=0$ and $x\ne0$ . In each case, the flag is set by a zero-coordinate match, but the ordinary final cleanup does not clear it because the result is not the origin. The correction adds two multi-zero-controlled gates for $f_1$ and two for $f_2$ , each targeting the corresponding exceptional input condition. These four $3n$ -controlled Toffoli gates clear the flags in the exceptional cases while preserving cleanup when both inputs are the origin.
Knowl 5 — Step 6 correction to the $f_4$ equality check
model/method
A separate step 6 failure occurs when $a=x\ne0$ and $b=y=0$ : the circuit can incorrectly clear the $f_4$ flag because its equality check runs before the final point coordinates have been produced. The fix moves the existing controlled modular subtraction and controlled modular addition to immediately before the Equals operation. The equality check then acts on the final coordinates; in the point-doubling case with $b=y=0$ , those coordinates are the origin, so the check no longer incorrectly toggles $f_4$ . This reordering requires no additional gates.
Knowl 6 — Toffoli overhead of the corrections
empirical result
For an $n$ -bit field element, the reported Toffoli increases are $4n$ for the step 2 correction, $2n$ for the step 5 correction, and $12n$ for the four added $3n$ -controlled Toffoli gates in the step 6 flag correction. Moving the existing modular addition and subtraction in step 6 adds no gates. The paper reports an overall net increase of $18n-5$ Toffoli gates relative to the original circuit, with leading-order cost unchanged at $126n^2$ Toffoli gates. The corrections add one ancilla qubit.
Knowl 7 — Revised subroutine inventory and Toffoli costs
data/table
The table gives the revised number of calls to each subroutine in the point-addition circuit and the Toffoli cost assigned to one call. Here $n$ is the bit width of the modular registers; costs are Toffoli gates. The inventory includes the corrected circuit and uses Qualtran's costs for modular negation, multiplication, and multiplicative inverse. It makes explicit both the repeated arithmetic operations and the gate-cost expressions used in the resource analysis.
Could not parse LaTeX table
Knowl 8 — Hierarchical validation of the circuit implementation
experimental setup
The point-addition circuit and its component operations were implemented as Qualtran Bloqs, with decompositions organized hierarchically from arithmetic primitives to the full circuit. Validation used three complementary checks: (1) decomposition validity tests checked register connections, bit widths, data-type annotations, and agreement between counted and expected Bloqs; (2) classical simulation propagated computational-basis inputs through the circuit, compared outputs with ordinary arithmetic, and rejected attempts to release ancillas that were not in $|0\rangle$ ; and (3) symbolic resource tests compared subroutine Toffoli counts with reference expressions. The implementation also introduced a quantum unsigned-integer type annotation for Montgomery-form values, with conversions to and from ordinary unsigned integers for classical reference calculations.
Knowl 9 — Classical test inputs for elliptic-curve arithmetic
experimental setup
For classical simulation of the elliptic-curve arithmetic Bloqs, the paper used a subset of points from the p1707 curve. Each test selected 12 points, converted them to Montgomery form, ran them through the circuit, and compared the outputs with expected reference values from ordinary classical computation. These tests, together with the validity and Toffoli-cost checks, exposed the four ancilla-cleanup inconsistencies.

Coverage note — Background on quantum attacks, prior circuit constructions, acknowledgements, and repository details are omitted because they do not add contributed methods, results, or limitations.
