Learning 3D Representations from 2D Pre-Trained Models via Image-to-Point Masked Autoencoders

Renrui ZhangLiuhui WangYu QiaoPeng GaoHongsheng Li

article2023CVPR190 citations

Proposes I2P-MAE, a self-supervised framework that transfers rich visual knowledge from off-the-shelf 2D pre-trained models to 3D point cloud learning through semantically guided masking and multi-view feature reconstruction.

Centre for Perceptual and Interactive IntelligencePeking UniversityShanghai Artificial Intelligence LaboratoryThe Chinese University of Hong Kongautoencodersencoder-decodermulti-views
arXiv: 2212.06785ZrrSkywalker/I2P-MAE

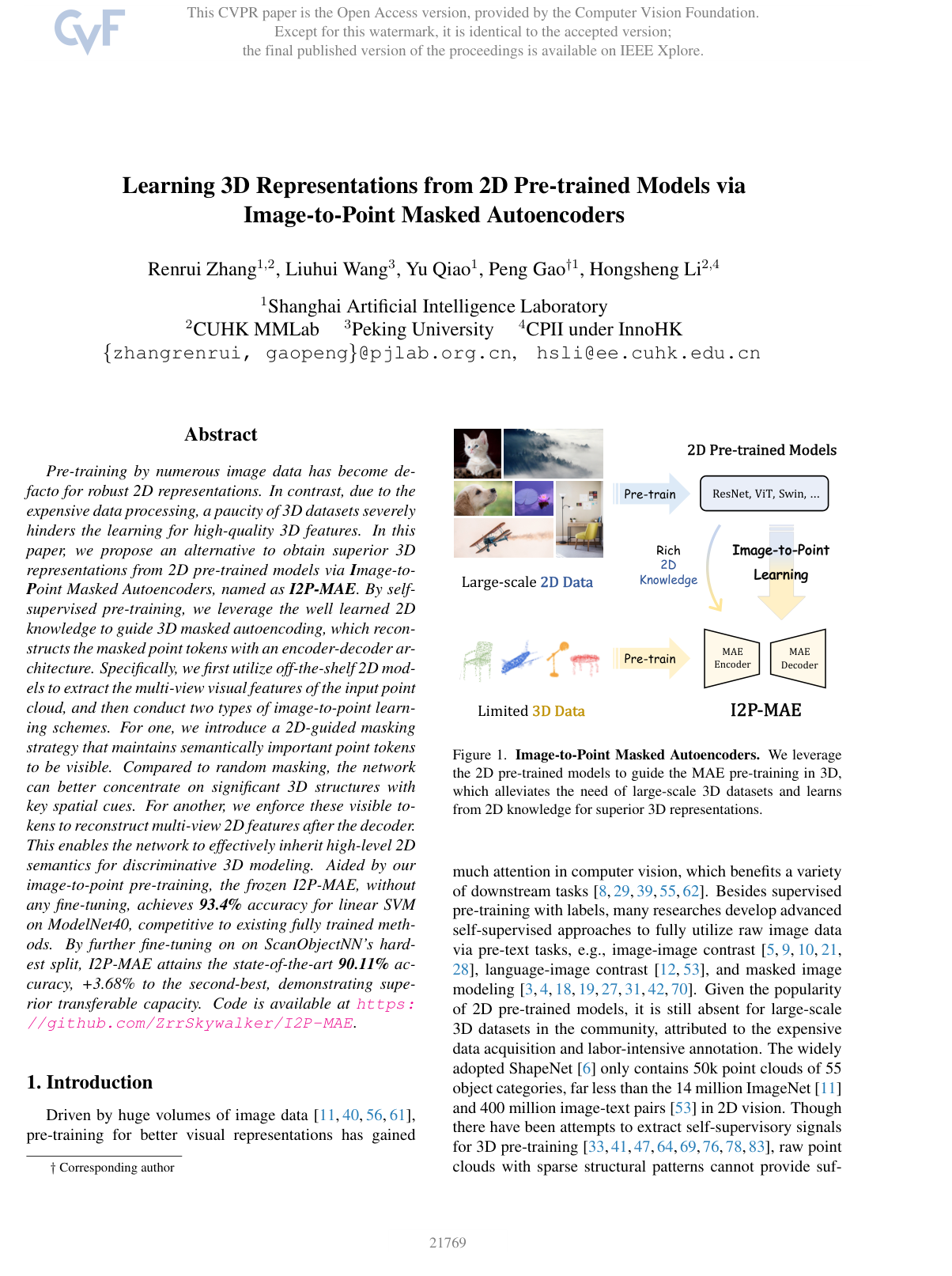

Cover for Learning 3D Representations from 2D Pre-Trained Models via Image-to-Point Masked Autoencoders

Abstract

Pre-training by numerous image data has become de-facto for robust 2D representations. In contrast, due to the expensive data processing, a paucity of 3D datasets severely hinders the learning for high-quality 3D features. In this paper, we propose an alternative to obtain superior 3D representations from 2D pre-trained models via Image-to-Point Masked Autoencoders, named as I2P-MAE. By self-supervised pre-training, we leverage the well learned 2D knowledge to guide 3D masked autoencoding, which reconstructs the masked point tokens with an encoder-decoder architecture. Specifically, we first utilize off-the-shelf 2D models to extract the multi-view visual features of the input point cloud, and then conduct two types of image-to-point learning schemes. For one, we introduce a 2D-guided masking strategy that maintains semantically important point tokens to be visible. Compared to random masking, the network can better concentrate on significant 3D structures with key spatial cues. For another, we enforce these visible tokens to reconstruct multi-view 2D features after the decoder. This enables the network to effectively inherit high-level 2D semantics for discriminative 3D modeling. Aided by our image-to-point pre-training, the frozen I2P-MAE, without any fine-tuning, achieves 93.4% accuracy for linear SVM on ModelNet40, competitive to existing fully trained methods. By further fine-tuning on on ScanObjectNN's hardest split, I2P-MAE attains the state-of-the-art 90.11% accuracy, +3.68% to the second-best, demonstrating superior transferable capacity. Code is available at https://github.com/ZrrSkywalker/I2P-MAE.

Topics

autoencodersencoder-decodermulti-viewspoint cloudsemanticssvmtwo dimensionalvisual featureauto encodersroot mean square errors

Table of Contents

  • 1. Introduction
  • 2. Related Work
  • 3. Method
  • 3.1. Basic 3D Architecture
  • 3.2. 2D Pre-trained Representations
  • 4. Experiments
  • 4.1. Image-to-Point Pre-training
  • 4.2. Downstream Tasks
  • 4.3. Ablation Study
  • 5. Visualization
  • 6. Conclusion
  • References

Knowls

  1. Knowl 1 — I2P-MAE Architecture and Pre-training Pipeline

    model/method

    Image-to-Point Masked Autoencoders (I2P-MAE) is a self-supervised pre-training framework that transfers representations from pre-trained 2D vision models into 3D point cloud masked autoencoders.

    Given an input point cloud P∈RN×3P \in \mathbb{R}^{N \times 3}, Furthest Point Sampling (FPS) downsamples the NN points to MM center points, denoted as PT∈RM×3P^T \in \mathbb{R}^{M \times 3}. For each downsampled center, a kk-Nearest Neighbors (kk-NN) search finds kk neighboring points, which are mapped into MM point tokens T∈RM×CT \in \mathbb{R}^{M \times C} via a mini-PointNet, where CC is the token feature dimension.

    A 2D-guided masking strategy divides the MM tokens into MvisM_{\text{vis}} visible tokens Tvis∈RMvis×CT_{\text{vis}} \in \mathbb{R}^{M_{\text{vis}} \times C} and MmaskM_{\text{mask}} masked tokens, where M=Mvis+MmaskM = M_{\text{vis}} + M_{\text{mask}}. The visible tokens TvisT_{\text{vis}} are processed by a hierarchical multi-stage transformer encoder. The encoded visible features TviseT_{\text{vis}}^e are concatenated with shared learnable mask tokens Tmask∈RMmask×CT_{\text{mask}} \in \mathbb{R}^{M_{\text{mask}} \times C} and passed to a lightweight multi-stage transformer decoder, producing decoded tokens {Tvisd,Tmaskd}\{T_{\text{vis}}^d, T_{\text{mask}}^d\}.

    Two parallel reconstruction heads perform multi-task decoding:

    1. A 3D coordinate head H3D(⋅)H_{\text{3D}}(\cdot) predicts the 3D coordinates of masked point patches Pmask∈RMmask×k×3P_{\text{mask}} \in \mathbb{R}^{M_{\text{mask}} \times k \times 3} from TmaskdT_{\text{mask}}^d.
    2. A 2D semantic head H2D(⋅)H_{\text{2D}}(\cdot) reconstructs projected multi-view 2D visual features Fvis3D∈RMvis×3CF_{\text{vis}}^{\text{3D}} \in \mathbb{R}^{M_{\text{vis}} \times 3C} from TvisdT_{\text{vis}}^d.

  2. Knowl 2 — Multi-View Orthogonal Depth Projection and 2D Representation Extraction

    model/method

    To extract 2D representations without costly rendering or learnable prompting, I2P-MAE projects the input point cloud P∈RN×3P \in \mathbb{R}^{N \times 3} onto three orthogonal 2D planes aligned with the Cartesian axes (x,y,zx, y, z). For each axis, the corresponding coordinate is omitted and treated as the depth pixel value, while the remaining two coordinates are floored to index 2D pixel coordinates on a discrete image grid. The single-channel depth value is repeated across three channels to form three multi-view depth maps {Ii}i=13∈RH0×W0×3\{I_i\}_{i=1}^3 \in \mathbb{R}^{H_0 \times W_0 \times 3}.

    A frozen pre-trained 2D vision backbone (such as a Vision Transformer pre-trained via CLIP) processes {Ii}i=13\{I_i\}_{i=1}^3 to extract two modalities of 2D guidance:

    1. Multi-view 2D visual feature maps {Fi2D}i=13\{F_i^{\text{2D}}\}_{i=1}^3, where each Fi2D∈RH×W×CF_i^{\text{2D}} \in \mathbb{R}^{H \times W \times C}.
    2. Multi-view 2D attention maps {Si2D}i=13\{S_i^{\text{2D}}\}_{i=1}^3, where each Si2D∈RH×W×1S_i^{\text{2D}} \in \mathbb{R}^{H \times W \times 1}. For Vision Transformers, these are the self-attention weights between the class token and patch tokens at the final layer; for ResNet models, they are obtained via pixel-wise channel max-pooling.

  3. Knowl 3 — 2D-Guided Masking via Spatial Attention Clouds

    equation

    Rather than masking point tokens uniformly at random, I2P-MAE leverages 2D attention maps to prioritize preserving semantically informative 3D structural regions.

    Let {Si2D}i=13∈RH×W×1\{S_i^{\text{2D}}\}_{i=1}^3 \in \mathbb{R}^{H \times W \times 1} denote the multi-view 2D attention maps and PT∈RM×3P^T \in \mathbb{R}^{M \times 3} denote the downsampled point patch centers. The 2D-to-3D back-projection operator I2P⁡(Si2D,PT)\operatorname{I2P}(S_i^{\text{2D}}, P^T) maps 3D point coordinates to their corresponding 2D spatial pixel coordinates on the ii-th view's attention map. The multi-view scores are averaged and normalized across all MM tokens via a softmax function to generate a 3D spatial attention cloud S3D∈RM×1S^{\text{3D}} \in \mathbb{R}^{M \times 1}:

    S3D=Softmax⁡(13∑i=13I2P⁡(Si2D,PT))S^{\text{3D}} = \operatorname{Softmax}\left(\frac{1}{3}\sum_{i=1}^3 \operatorname{I2P}(S_i^{\text{2D}}, P^T)\right)

    Each scalar entry in S3DS^{\text{3D}} represents the sampling probability for the corresponding point token to be retained as a visible token TvisT_{\text{vis}}. Tokens located in semantically critical regions receive higher visible probabilities, ensuring the encoder focuses on structural landmarks.

  4. Knowl 4 — 2D-Semantic Feature Reconstruction and Joint Pre-training Objective

    equation

    To transfer high-level semantic knowledge into 3D representations, I2P-MAE tasks the decoded visible tokens Tvisd∈RMvis×CT_{\text{vis}}^d \in \mathbb{R}^{M_{\text{vis}} \times C} with reconstructing multi-view 2D visual features.

    Target 2D representations Fvis3D∈RMvis×3CF_{\text{vis}}^{\text{3D}} \in \mathbb{R}^{M_{\text{vis}} \times 3C} are constructed by indexing into the multi-view 2D feature maps {Fi2D}i=13\{F_i^{\text{2D}}\}_{i=1}^3 using the visible point patch center coordinates PvisT∈RMvis×3P_{\text{vis}}^T \in \mathbb{R}^{M_{\text{vis}} \times 3} and concatenating across all 3 views:

    Fvis3D=Concat⁡{I2P⁡(Fi2D,PvisT)}i=13F_{\text{vis}}^{\text{3D}} = \operatorname{Concat}\Big\{\operatorname{I2P}(F_i^{\text{2D}}, P_{\text{vis}}^T)\Big\}_{i=1}^3

    The 2D semantic reconstruction loss L2D\mathcal{L}_{\text{2D}} is the mean squared error (ℓ2\ell_2 loss) between a linear projection head H2D(Tvisd)H_{\text{2D}}(T_{\text{vis}}^d) and the target Fvis3DF_{\text{vis}}^{\text{3D}}:

    L2D=1Mvis(H2D(Tvisd)−Fvis3D)2\mathcal{L}_{\text{2D}} = \frac{1}{M_{\text{vis}}}\left(H_{\text{2D}}(T_{\text{vis}}^d) - F_{\text{vis}}^{\text{3D}}\right)^2

    The 3D coordinate reconstruction loss L3D\mathcal{L}_{\text{3D}} is the Chamfer distance between the predicted points from the linear head H3D(Tmaskd)H_{\text{3D}}(T_{\text{mask}}^d) and the ground-truth masked patch coordinates Pmask∈RMmask×k×3P_{\text{mask}} \in \mathbb{R}^{M_{\text{mask}} \times k \times 3}:

    L3D=1MmaskkChamfer⁡(H3D(Tmaskd),Pmask)\mathcal{L}_{\text{3D}} = \frac{1}{M_{\text{mask}} k}\operatorname{Chamfer}\left(H_{\text{3D}}(T_{\text{mask}}^d), P_{\text{mask}}\right)

    The total pre-training loss is:

    LI2P=L3D+L2D\mathcal{L}_{\text{I2P}} = \mathcal{L}_{\text{3D}} + \mathcal{L}_{\text{2D}}

  5. Knowl 5 — Experimental Pre-training Setup for I2P-MAE

    experimental setup

    I2P-MAE is pre-trained on ShapeNet, which contains 57,448 synthetic CAD point clouds spanning 55 object categories.

    Hyperparameters and structural details include:

    • Point Cloud Sampling: N=2048N = 2048 input points per cloud, downsampled via FPS to M=512M = 512 centers, with k=16k = 16 nearest neighbors per patch.
    • Architecture: Hierarchical transformer backbone with a 3-stage encoder (5 blocks per stage) and a 2-stage decoder (1 block per stage). Feature channel dimension C=384C = 384.
    • Masking: Masking ratio of 80% (Mmask=410M_{\text{mask}} = 410, Mvis=102M_{\text{vis}} = 102).
    • 2D Teacher: Frozen CLIP pre-trained ViT-Base. Multi-view depth maps are rendered at 224×224224 \times 224 pixels, outputting visual feature maps of spatial size H×W=14×14H \times W = 14 \times 14.
    • Optimization: AdamW optimizer, initial learning rate 10−310^{-3}, weight decay 5×10−25 \times 10^{-2}, batch size 64, trained for 300 epochs with a cosine learning rate scheduler and a 10-epoch linear warm-up.

  6. Knowl 6 — Linear SVM Classification on Synthetic and Real-World Point Clouds

    data/table

    To evaluate the quality and transferability of representations learned during self-supervised pre-training without fine-tuning the backbone weights, a linear Support Vector Machine (SVM) classifier is trained on fixed encoder representations on synthetic ModelNet40 and real-world ScanObjectNN (OBJ-BG split).

    Method ModelNet40 (%) OBJ-BG (%)
    SO-Net 87.3 -
    FoldingNet 88.4 -
    VIP-GAN 90.2 -
    DGCNN + Jigsaw 90.6 59.5
    DGCNN + OcCo 90.7 78.3
    DGCNN + CrossPoint 91.2 81.7
    Transformer + OcCo 89.6 -
    Point-BERT 87.4 -
    Point-MAE 91.0 77.7
    3D-OAE 92.3 -
    Point-M2AE 92.9 84.1
    I2P-MAE 93.4 87.1
    Improvement +0.5 +3.0

    I2P-MAE achieves 93.4% accuracy on ModelNet40 and 87.1% on ScanObjectNN OBJ-BG, outperforming Point-M2AE by +0.5% and +3.0% respectively. Without fine-tuning, the linear SVM accuracy of I2P-MAE exceeds the fully fine-tuned accuracies of several supervised and self-supervised baseline networks.

  7. Knowl 7 — Fine-Tuning on Real-World 3D Classification via ScanObjectNN

    data/table

    The pre-trained I2P-MAE encoder is fine-tuned on the real-world ScanObjectNN dataset, which contains 11,416 training and 2,882 test point clouds scanned from indoor scenes containing background clutter and occlusions. Evaluation is conducted across three official benchmark splits: OBJ-BG, OBJ-ONLY, and the hardest PB-T50-RS.

    Method OBJ-BG (%) OBJ-ONLY (%) PB-T50-RS (%)
    PointNet 73.3 79.2 68.0
    PointNet++ 82.3 84.3 77.9
    PointCNN 86.1 85.5 78.5
    MVTN - - 82.8
    PointMLP - - 85.2
    Transformer 79.86 80.55 77.24
    Point-BERT (Pre-trained) 87.43 88.12 83.07
    3D-OAE (Pre-trained) 89.16 88.64 83.17
    MaskPoint (Pre-trained) 89.30 88.10 84.30
    Point-MAE (Pre-trained) 90.02 88.29 85.18
    MAE3D (Pre-trained) - - 86.20
    Point-M2AE (Pre-trained) 91.22 88.81 86.43
    I2P-MAE (Pre-trained) 94.15 91.57 90.11
    Improvement vs. Second-Best +2.93 +2.76 +3.68

    I2P-MAE outperforms all prior methods across all splits, achieving 94.15% (+2.93%), 91.57% (+2.76%), and 90.11% (+3.68%) accuracy over Point-M2AE, making it the first model to reach over 90% accuracy on the PB-T50-RS split.

  8. Knowl 8 — Fine-Tuning on Synthetic 3D Classification and ShapeNetPart Segmentation

    data/table

    I2P-MAE is fine-tuned and evaluated on synthetic point cloud classification using ModelNet40 (9,843 training and 2,468 testing shapes across 40 CAD categories, evaluated with 1k1\text{k} points) and 3D part segmentation on ShapeNetPart (14,007 training and 2,874 validation shapes across 16 categories and 50 parts).

    ModelNet40 Classification Accuracy:

    Method No Voting (%) Voting (%)
    PointNet 89.2 -
    PointNet++ 90.7 -
    PointCNN 92.2 -
    Point Transformer - 93.7
    Transformer 91.4 -
    Point-BERT (Pre-trained) 92.7 93.2
    3D-OAE (Pre-trained) - 93.4
    Point-MAE (Pre-trained) 93.2 93.8
    Point-M2AE (Pre-trained) 93.4 94.0
    I2P-MAE (Linear SVM, No fine-tuning) 93.4 -
    I2P-MAE (Fine-tuned) 93.7 94.1

    ShapeNetPart Segmentation Performance:

    Method mIoUC\text{mIoU}_C (%) mIoUI\text{mIoU}_I (%)
    PointNet 80.39 83.70
    PointNet++ 81.85 85.10
    DGCNN 82.33 85.20
    PointMLP 84.60 86.10
    Transformer 83.42 85.10
    Point-BERT (Pre-trained) 84.11 85.60
    MaskPoint (Pre-trained) 84.40 86.00
    Point-MAE (Pre-trained) - 86.10
    Point-M2AE (Pre-trained) 84.86 86.51
    I2P-MAE (Pre-trained) 85.15 86.76

    Fine-tuned I2P-MAE attains 93.7% accuracy (94.1% with offline multi-view voting) on ModelNet40 and sets new state-of-the-art results on ShapeNetPart with 85.15% category mean IoU (mIoUC\text{mIoU}_C) and 86.76% instance mean IoU (mIoUI\text{mIoU}_I).

  9. Knowl 9 — Data Efficiency in Self-Supervised 3D Pre-training under Limited Data

    data/table

    To evaluate pre-training data efficiency when 3D data is scarce, I2P-MAE, Point-MAE, and Point-M2AE are pre-trained on varying sub-sampled proportions (20%, 40%, 60%, 80%, 100%) of the ShapeNet dataset and evaluated via linear SVM classification accuracy (%) on ModelNet40.

    Method 20% 40% 60% 80% 100%
    Point-MAE 89.4 90.2 90.3 90.5 91.0
    Point-M2AE 90.8 92.0 92.1 92.4 92.9
    I2P-MAE 92.1 92.7 93.1 93.1 93.4
    Improvement vs Point-M2AE +1.3 +0.7 +1.0 +0.7 +0.5

    I2P-MAE trained on only 20% of ShapeNet reaches 92.1% accuracy, exceeding Point-MAE pre-trained on 100% of ShapeNet (91.0%). Furthermore, I2P-MAE pre-trained on 60% of ShapeNet achieves 93.1% accuracy, outperforming Point-M2AE pre-trained on 100% of the data (92.9%), demonstrating that 2D prior knowledge effectively compensates for 3D data scarcity.

  10. Knowl 10 — Ablation Studies on 2D-Guided Masking and Semantic Reconstruction Targets

    data/table

    Ablations on ModelNet40 and ScanObjectNN (OBJ-BG) via linear SVM accuracy (%) isolate the contributions of the 2D-guided masking strategy and the assignment of 2D vs. 3D reconstruction targets.

    Masking Strategy Ablation:

    2D-guided Visible Selection Mask Ratio ModelNet40 (%) OBJ-BG (%)
    ✓ Important 0.8 93.4 87.1
    - Random 0.8 93.0 86.2
    ✓ Unimportant 0.8 92.8 84.5
    ✓ Important 0.7 92.5 83.8
    ✓ Important 0.9 92.8 85.6

    Selecting semantically critical tokens as visible via 2D attention improves accuracy by +0.4% on ModelNet40 and +0.9% on OBJ-BG over uniform random masking. Inverting selection to retain unimportant tokens drops performance significantly (92.8% / 84.5%).

    Reconstruction Target Assignment Ablation:

    Targeted Tokens Target Modality ModelNet40 (%) OBJ-BG (%)
    Masked Visible 3D 2D
    ✓ ✓ Masked Visible 93.4 87.1
    ✓ - Masked - 92.9 84.7
    - ✓ - Visible 91.9 80.2
    ✓ - - Masked 91.2 77.8
    ✓ - Masked Masked 92.6 84.9

    Reconstructing 2D semantics on visible tokens combined with 3D coordinates on masked tokens achieves the best accuracy (+0.5% and +2.4% over 3D-only reconstruction). Reconstructing both 3D coordinates and 2D semantics exclusively on masked tokens degrades performance (92.6% / 84.9%) due to 2D-3D target conflicts and forcing semantic reconstruction onto less critical masked regions.

Coverage note — No substantial contributed material was omitted; the knowls encompass the core I2P-MAE architecture, orthogonal projection mechanics, loss formulations, experimental configurations, linear probe classifications, fine-tuned classification and segmentation benchmarks, data scarcity studies, and detailed ablation analyses.
