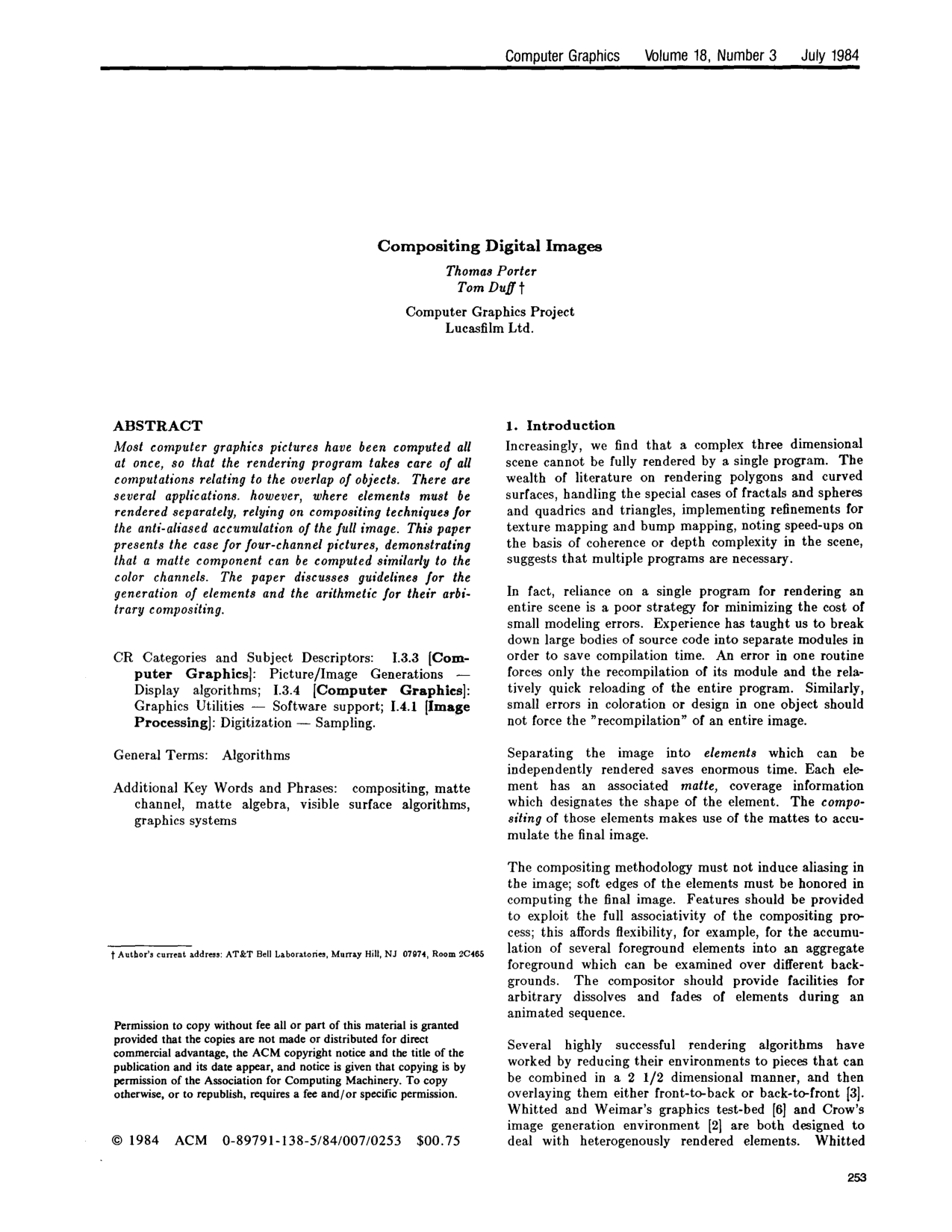

Compositing digital images

Thomas K. PorterTom Duff

article1984SIGGRAPH1,707 citations

Introduces the alpha channel and premultiplied alpha alongside the foundational algebra of compositing operators, establishing the standard mathematical framework used across modern digital image synthesis.

Listen

Generating complex synthetic imagery in computer graphics using a single, monolithic rendering program is inefficient and costly. When minor color or design errors occur, the entire scene must be recomputed, consuming substantial processing time. To resolve this, production workflows break scenes into modular, independently rendered elements. However, combining these disparate elements requires robust image compositing techniques that prevent visual artifacts, preserve anti-aliased soft edges, and support flexible modifications without degrading picture quality.

The article establishes a standardized mathematical and architectural framework for digital image compositing. It evaluates the use of a dedicated matte channel alongside traditional color channels, defines a complete algebra of compositing operators, and demonstrates practical methods for combining multiple image layers.

The authors approach the problem by modeling pixels at the subpixel level to evaluate how overlapping geometric elements interact. By assuming that overlapping image elements distribute uniformly across subpixel areas unless otherwise specified, the article defines a unified arithmetic model for blending. This theoretical model is demonstrated through practical image-assembly workflows, including complex multi-layered scenes and visual effects involving transparency and luminescence.

The core finding is that image coverage should be stored as an integrated fourth channel—the alpha channel—with color values stored in a pre-multiplied format. Pre-multiplying colors by their alpha coverage eliminates redundant multiplication steps, streamlining compositing arithmetic across color and opacity channels alike. The authors classify a complete set of 12 distinct binary compositing operators (such as "over", "in", "out", "atop", and "xor"), supplemented by an additive "plus" operator and unary adjustments for darkening, fading, and controlling opaqueness. The article demonstrates that complex, multi-layered images can be expressed cleanly as algebraic combinations of these basic operations while preserving anti-aliased edges.

These findings provide significant operational advantages for graphics pipelines. Modular rendering dramatically lowers production risk, cost, and iteration time because artists can adjust individual foreground elements without re-rendering backgrounds. Furthermore, the four-channel standard enables efficient data compression for off-line storage by treating fully opaque backgrounds, transparent foregrounds, and stencils uniformly.

Hardware manufacturers and software developers should adopt four-channel image buffers and support pre-multiplied color conventions across graphics tools. Further research is needed to automate the division of three-dimensional scenes into depth-separated layers and to extend these compositing principles directly into depth-buffer (Z-buffer) algorithms.

The model relies on the assumption that subpixel coverages of different images are uncorrelated. When the same image appears multiple times in an expression or when elements share geometric boundaries, this assumption fails. In those correlated cases, users must exercise caution and explicitly compute contributions across all potential subpixel intersections rather than relying on the simplified two-picture formulas.

AT&T Bell Laboratories Lucasfilm color images data compression digital image compositing digital images binary compositing compositing operation

Porter et al (1984).pdf

No sufficiently relevant recommendations were found.

Paper: A Closed-Form Solution to Natural Image Matting, Anat Levin et al. (2006). This paper builds directly on the foundational alpha compositing equation by establishing an optimal, closed-form solution to invert the blending process and extract natural foreground mattes and opacities.
Paper: "GrabCut": interactive foreground extraction using iterated graph cuts, Carsten Rother et al. (2004). This work extends compositing principles to practical interactive workflows by combining iterated graph cut segmentation with border alpha matting for seamless foreground layer extraction.
Paper: Poisson image editing, Patrick Pérez et al. (2003). This paper advances traditional layer-based alpha compositing by introducing gradient-domain guidance for seamless, artifact-free boundary blending between disparate image regions.
Paper: NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis, Ben Mildenhall et al. (2020). This foundational novel-view synthesis technique directly utilizes the continuous formulation of alpha blending and compositing equations to perform differentiable volume rendering across sampled rays.
Paper: 3D Gaussian Splatting for Real-Time Radiance Field Rendering, Bernhard Kerbl et al. (2023). This work applies traditional alpha blending and front-to-back compositing equations to efficiently project, sort, and render 3D Gaussian primitives in real time.

Abstract

Most computer graphics pictures have been computed all at once, so that the rendering program takes care of all computations relating to the overlap of objects. There are several applications. however, where elements must be rendered separately, relying on compositing techniques for the anti-aliased accumulation of the full image. This paper presents the case for four-channel pictures, demonstrating that a matte component can be computed similarly to the color channels. The paper discusses guidelines for the generation of elements and the arithmetic for their arbitrary compositing.

Topics

color images data compression digital image layered multiplication software software developer visual effects architecture frameworks high resolution image

Keywords

compositing digital images binary compositing compositing operation alpha channel RGBA pictures matte channel compositing expressions frame buffer

1. Introduction
2. The Alpha Channel
3. RGBA Pictures
4. The Algebra of Compositing
4.1. Assumptions
4.2. Compositing Operators
4.3. Compositing Arithmetic
4.4. Unary operators
4.5. The PLUS operator
5. Examples
6. Conclusion
7. References
8. Acknowledgment

Knowls

Knowl 1 — Premultiplied Alpha Representation (RGBA Quadruple)
definition
A digital image pixel is represented as a four-channel quadruple $(r, g, b, \alpha)$ , where $\alpha \in [0, 1]$ designates the subpixel coverage (matte value) or opacity of an image element at that pixel, and the color components $r, g, b \in [0, 1]$ are stored pre-multiplied by $\alpha$ :

$r = \alpha R, \quad g = \alpha G, \quad b = \alpha B$

where $(R, G, B)$ denotes the unmultiplied color of the object covering the pixel.

Under this representation:
- When $\alpha = 1$ , $(r, g, b)$ represents the unattenuated true color of a fully opaque object.
- When $\alpha = 0$ , normal non-luminescent objects have $r = g = b = 0$ .
- Fractional values of $\alpha \in (0, 1)$ yield linearly darkened color components $(r, g, b)$ corresponding to anti-aliased element boundaries.
- Transparent clear is represented uniquely as $(0, 0, 0, 0)$ , whereas opaque black is represented as $(0, 0, 0, 1)$ .
- The original true color can be extracted via $(R, G, B) = (r/\alpha, g/\alpha, b/\alpha)$ for $\alpha > 0$ .
- Pixels with color components exceeding $\alpha$ represent luminescent (additive) light sources that add illumination without fully obscuring the background.
Knowl 2 — General Binary Compositing Formulation for Premultiplied RGBA Channels
equation
Given two input image pixels $A = (r_A, g_A, b_A, \alpha_A)$ and $B = (r_B, g_B, b_B, \alpha_B)$ whose color channels are pre-multiplied by their respective coverage values $\alpha_A$ and $\alpha_B$ , the composite output pixel $(r_0, g_0, b_0, \alpha_0)$ is computed uniformly across color and alpha channels by:

$c_0 = c_A F_A + c_B F_B$

$\alpha_0 = \alpha_A F_A + \alpha_B F_B$

where $c \in \{r, g, b\}$ denotes any of the three color components, and $F_A, F_B \in [0, 1]$ are geometric factors representing the fraction of picture $A$ 's and picture $B$ 's coverage area that survives into the composite output.

Because input colors are pre-multiplied by $\alpha$ and contributions are summed over non-overlapping subpixel partitions, the output color $c_0$ is automatically pre-multiplied by the resulting composite coverage $\alpha_0$ without requiring separate normalization.

Knowl 3 — The 12 Binary Compositing Operators and Factor Table

data/table

Binary compositing operations between two pictures $A$ and $B$ are enumerated by selecting which input picture survives in each of the four mutually exclusive subpixel partitions: background ( $0$ ), $A$ alone ( $A\bar{B}$ ), $B$ alone ( $\bar{A}B$ ), and the overlap ( $AB$ ). With $1$ choice for background ( $0$ ), $2$ choices for $A\bar{B}$ ( $0$ or $A$ ), $2$ choices for $\bar{A}B$ ( $0$ or $B$ ), and $3$ choices for $AB$ ( $0$ , $A$ , or $B$ ), there are exactly $1 \times 2 \times 2 \times 3 = 12$ distinct compositing operators.

Operation	Quadruple $(0, A\bar{B}, \bar{A}B, AB)$	$F_A$	$F_B$
clear	$(0, 0, 0, 0)$	$0$	$0$
$A$	$(0, A, 0, A)$	$1$	$0$
$B$	$(0, 0, B, B)$	$0$	$1$
$A\text{ over }B$	$(0, A, B, A)$	$1$	$1 - \alpha_A$
$B\text{ over }A$	$(0, A, B, B)$	$1 - \alpha_B$	$1$
$A\text{ in }B$	$(0, 0, 0, A)$	$\alpha_B$	$0$
$B\text{ in }A$	$(0, 0, 0, B)$	$0$	$\alpha_A$
$A\text{ out }B$	$(0, A, 0, 0)$	$1 - \alpha_B$	$0$
$B\text{ out }A$	$(0, 0, B, 0)$	$0$	$1 - \alpha_A$
$A\text{ atop }B$	$(0, 0, B, A)$	$\alpha_B$	$1 - \alpha_A$
$B\text{ atop }A$	$(0, A, 0, B)$	$1 - \alpha_B$	$\alpha_A$
$A\text{ xor }B$	$(0, A, B, 0)$	$1 - \alpha_B$	$1 - \alpha_A$

In this table:

$A\text{ over }B$ places foreground $A$ in front of background $B$ .
$A\text{ in }B$ clips $A$ to the interior matte of $B$ .
$A\text{ out }B$ (held out by $B$ ) retains only the portion of $A$ outside the silhouette of $B$ .
$A\text{ atop }B$ places $A$ over $B$ only where $B$ is present, rendering $B$ elsewhere and clearing areas outside $B$ .
$A\text{ xor }B$ preserves regions covered by either $A$ or $B$ alone, clearing the intersection.

Knowl 4 — Statistical Independence Assumption for Subpixel Coverage
assumption
When combining two independent pictures $A$ and $B$ at a single pixel without explicit subpixel geometric boundary descriptions, the coverage of $B$ is assumed to divide the subpixel area inside $A$ and the subpixel area outside $A$ in identical proportions $\alpha_B : (1 - \alpha_B)$ .

Under this assumption, for two opaque objects with pixel coverage fractions $\alpha_A, \alpha_B \in [0, 1]$ , the pixel area is divided into four disjoint subpixel partitions:
1. Outside both objects ( $\bar{A} \cap \bar{B}$ ): area $(1 - \alpha_A)(1 - \alpha_B)$
2. Covered by $A$ and outside $B$ ( $A \cap \bar{B}$ ): area $\alpha_A(1 - \alpha_B)$
3. Covered by $B$ and outside $A$ ( $\bar{A} \cap B$ ): area $(1 - \alpha_A)\alpha_B$
4. Covered by both $A$ and $B$ ( $A \cap B$ ): area $\alpha_A \alpha_B$
This division produces identical area formulas to the light transmission model for two overlapping semi-transparent layers with opacities $\alpha_A$ and $\alpha_B$ that fully cover the pixel.
Knowl 5 — The PLUS Compositing Operator
model/method
The binary compositing operator $\text{plus}$ adds components of two pictures $A$ and $B$ without establishing depth precedence in overlapping areas. In the overlapping subpixel partition $AB$ , both input pictures survive, defining the survival factors:

$F_A = 1, \quad F_B = 1$

The composite color and alpha components are obtained by direct component-wise summation:

$c_0 = c_A + c_B$

$\alpha_0 = \alpha_A + \alpha_B$

where $c \in \{r, g, b\}$ .

The $\text{plus}$ operator enables linear cross-dissolves between two pictures $A$ and $B$ over a transition parameter $\delta \in [0, 1]$ via:

$\text{dissolve}(A, \delta) \text{ plus } \text{dissolve}(B, 1 - \delta)$
Knowl 6 — Unary Pixel Operators: Darken, Dissolve, and Opaque
model/method
Three unary operators modify the color and coverage channels of an RGBA pixel quadruple $(r_A, g_A, b_A, \alpha_A)$ :
1. Darken scales color channels while keeping coverage unchanged:
$\text{darken}(A, \phi) = (\phi r_A, \phi g_A, \phi b_A, \alpha_A)$

where $\phi \ge 0$ is a brightness factor (scaling to black for $\phi \in [0, 1)$ or brightening for $\phi > 1$ ).
1. Dissolve uniformly scales both color and coverage channels:
$\text{dissolve}(A, \delta) = (\delta r_A, \delta g_A, \delta b_A, \delta \alpha_A)$

where $\delta \in [0, 1]$ causes the element to fade smoothly from full visibility to complete transparency.
1. Opaque scales the alpha channel independently of the color channels:
$\text{opaque}(A, \omega) = (r_A, g_A, b_A, \omega \alpha_A)$

where $\omega \in [0, 1]$ adjusts the opaqueness of the element over background pixels without reducing its color contribution. Setting $\omega = 0$ yields a luminescent pixel $(r_A, g_A, b_A, 0)$ that adds color directly to the composite without obscuring any background elements behind it.
Knowl 7 — Multi-Image Compositing with Correlated Mattes
algorithm
When a compositing expression contains $n$ pictures where matte channels are correlated (for example, when the same picture appears multiple times or elements share common geometric boundaries), the independent binary operator table cannot be applied pairwise. Multi-image compositing is instead resolved by explicitly evaluating survivor coverage across all $2^n$ subpixel partitions.
Input: $n$ input RGBA pixel quadruples $P_1, P_2, \dots, P_n$ at a shared pixel location, and a compositing expression specifying precedence/combination rules
Output: Composite pixel quadruple $(r_0, g_0, b_0, \alpha_0)$
Initialize $(r_0, g_0, b_0, \alpha_0) = (0, 0, 0, 0)$
Divide the pixel into $2^n$ disjoint subpixel regions corresponding to all Boolean presence/absence combinations of $(P_1, P_2, \dots, P_n)$
for each subpixel region $S_k$ among the $2^n$ regions do
    Determine the subpixel area $\text{Area}(S_k)$ by aligning correlated matte coverage
    if $\text{Area}(S_k) > 0$ then
        Determine the subset of pictures $\mathcal{P}_{\text{surv}}(S_k) \subseteq \{P_1, \dots, P_n\}$ that survive in $S_k$ according to the expression
        for each surviving picture $P_i \in \mathcal{P}_{\text{surv}}(S_k)$ do
            for each component $c \in \{r, g, b\}$ do
                 $c_0 = c_0 + (c_{P_i} / \alpha_{P_i}) \times \text{Area}(S_k)$
             $\alpha_0 = \alpha_0 + \text{Area}(S_k)$
return $(r_0, g_0, b_0, \alpha_0)$ clipped to $[0, 1]$
Knowl 8 — Limitation of Pairwise Independence for Correlated Mattes
limitation
The standard survival factor formulas $F_A$ and $F_B$ for binary compositing operators assume statistical independence of subpixel area coverage between pictures $A$ and $B$ . This assumption fails in the presence of correlated mattes, including:
1. Pixels containing adjacent segments of a continuous line or shared polygon boundaries that never overlap geometrically within the pixel ( $A \cap B = \emptyset$ ).
2. Repeated instances of the same image element or shared matte in a multi-operator compositing expression (such as $(A \text{ in } C) \text{ over } B$ , or expressions where a matte appears both in a foreground cut-out and background occlusion), where subpixel coverage is identical rather than independent.
In these cases, applying pairwise formulas sequentially produces incorrect subpixel coverage calculations, requiring full $2^n$ partition analysis with aligned geometry.

Coverage note — None was omitted. Specific application examples (such as the specific scene graph recipes for Road to Point Reyes and the Planet/Fire composite) were subsumed into the operator definitions and the multi-picture correlated matte algorithm.
