SynAE: A Framework for Measuring the Quality of Synthetic Data for Tool-Calling Agent Evaluations

Shuaiqi WangAadyaa MaddiZinan LinGiulia Fanti

article2026arXiv1 citations

Presents SynAE, an evaluation framework that systematically assesses the validity, fidelity, and diversity of synthetic execution traces across multi-turn tool calls and outputs to ensure synthetic datasets can reliably test tool-calling agents.

Listen

Organizations deploying artificial intelligence systems increasingly rely on automated agents that call external tools and execute multi-step workflows. However, testing these systems before deployment is challenging because real user interaction logs are often too small for comprehensive evaluation or contain sensitive personal data subject to privacy rules. To solve this, developers use synthetic datasets to augment or replace real user data. Despite this growing practice, teams currently lack systematic, quantitative methods to verify whether synthetic test data accurately reflects real-world operational conditions or preserves the validity of multi-step tool interactions.

The article introduces SynAE, a comprehensive evaluation framework designed to measure the quality of synthetic test datasets for multi-turn, tool-calling agents. Its primary objective is to evaluate how well synthetic benchmarks replicate and expand upon real data across three core dimensions: validity, fidelity, and diversity.

To establish credibility without relying on simple surface-level comparisons, the approach evaluates synthetic trajectories across four levels: conversational instructions, tool calls, final text outputs, and downstream agent performance. SynAE assesses validity by checking whether tool calls and final outputs correctly accomplish tasks, fidelity by measuring distributional and structural similarity against real data, and diversity through entropy-based metrics across dataset features. The authors evaluated SynAE on three established benchmarks (T1, BFCL, and ACP) covering conversational planning, function calling, and discrete action domains, while testing synthetic generation techniques including industry-standard tools (such as NVIDIA NeMo) and controlled modification schemes.

The analysis yielded several key findings. First, no single metric can capture synthetic benchmark quality. Interventions that improve data diversity, such as masking and re-generating instructions, frequently degrade data fidelity. Second, traditional text-similarity metrics can produce false confidence; for example, adding demonstrations to generation prompts improved surface vocabulary overlap while degrading deeper semantic recall and attribute alignment. Third, naive synthetic data generation methods often damage validity; directly replacing topic keywords in instructions improved diversity but caused task-completion validity to fall from 100% to 82% due to inconsistencies between prompts and subsequent tool calls. Finally, using higher-capacity model backends resolved these trade-offs, enabling simultaneous improvements in diversity and task validity without sacrificing fidelity.

These findings have direct operational and risk implications for artificial intelligence deployments. Evaluating tool-calling agents on unvalidated synthetic data creates hidden blind spots, risking deployment of faulty models that fail during execution or miscalculate user intent. Over-relying on superficial metrics or basic data manipulation increases compliance and safety risks while potentially distorting performance rankings among candidate models.

Organizations should adopt multi-axis evaluation frameworks to systematically audit synthetic benchmarks before using them in pre-deployment agent testing. Teams should use targeted diagnostic metrics to pinpoint whether a benchmark suffers from limited diversity, low fidelity, or invalid logic, and then apply suitable synthetic generation strategies rather than naive keyword substitutions. Where high fidelity and diversity are required, practitioners must budget for sufficiently capable generator models to avoid subtle execution failures.

The findings are well supported by systematic experiments across diverse domain benchmarks and validate strong alignment between automated evaluations and human judgment. However, readers should note that the evaluation is currently bounded by static, text-based multi-turn interactions. Confidence is highest for discrete tool-calling environments, while cautious interpretation is recommended when extending these conclusions to fully dynamic real-time environments or multi-agent collaborative workflows.

Carnegie Mellon University Microsoft execution trace intelligent agents software agents tool-calling agent evaluations SynAE framework synthetic data quality

arXiv: 2605.22564 wsqwsq/SynAE

Paper: ToolLLM: Facilitating Large Language Models to Master 16000+ Real-world APIs, Yujia Qin et al. (2023). Introduces ToolBench and automated multi-turn synthetic trajectory generation for tool-calling agents, establishing the primary data paradigms evaluated by SynAE.
Paper: API-Bank: A Comprehensive Benchmark for Tool-Augmented LLMs, Minghao Li et al. (2023). Provides foundational benchmark protocols and dialogue-action trajectory evaluation standards for tool-augmented language models.
Paper: Toolformer: Language Models Can Teach Themselves to Use Tools, Timo Schick et al. (2023). Establishes core methodologies for synthesizing self-supervised tool-use calls and execution demonstrations in language models.
Paper: Agent-as-a-Judge: Evaluate Agents with Agents, Mingchen Zhuge et al. (2025). Pioneers multi-step trajectory and intermediate execution state evaluation for autonomous agents using automated judges.
Paper: Learn-by-interact: A Data-Centric Framework For Self-Adaptive Agents in Realistic Environments, Hongjin Su et al. (2025). Presents techniques for synthesizing multi-step agent trajectories and backwards task construction in realistic digital environments.

Paper: Actions Speak Louder than Words: Measuring Cross-Lingual Policy Retention in Tool-Using Agents, Sourabrata Mukherjee et al. (2026). Examines intermediate tool-calling action trace fidelity and policy retention across multilingual agent evaluation benchmarks.
Paper: LLMs Get Lost in Evolving User Intent, Jihoon Tack et al. (2026). Applies synthetic multi-turn trajectory generation to benchmark tool-using and reasoning agents under dynamically changing user specifications.
Paper: Where Did It Go Wrong? Process-Level Evaluation of Web Agents with Semantic State Tracking, Jiwan Chung et al. (2026). Extends trajectory-level quality assessment by introducing semantic state tracking to diagnose intermediate step failures in web agents.
Paper: AgentLens: Revealing The Lucky Pass Problem in SWE-Agent Evaluation, Priyam Sahoo et al. (2026). Analyzes process quality and structural alignment across agent execution trajectories to identify flawed workflows behind nominal benchmark passes.

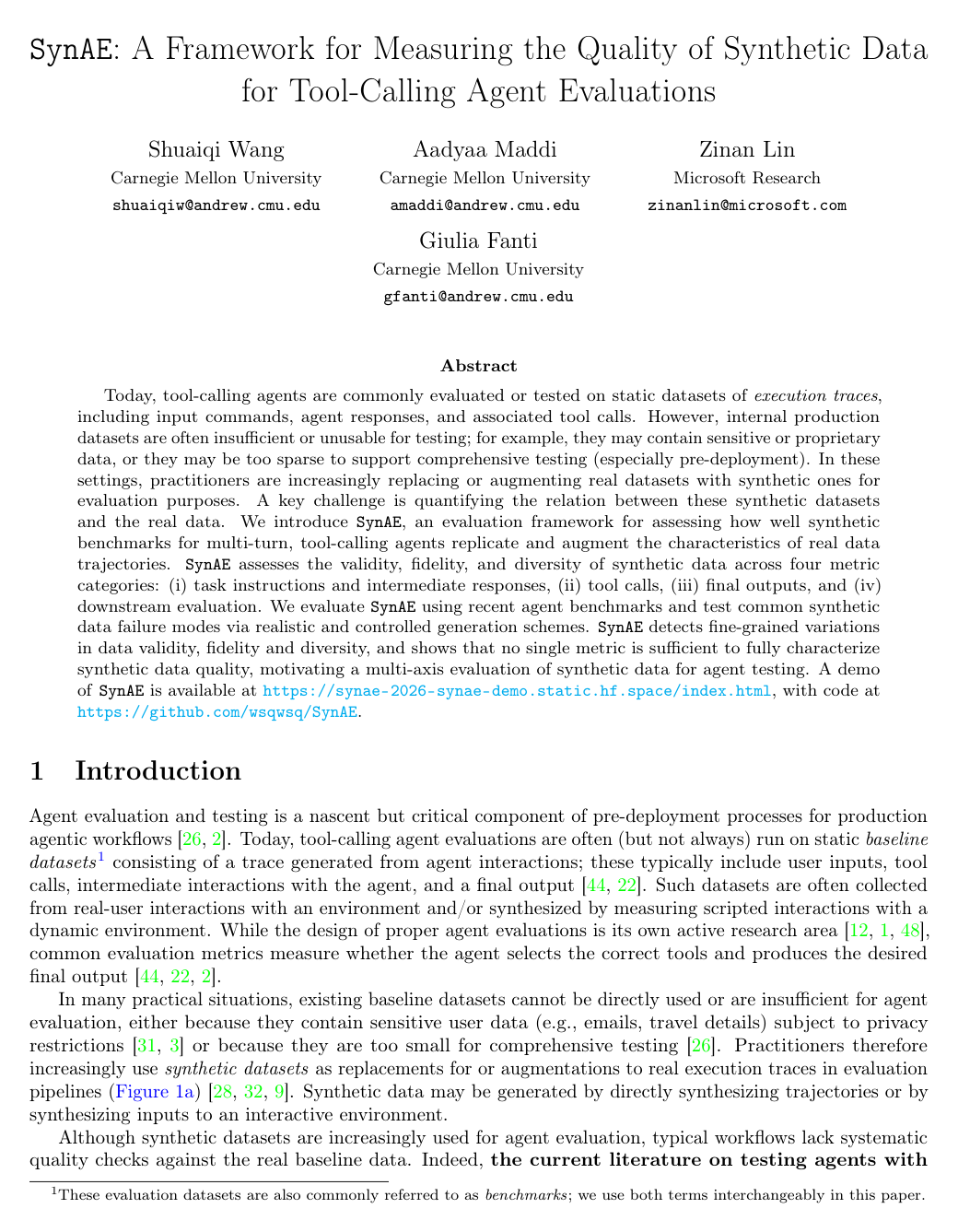

Cover for SynAE: A Framework for Measuring the Quality of Synthetic Data for Tool-Calling Agent Evaluations

Abstract

Today, tool-calling agents are commonly evaluated or tested on static datasets of execution traces, including input commands, agent responses, and associated tool calls. However, internal production datasets are often insufficient or unusable for testing; for example, they may contain sensitive or proprietary data, or they may be too sparse to support comprehensive testing (especially pre-deployment). In these settings, practitioners are increasingly replacing or augmenting real datasets with synthetic ones for evaluation purposes. A key challenge is quantifying the relation between these synthetic datasets and the real data. We introduce SynAE, an evaluation framework for assessing how well synthetic benchmarks for multi-turn, tool-calling agents replicate and augment the characteristics of real data trajectories. SynAE assesses the validity, fidelity, and diversity of synthetic data across four metric categories: (i) task instructions and intermediate responses, (ii) tool calls, (iii) final outputs, and (iv) downstream evaluation. We evaluate SynAE using recent agent benchmarks and test common synthetic data failure modes via realistic and controlled generation schemes. SynAE detects fine-grained variations in data validity, fidelity and diversity, and shows that no single metric is sufficient to fully characterize synthetic data quality, motivating a multi-axis evaluation of synthetic data for agent testing. A demo of SynAE is available at this https URL, with code at this https URL.

Topics

execution trace intelligent agents software agents synthetic data real data sets

Keywords

tool-calling agent evaluations SynAE framework synthetic data quality tool-call sequences synthetic benchmarks Tool Usage Match Tool Call Number Match execution traces

1 Introduction
1.1 Related Work
2 SynAE Framework
2.1 Evaluation Metrics
2.1.1 Validity Metrics
2.1.2 Fidelity Metrics
2.1.3 Diversity Metrics
3 Experiments
3.1 Experimental Results
3.1.1 SynAE can capture fine-grained variations in fidelity, diversity, and validity of synthetic data.
3.1.2 No single metric can fully characterize synthetic data performance.
3.1.3 Case study: Practitioners can leverage SynAE to iteratively diagnose and improve synthetic data generation.
4 Conclusions and Limitations
References
A Related Work
B Prompts for LLM-as-a-Judge on Validity
B.1 Prompts for T1
B.1.1 Tool Call Evaluation
B.1.2 Output Evaluation
B.2 Prompts for BFCL
B.2.1 Tool Call Evaluation
B.3 Prompts for ACP
B.3.1 Output Evaluation
B.4 Agreement Rate with Human Annotation
C Prompts for LLM-as-a-Judge in Downstream Evaluation
C.1 Prompts for T1
C.1.1 Tool Call Evaluation
C.1.2 Output Evaluation
C.2 Prompts for BFCL
C.2.1 Tool Call Evaluation
D Computational Cost of SynAE Across Datasets
E Prompts for LLM-Based Synthetic Data Generation Methods
E.1 Prompts for T1
E.1.1 Blank Filling
E.1.2 In-Context Generation
E.2 Prompts for BFCL
E.2.1 Blank Filling
E.2.2 In-Context Generation
E.3 Prompts for ACP
E.3.1 Blank Filling
E.3.2 In-Context Generation
F Detailed Evaluation Results
G Evaluation Results of Nvidia NeMo
H No single baseline metric can fully characterize synthetic data performance
I Attribute Distribution of the Skewed and Augmented Datasets

Knowls

Knowl 1 — SynAE Framework for Synthetic Agent Benchmark Evaluation
model/method
SynAE is an evaluation framework designed to quantify how well synthetic benchmarks for multi-turn, tool-calling agents replicate and augment real agent execution traces.

An agent execution trajectory $D_i$ within a dataset $\mathcal{D} = \{D_i\}_{i=1}^m$ consists of three components:
1. An instruction-response sequence $R_i = (r_{i,1}, r_{i,2}, \dots, r_{i,\ell_i})$ containing $\ell_i$ alternating turns of user instructions and agent responses.
2. A reference tool-call sequence $F_i = \big(f_{i,1}(\phi_{i,1}), f_{i,2}(\phi_{i,2}), \dots, f_{i,q_i}(\phi_{i,q_i})\big)$ , where each $f_{i,j} \in \mathcal{F}$ represents an executable function from the toolset $\mathcal{F}$ , $\phi_{i,j}$ represents its argument inputs, and $q_i$ is the total count of tool calls.
3. A textual final output $O_i$ .
SynAE takes as input a real baseline dataset $\mathcal{D}$ , a synthetic dataset $\mathcal{D}'$ , and optional metric configurations (such as user-specified domain attributes or evaluator LLM agents $A_1, \dots, A_h$ ). It assesses the synthetic dataset along three core pillars:
- Validity: whether synthetic tool calls and outputs successfully fulfill the instructions.
- Fidelity: distributional similarity between real and synthetic data across instructions/responses, tool calls, final outputs, and downstream agent task performance.
- Diversity: structural and semantic spread of the synthetic trajectories using reference-free metrics.
Knowl 2 — Tool Call Fidelity Metrics in SynAE
model/method
SynAE measures the structural and planning fidelity of synthetic tool-calling sequences relative to real baseline sequences using three distributional distance metrics:
1. Tool Usage Match (TUM): Compares the marginal distributions of tool usage across all tool calls: $\text{TUM} = \text{TV}(\omega_f, \omega'_f)$ where $\omega_f$ and $\omega'_f$ represent the categorical tool selection probability distributions in the real and synthetic datasets respectively, and $\text{TV}$ denotes the Total Variation distance.
2. Tool Call Number Match (TCNM): Evaluates whether the number of tool calls per trajectory matches the real data distribution: $\text{TCNM} = W_2(\omega_q, \omega'_q)$ where $\omega_q$ and $\omega'_q$ are the empirical distributions over the tool-call count $q_i$ per trajectory sample $D_i$ , and $W_2$ denotes the Wasserstein-2 distance.
3. $k$ -Step Tool Planning Match: Quantifies tool-transition and planning fidelity by computing the weighted Total Variation distance between the conditional distributions of the next tool given the prefix sequence of the previous $k-1$ tool calls: $$\text{$k$-Step Planning} = \sum_{f_1 \dots f_{k-1} \in \mathcal{F}^{k-1}} n_{f_1 \dots f_{k-1}} \cdot \text{TV}\left(\omega_{f \mid f_1 \dots f_{k-1}}, \omega'{f \mid f_1 \dots f{k-1}}\right) where $\mathcal{F}$ is the toolset, $n_{f_1 \dots f_{k-1}}$ is the count of $k$ -step prefixes matching $f_1 \dots f_{k-1}$ in the real dataset, and $\omega_{f \mid \dots}$ and $\omega'_{f \mid \dots}$ denote the empirical conditional next-tool distributions in the real and synthetic data, respectively ( $k \in \{2, 3\}$ by default).
Knowl 3 — Downstream Task Fidelity Metrics in SynAE
model/method
To evaluate the downstream utility of a synthetic benchmark, SynAE executes a panel of evaluation agents $A_1, \dots, A_h$ on both the real benchmark $\mathcal{D}$ and the synthetic benchmark $\mathcal{D}'$ , assessing two downstream fidelity properties:
1. Task Difficulty Difference (TDD): Measures the average absolute gap in agent task-completion success rates between real and synthetic benchmarks: $\text{TDD} = \frac{1}{h} \sum_{j=1}^h \left| \text{Acc}(A_j, \mathcal{D}) - \text{Acc}(A_j, \mathcal{D}') \right|$ where $\text{Acc}(A_j, \mathcal{D})$ denotes the accuracy of agent $A_j$ on dataset $\mathcal{D}$ . An agent-generated trajectory $\tilde{D}_{i, A_j}$ is judged for functional task success against the reference trajectory $D_i$ using an LLM-as-a-judge (or automated ground-truth checkers).
2. Ranking Divergence (RD): Measures whether the relative ranking of agent capabilities is preserved between the real and synthetic benchmarks. It is computed as the Spearman rank correlation $\rho_s$ between the agent performance rankings obtained on $\mathcal{D}$ versus $\mathcal{D}'$ based on tool-call correctness or final output accuracy.
A lower TDD indicates that the synthetic benchmark closely matches the real dataset's intrinsic difficulty, while a higher RD indicates that model evaluations on synthetic data accurately mirror real-world relative agent comparisons.
Knowl 4 — Text and Attribute Fidelity Metrics in SynAE
model/method
SynAE measures instruction, response, and output fidelity using both structural and semantic distribution-matching metrics:
- Key Node Dependency (KND): Captures sequential dependencies across dialogue turns by computing cosine similarities between text embeddings of adjacent elements: (i) an instruction $r_{i, 2t-1}$ and its immediate response $r_{i, 2t}$ , and (ii) a response $r_{i, 2t}$ and the subsequent instruction $r_{i, 2t+1}$ . KND computes the distributional distance between the resulting cosine-similarity distributions of the real and synthetic datasets.
- Attribute Match (AM): Evaluates alignment across structural, statistical, and semantic metadata attributes (e.g., number of instruction turns, token lengths, task domains, geographic locations). AM applies Wasserstein-2 distance for continuous/numerical attributes and Total Variation distance for categorical attributes.
- $k$ -NN Precision and $k$ -NN Recall: Evaluates semantic representation coverage and quality using embedding space neighborhoods. $k$ -NN Precision is the fraction of synthetic samples whose embedding distance to their nearest real neighbor is smaller than the distance to their $k$ -th nearest synthetic neighbor. $k$ -NN Recall is the fraction of real samples whose distance to their nearest synthetic neighbor is smaller than the distance to their $k$ -th nearest real neighbor.
- Fréchet Inception Distance (FID): Measures the Wasserstein-2 distance between Gaussian approximations fitted to the text embedding distributions of the real and synthetic datasets.
Knowl 5 — Reference-Free Diversity Metrics in SynAE
model/method
SynAE provides two reference-free diversity metrics that quantify dataset spread without requiring real baseline data:
1. Vendi Score (Vendi): Given a dataset of $m$ trajectories and a pairwise positive semidefinite similarity matrix $K \in \mathbb{R}^{m \times m}$ normalized such that $K_{i,i} = 1$ , the Vendi Score is computed from the eigenvalues $\lambda_1, \dots, \lambda_m$ of the matrix $K/m$ as: $\text{Vendi}(K) = \exp\left( -\sum_{i=1}^m \lambda_i \log \lambda_i \right)$ where $0 \log 0 \triangleq 0$ . The score is upper-bounded by $m$ (achieved when all samples are mutually orthogonal).
- For instruction-response sequences $R$ and final outputs $O$ , $K_{i,j}$ is the cosine similarity between text embeddings (e.g., text-embedding-3-small).
- For tool-call sequences $F_i$ and $F_j$ with lengths $q_i$ and $q_j$ , similarity is defined using normalized Levenshtein edit distance: $K_{i,j} = 1 - \frac{\text{Levenshtein}(F_i, F_j)}{\max(q_i, q_j)}$
1. Attribute Diversity (AD): Measures diversity across user-specified discrete attribute categories (e.g., task intent, planning domains, entity types). If there are $C$ possible attribute combinations and $p_i$ is the empirical fraction of trajectories belonging to combination $i$ , AD is the Shannon entropy: $\text{AD} = -\sum_{i=1}^C p_i \log p_i$ Upper-bounded by $\log C$ , achieved when trajectories are uniformly distributed across all attribute combinations.
Knowl 6 — Validity Evaluation and LLM-as-a-Judge Calibration in SynAE
model/method
Validity Rate (VR) in SynAE measures the proportion of synthetic task trajectories where the reference tool-call sequences and textual outputs correctly fulfill the task instructions without hallucinated parameters, nonexistent tool names, or inconsistent answers.

By default, SynAE assesses validity using an LLM-as-a-judge (Mistral-7B-Instruct) prompted to perform binary (yes/no) verification of whether the tool call sequence or final output completely accomplishes the conversation goal (partial correctness is penalized as invalid).

When calibrated against human expert annotations on 100 randomly sampled synthetic trajectories from the T1 benchmark, the LLM-as-a-judge validity checker achieved an $F_1$ score of 0.86 and a Cohen's $\kappa$ of 0.61, indicating substantial agreement with human judgment.
Knowl 7 — Multi-Metric Trade-offs Under Controlled Synthetic Data Perturbations
empirical result
Experiments using controlled synthetic generation schemes on the T1, BFCL, and ACP benchmarks demonstrate that no single metric can fully evaluate synthetic benchmark quality due to trade-offs across validity, fidelity, and diversity:
- Blank Filling: Randomly masking instruction tokens with probability $p \in [0.1, 0.9]$ and refilling them via an LLM lowers instruction and output $k$ -NN Precision (from ~1.0 down to <0.25 on T1) and degrades tool-planning match, but monotonically increases diversity (instruction Vendi Score increases from 9.768 at $p=0$ to 25.029 at $p=0.9$ ).
- Oversampling: Duplicating a subset of trajectories at rate $r \in [0.1, 1.0]$ maintains high $k$ -NN Precision (~0.99) but collapses $k$ -NN Recall (from 0.923 to 0.004 on T1 outputs) and diversity (instruction Vendi Score drops from 8.966 to 1.000).
- In-Context Demonstration Count ( $k$ ): Increasing few-shot demonstrations $k \in \{0, 1, 3, 5\}$ improves superficial n-gram overlap and FID, but does not reliably improve structural fidelity metrics (such as $k$ -NN Recall, KND, or Attribute Match).
- Ranking Divergence Decoupling: Across perturbations, downstream Ranking Divergence (RD) often remains high (e.g., $\rho_s \ge 0.5$ or $1.0$ ) even when tool-planning fidelity severely degrades, because higher-capacity models consistently outperform smaller models despite distribution shifts.

Knowl 8 — Evaluation of NVIDIA NeMo Synthetic Datasets Across LLM Backends and Temperatures

data/table

Synthetic agent trajectories generated for the T1 benchmark using NVIDIA NeMo Data Designer across different backbone models (Mistral-24B-Instruct, Nemotron-Nano-9B-v2, Llama3.1-8B-Instruct) and sampling temperatures $T \in \{0.1, 0.3, 0.5, 0.7, 0.9\}$ demonstrate systematic shifts in quality metrics:

Model	Temp	VR (Output) $\uparrow$	$k$ -NN Prec $\uparrow$	$k$ -NN Rec $\uparrow$	Vendi $\uparrow$	AD $\uparrow$
Mistral-24B	0.1	0.798	0.382	0.089	4.692	2.449
Mistral-24B	0.5	0.898	0.222	0.338	5.472	2.899
Mistral-24B	0.9	0.893	0.013	0.533	7.472	3.077
Nemotron-9B	0.1	0.764	0.209	0.271	5.145	2.347
Nemotron-9B	0.5	0.820	0.237	0.302	7.619	3.125
Nemotron-9B	0.9	0.856	0.049	0.667	9.524	3.487
Llama3.1-8B	0.1	0.809	0.120	0.662	7.480	3.184
Llama3.1-8B	0.5	0.881	0.259	0.160	9.236	3.257
Llama3.1-8B	0.9	0.859	0.100	0.427	9.397	3.481

Across all model backends, increasing the generation temperature increases diversity (Vendi Score and Attribute Diversity) and semantic coverage ( $k$ -NN Recall), but degrades semantic quality ( $k$ -NN Precision). Nemotron and Llama backends generate broader category diversity than Mistral, while maintaining comparable fidelity scores.

Knowl 9 — Iterative Benchmark Refinement with SynAE Diagnostic Feedback

data/table

SynAE enables structured diagnosis and iterative correction of flaws in synthetic agent benchmarks. In a controlled case study starting from a skewed T1 dataset where four attraction types (culture, sport, culinary, guide) were subsampled to 10% representation:

Metric	Skewed Real	Relabeling	NeMo (Llama)	NeMo (Nemotron)	NeMo (GPT-4o-mini)
Validity	1.00	0.82	0.98	0.99	0.99
Fidelity	1.00	0.95	0.71	0.79	0.94
Diversity	0.48	0.65	0.67	0.61	0.70

Diagnosis: SynAE identifies low diversity (0.48 vs. unskewed baseline of 0.72) and pinpoints specific under-represented attribute slices.
Heuristic Relabeling: Naive keyword replacement increases diversity to 0.65, but drops Validity Rate to 0.82 because modified instructions conflict with multi-turn conversation context and tool parameters.
Model-Based Synthesis: NVIDIA NeMo with smaller models restores validity ( $\ge 0.98$ ) but sacrifices fidelity ( $0.71\text{--}0.79$ ). Scaling the generation backend to GPT-4o-mini achieves near-optimal validity (0.99), high fidelity (0.94), and restores unskewed diversity (0.70).

Knowl 10 — Scope and Limitations of SynAE
limitation
SynAE is designed specifically for evaluating static execution trajectories (instructions, responses, tool calls, and textual outputs) in multi-turn tool-calling benchmarks.

It does not natively evaluate:
1. Interactive, dynamic environments where agent actions modify an external, stateful world model (such as interactive web navigation or bash environments) beyond static textual outputs.
2. Multi-agent collaborative, communication, or competitive dynamics involving coordination across multiple simultaneous actors.

Coverage note — Omitted exact text prompt strings for specific synthetic generators (Appendices E.1-E.3) and raw evaluation runtime scripts, as their key algorithmic mechanisms and prompt behaviors are fully described in the methods and empirical knowls.
