FENeRF: Face Editing in Neural Radiance Fields

Jingxiang SunXuan WangYong ZhangXiaoyu LiQi ZhangYebin LiuJue Wang

article2022CVPR174 citations

Proposes a 3D-aware face generator that couples neural radiance fields with decoupled semantic and texture latent spaces, enabling view-consistent portrait synthesis alongside precise local attribute editing trained solely on monocular image-mask pairs.

Listen

Synthesizing photo-realistic human portraits with computer graphics has rapidly evolved, yet existing methods force a compromise between editing capability and 3D geometric realism. Standard 2D image generators allow flexible local attribute editing but produce severe visual distortions when rendering the subject from different camera angles. Conversely, recent 3D-aware methods maintain strict view consistency across angles but lack the ability to support interactive, local adjustments to specific facial features. The article introduces FENeRF (Face Editing in Neural Radiance Fields), an approach that achieves both strict multi-view consistency and user-friendly, local semantic editing of portrait images.

The authors designed a generative 3D representation that separates shape and appearance using two independent control codes while sharing an underlying geometric volume. Crucially, the system is trained exclusively on standard 2D portrait images paired with 2D semantic attribute masks, eliminating the need for expensive multi-view photography or 3D scan data. To capture fine facial details without corrupting the geometry, a learnable coordinate embedding is incorporated into the color generation branch, and dual discriminators enforce realism and alignment between images and semantic labels. The model was evaluated on the benchmark CelebAMask-HQ and FFHQ portrait datasets.

The experiments show that FENeRF establishes a new state-of-the-art in portrait generation quality, outperforming leading 3D-aware baselines. On the CelebAMask-HQ dataset, FENeRF improved the standard image fidelity score (Frechet Inception Distance) to 12.1 compared to 14.7 for pi-GAN and 16.2 for Giraffe, alongside a substantial reduction in kernel inception error. Furthermore, joint learning of semantic masks and textures significantly refined underlying 3D geometry, eliminating visual artifacts and surface distortions present in earlier models. When inverting real portraits into the model's control space, the system converged to an average intersection-over-union segmentation accuracy above 0.7 within 200 iterations, enabling reliable free-view reconstruction, style mixing, and local modifications such as altering hairstyles or reshaping facial features without distorting adjacent areas.

These findings demonstrate that high-fidelity 3D facial modeling and fine-grained editing can be achieved without costly 3D data collection. This substantially lowers the technical barrier for creating interactive digital avatars, virtual production assets, and graphic editing tools. However, the technology introduces security risks regarding digital identity manipulation, such as creating convincing synthetic video avatars that could deceive facial recognition or liveliness detection systems. Deploying organizations should anticipate these risks by strengthening synthetic media detection protocols.

Before implementing this technology in production environments, teams should address its current operational constraints. The underlying volumetric rendering is computationally intensive, limiting generated image resolutions to lower dimensions and preventing real-time editing due to iterative optimization speeds. Stakeholders should pilot this approach in non-real-time pipelines while future engineering work focuses on accelerating rendering speeds and scaling output to high-definition resolutions.

Tencent Tsinghua University University of Illinois Urbana-Champaign facial images neural radiance fields neural radiance fields face editing view synthesis

arXiv: 2111.15490

Paper: NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis, Ben Mildenhall et al. (2020). Introduces Neural Radiance Fields and differentiable volumetric rendering, establishing the core 3D representation that FENeRF adapts for view-consistent face generation.
Paper: GIRAFFE: Representing Scenes as Compositional Generative Neural Feature Fields, Michael Niemeyer et al. (2021). Pioneers the integration of neural feature fields with GAN-based adversarial training to achieve compositional, 3D-aware image generation.
Paper: Analyzing and Improving the Image Quality of StyleGAN, Tero Karras et al. (2020). Provides the foundational generative architecture and latent space modeling used in modern GAN inversion and high-fidelity facial synthesis.
Paper: Semantic Image Synthesis With Spatially-Adaptive Normalization, Taesung Park et al. (2019). Formulates spatially-adaptive normalization for semantic mask conditioning, underpinning FENeRF's approach to semantic-guided facial generation and editing.
Paper: Generative Visual Manipulation on the Natural Image Manifold, Jun-Yan Zhu et al. (2016). Presents the foundational principles of interactive generative image manipulation via manifold projection and latent space inversion.
Paper: A Morphable Model For The Synthesis Of 3D Faces, Volker Blanz et al. (1999). Establishes the classical paradigm of decoupling facial identity shape and texture in parametric 3D face representations.

Paper: Efficient Geometry-aware 3D Generative Adversarial Networks, Eric R. Chan et al. (2022). Advances 3D-aware GANs by introducing efficient triplane representations for high-resolution geometry and texture synthesis, scaling beyond earlier neural radiance field generators.
Paper: Instruct-NeRF2NeRF: Editing 3D Scenes with Instructions, Ayaan Haque et al. (2023). Extends 3D neural scene editing beyond semantic mask inversion to interactive, language-guided instruction editing across arbitrary radiance fields.
Paper: Learning Locally Editable Virtual Humans, Hsuan-I Ho et al. (2023). Builds on localized neural rendering and editable generative fields to enable fine-grained, localized customization of full 3D human bodies.
Paper: GaussianAvatars: Photorealistic Head Avatars with Rigged 3D Gaussians, Shenhan Qian et al. (2024). Transitions 3D head avatar representation from volumetric radiance fields to controllable 3D Gaussian splatting for faster rendering and expressive animation.
Paper: Real3D-Portrait: One-shot Realistic 3D Talking Portrait Synthesis, Zhenhui Ye et al. (2024). Applies decoupled 3D representation techniques to one-shot talking portrait animation, controlling geometry and expression dynamically from audio and video.

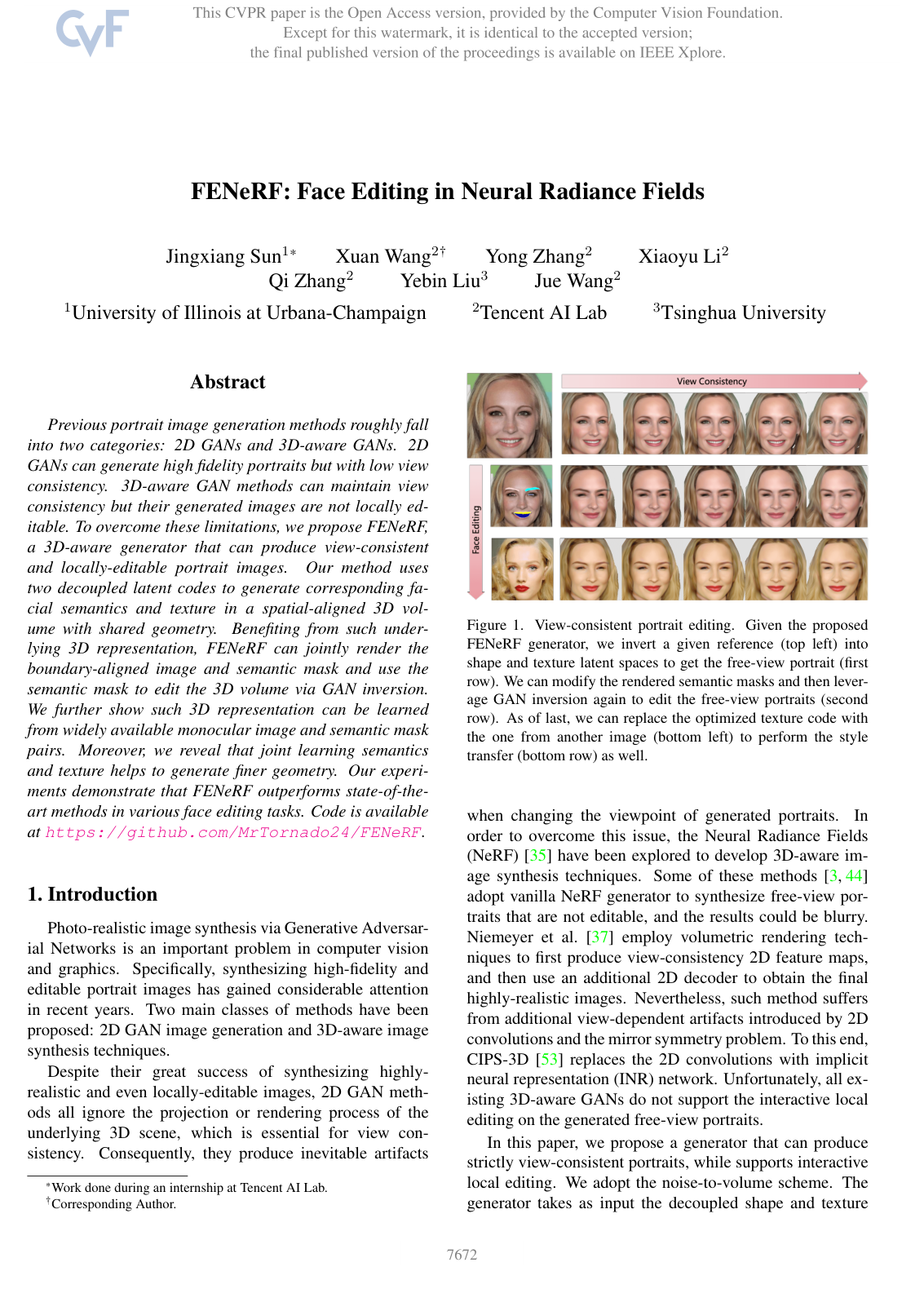

Cover for FENeRF: Face Editing in Neural Radiance Fields

Abstract

Previous portrait image generation methods roughly fall into two categories: 2D GANs and 3D-aware GANs. 2D GANs can generate high fidelity portraits but with low view consistency. 3D-aware GAN methods can maintain view consistency but their generated images are not locally editable. To overcome these limitations, we propose FENeRF, a 3D-aware generator that can produce view-consistent and locally-editable portrait images. Our method uses two decoupled latent codes to generate corresponding facial semantics and texture in a spatial-aligned 3D volume with shared geometry. Benefiting from such underlying 3D representation, FENeRF can jointly render the boundary-aligned image and semantic mask and use the semantic mask to edit the 3D volume via GAN inversion. We further show such 3D representation can be learned from widely available monocular image and semantic mask pairs. Moreover, we reveal that joint learning semantics and texture helps to generate finer geometry. Our experiments demonstrate that FENeRF outperforms state-of-the-art methods in various face editing tasks. Code is available at https://github.com/MrTornado24/FENeRF.

Topics

facial images neural radiance fields

Keywords

neural radiance fields face editing view synthesis semantic rendering semantic masks camera pose correction loss conditional GANs scene representation

1 Introduction
2 Related work
3 Method
3.1 Locally Editable NeRF Generator
3.2 Discriminators
3.3 Training
4 Experiments
4.1 Comparisons
4.2 Applications
4.3 Ablation Studies
5 Limitations
6 Conclusion
7 Potential Social Impact
References

Knowls

Knowl 1 — Decoupled Semantic and Radiance Field Generator Architecture in FENeRF
model/method
FENeRF (Face Editing in Neural Radiance Fields) generates 3D-aware portrait images along with spatially aligned semantic segmentations by conditioning a shared neural implicit volume on decoupled latent codes for shape and texture. The generator $G$ maps a 3D spatial coordinate $\mathbf{x} = (x, y, z) \in \mathbb{R}^3$ , a 2D viewing direction $\mathbf{d} = (\theta, \phi)$ , a shape latent code $\mathbf{z}_s \sim \mathcal{N}(\mathbf{0}, \mathbf{I})$ , a texture latent code $\mathbf{z}_t \sim \mathcal{N}(\mathbf{0}, \mathbf{I})$ , and a local coordinate feature embedding $\mathbf{e}_{\text{coord}}^\mathbf{x}$ to view-invariant volume density $\sigma \in \mathbb{R}^+$ , view-invariant semantic label logits $\mathbf{s} \in \mathbb{R}^k$ (for $k$ semantic classes), and view-dependent color $\mathbf{c} \in \mathbb{R}^3$ :

$G(\mathbf{x}, \mathbf{d}, \mathbf{z}_s, \mathbf{z}_t, \mathbf{e}_{\text{coord}}^\mathbf{x}) \mapsto (\sigma, \mathbf{c}, \mathbf{s})$

The generator is parameterized as a Multi-Layer Perceptron (MLP) employing sinusoidal representation networks (SIREN) modulated via Feature-wise Linear Modulation (FiLM). Mapping networks transform sampled latent codes $\mathbf{z}_s$ and $\mathbf{z}_t$ into intermediate latent representations in space $\mathcal{W}$ that produce layer-wise modulation frequencies $\boldsymbol{\gamma}_i$ and phase shifts $\boldsymbol{\beta}_i$ . For the $i$ -th network layer with input $\mathbf{x}_i \in \mathbb{R}^{M_i}$ , weight matrix $\mathbf{W}_i \in \mathbb{R}^{N_i \times M_i}$ , and bias $\mathbf{b}_i \in \mathbb{R}^{M_i}$ , the modulated sine activation $\phi_i(\mathbf{x}_i) \in \mathbb{R}^{N_i}$ is given by:

$\phi_i(\mathbf{x}_i) = \sin\left(\boldsymbol{\gamma}_i \odot (\mathbf{W}_i \mathbf{x}_i + \mathbf{b}_i) + \boldsymbol{\beta}_i\right)$

The complete network stack maps spatial coordinates through $n$ layers:

$\Phi(\mathbf{x}) = \mathbf{W}_n (\phi_{n-1} \circ \phi_{n-2} \circ \dots \circ \phi_0)(\mathbf{x}) + \mathbf{b}_n$

To ensure geometric alignment across shape, semantics, and appearance, the network uses a shared intermediate feature backbone that branches into three heads: a density head predicting $\sigma$ conditioned on $\mathbf{z}_s$ , a semantic head predicting category logits $\mathbf{s}$ conditioned on $\mathbf{z}_s$ , and an appearance head predicting view-dependent color $\mathbf{c}$ conditioned on $\mathbf{z}_t$ , viewing direction $\mathbf{d}$ , and positional embedding $\mathbf{e}_{\text{coord}}^\mathbf{x}$ .
Knowl 2 — Learnable 3D Positional Feature Grid Injection
model/method
To overcome the blurriness and detail loss inherent to pure SIREN-based generative radiance fields, FENeRF incorporates a learnable 3D feature grid. For any queried 3D point $\mathbf{x} = (x, y, z)$ , a local coordinate feature embedding $\mathbf{e}_{\text{coord}}^\mathbf{x}$ is sampled from this 3D grid via tricubic (bi-cubic across grid slices) interpolation.

The sampled feature vector $\mathbf{e}_{\text{coord}}^\mathbf{x}$ is injected specifically as an auxiliary input into the color prediction branch of the generator alongside viewing direction $\mathbf{d} = (\theta, \phi)$ , rather than being concatenated to the initial spatial coordinates $\mathbf{x}$ at the input layer. Injecting $\mathbf{e}_{\text{coord}}^\mathbf{x}$ exclusively into the color branch preserves high-frequency appearance details (such as facial wrinkles, eyes, and teeth) while preventing high-frequency noise from perturbing the density volume $\sigma$ and semantic field $\mathbf{s}$ , which ensures smooth underlying 3D geometry.
Knowl 3 — Neural Volume Rendering for Joint Radiance and Semantic Maps
equation
Given a camera ray $\mathbf{r}(t) = \mathbf{o} + t\mathbf{d}$ with near bound $t_n$ , far bound $t_f$ , origin $\mathbf{o}$ , and unit viewing direction $\mathbf{d}$ , FENeRF simultaneously synthesizes the accumulated pixel color $\mathbf{C}(\mathbf{r}) \in \mathbb{R}^3$ and the accumulated semantic class probability vector $\mathbf{S}(\mathbf{r}) \in \mathbb{R}^k$ via continuous volume rendering integrals:

$\mathbf{C}(\mathbf{r}) = \int_{t_n}^{t_f} T(t)\,\sigma(\mathbf{r}(t))\,\mathbf{c}(\mathbf{r}(t), \mathbf{d})\,dt$

$\mathbf{S}(\mathbf{r}) = \int_{t_n}^{t_f} T(t)\,\sigma(\mathbf{r}(t))\,\mathbf{s}(\mathbf{r}(t), \mathbf{d})\,dt$

where the volume transmittance $T(t)$ represents the probability that the ray traverses from $t_n$ to $t$ without hitting any particles:

$T(t) = \exp\left(-\int_{t_n}^{t} \sigma(\mathbf{r}(u))\,du\right)$

Here $\sigma(\mathbf{r}(t)) \in \mathbb{R}^+$ denotes the volume density, $\mathbf{c}(\mathbf{r}(t), \mathbf{d}) \in \mathbb{R}^3$ is the emitted radiance at point $\mathbf{r}(t)$ along direction $\mathbf{d}$ , and $\mathbf{s}(\mathbf{r}(t), \mathbf{d}) \in \mathbb{R}^k$ denotes the vector of $k$ semantic label logits. In practice, these integrals are discretized using stratified sampling along the ray. Because both rendering integrals share the identical volume density $\sigma(\mathbf{r}(t))$ along the ray, the resulting 2D RGB portrait image and 2D semantic segmentation mask are inherently boundary-aligned in 3D space.
Knowl 4 — Dual Discriminator Training Objectives and Camera Pose Regularization
equation
FENeRF is trained using unpaired monocular 2D images and semantic masks under an adversarial formulation supervised by two convolutional neural network discriminators: an image discriminator $D_c$ and a joint semantic-image discriminator $D_s$ .

Let $\mathbf{x}_c = \mathbf{C}(\mathbf{r})$ and $\mathbf{x}_s = \mathbf{S}(\mathbf{r})$ denote the generated color image and semantic mask rendered from sampled latent codes $\mathbf{z}_s, \mathbf{z}_t \sim \mathcal{N}(\mathbf{0}, \mathbf{I})$ and camera pose $\xi \sim p_\xi$ . Let $\mathbf{I} \sim p_i$ and $\mathbf{L} \sim p_l$ denote real portrait images and real semantic masks from the training dataset. The non-saturating GAN loss with $R_1$ gradient penalty is parameterized using $f(t) = -\log(1 + \exp(-t))$ with penalty coefficients $\lambda_c = \lambda_s = \lambda_p = 10$ .

The objective for image discriminator $D_c$ is:

$\mathcal{L}_{D_c} = \mathbb{E}_{\mathbf{z}_s, \mathbf{z}_t \sim \mathcal{N}, \xi \sim p_\xi} \left[ f(D_c(\mathbf{x}_c)) \right] + \mathbb{E}_{\mathbf{I} \sim p_i} \left[ f(-D_c(\mathbf{I})) + \lambda_c \|\nabla D_c(\mathbf{I})\|^2 \right]$

The objective for semantic discriminator $D_s$ is:

$\mathcal{L}_{D_s} = \mathbb{E}_{\mathbf{z}_s, \mathbf{z}_t \sim \mathcal{N}, \xi \sim p_\xi} \left[ f(D_s(\mathbf{x}_s, \mathbf{x}_c)) \right] + \mathbb{E}_{\mathbf{I} \sim p_i, \mathbf{L} \sim p_l} \left[ f(-D_s(\mathbf{L}, \mathbf{I})) + \lambda_s \|\nabla D_s(\mathbf{L}, \mathbf{I})\|^2 \right]$

The objective for generator $G$ is:

$\mathcal{L}_G = \mathbb{E}_{\mathbf{z}_s, \mathbf{z}_t \sim \mathcal{N}, \xi \sim p_\xi} \left[ f(D_c(\mathbf{x}_c)) \right] + \mathbb{E}_{\mathbf{z}_s, \mathbf{z}_t \sim \mathcal{N}, \xi \sim p_\xi} \left[ f(D_s(\mathbf{x}_s, \mathbf{x}_c)) \right] + \lambda_p \|\hat{\xi} - \xi\|$

where $\hat{\xi}$ is the camera pose predicted by two auxiliary output channels appended to $D_c$ . The pose correction loss $\lambda_p \|\hat{\xi} - \xi\|$ enforces canonical 3D alignment and prevents pose drift. During optimization of $\mathcal{L}_G$ , gradients backpropagating from $D_s$ into the color branch are blocked to prevent texture details from being smoothed into flat semantic regions.
Knowl 5 — Semantic-Guided 3D Face Attribute Editing via GAN Inversion
algorithm
FENeRF enables interactive, 3D view-consistent facial attribute editing (e.g., hair style, eyes, nose shape) by decoupling shape and appearance and performing semantic inversion into the shape latent space.
Input: Real portrait image $\mathbf{I}$ , novel camera pose $\xi_{\text{target}}$ , edited 2D semantic mask $\mathbf{L}_{\text{edit}}$ , trained generator $G$ , image discriminator $D_c$
Output: Edited free-view 3D portrait images $\mathbf{C}(\mathbf{r}; \xi_{\text{target}})$
Step 1: Estimate the initial camera pose $\xi_{\text{init}}$ of image $\mathbf{I}$ using the pose prediction head of $D_c$ .
Step 2: Optimize latent codes $\mathbf{z}_s$ and $\mathbf{z}_t$ via GAN inversion to minimize reconstruction error between rendered image $\mathbf{C}(\mathbf{r}; \mathbf{z}_s, \mathbf{z}_t, \xi_{\text{init}})$ and target image $\mathbf{I}$ , yielding inverted codes $\mathbf{z}_s^*$ and $\mathbf{z}_t^*$ .
Step 3: Render the corresponding boundary-aligned 2D semantic mask $\mathbf{S}(\mathbf{r}; \mathbf{z}_s^*, \xi_{\text{init}})$ .
Step 4: Interactively modify the rendered 2D semantic mask to produce target layout $\mathbf{L}_{\text{edit}}$ .
Step 5: Fix the appearance latent code $\mathbf{z}_t^*$ and optimize only the shape latent code $\mathbf{z}_s$ to match $\mathbf{L}_{\text{edit}}$ by minimizing the semantic loss between rendered mask $\mathbf{S}(\mathbf{r}; \mathbf{z}_s, \xi_{\text{init}})$ and $\mathbf{L}_{\text{edit}}$ , yielding edited shape code $\mathbf{z}_s^{\text{edit}}$ .
Step 6: Render the edited 3D scene from any desired novel camera pose $\xi_{\text{target}}$ using $G(\cdot, \cdot, \mathbf{z}_s^{\text{edit}}, \mathbf{z}_t^*, \mathbf{e}_{\text{coord}})$ .
return Free-view edited portrait $\mathbf{C}(\mathbf{r}; \mathbf{z}_s^{\text{edit}}, \mathbf{z}_t^*, \xi_{\text{target}})$
Because $\mathbf{z}_s$ controls both density $\sigma$ and semantics $\mathbf{s}$ in 3D space, optimizing $\mathbf{z}_s$ deforms 3D geometry locally while keeping unedited regions and texture consistency intact across all viewpoints.

Knowl 6 — Quantitative Image Synthesis Quality Comparison on CelebAMask-HQ and FFHQ

data/table

The image synthesis quality of FENeRF was quantitatively evaluated against state-of-the-art 3D-aware GAN baselines (GRAF, $\pi$ -GAN, and GIRAFFE) on CelebAMask-HQ (30,000 images) and FFHQ (70,000 images) at $128 \times 128$ resolution. Metrics include Fréchet Inception Distance (FID, lower is better) and Kernel Inception Distance ( $\text{KID} \times 10^3$ , lower is better) computed on 2,048 randomly sampled images.

Method	FID $\downarrow$		KID ( $\times 10^3$ ) $\downarrow$
	CelebA-HQ	FFHQ	CelebA-HQ	FFHQ
GRAF	34.7	66.5	15.6	49.3
$\pi$ -GAN	14.7	40.3	3.9	23.5
Giraffe	16.2	31.9	9.1	32.7
FENeRF	12.1	28.2	1.6	17.3

FENeRF achieves the best FID and KID across both datasets, outperforming $\pi$ -GAN by 2.6 FID points on CelebA-HQ and 12.1 FID points on FFHQ. This improvement stems from two mechanisms: joint training with semantic fields which stabilizes optimization and guides 3D convergence, and the learnable coordinate feature grid which introduces high-frequency texture details.

Knowl 7 — Geometry Regularization via Joint Semantic and Texture Volume Learning
empirical result
In 3D-aware GANs such as $\pi$ -GAN, unsupervised optimization of density from 2D RGB images alone frequently leads to noisy facial boundaries, floating artifacts, and inaccurate background separation.

FENeRF reveals a bidirectional synergy between semantic rendering and appearance rendering:
1. Training the generator with semantic mask supervision alongside RGB images provides strong geometric constraints that force the volume density $\sigma$ to form smooth, accurate 3D facial surfaces without requiring 3D scans, multi-view data, or explicit geometric regularization.
2. Conversely, training with image rendering is essential for semantic field convergence: an ablated model trained to render semantic maps alone fails to segment facial regions cleanly or establish reliable 3D geometry, whereas joint learning with RGB supervision allows both modalities to align accurately in 3D space.
Knowl 8 — Ablation on Positional Feature Embedding and Injection Strategy
empirical result
Ablation experiments on the role and injection location of the learnable 3D coordinate feature embedding grid ( $\mathbf{e}_{\text{coord}}$ ) demonstrate the following properties:
1. Without $\mathbf{e}_{\text{coord}}$ : The generator produces blurry image details in high-frequency regions such as teeth, eyes, and hair.
2. Injecting $\mathbf{e}_{\text{coord}}$ at the MLP input: When $\mathbf{e}_{\text{coord}}$ is concatenated with spatial coordinates $(x, y, z)$ at the input layer of the generator, high-frequency signals enter the shared backbone and perturb the density volume $\sigma$ , creating surface noise, visual artifacts on synthesized images, and distorted semantic segmentation maps.
3. Injecting $\mathbf{e}_{\text{coord}}$ into the color branch: Concatenating the tricubically interpolated feature vector $\mathbf{e}_{\text{coord}}^\mathbf{x}$ exclusively into the color prediction MLP head preserves fine-grained texture details without introducing geometric artifacts or degrading the smoothness of the underlying 3D density and semantic fields.
Knowl 9 — View Consistency Comparison in 3D Inversion and Semantic Rendering Against Baselines
empirical result
When evaluated on latent space inversion and novel view synthesis, FENeRF demonstrates superior 3D view consistency compared to 2D GAN inversion methods (InterFaceGAN and e4e) and semantic-field methods (SofGAN):
1. Comparison with 2D GAN Inversion: InterFaceGAN exhibits severe visual artifacts such as texture sticking to the image plane during camera rotation, while e4e fails to preserve facial identity and geometric structure across viewpoint changes. FENeRF projects input 2D portraits into latent codes controlling a continuous 3D volume, maintaining strict identity and viewpoint consistency under rotation.
2. Comparison with SofGAN: SofGAN relies on a semantic occupancy field trained on multi-view scans and synthesizes RGB images via a 2D image generator conditioned on rendered semantic maps. SofGAN produces incorrect semantic labels and visible artifacts at extreme camera poses, and exhibits viewpoint inconsistency (e.g., eye gaze direction changing upon zoom). In contrast, FENeRF's joint 3D volume rendering guarantees strict pixel-level view consistency without requiring 3D scans or multi-view training data.
Knowl 10 — Computational and Latent Optimization Limitations of FENeRF
limitation
FENeRF exhibits two primary operational limitations:
1. Computational rendering overhead: Due to the dense ray marching and numerical volume integration required by neural radiance fields, generating high-definition (HD) portrait images is computationally intensive, restricting training and real-time inference resolutions (e.g., $128 \times 128$ ).
2. Inversion latency: Performing semantic or appearance editing on real portrait images relies on iterative gradient-based GAN inversion to project target images and masks into the latent spaces $(\mathbf{z}_s, \mathbf{z}_t)$ , which requires several hundred iterations and prevents real-time interactive free-view portrait manipulation.

Coverage note — None was omitted; all key contributions—the decoupled architecture, feature grid, rendering equations, dual discriminator losses, inversion algorithm, quantitative benchmarks, ablations, baseline comparisons, and limitations—are covered.
