Automated medical image segmentation is critical for clinical diagnosis and treatment planning, but manual annotation remains labor-intensive and error-prone. While the standard U-Net architecture is widely used as a baseline for deep learning segmentation, it often struggles when dealing with targets of varying scales, faint object boundaries, background noise, and feature discrepancies across network levels.

The article develops and evaluates MultiResUNet, an enhanced deep neural network designed to address these architectural limitations and improve multimodal biomedical image segmentation performance.

To address scale variation without massive memory costs, the model replaces standard convolutional sequences with compact, multi-resolution processing blocks. It also modifies shortcut connections with residual paths to bridge feature representation gaps between early and late network stages. The authors benchmarked the architecture against the standard U-Net across five diverse public medical imaging datasets—spanning endoscopy, dermoscopy, fluorescence microscopy, magnetic resonance imaging (MRI), and electron microscopy—using five-fold cross-validation without specialized pre- or post-processing.

Across all benchmarks, the proposed model consistently outperformed standard U-Net while using slightly fewer model parameters. The most pronounced gains appeared on difficult imaging modalities, showing relative performance improvements of roughly 10.1% on endoscopy polyp images and 5.1% on dermoscopy skin lesion data. The model also achieved relative gains of 2.6% on fluorescence microscopy, 1.4% on 3D MRI brain scans, and 0.6% on electron microscopy. Beyond aggregate metrics, the architecture converged in fewer training epochs, demonstrated smaller performance variance across folds, and showed superior resilience against visual noise, image perturbations, and outlier artifacts.

These findings indicate that integrating multi-scale feature analysis and intermediate processing along shortcut paths significantly boosts segmentation accuracy and diagnostic reliability. By maintaining low parameter counts and high training efficiency, the approach reduces computational burdens while improving safety and consistency when segmenting complex or faint anatomical targets.

Organizations developing medical diagnostic software should consider adopting the proposed architecture as a drop-in enhancement over traditional U-Net foundations. Before deployment in production clinical pipelines, future initiatives should test hyperparameter configurations across additional imaging modalities and integrate the model with domain-specific pre-processing and post-processing tools.

The reported findings are supported by consistent cross-validation across diverse imaging modalities, though downsampling input image resolutions to meet GPU memory limits introduces minor constraints. The overall evidence provides high confidence in the model's reliability for multimodal medical segmentation tasks.

Bangladesh University of Engineering and Technologyarchitecture designsdeep learningmedical image segmentationMultiResUNet architecturemultimodal biomedical image segmentationlesion segmentation
arXiv: 1902.04049nibtehaz/MultiResUNet

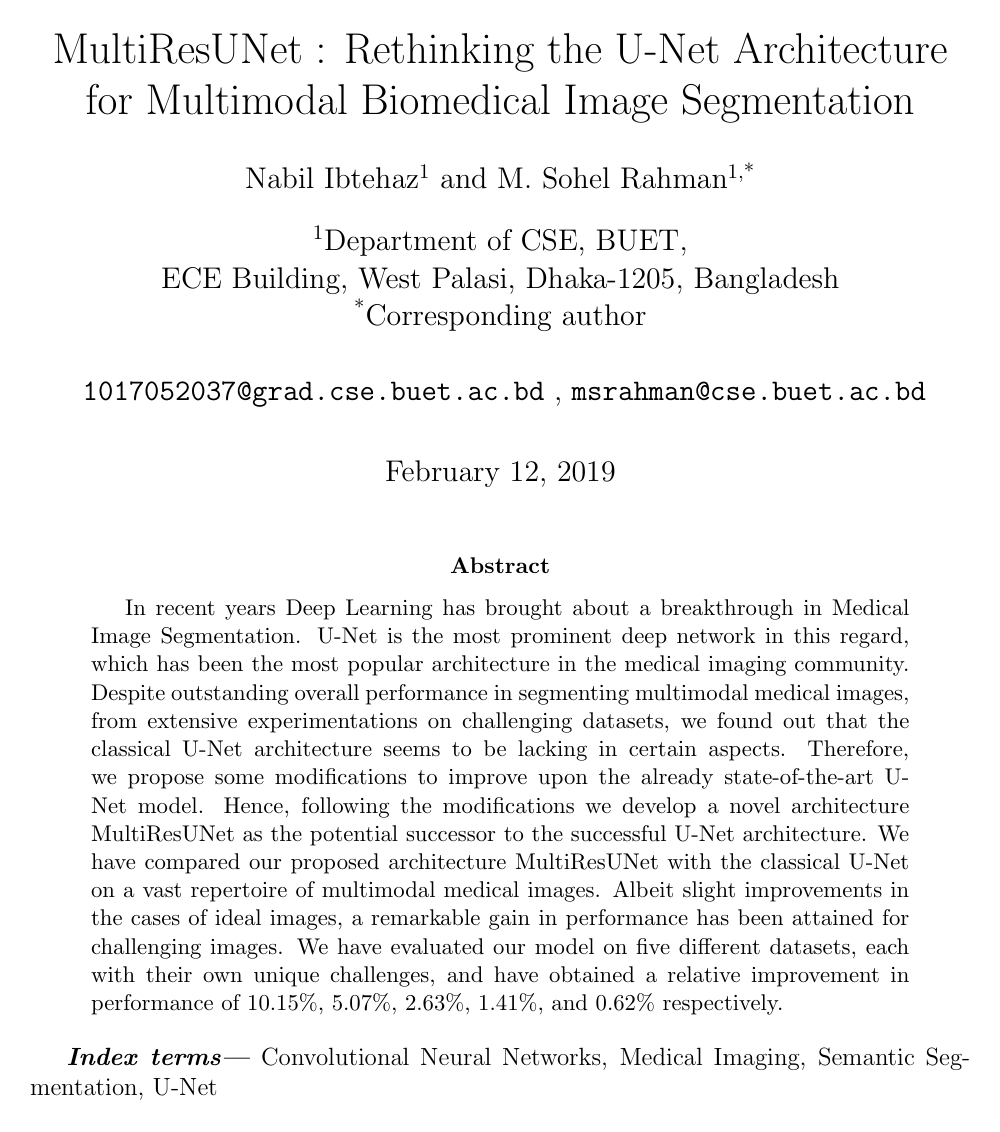

Cover for MultiResUNet : Rethinking the U-Net Architecture for Multimodal Biomedical Image Segmentation

Abstract

In recent years Deep Learning has brought about a breakthrough in Medical Image Segmentation. U-Net is the most prominent deep network in this regard, which has been the most popular architecture in the medical imaging community. Despite outstanding overall performance in segmenting multimodal medical images, from extensive experimentations on challenging datasets, we found out that the classical U-Net architecture seems to be lacking in certain aspects. Therefore, we propose some modifications to improve upon the already state-of-the-art U-Net model. Hence, following the modifications we develop a novel architecture MultiResUNet as the potential successor to the successful U-Net architecture. We have compared our proposed architecture MultiResUNet with the classical U-Net on a vast repertoire of multimodal medical images. Albeit slight improvements in the cases of ideal images, a remarkable gain in performance has been attained for challenging images. We have evaluated our model on five different datasets, each with their own unique challenges, and have obtained a relative improvement in performance of 10.15%, 5.07%, 2.63%, 1.41%, and 0.62% respectively.

Topics

architecture designsdeep learningmedical image segmentationnovel architecturehigh resolution image

Keywords

MultiResUNet architecturemultimodal biomedical image segmentationlesion segmentationInception blockscolon endoscopy imagesHAM10000 datasetsemantic segmentationvolumetric segmentation

Table of Contents

  • 1 Introduction
  • 2 Overview of the UNet Architecture
  • 3 Motivations and High Level Considerations
  • 3.1 Variation of Scale in Medical Images
  • 3.2 Probable Semantic Gap between the Corresponding Levels of Encoder-Decoder
  • 4 Proposed Architecture
  • 5 Datasets
  • 5.1 Fluorescence Microscopy Image
  • 5.2 Electron Microscopy Image
  • 5.3 Dermoscopy Image
  • 5.4 Endoscopy Image
  • 5.5 Magnetic Resonance Image
  • 6 Experiments
  • 6.1 Baseline Model
  • 6.2 Pre-processing / Post-processing
  • 6.3 Training Methodology
  • 6.4 Evaluation Metric
  • 6.5 kk-Fold Cross Validation
  • 7 Results
  • 7.1 MultiResUNet Consistently Outperforms U-Net
  • 7.2 MultiResUNet can Obtain Better Results in Less Number of Epochs
  • 7.3 MultiResUNet Delineates Faint Boundaries Better
  • 7.4 MultiResUNet is More Immune to Perturbations
  • 7.5 MultiResUNet is More Reliable Against Outliers
  • 7.6 Note on Segmenting the Majority Class
  • 8 Conclusion
  • References

Knowls

  1. Knowl 1 — MultiRes Block

    model/method

    The MultiRes block is a multi-scale convolutional module designed to capture spatial features across different context sizes while maintaining computational and memory efficiency. Instead of computing parallel 3×33 \times 3, 5×55 \times 5, and 7×77 \times 7 convolutions as in standard Inception-like blocks, the MultiRes block factorizes the larger kernels into a sequential cascade of three 3×33 \times 3 convolutional layers. The outputs of these three successive 3×33 \times 3 convolutions correspond to effective receptive fields of 3×33 \times 3, 5×55 \times 5, and 7×77 \times 7 respectively.

    The feature maps produced by all three 3×33 \times 3 convolutional layers are concatenated along the channel dimension. To constrain memory expansion caused by consecutive convolutional layers, the filter count is distributed non-uniformly across the three stages rather than being equal:

    • First 3×33 \times 3 convolution: ⌊W/6⌋\lfloor W / 6 \rfloor filters
    • Second 3×33 \times 3 convolution: ⌊W/3⌋\lfloor W / 3 \rfloor filters
    • Third 3×33 \times 3 convolution: ⌊W/2⌋\lfloor W / 2 \rfloor filters

    where WW is the total channel capacity parameter for the block. In addition, a residual shortcut with a 1×11 \times 1 convolution connects the block input directly to the concatenated output via element-wise addition, where the 1×11 \times 1 convolution projects the input channel dimension to match the total concatenated channel count (⌊W/6⌋+⌊W/3⌋+⌊W/2⌋\lfloor W / 6 \rfloor + \lfloor W / 3 \rfloor + \lfloor W / 2 \rfloor).

  2. Knowl 2 — Res Path Shortcut Connections

    model/method

    In standard U-Net architectures, feature maps from early encoder layers (low-level representations) are directly concatenated with feature maps in corresponding late decoder layers (high-level representations), introducing a semantic discrepancy between merged features. The Res Path replaces direct skip connections with a sequence of non-linear convolutional operations enhanced with residual shortcuts to reconcile encoder and decoder feature representations prior to concatenation.

    Each Res Path passes encoder feature maps through a chain of 3×33 \times 3 convolutional layers, each accompanied by a 1×11 \times 1 convolution shortcut added element-wise to form residual blocks. Because the semantic discrepancy between encoder and decoder representations is largest at outer network levels and decreases toward inner levels, the number of residual convolutional blocks and the channel dimensions along the four Res Paths are structured as follows:

    • Res Path 1 (connecting Level 1 encoder to Level 1 decoder): 4 residual convolutional blocks, 32 filters each
    • Res Path 2 (connecting Level 2 encoder to Level 2 decoder): 3 residual convolutional blocks, 64 filters each
    • Res Path 3 (connecting Level 3 encoder to Level 3 decoder): 2 residual convolutional blocks, 128 filters each
    • Res Path 4 (connecting Level 4 encoder to Level 4 decoder): 1 residual convolutional block, 256 filters each

  3. Knowl 3 — MultiResUNet Architecture and Filter Scaling Formulation

    model/method

    MultiResUNet is an encoder-decoder network for biomedical image segmentation that replaces the standard two-convolution blocks of U-Net with MultiRes blocks and replaces standard direct skip connections with Res Paths.

    The network comprises a 5-level encoder-decoder hierarchy:

    1. Encoder: 4 stages, each containing a MultiRes block followed by a 2×22 \times 2 max pooling layer with stride 2.
    2. Bottleneck: A MultiRes block connecting the lowest encoder stage to the decoder.
    3. Decoder: 4 stages, each beginning with a 2×22 \times 2 transposed convolution that halves the number of feature channels, concatenating the upsampled features with the output of the corresponding Res Path from the encoder, and passing the combined representation through a MultiRes block.
    4. Output: A final 1×11 \times 1 convolution with a Sigmoid activation function to generate binary segmentation probabilities. All other convolutional layers are followed by Rectified Linear Unit (ReLU) activations and Batch Normalization.

    The channel parameter WW for each MultiRes block is derived from the baseline U-Net filter count UU at that level via: W=α×UW = \alpha \times U where U∈{32,64,128,256,512}U \in \{32, 64, 128, 256, 512\} across the five depth levels, and α=1.67\alpha = 1.67 is a scalar coefficient chosen to maintain a total parameter count slightly below that of standard U-Net.

    MultiResUNet extends to 3D volumetric segmentation (MultiResUNet 3D) by replacing all 2D operations (convolutions, max pooling, and transposed convolutions) with their 3D counterparts.

  4. Knowl 4 — Layer-by-Layer Specification of MultiResUNet

    data/table

    The filter counts and kernel sizes for all MultiRes blocks and Res Paths across the MultiResUNet architecture are detailed below:

    Block Layer (Filter Size) # Filters Path Layer (Filter Size) # Filters
    MultiRes Block 1 Conv2D(3,3)\text{Conv2D}(3,3) 8 Res Path 1 Conv2D(3,3)\text{Conv2D}(3,3) 32
    MultiRes Block 9 Conv2D(3,3)\text{Conv2D}(3,3) 17 Conv2D(1,1)\text{Conv2D}(1,1) 32
    Conv2D(3,3)\text{Conv2D}(3,3) 26 Conv2D(3,3)\text{Conv2D}(3,3) 32
    Conv2D(1,1)\text{Conv2D}(1,1) 51 Conv2D(1,1)\text{Conv2D}(1,1) 32
    MultiRes Block 2 Conv2D(3,3)\text{Conv2D}(3,3) 17 Conv2D(3,3)\text{Conv2D}(3,3) 32
    MultiRes Block 8 Conv2D(3,3)\text{Conv2D}(3,3) 35 Conv2D(1,1)\text{Conv2D}(1,1) 32
    Conv2D(3,3)\text{Conv2D}(3,3) 53 Conv2D(3,3)\text{Conv2D}(3,3) 32
    Conv2D(1,1)\text{Conv2D}(1,1) 105 Conv2D(1,1)\text{Conv2D}(1,1) 32
    MultiRes Block 3 Conv2D(3,3)\text{Conv2D}(3,3) 35 Res Path 2 Conv2D(3,3)\text{Conv2D}(3,3) 64
    MultiRes Block 7 Conv2D(3,3)\text{Conv2D}(3,3) 71 Conv2D(1,1)\text{Conv2D}(1,1) 64
    Conv2D(3,3)\text{Conv2D}(3,3) 106 Conv2D(3,3)\text{Conv2D}(3,3) 64
    Conv2D(1,1)\text{Conv2D}(1,1) 212 Conv2D(1,1)\text{Conv2D}(1,1) 64
    MultiRes Block 4 Conv2D(3,3)\text{Conv2D}(3,3) 71 Conv2D(3,3)\text{Conv2D}(3,3) 64
    MultiRes Block 6 Conv2D(3,3)\text{Conv2D}(3,3) 142 Conv2D(1,1)\text{Conv2D}(1,1) 64
    Conv2D(3,3)\text{Conv2D}(3,3) 213
    Conv2D(1,1)\text{Conv2D}(1,1) 426
    MultiRes Block 5 Conv2D(3,3)\text{Conv2D}(3,3) 142 Res Path 3 Conv2D(3,3)\text{Conv2D}(3,3) 128
    Conv2D(3,3)\text{Conv2D}(3,3) 284 Conv2D(1,1)\text{Conv2D}(1,1) 128
    Conv2D(3,3)\text{Conv2D}(3,3) 427 Conv2D(3,3)\text{Conv2D}(3,3) 128
    Conv2D(1,1)\text{Conv2D}(1,1) 853 Conv2D(1,1)\text{Conv2D}(1,1) 128
    Res Path 4 Conv2D(3,3)\text{Conv2D}(3,3) 256
    Conv2D(1,1)\text{Conv2D}(1,1) 256

    MultiRes Blocks 1–4 constitute the encoder pathway, MultiRes Block 5 forms the bottleneck, and MultiRes Blocks 6–9 constitute the decoder pathway. For each MultiRes block, the three 3×33 \times 3 convolutional layers operate sequentially with their outputs concatenated along channels, while the 1×11 \times 1 convolutional layer provides the residual projection shortcut. For each Res Path, pairs of 3×33 \times 3 convolutional layers and parallel 1×11 \times 1 residual shortcuts form consecutive residual units along the shortcut connection.

  5. Knowl 5 — Model Parameter Count Comparison for 2D and 3D Architectures

    data/table

    MultiResUNet is configured to maintain a slightly lower parameter count than standard U-Net architectures:

    2D Models 3D Models
    Model Parameters Model Parameters
    U-Net (baseline) 7,759,521 3D U-Net (baseline) 19,078,593
    MultiResUNet (proposed) 7,262,750 MultiResUNet 3D (proposed) 18,657,689

    In the 2D configuration, MultiResUNet utilizes 7,262,7507{,}262{,}750 parameters, representing a reduction of approximately 6.4%6.4\% compared to the baseline 2D U-Net (7,759,5217{,}759{,}521 parameters). In the 3D configuration, MultiResUNet 3D utilizes 18,657,68918{,}657{,}689 parameters compared to 19,078,59319{,}078{,}593 parameters for baseline 3D U-Net, demonstrating that performance enhancements achieved by MultiResUNet do not depend on expanding model capacity.

  6. Knowl 6 — Segmentation Performance Across Five Multimodal Medical Imaging Benchmarks

    data/table

    MultiResUNet and baseline U-Net were evaluated using 5-fold cross-validation on five distinct biomedical image segmentation datasets across different modalities. Performance is reported as the mean ±\pm standard deviation of the Jaccard Index (expressed as percentages):

    Modality MultiResUNet (%) U-Net (%) Relative Improvement (%)
    Dermoscopy (ISIC-2018) 80.2988±0.371780.2988 \pm 0.3717 76.4277±4.518376.4277 \pm 4.5183 5.06505.0650
    Endoscopy (CVC-ClinicDB) 82.0574±1.595382.0574 \pm 1.5953 74.4984±1.470474.4984 \pm 1.4704 10.146510.1465
    Fluorescence Microscopy (Murphy Lab) 91.6537±0.956391.6537 \pm 0.9563 89.3027±2.195089.3027 \pm 2.1950 2.63262.6326
    Electron Microscopy (ISBI-2012) 87.9477±0.774187.9477 \pm 0.7741 87.4092±0.707187.4092 \pm 0.7071 0.61610.6161
    MRI (BraTS17 3D) 78.1936±0.786878.1936 \pm 0.7868 77.1061±0.776877.1061 \pm 0.7768 1.41041.4104

    MultiResUNet consistently achieves higher Jaccard Index scores than baseline U-Net across all five modalities. The largest performance gains appear in non-uniform datasets characterized by vague boundaries and textural complexity, such as Endoscopy (+10.15% relative improvement) and Dermoscopy (+5.07% relative improvement).

  7. Knowl 7 — Faster Convergence and Reduced Variance Across Training Epochs

    empirical result

    When tracking validation Jaccard Index curves across 150 training epochs under 5-fold cross-validation, MultiResUNet exhibits two systematic training dynamics compared to baseline U-Net:

    1. Accelerated Convergence: MultiResUNet reaches peak validation segmentation accuracy in substantially fewer training epochs across all tested imaging modalities. This accelerated convergence arises from the synergy between the residual connections (in MultiRes blocks and Res Paths) and batch normalization.
    2. Reduced Inter-Fold Variance: The standard deviation band of validation Jaccard Index across the 5 cross-validation folds is consistently narrower for MultiResUNet than for U-Net throughout training, reflecting enhanced stability and robustness against variations in dataset partitioning.

  8. Knowl 8 — Robustness to Ambiguous Boundaries, Perturbations, Outliers, and Majority-Class Segmentation

    empirical result

    Qualitative comparison between MultiResUNet and baseline U-Net demonstrates enhanced robustness across challenging medical imaging conditions:

    • Ambiguous Boundaries: In colonoscopy images (CVC-ClinicDB) where polyps lack clear demarcation from surrounding mucosa, U-Net exhibits substantial under-segmentation or over-segmentation, whereas MultiResUNet accurately delineates subtle polyp boundaries.
    • Background and Foreground Perturbations: In dermoscopy images (ISIC-2018) with textured or irregular backgrounds and varying lesion interiors, U-Net frequently predicts disjoint, fractured foreground fragments, generates false positives on rough backgrounds, or fails entirely. MultiResUNet produces continuous, coherent lesion segmentations under strong perturbations.
    • Outlier Filtering: In fluorescence microscopy images (Murphy Lab), small bright non-nuclear debris particles mimic nuclei. Baseline U-Net misclassifies these artifacts as nuclei, whereas MultiResUNet filters them out.
    • Majority-Class Membrane Delineation: In transmission electron microscopy (ISBI-2012), where foreground regions dominate and are separated only by thin background membranes, U-Net frequently misses narrow separating lines and merges adjacent regions. MultiResUNet preserves these fine membrane boundaries.

  9. Knowl 9 — Datasets, Preprocessing, and Training Protocol for Evaluation

    experimental setup

    The experimental benchmark evaluates semantic segmentation across five datasets:

    1. Fluorescence Microscopy (Murphy Lab): 97 bright-field images containing 4,009 cell nuclei (U2OS and NIH3T3 cells), resized to 256×256256 \times 256.
    2. Electron Microscopy (ISBI-2012): 30 transmission electron microscopy images (512×512512 \times 512 resized to 256×256256 \times 256) of Drosophila ventral nerve cord.
    3. Dermoscopy (ISIC-2018): 2,594 skin lesion images compiled from ISIC-2017 and HAM10000, resized to 256×192256 \times 192.
    4. Endoscopy (CVC-ClinicDB): 612 colonoscopy video frames containing polyps, resized from 384×288384 \times 288 to 256×192256 \times 192.
    5. 3D MRI (BraTS17): 285 multimodal brain tumor scans (210 HGG and 75 LGG; 4 channels: T1, T1Gd, T2, FLAIR), resized from 240×240×155240 \times 240 \times 155 to 80×80×4880 \times 80 \times 48.

    Preprocessing consists solely of image resizing to accommodate GPU memory and normalizing pixel intensities to [0,1][0, 1] via division by 255 (no domain-specific preprocessing is applied). Models are trained for 150 epochs using the Adam optimizer with standard moment decay parameters to minimize the mean binary cross-entropy loss: J=1n∑i=1n∑px∈Xi−[ypxlog⁡(y^px)+(1−ypx)log⁡(1−y^px)]J = \frac{1}{n} \sum_{i=1}^{n} \sum_{p_x \in X_i} -\left[y_{p_x} \log(\hat{y}_{p_x}) + (1 - y_{p_x}) \log(1 - \hat{y}_{p_x})\right] where XiX_i is the ii-th image in a batch of size nn, ypx∈{0,1}y_{p_x} \in \{0, 1\} is the ground-truth binary label at pixel pxp_x, and y^px∈[0,1]\hat{y}_{p_x} \in [0, 1] is the predicted probability. A threshold of 0.5 is applied to generate binary masks. Evaluation is conducted using 5-fold cross-validation with the Jaccard Index: Jaccard Index=∣Y∩Y^∣∣Y∪Y^∣\text{Jaccard Index} = \frac{|Y \cap \hat{Y}|}{|Y \cup \hat{Y}|}

Coverage note — None was omitted; all contributed architectural components, layer specifications, parameter comparisons, empirical benchmarks across 5 modalities, training dynamics, qualitative robustness analyses, and experimental setup details are covered.
