The Concrete Distribution: A Continuous Relaxation of Discrete Random Variables

Chris J. MaddisonAndriy MnihYee Whye Teh

article2016ICLR3,005 citations

Proposes a continuous relaxation of discrete random variables that extends the reparameterization trick to discrete stochastic nodes, enabling efficient end-to-end gradient-based training of neural networks with discrete latent variables.

Listen

The paper introduces the Concrete distribution, a new family of continuous probability distributions on the simplex that serve as a practical relaxation of discrete random variables. The work addresses a core obstacle in training large neural networks that incorporate discrete stochastic nodes: standard automatic differentiation libraries cannot propagate low-variance gradients through discrete states, forcing practitioners to rely on high-variance score-function estimators or to forgo discrete variables altogether.

The authors set out to create a reparameterizable continuous surrogate that preserves the essential properties of any discrete distribution while allowing unbiased gradients with respect to a relaxed objective. Their approach begins with the Gumbel-Max trick for sampling discrete variables and replaces the non-differentiable argmax operation with a temperature-controlled softmax. The resulting Concrete random variable has a simple closed-form density, reduces exactly to the original discrete distribution in the zero-temperature limit, and can be sampled by adding fixed Gumbel noise to logits and applying a softmax. Experiments evaluated the method on density estimation and structured output prediction tasks using neural networks with hundreds of latent discrete nodes, trained on the MNIST and Omniglot datasets and compared against strong score-function baselines (VIMCO and NVIL).

The central empirical result is that Concrete relaxations produce competitive or superior test negative log-likelihoods on both tasks, often outperforming the baselines for non-linear models while requiring no custom gradient code. Linear models favored the score-function estimators, but the gap narrowed or reversed as model depth increased. Performance proved sensitive to the choice of temperature during training, with distinct temperatures for prior and posterior nodes yielding the best results; no annealing schedule was required. At test time the original discrete graph is evaluated, so the final model incurs no approximation error.

These findings matter because they let researchers incorporate discrete stochastic units—attractive for interpretability, sparsity, and structured reasoning—into end-to-end differentiable pipelines without sacrificing ease of implementation or incurring prohibitive variance. The method therefore broadens the set of architectures that can be trained at scale with off-the-shelf gradient descent.

The authors recommend replacing each discrete node with a Concrete node of fixed temperature during training, relaxing any log-probability terms that appear in the objective, and reverting to the discrete graph for evaluation. When further gains are desired, modest additional tuning of the two temperatures or exploration of temperature annealing schedules is likely to help. The main limitations are that the gradients remain biased with respect to the true discrete objective, that temperature selection remains an empirical hyper-parameter, and that the reported gains are demonstrated only on the two tasks and two datasets examined. Overall the evidence supports adoption of Concrete relaxations wherever discrete stochastic nodes are otherwise difficult to optimize.

Google University of Oxford closed-form expression discrete random variables neural networks Concrete distribution continuous relaxation Concrete random variables

arXiv: 1611.00712

Paper: An Introduction to Variational Autoencoders, Diederik P. Kingma et al. (2019). Reading the foundational VAE and reparameterization work first provides the core variational inference framework and notation that the Concrete distribution builds upon.
Paper: Categorical Reparameterization with Gumbel-Softmax, Eric Jang et al. (2017). Reviewing the Gumbel-Softmax method provides the primary alternative categorical relaxation technique, which makes understanding the Concrete distribution's formulation and design choices much clearer.

Paper: Argmax Flows and Multinomial Diffusion: Learning Categorical Distributions, Emiel Hoogeboom et al. (2021). This paper extends categorical relaxation and continuous reparameterization ideas to richer generative architectures like flows and multinomial diffusion.

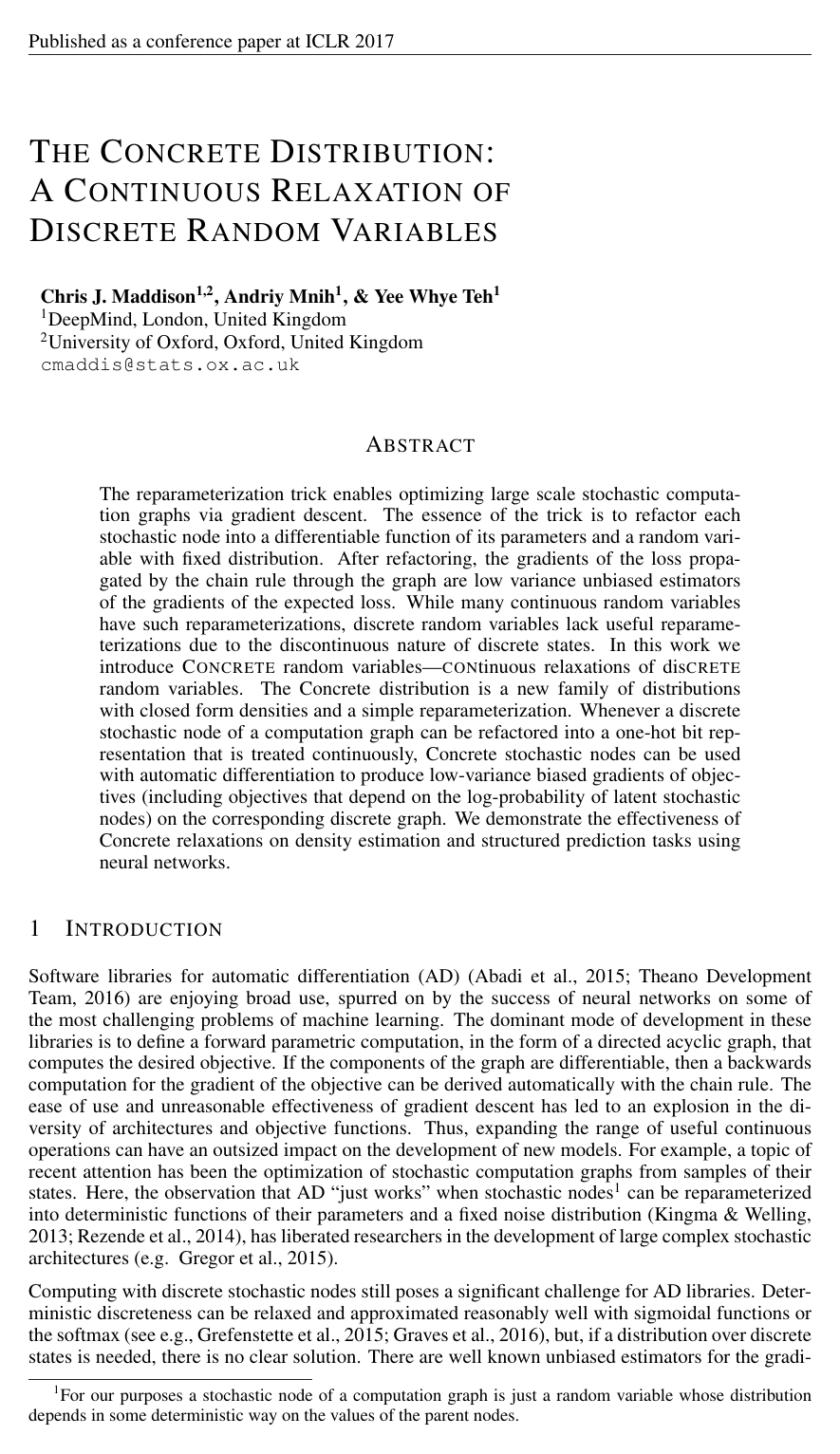

Cover for The Concrete Distribution: A Continuous Relaxation of Discrete Random Variables

Abstract

The reparameterization trick enables optimizing large scale stochastic computation graphs via gradient descent. The essence of the trick is to refactor each stochastic node into a differentiable function of its parameters and a random variable with fixed distribution. After refactoring, the gradients of the loss propagated by the chain rule through the graph are low variance unbiased estimators of the gradients of the expected loss. While many continuous random variables have such reparameterizations, discrete random variables lack useful reparameterizations due to the discontinuous nature of discrete states. In this work we introduce Concrete random variables---continuous relaxations of discrete random variables. The Concrete distribution is a new family of distributions with closed form densities and a simple reparameterization. Whenever a discrete stochastic node of a computation graph can be refactored into a one-hot bit representation that is treated continuously, Concrete stochastic nodes can be used with automatic differentiation to produce low-variance biased gradients of objectives (including objectives that depend on the log-probability of latent stochastic nodes) on the corresponding discrete graph. We demonstrate the effectiveness of Concrete relaxations on density estimation and structured prediction tasks using neural networks.

1 Introduction
2 Background
2.1 Optimizing Stochastic Computation Graphs
2.2 Score Function Estimators
2.3 Reparameterization Trick
2.4 Application: Variational Training of Latent Variable Models
3 The Concrete Distribution
3.1 Discrete Random Variables and the Gumbel-Max Trick
3.2 Concrete Random Variables
3.3 Concrete Relaxations
4 Related Work
5 Experiments
5.1 Protocol
5.2 Density Estimation
5.3 Structured Output Prediction
6 Conclusion
References
A Proof of Proposition
B The Binary Special Case
C Using Concrete Relaxations
C.1 The Basic Problem
C.2 What you might relax and why
C.3 Which random variable to treat as the stochastic node
C.3.1 nn-ary Concrete
C.3.2 Binary Concrete
C.4 Choosing the temperature
D Experimental Details
D.1 — vs ∼\sim
D.2 nn-ary layers
D.3 Bias Initialization
D.4 Centering
D.5 Hyperparameter Selection
E Extra Results
F Cheat Sheet

Knowls

Knowl 1 — Concrete Distribution and Gumbel-Softmax Reparameterization
definition
Let $\alpha = (\alpha_1, \ldots, \alpha_n) \in (0, \infty)^n$ be unnormalized location parameters and let $\lambda \in (0, \infty)$ be the temperature parameter. A continuous random vector $X = (X_1, \ldots, X_n)$ taking values on the open standard $(n-1)$ -simplex $\Delta^{n-1} = \left\{x \in (0, 1)^n \mid \sum_{k=1}^n x_k = 1\right\}$ follows a Concrete distribution, denoted $X \sim \text{Concrete}(\alpha, \lambda)$ , if its probability density function with respect to the Hausdorff measure on the simplex is:
$p_{\alpha, \lambda}(x) = (n - 1)! \, \lambda^{n-1} \prod_{k=1}^n \left( \frac{\alpha_k x_k^{-\lambda-1}}{\sum_{i=1}^n \alpha_i x_i^{-\lambda}} \right)$
A sample $X \sim \text{Concrete}(\alpha, \lambda)$ can be generated via the continuous, differentiable reparameterization:
$X_k = \frac{\exp\left((\log \alpha_k + G_k)/\lambda\right)}{\sum_{i=1}^n \exp\left((\log \alpha_i + G_i)/\lambda\right)}, \quad k \in \{1, \ldots, n\}$
where $G_1, \ldots, G_n$ are independent standard Gumbel random variables sampled via $G_k = -\log(-\log U_k)$ with $U_k \sim \text{Uniform}(0, 1)$ .
Knowl 2 — Rounding, Zero-Temperature Limit, and Log-Convexity of Concrete Random Variables
theoretical result
Let $X \sim \text{Concrete}(\alpha, \lambda)$ be an $n$ -ary Concrete random variable on the simplex $\Delta^{n-1}$ with location parameters $\alpha \in (0, \infty)^n$ and temperature $\lambda \in (0, \infty)$ . The distribution satisfies three fundamental structural properties:
1. Rounding Property: Discretizing $X$ by selecting the index of its maximal element recovers the categorical distribution parameterized by $\alpha$ :
$\mathbb{P}\left(X_k > X_i \text{ for all } i \ne k\right) = \frac{\alpha_k}{\sum_{i=1}^n \alpha_i}$
1. Zero-Temperature Limit: In the zero-temperature limit $\lambda \to 0$ , $X$ converges almost surely to a one-hot discrete random variable:
$\mathbb{P}\left(\lim_{\lambda \to 0} X_k = 1\right) = \frac{\alpha_k}{\sum_{i=1}^n \alpha_i}$
1. Log-Convexity and Mode Absence: If $\lambda \le (n - 1)^{-1}$ , the density function $p_{\alpha, \lambda}(x)$ is log-convex in $x$ . Consequently, under this temperature condition, the distribution has no local maxima in the interior of the simplex for any location parameter vector $\alpha$ .
Knowl 3 — Variational Training of Latent Variable Models via Concrete Relaxations
model/method
In a variational autoencoder with discrete latent variables $D \in \{0, 1\}^n$ (where $\sum_{k=1}^n D_k = 1$ ), prior $P_a(d)$ , likelihood $p_\theta(x \mid d)$ , and approximate posterior $Q_\alpha(d \mid x)$ , the evidence lower bound (ELBO) on $\log p(x)$ is:
$\mathcal{L}_1(\theta, a, \alpha) = \mathbb{E}_{D \sim Q_\alpha(d \mid x)} \left[ \log p_\theta(x \mid D) + \log \frac{P_a(D)}{Q_\alpha(D \mid x)} \right]$
To optimize this objective via standard automatic differentiation, the discrete posterior sampling is replaced with a Concrete relaxation $Z \sim \text{Concrete}(\alpha(x), \lambda_1)$ having density $q_{\alpha, \lambda_1}(z \mid x)$ , and the discrete prior is relaxed to a Concrete prior density $p_{a, \lambda_2}(z)$ with location $a$ and temperature $\lambda_2$ . The relaxed objective is:
$\mathcal{L}_1^{\text{relax}}(\theta, a, \alpha) = \mathbb{E}_{Z \sim q_{\alpha, \lambda_1}(z \mid x)} \left[ \log p_\theta(x \mid Z) + \log \frac{p_{a, \lambda_2}(Z)}{q_{\alpha, \lambda_1}(Z \mid x)} \right]$
This relaxed objective is a valid variational lower bound on the marginal likelihood $\log \int p_\theta(x \mid z) p_{a, \lambda_2}(z) \, dz$ of the continuous relaxed model. Gradients with respect to all parameters (including $\alpha$ ) are computed by backpropagating through the reparameterized samples $Z$ . At test time, the model is evaluated using the original discrete graph.
Knowl 4 — Binary Concrete Distribution
definition
For binary discrete states, the Concrete distribution is defined as a univariate continuous distribution over the open interval $(0, 1)$ . A random variable $X \in (0, 1)$ follows a Binary Concrete distribution, denoted $X \sim \text{BinConcrete}(\alpha, \lambda)$ with location parameter $\alpha \in (0, \infty)$ and temperature $\lambda \in (0, \infty)$ , if its density is:
$p_{\alpha,\lambda}(x) = \frac{\lambda \alpha x^{-\lambda-1}(1 - x)^{-\lambda-1}}{\left(\alpha x^{-\lambda} + (1 - x)^{-\lambda}\right)^2}$
It is reparameterized by passing perturbed logits through the logistic sigmoid function $\sigma(t) = (1 + \exp(-t))^{-1}$ :
$X = \sigma\left(\frac{\log \alpha + L}{\lambda}\right) = \frac{1}{1 + \exp\left(-\frac{\log \alpha + L}{\lambda}\right)}$
where $L \sim \text{Logistic}$ is a standard logistic random variable generated via $L = \log U - \log(1 - U)$ with $U \sim \text{Uniform}(0, 1)$ .

The Binary Concrete distribution satisfies:
- Rounding: $\mathbb{P}(X > 0.5) = \frac{\alpha}{1 + \alpha}$
- Zero-Temperature Limit: $\mathbb{P}(\lim_{\lambda \to 0} X = 1) = \frac{\alpha}{1 + \alpha}$
- Log-Convexity: For $\lambda \le 1$ , $p_{\alpha,\lambda}(x)$ is log-convex in $x$ on $(0, 1)$ .
Knowl 5 — ExpConcrete Distribution for Numerically Stable Variational Inference
model/method
To prevent numerical underflow when evaluating log-densities in variational bounds, Concrete random variables can be evaluated in log-space as ExpConcrete variables $Y \in \mathbb{R}^n$ , defined such that $X = \exp(Y) \sim \text{Concrete}(\alpha, \lambda)$ and $\text{LSE}_{k=1}^n \{Y_k\} = 0$ , where $\text{LSE}_{i=1}^n \{v_i\} = \log \sum_{i=1}^n \exp(v_i)$ .

An ExpConcrete variable $Y \sim \text{ExpConcrete}(\alpha, \lambda)$ is sampled via:
$Y_k = \frac{\log \alpha_k + G_k}{\lambda} - \text{LSE}_{i=1}^n \left\{ \frac{\log \alpha_i + G_i}{\lambda} \right\}$
where $G_k \sim \text{Gumbel}(0, 1)$ i.i.d. Its log-density $\log \kappa_{\alpha, \lambda}(y)$ on $\left\{y \in (-\infty, 0)^n \mid \text{LSE}_{k=1}^n \{y_k\} = 0\right\}$ is:
$\log \kappa_{\alpha, \lambda}(y) = \log((n - 1)!) + (n - 1) \log \lambda + \sum_{k=1}^n (\log \alpha_k - \lambda y_k) - n \cdot \text{LSE}_{k=1}^n \{\log \alpha_k - \lambda y_k\}$
Because the exponential map $Y \mapsto X$ is an invertible transformation, the Kullback-Leibler divergence between two ExpConcrete distributions is identical to the KL divergence between the corresponding Concrete distributions.
Knowl 6 — Temperature Trade-Off and Integrality Gap in Concrete Optimization
limitation
Training discrete computation graphs with Concrete relaxations involves a fundamental trade-off governed by the temperature $\lambda$ :
- Excessive Temperature ( $\lambda$ too large): The relaxation allocates significant probability mass to the interior of the simplex rather than its vertices. Latent units can exploit this continuous interior capacity to communicate substantially more than $\log_2 n$ bits of information. When the discrete graph is evaluated at test time, this causes a severe performance drop termed the integrality gap.
- Low Temperature ( $\lambda \to 0$ ): The sample distribution concentrates onto discrete states, but the softmax derivative approaches a step function, leading to vanishing or high-variance gradients.
Empirically, using distinct fixed temperatures for the variational posterior ( $\lambda_1$ ) and prior ( $\lambda_2$ ) yielded optimal performance without annealing:
- Binary ( $n=2$ ): posterior $\lambda_1 = 2/3$ , prior $\lambda_2 = 1/2$
- 4-ary ( $n=4$ ): posterior $\lambda_1 = 1$ , prior $\lambda_2 = 2/3$
- 8-ary ( $n=8$ ): posterior $\lambda_1 = 2/3$ , prior $\lambda_2 = 2/5$
While the theoretical guarantee against interior modes requires $\lambda \le (n - 1)^{-1}$ , higher temperatures are practically viable for larger $n$ because the random normalizer $\sum_{k=1}^n \exp((\log \alpha_k + G_k)/\lambda)$ grows with $n$ , naturally concentrating mass toward vertices.

Knowl 7 — Density Estimation Performance on MNIST and Omniglot

empirical result

Discrete variational autoencoders trained via Concrete relaxations were compared against score function estimators (NVIL for sample count $m=1$ , VIMCO for $m \in \{5, 50\}$ ) on binarized MNIST and Omniglot. Architectures had 1 or 2 latent stochastic layers with 200 units, using either linear ( $-$ ) or non-linear ( $\sim$ , two $\tanh$ layers) conditional mappings. Performance was evaluated using test negative log-likelihood (NLL, lower is better) on the discrete graph via $\mathcal{L}_{50000}$ :

		MNIST Test NLL		MNIST Train NLL		Omniglot Test NLL		Omniglot Train NLL
Model	$m$	Concrete	VIMCO	Concrete	VIMCO	Concrete	VIMCO	Concrete	VIMCO
(200H–784V)	1	107.3	104.4	107.5	104.2	118.7	115.7	117.0	112.2
	5	104.9	101.9	104.9	101.5	118.0	113.5	115.8	110.8
	50	104.3	98.8	104.2	98.3	118.9	113.0	115.8	110.0
(200H–200H–784V)	1	102.1	92.9	102.3	91.7	116.3	109.2	114.4	104.8
	5	99.9	91.7	100.0	90.8	116.0	107.5	113.5	103.6
	50	99.5	90.7	99.4	89.7	117.0	108.1	113.9	103.6
(200H $\sim$ 784V)	1	92.1	93.8	91.2	91.5	108.4	116.4	103.6	110.3
	5	89.5	91.4	88.1	88.6	107.5	118.2	101.4	102.3
	50	88.5	89.3	86.4	86.5	108.1	116.0	100.5	100.8
(200H $\sim$ 200H $\sim$ 784V)	1	87.9	88.4	86.5	85.8	105.9	111.7	100.2	105.7
	5	86.3	86.4	84.1	82.5	105.8	108.2	98.6	101.1
	50	85.7	85.5	83.1	81.8	106.8	113.2	97.5	95.2

VIMCO outperformed Concrete relaxations on linear generative models, whereas Concrete relaxations systematically outperformed VIMCO on non-linear models (e.g., Omniglot non-linear 1-layer test NLL of 108.1 for Concrete vs 116.0 for VIMCO at $m=50$ ).

Knowl 8 — Structured Output Prediction on MNIST with Concrete Units

empirical result

Structured prediction was evaluated by predicting the bottom half of an MNIST image ( $x_1 \in \{0, 1\}^{392}$ ) given its top half ( $x_2 \in \{0, 1\}^{392}$ ) using latent stochastic layers. Models were trained on the multi-sample objective $\mathcal{L}_m^{\text{SP}}(\theta, \phi) = \mathbb{E}_{Z_i \sim p_\phi(z \mid x_2)} \left[ \log \frac{1}{m} \sum_{i=1}^m p_\theta(x_1 \mid Z_i) \right]$ and evaluated on $\mathcal{L}_{100}^{\text{SP}}$ :

		Test NLL		Train NLL
Model	$m$	Concrete	VIMCO	Concrete	VIMCO
(392V–240H–240H–392V)	1	58.5	61.4	54.2	59.3
	5	54.3	54.5	49.2	52.7
	50	53.4	51.8	48.2	49.6
(392V–240H–240H–240H–392V)	1	56.3	59.7	51.6	58.4
	5	52.7	53.5	46.9	51.6
	50	52.0	50.2	45.9	47.9

Concrete relaxations outperformed VIMCO for $m \in \{1, 5\}$ . Furthermore, on the 3-layer architecture with $m=1$ , increasing unit arity improved performance under Concrete relaxation: 4-ary units achieved test/train NLL of 55.4 / 46.0, and 8-ary units achieved 54.7 / 44.8.

Knowl 9 — Hypercube State Mapping for Multi-Category Discrete Layers
model/method
To construct discrete neural network layers of $n$ -ary units, states are mapped to the vertices of a hypercube $\{-1, 1\}^{\log_2 n}$ . Let $C \in \{-1, 1\}^{\log_2 n \times n}$ denote the matrix whose columns enumerate the $n$ distinct corner vectors of the hypercube.
- Discrete Layer Evaluation: For a discrete categorical variable $D \sim \text{Discrete}(\alpha)$ represented as a one-hot column vector $D \in \{0, 1\}^n$ , the layer's output is $Y = C D \in \{-1, 1\}^{\log_2 n}$ .
- Concrete Continuous Relaxation: During training, $D$ is replaced by $X \sim \text{Concrete}(\alpha, \lambda)$ , yielding relaxed continuous activations $\tilde{Y} = C X \in [-1, 1]^{\log_2 n}$ .
For binary units ( $n = 2$ , $\log_2 n = 1$ ), this mapping simplifies to:
$\tilde{Y} = 2 \, \sigma\left(\frac{\log \alpha + \log U - \log(1 - U)}{\lambda}\right) - 1 \in (-1, 1)$
where $U \sim \text{Uniform}(0, 1)$ and $\sigma(t) = (1 + \exp(-t))^{-1}$ .

Coverage note — Omitted the step-by-step change-of-variables Jacobian determinant derivation of Proposition 1 and background reviews on Dirichlet and Logistic-Normal distributions, as they serve solely as intermediate steps or prior literature.
