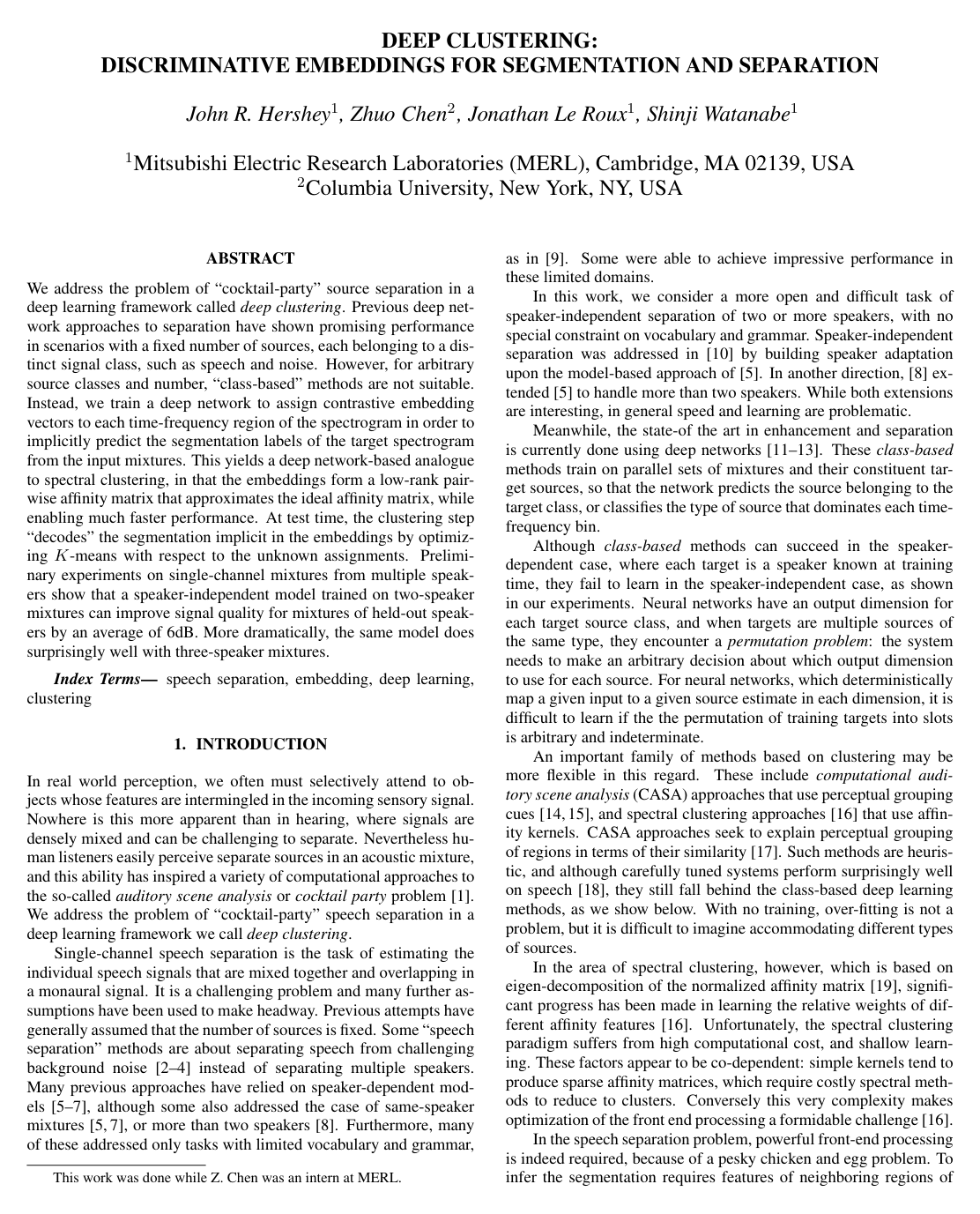

Deep clustering: Discriminative embeddings for segmentation and separation
John R. HersheyZhuo ChenJonathan Le RouxShinji Watanabe
Proposes deep clustering, a framework that trains neural networks to map spectrogram time-frequency bins into discriminative embeddings, enabling speaker-independent audio separation that successfully generalizes to unseen mixtures.
Separating overlapping voices from a single recording—known as the cocktail party problem—remains a major hurdle for voice interfaces, automated transcription, and telecommunications. Existing deep learning approaches typically rely on assigning fixed output channels to specific signal types or known speakers. When multiple speakers of the same type speak simultaneously, these conventional models struggle because they cannot reliably decide which speaker corresponds to which output channel. Furthermore, traditional spectral clustering techniques that group acoustic features are computationally intensive and perform poorly when scaling to complex mixtures.
The article demonstrates a novel framework called deep clustering for speaker-independent speech separation. The objective is to train a neural network to map the time-frequency elements of an audio mixture into an embedding space where sounds produced by the same speaker naturally cluster together, allowing simple grouping algorithms to separate voices regardless of speaker identity or total speaker count.
To evaluate this approach, the authors constructed multi-speaker datasets using speech from the Wall Street Journal audio corpus, comprising tens of hours of two- and three-speaker mixtures with varied volume balances. The system uses bidirectional recurrent neural networks to map audio spectrogram bins into low-dimensional feature vectors. During training, the objective function pulls features from the same speaker closer while pushing features from different speakers apart, all without requiring predefined speaker labels for fixed output slots. At test time, a standard grouping method, K-means clustering, partitions these feature vectors into distinct source masks to reconstruct individual speech signals.
The experiments show that deep clustering substantially outperforms prior approaches on unknown speakers. For two-speaker mixtures with unfamiliar voices, deep clustering improved the signal-to-distortion ratio by approximately 6.5 dB, whereas conventional deep learning baselines achieved only a 1.2 to 1.3 dB improvement and traditional unsupervised methods reached 3.1 dB. Even when tested against a supervised baseline granted perfect advance knowledge of speaker identities, deep clustering performed roughly 1.4 dB better. The framework also generalized well: a model trained exclusively on two-speaker audio successfully separated three-speaker mixtures, providing up to a 2.8 dB improvement for unknown speakers and reaching a 7.0 dB gain when trained on known three-speaker sets. Model performance remained consistently high across embedding sizes between 20 and 60 dimensions.
These findings indicate that deep clustering successfully solves the assignment ambiguity in single-channel audio separation, making high-quality speaker-independent separation viable for real-world speech systems. By decoupling feature extraction from speaker assignment, organizations can deploy separation models without needing prior training on specific user voices or fixed assumptions about how many individuals are talking. This significantly reduces data collection costs and mitigates performance risks in multi-speaker environments.
Moving forward, stakeholders interested in speech processing applications should consider developing pilot pipelines around the deep clustering framework. Follow-up development should explore alternative neural architectures, such as convolutional networks, expand training data to encompass diverse real-world acoustic environments, and evaluate continuous separation masks to further enhance audio fidelity.
While the results demonstrate clear progress, decision-makers should note that these findings are preliminary and derived from controlled laboratory recordings with downsampled audio. Performance may vary under conditions involving heavy background noise, reverberant spaces, or larger groups of speakers. Nonetheless, the substantial improvement over existing techniques establishes high confidence in the fundamental framework for multi-speaker separation.
- Paper: On Spectral Clustering: Analysis and an algorithm, Andrew Y. Ng et al. (2001). This paper establishes the foundational spectral clustering algorithm and Laplacian embedding theory that deep clustering directly reformulates and replaces with neural networks.
- Paper: A tutorial on spectral clustering, Ulrike von Luxburg (2007). This tutorial provides essential theoretical background on graph-partitioning and spectral affinity formulations that motivate the low-rank pairwise affinity objective in deep clustering.
- Paper: Kernel k-means: spectral clustering and normalized cuts, Inderjit S. Dhillon et al. (2004). This work formalizes the link between normalized cuts and kernel-based clustering objectives, providing foundational math for optimizing affinity-based segmentation.
- Paper: Self-Tuning Spectral Clustering, Lihi Zelnik-Manor et al. (2004). This study introduces self-tuning pairwise affinities for spectral graph partitioning, directly informing the affinity matrix structure approximated in deep clustering.
- Paper: A New Learning Algorithm for Blind Signal Separation, Shun-ichi Amari et al. (1995). This paper provides foundational concepts in blind source separation that classic acoustic separation models relied on prior to deep discriminative embeddings.
- Paper: Supervised Speech Separation Based on Deep Learning: An Overview, Deliang Wang et al. (2017). This overview reviews supervised speech separation techniques and contextualizes deep clustering within modern deep-learning-based separation frameworks.
- Paper: Conv-TasNet: Surpassing Ideal Time-Frequency Magnitude Masking for Speech Separation, Yi Luo et al. (2018). This work builds on deep speech separation principles by advancing past time-frequency spectrogram clustering to end-to-end time-domain waveform separation.
- Paper: Deep Clustering for Unsupervised Learning of Visual Features, Mathilde Caron et al. (2018). This article applies unsupervised deep clustering methodologies to end-to-end visual representation learning in computer vision.
- Paper: Unsupervised Learning of Visual Features by Contrasting Cluster Assignments, Mathilde Caron et al. (2020). This research extends deep cluster-based representation learning to self-supervised multi-view contrastive assignments.
- Paper: Provable Guarantees for Self-Supervised Deep Learning with Spectral Contrastive Loss, Jeff Z. HaoChen et al. (2021). This paper develops rigorous theoretical guarantees for deep spectral embedding objectives closely related to affinity-based deep clustering.
