Towards Best Practices of Activation Patching in Language Models: Metrics and Methods

Fred ZhangNeel Nanda

article2024ICLR345 citations

Demonstrates how arbitrary choices in corruption methods and evaluation metrics lead to conflicting activation patching results, establishing concrete best practices for reliable circuit discovery and localization in language models.

Listen

As large language models see wider deployment in critical systems, understanding their inner workings has become essential for debugging errors, preventing unwanted behavior, and ensuring safety. A foundational tool for this work is activation patching—an intervention technique designed to pinpoint which internal model components causally drive specific outputs. Despite its widespread use across the AI research community, there is no standardized protocol for how to corrupt baseline inputs or measure intervention effects. The article systematically evaluates how these implementation choices affect interpretability results, demonstrating that common practices can yield conflicting conclusions about how models operate.

The researchers conducted systematic experiments across multiple models (including GPT-2 variants and the 6-billion parameter GPT-J) and several benchmark tasks, such as factual recall, indirect object identification, Python code completion, and multi-digit arithmetic. They compared two primary methods for corrupting prompts—adding random Gaussian noise versus symmetric token replacement using natural counterfactual words—and evaluated different scoring metrics, notably output probability versus logit difference (the difference in raw model output scores between correct and incorrect answers). They also analyzed sliding window patching, which intervenes across multiple adjacent layers simultaneously.

The findings show that methodological choices substantially alter interpretability outcomes. First, Gaussian noise corruption frequently pushes the model outside its normal data distribution, disrupting internal mechanisms and producing noisy or contradictory findings; for instance, in factual recall, Gaussian noise created an apparent peak in early-to-middle layers that was two to five times higher than when using clean token replacement. Second, the probability metric fails to identify "negative" components that actively harm performance whenever corruption drives the baseline probability close to zero, whereas logit difference reliably captures both positive and negative components. Third, sliding window patching produces maximum peak effects at least 20 percent higher than summing individual layer interventions, artificially amplifying weak single-layer signals due to non-linear multi-layer interactions. Finally, the choice of which specific token positions to corrupt strongly dictates which internal circuits are detected.

These results carry direct implications for AI governance, model editing, and safety engineering. When practitioners rely on flawed interpretability hyperparameters, they risk editing the wrong model weights or drawing false conclusions about model reliability and compliance. To establish robust best practices, the article recommends using symmetric token replacement over random noise to maintain valid data distributions, adopting logit difference rather than raw probabilities as the primary evaluation metric, testing single-layer interventions before multi-layer windows, and varying the target tokens corrupted to ensure complete circuit discovery.

The findings are supported by consistent results across several diverse model architectures and reasoning tasks. However, users should note that the analysis focused on decoder-only language models up to 6 billion parameters and examined overriding corrupted activations with clean ones, rather than the reverse direction. Decision-makers should treat localization findings derived purely from Gaussian noise or multi-layer window patching with caution until validated against standardized, in-distribution methods.

University of California Berkeleyinterpretabilitylanguage modelmachine learningactivation patchinglanguage modelsMLP activations
arXiv: 2309.16042

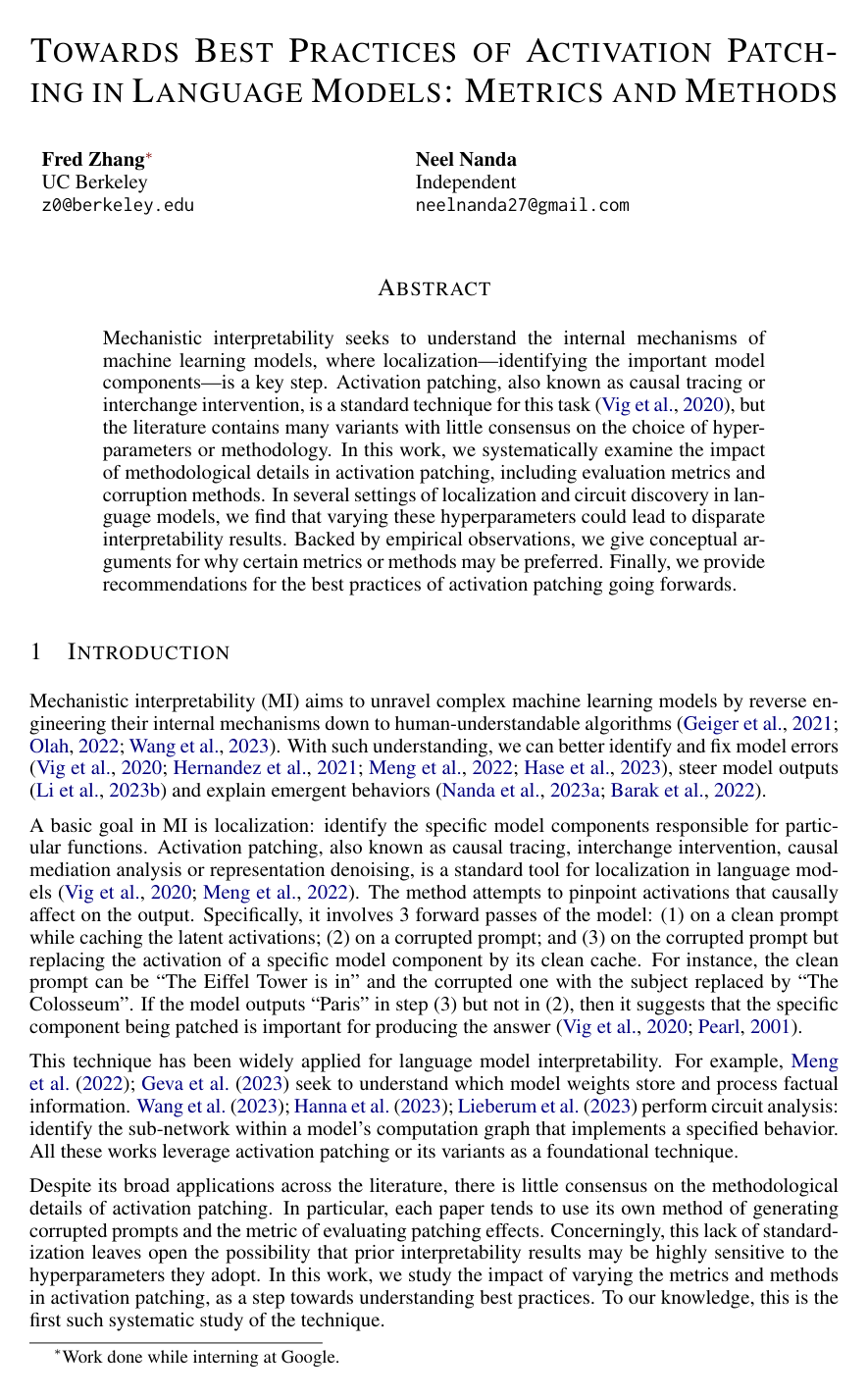

Cover for Towards Best Practices of Activation Patching in Language Models: Metrics and Methods

Abstract

Mechanistic interpretability seeks to understand the internal mechanisms of machine learning models, where localization -- identifying the important model components -- is a key step. Activation patching, also known as causal tracing or interchange intervention, is a standard technique for this task (Vig et al., 2020), but the literature contains many variants with little consensus on the choice of hyperparameters or methodology. In this work, we systematically examine the impact of methodological details in activation patching, including evaluation metrics and corruption methods. In several settings of localization and circuit discovery in language models, we find that varying these hyperparameters could lead to disparate interpretability results. Backed by empirical observations, we give conceptual arguments for why certain metrics or methods may be preferred. Finally, we provide recommendations for the best practices of activation patching going forwards.

Topics

interpretabilitylanguage modelmachine learningrecommendation

Keywords

activation patchinglanguage modelsMLP activationsattention headsfactual recall promptstoken embeddingswindow patchingsingle-layer patchingIOI sentenceslatent activations

Table of Contents

  • 1 Introduction
  • 2 Background
  • 2.1 Activation patching
  • 2.2 Problem settings
  • 3 Corruption methods
  • 3.1 Results on corruption methods
  • 3.2 Evidence for OOD behavior in Gaussian noise corruption
  • 4 Evaluation Metrics
  • 4.1 Localizing factual recall with logit difference
  • 4.2 Circuit discovery with probability
  • 5 Sliding window patching
  • 6 Discussion and recommendations
  • 7 Related work
  • 8 Conclusion
  • References
  • A Review of Transformer Architecture
  • B Details on Experimental Settings
  • C Results on arithmetic reasoning in GPT-J
  • D Results on Python docstring circuit
  • E Results on the greater-than circuit in GPT-2 small
  • F Which tokens to corrupt matters
  • G Further details on factual association
  • G.1 Plots on MLP patching at the last subject token in GPT-2 XL
  • G.2 Plots on MLP patching at all token positions in GPT-2 XL
  • G.3 Plots on sliding window patching in GPT2-XL
  • G.4 Plots on activation patching of MLP layers on GPT-2 large
  • G.5 Plots on activation patching of MLP layers in GPT-J
  • H Further details on IOI circuit discovery
  • H.1 Detailed plots on activation patching
  • H.2 Details on detections
  • H.3 Detailed plots on fully random corruption
  • I Dataset Samples

Knowls

  1. Knowl 1 — Activation Patching Procedure and Metric Formulations

    model/method

    Activation patching (also known as causal tracing or interchange intervention) localizes the causal role of internal model components across three forward passes:

    1. Clean run: The model processes a clean prompt XcleanX_{\text{clean}} with target answer rr, and the intermediate activations of candidate components (e.g., attention head outputs or MLP layers) are cached.
    2. Corrupted run: The model processes a corrupted prompt XcorruptX_{\text{corrupt}} (with answer r′r' under token replacement), recording corrupted baseline outputs.
    3. Patched run: The model processes XcorruptX_{\text{corrupt}} while replacing the activation of a specific component at chosen token positions with its cached value from the clean run.

    Let cl\text{cl}, ∗*, and pt\text{pt} denote the clean, corrupted, and patched runs, respectively. The patching effect is evaluated using one of three standard metrics:

    • Probability: Difference in target token probability: ΔP(r)=Ppt(r)−P∗(r)\Delta P(r) = P_{\text{pt}}(r) - P_{*}(r)

    • Normalized Logit Difference: Difference between target logit and counterfactual logit, normalized to [0,1][0, 1] where 11 denotes full restoration: LD(r,r′)=Logit(r)−Logit(r′)\text{LD}(r, r') = \text{Logit}(r) - \text{Logit}(r') EffectLD=LDpt(r,r′)−LD∗(r,r′)LDcl(r,r′)−LD∗(r,r′)\text{Effect}_{\text{LD}} = \frac{\text{LD}_{\text{pt}}(r, r') - \text{LD}_{*}(r, r')}{\text{LD}_{\text{cl}}(r, r') - \text{LD}_{*}(r, r')}

    • Kullback-Leibler (KL) Divergence: Reduction in divergence from the clean predictive distribution: ΔDKL=DKL(Pcl∥P∗)−DKL(Pcl∥Ppt)\Delta D_{\text{KL}} = D_{\text{KL}}(P_{\text{cl}} \parallel P_{*}) - D_{\text{KL}}(P_{\text{cl}} \parallel P_{\text{pt}})

  2. Knowl 2 — Out-of-Distribution Mechanism Disruption Under Gaussian Noise Corruption

    empirical result

    Gaussian Noising (GN) corruption—adding Gaussian noise N(0,ν)\mathcal{N}(0, \nu) with ν=3σemb\nu = 3\sigma_{\text{emb}} to token embeddings—drives transformer hidden states out-of-distribution (OOD) and disrupts downstream circuit mechanisms in GPT-2 small on Indirect Object Identification (IOI):

    1. Disruption of Attention Routing: In clean IOI runs, Name Mover (NM) heads at the final token assign an average attention probability of 0.580.58 to the indirect object (IO) token. Under Symmetric Token Replacement (STR), which swaps the second subject (S2) with IO, the attention pattern cleanly switches to attend to the subject (S1S1). Under GN corruption, NM attention degrades into an unnatural split between IO (0.260.26) and S1S1 (0.210.21).
    2. Failure of Upstream Value Restoration: Patching the clean value activations of S-Inhibition heads into the corrupted run restores the model's IO logit difference to 1.041.04 under STR, but recovers only 0.490.49 under GN because corrupted signals continue to distort NM behavior along unpatched paths.
    3. Spurious Negative Head Detections: Under GN, Duplicate Token head 0.100.10 is detected as negatively contributing to model performance under Probability and KL divergence metrics (and negatively under Logit Difference). Under STR, head 0.100.10 is correctly identified as contributing positively.

  3. Knowl 3 — Failure Mode of Probability Metric for Negative Circuit Components

    empirical result

    Evaluating activation patching with the probability metric ΔP(r)=Ppt(r)−P∗(r)\Delta P(r) = P_{\text{pt}}(r) - P_{*}(r) systematically fails to detect negative model components (components whose normal operation reduces the probability of the correct output) whenever prompt corruption drives the corrupted baseline probability P∗(r)P_{*}(r) close to zero.

    Because probability is bounded below by 00, the maximum possible negative patching effect is strictly lower-bounded by −P∗(r)-P_{*}(r):

    ΔP(r)≥−P∗(r)\Delta P(r) \ge -P_{*}(r)

    In GPT-2 small on Indirect Object Identification (IOI):

    • Under STR corruption, P∗(IO)=0.03P_{*}(\text{IO}) = 0.03. For a detection threshold of 22 standard deviations below the mean (threshold −0.027-0.027 with mean 0.0030.003 and SD=0.015\text{SD} = 0.015), Negative Name Mover head 11.1011.10 achieves an effect of −0.022-0.022 and is missed.
    • Under random 3-name replacement (pABCp_{\text{ABC}} corruption), P∗(IO)≈5×10−4P_{*}(\text{IO}) \approx 5 \times 10^{-4}. As a result, probability patching fails to detect both Negative Name Mover heads (10.710.7 and 11.1011.10).

    In contrast, normalized logit difference has no bounded floor at −P∗(r)-P_*(r) and successfully detects both negative heads across all corruption regimes.

  4. Knowl 4 — Disparity in MLP Factual Recall Localization Between GN and STR

    empirical result

    In GPT-2 XL and GPT-2 large on factual recall (evaluated on the PAIREDFACTS dataset containing 145 paired counterfactual prompts), localizing MLP layer computation at the subject's final token produces contrasting results depending on the corruption method:

    • Under Gaussian Noising (GN), a pronounced localization peak appears in early-middle MLP layers (centered around layer 16 in GPT-2 XL), reproducing prior causal tracing findings.
    • Under Symmetric Token Replacement (STR), which replaces subject entities with semantically similar in-distribution entities of equal sequence length, the early-middle layer peak is substantially weaker or absent.

    Across multiple sliding window sizes (33, 55, and 1010), the peak patching effect under GN is 2×2\times to 5×5\times larger than under STR for both probability and logit difference metrics, showing that early-middle MLP factual storage localization in causal tracing is heavily influenced by the choice of noise corruption.

  5. Knowl 5 — Sliding Window Patching Amplifies Apparent Localization Relative to Single-Layer Patching

    empirical result

    Sliding window patching—restoring the activations of kk adjacent MLP layers simultaneously—produces substantially larger localization peaks than summing the effects of patching each layer individually across that same window.

    In GPT-2 XL on factual recall using Gaussian Noising (GN) and probability evaluation, sliding window patching yields peak values that exceed the sum of individual layer patchings by:

    • 1.40×1.40\times for window size k=3k = 3
    • 1.75×1.75\times for window size k=5k = 5
    • 1.59×1.59\times for window size k=10k = 10

    Across combinations of corruption methods, metrics, and window sizes, sliding window patching generates at least 20%20\% more peak effect than linear summation. Patching individual MLP layers in isolation reveals minimal or no middle-layer peak (e.g., at layer 15 in GPT-2 XL). The sharp concentration in multi-layer patching is an emergent consequence of joint non-linear restoration across layers—such as simultaneously suppressing corrupted information flow across the full window—rather than localization within a single layer.

  6. Knowl 6 — Discrepancy in Token-Position Attribution Between Probability and Logit Difference

    empirical result

    In GPT-2 XL and GPT-J on factual association, the choice of evaluation metric alters the relative importance assigned to different token positions. The probability metric concentrates significantly more causal attribution onto the last subject token than normalized logit difference does.

    Measuring the ratio of the summed layer patching effects at the last subject token to the summed layer patching effects across middle subject tokens (using a sliding window of size 5 in GPT-2 XL):

    • Under STR corruption: Probability yields a ratio of 4.33×4.33\times, whereas Logit Difference yields 1.22×1.22\times.
    • Under GN corruption: Probability yields a ratio of 1.74×1.74\times, whereas Logit Difference yields 0.77×0.77\times.

    Probability highlights the last subject token as the primary computational hub, whereas logit difference reveals that preceding subject tokens contribute comparable causal influence to output generation.

  7. Knowl 7 — IOI Circuit Attention Head Detections Across Activation Patching Configurations

    data/table

    In GPT-2 small on the Indirect Object Identification (IOI) task, attention head outputs were patched individually while corrupting the second subject token (S2S2). Detections were defined as heads whose patching effect fell at least 22 standard deviations from the mean effect across all heads.

    Corruption Metric NM DT SI Negative NM Induction
    STR Probability 1/3 0/2 3/4 1/2 1/2
    GN Probability 0/3 1/2 2/4 2/2 1/2
    STR Logit difference 1/3 0/2 3/4 2/2 1/2
    GN Logit difference 1/3 1/2 3/4 2/2 1/2
    STR KL divergence 1/3 0/2 3/4 2/2 1/2
    GN KL divergence 0/3 0/2 2/4 2/2 1/2

    Across head classes:

    • Name Mover (NM) (heads 9.6, 9.9, 10.0): S2 corruption misses at least 2 out of 3 NM heads across all settings.
    • Duplicate Token (DT) (heads 0.1, 0.10): Under GN, head 0.10 is incorrectly flagged as a negative head under Probability and KL divergence.
    • S-Inhibition (SI) (heads 7.9, 8.6, 8.10, 9.9): STR consistently recovers 3 out of 4 SI heads across metrics, while GN recovers only 2 out of 4 under Probability and KL.
    • Negative NM (heads 10.7, 11.10): STR Probability misses head 11.10 due to probability bounding.

  8. Knowl 8 — Circuit Discovery Sensitivity to the Choice of Corrupted Prompt Tokens

    empirical result

    In GPT-2 small on Indirect Object Identification (IOI), the specific tokens selected for corruption determine which sub-circuits activation patching uncovers:

    1. Corrupting S2: Replacing S2 with IO (in STR) or adding noise to S2 (in GN) isolates duplicate detection and name suppression mechanisms, successfully identifying S-Inhibition heads (7.9,8.6,8.107.9, 8.6, 8.10) but failing to detect Name Mover heads 9.69.6 and 10.010.0.
    2. Corrupting S1 and IO: Replacing both S1S1 and IO with random names (in STR) or adding noise to their embeddings (in GN) shifts the intervention to the name extraction and writing pipeline. This configuration discovers all three Name Mover heads (9.6,9.9,10.09.6, 9.9, 10.0) and both Negative Name Mover heads (10.7,11.1010.7, 11.10), but completely misses the S-Inhibition heads.

    Corrupting different tokens forces activation patching to trace distinct computational pathways in the model's graph.

  9. Knowl 9 — Artifacts of Relative Difference Metrics in Arithmetic Reasoning

    empirical result

    In GPT-J (6B) on 2-shot arithmetic prompts (X1+Y1=Z1,X2+Y2=Z2,X3+Y3=X_1 + Y_1 = Z_1, X_2 + Y_2 = Z_2, X_3 + Y_3 =), patching single MLP layers at the last token position using the relative change metric:

    Effect=12[Ppt(r)−P∗(r)P∗(r)+P∗(r′)−Ppt(r′)Ppt(r′)]\text{Effect} = \frac{1}{2} \left[ \frac{P_{\text{pt}}(r) - P_{*}(r)}{P_{*}(r)} + \frac{P_{*}(r') - P_{\text{pt}}(r')}{P_{\text{pt}}(r')} \right]

    produces an artificially exaggerated localization peak under Symmetric Token Replacement (STR) where values reach into the thousands. This occurs because STR replaces integer operands with random integers, making the baseline probability of the clean answer in the corrupted run P∗(r)P_*(r) negligible. The tiny denominator P∗(r)P_*(r) inflates small absolute probability shifts into large multipliers.

    When evaluated with standard probability or logit difference:

    • For addition and subtraction, STR still yields up to 4×4\times sharper concentration than Gaussian Noising (GN).
    • For multiplication, STR and GN produce nearly identical localization curves.

  10. Knowl 10 — Methodological Recommendations for Activation Patching in Language Models

    model/method

    Based on empirical comparisons across factual recall, arithmetic, indirect object identification, docstring completion, and greater-than tasks, activation patching should follow four methodological practices:

    1. Corruption Method: Prefer Symmetric Token Replacement (STR) over Gaussian Noising (GN). STR generates counterfactual prompts that remain within the training distribution, preventing out-of-distribution internal breakdowns and spurious head detections. GN should only be used when token length alignment or lack of valid semantic substitutes precludes STR.
    2. Evaluation Metric: Prefer Normalized Logit Difference (LD(r,r′)=Logit(r)−Logit(r′)\text{LD}(r, r') = \text{Logit}(r) - \text{Logit}(r')) over output Probability. Logit difference successfully identifies negative components and controls for modules that non-specifically boost broad token classes (e.g., all names).
    3. Layer Granularity: Evaluate single-layer interventions before applying multi-layer sliding window patching. Multi-layer patching captures joint non-linear interactions across layers that inflate peak magnitudes.
    4. Multi-Token Corruption: Systematically vary which prompt tokens are corrupted when tasks contain multiple informative tokens, as different corrupted tokens reveal complementary sub-circuits.

Coverage note — Specific per-head localization heatmaps for Python docstring completion and the greater-than task were omitted as separate knowls because their core findings (GN noisiness vs STR localization and sensitivity to metrics) are fully covered within the broader knowls.
